Model Whirlpool GW397LXUT07 30`` GAS SLIDE-IN – Common Parts & Diagrams
04 - DOOR PARTS
06 - OPTIONAL PARTS (NOT INCLUDED)

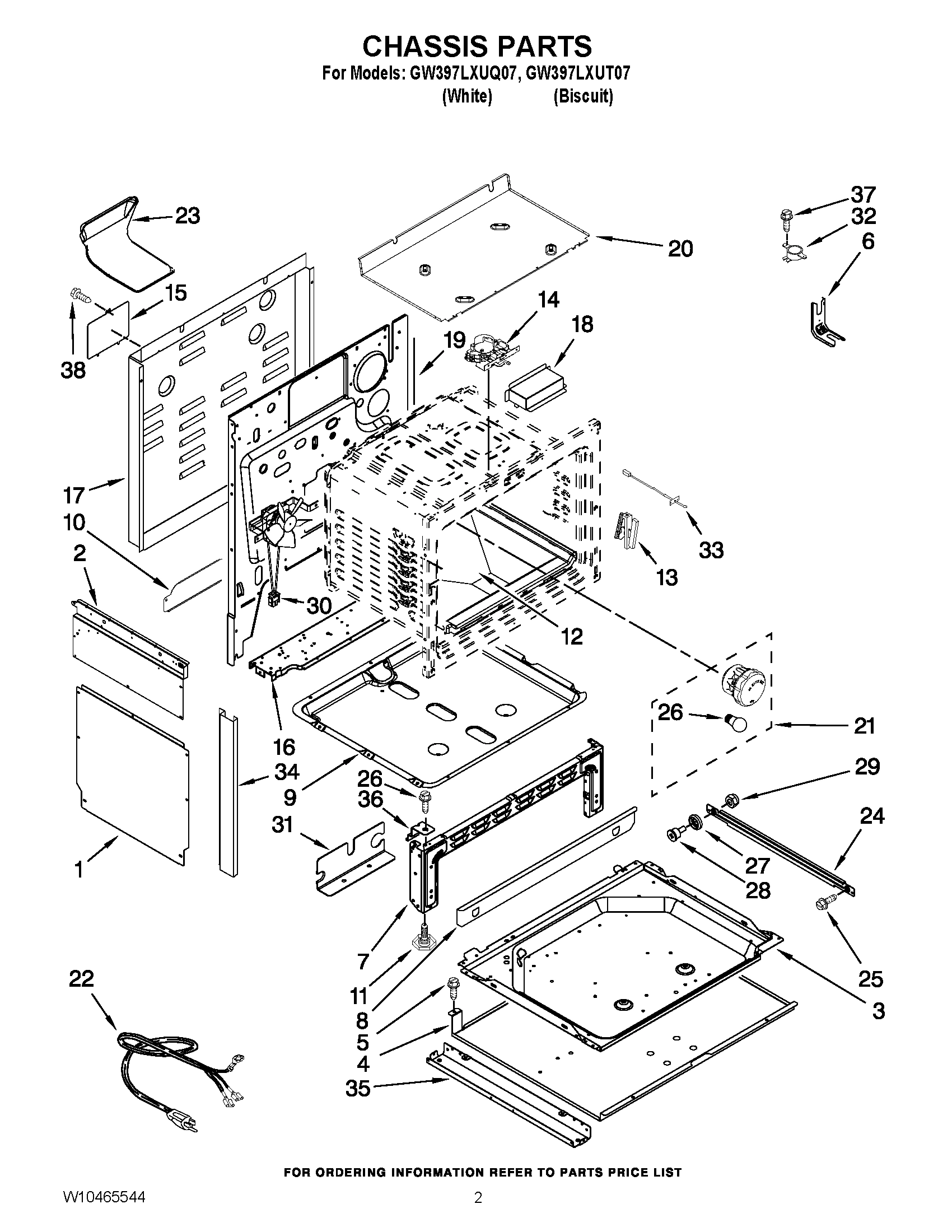

02 - CHASSIS PARTS

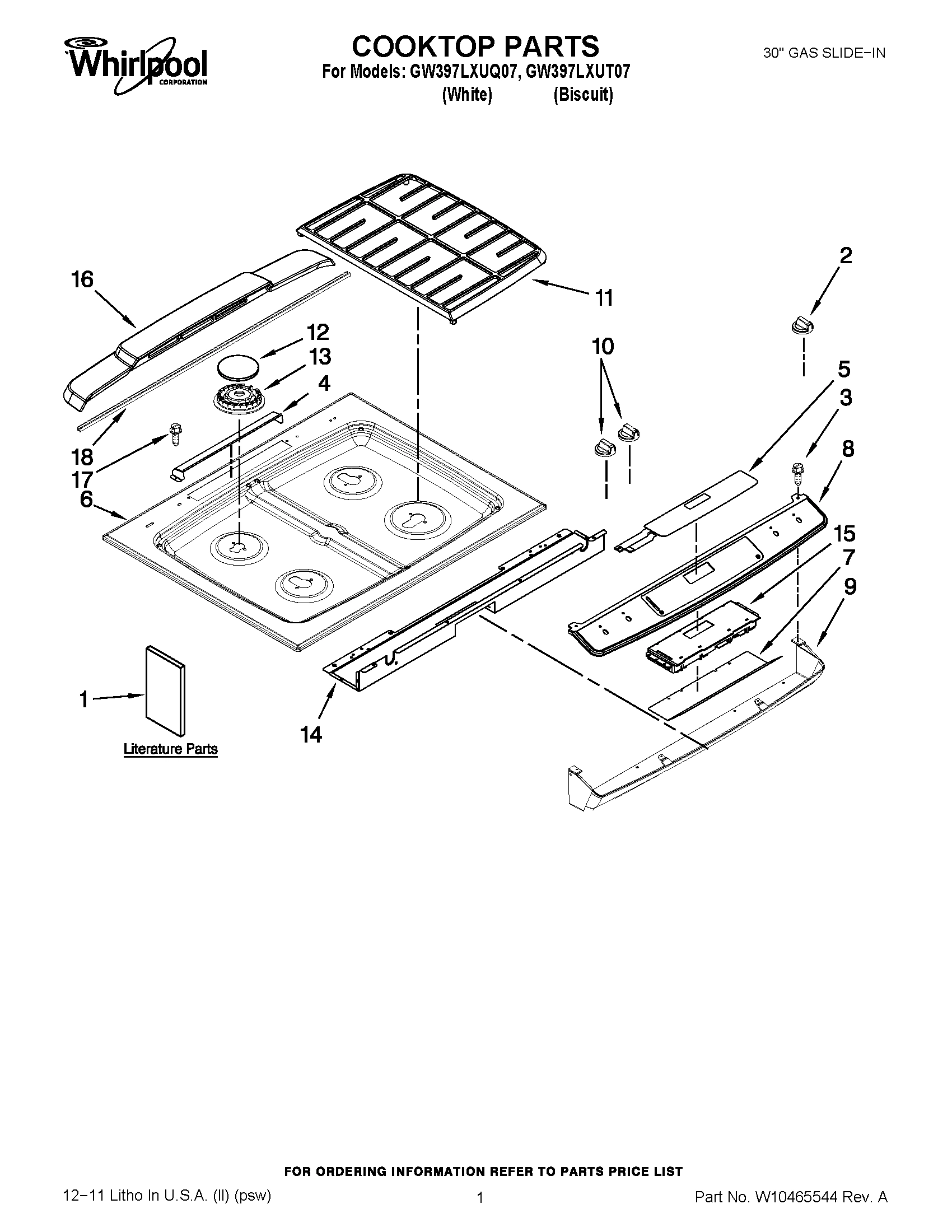

01 - COOKTOP PARTS

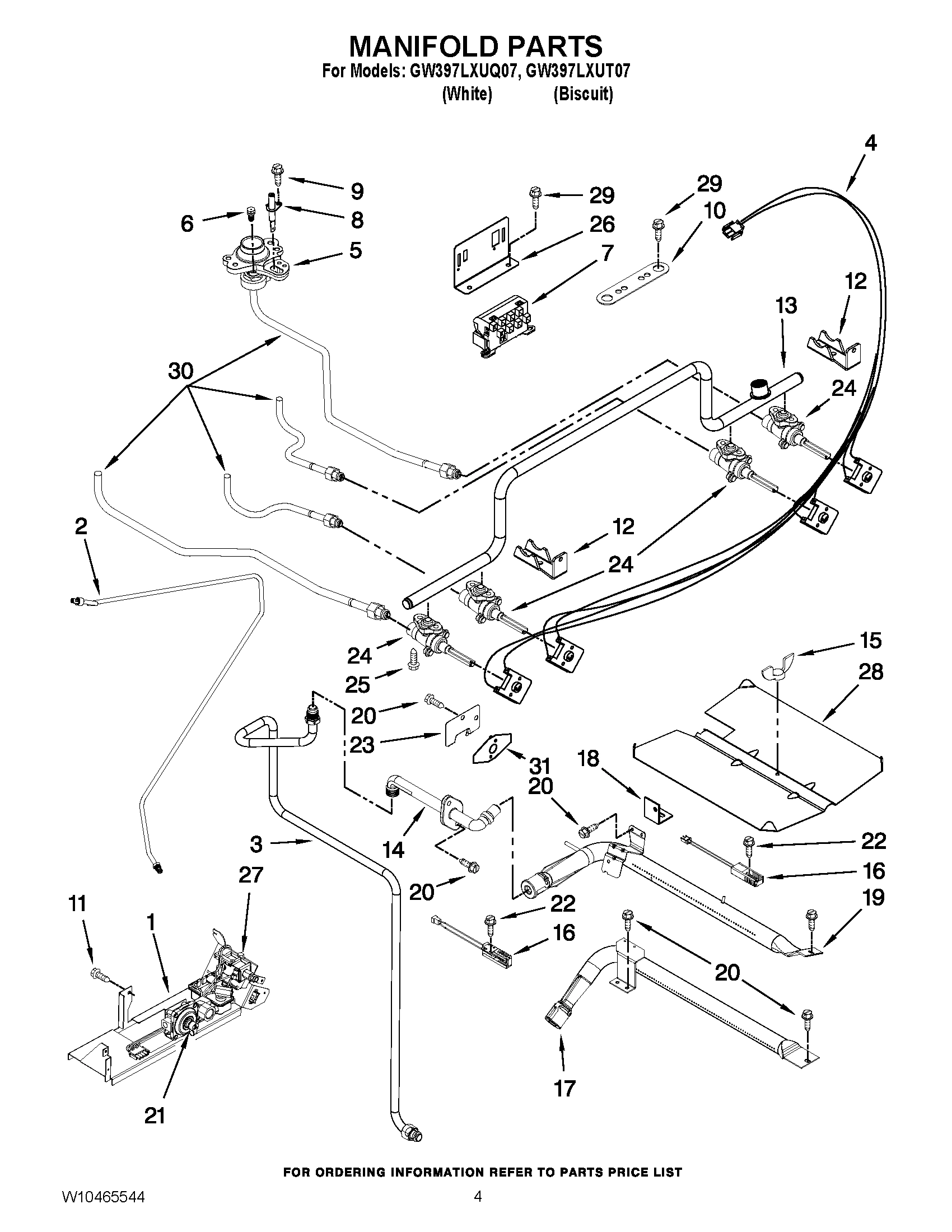

03 - MANIFOLD PARTS

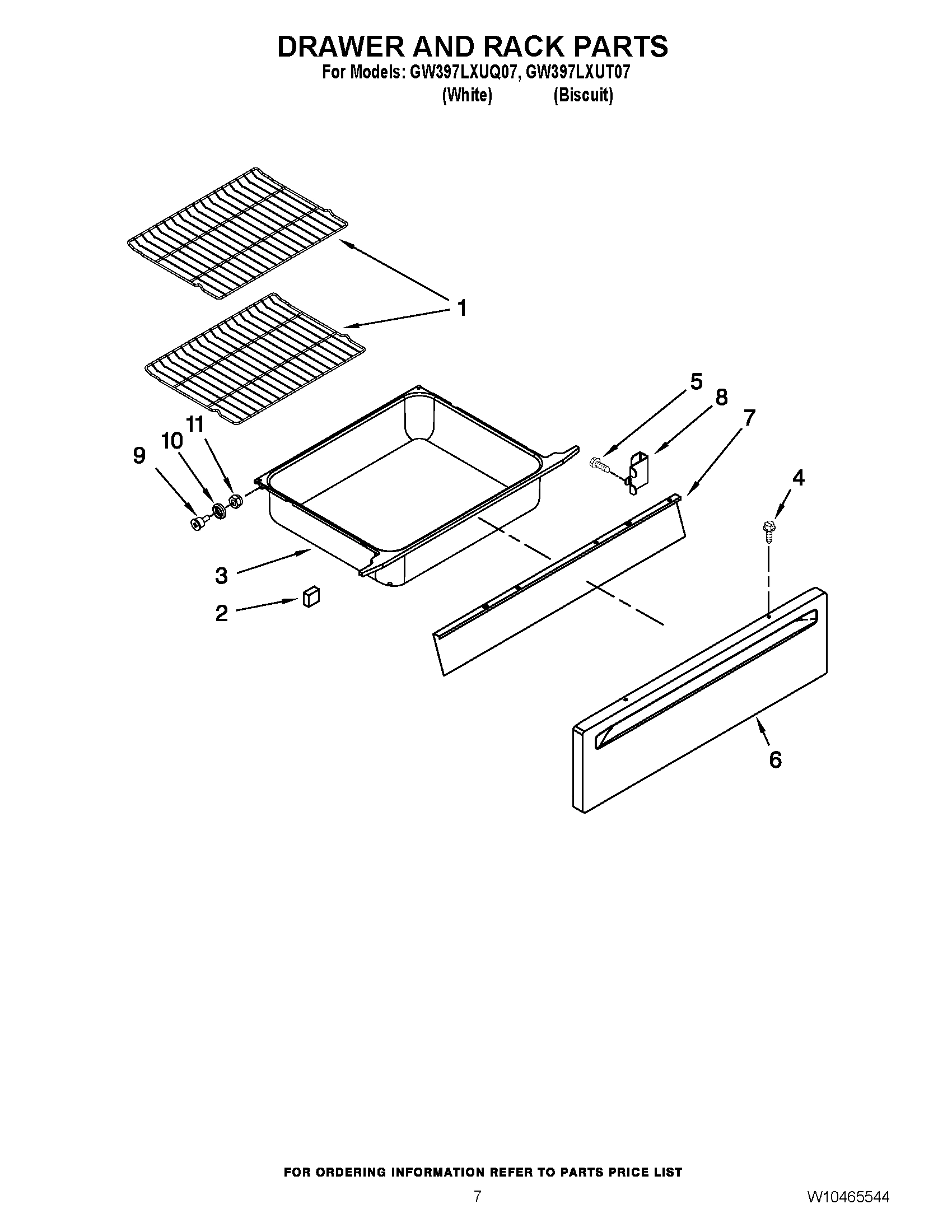

05 - DRAWER AND RACK PARTS
Common parts from model Whirlpool GW397LXUT07 30`` GAS SLIDE-IN
1
Shield, Lower Side WPL 3604F41651 Contact Us For Availability
1
Owners Manual WPL 8113P67960 Contact Us For Availability
1
Installation Instructions WPL 8113P68160 Contact Us For Availability
1
BROCHURE, SAFE COOKING TIPS (ENGLISH) WPL 9762761 Contact Us For Availability
1
BROCHURE, SAFE COOKING TIPS (FRENCH) WPL W10065852 Contact Us For Availability
1
DIAGRAM, WIRING (ENGLISH) WPL W10394682 Contact Us For Availability
1
DIAGRAM, WIRING (FRENCH) WPL W10441603 Contact Us For Availability
1
COVER, BNR VALVE WPL W10271712 Contact Us For Availability
1
RACK, OVEN WPL 7801P17360 Contact Us For Availability
2
Panel, Shield (Left) WPL 2618F20151 Contact Us For Availability
2
Panel, Shield (Right) WPL 2618F20651 Contact Us For Availability
2
KNOB, ACCUSIMMER (WHITE) WPL 7733P53360 Contact Us For Availability
2
Knob, AccuSimmer (Biscuit) WPL 7733P53460 Contact Us For Availability
2
Tubing, Gas Supply WPL 7506P53560 Contact Us For Availability
2
Spacer, Rubber WPL 8010P13060 Contact Us For Availability
3
Retainer, Bottom WPL 3804F24551 Contact Us For Availability
3
Screw WPL 7101P50160 Contact Us For Availability
3
Tube, Broil WPL 7506P53660 Contact Us For Availability
3
Drawer, Service WPL 3405F03380 Contact Us For Availability
4
Shield, Drawer WPL 3604F32645 Contact Us For Availability
4
Baffle, Vent Cover WPL 3601F22145 Contact Us For Availability
4
Harness, Valve Includes Switches WPL 7450P12860 Contact Us For Availability
4
Screw, Panel (White) WPL 7101P63660 Contact Us For Availability
4
Screw, Panel (Biscuit) WPL 7101P63760 Contact Us For Availability
5
NAMEPLATE WPL W10175320 Contact Us For Availability
5
Orifice, Holder (9.2K (2) LF,RR) WPL 7527P08360 Contact Us For Availability
5
Orifice, Holder (5K (1) LR) WPL 7527P08460 Contact Us For Availability
5
Screw WPL 7101P37660 Contact Us For Availability
6
BRACKET, ANTI TIP WPL 3801F65651 Contact Us For Availability
6
COOKTOP (WHITE) WPL W10204419 Contact Us For Availability
6
COOKTOP (BISCUIT) WPL W10204420 Contact Us For Availability
6
ORIFICE (5K LR) WPL 7509P12060 Contact Us For Availability
6
ORIFICE (9.2K LF,RR) WPL 7509P12260 Contact Us For Availability
6
ORIFICE (14K RF) WPL 7509P12460 Contact Us For Availability
6
PANEL,DRAWER FRONT (WHITE) WPL 2416F05971 Contact Us For Availability
6
PANEL,DRAWER FRONT (BISCUIT) WPL 2416F05978 Contact Us For Availability
7
Shield, Control WPL W10166279 Contact Us For Availability
7
Spark Module WPL 7431P06460 Contact Us For Availability
7
Lining, Drawer WPL 2404F03051 Contact Us For Availability
8
Baffle, Oven Front WPL 3601F25145 Contact Us For Availability
8
PANEL, CNTL SHIELD (WHITE) WPL 7720P53260 Contact Us For Availability
8
Panel, Cntl Shield (Biscuit) WPL 7720P53360 Contact Us For Availability
8
Bracket, Drawer WPL 3801F88751 Contact Us For Availability
9
PANEL, CNTL (LWR) (WHITE) WPL W10185607 Contact Us For Availability
9
Pan, Burner WPL 3401F04445 Contact Us For Availability
9
Shaft, Roller WPL 7118P03260 Contact Us For Availability
9
Panel, Cntl (LWR) (Biscuit) WPL W10185609 Contact Us For Availability
10
ROLLER, DRAWER WPL W10272883 Contact Us For Availability
10
Extension, Back WPL 3826F06651 Contact Us For Availability
10
KNOB, VALVE (WHITE) WPL 7733P52760 Contact Us For Availability
10
KNOB, VALVE (BISCUIT) WPL 7733P52860 Contact Us For Availability
10
RETAINER, BASE WPL W10160530 Contact Us For Availability
11
Screw WPL 7101P02760 Contact Us For Availability
11
FOOT, LEVELER WPL 7101P66060 Contact Us For Availability
11
GRATE, BURNER WPL 7518P48660 Contact Us For Availability
11
Nut, Lock WPL 7103P08260 Contact Us For Availability
12
Bottom, Oven WPL 2205F05419 Contact Us For Availability
12
BRACKET, MANIFOLD MOUNTING WPL W10160655 Contact Us For Availability
13
HINGE WPL 7106P14160 Contact Us For Availability
13
Pipe, Manifold WPL 7513P53660 Contact Us For Availability
14
Support, Cntrl Pnl WPL 3807F76951 Contact Us For Availability
14
Fitting, Broil WPL 7507P40760 Contact Us For Availability
15
Panel, Access WPL 4005F61251 Contact Us For Availability
15
Control, (ERC) WPL 8507P38960 Contact Us For Availability
15
Nut, Wing WPL 7103P03060 Contact Us For Availability
16
SUPPORT, VALVE/REG WPL 3807F64051 Contact Us For Availability
16
Cover, Vent WPL 7724P20260 Contact Us For Availability
16
Ignitor (Bake/Broil) WPL 7432P10660 Contact Us For Availability
17
TRIM, DOOR SIDE (LEFT (BISCUIT)) WPL 3608F11778 Contact Us For Availability
17
COVER, WIRE REAR WPL 4005F81051 Contact Us For Availability
17
Screw WPL 7101P63460 Contact Us For Availability
17
Burner, Bake WPL 7505P25460 Contact Us For Availability
18
SPACER, RUBBER (1/8 X 1/2 X 1/2) WPL 8010P15260 Contact Us For Availability
18
Cover, Door Lock WPL 4005F75051 Contact Us For Availability
18
GASKET WPL 7201P14360 Contact Us For Availability
18
Support, Bake Bnr WPL 3807F48045 Contact Us For Availability
19
Bracket, Glass WPL 3801F88651 Contact Us For Availability
19
Back, Main Gas WPL 3804F31351 Contact Us For Availability
19
Burner, Broil WPL 7505P29360 Contact Us For Availability
20
BOTTOM, BURNER BOX WPL 4011F52851 Contact Us For Availability
20
Screw WPL 7101P43460 Contact Us For Availability
21
Light Assembly WPL 7407P18260 Contact Us For Availability
21
Valve/Regulator WPL 7510P07960 Contact Us For Availability
22
Cord, Power WPL 7402P08660 Contact Us For Availability
22
Screw WPL 7101P28260 Contact Us For Availability
23
Box, Assy Vent WPL 8026P09560 Contact Us For Availability
23
COVER, IGNITOR WIRE WPL 4005F42145 Contact Us For Availability
24
VALVE, BURNER (LF, RF, RR) WPL 7502P56660 Contact Us For Availability
25
SCREW WPL W10182835 Contact Us For Availability
25
SUPPORT, SCREW WPL 7101P33860 Contact Us For Availability
26
BULB-OVEN WPL 7407P10360 Contact Us For Availability
26
Support, Spark Mod WPL 3807F75245 Contact Us For Availability
27
Valve, Safety WPL 7501P23260 Contact Us For Availability
28
Baffle (Bake) WPL 3601F23945 Contact Us For Availability
28
Baffle (Broil) WPL 3601F30745 Contact Us For Availability
29
SCREW WPL 7101P42660 Contact Us For Availability
29
Nut, Lock WPL 7103P19060 Contact Us For Availability
30
Tube, Burner (RF) WPL 7506P52160 Contact Us For Availability
30
Tube, Burner (LF) WPL 7506P52260 Contact Us For Availability
30
Tube, Burner (RR) WPL 7506P52360 Contact Us For Availability
30
Tube, Burner (LR) WPL 7506P52460 Contact Us For Availability
31
BRACKET,PWR SUPPLY WPL 3801F95151 Contact Us For Availability
31
PLATE, BROILER FITTING WPL 3605F26945 Contact Us For Availability
32
Switch, Limit WPL 7450P03060 Contact Us For Availability
33
Sensor, Short WPL 7430P04160 Contact Us For Availability
34
TRIM, SIDE (WHITE) WPL 3608F13871 Contact Us For Availability
34
TRIM, SIDE (BISCUIT) WPL 3608F13878 Contact Us For Availability
35
Pedestal, Bottom WPL 4020W03580 Contact Us For Availability
36
SUPPORT, OVEN BOTTOM WPL 3807F72745 Contact Us For Availability
37
SCREW WPL 7101P34660 Contact Us For Availability
38
Screw WPL 7101P33660 Contact Us For Availability
NI
Foil, Aluminium Oven (18`` X 25``) WPL 241430 Contact Us For Availability
NI
Spuds, LP Gas WPL W10168551 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (BISCUIT (UNCUT)) WPL 4392900 Contact Us For Availability
NI
HARNESS, MAIN WPL W10394659 Contact Us For Availability
NI
HARNESS,SENSOR WPL W10394790 Contact Us For Availability
NI
INSULATION, BOTTOM PLATE WPL 7002P07860 Contact Us For Availability
NI
Insulation, Lower Side WPL 7002P44360 Contact Us For Availability
NI
Insulation, Back WPL 7002P44560 Contact Us For Availability
NI
Insulation, Wrap WPL 7002P47160 Contact Us For Availability
× ![]()
