Model Whirlpool GW397LXUB06 30`` GAS SLIDE-IN – Common Parts & Diagrams

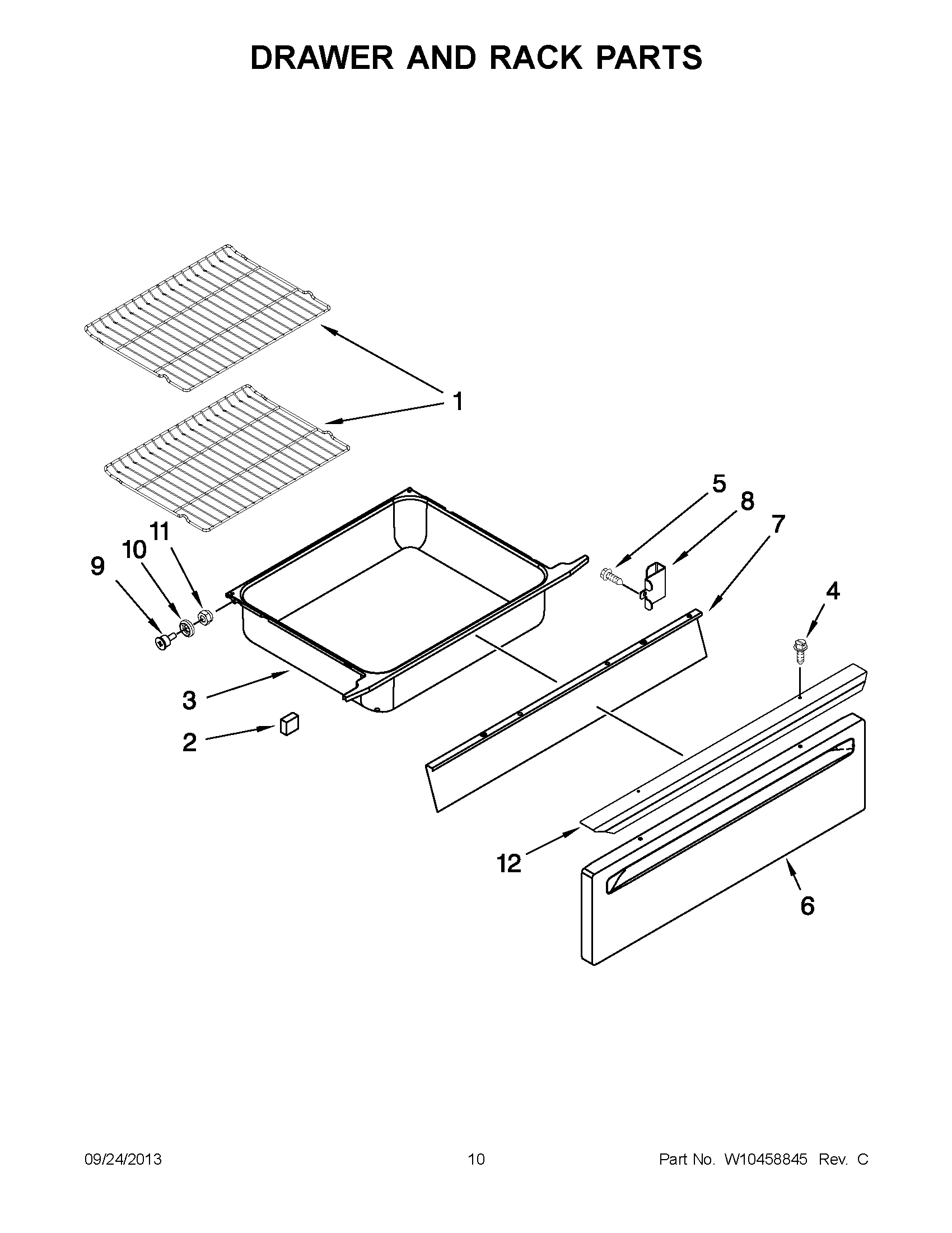

06 - DRAWER AND RACK PARTS

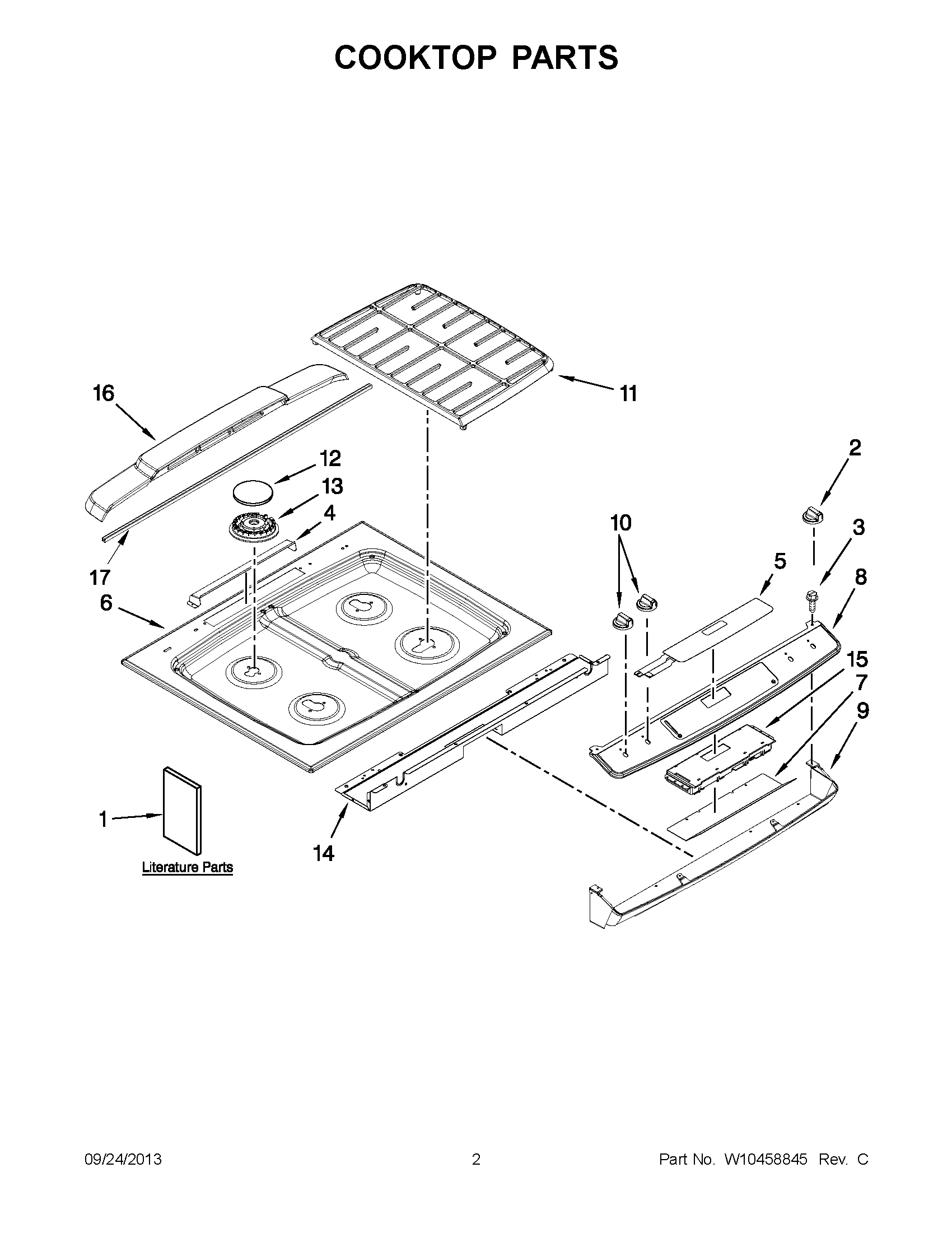

02 - COOKTOP PARTS
04 - MANIFOLD PARTS
01 - COVER SHEET
03 - CHASSIS PARTS
05 - DOOR PARTS
07 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Whirlpool GW397LXUB06 30`` GAS SLIDE-IN
1
SHIELD, LOWER WPL 3604F41651 Contact Us For Availability
1
Trim, Door Top (Black) WPL 3608F14170 Contact Us For Availability
2
Panel, Shield (Left) WPL 2618F20151 Contact Us For Availability
2
Panel, Shield (Right) WPL 2618F20651 Contact Us For Availability
2
Bracket, Handle (Right) WPL 3801F83145 Contact Us For Availability
2
Bracket, Handle (Left) WPL 3801F83245 Contact Us For Availability
3
RETAINER, INSULATION WPL 3804F24551 Contact Us For Availability
3
Screw WPL 7101P37660 Contact Us For Availability
4
SHIELD, WARMING DRAWER WPL 3604F32645 Contact Us For Availability
5
NAMEPLATE (GREY) WPL W10175320 Contact Us For Availability
5
HOLDER, ORIFICE (9.2K) (LEFT FRONT & RIGHT RE WPL 7527P08360 Contact Us For Availability
5
HOLDER, ORIFICE (5K) (LEFT REAR) WPL 7527P08460 Contact Us For Availability
6
PANEL, DRAWER FRONT (STAINLESS) WPL W10253205 Contact Us For Availability
6
ORIFICE (LEFT REAR) WPL 7509P12060 Contact Us For Availability
6
ORIFICE (LEFT FRONT & RIGHT REAR) WPL 7509P12260 Contact Us For Availability
6
ORIFICE (RIGHT FRONT) WPL 7509P12460 Contact Us For Availability
6
BRACKET, ANTI TIP WPL 3801F65651 Contact Us For Availability
6
Lining, Door WPL 2402W31219 Contact Us For Availability
7
NUT, SNAP (BLACK) WPL 7103P14160 Contact Us For Availability
8
PANEL, CONTROL SHIELD (STAINLESS) WPL W10279069 Contact Us For Availability
8
SCREW (BLACK) WPL 7101P63360 Contact Us For Availability
8
Baffle, Oven Front WPL 3601F25145 Contact Us For Availability
9
ROLLER, DRAWER WPL W10272883 Contact Us For Availability
9
PANEL, CONTROL (LOWER) (BLACK) WPL W10185606 Contact Us For Availability
9
RETAINER, BASE WPL W10160530 Contact Us For Availability
9
Pan, Burner WPL 3401F04445 Contact Us For Availability
9
INSULATION, OVEN DOOR WPL 7002P24660 Contact Us For Availability
10
Screw WPL 7101P28260 Contact Us For Availability
10
EXTENSION, MAIN BACK WPL 3826F06651 Contact Us For Availability
10
Spacer, Rubber WPL 8010P13060 Contact Us For Availability
11
BRACKET, MANIFOLD WPL W10160655 Contact Us For Availability
11
Leg, Leveling WPL 7101P66060 Contact Us For Availability
12
HANDLE, DRAWER (STAINLESS) WPL W10180296 Contact Us For Availability
12
Pipe, Manifold WPL 7513P53660 Contact Us For Availability
12
Bottom, Oven WPL 2205F05419 Contact Us For Availability
12
BAFFLE, OVEN DOOR WINDOW WPL 3601F37351 Contact Us For Availability
13
FITTING, BROILER WPL 7507P40760 Contact Us For Availability
13
HINGE, DOOR WPL 7106P14160 Contact Us For Availability
13
SCREW WPL 7101P42660 Contact Us For Availability
14
WING NUT WPL 7103P03060 Contact Us For Availability
14
GLASS, INNER WPL 7902P43660 Contact Us For Availability
15
SCREW WPL 7101P37560 Contact Us For Availability
15
GLASS (INCLUDES GLASS, TAPE AND LOGO) (BLACK) WPL 7902P81560 Contact Us For Availability
16
Burner, Bake WPL 7505P25460 Contact Us For Availability
16
SUPPORT, REGULATOR VALVE WPL 3807F64051 Contact Us For Availability
16
Trim, Door Bottom (Black) WPL 3807F70870 Contact Us For Availability
17
SUPPORT, BAKE BURNER WPL 3807F48045 Contact Us For Availability
17
COVER, BOTTOM WIRE WPL 4005F81051 Contact Us For Availability
17
Bracket, Glass WPL 3801F88651 Contact Us For Availability
18
BURNER, BROILER WPL 7505P29360 Contact Us For Availability
18
Cover, Door Lock WPL 4005F75051 Contact Us For Availability
18
TRIM, DOOR SIDE (BLACK (RIGHT HAND)) WPL 3608F11670 Contact Us For Availability
18
TRIM, DOOR SIDE (BLACK (LEFT HAND)) WPL 3608F11770 Contact Us For Availability
19
Screw WPL 7101P43460 Contact Us For Availability
19
BACK, MAIN WPL 3804F31351 Contact Us For Availability
19
PANEL, OVEN DOOR (STAINLESS) WPL 7760P24260 Contact Us For Availability
20
Valve/Regulator WPL 7510P07960 Contact Us For Availability
20
BOTTOM, BURNER BOX WPL 4011F52851 Contact Us For Availability
20
Insulation, Foil WPL 7002P46360 Contact Us For Availability
21
Ignitor (Bake/Broil) WPL 7432P10660 Contact Us For Availability
21
ASSEMBLY, LIGHT WPL 7407P18260 Contact Us For Availability
21
CLIP, DOOR GLASS WPL 7112P03460 Contact Us For Availability
22
PLATE, BROIL FITTING WPL 3605F26945 Contact Us For Availability
22
Cord, Power WPL 7402P08660 Contact Us For Availability
22
SHIELD WPL 3604F41851 Contact Us For Availability
23
COVER, IGNITOR WIRE WPL 4005F42145 Contact Us For Availability
23
VENT, GAS WPL 8026P09560 Contact Us For Availability
23
Retainer, Glass WPL 3804F29345 Contact Us For Availability
24
RUNNER, DRAWER WPL W10182835 Contact Us For Availability
24
VALVE, SADDLE (LEFT FRONT, RIGHT FRONT, RIGHT WPL 7502P56660 Contact Us For Availability
25
Screw WPL 7101P33860 Contact Us For Availability
25
SCREW WPL 7101P01760 Contact Us For Availability
26
SUPPORT, SPARK MODULE WPL 3807F75245 Contact Us For Availability
26
BULB, LIGHT WPL 7407P10360 Contact Us For Availability
27
Valve, Safety WPL 7501P23260 Contact Us For Availability
28
BAFFLE, BAKE BURNER WPL 3601F23945 Contact Us For Availability
28
BAFFLE, BROIL BURNER WPL 3601F30745 Contact Us For Availability
28
Shaft, Roller WPL 7118P03260 Contact Us For Availability
29
Nut, Lock WPL 7103P19060 Contact Us For Availability
31
TUBE, BURNER (RIGHT FRONT) WPL 7506P52160 Contact Us For Availability
31
TUBE, BURNER (LEFT FRONT) WPL 7506P52260 Contact Us For Availability
31
TUBE, BURNER (RIGHT REAR) WPL 7506P52360 Contact Us For Availability
31
TUBE, BURNER (LEFT REAR) WPL 7506P52460 Contact Us For Availability
31
BRACKET, POWER SUPPLY WPL 3801F95151 Contact Us For Availability
32
Switch, Limit WPL 7450P03060 Contact Us For Availability
33
SENSOR, OVEN WPL 7430P04160 Contact Us For Availability
34
TRIM, SIDE (BLACK) WPL 3608F13870 Contact Us For Availability
35
Pedestal, Bottom WPL 4020W03580 Contact Us For Availability
36
SHIELD, HEAT POUCH WPL 3604F32751 Contact Us For Availability
37
SUPPORT, OVEN BOTTOM WPL 3807F72745 Contact Us For Availability
38
PANEL, ACCESS INSULATION WPL 4005F61251 Contact Us For Availability
NI
Spuds, LP Gas (Kit of 4) WPL W10168551 Contact Us For Availability
NI
ACCESSORY PARTS, ALUMINUM FOIL WPL 241430 Contact Us For Availability
NI
WIRING HARNESS PARTS, MODULE, SPARK WPL 7431P06460 Contact Us For Availability
NI
FOLLOWING PARTS NOT ILLUSTRATED WPL NP Contact Us For Availability
NI
Insulation, Drawer WPL 7002P14060 Contact Us For Availability
NI
INSULATION, OVEN BOTTOM WPL 7002P44360 Contact Us For Availability
NI
Insulation, Back WPL 7002P44560 Contact Us For Availability
NI
INSULATION, OVEN WRAP WPL 7002P47160 Contact Us For Availability
NI
PAINT, BULK (1 QT. BISCUIT/BISQUE) WPL 4392900 Contact Us For Availability
NI
WIRING HARNESS PARTS, SCREW, GROUND WPL 7101P02760 Contact Us For Availability
NI
WIRING HARNESS PARTS, HARNESS, MAIN WPL W10394659 Contact Us For Availability
NI
WIRING HARNESS PARTS, HARNESS, SENSOR WPL W10394790 Contact Us For Availability
× ![]()
