Model Whirlpool GW397LXUB05 30`` GAS SLIDE-IN – Common Parts & Diagrams
05 - DRAWER AND RACK PARTS
03 - MANIFOLD PARTS

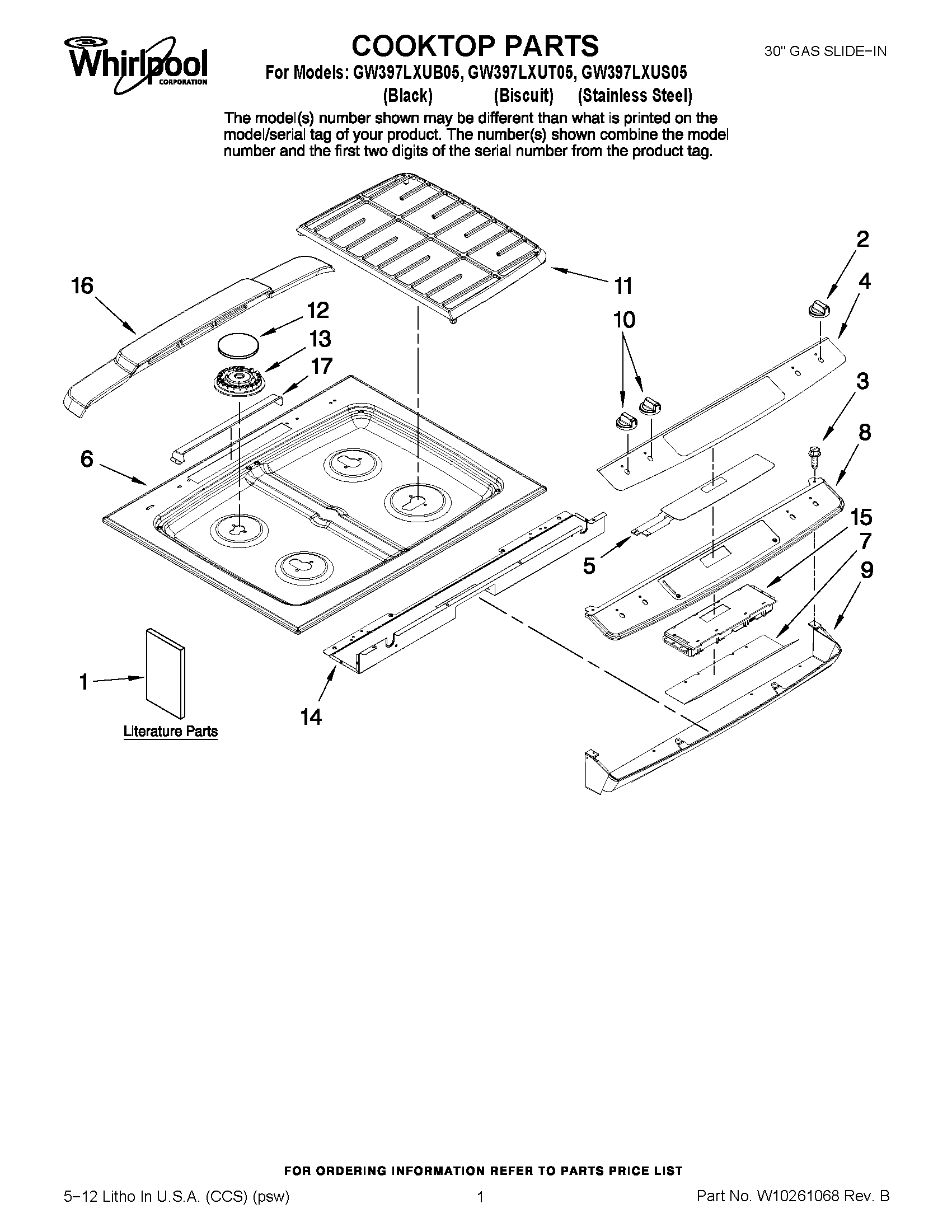

01 - COOKTOP PARTS

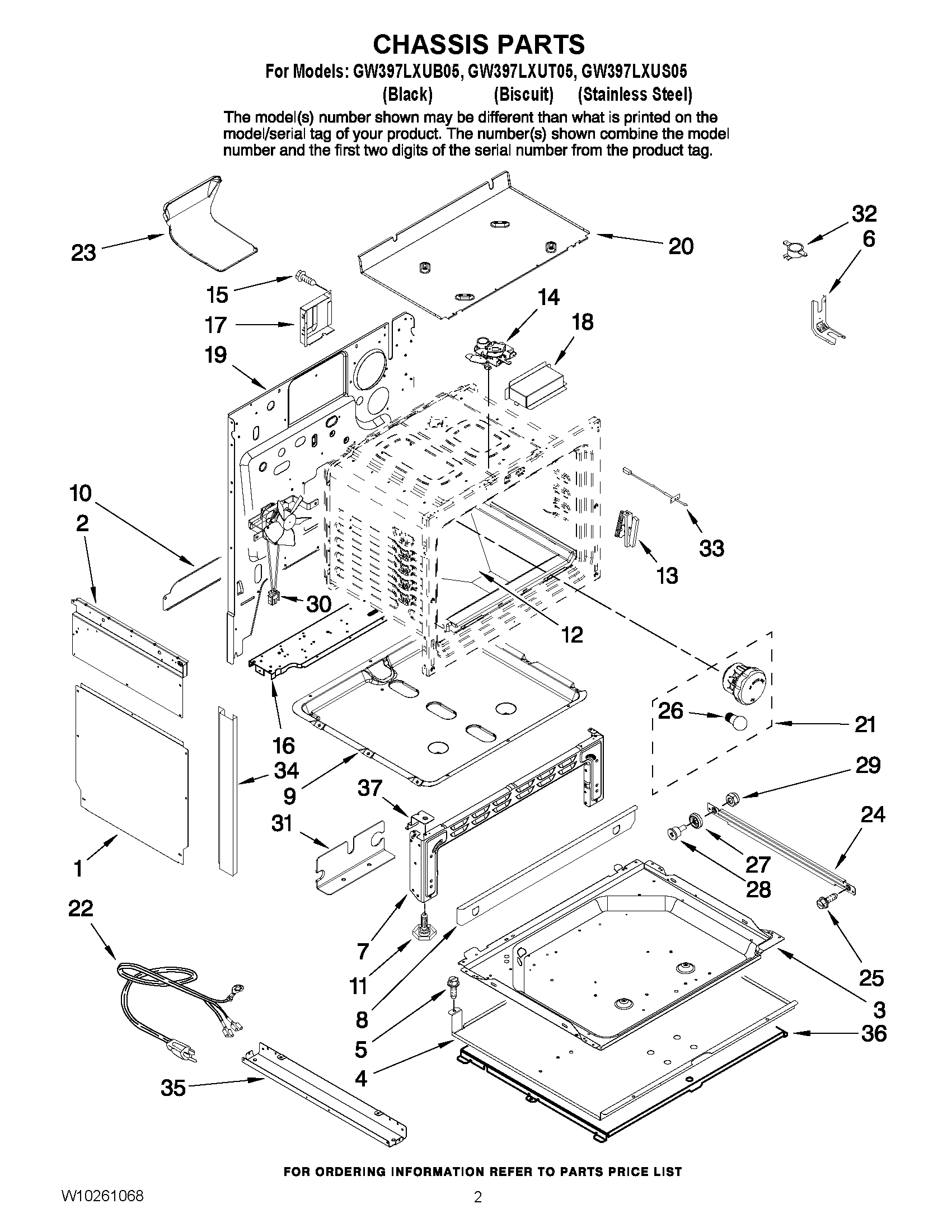

02 - CHASSIS PARTS

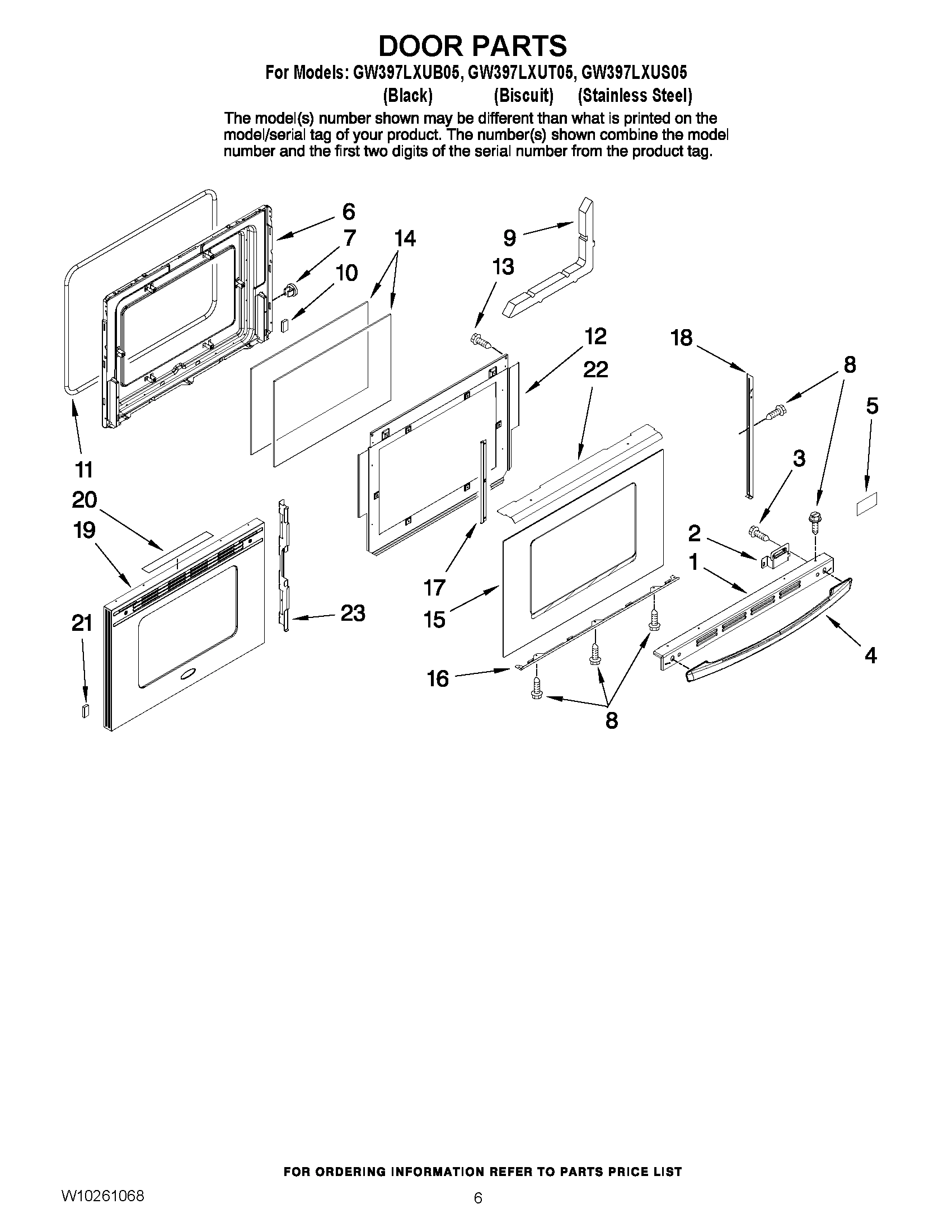

04 - DOOR PARTS
06 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Whirlpool GW397LXUB05 30`` GAS SLIDE-IN
1
Owners Manual WPL 8113P67960 Contact Us For Availability
1
Installation Instructions WPL 8113P68160 Contact Us For Availability
1
Shield, Lower Side WPL 3604F41651 Contact Us For Availability
1
Trim, Door Top (Black) WPL 3608F14170 Contact Us For Availability
1
Trim, Door Top (Biscuit) WPL 3608F14178 Contact Us For Availability
2
Knob, AccuSimmer (Black) WPL 7733P53260 Contact Us For Availability
2
Knob, AccuSimmer (Biscuit) WPL 7733P53460 Contact Us For Availability
2
Panel, Shield (Left) WPL 2618F20151 Contact Us For Availability
2
Panel, Shield (Right) WPL 2618F20651 Contact Us For Availability
2
Bracket, Handle (Right) WPL 3801F83145 Contact Us For Availability
2
Bracket, Handle (Left) WPL 3801F83245 Contact Us For Availability
3
Screw WPL 7101P50160 Contact Us For Availability
3
Retainer, Bottom WPL 3804F24551 Contact Us For Availability
3
SCREW (SS ONLY) WPL 7101P37660 Contact Us For Availability
4
OVERLAY (SS ONLY) WPL W10181485 Contact Us For Availability
4
Shield, Drawer WPL 3604F32645 Contact Us For Availability
4
Handle, Door (Biscuit) WPL W10118432 Contact Us For Availability
5
NAMEPLATE WPL W10175320 Contact Us For Availability
6
Cooktop (Black) WPL 2001W23109 Contact Us For Availability
6
Cooktop (Biscuit) WPL 2001W23188 Contact Us For Availability
6
BRACKET, ANTI TIP WPL 3801F65651 Contact Us For Availability
6
Liner, Door WPL 2402W31219 Contact Us For Availability
7
Shield, Control WPL W10166279 Contact Us For Availability
7
Oven, Front Lower WPL 4020F03680 Contact Us For Availability
7
NUT, SNAP WPL 7103P14160 Contact Us For Availability
8
Panel, Cntl Shield (Black) WPL 7720P53160 Contact Us For Availability
8
Panel, Cntl Shield (Biscuit) WPL 7720P53360 Contact Us For Availability
8
PANEL, CNTL SHIELD (STAINLESS) WPL W10182766 Contact Us For Availability
8
Baffle, Oven Front WPL 3601F25145 Contact Us For Availability
8
Screw, Trim (Black) WPL 7101P63560 Contact Us For Availability
8
Screw, Trim (Biscuit) WPL 7101P63760 Contact Us For Availability
8
SCREW, TRIM (STAINLESS) WPL 7101P63860 Contact Us For Availability
9
Panel, Cntl (LWR) (Black) WPL W10185606 Contact Us For Availability
9
PANEL, CNTL (LWR) (WHITE) WPL W10185609 Contact Us For Availability
9
Pan, Burner WPL 3401F04445 Contact Us For Availability
9
Insulation, Door WPL 7002P24660 Contact Us For Availability
10
KNOB, VALVE (BLACK) WPL 7733P52660 Contact Us For Availability
10
KNOB, VALVE (BISCUIT) WPL 7733P52860 Contact Us For Availability
10
Extension, Back WPL 3826F06651 Contact Us For Availability
10
Spacer WPL 8010P13060 Contact Us For Availability
11
GRATE, BURNER (BLACK) WPL 7518P48560 Contact Us For Availability
11
GRATE, BURNER (GRAY) WPL 7518P48660 Contact Us For Availability
11
FOOT, LEVELER WPL 7101P66060 Contact Us For Availability
12
HANDLE (SS ONLY) WPL W10180296 Contact Us For Availability
12
Bottom, Oven WPL 2205F05419 Contact Us For Availability
12
Baffle, Retainer WPL 3601F37351 Contact Us For Availability
13
Screw WPL 7101P38860 Contact Us For Availability
13
HINGE WPL 7106P14160 Contact Us For Availability
14
Support, Cntrl Pnl WPL 3807F76951 Contact Us For Availability
14
Latch Assembly WPL 8002P08960 Contact Us For Availability
14
GLASS, INNER CLEAR WPL 7902P43660 Contact Us For Availability
14
GLASS, INNER (COATED) WPL 7902P76860 Contact Us For Availability
15
Control, (ERC) WPL 8507P38960 Contact Us For Availability
15
Screw, Latch Lever WPL 7101P37560 Contact Us For Availability
15
Glass, Includes Glass, Tape & Logo (Black) WPL W10170229 Contact Us For Availability
15
Glass, Includes Glass, Tape & Logo (Biscuit) WPL W10170230 Contact Us For Availability
16
Cover, Vent (Black) WPL 7724P20160 Contact Us For Availability
16
Cover, Vent (Gray) WPL 7724P20260 Contact Us For Availability
16
SUPPORT, VALVE/REG WPL 3807F64051 Contact Us For Availability
16
Trim, Door Bottom (Black) WPL 3807F70870 Contact Us For Availability
16
Trim, Door Bottom (Biscuit) WPL 3807F70878 Contact Us For Availability
17
Baffle, Vent Cover WPL 3601F22145 Contact Us For Availability
17
Cover, Access WPL 4005F81051 Contact Us For Availability
17
BRACKET, GLASS (SS ONLY) WPL 3801F88651 Contact Us For Availability
18
Cover, Door Lock WPL 4005F75051 Contact Us For Availability
18
Trim, Door Side (Black, Right) WPL 3608F11670 Contact Us For Availability
18
Trim, Door Side (Biscuit, Right) WPL 3608F11678 Contact Us For Availability
18
Trim, Door Side (Black, Left) WPL 3608F11770 Contact Us For Availability
18
Trim, Door Side (Biscuit, Left) WPL 3608F11778 Contact Us For Availability
19
Back, Main Gas WPL 3804F31351 Contact Us For Availability
19
PNL, OVEN DR(SS) WPL 7760P24260 Contact Us For Availability
20
BOTTOM, BURNER BOX WPL 4011F52851 Contact Us For Availability
20
INSULATION, FOIL (SS ONLY) WPL 7002P46360 Contact Us For Availability
21
Light Assembly WPL 7407P18260 Contact Us For Availability
21
Clip, Glass WPL 7112P03460 Contact Us For Availability
22
Cord, Power WPL 7402P08660 Contact Us For Availability
22
Shield, Door WPL 3604F41851 Contact Us For Availability
23
Box, Assy Vent WPL 8026P09560 Contact Us For Availability
23
RETAINER, GLASS (SS ONLY) WPL 3804F29345 Contact Us For Availability
24
RUNNER, DRAWER WPL W10182835 Contact Us For Availability
25
SCREW WPL 7101P01760 Contact Us For Availability
26
BULB-OVEN WPL 7407P10360 Contact Us For Availability
27
Roller, Drawer WPL 8014P02260 Contact Us For Availability
28
BAFFLE (BRAKE) WPL 3601F23945 Contact Us For Availability
28
Baffle (Broil) WPL 3601F30745 Contact Us For Availability
28
Shaft, Roller WPL 7118P03260 Contact Us For Availability
29
Nut, Lock WPL 7103P19060 Contact Us For Availability
30
Tube, Burner (RF) WPL 7506P52160 Contact Us For Availability
30
Tube, Burner (LF) WPL 7506P52260 Contact Us For Availability
30
Tube, Burner (RR) WPL 7506P52360 Contact Us For Availability
30
Tube, Burner (LR) WPL 7506P52460 Contact Us For Availability
30
Fan, Cooling WPL 7427P09460 Contact Us For Availability
31
BRACKET,PWR SUPPLY WPL 3801F95151 Contact Us For Availability
32
Switch, Limit WPL 7450P03060 Contact Us For Availability
33
Sensor, Short WPL 7430P04160 Contact Us For Availability
34
TRIM, SIDE (BLACK) WPL 3608F13870 Contact Us For Availability
34
TRIM, SIDE (BISCUIT) WPL 3608F13878 Contact Us For Availability
35
Pedestal, Bottom WPL 4020W03580 Contact Us For Availability
36
SHIELD, HEAT POUCH WPL 3604F32751 Contact Us For Availability
37
SUPPORT, BOTTOM WPL 3807F72745 Contact Us For Availability
NI
CLEANER, COOKTOP WPL W10355051 Contact Us For Availability
NI
KIT, COOKTOP CARE WPL 31605 Contact Us For Availability
NI
CLEANER, STAINLESS WPL W10355016 Contact Us For Availability
NI
WIPES, SS CLEANING WPL W10355049 Contact Us For Availability
NI
CLEANER, KITCHEN & APPLIANCE WPL W10355010 Contact Us For Availability
NI
CLEANER, GAS GRATE & DRIP PAN WPL 31617A Contact Us For Availability
NI
CLEANER & POLISH (GRANITE) WPL W10275756 Contact Us For Availability
NI
Spuds, LP Gas WPL W10168551 Contact Us For Availability
NI
FOIL, ALUMINUM (18`` X 25 ) WPL 241430 Contact Us For Availability
NI
KIT, CANNING ELEMENT WPL 242905 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
NI
Insulation, Drawer WPL 7002P14060 Contact Us For Availability
NI
Insulation, Lower Side WPL 7002P44360 Contact Us For Availability
NI
Insulation, Back WPL 7002P44560 Contact Us For Availability
NI
Insulation, Wrap WPL 7002P47160 Contact Us For Availability
NI
PROTECTANT,COOKTOP WPL 31463 Contact Us For Availability
NI
Harness,Sensor WPL 5171P56060 Contact Us For Availability
NI
Screw, Ground WPL 7101P02760 Contact Us For Availability
NI
Harness, Spark WPL 7431P06460 Contact Us For Availability
NI
Harness, Main WPL W10160394 Contact Us For Availability
× ![]()
