Model Whirlpool GW395LEGQ5 SLIDE IN GAS RANGE – Common Parts & Diagrams
02 - CONTROL PANEL
04 - BROILER AND OVEN BURNER

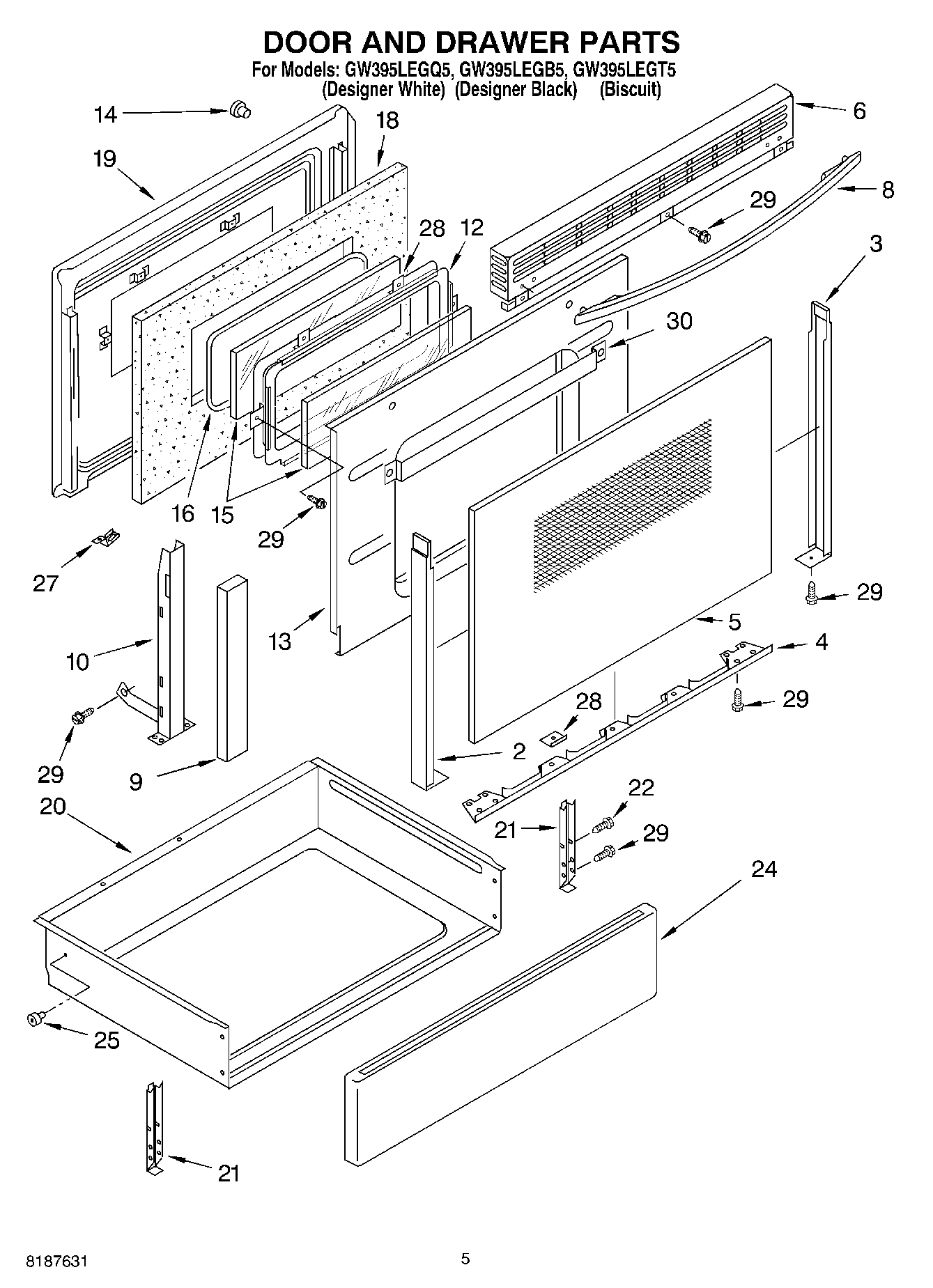

05 - DOOR AND DRAWER

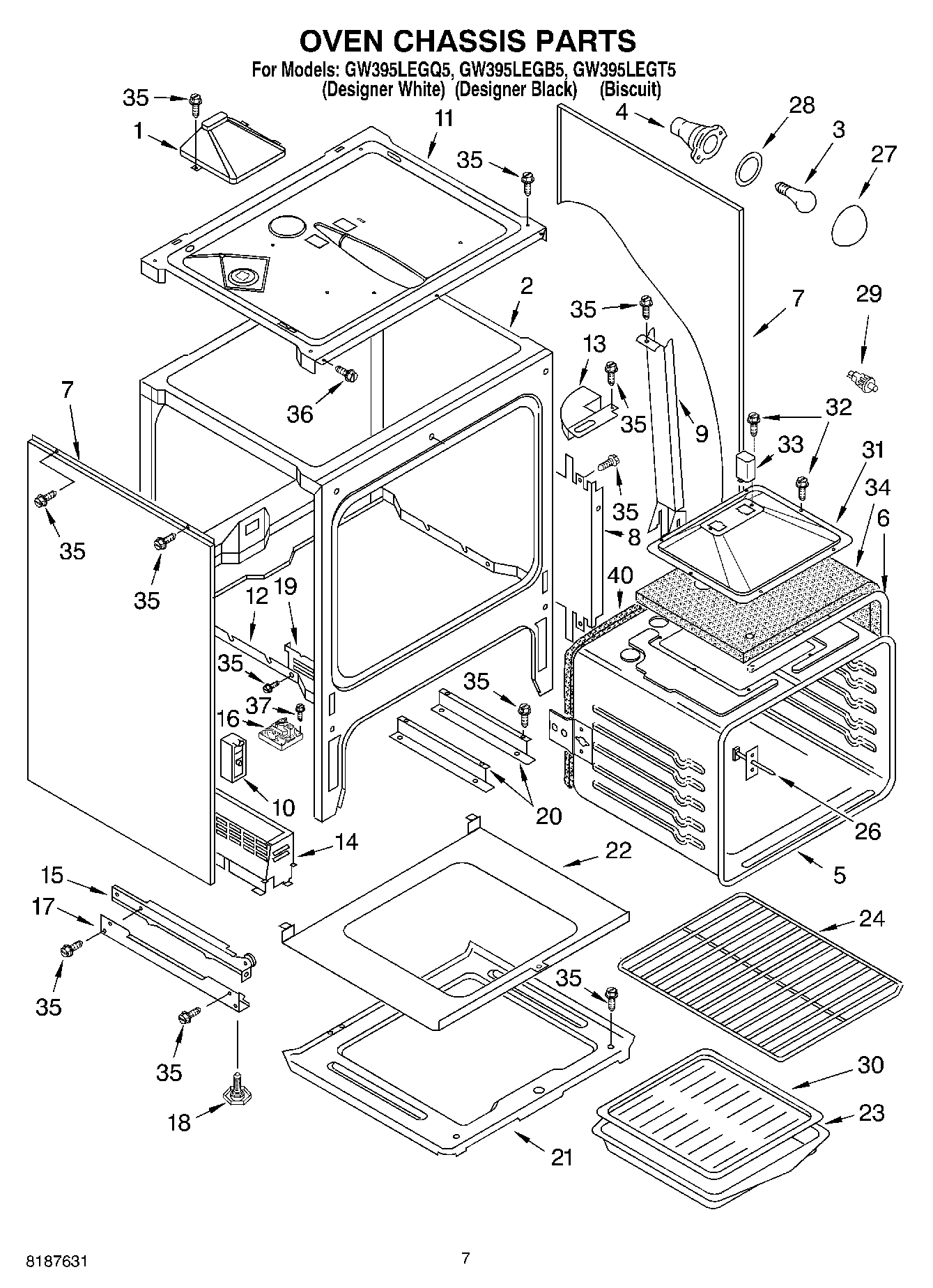

06 - OVEN CHASSIS

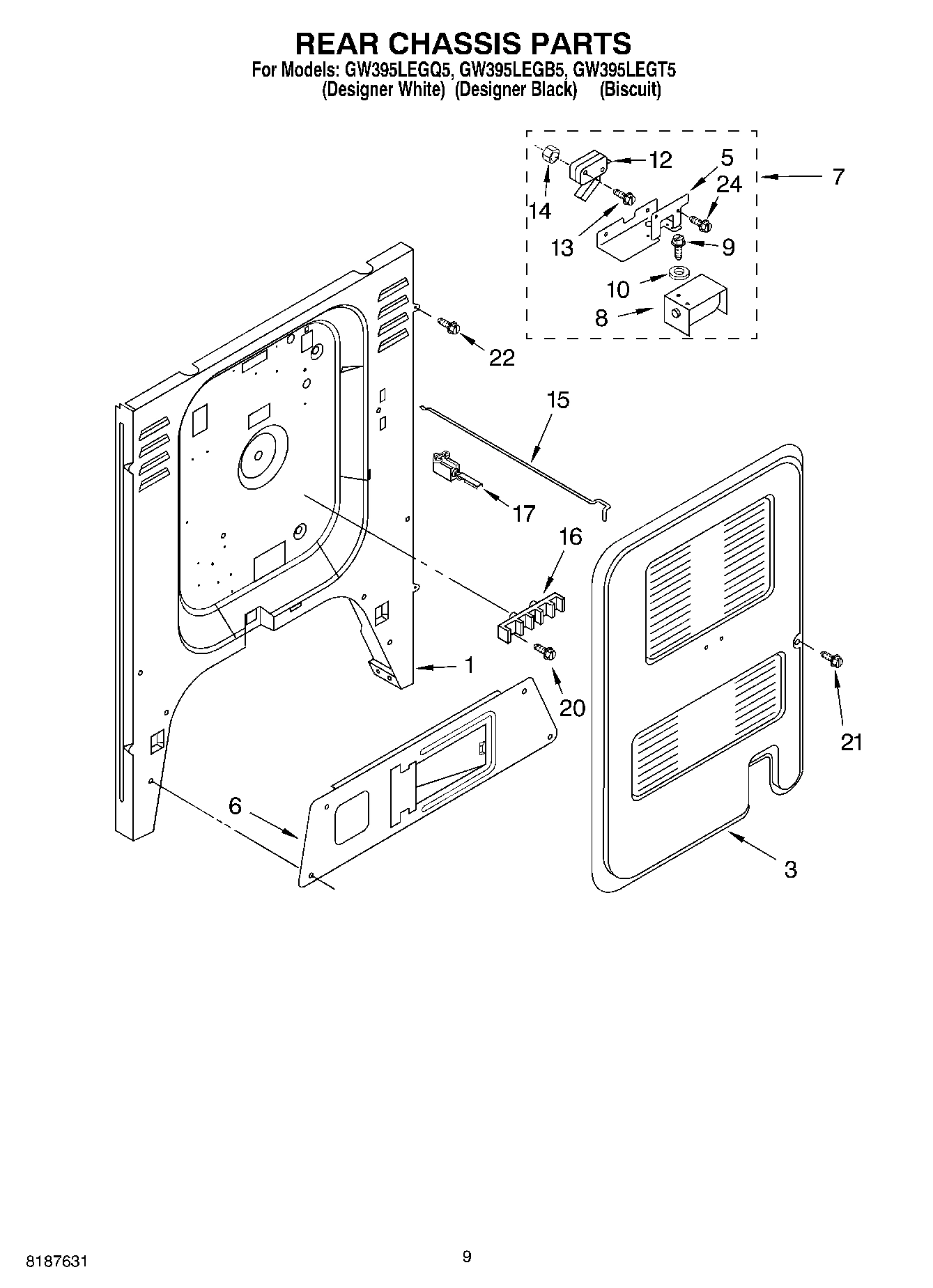

07 - REAR CHASSIS

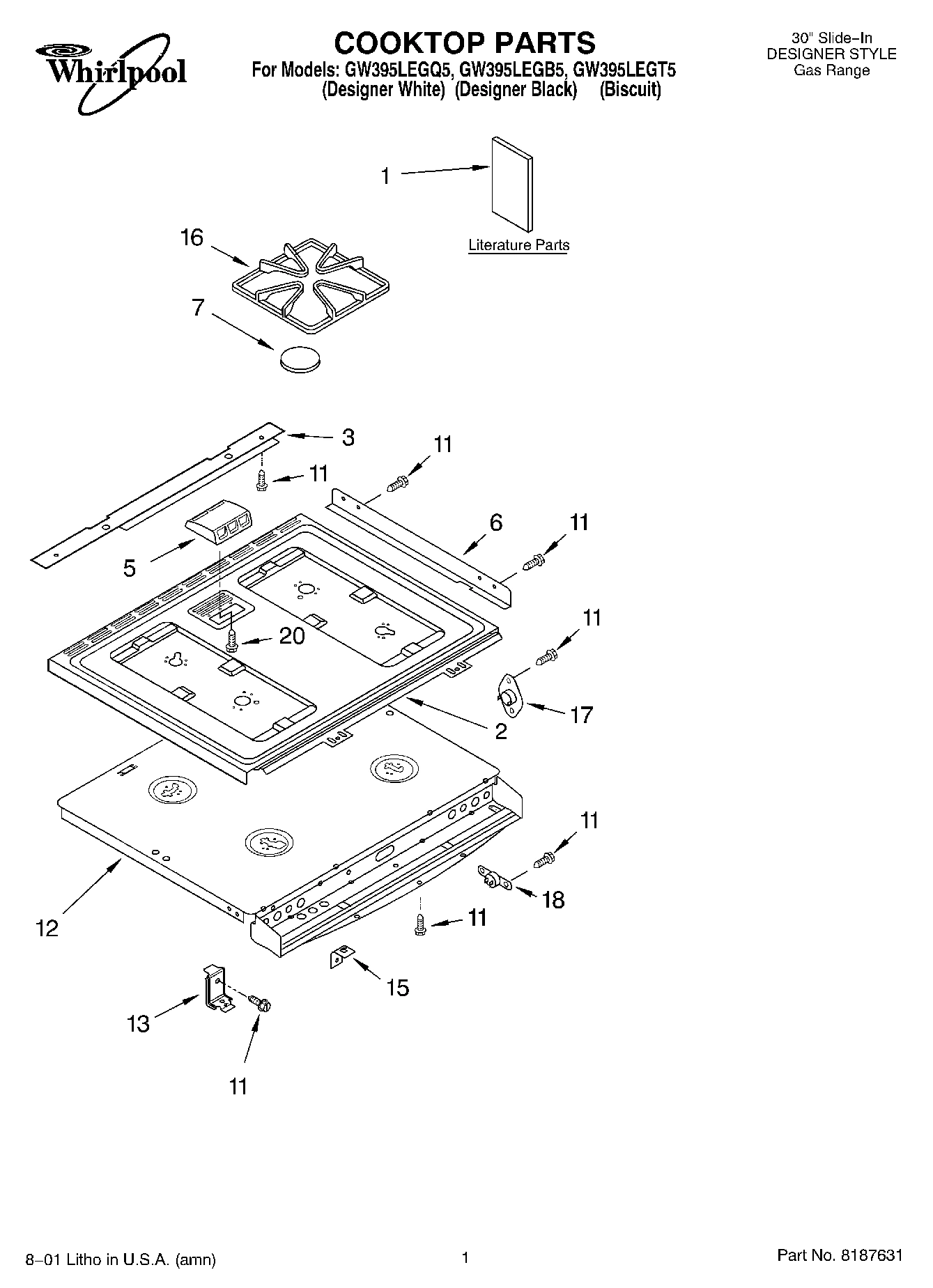

01 - COOKTOP, LITERATURE

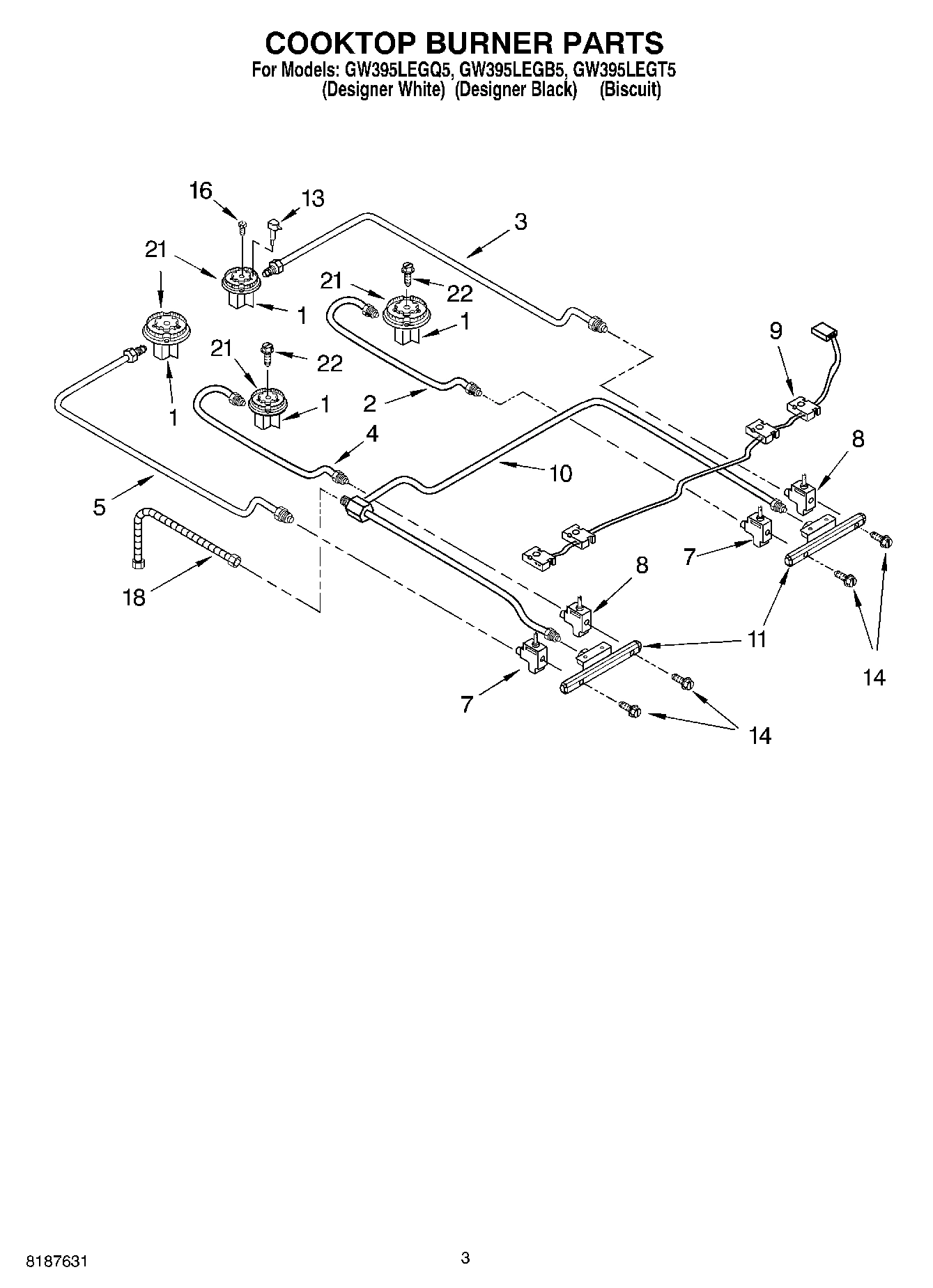

03 - COOKTOP BURNER
Common parts from model Whirlpool GW395LEGQ5 SLIDE IN GAS RANGE
1
Vent, Burner Box WPL 9753300 Contact Us For Availability
1
Back panel, Chassis WPL 9751051 Contact Us For Availability
1
Safer Cooking Tips WPL LIT3191638 Contact Us For Availability
1
Literature Parts (Use & Care Guide) WPL LIT9753051 Contact Us For Availability
1
Literature Parts (Installation Instructions) WPL LIT9753052 Contact Us For Availability
1
Literature Parts (Tech Sheet) WPL LIT9753053 Contact Us For Availability
1
Literature Parts (Wiring Diagram) WPL LIT9753055 Contact Us For Availability
1
Literature Parts (Back Trim Instr.) WPL LIT9753268 Contact Us For Availability
1
Literature Parts (Template, Anti-Tip) WPL LIT9753426 Contact Us For Availability
1
Literature Parts (Instructions (LP Conversion WPL LIT9753502 Contact Us For Availability
1
Literature Parts (Service Instr.) WPL LIT9781877 Contact Us For Availability
1
Burner Base w/Orifice (Small (2)) WPL 9754183 Contact Us For Availability
1
Burner Base w/Orifice (Large (2)) WPL 9754189 Contact Us For Availability
2
Chassis, Front WPL 9750514GM Contact Us For Availability
2
Cooktop, Gas (Black) WPL 9781890GB Contact Us For Availability
2
Cooktop, Gas (Biscuit) WPL 9781890GC Contact Us For Availability
2
Cooktop, Gas (White) WPL 9781890GW Contact Us For Availability
2
Tubing, Burner (RF) WPL 9753005 Contact Us For Availability
3
Panel, Rear Cover WPL 9751353 Contact Us For Availability
3
Trim, Rear WPL 9752889 Contact Us For Availability
3
Tubing, Burner (RR) WPL 9753006 Contact Us For Availability
4
Burner, Bake WPL 9751367 Contact Us For Availability
4
Tubing, Burner (LF) WPL 9753003 Contact Us For Availability
5
Glass, Door (Biscuit) WPL 9781694PC Contact Us For Availability
5
Glass, Door (White) WPL 9781694PW Contact Us For Availability
5
Oven Liner WPL 9753011GM Contact Us For Availability
5
Bracket, Lock WPL 9750526 Contact Us For Availability
5
Cap, Vent (Black) WPL 9753772GB Contact Us For Availability
5
Cap, Vent (White) WPL 9753772GW Contact Us For Availability
5
Tubing, Burner (LR) WPL 9753004 Contact Us For Availability
6
Vent, Door (Black) WPL 9753498GB Contact Us For Availability
6
Vent, Door (Biscuit) WPL 9753498GC Contact Us For Availability
6
Vent, Door (White) WPL 9753498GW Contact Us For Availability
6
Vent, Door (Seal, Door Vent Side) WPL 9781490 Contact Us For Availability
6
Vent, Door (Gasket, Door Vent) WPL 9781659 Contact Us For Availability
6
Gasket, Oven WPL 9755179 Contact Us For Availability
6
Bracket, Regulator Valve WPL 9751500 Contact Us For Availability
6
Trim, Side WPL 9752890 Contact Us For Availability
7
Cap, Burner (Grey, Small) WPL 3191899 Contact Us For Availability
7
Valve, Burner Small (2) WPL 9753045 Contact Us For Availability
7
Oven, Side L or R (Black) WPL 9781907PB Contact Us For Availability
7
Oven, Side L or R (Biscuit) WPL 9781907PC Contact Us For Availability
7
Oven, Side L or R (White) WPL 9781907PW Contact Us For Availability
7
Oven Lock Assembly (Includes Key No.17) WPL 9752404 Contact Us For Availability
8
Solenoid WPL 9752409 Contact Us For Availability
8
Handle, Door (Black) WPL 9752701PB Contact Us For Availability
8
Handle, Door (Biscuit) WPL 9752701PC Contact Us For Availability
8
Handle, Door (White) WPL 9752701PW Contact Us For Availability
8
Shield, Insulation WPL 9780664 Contact Us For Availability
8
Valve, Burner Large (2) WPL 9753044 Contact Us For Availability
9
Spark Switch & Harness Assembly WPL 9752994 Contact Us For Availability
9
Gasket, Door Glass WPL 9781449 Contact Us For Availability
9
Fan Duct, Side WPL 9751789 Contact Us For Availability
9
Screw WPL 422222 Contact Us For Availability
10
Washer WPL 424238 Contact Us For Availability
10
Tube, Manifold WPL 9754148 Contact Us For Availability
11
Burner Box WPL 9752975 Contact Us For Availability
11
Manifold (Left Hand) WPL 9754116L Contact Us For Availability
11
Manifold (Right Hand) WPL 9754116R Contact Us For Availability
12
Frame, Window WPL 9781602 Contact Us For Availability
12
Retainer, Insulation WPL 9752735 Contact Us For Availability
12
Switch, Interlock WPL 9750965 Contact Us For Availability
12
Support, Cooktop WPL 9752974 Contact Us For Availability
13
Shield, Door WPL 9781586 Contact Us For Availability
13
Duct, Top WPL 9751653 Contact Us For Availability
13
Screw, (2) WPL 9750887 Contact Us For Availability
13
Bracket, Pivot WPL 9751629 Contact Us For Availability
14
Support, Fan WPL 9751060 Contact Us For Availability
14
Nut (2) WPL 9750888 Contact Us For Availability
14
Bolt, Valve (4) WPL 3185829 Contact Us For Availability
15
Control, Range WPL 9753639 Contact Us For Availability
15
Drawer Rail, Right WPL 9750224 Contact Us For Availability
15
Drawer Rail, Left 10 x 3/8 WPL 9750223 Contact Us For Availability
15
Rod, Lock WPL 9750523 Contact Us For Availability
15
Bracket, Rear Angle WPL 9782000 Contact Us For Availability
16
Knob, Timer (18) (White) WPL 9781954FW Contact Us For Availability
16
Knob, Timer (18) (Black) WPL 9781954FB Contact Us For Availability
16
Knob, Timer (18) (Biscuit) WPL 9781954FC Contact Us For Availability
16
Motor, Fan WPL 9751020 Contact Us For Availability
17
Bottom Rail (2) WPL 9750147 Contact Us For Availability
17
Single Position Device (Not Serviced) WPL 9752462 Contact Us For Availability
18
Thermostat, SPST WPL 341196 Contact Us For Availability
18
Insulation WPL 9754006 Contact Us For Availability
18
Tubing, Flex WPL 9751854 Contact Us For Availability
19
Liner, Door WPL 9781600GM Contact Us For Availability
19
Hinge, Receiver WPL 9782005 Contact Us For Availability
20
Drawer & Roller WPL 9780583 Contact Us For Availability
20
Support Rail, Pan WPL 9781904 Contact Us For Availability
20
Screw, 10-24 x 1/2 WPL 9751644 Contact Us For Availability
20
Screw WPL 98884 Contact Us For Availability
20
Speed Clip WPL 9781555 Contact Us For Availability
21
Bracket, Drawer WPL 9750169 Contact Us For Availability
21
Shield, Drawer WPL 9782051 Contact Us For Availability
22
Screw (4) 10 x 1/2 WPL 9780272 Contact Us For Availability
22
Plate, Reflectance WPL 9782050 Contact Us For Availability
22
Screw WPL 423247 Contact Us For Availability
24
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
24
Rack, Standard (2) WPL 9750498 Contact Us For Availability
24
WPL 9753054 WPL 9753054 Contact Us For Availability
24
WPL 9752717 WPL 9752717 Contact Us For Availability
24
Front, Drawer (Black) WPL 9782108PB Contact Us For Availability
24
Front, Drawer (Biscuit) WPL 9782108PC Contact Us For Availability
24
Front, Drawer (White) WPL 9782108PW Contact Us For Availability
24
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
24
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
24
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
24
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
24
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
24
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
24
Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability
24
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
24
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
24
Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability
24
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
24
Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability
24
Grease WPL 261582 Contact Us For Availability
24
PAINT, BULK (1 QT.) (BISCUIT (UNCUT)) WPL 4392900 Contact Us For Availability
24
WPL 799832 WPL 799832 Contact Us For Availability
24
WPL 9750221 WPL 9750221 Contact Us For Availability
24
WPL 9750744 WPL 9750744 Contact Us For Availability
24
WPL 9750984 WPL 9750984 Contact Us For Availability
24
WPL 9751164 WPL 9751164 Contact Us For Availability
24
WPL 9751323 WPL 9751323 Contact Us For Availability
24
WPL 9751868 WPL 9751868 Contact Us For Availability
24
WPL 9752769 WPL 9752769 Contact Us For Availability
24
WPL 9753267PB WPL 9753267PB Contact Us For Availability
24
WPL 9753267PC WPL 9753267PC Contact Us For Availability
24
WPL 9753267PW WPL 9753267PW Contact Us For Availability
24
WPL 9754289 WPL 9754289 Contact Us For Availability
24
WPL 9755256 WPL 9755256 Contact Us For Availability
24
WPL 9781055 WPL 9781055 Contact Us For Availability
24
WPL 9782345 WPL 9782345 Contact Us For Availability
24
WPL 978883 WPL 978883 Contact Us For Availability
26
Sensor, Oven WPL 9782081 Contact Us For Availability
27
Retainer, Panel WPL 9750676 Contact Us For Availability
28
Retainer, Glass WPL 9781502 Contact Us For Availability
29
Door Switch WPL 9781580 Contact Us For Availability
30
Channel, Heat WPL 9750693 Contact Us For Availability
30
Insulation, Drawer Rear WPL 9754005 Contact Us For Availability
31
Vent, Burner Box WPL 9752978 Contact Us For Availability
33
Extension, Vent Box WPL 9753067 Contact Us For Availability
34
Insulation, Wrap WPL 9754004 Contact Us For Availability
36
Screw, No.8 x 3/8 WPL 9780275 Contact Us For Availability
37
Screw, No.8 x 1 WPL 9751808 Contact Us For Availability
40
Insulation, Back WPL 9754011 Contact Us For Availability
× ![]()
