Model Whirlpool GU3100XTVS0 DISHWASHER – Common Parts & Diagrams
05 - FRAME PARTS
08 - OPTIONAL PARTS (NOT INCLUDED)

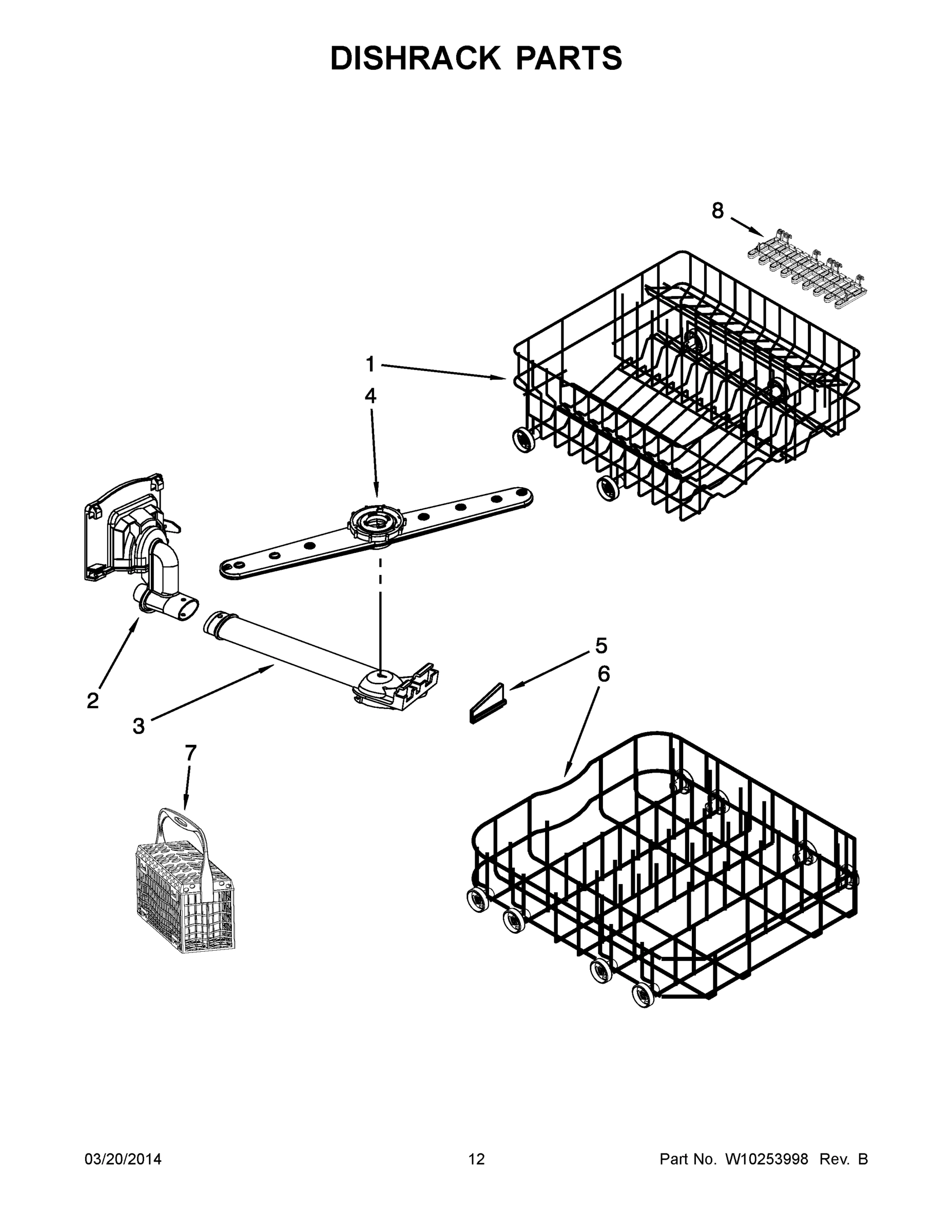

07 - DISHRACK PARTS

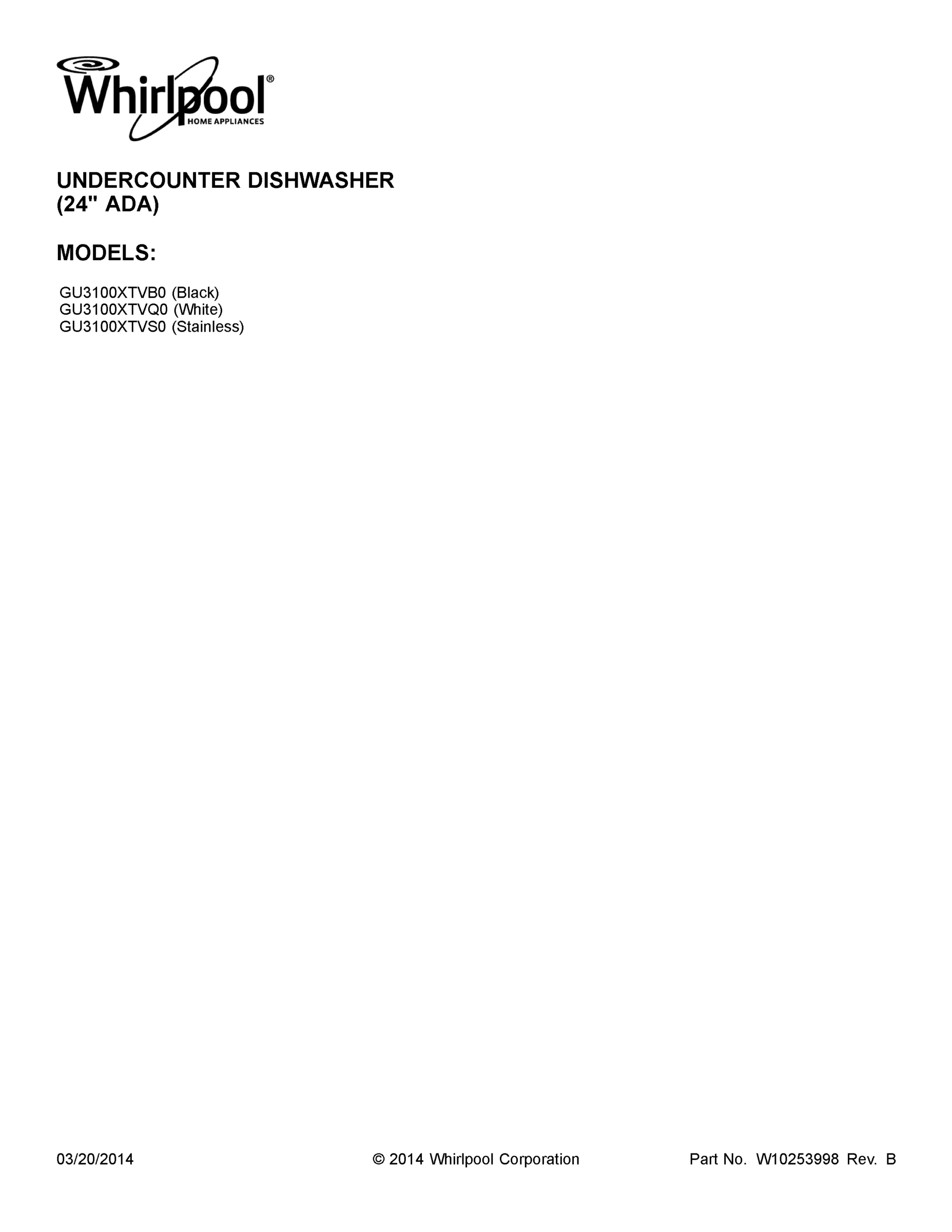

01 - COVER SHEET

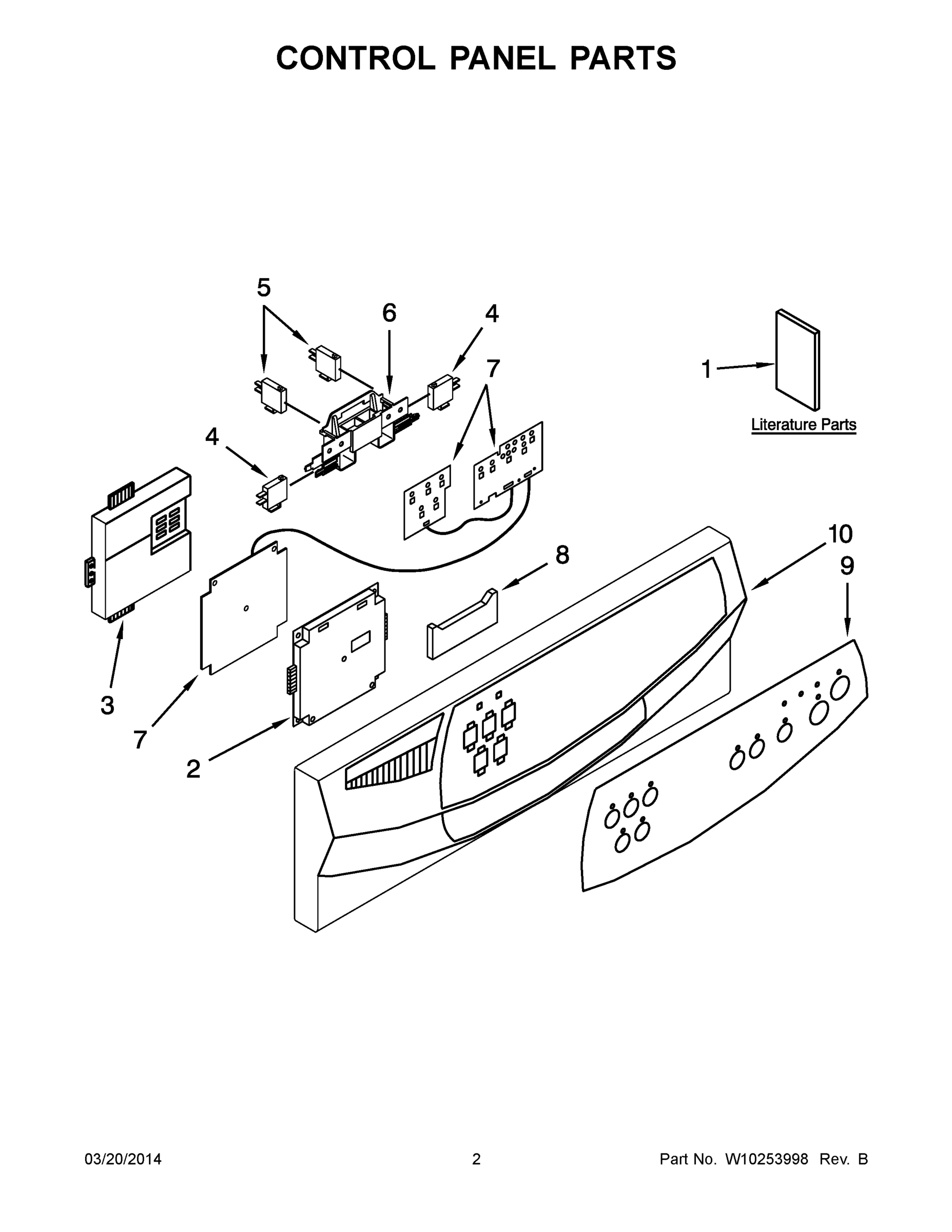

02 - CONTROL PANEL PARTS

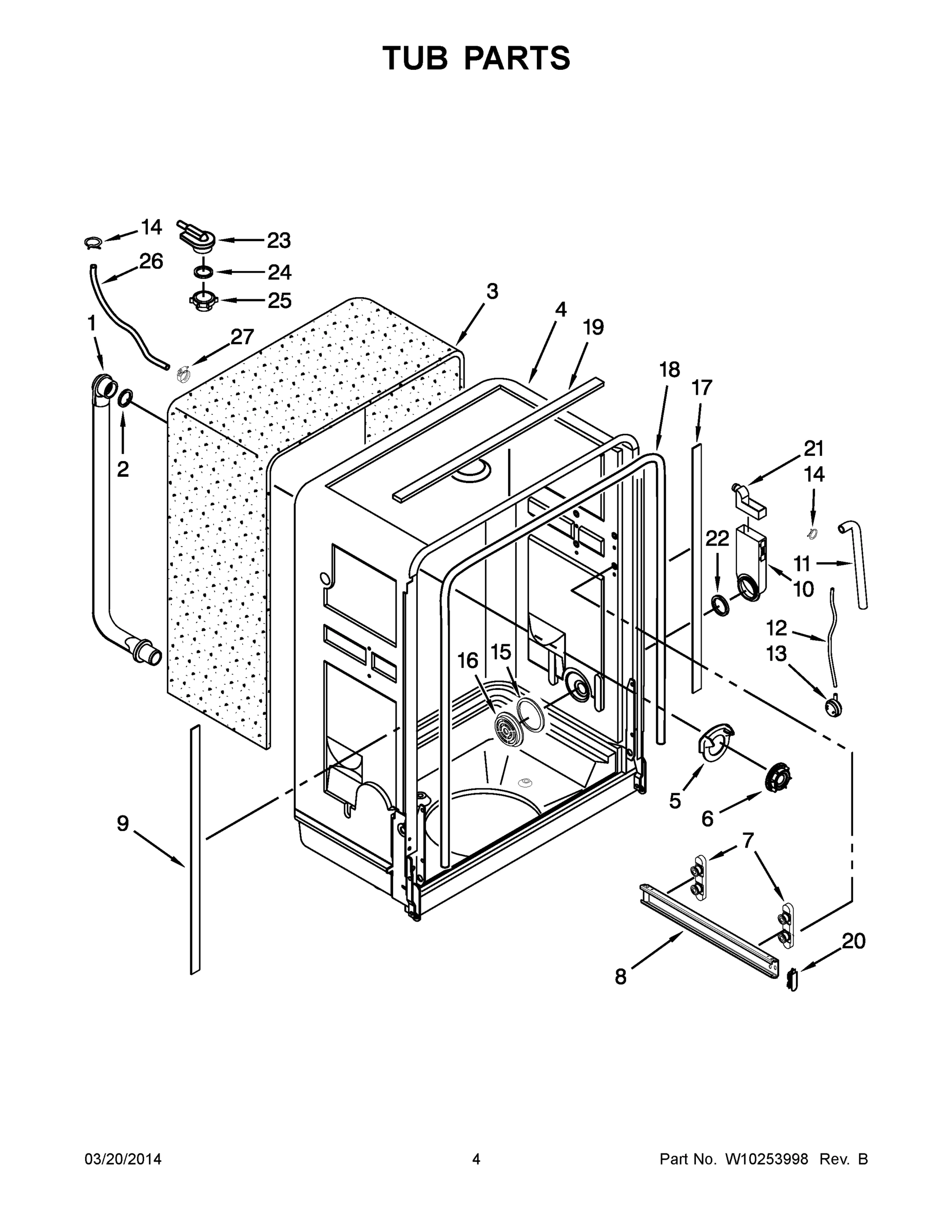

03 - TUB PARTS

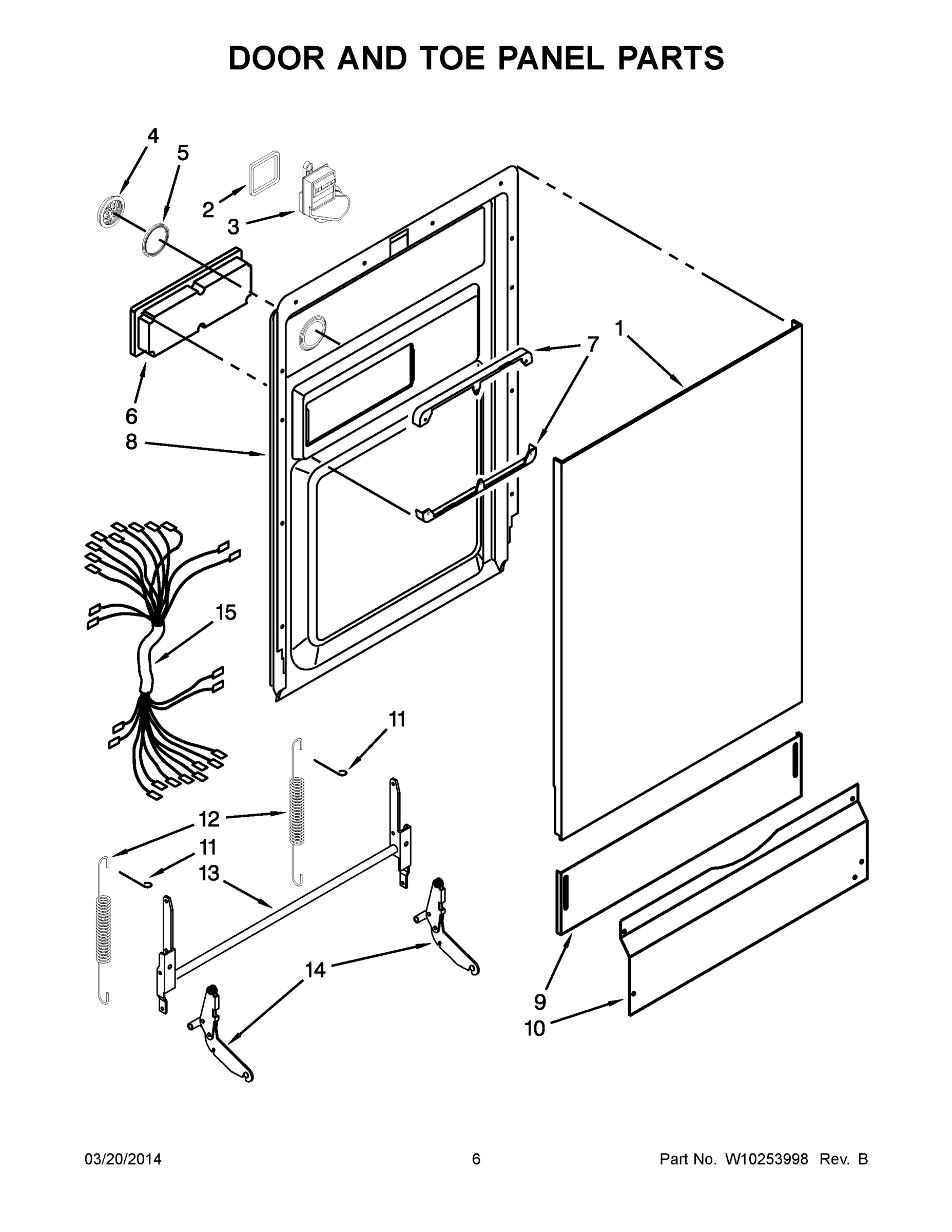

04 - DOOR AND TOE PANEL PARTS

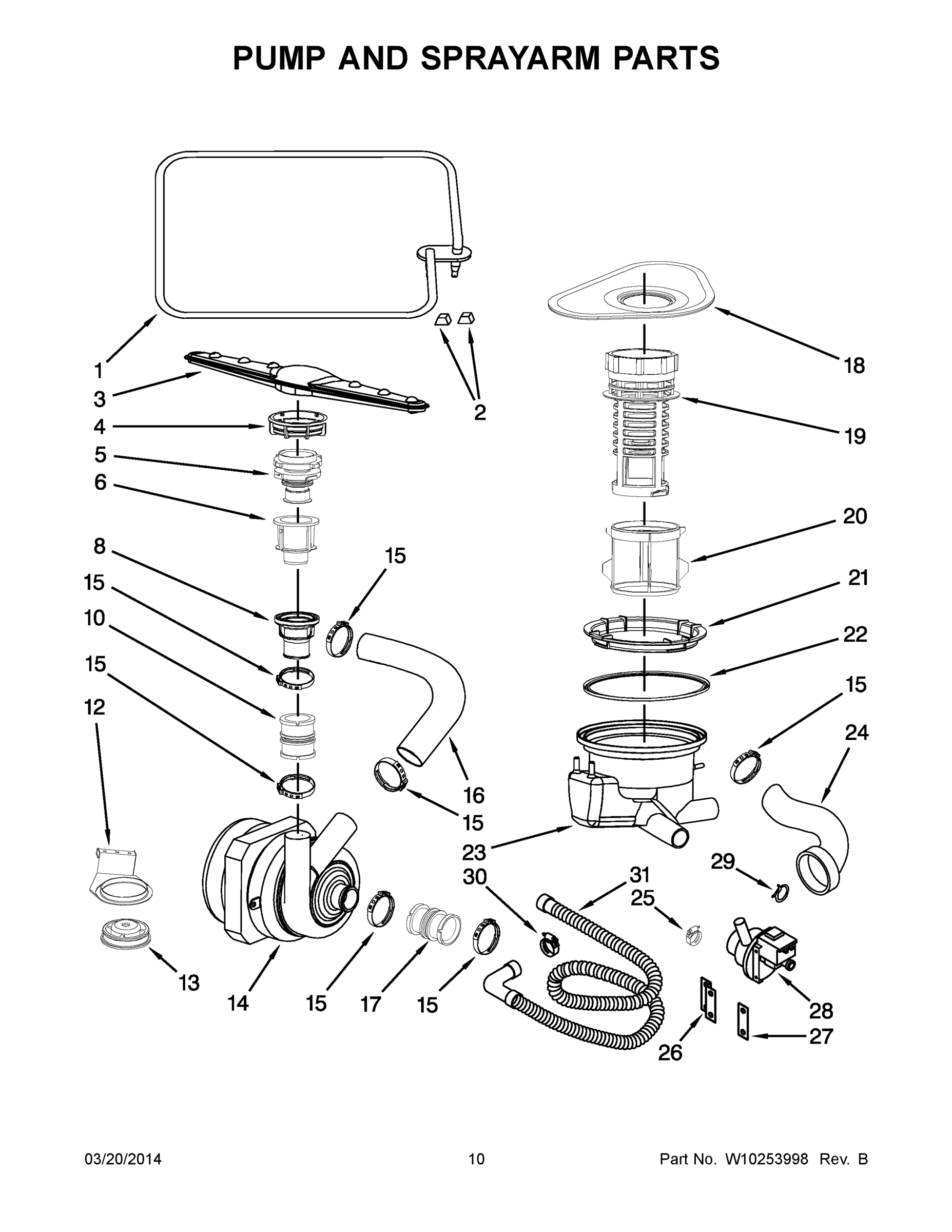

06 - PUMP AND SPRAYARM PARTS
Common parts from model Whirlpool GU3100XTVS0 DISHWASHER
1
HEATER WPL W10222036 Contact Us For Availability
1
TUBE, FEED WPL W10221996 Contact Us For Availability
2
ADAPTER WPL W10222041 Contact Us For Availability
2
GASKET, VENT WPL W10221906 Contact Us For Availability
3
MANIFOLD WPL W10222040 Contact Us For Availability
3
STRIKE WPL W10221836 Contact Us For Availability
3
SHIELD, SOUND WPL W10221831 Contact Us For Availability
3
VENT WPL W10221901 Contact Us For Availability
3
SPRAYARM WPL W10222000 Contact Us For Availability
4
SPRAYARM WPL W10222037 Contact Us For Availability
4
MICROSWITCH WPL W10221909 Contact Us For Availability
5
SWITCH, BREAKWATER (LEFT) WPL W10221910 Contact Us For Availability
5
SWITCH, BREAKWATER (RIGHT) WPL W10221911 Contact Us For Availability
5
GUIDE WPL W10221998 Contact Us For Availability
6
BOLT-LATCH WPL W10181606 Contact Us For Availability
6
DISPENSER WPL W10221946 Contact Us For Availability
6
RACK, LOWER WPL W10222102 Contact Us For Availability
7
CONTROL, ELECTRONIC WPL W10221913 Contact Us For Availability
7
BASKET, SILVERWARE WPL W10222097 Contact Us For Availability
7
Bracket Dispenser WPL W10181616 Contact Us For Availability
8
VALVE, INLET WPL W10222095 Contact Us For Availability
8
INNER DOOR WPL W10221995 Contact Us For Availability
8
TRACK WPL W10181581 Contact Us For Availability
8
HANDLE (BLACK) WPL W10221915 Contact Us For Availability
9
OVERLAY (BLACK) WPL W10221919 Contact Us For Availability
9
OVERLAY (WHITE) WPL W10221916 Contact Us For Availability
10
CONSOLE (WHITE) WPL W10221930 Contact Us For Availability
10
BRACE, LOWER WPL W10221891 Contact Us For Availability
10
CONSOLE (BLACK) WPL W10221932 Contact Us For Availability
10
HOSE WPL W10222071 Contact Us For Availability
11
HOSE, INLET WPL W10222014 Contact Us For Availability
12
SPRING, DOOR WPL W10221940 Contact Us For Availability
12
SUPPORT WPL W10181643 Contact Us For Availability
13
Switch, Pressure WPL W10181588 Contact Us For Availability
13
GROMMET WPL W10222073 Contact Us For Availability
14
Hinge, Door (Left) WPL W10181621 Contact Us For Availability
14
Hinge, Door (Right) WPL W10181622 Contact Us For Availability
15
WIRING HARNESS WPL W10221957 Contact Us For Availability
15
CLAMP WPL W10181635 Contact Us For Availability
16
HOSE WPL W10181638 Contact Us For Availability
17
HOSE WPL W10222085 Contact Us For Availability
18
GASKET, DOOR WPL W10221842 Contact Us For Availability
18
SIEVE WPL W10181660 Contact Us For Availability
19
FILTER, DRAIN WPL W10222002 Contact Us For Availability
20
MICROFILTER WPL W10222003 Contact Us For Availability
20
STOP, TRACK WPL W10221854 Contact Us For Availability
21
NUT, SUMP WPL W10222004 Contact Us For Availability
22
Gasket, Sump WPL W10181656 Contact Us For Availability
23
CONNECTOR WPL W10222056 Contact Us For Availability
23
SUMP WPL W10181655 Contact Us For Availability
24
HOSE, DRAIN WPL W10222013 Contact Us For Availability
25
SPINNER WPL W10222052 Contact Us For Availability
25
CLAMP WPL W10222033 Contact Us For Availability
26
TUBE-FEED WPL W10222050 Contact Us For Availability
26
SUPPORT WPL W10222027 Contact Us For Availability
27
CLAMP WPL W10222043 Contact Us For Availability
27
PAD WPL W10222026 Contact Us For Availability
28
PUMP-DRAIN WPL W10222025 Contact Us For Availability
29
CLAMP WPL W10181583 Contact Us For Availability
30
CLAMP WPL W10222096 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE) WPL 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. BLACK) WPL 285006 Contact Us For Availability
× ![]()
