Model GE GTZ21GCEBSS Refrigerator – Common Parts & Diagrams
DOORS
FREEZER SECTION

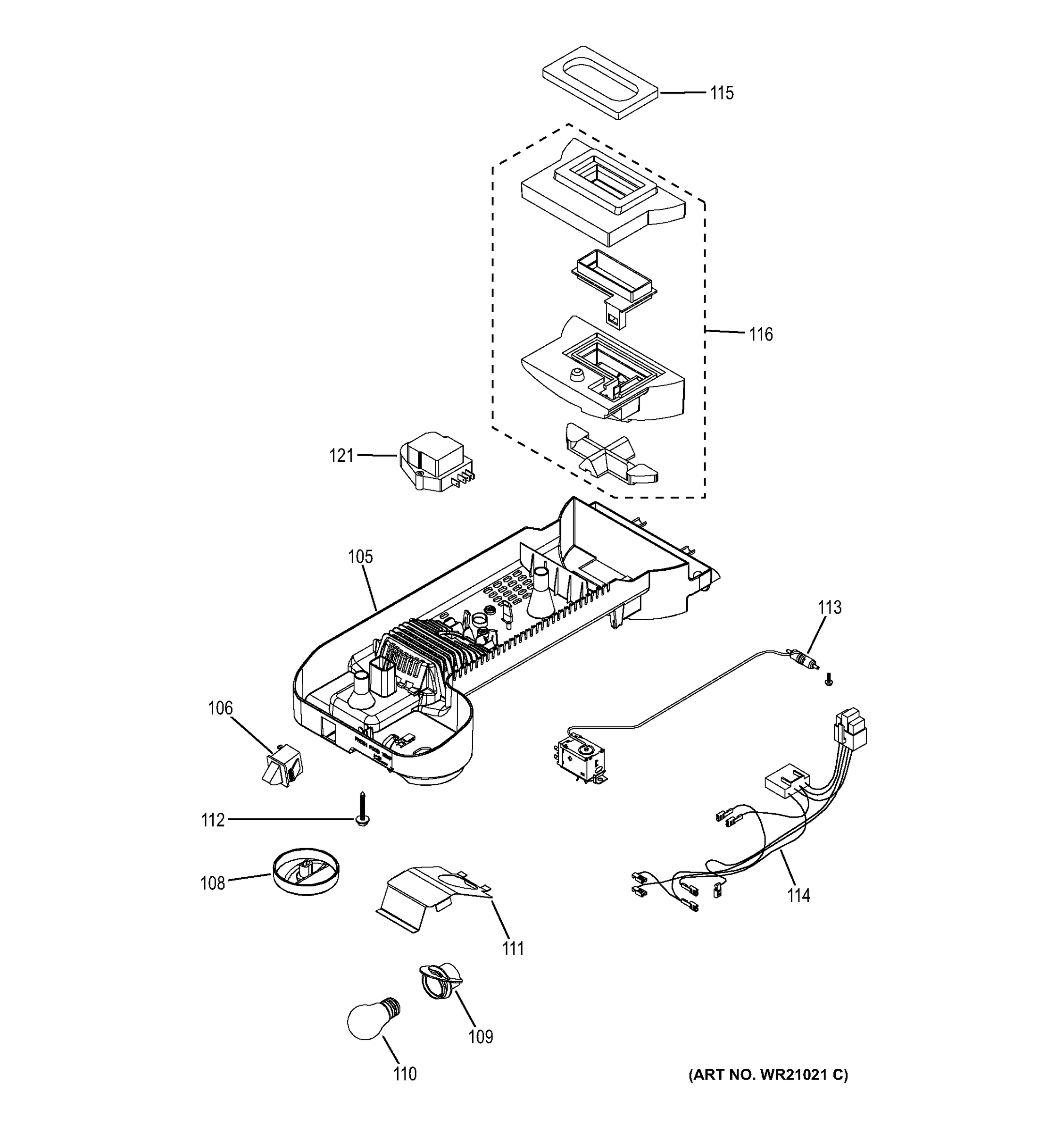

FRESH FOOD SECTION

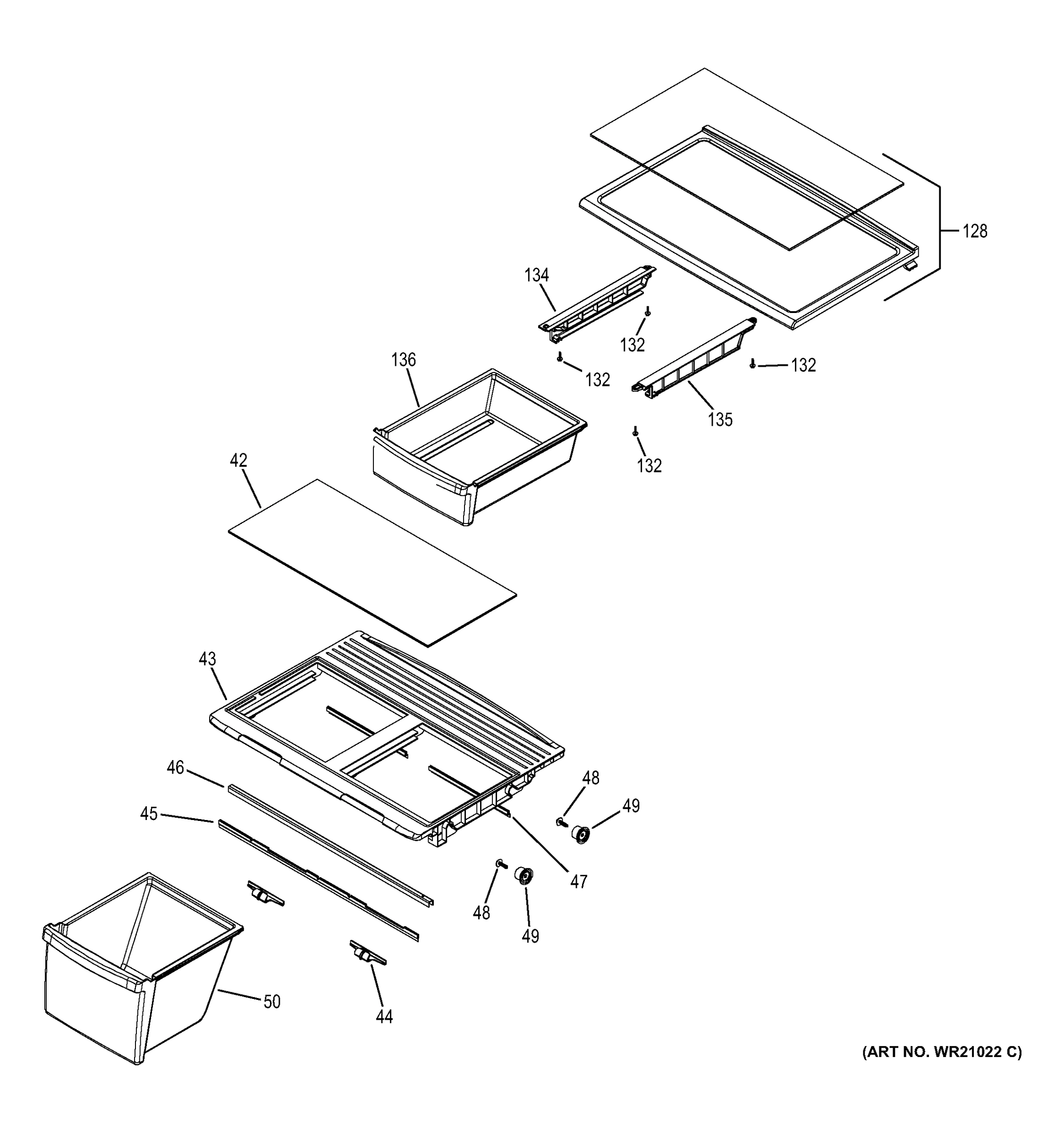

FRESH FOOD SHELVES

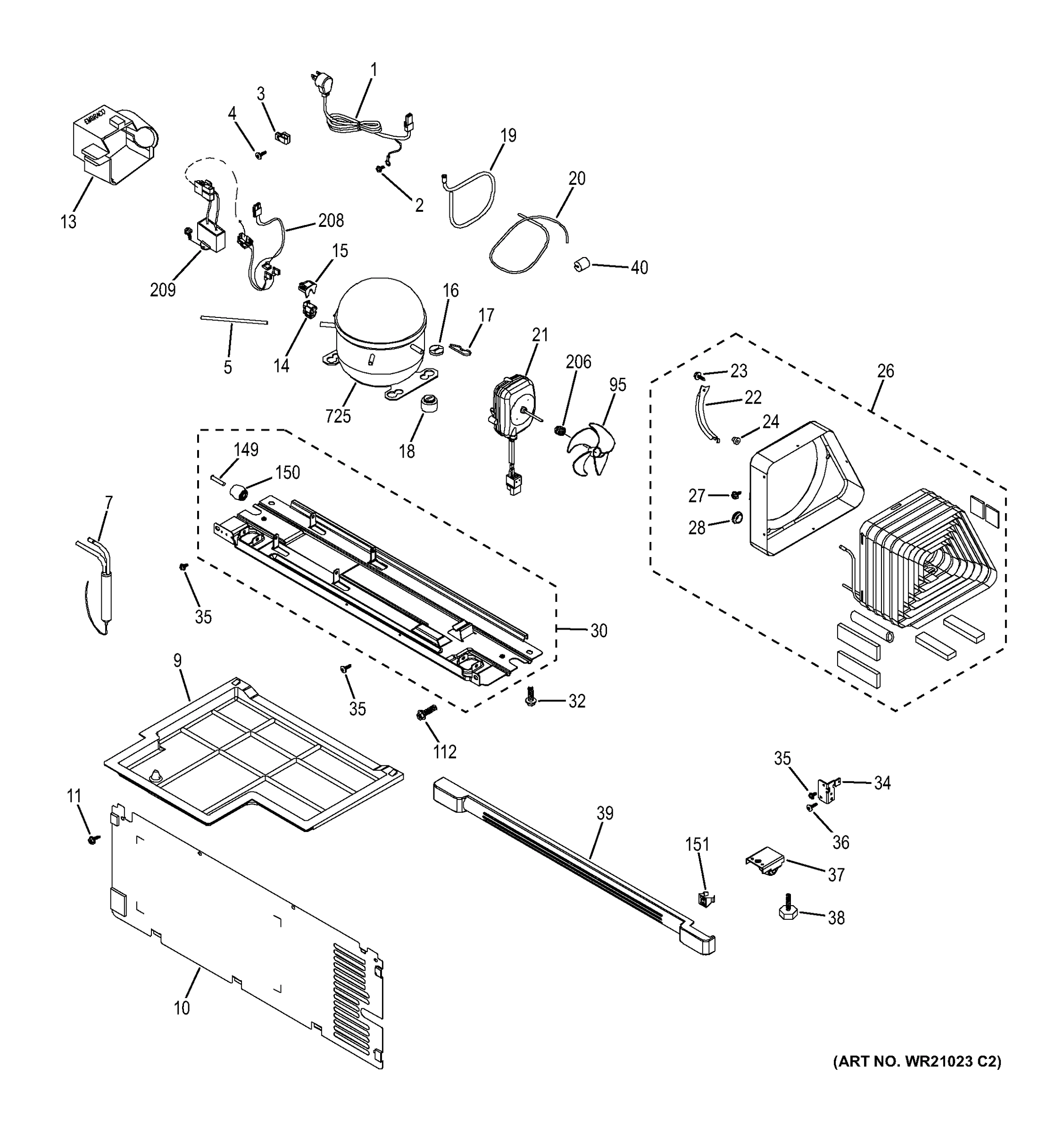

MACHINE COMPARTMENT

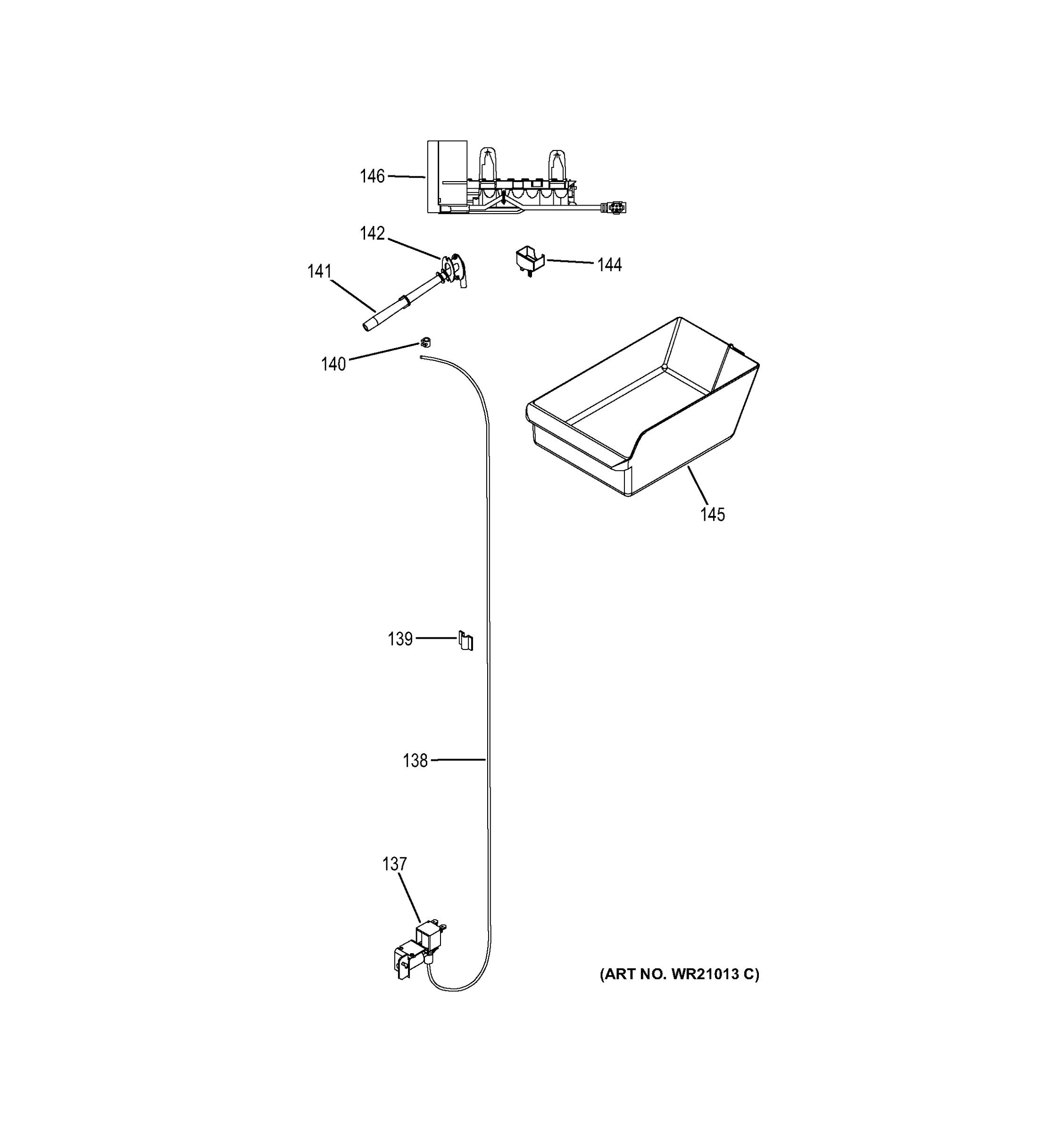

ICE MAKER
Common parts from model GE GTZ21GCEBSS Refrigerator
1
POWER CORD ASM GEN WR23X10570 Contact Us For Availability
9
CASE VAPORI GEN WR02X12543 Contact Us For Availability
15
RELAY OL GEN WR07X10116 Contact Us For Availability
22
FRAME MOTOR C GEN WR02X12546 Contact Us For Availability
33
CLAMP FAN GEN WR02X12495 Contact Us For Availability
37
CASTER FZ ASM GEN WR02X12539 Contact Us For Availability
38
FOOT ADJUST ASM GEN WR02X12545 Contact Us For Availability
40
ABSORBER PIPE B GEN WR02X12523 Contact Us For Availability
42
VEG PAN GLASS GEN WR32X10639 Contact Us For Availability
50
CASE VEGETB GEN WR32X10641 Contact Us For Availability
51
COVER FAN FZ ASM (SNG) GEN WR13X11000 Contact Us For Availability
52
FZ EVAP COVER ASM GEN WR13X10999 Contact Us For Availability
58
HEATER DEFROST ASM GEN WR51X10096 Contact Us For Availability
59
FIXTURE HEATER GEN WR01X10697 Contact Us For Availability
62
EVAPORATOR ASM GEN WR17X12331 Contact Us For Availability
65
SWITCH BIMETAL ASM GEN WR02X12513 Contact Us For Availability
66
HARNESS LUVR ASM GEN WR23X10562 Contact Us For Availability
68
SHELF FZ WIRE GEN WR71X10772 Contact Us For Availability
71
DOOR ASM FZ SS GEN WR78X12089 Contact Us For Availability
72
CAP BUSHING GEN WR02X12504 Contact Us For Availability
76
HINGE T ASM GEN WR13X10464 Contact Us For Availability
77
STOPPER F DR GEN WR01X10702 Contact Us For Availability
78
SPECIAL LUVR BOLT B GEN WR01X10706 Contact Us For Availability
79
SPECIAL WASHER GEN WR01X10710 No Longer Available
80
HINGE M ASM BLK GEN WR13X10459 Contact Us For Availability
87
POCKET FZ DOOR GEN WR71X10768 Contact Us For Availability
88
GASKET FZ DOOR ASM BB GEN WR14X10286 Contact Us For Availability
89
DOOR ASM FF SS GEN WR78X12090 Contact Us For Availability
92
PLUG BUTTON SS GEN WR02X20808 Contact Us For Availability
93
STOPPER FF DOOR GEN WR01X10703 Contact Us For Availability
95
CONDENSOR FAN BLADE GEN WR60X20776 Contact Us For Availability
96
SHAFT HINGE U GEN WR02X13143 Contact Us For Availability
97
HINGE U ASM GEN WR13X10457 Contact Us For Availability
98
SPECIAL HI BOLT U GEN WR01X10714 Contact Us For Availability
100
COVER DAIRY GEN WR32X10638 Contact Us For Availability
101
POCKET DAIRY GEN WR71X10771 Contact Us For Availability
102
GASKET FF DOOR ASM BB GEN WR14X10287 Contact Us For Availability
103
POCKET BOTTLE GEN WR71X10769 Contact Us For Availability
104
POCKET FF GEN WR71X10770 Contact Us For Availability
106
SWITCH DOOR ASM GEN WR02X12510 Contact Us For Availability
108
KNOB FF DIAL GEN WR02X12547 Contact Us For Availability
109
SOCKET LAMP ASM GEN WR02X12522 Contact Us For Availability
111
PLATE LAMP GEN WR02X12536 Contact Us For Availability
112
SPECIAL C/B BOLT GEN WR01X10711 Contact Us For Availability
115
SEAL INSU DUCT B GEN WR02X12529 Contact Us For Availability
128
SHELF ASM GEN WR71X11064 Contact Us For Availability
132
TAPPING SCREW GEN WR01X10741 Contact Us For Availability
134
SHELF GUIDE LEFT GEN WR71X11065 No Longer Available
135
SHELF GUIDE RIGHT GEN WR71X11066 No Longer Available
136
CASE CHILLED GEN WR32X10640 Contact Us For Availability
138
HOSE WATER GEN WR17X12338 Contact Us For Availability
139
GUIDE WATER HOSE GEN WR02X12556 Contact Us For Availability
140
CLAMP WATER HOSE GEN WR02X12555 Contact Us For Availability
141
TUBE WATER FILL GEN WR17X12339 Contact Us For Availability
142
SEAL TUBE WATER FILL GEN WR17X12337 Contact Us For Availability
144
GUIDE ICE FILL GEN WR29X10074 Contact Us For Availability
145
BOX ICE GEN WR32X10644 Contact Us For Availability
149
SHAFT CASTR GEN WR02X12537 Contact Us For Availability
151
SPRING CAB BRKT COVR GEN WR01X10727 Contact Us For Availability
200
SPECIAL GRIP HANDLE GEN WR01X10716 Contact Us For Availability
204
FIXTURE DC FZ MOTOR GEN WR01X10699 Contact Us For Availability
205
FIXTURE FAN MOTOR B GEN WR01X10696 Contact Us For Availability
206
CLAMP FAN BLADE GEN WR01X20777 Contact Us For Availability
207
FAN GEN WR02X12499 Contact Us For Availability
208
HARNESS P RELAY ASM GEN WR23X10560 Contact Us For Availability
209
RUNNING CAPACITOR GEN WR62X10072 Contact Us For Availability
× ![]()
