Model GE GTS18TBSABB – Common Parts & Diagrams
DOORS
FREEZER SECTION
FRESH FOOD SECTION

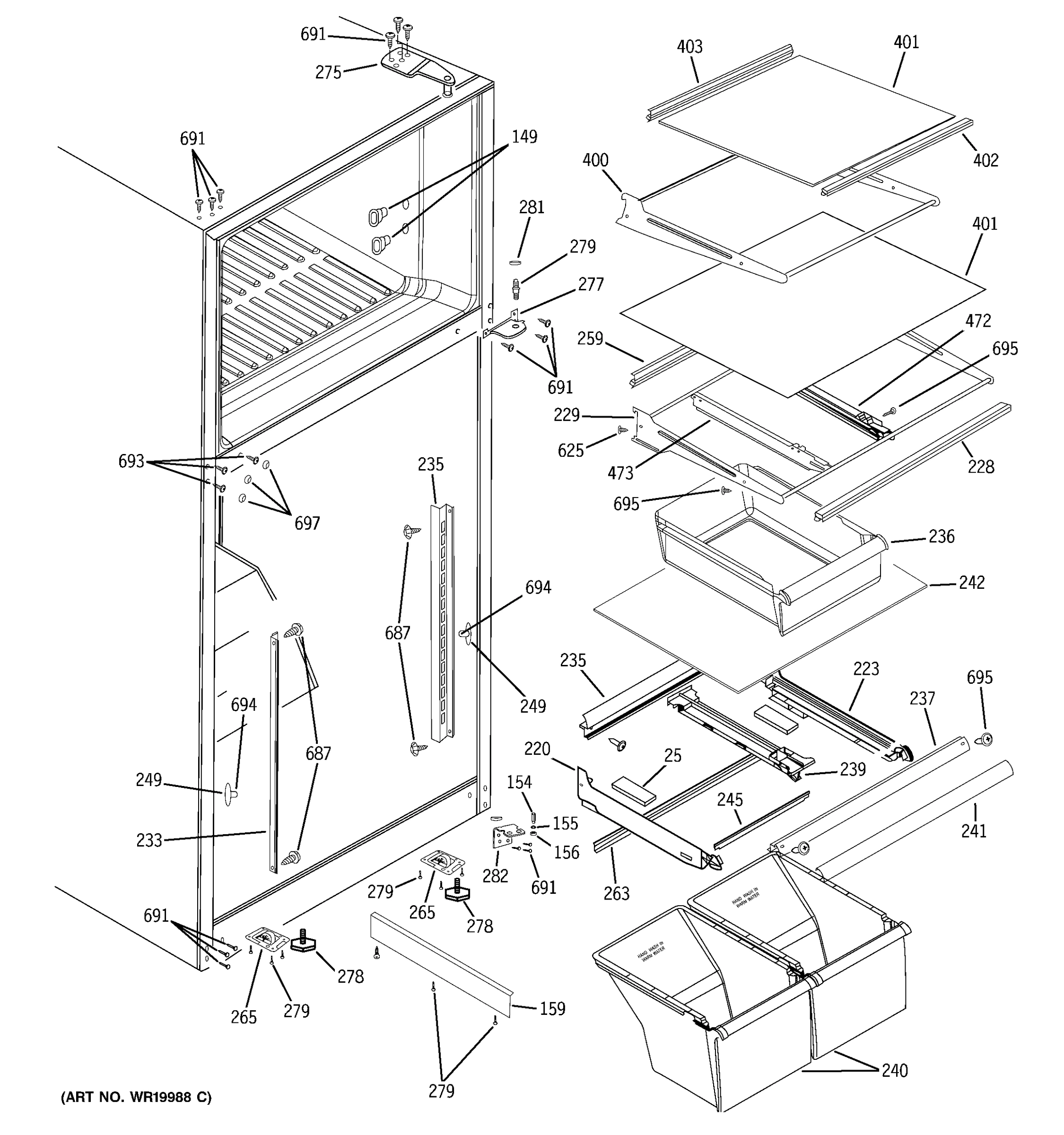

FRESH FOOD SHELVES

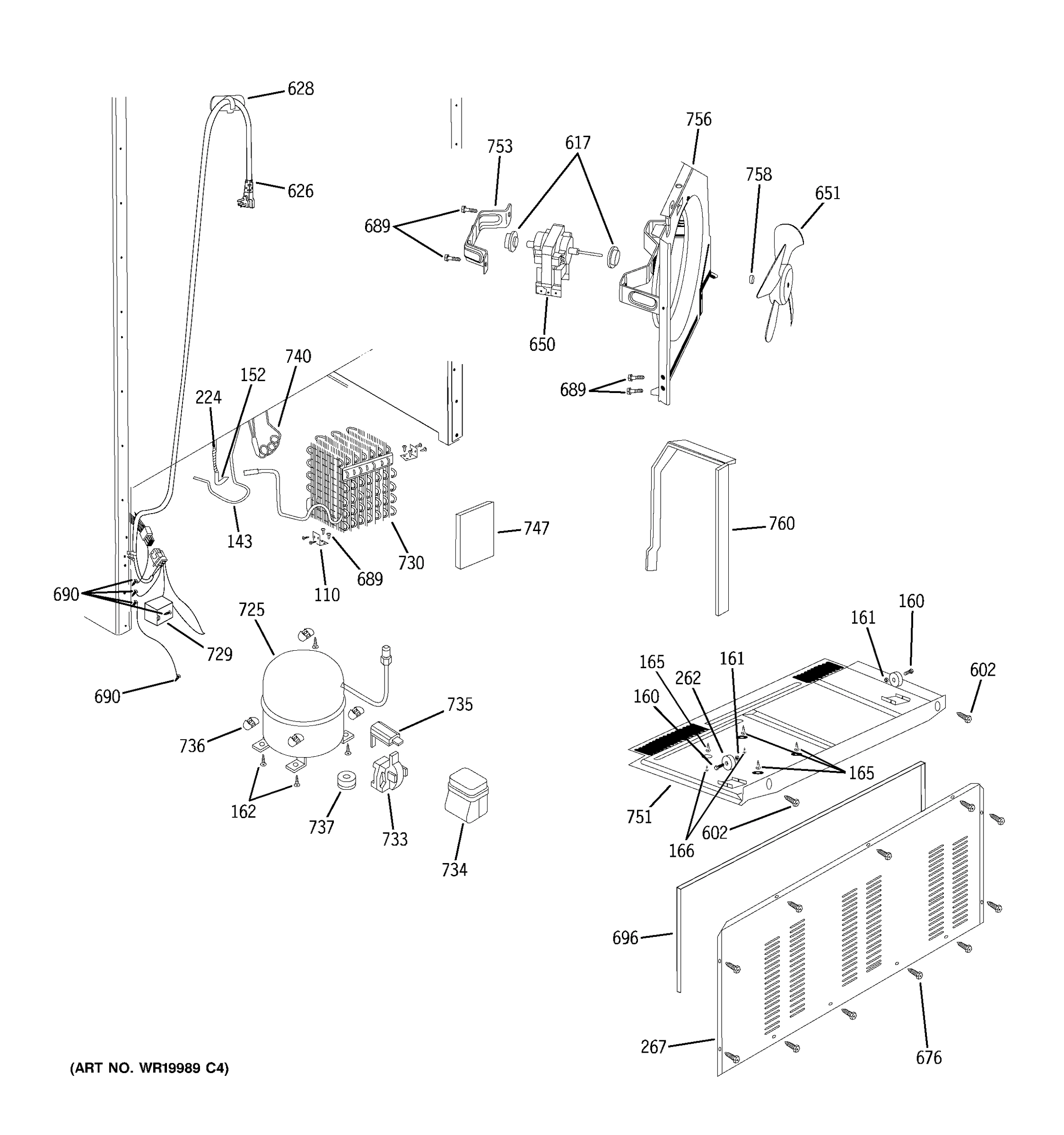

UNIT PARTS
Common parts from model GE GTS18TBSABB
18
DOOR HANDLE SCREW GEN WR01X10512 Contact Us For Availability
23
FZ DOOR GASKET GEN WR24X10189 Contact Us For Availability
25
VEG BOX COVER SPONGE GEN WR02X12170 Contact Us For Availability
29
PLUG DOOR THIMBLE BK GEN WR02X12319 Contact Us For Availability
35
NAMEPLATE GEN WR04X10153 Contact Us For Availability
51
BRACKET DOOR HANDLE GEN WR02X12155 Contact Us For Availability
53
DOOR HANDLE SCREW GEN WR01X10530 Contact Us For Availability
55
DOOR HANDLE HOLE SCREW C GEN WR01X10670 Contact Us For Availability
68
FOAM BLOCK GEN WR14X10157 Contact Us For Availability
80
FOAM SPACER GEN WR02X12169 Contact Us For Availability
104
FF DOOR GASKET GEN WR24X10190 Contact Us For Availability
106
DOOR DAIRY CLEAR GEN WR22X10055 Contact Us For Availability
107
SHELF FRONT FF GEN WR71X10669 Contact Us For Availability
108
SHELF FRONT FZ GEN WR71X10667 Contact Us For Availability
110
CONDENSOR FIX HOLDER GEN WR02X12161 Contact Us For Availability
111
SHELF FRONT FF HALF GEN WR71X10668 Contact Us For Availability
112
DOOR PLATE HOLE COVER BK GEN WR02X12321 Contact Us For Availability
129
FOAM REFLECTOR GEN WR02X12185 Contact Us For Availability
130
AIR RETURN COVER GEN WR02X12186 Contact Us For Availability
143
SUCTION JUMPER GEN WR02X12308 Contact Us For Availability
149
SHELF SUPPORT FZ GEN WR02X12156 Contact Us For Availability
152
CONNECTOR TUBE GEN WR02X12184 Contact Us For Availability
154
PIN HINGE BOTTOM GEN WR13X10391 Contact Us For Availability
155
SPRING BUSHING BK GEN WR01X10669 Contact Us For Availability
156
NUT BK GEN WR01X10667 Contact Us For Availability
159
BOTTOM PLATE STOP GEN WR02X12162 Contact Us For Availability
160
REAR WHEEL NUT GEN WR01X10548 Contact Us For Availability
161
REAR WHEEL BOLT GEN WR01X10547 Contact Us For Availability
162
COMPRESSOR FIX SCREW GEN WR02X12298 Contact Us For Availability
165
STUD COMP MTG W/NUT GEN WR01X10658 Contact Us For Availability
166
SPRING WASHER GEN WR01X10673 Contact Us For Availability
201
EVAP COVER GEN WR17X11995 Contact Us For Availability
206
DOOR STOP BK GEN WR02X12320 Contact Us For Availability
213
TRAY ICE GEN WR30X10071 Contact Us For Availability
214
PLUG BUTTON GEN WR02X12089 Contact Us For Availability
220
SLIDE TRACK LEFT GEN WR17X11999 Contact Us For Availability
223
SLIDE TRACK RIGHT GEN WR72X10177 Contact Us For Availability
224
DRAIN PIPE GEN WR02X12154 Contact Us For Availability
225
SHELF ASM FZ GEN WR71X10672 Contact Us For Availability
228
TRIM FRONT GLASS SHELF GEN WR38X10374 Contact Us For Availability
229
SHELF CANT FULL ASM GEN WR71X10671 Contact Us For Availability
233
TRACK CANT SIDE GEN WR72X10176 Contact Us For Availability
235
RAIL VEG PAN REAR GEN WR17X12003 Contact Us For Availability
236
PAN SNACK GEN WR32X10541 Contact Us For Availability
237
RAIL VEG PAN FRONT GEN WR17X12004 Contact Us For Availability
239
SLIDE COVER CENTER GEN WR17X11998 Contact Us For Availability
240
VEG PAN GEN WR32X10542 Contact Us For Availability
241
TRIM FRAME VEG PAN GEN WR17X12005 Contact Us For Availability
242
SHELF CANT GLASS GEN WR32X10551 Contact Us For Availability
245
GASKET PAN FRONT GEN WR14X10202 Contact Us For Availability
249
GASKET COVER PAN FRT GEN WR14X10201 Contact Us For Availability
259
STRENGTH GLASS STRIPD GEN WR38X10375 Contact Us For Availability
261
GROMMET WATER FILL ASM GEN WR02X12160 Contact Us For Availability
262
WHEEL MOBILITY GEN WR02X12103 Contact Us For Availability
263
GASKET COVER PAN REAR GEN WR14X10200 Contact Us For Availability
265
MOBILITY WHEEL GEN WR02X12090 Contact Us For Availability
267
COMPRESSOR COVER PLATE GEN WR17X11997 Contact Us For Availability
269
EXTENSION IM FILL TUBE GEN WR02X12168 Contact Us For Availability
270
PLUG BUTTON WATER FILL GEN WR02X12159 Contact Us For Availability
271
HOOD RETURN DUCT FF GEN WR02X12086 Contact Us For Availability
272
HOOD RETURN DUCT FF GEN WR02X12091 Contact Us For Availability
273
GASKET HOOD GEN WR14X10203 Contact Us For Availability
275
HINGE TOP BK GEN WR13X10412 Contact Us For Availability
277
CENTER HINGE BK GEN WR13X10413 Contact Us For Availability
278
ADJUST LEG GEN WR02X12096 Contact Us For Availability
279
HINGE PIN CENTER GEN WR13X10390 Contact Us For Availability
281
WASHER HINGE BROWN GEN WR01X10533 Contact Us For Availability
282
HINGE BOTTOM BK GEN WR13X10414 Contact Us For Availability
296
COVER IM RECEPTACLE GEN WR02X12158 Contact Us For Availability
297
KNOB THUMB CONTROL FZ GEN WR02X12092 Contact Us For Availability
300
CONTROL TEMP GEN WR09X10131 Contact Us For Availability
301
KNOB THUMB CONTROL FF GEN WR02X12093 Contact Us For Availability
304
NOZZLE CONTROL FOAM GEN WR02X12083 Contact Us For Availability
305
WHEEL DAMPER GEN WR02X12087 Contact Us For Availability
311
BLOCK FOAM CONTROL GEN WR02X12084 Contact Us For Availability
316
SPACER GEN WR02X12099 Contact Us For Availability
318
HARNESS CONTROL MODULE GEN WR23X10436 Contact Us For Availability
319
SHAFT DAMPER GEN WR02X12088 Contact Us For Availability
320
SPRING KNOB GEN WR01X10501 Contact Us For Availability
321
SHIELD REFLECTOR FF GEN WR02X12153 Contact Us For Availability
400
SHELF CANT FRAME ASM GEN WR71X10670 Contact Us For Availability
401
SHELF ENCAP SNAP ON GEN WR32X10543 Contact Us For Availability
402
TRIM FRONT GLASS SHELF GEN WR32X10544 Contact Us For Availability
403
TRIM REAR GLASS SHELF GEN WR38X10373 Contact Us For Availability
433
SOCKET LIGHT GEN WR02X12082 Contact Us For Availability
472
SLIDE SNACK PAN RH GEN WR72X10178 Contact Us For Availability
473
SLIDE SNACK PAN LH GEN WR72X10179 Contact Us For Availability
566
DOOR STOP SCREW /DOOR HA GEN WR01X10668 Contact Us For Availability
602
BASE PLATE SCREW GEN WR01X10513 Contact Us For Availability
607
BRACKET EVAP FAN LARGE GEN WR02X12085 Contact Us For Availability
611
MOTOR FIX HOLDER GEN WR02X12095 Contact Us For Availability
613
BLADE EVAP FAN GEN WR60X10199 Contact Us For Availability
617
GROMMET MOTOR GEN WR17X12002 Contact Us For Availability
618
DEFROST HEATER GEN WR51X10086 Contact Us For Availability
619
CONDUCTOR HEAT GEN WR51X10087 Contact Us For Availability
620
THERMOSTAT DEF GEN WR50X10066 Contact Us For Availability
621
HOLDER ELEMENT GEN WR02X12105 Contact Us For Availability
622
TROUGH DRAIN GEN WR17X12000 Contact Us For Availability
624
HOUSING CONTROL GEN WR17X11993 Contact Us For Availability
625
SCREW GEN WR01X10508 Contact Us For Availability
626
POWER CORD GEN WR23X10434 Contact Us For Availability
628
CLAMP CABLE GEN WR01X10504 Contact Us For Availability
645
TOWER BOTTOM FZ GEN WR17X11994 Contact Us For Availability
651
BLADE COND FAN GEN WR60X10200 Contact Us For Availability
676
COMP COVER SCREW GEN WR01X10529 Contact Us For Availability
687
SCREW GEN WR01X10538 Contact Us For Availability
688
AIR TOWER SCREW GEN WR01X10536 Contact Us For Availability
689
MOTOR SHELF SCREW GEN WR01X10511 Contact Us For Availability
690
SCREW GEN WR01X10531 Contact Us For Availability
691
TOP/CENTER/BOTTOM HINGE GEN WR01X10671 Contact Us For Availability
692
EV COVER SCREW GEN WR01X10537 Contact Us For Availability
693
OFFSIDE CENTER/BTM HINGE GEN WR01X10672 Contact Us For Availability
694
VEG PAN SCREW GEN WR01X10507 Contact Us For Availability
695
SCREW GEN WR01X10514 Contact Us For Availability
696
FOAM STRIP GEN WR14X10204 Contact Us For Availability
697
HINGE HOLE SCREW COVER GEN WR01X10666 Contact Us For Availability
699
CAPATITOR SCREW GEN WR01X10518 Contact Us For Availability
726
LOW SIDE ASM GEN WR85X10079 Contact Us For Availability
729
CAPACITOR GEN WR62X10057 Contact Us For Availability
730
CONDENSER GEN WR84X10079 Contact Us For Availability
734
PROTECTOR CAP GEN WR02X12323 Contact Us For Availability
735
OVERLOAD PROTECTOR GEN WR08X10081 Contact Us For Availability
736
COMP MTG CLIP GEN WR02X12157 Contact Us For Availability
737
GROMMET COMP MTG GEN WR02X12081 Contact Us For Availability
747
INSULATION SIDE GEN WR82X10105 Contact Us For Availability
751
BASE PLATE GEN WR17X11996 Contact Us For Availability
753
BRACKET FAN BTM GEN WR02X12101 Contact Us For Availability
756
HOUSING COND FAN GEN WR17X12001 Contact Us For Availability
757
FASTENER PUSH GEN WR01X10502 Contact Us For Availability
758
FAN SPRING GEN WR02X12106 Contact Us For Availability
760
FOAM STRIP SE ADH GEN WR14X10205 Contact Us For Availability
821
IM MOUNTING SCREW GEN WR01X10532 Contact Us For Availability
900
DOOR FOAM ASM FZ BK GEN WR78X11885 Contact Us For Availability
910
DOOR FOAM ASM FF BK GEN WR78X11886 Contact Us For Availability
921
HINGE PIN THIMBLE BK GEN WR02X12318 Contact Us For Availability
× ![]()
