Model Electrolux GTNI142WK0 REFRIGERATOR – Common Parts & Diagrams
02 - DOOR PARTS
03 - CABINET PARTS

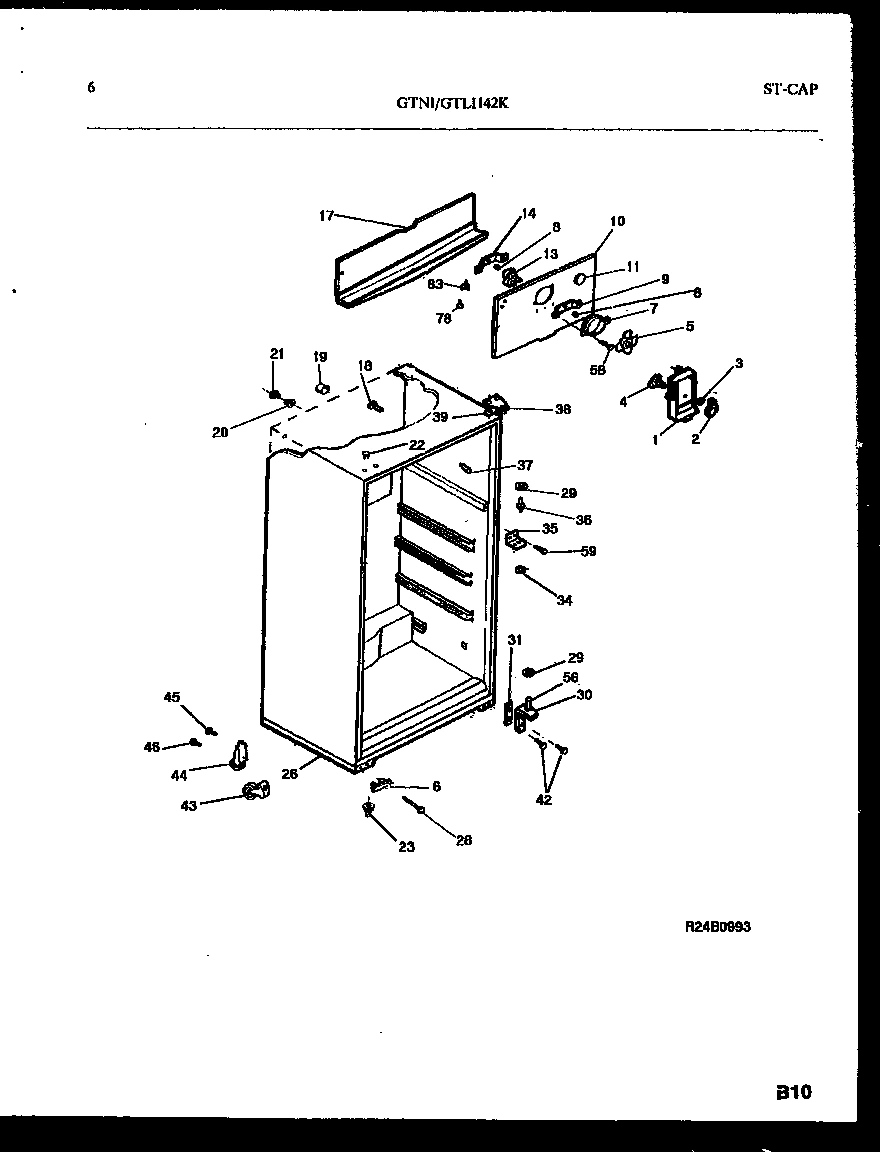

04 - CABINET PARTS

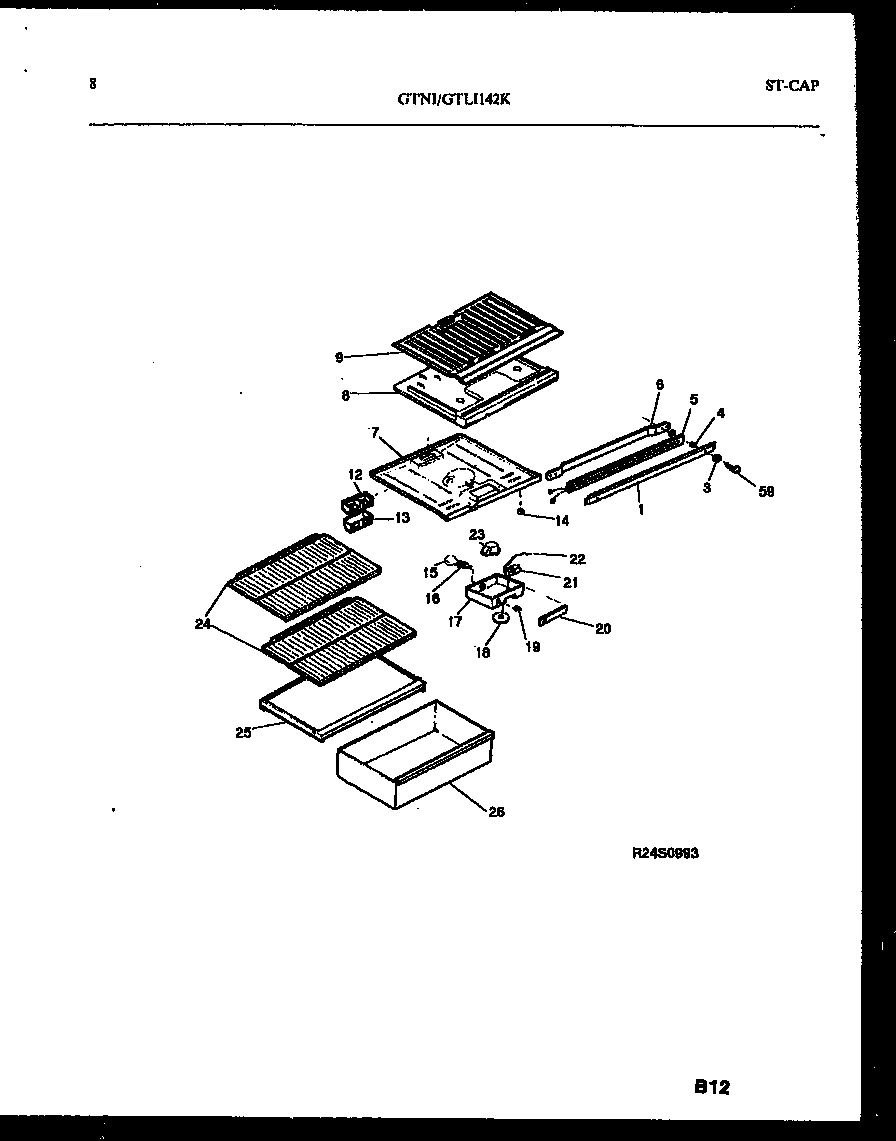

05 - SHELVES AND SUPPORTS

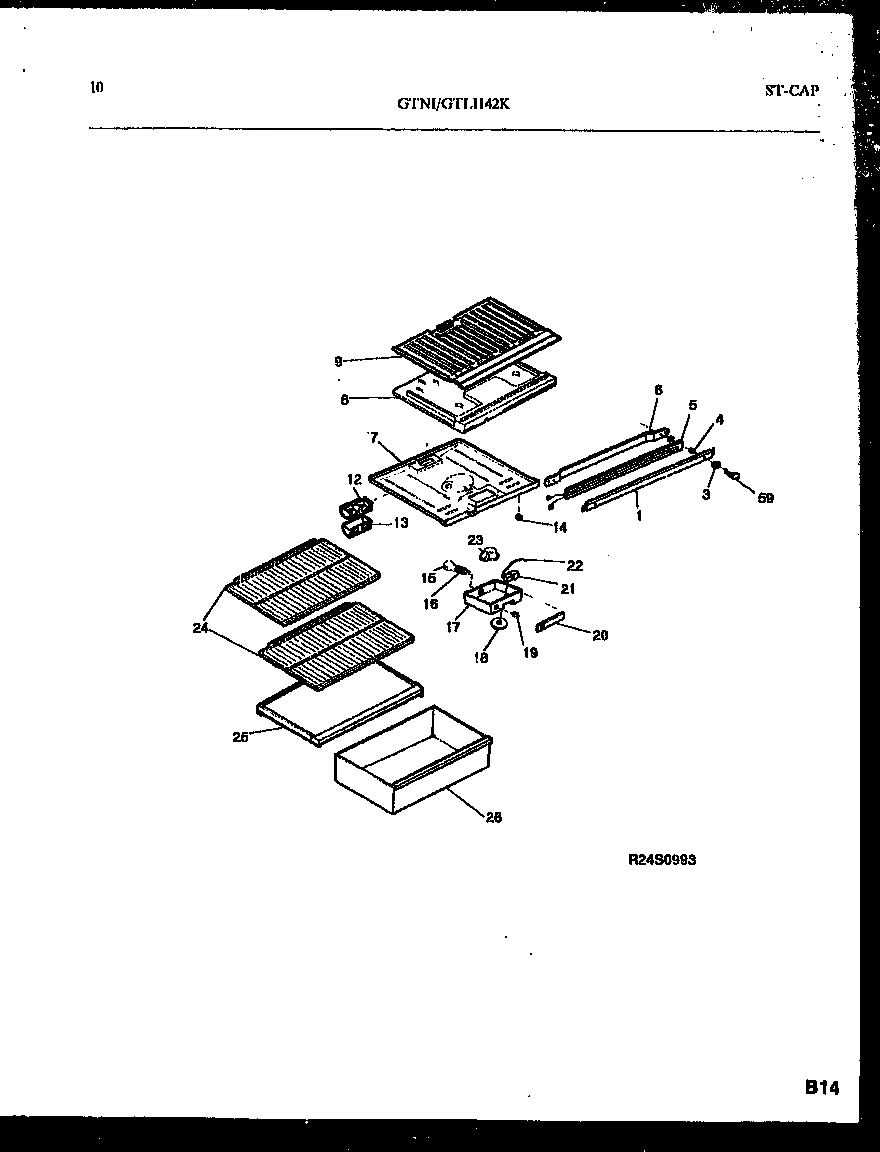

06 - SHELVES AND SUPPORTS

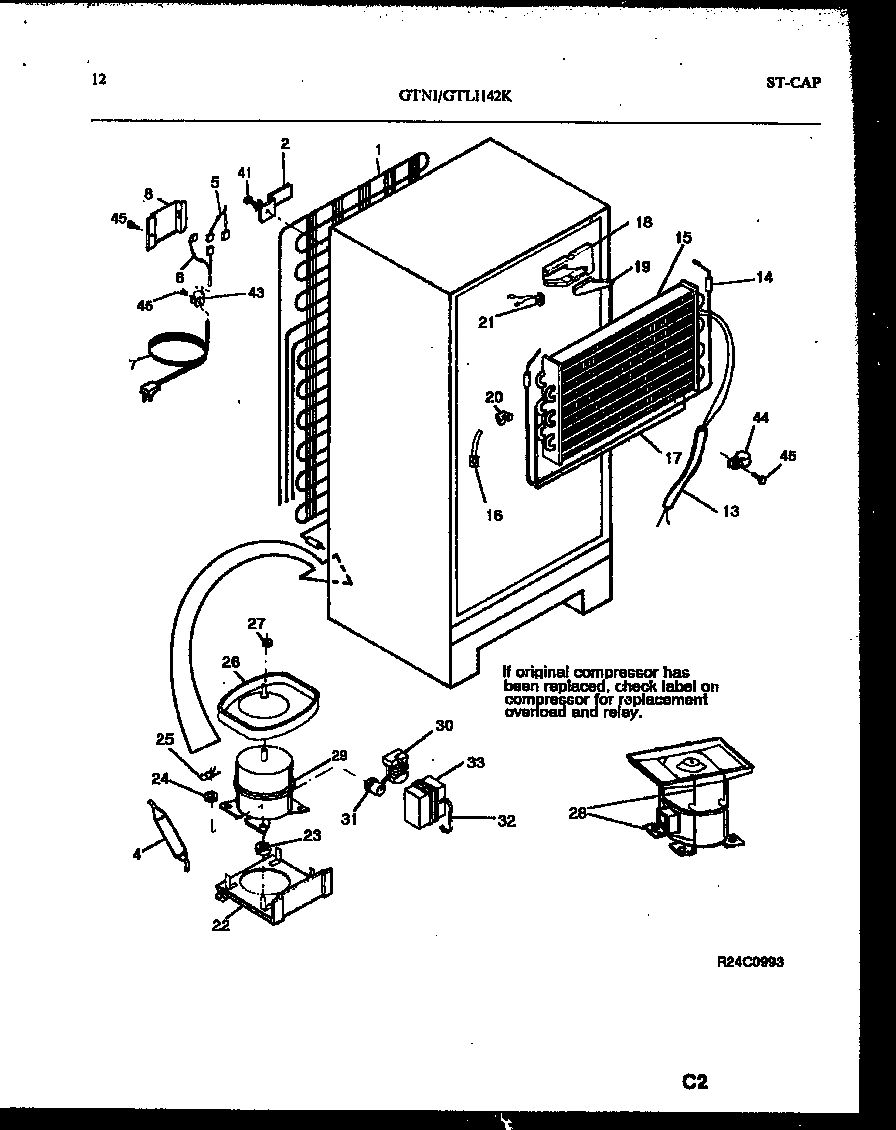

07 - SYSTEM AND AUTOMATIC DEFROST PARTS

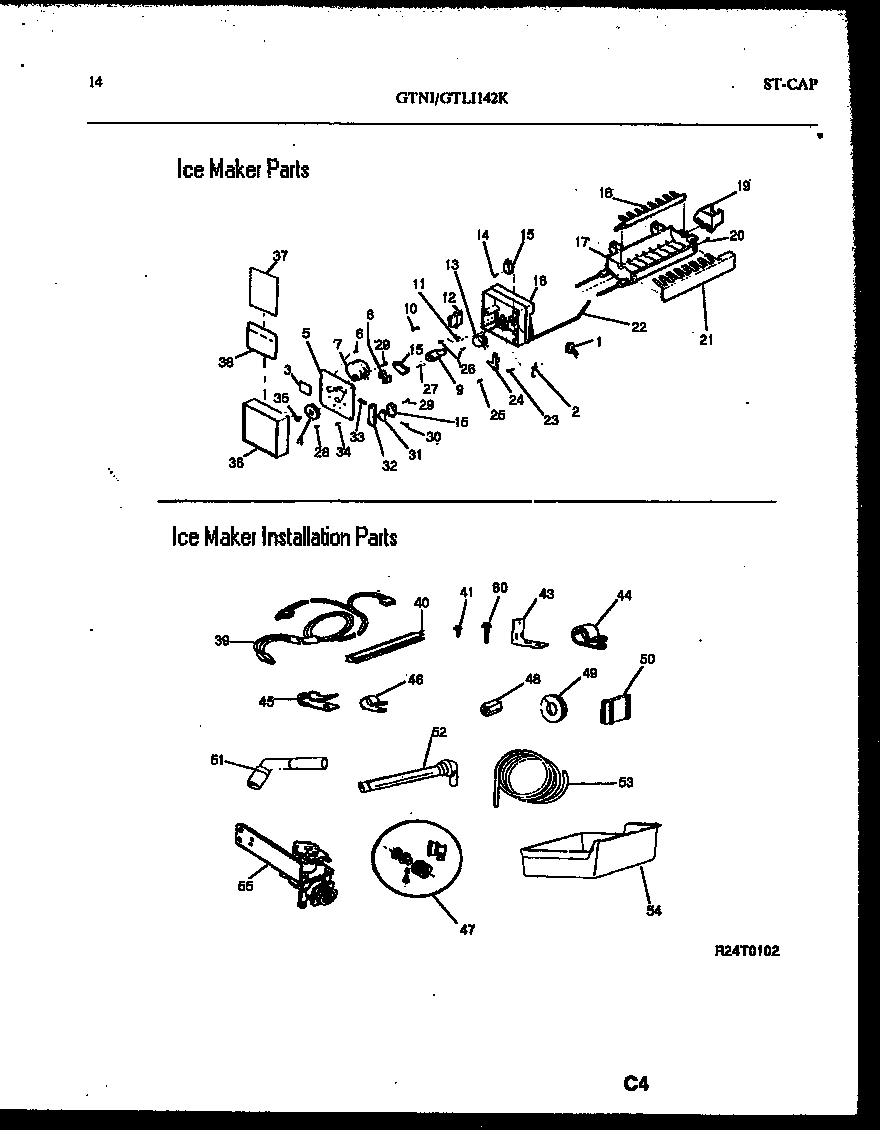

08 - ICE MAKER AND INSTALLATION PARTS

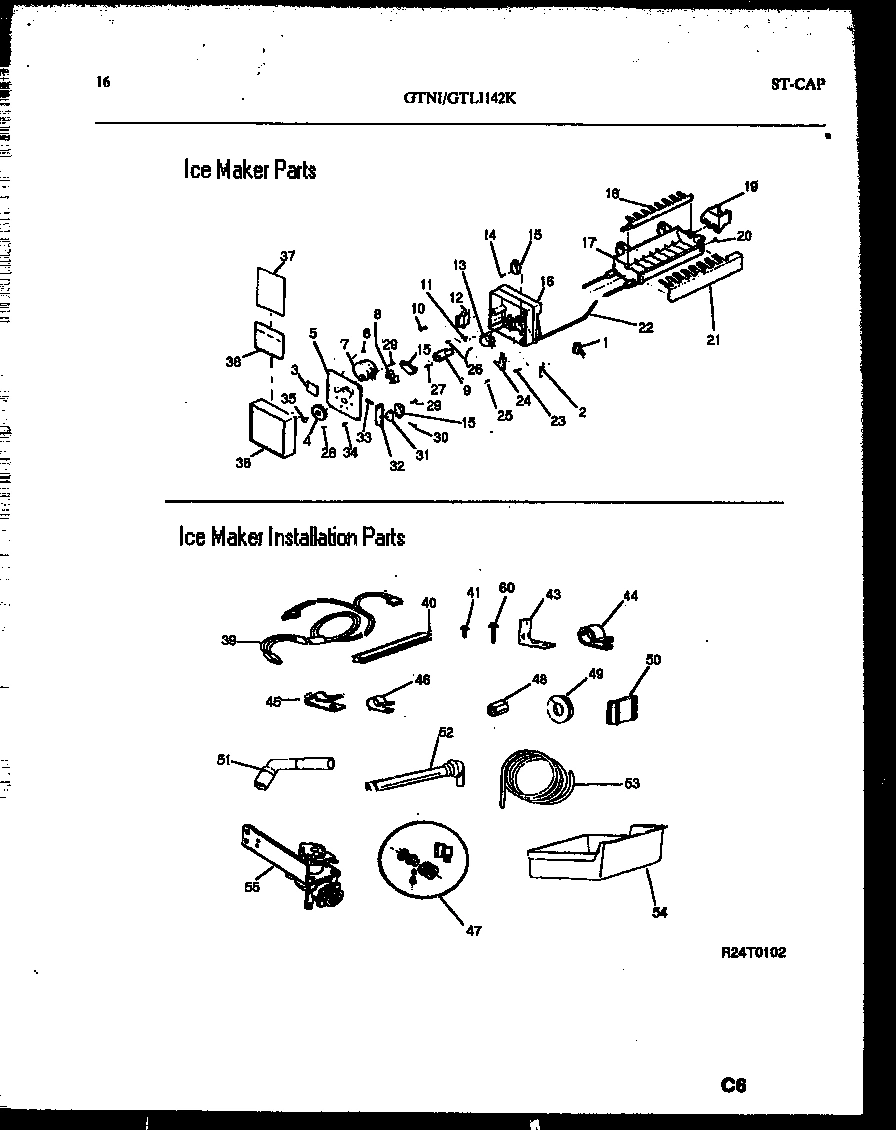

09 - ICE MAKER AND INSTALLATION PARTS
Common parts from model Electrolux GTNI142WK0 REFRIGERATOR
*51269
BUTTON PLUG-LINER WCI 5308016571 Contact Us For Availability
*51271
SCREW-SHELF SUPPORT, C.R. FLAT HEAD, 8(AB) X WCI 5303001290 Contact Us For Availability
*51271
HANGER-SHELF WCI 5303001562 Contact Us For Availability
*51271
WCI 5303272170 WCI 5303272170 Contact Us For Availability
*51271
SUPPORT-FRZR SHELF, (4) WCI 5308000244 Contact Us For Availability
*51274
HOT TUBE REPAIR KIT-SERVICE WCI 5300189377 Contact Us For Availability
*51279
WCI 5303001191 WCI 5303001191 Contact Us For Availability
1
WIRING HARNESS, ICE MAKER WCI 3206349 Contact Us For Availability
1
WCI 5303200465 WCI 5303200465 Contact Us For Availability
1
WCI 5303001341 WCI 5303001341 Contact Us For Availability
2
WCI 5308000081 WCI 5308000081 Contact Us For Availability
2
BRACKET, COND MTG WCI 5303001342 Contact Us For Availability
2
WCI 3206348 WCI 3206348 Contact Us For Availability
2A
WASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRAT WCI 5308009617 Contact Us For Availability
3
WASHER, NO. 10 STEEL, 7/23 X 7/16 OD WCI 5308003607 Contact Us For Availability
3
PLATE-I.D. WCI 3206299 Contact Us For Availability
4
WCI 5303200464 WCI 5303200464 Contact Us For Availability
5
WCI 5308017408 WCI 5308017408 Contact Us For Availability
5
WIRING HARNESS, CONTROL/DIVIDER WCI 3001383 Contact Us For Availability
5
WCI 3206303 WCI 3206303 Contact Us For Availability
6
WCI 5308003604 WCI 5308003604 Contact Us For Availability
6
WIRING HARNESS, COMPRESSOR, WCI 5303001347 Contact Us For Availability
7
RING-FAN ORIFICE WCI 5308000124 Contact Us For Availability
7
TOP PANEL-REFR, W/ SNAP BUSHING WCI 5303015448 Contact Us For Availability
7
CORD, ELEC SERVICE WCI 5316254901 Contact Us For Availability
7A
WCI 5303001380 WCI 5303001380 Contact Us For Availability
7B
BUSHING, SNAP-IN, PLASTIC (NON-ILLUSTRATED) WCI 5303212518 Contact Us For Availability
8
WCI 5308000759 WCI 5308000759 Contact Us For Availability
8
WCI 5303001197 WCI 5303001197 Contact Us For Availability
8
SPACER-HOLDING SW WCI 3206312 Contact Us For Availability
9
BOTTOM PANEL-FREEZER WCI 5308000748 Contact Us For Availability
9
WCI 3206313 WCI 3206313 Contact Us For Availability
10
BUTTON PLUG, WHITE, HINGE BRG HOLE WCI 5308000134 Contact Us For Availability
10
WCI 3206315 WCI 3206315 Contact Us For Availability
12
WCI 3206321 WCI 3206321 Contact Us For Availability
12
DEFLECTOR-AIR WCI 5308000071 Contact Us For Availability
13
WCI 3206322 WCI 3206322 Contact Us For Availability
13
COVER - AIR DEFLECTOR WCI 5303001546 Contact Us For Availability
13
HEAT EXCHANGER, SUCTION LINE WCI 5303201079 Contact Us For Availability
14
WCI 5303001362 WCI 5303001362 Contact Us For Availability
14
SCREW-SW TO SUPPORT, 4-24 X 3/4, (2) WCI 3206323 Contact Us For Availability
15
WCI 5303272044 WCI 5303272044 Contact Us For Availability
16
SOCKET-LIGHT/LAMP WCI 5308000129 Contact Us For Availability
16
WCI 3206326 WCI 3206326 Contact Us For Availability
17
INSULATOR-EVAP, PLASTIC WCI 5316651102 Contact Us For Availability
17
WCI 5317465503 WCI 5317465503 Contact Us For Availability
17A
WCI 3202734 WCI 3202734 Contact Us For Availability
18
WCI 3018569 WCI 3018569 Contact Us For Availability
18
INSULATION BLOCK, RH WCI 5308013648 Contact Us For Availability
18
WCI 3206328 WCI 3206328 Contact Us For Availability
19
TUBE-RUBBER WCI 5303001198 Contact Us For Availability
19
WCI 5303001670 WCI 5303001670 Contact Us For Availability
19
INSULATION PLUG, RH WCI 5303007287 Contact Us For Availability
19
WCI 3206330 WCI 3206330 Contact Us For Availability
20
WCI 5303001286 WCI 5303001286 Contact Us For Availability
20
WCI 3018571 WCI 3018571 Contact Us For Availability
20
INSULATION BLOCK, LH WCI 5308017227 Contact Us For Availability
20
WCI 3206331 WCI 3206331 Contact Us For Availability
21
WCI 5303001287 WCI 5303001287 Contact Us For Availability
21
WCI 5308015762 WCI 5308015762 Contact Us For Availability
21
ICE STRIPPER WCI 3206332 Contact Us For Availability
21A
WCI 5303001260 WCI 5303001260 Contact Us For Availability
22
BUTTON PLUG, WHITE, UPR HINGE HOLES WCI 5303001388 Contact Us For Availability
22
WCI 5308009596 WCI 5308009596 Contact Us For Availability
22
WCI 3206333 WCI 3206333 Contact Us For Availability
23
WCI 5303001386 WCI 5303001386 Contact Us For Availability
23
SCREW-SUPT/MOLD BODY, 8-18 X 1, (4) WCI 3206334 Contact Us For Availability
24
WCI 5303200772 WCI 5303200772 Contact Us For Availability
24
WASHER-COMPR MTG WCI 5308003633 Contact Us For Availability
25
WCI 5308000749 WCI 5308000749 Contact Us For Availability
25
CLIP - COMPRESSOR MTG WCI 5308003596 Contact Us For Availability
25
SCREW-ARM LEVER/SUPT, 8-18 X 9/16 WCI 3206336 Contact Us For Availability
26
WCI 5303006086 WCI 5303006086 Contact Us For Availability
26
WCI 5303276910 WCI 5303276910 Contact Us For Availability
26
PAN-DEFROST DRAIN, ORIG/SVCE COMPR WCI 5300184715 Contact Us For Availability
26
SCREW-THERMO/SUPT, 4-24 X 3/8, (4) WCI 3206337 Contact Us For Availability
27
Nut,lock `1/4-20 ,drain pan mtg WCI 5303001348 Contact Us For Availability
27
SCREW-SW & SPCR/PLATE, 4-40 X 1, (2) WCI 3206338 Contact Us For Availability
28
PAN RETAINER KIT, SERVICE WCI 5303916001 Contact Us For Availability
28
WCI 5308009761 WCI 5308009761 Contact Us For Availability
28
SCREW-TIMING STOP, 4-40 X 3/8 WCI 3206339 Contact Us For Availability
29
WASHER, .34 X .62 X .05, NYLON WCI 5308000007 Contact Us For Availability
29
COMPRESSOR-W/ ELEC, SERVICE WCI 5303916004 Contact Us For Availability
29
SCREW-MOTOR & SW/PLATE, 4-40 X 3/4, (4) WCI 3206340 Contact Us For Availability
29A
CAPACITOR-RUN (NON-ILLUSTRATED) WCI 5303916391 Contact Us For Availability
30
WCI 5303007173 WCI 5303007173 Contact Us For Availability
30
BRACKET-LOWER HINGE WCI 5308010251 Contact Us For Availability
30
SCREW-TIMING, 8-32 X 1 WCI 3206341 Contact Us For Availability
31
SHIM-LOWER HINGE WCI 5303001323 Contact Us For Availability
31
WCI 5303272031 WCI 5303272031 Contact Us For Availability
31
WCI 3206342 WCI 3206342 Contact Us For Availability
32
WCI 3206343 WCI 3206343 Contact Us For Availability
33
WCI 3206344 WCI 3206344 Contact Us For Availability
34
WCI 5308000186 WCI 5308000186 Contact Us For Availability
34
SCREW-MTG PLATE/SUPT, 8-18 X 7/16, (3) WCI 3206345 Contact Us For Availability
35
WCI 5303001369 WCI 5303001369 Contact Us For Availability
35
SCREW-GEAR/CAM, 6-20 X .437 WCI 3206346 Contact Us For Availability
36
WCI 5308000184 WCI 5308000184 Contact Us For Availability
36
WCI 3206347 WCI 3206347 Contact Us For Availability
37
WCI 5303202336 WCI 5303202336 Contact Us For Availability
37
WCI 5303207442 WCI 5303207442 Contact Us For Availability
38
BRACKET-UPPER HINGE WCI 5308012843 Contact Us For Availability
38
WCI 5303207445 WCI 5303207445 Contact Us For Availability
39
SHIM - UPPER HINGE WCI 5303001037 Contact Us For Availability
39
WIRING HARNESS,ICE MAKER WCI 3206358 Contact Us For Availability
43
WCI 5300188673 WCI 5300188673 Contact Us For Availability
43A
WCI 5308009760 WCI 5308009760 Contact Us For Availability
43B
WCI 5308009790 WCI 5308009790 Contact Us For Availability
43C
WCI 5308011326 WCI 5308011326 Contact Us For Availability
44
WCI 5308009773 WCI 5308009773 Contact Us For Availability
46
WCI 5308009762 WCI 5308009762 Contact Us For Availability
48
NUT-INLET/WTR VALVE, 7/16 X 20, NYLON WCI 5308000200 Contact Us For Availability
51
EXTENSION-INLET TUBE, S X S & SD ONLY WCI 5308000239 Contact Us For Availability
55
VALVE-SOLENOID/WATER WCI 3206356 Contact Us For Availability
55A
CAP-WATER VALVE (NON-ILLUSTRATED) WCI 5303015102 Contact Us For Availability
59
WCI 5308012258 WCI 5308012258 Contact Us For Availability
83
WCI 5308000107 WCI 5308000107 Contact Us For Availability
× ![]()
