Model Electrolux GTN198WE1 REFRIGERATOR – Common Parts & Diagrams
01 - COVER
02 - DOOR PARTS

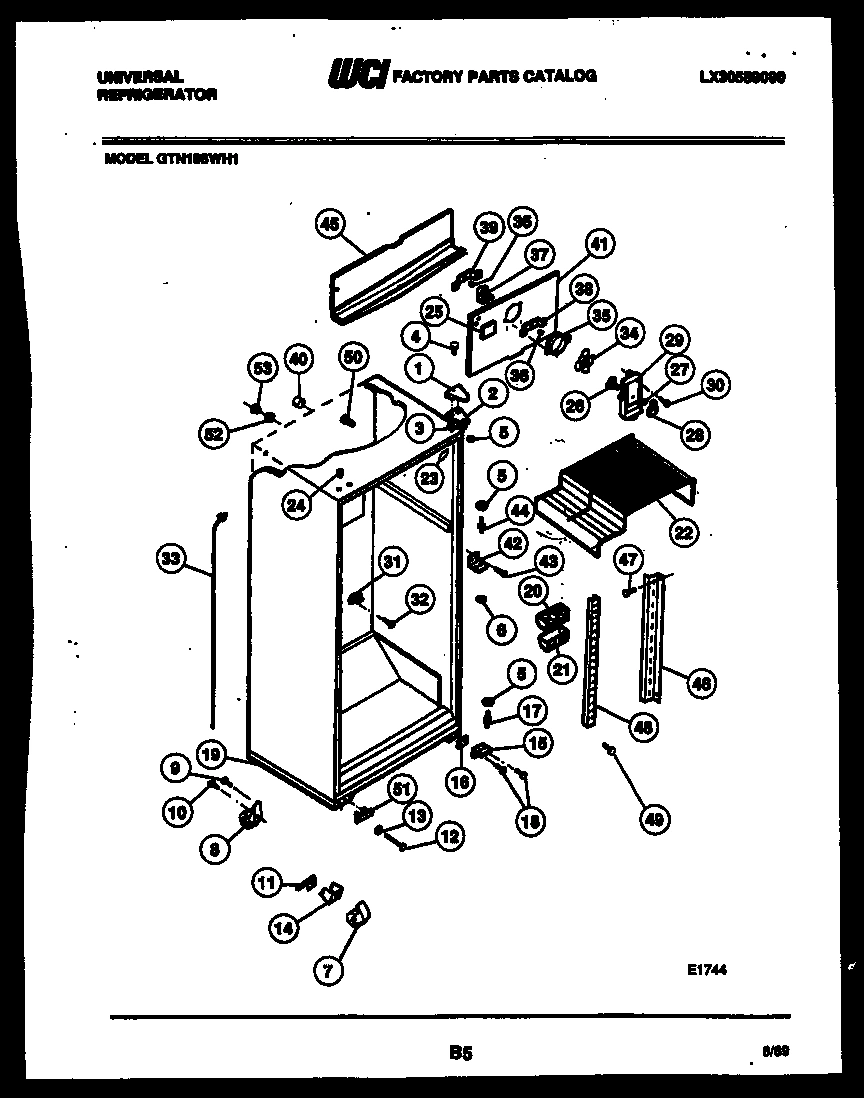

03 - CABINET PARTS

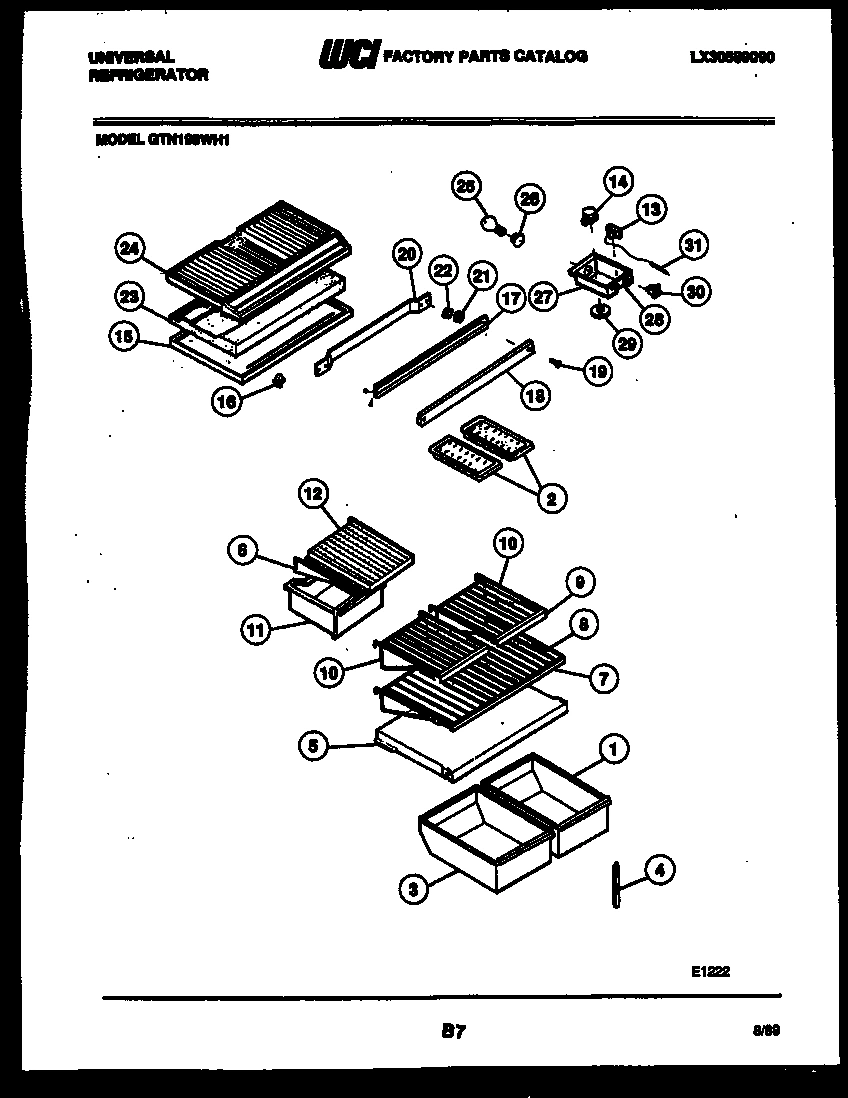

04 - SHELVES AND SUPPORTS

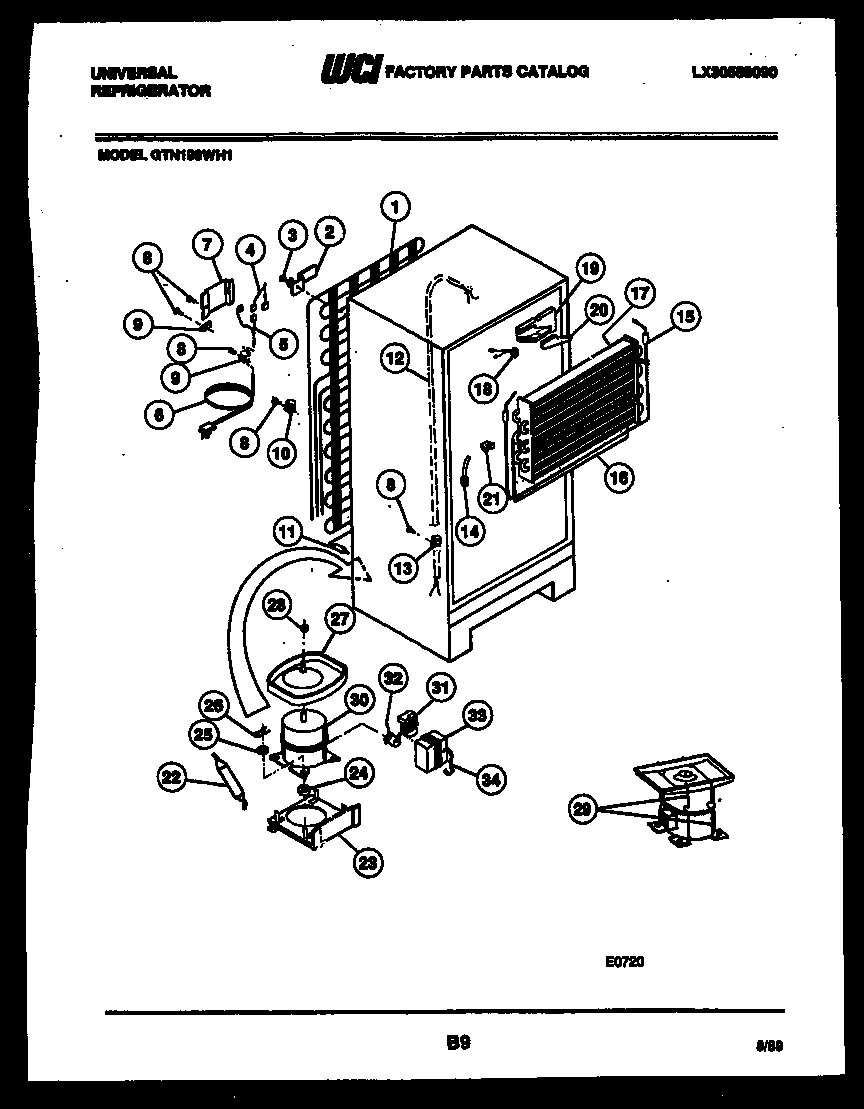

05 - SYSTEM AND AUTOMATIC DEFROST PARTS
Common parts from model Electrolux GTN198WE1 REFRIGERATOR
*12694
BUTTON-I/M HOLE (5) WCI G187599 Contact Us For Availability
*12699
WCI G107080 WCI G107080 Contact Us For Availability
*12708
HOT TUBE REPAIR KIT-SVCE WCI G189383 Contact Us For Availability
1
COVER HINGE, WHITE WCI G183558-01 Contact Us For Availability
1
COVER HINGE, AVOC. WCI G183558-08 Contact Us For Availability
1
COVER HINGE, WHEAT WCI G183558-09 Contact Us For Availability
1
COVER HINGE, COFFEE WCI G183558-10 Contact Us For Availability
1
COVER HINGE, ALMOND WCI G183558-11 Contact Us For Availability
1
PAN-CRISPER RS WCI 3001437 Contact Us For Availability
1
WCI G163133 WCI G163133 Contact Us For Availability
2
WCI 3001485 WCI 3001485 Contact Us For Availability
2
WCI G157591 WCI G157591 Contact Us For Availability
2
WCI G183714 WCI G183714 Contact Us For Availability
2
WCI 08000296 WCI 08000296 Contact Us For Availability
3
RACK-DOOR (2) WCI 3001484 Contact Us For Availability
3
WCI G183861 WCI G183861 Contact Us For Availability
3
PAN-CRISPER LS WCI 3001436 Contact Us For Availability
3
WCI G164820 WCI G164820 Contact Us For Availability
4
SUPPORT LH (4) WCI 3001411 Contact Us For Availability
4
SUPPORT, COVER WCI G166310-02 Contact Us For Availability
4
WCI G174818 WCI G174818 Contact Us For Availability
5
WCI G103903 No Longer Available
5
SUPPORT RH (4) WCI 3001410 Contact Us For Availability
5
WCI 3001493 WCI 3001493 Contact Us For Availability
5
WIRING HARNESS-COMPR WCI G166062-01 Contact Us For Availability
6
DOOR STOP (2) WCI G155072 Contact Us For Availability
6
WASHER, HINGE WCI G164355 Contact Us For Availability
6
RAIL-OFFSET LS WCI G187213-04 Contact Us For Availability
6
RAIL-STRAIGHT RS (NON-ILLUSTRATED) WCI G187214-04 Contact Us For Availability
6
WCI G162549-01 WCI G162549-01 Contact Us For Availability
7
WCI G177021 WCI G177021 Contact Us For Availability
7
WCI G172434-32 WCI G172434-32 Contact Us For Availability
7
WCI G183584 WCI G183584 Contact Us For Availability
8
WCI G162977-08 WCI G162977-08 Contact Us For Availability
8
WCI G162977-09 WCI G162977-09 Contact Us For Availability
8
WCI G162977-10 WCI G162977-10 Contact Us For Availability
8
WCI G162977-11 WCI G162977-11 Contact Us For Availability
8
NUT ANCHOR (2) (NON-ILLUSTRATED) WCI G183073 Contact Us For Availability
8
WCI G183407 WCI G183407 Contact Us For Availability
8
LEVELING SCREW (2) (NON-ILLUSTRATED) WCI G185713 Contact Us For Availability
8
FULL SHELF WCI 3001491 Contact Us For Availability
9
WCI G169332-01 WCI G169332-01 Contact Us For Availability
9
WCI G169332-08 WCI G169332-08 Contact Us For Availability
9
WCI G169332-09 WCI G169332-09 Contact Us For Availability
9
WCI G169332-10 WCI G169332-10 Contact Us For Availability
9
WCI G169332-11 WCI G169332-11 Contact Us For Availability
9
WCI G172434-42 WCI G172434-42 Contact Us For Availability
10
WCI G170495-29 WCI G170495-29 Contact Us For Availability
10
WCI G177025 WCI G177025 Contact Us For Availability
10
WCI G177390-21 WCI G177390-21 Contact Us For Availability
11
END CAP-TOP WCI G179800 Contact Us For Availability
11
WCI G178494 WCI G178494 Contact Us For Availability
11
WCI 3015407 WCI 3015407 Contact Us For Availability
12
WCI G185566 WCI G185566 Contact Us For Availability
12
WCI G187329-01 WCI G187329-01 Contact Us For Availability
12
WCI G177024 WCI G177024 Contact Us For Availability
12
WCI G187195-01 WCI G187195-01 Contact Us For Availability
12
WCI 08000728 WCI 08000728 Contact Us For Availability
13
FRAME-NAMPLATE WCI G171161-01 Contact Us For Availability
13
WCI G182799 WCI G182799 Contact Us For Availability
13
CONTROL-TEMP WCI 3200810 Contact Us For Availability
14
PANEL, OUTER, WHITE WCI G178690 Contact Us For Availability
14
PANEL, OUTER, AVOCADO WCI G178690-08 Contact Us For Availability
14
PANEL, OUTER, WHEAT WCI G178690-09 Contact Us For Availability
14
WCI G178690-10 WCI G178690-10 Contact Us For Availability
14
PANEL, OUTER, ALMOND WCI G178690-11 Contact Us For Availability
14
BEARING, HINGE (4) (NON-ILLUSTRATED) WCI G183138 Contact Us For Availability
14
WCI G177302 WCI G177302 Contact Us For Availability
15
WCI G178500-14 WCI G178500-14 Contact Us For Availability
15
HINGE-BRACKET-BOTTOM WCI 3202834 Contact Us For Availability
15
TOP-REFRIGERATOR WCI 3016367 Contact Us For Availability
15
WCI G162673 WCI G162673 Contact Us For Availability
16
PANEL-INNER WCI 3001489 Contact Us For Availability
16
WCI G163203 WCI G163203 Contact Us For Availability
16
WCI G166511-02 WCI G166511-02 Contact Us For Availability
17
WCI 3001418 WCI 3001418 Contact Us For Availability
17
WCI 08002662 WCI 08002662 Contact Us For Availability
17
WCI G162506 WCI G162506 Contact Us For Availability
18
PANEL, OUTER, WHITE WCI G178694 Contact Us For Availability
18
PANEL, OUTER, AVOCADO WCI G178694-08 Contact Us For Availability
18
PANEL, OUTER, WHEAT WCI G178694-09 Contact Us For Availability
18
WCI G178694-10 WCI G178694-10 Contact Us For Availability
18
PANEL, OUTER, ALMOND WCI G178694-11 Contact Us For Availability
18
WCI 3200366 WCI 3200366 Contact Us For Availability
18
WCI 3200367 WCI 3200367 Contact Us For Availability
18
WCI 3200368 WCI 3200368 Contact Us For Availability
18
WCI 3200369 WCI 3200369 Contact Us For Availability
18
WCI 3200370 WCI 3200370 Contact Us For Availability
19
GASKET-REFR DOOR WCI 08015544 Contact Us For Availability
19
BASE-CABINET WCI 08010092 Contact Us For Availability
19
SCREW-MOUNTING (4) WCI G183103 Contact Us For Availability
19
WCI G185299 WCI G185299 Contact Us For Availability
20
WCI G179801 WCI G179801 Contact Us For Availability
20
DEFLECTOR AIR WCI G162675 Contact Us For Availability
20
WCI G490087 WCI G490087 Contact Us For Availability
20
WCI G185276 WCI G185276 Contact Us For Availability
21
COVER, AIR DEFLECTOR WCI G162178 Contact Us For Availability
21
WASHER-STEEL (2) WCI G166847 Contact Us For Availability
21
WCI G188375 WCI G188375 Contact Us For Availability
22
WCI 3001490 WCI 3001490 Contact Us For Availability
22
SPACER (2) WCI 3200464 Contact Us For Availability
23
WCI 3202336 WCI 3202336 Contact Us For Availability
23
CORNER TRIM-AVOCADO WCI 3202337 Contact Us For Availability
23
WCI 3202338 WCI 3202338 Contact Us For Availability
23
WCI 3202339 WCI 3202339 Contact Us For Availability
23
WCI 3202340 WCI 3202340 Contact Us For Availability
23
WCI G176777 WCI G176777 Contact Us For Availability
23
PLATE-COMPRESSOR MTG WCI G184599 Contact Us For Availability
24
WCI G174747-01 WCI G174747-01 Contact Us For Availability
24
WCI G174747-08 WCI G174747-08 Contact Us For Availability
24
WCI G174747-09 WCI G174747-09 Contact Us For Availability
24
WCI G174747-10 WCI G174747-10 Contact Us For Availability
24
WCI G174747-11 WCI G174747-11 Contact Us For Availability
24
WCI G185912 WCI G185912 Contact Us For Availability
25
BUTTON-DECORATIVE PLUG WCI 3001328 Contact Us For Availability
25
WCI 08003633 WCI 08003633 Contact Us For Availability
26
DAMPER WCI G162661 Contact Us For Availability
26
SOCKET-LIGHT WCI 08000129 Contact Us For Availability
26
CLIP (4) WCI G163204 Contact Us For Availability
27
NUT, PUSH WCI G162662 Contact Us For Availability
27
BOX-CONTROL WCI G174655-18 Contact Us For Availability
27
PAN-DEFROST DRAIN (ORIG COMPR) WCI G171129 Contact Us For Availability
27
PAN-DEFROST DRAIN SERVICE COMPR (NON-ILLUSTRA WCI G184715 Contact Us For Availability
28
KNOB-DAMPER CONTROL WCI 3001333 Contact Us For Availability
28
LABEL-CONTROL BOX WCI 3001339 Contact Us For Availability
28
WCI G164958 WCI G164958 Contact Us For Availability
29
WCI 3001496 WCI 3001496 Contact Us For Availability
29
WCI 3001335 WCI 3001335 Contact Us For Availability
29
PAN RETAINER KIT-SERVICE COMPR WCI 3916001 Contact Us For Availability
30
SWITCH-SLIDE WCI 3001670 Contact Us For Availability
30
WCI G175410 WCI G175410 Contact Us For Availability
31
SPOUT, DRAIN WCI G162179 Contact Us For Availability
31
WCI 3201562 WCI 3201562 Contact Us For Availability
32
WCI G185279 WCI G185279 Contact Us For Availability
32
WCI 3201563 WCI 3201563 Contact Us For Availability
33
TUBE DRAIN WCI 3001458 Contact Us For Availability
33
RING, SEAL (NON-ILLUSTRATED) WCI G176853 Contact Us For Availability
33
WCI 08016583 WCI 08016583 Contact Us For Availability
34
STRAP-TERMINAL COVER WCI 08016584 Contact Us For Availability
35
RING-ORIFICE WCI 08000124 Contact Us For Availability
38
WCI G185302 WCI G185302 Contact Us For Availability
39
BRACKET-CONNECTOR (NON-ILLUSTRATED) WCI 3001225 Contact Us For Availability
39
WCI G185303 WCI G185303 Contact Us For Availability
40
TUBE, RUBBER WCI G85642 Contact Us For Availability
41
BUTTON-PLUG-SHORT TEST HOLE (NON-ILLUSTRATED) WCI 3203044 Contact Us For Availability
41
NUT-U TYPE (2) (NON-ILLUSTRATED) WCI G167542 Contact Us For Availability
41
WCI G177529 WCI G177529 Contact Us For Availability
42
HINGE-BRACKET CENTER WCI G163207 Contact Us For Availability
44
WCI G142220 WCI G142220 Contact Us For Availability
45
WCI G177534 WCI G177534 Contact Us For Availability
46
CHANNEL-RS & LS WCI 08000302 Contact Us For Availability
48
WCI G189341 WCI G189341 Contact Us For Availability
49
WCI G187449 WCI G187449 Contact Us For Availability
50
WCI G163669 WCI G163669 Contact Us For Availability
51
BUTTON-PLUG WCI G166912 Contact Us For Availability
52
WCI G174733 WCI G174733 Contact Us For Availability
53
WCI G174734 WCI G174734 Contact Us For Availability
× ![]()
