Model Whirlpool GT4185SKT2 MICROWAVE OVEN 1.9 CUBIC FOOT – Common Parts & Diagrams
03 - OVEN CAVITY PARTS
05 - OVEN INTERIOR PARTS

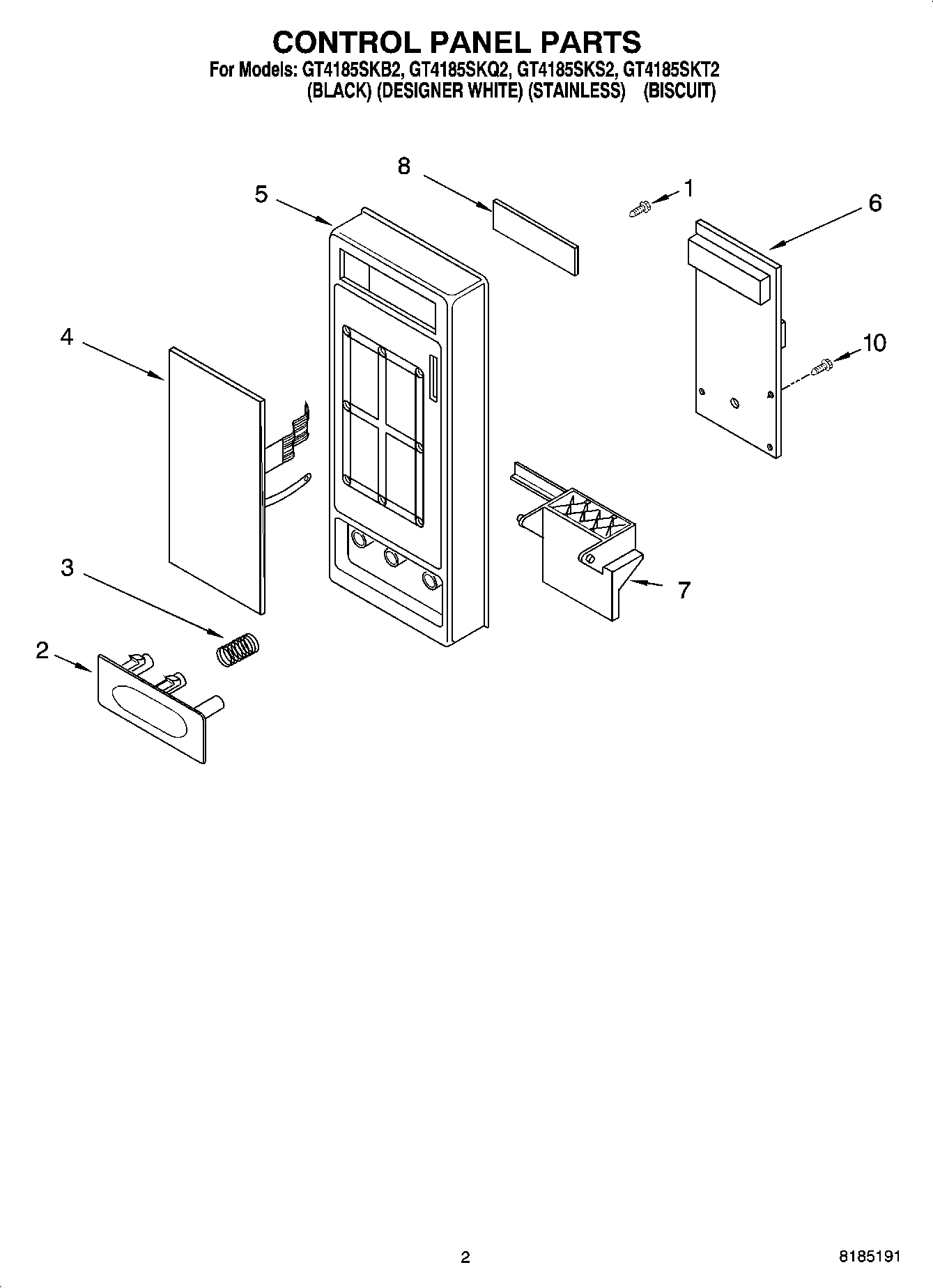

02 - CONTROL PANEL PARTS

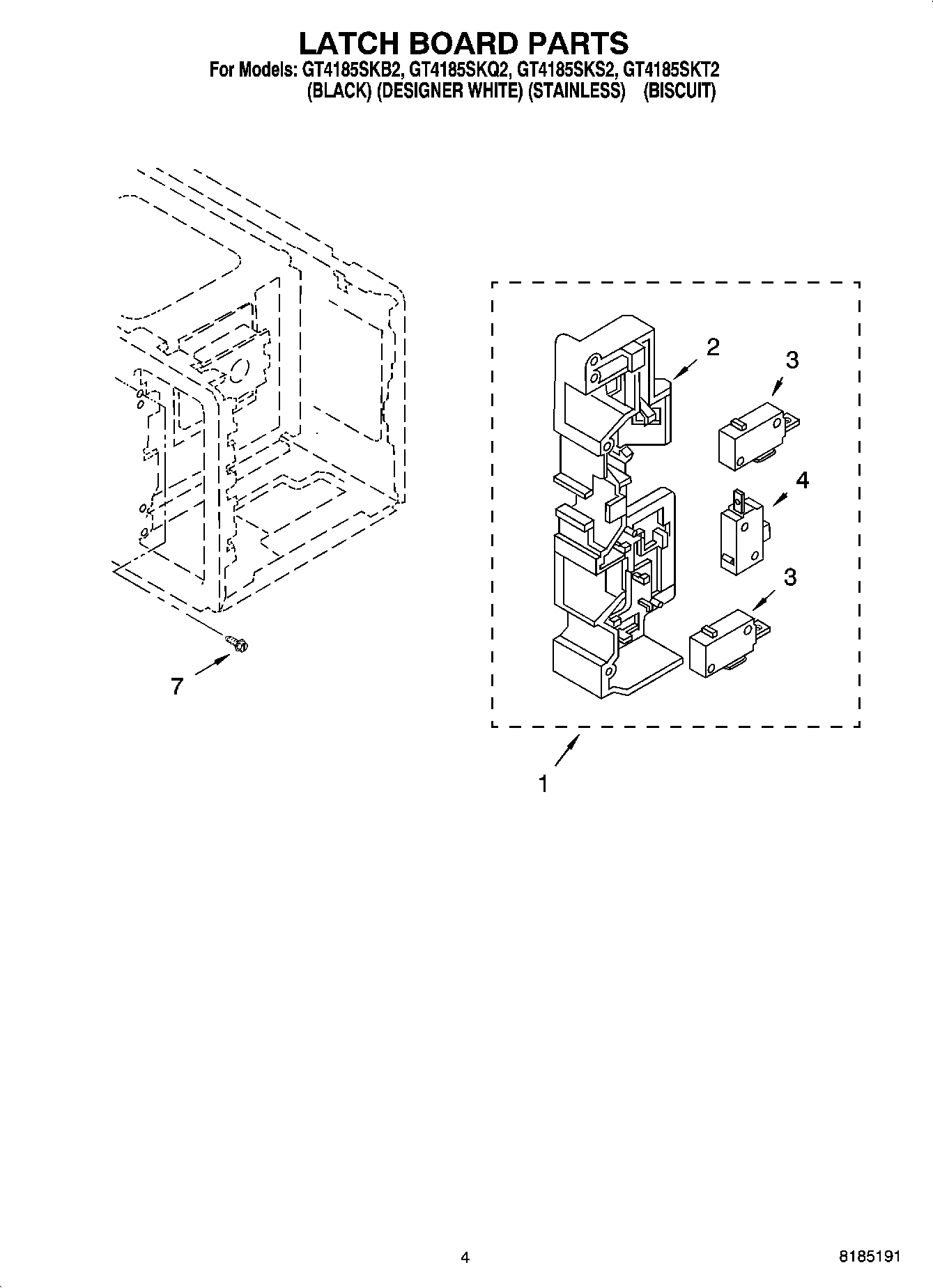

04 - LATCH BOARD PARTS

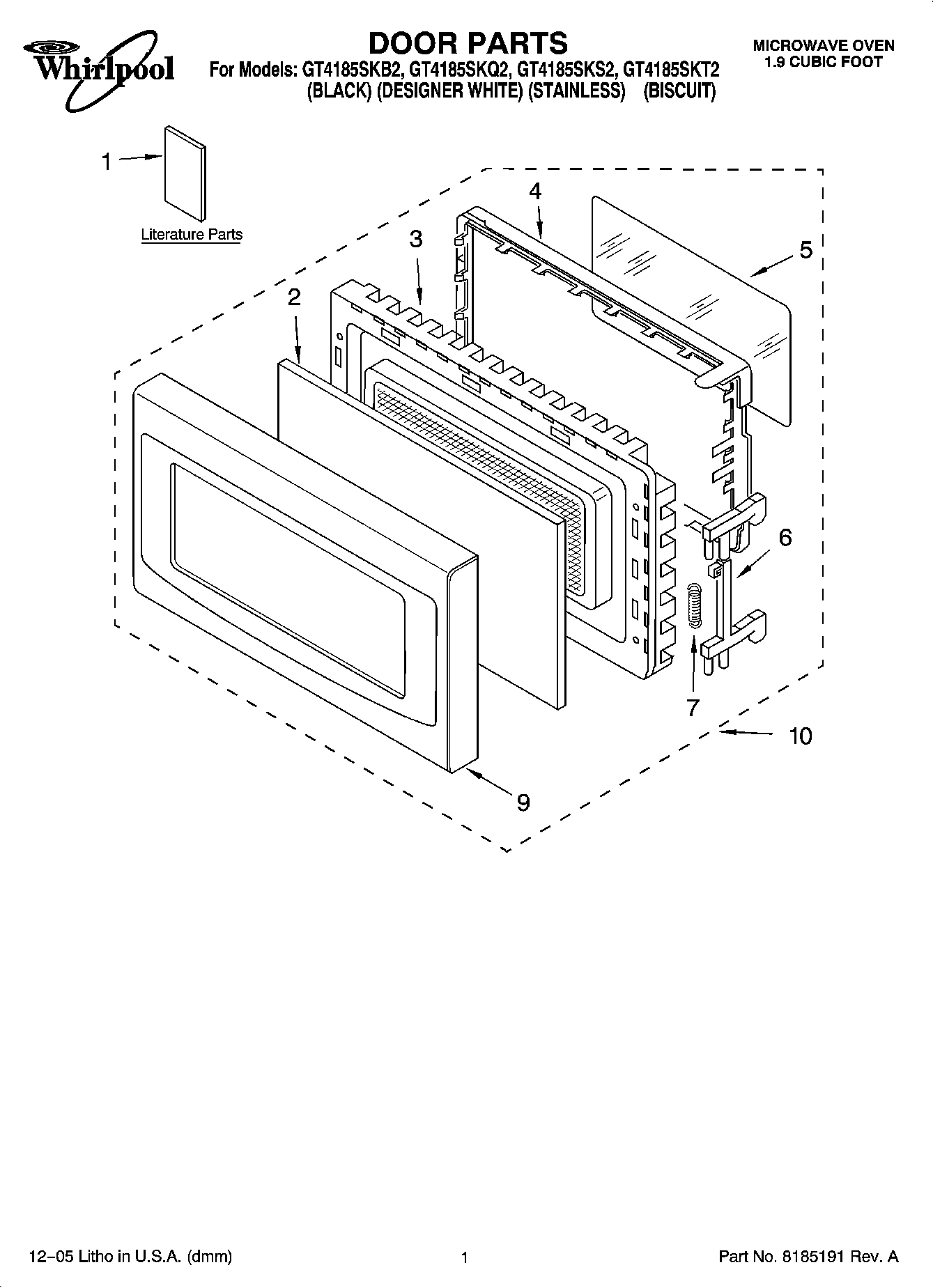

01 - DOOR PARTS

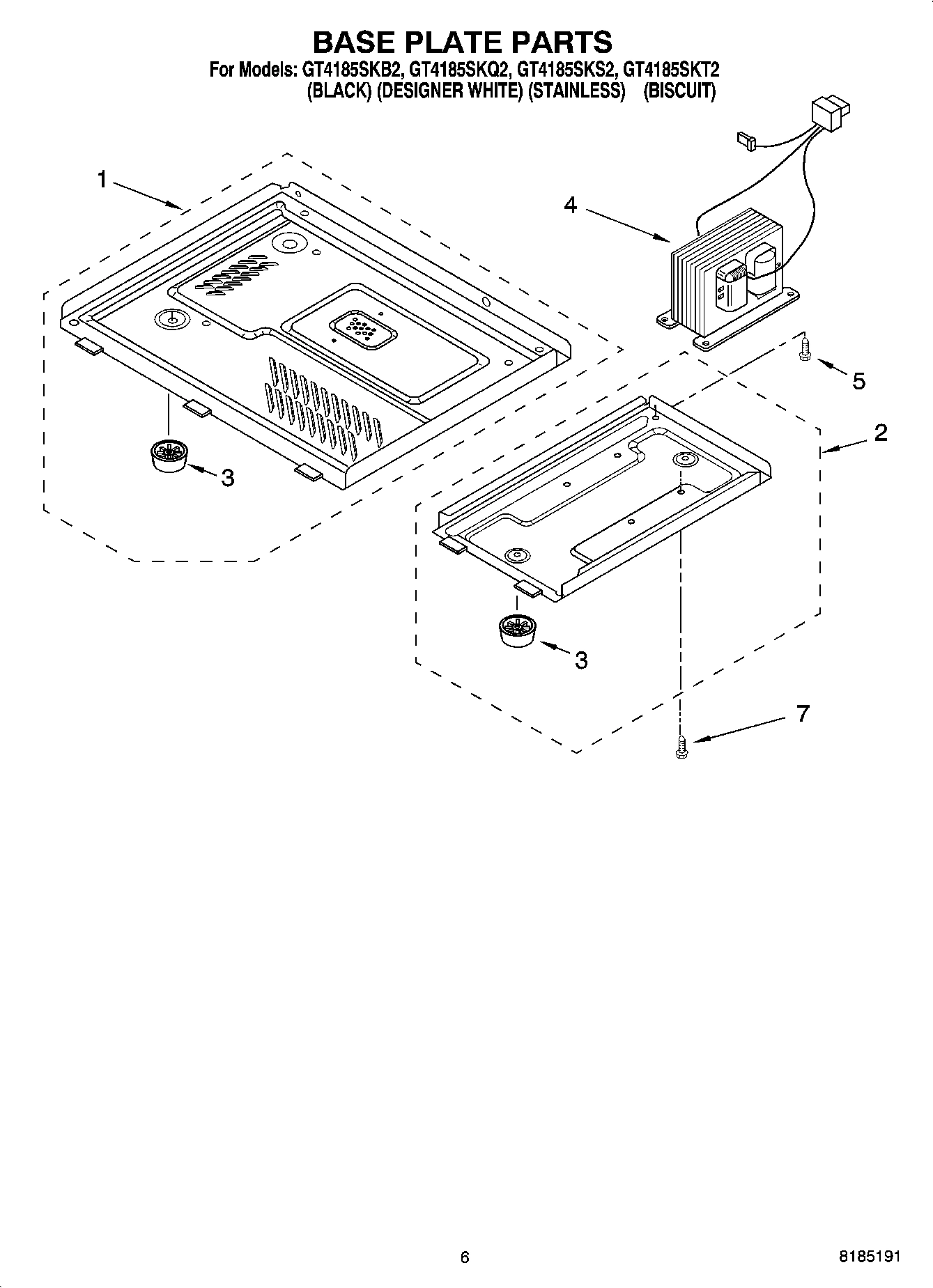

06 - BASE PLATE PARTS
Common parts from model Whirlpool GT4185SKT2 MICROWAVE OVEN 1.9 CUBIC FOOT
1
Screw WPL 4358381 Contact Us For Availability
1
Latch Board Assembly (Non-Serviceable) WPL ARI73158A7 Contact Us For Availability
1
Literature Parts (Cook Guide Label) WPL LIT8172194 Contact Us For Availability
1
Literature Parts (Use & Care Guide) WPL LIT8183906 Contact Us For Availability
1
Literature Parts (Tech Sheet) WPL LIT8183911 Contact Us For Availability
1
Base Plate (L) WPL 4359921 Contact Us For Availability
2
Release Button (Biscuit) WPL 8184441 Contact Us For Availability
2
Guide, Suction WPL 4359158 Contact Us For Availability
2
Release Button (Stainless) WPL 8171893 Contact Us For Availability
2
Release Button (White) WPL 8184336 Contact Us For Availability
2
Release Button (Black) WPL 8184427 Contact Us For Availability
2
Front Screen (BL/WH/BT Models) WPL 4359866 Contact Us For Availability
2
Front Screen (Stainless Model) WPL 8171889 Contact Us For Availability
2
Base Plate (R) WPL 8172020 Contact Us For Availability
3
Spring, Button WPL 4158178 Contact Us For Availability
3
Motor, Fan WPL 4359886 Contact Us For Availability
3
Door Frame Assembly (Black) WPL 8171890 Contact Us For Availability
3
Door Frame Assembly (Biscuit) WPL 8172086 Contact Us For Availability
3
Door Frame Assembly (White) WPL 8184736 Contact Us For Availability
3
Leg WPL 8171902 Contact Us For Availability
4
Key Membrane (Black) WPL 8184437 Contact Us For Availability
4
Key Membrane (White) WPL 8184438 Contact Us For Availability
4
Key Membrane (Stainless) WPL 8184439 Contact Us For Availability
4
Key Membrane (Biscuit) WPL 8184440 Contact Us For Availability
4
Choke Cover (Stainless Model) WPL 4359869 Contact Us For Availability
4
Choke Cover (BL/WH/BT Models) WPL 8184431 Contact Us For Availability
4
Transformer WPL 8171809 Contact Us For Availability
5
H.V.C. Bracket WPL 4359161 Contact Us For Availability
5
Control Panel (Stainless) WPL 8183780 Contact Us For Availability
5
Control Panel (Black) WPL 8184434 Contact Us For Availability
5
Control Panel (White) WPL 8184435 Contact Us For Availability
5
Control Panel (Biscuit) WPL 8184436 Contact Us For Availability
5
Tape, Seal WPL 4359870 Contact Us For Availability
6
Leadwire Assembly WPL 8172019 Contact Us For Availability
6
Microcomputer WPL 8183862 Contact Us For Availability
6
Latch WPL 4359765 Contact Us For Availability
7
Spring, Latch (Blk, Wht, Bsct Mdls) WPL 8171918 No Longer Available
7
Screw WPL 4358271 Contact Us For Availability
7
Holder, Wire WPL 4359794 Contact Us For Availability
7
Lever, Release WPL 4359718 Contact Us For Availability
7
Spring, Latch (Stainless Mdl) WPL 4359707 Contact Us For Availability
7
ACCESSORY PARTS WPL ARI73160A8 Contact Us For Availability
7
Trim Kits WPL ARI73161A1 Contact Us For Availability
7
30`` Black WPL MK1190XHB Contact Us For Availability
7
30`` White WPL MK1190XHQ Contact Us For Availability
7
30`` Stainless WPL MK1190XHS Contact Us For Availability
7
30`` Biscuit WPL MK1190XHT Contact Us For Availability
7
27`` Black WPL MK1197XHB Contact Us For Availability
7
27`` White WPL MK1197XHQ Contact Us For Availability
7
27`` Stainless WPL MK1197XHS Contact Us For Availability
7
27`` Biscuit WPL MK1197XHT Contact Us For Availability
8
Lens WPL 4359720 Contact Us For Availability
9
Power Cord WPL 8184339 Contact Us For Availability
9
Panel, Door (Stainless) WPL 8172174 Contact Us For Availability
9
Panel, Door (Black) WPL 8184266 Contact Us For Availability
9
Panel, Door (White) WPL 8184270 Contact Us For Availability
9
Panel, Door (Biscuit) WPL 8184271 Contact Us For Availability
10
Thermostat WPL 4359163 Contact Us For Availability
10
Screw WPL 4358883 Contact Us For Availability
10
Door Assembly (Stainless) WPL 8171888 Contact Us For Availability
10
Door Assembly (White) WPL 8184432 Contact Us For Availability
10
Door Assembly (Biscuit) WPL 8184433 Contact Us For Availability
10
Door Assembly (Black) WPL 8184447 Contact Us For Availability
11
Lamp, Baseless WPL 4359741 Contact Us For Availability
12
Cap, Fuse WPL 4358659 Contact Us For Availability
14
Bracket WPL 8184344 Contact Us For Availability
15
Screw (Black) WPL 4358829 Contact Us For Availability
15
Duct, Air WPL 4359888 Contact Us For Availability
17
Sensor, Humidity WPL 8204654 Contact Us For Availability
18
Guide, Sensor WPL 8183662 Contact Us For Availability
18
Cushion (Not Serviced) WPL ARI73159A9 Contact Us For Availability
19
Screw WPL 4358450 Contact Us For Availability
21
Screw WPL 8171862 Contact Us For Availability
22
Disk, Stirrer WPL 8172022 Contact Us For Availability
23
Support WPL 8172023 Contact Us For Availability
24
Cover, Stirrer WPL 8171869 Contact Us For Availability
24
Screw WPL 4358190 Contact Us For Availability
25
Motor WPL 8172059 Contact Us For Availability
× ![]()
