Model Whirlpool GT4175SPT3 MICROWAVE OVEN 1.7 CUBIC FOOT – Common Parts & Diagrams

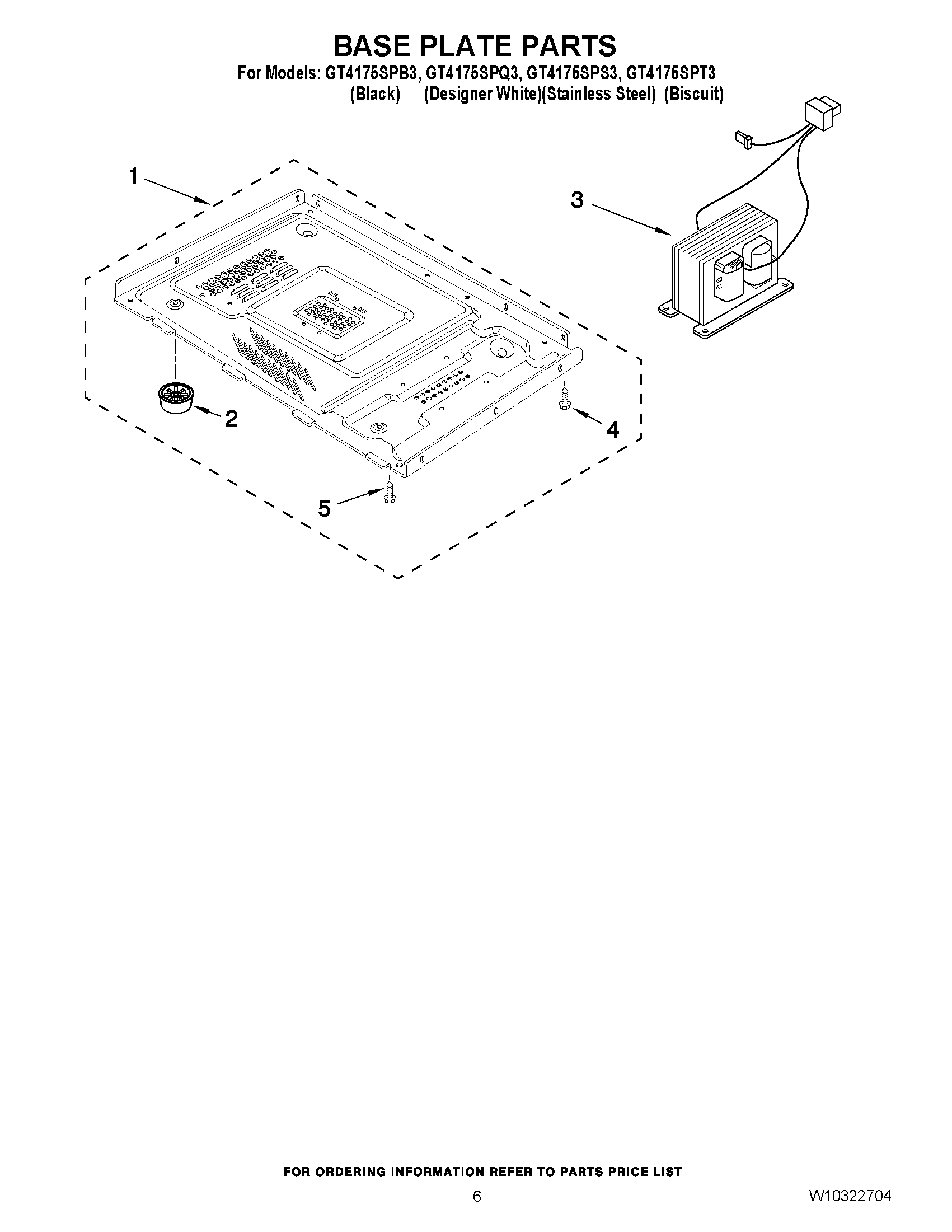

06 - BASE PLATE PARTS

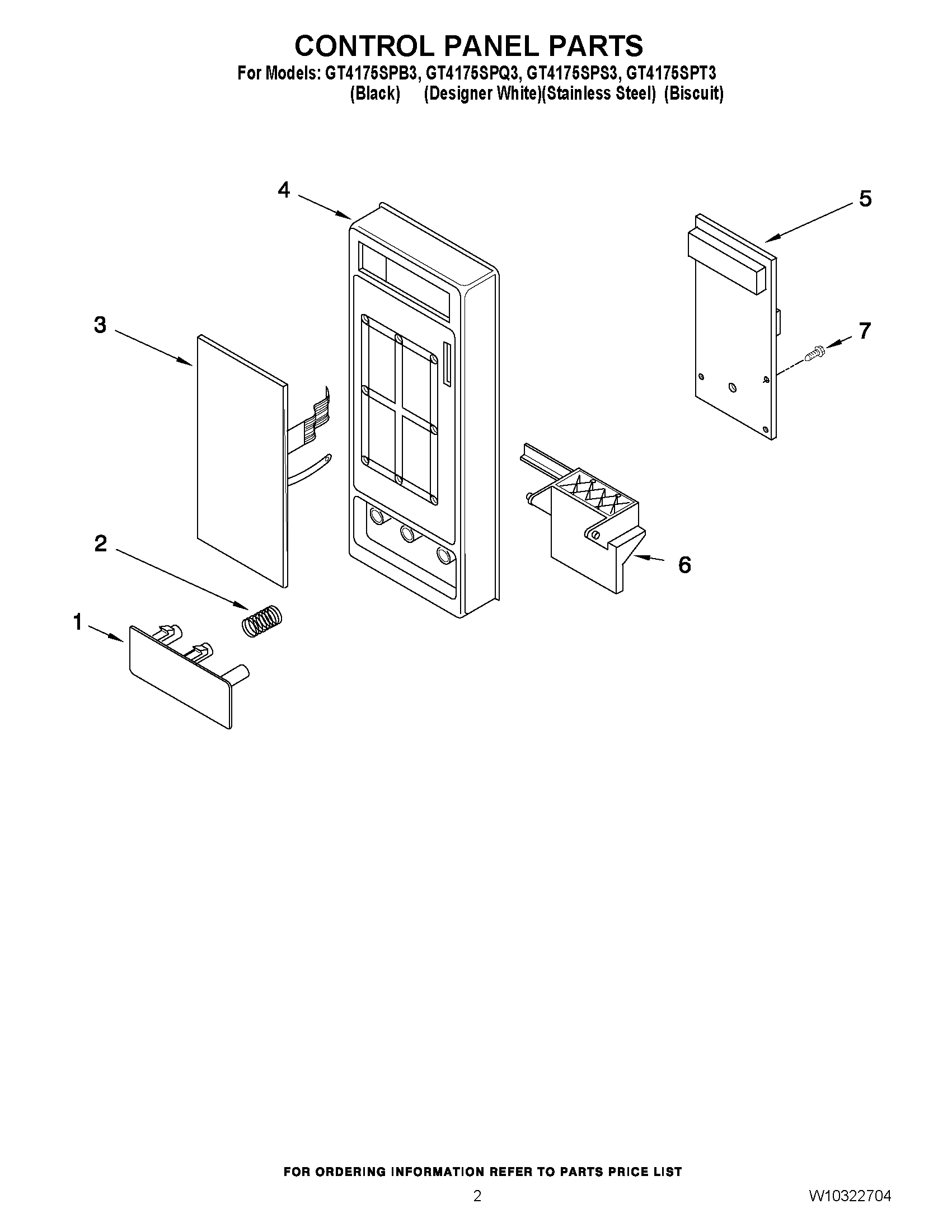

02 - CONTROL PANEL PARTS
04 - LATCH BOARD PARTS
01 - DOOR PARTS
03 - OVEN CAVITY PARTS
05 - OVEN INTERIOR PARTS
Common parts from model Whirlpool GT4175SPT3 MICROWAVE OVEN 1.7 CUBIC FOOT
1
Canopy WPL 8184278 Contact Us For Availability
1
Release Button (Black) WPL 8205506 Contact Us For Availability
1
Blade, Fan WPL 8205458 Contact Us For Availability
1
Release Button (White) WPL 8205516 Contact Us For Availability
1
Release Button (Biscuit) WPL 8205521 Contact Us For Availability
1
Release Button (Stainless) WPL 8205525 Contact Us For Availability
1
LATCH BOARD ASSEMBLY (NON-SERVICEABLE) WPL NP Contact Us For Availability
1
Cook Guide Label WPL 8205086 Contact Us For Availability
1
Tech Sheet WPL 8205087 Contact Us For Availability
1
Use & Care Guide WPL 8205989 Contact Us For Availability
2
Latch WPL 8184263 Contact Us For Availability
2
Outer Case (Black) WPL 8205508 Contact Us For Availability
2
Outer Case (White) WPL 8205517 Contact Us For Availability
2
Outer Case (Biscuit) WPL 8205522 Contact Us For Availability
2
Guide, Suction WPL W10169274 Contact Us For Availability
3
Key Membrane (White) WPL 8205515 Contact Us For Availability
3
KEY MEMBRANE (BLACK STAINLESS (INCLUDED IN No WPL 8205504 Contact Us For Availability
3
Tray, Glass WPL 8205150 Contact Us For Availability
3
Motor, Fan WPL 8205462 Contact Us For Availability
3
Spring, Latch WPL 8205503 Contact Us For Availability
4
Turntable Support WPL 8205151 Contact Us For Availability
4
Control Panel (Black) WPL 8205505 Contact Us For Availability
4
Door Assembly (Black) WPL 8205502 Contact Us For Availability
4
Door Assembly (White) WPL 8205514 Contact Us For Availability
4
Door Assembly (Stainless) WPL 8205523 Contact Us For Availability
5
P.C.B Sub Assembly WPL 8205507 Contact Us For Availability
5
Screw WPL 4358271 Contact Us For Availability
5
H.V.C Bracket WPL 8184288 Contact Us For Availability
6
Screw WPL 4358188 Contact Us For Availability
7
Screw (Black) WPL 4358829 Contact Us For Availability
7
Holder, Wire WPL 4359794 Contact Us For Availability
9
Sensor, Humidity WPL 8183514 Contact Us For Availability
9
Power Cord WPL 8206281 Contact Us For Availability
10
Thermostat WPL 8185274 Contact Us For Availability
10
Guide, Sensor WPL 8205510 Contact Us For Availability
11
Screw WPL 4358376 Contact Us For Availability
11
Lamp, Baseless WPL 8171810 Contact Us For Availability
12
Screw WPL 8171862 Contact Us For Availability
12
Cap, Fuse WPL 8205483 Contact Us For Availability
14
Bracket WPL 8205509 Contact Us For Availability
15
Duct, Air WPL 8204900 Contact Us For Availability
16
Bracket, Support WPL 8205511 Contact Us For Availability
18
Filter, Noise WPL 8206270 Contact Us For Availability
19
Screw WPL 4358381 Contact Us For Availability
21
Screw WPL 4358190 Contact Us For Availability
× ![]()
