Model Whirlpool GT4175SPQ2 MICROWAVE OVEN 1.7 CUBIC FOOT – Common Parts & Diagrams

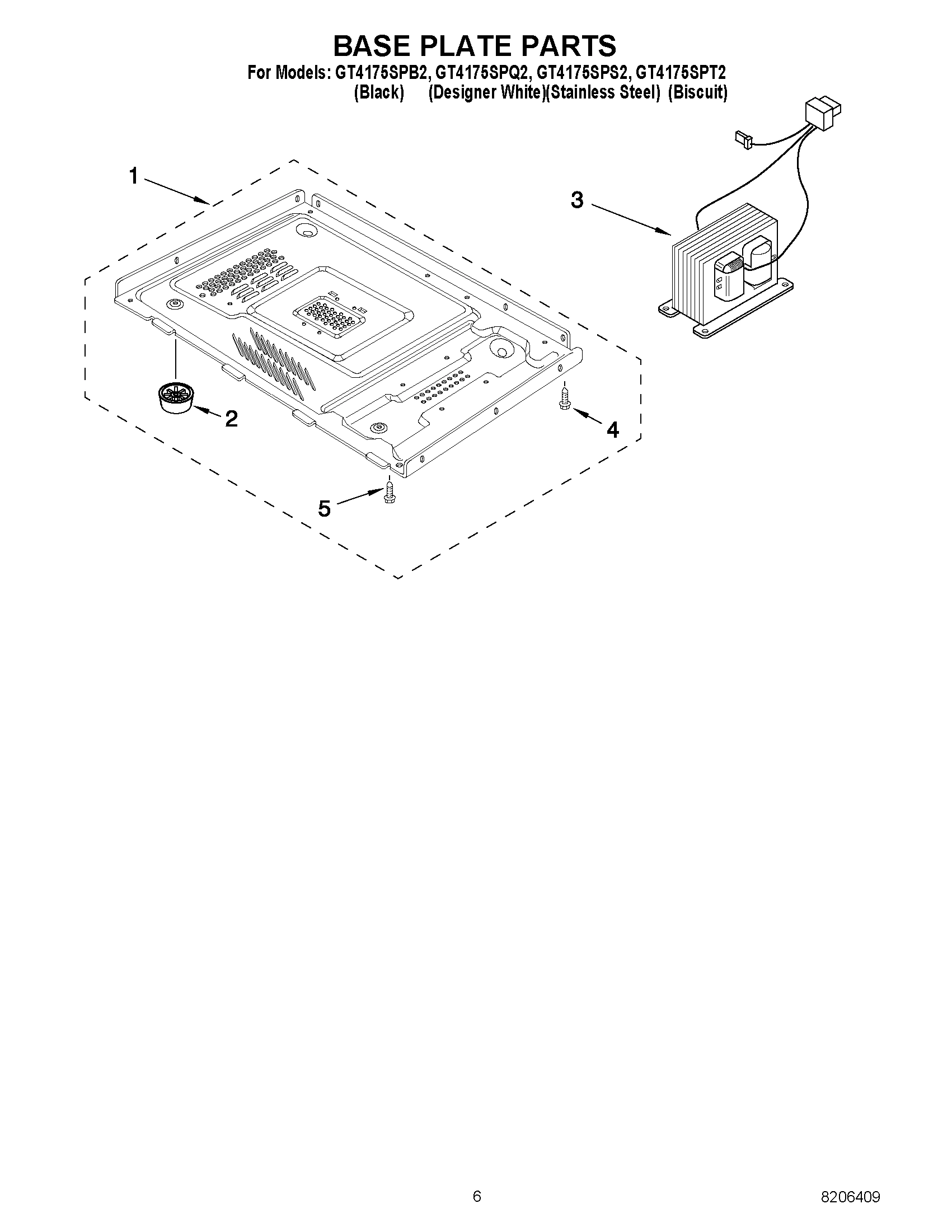

06 - BASE PLATE PARTS

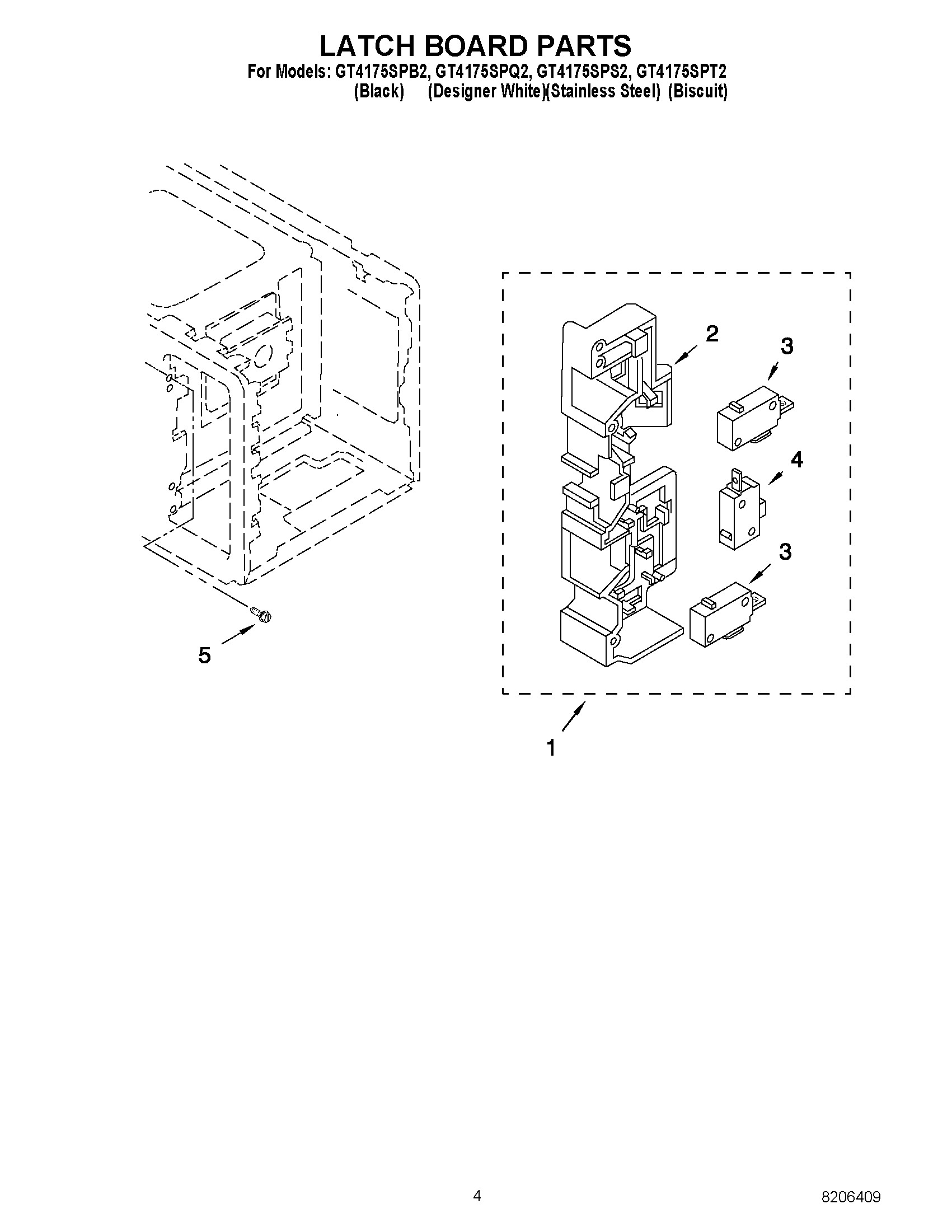

04 - LATCH BOARD PARTS

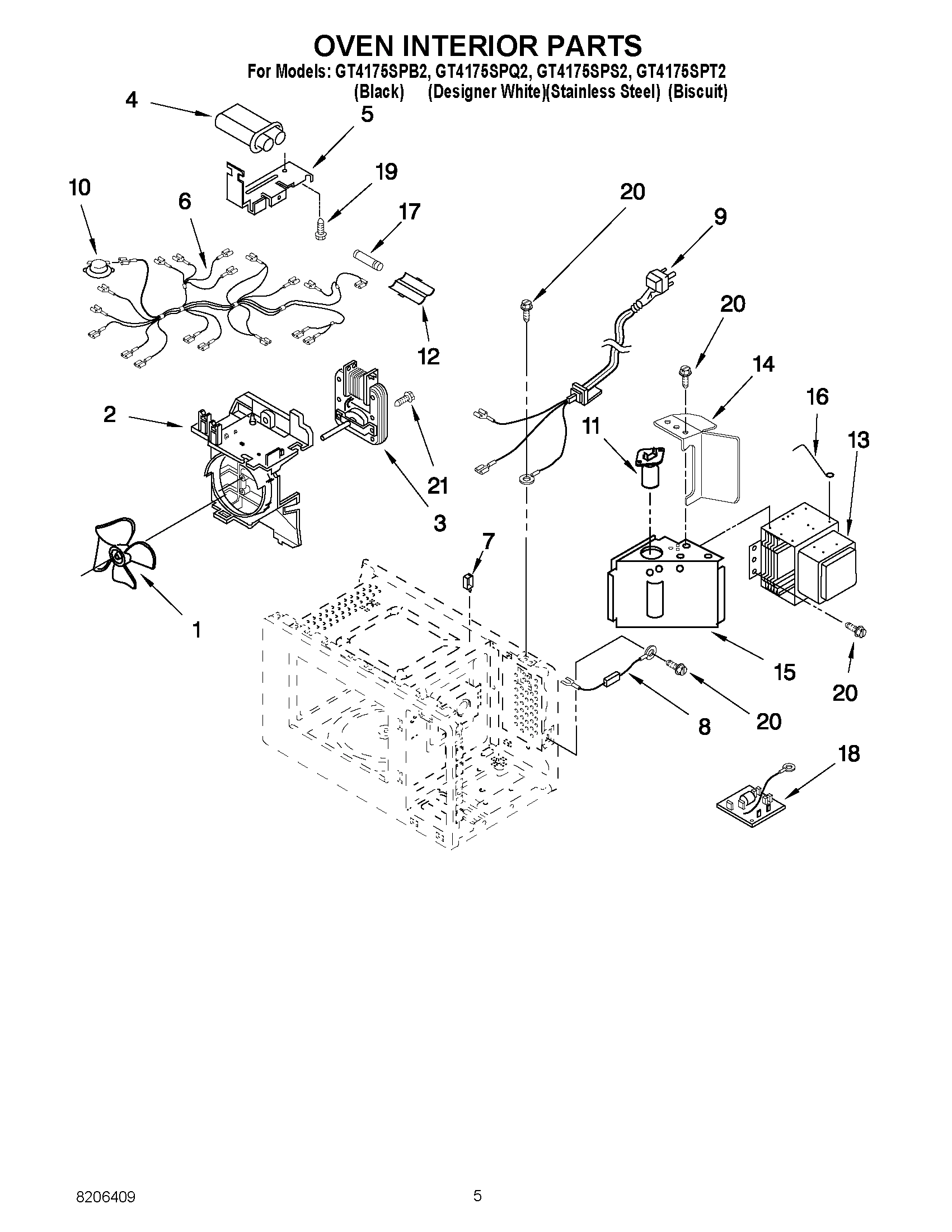

05 - OVEN INTERIOR PARTS

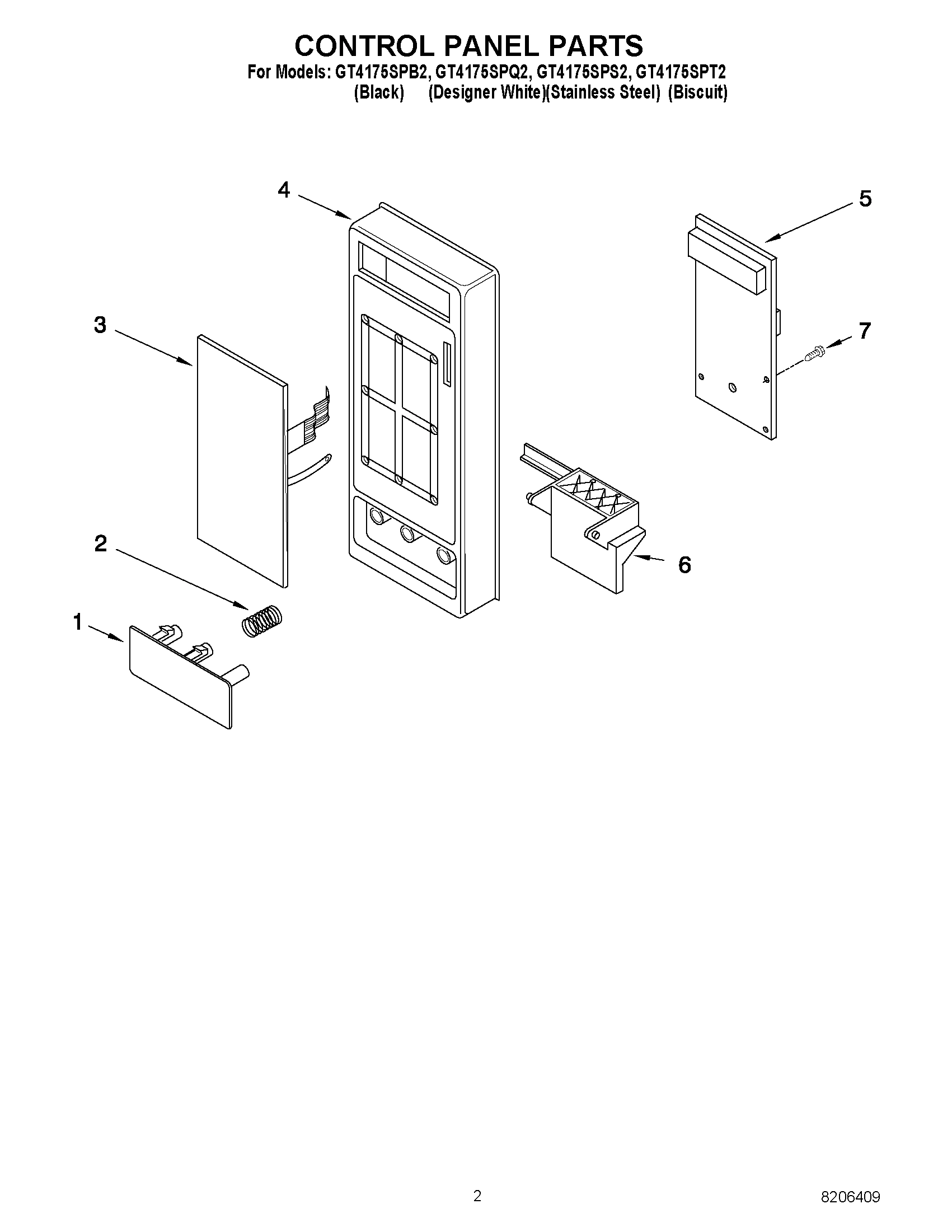

02 - CONTROL PANEL PARTS

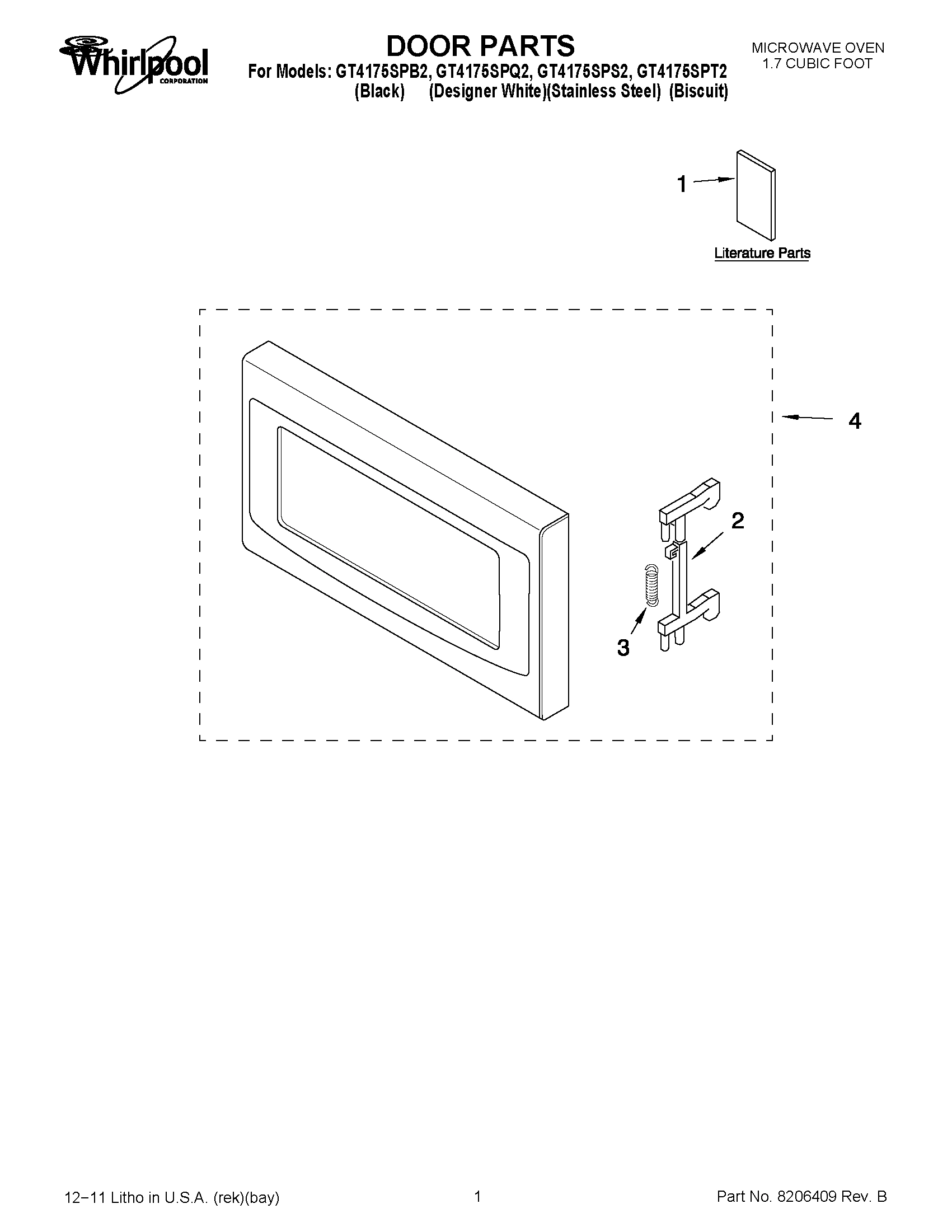

01 - DOOR PARTS

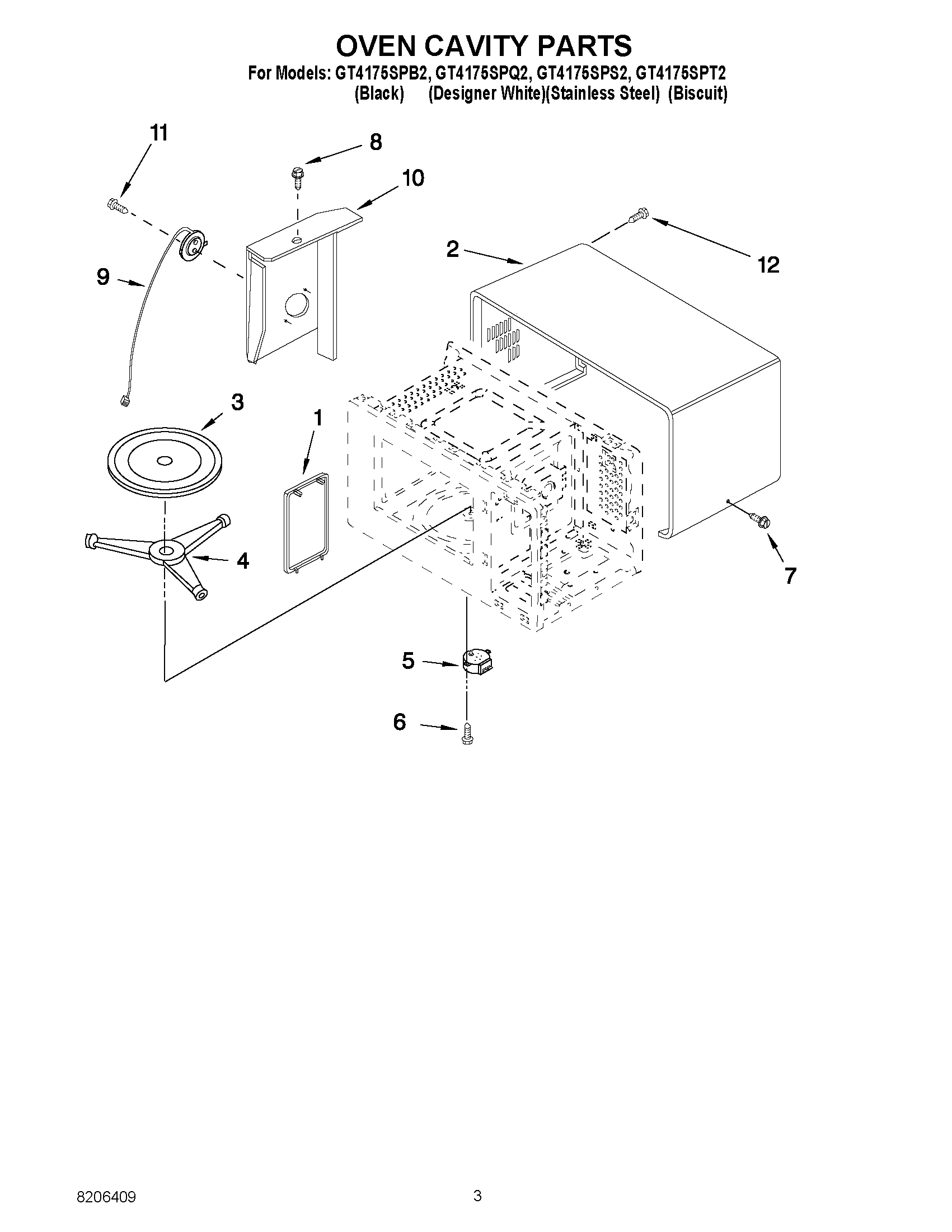

03 - OVEN CAVITY PARTS
Common parts from model Whirlpool GT4175SPQ2 MICROWAVE OVEN 1.7 CUBIC FOOT
1
Canopy WPL 8184278 Contact Us For Availability
1
Release Button (Black) WPL 8205506 Contact Us For Availability
1
Blade, Fan WPL 8205458 Contact Us For Availability
1
Release Button (White) WPL 8205516 Contact Us For Availability
1
Release Button (Biscuit) WPL 8205521 Contact Us For Availability
1
Release Button (Stainless) WPL 8205525 Contact Us For Availability
1
Cook Guide Label WPL 8205086 Contact Us For Availability
1
Tech Sheet WPL 8205087 Contact Us For Availability
1
Use & Care Guide WPL 8205989 Contact Us For Availability
2
Latch WPL 8184263 Contact Us For Availability
2
Outer Case (Black) WPL 8205508 Contact Us For Availability
2
Outer Case (White) WPL 8205517 Contact Us For Availability
2
Outer Case (Biscuit) WPL 8205522 Contact Us For Availability
3
Key Membrane (White) WPL 8205515 Contact Us For Availability
3
KEY MEMBRANE (BLACK STAINLESS (INCLUDED IN No WPL 8205504 Contact Us For Availability
3
Tray, Glass WPL 8205150 Contact Us For Availability
3
Motor, Fan WPL 8205462 Contact Us For Availability
3
Key Membrane (Biscuit) WPL 8205519 Contact Us For Availability
3
Spring, Latch WPL 8205503 Contact Us For Availability
4
Turntable Support WPL 8205151 Contact Us For Availability
4
Control Panel (Black) WPL 8205505 Contact Us For Availability
4
Door Assembly (Black) WPL 8205502 Contact Us For Availability
4
Control Panel (Biscuit) WPL 8205520 Contact Us For Availability
4
CONTROL PANEL (STAINLESS (INCLUDES No.4)) WPL 8205524 Contact Us For Availability
4
Control Panel (White) WPL 8205528 Contact Us For Availability
4
Door Assembly (White) WPL 8205514 Contact Us For Availability
4
Door Assembly (Stainless) WPL 8205523 Contact Us For Availability
5
P.C.B Sub Assembly WPL 8205507 Contact Us For Availability
5
Screw WPL 4358271 Contact Us For Availability
6
Screw WPL 4358188 Contact Us For Availability
7
Screw WPL 4358883 Contact Us For Availability
7
Screw (Black) WPL 4358829 Contact Us For Availability
9
Sensor, Humidity WPL 8183514 Contact Us For Availability
10
Thermostat WPL 8185274 Contact Us For Availability
10
Guide, Sensor WPL 8205510 Contact Us For Availability
11
Lamp, Baseless WPL 8171810 Contact Us For Availability
11
Screw WPL 4358376 Contact Us For Availability
12
Cap, Fuse WPL 8205483 Contact Us For Availability
12
Screw WPL 8171862 Contact Us For Availability
14
Bracket WPL 8205509 Contact Us For Availability
15
Duct, Air WPL 8204900 Contact Us For Availability
16
Bracket, Support WPL 8205511 Contact Us For Availability
18
Filter, Noise WPL 8206270 Contact Us For Availability
19
Screw WPL 4358381 Contact Us For Availability
21
Screw WPL 4358190 Contact Us For Availability
× ![]()
