Model Whirlpool GT1196SHS1 – Common Parts & Diagrams

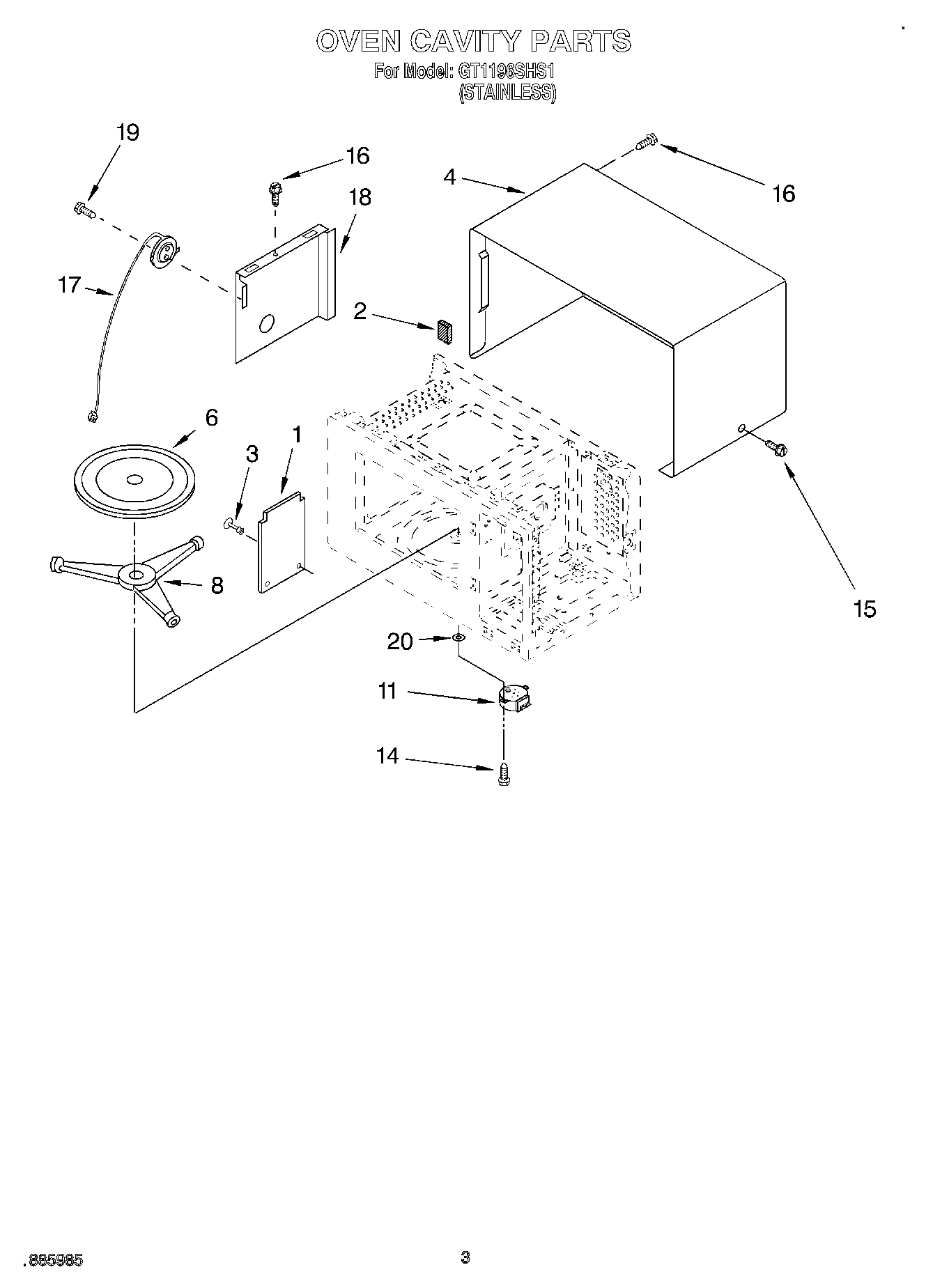

03 - OVEN CAVITY

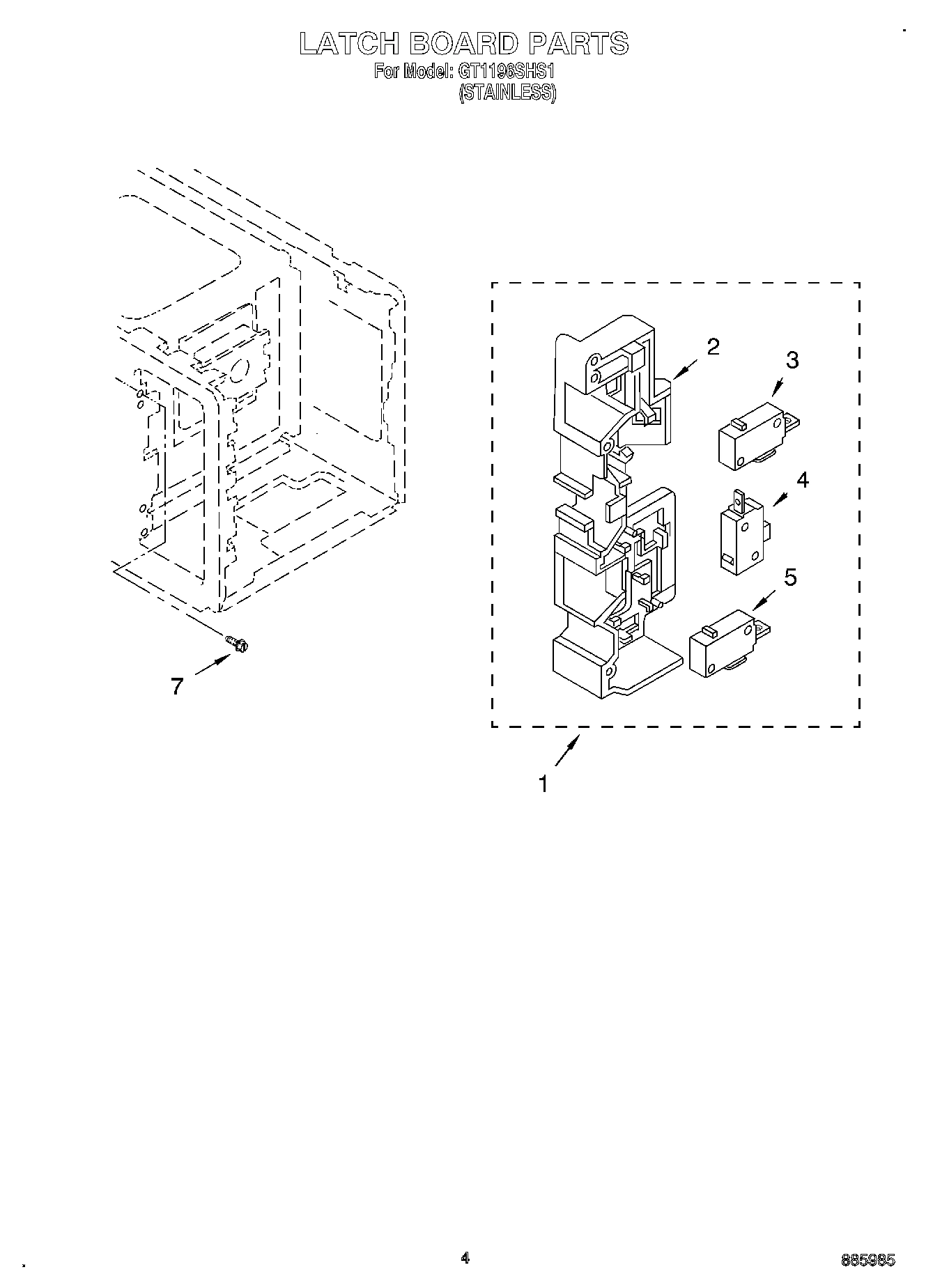

04 - LATCH BOARD
05 - OVEN INTERIOR
01 - DOOR, LITERATURE
06 - BASE PLATE
02 - CONTROL PANEL
Common parts from model Whirlpool GT1196SHS1
Trim Kits WPL ARI72175A3 Contact Us For Availability
1
Latch Board Assembly (Not Serviceable) WPL ARI72173A6 Contact Us For Availability
1
Screw WPL 4358381 Contact Us For Availability
1
Literature Parts (Cook Guide Label) WPL LIT4359630 Contact Us For Availability
1
Literature Parts (Tech Sheet) WPL LIT4359999 Contact Us For Availability
1
Literature Parts (Use & Care Guide) WPL LIT8171826 Contact Us For Availability
1
Base Plate (L) WPL 4359921 Contact Us For Availability
2
Guide, Suction WPL 4359158 Contact Us For Availability
2
Front Screen WPL 8171889 Contact Us For Availability
2
Base Plate (R) WPL 4359922 Contact Us For Availability
2
Release Button WPL 8171893 Contact Us For Availability
3
Spring, Button WPL 4158178 Contact Us For Availability
3
Motor, Fan WPL 4359886 Contact Us For Availability
3
Door Frame Assembly WPL 8171890 Contact Us For Availability
3
Leg WPL 8171902 Contact Us For Availability
4
Choke Cover WPL 4359869 Contact Us For Availability
4
Transformer WPL 8171899 Contact Us For Availability
4
Key Membrane WPL 8171894 Contact Us For Availability
5
H.V.C. Bracket WPL 4359161 Contact Us For Availability
5
Tape, Seal WPL 4359870 Contact Us For Availability
5
Control Panel WPL 8171895 Contact Us For Availability
6
Leadwire Assembly WPL 4359887 Contact Us For Availability
6
Latch WPL 4359765 Contact Us For Availability
6
P.C.B Sub Assembly WPL 8171896 Contact Us For Availability
7
Screw WPL 4358271 Contact Us For Availability
7
Spring, Latch WPL 4359707 Contact Us For Availability
7
MK1190XHS 30`` Stainless (Hardware Pack (Incl WPL 8172131 Contact Us For Availability
7
Lever, Release WPL 4359718 Contact Us For Availability
8
Lens WPL 4359720 Contact Us For Availability
9
Cord, Power WPL 4358653 Contact Us For Availability
9
Panel, Door WPL 8171891 Contact Us For Availability
10
Thermostat WPL 4359163 Contact Us For Availability
10
Door Assembly WPL 8171888 Contact Us For Availability
10
Screw WPL 4358883 Contact Us For Availability
11
Lamp, Baseless WPL 4359741 Contact Us For Availability
11
Motor, Synchronous WPL 4359885 Contact Us For Availability
12
Cap, Fuse WPL 4358659 Contact Us For Availability
14
Screw WPL 4358188 Contact Us For Availability
15
Screw WPL 4358829 Contact Us For Availability
15
Duct, Air WPL 4359888 Contact Us For Availability
17
Sensor, Humidity WPL 8171878 Contact Us For Availability
18
Guide, Sensor WPL 8171903 Contact Us For Availability
18
Cushion (Not Serviceable) WPL ARI72174A7 Contact Us For Availability
19
Screw WPL 4358450 Contact Us For Availability
20
Seal, Water WPL 8171805 Contact Us For Availability
24
Screw WPL 4358190 Contact Us For Availability
× ![]()
