Model Whirlpool GS470LEMT2 30`` GAS FREESTANDING SELF CLEAN RANGE SEALED BURN – Common Parts & Diagrams
01 - COOKTOP PARTS
03 - MANIFOLD PARTS

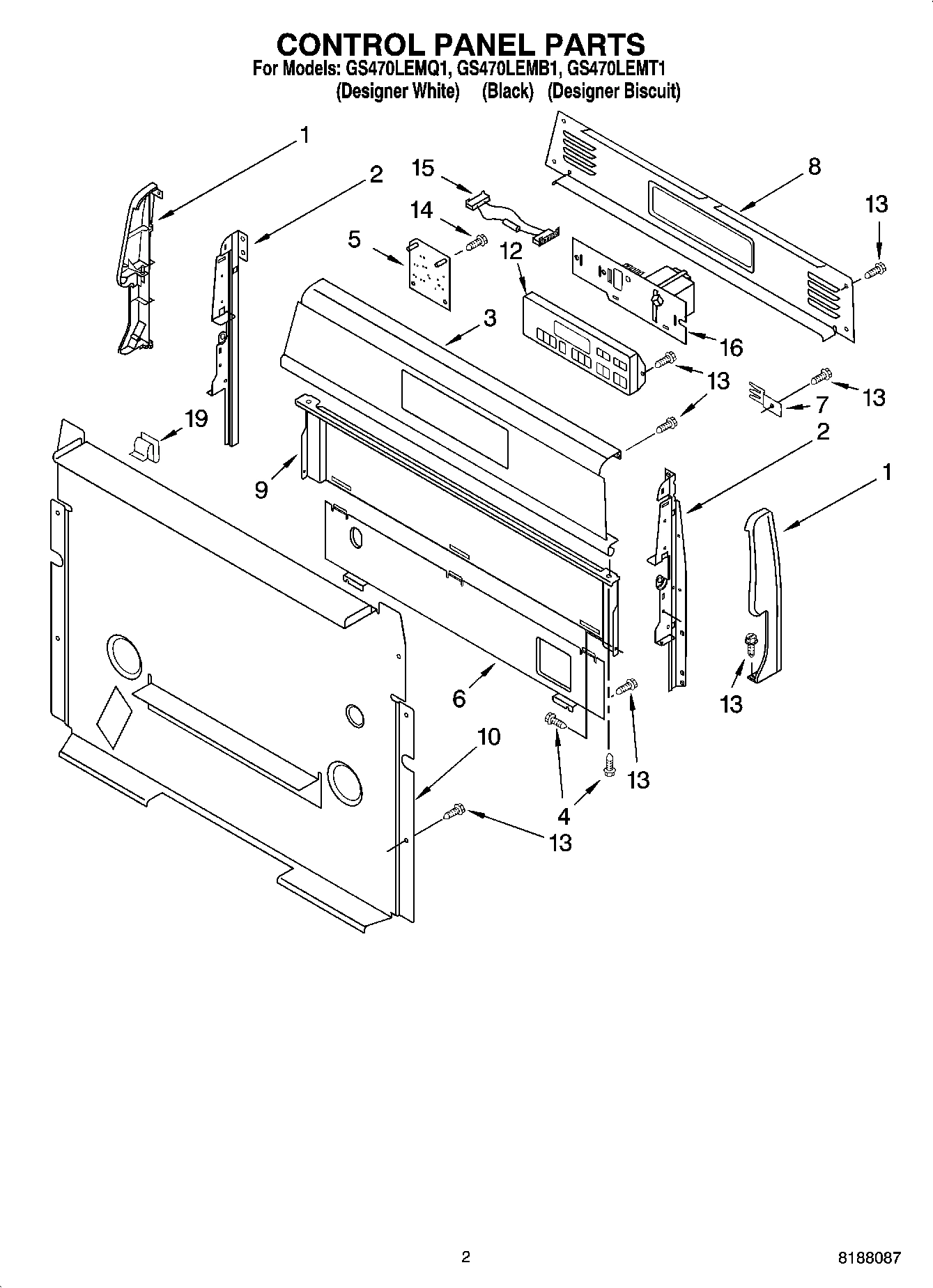

02 - CONTROL PANEL PARTS

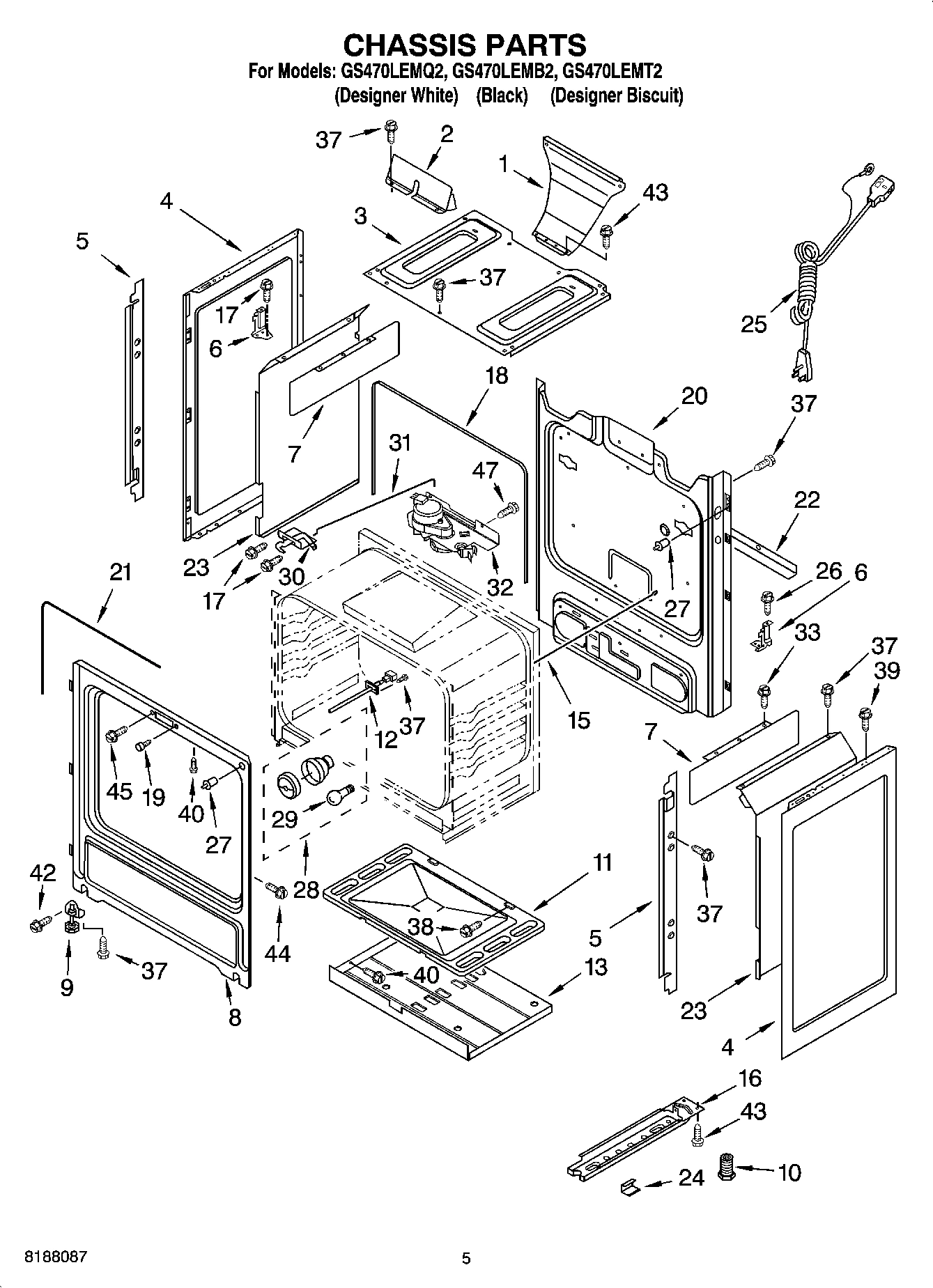

04 - CHASSIS PARTS

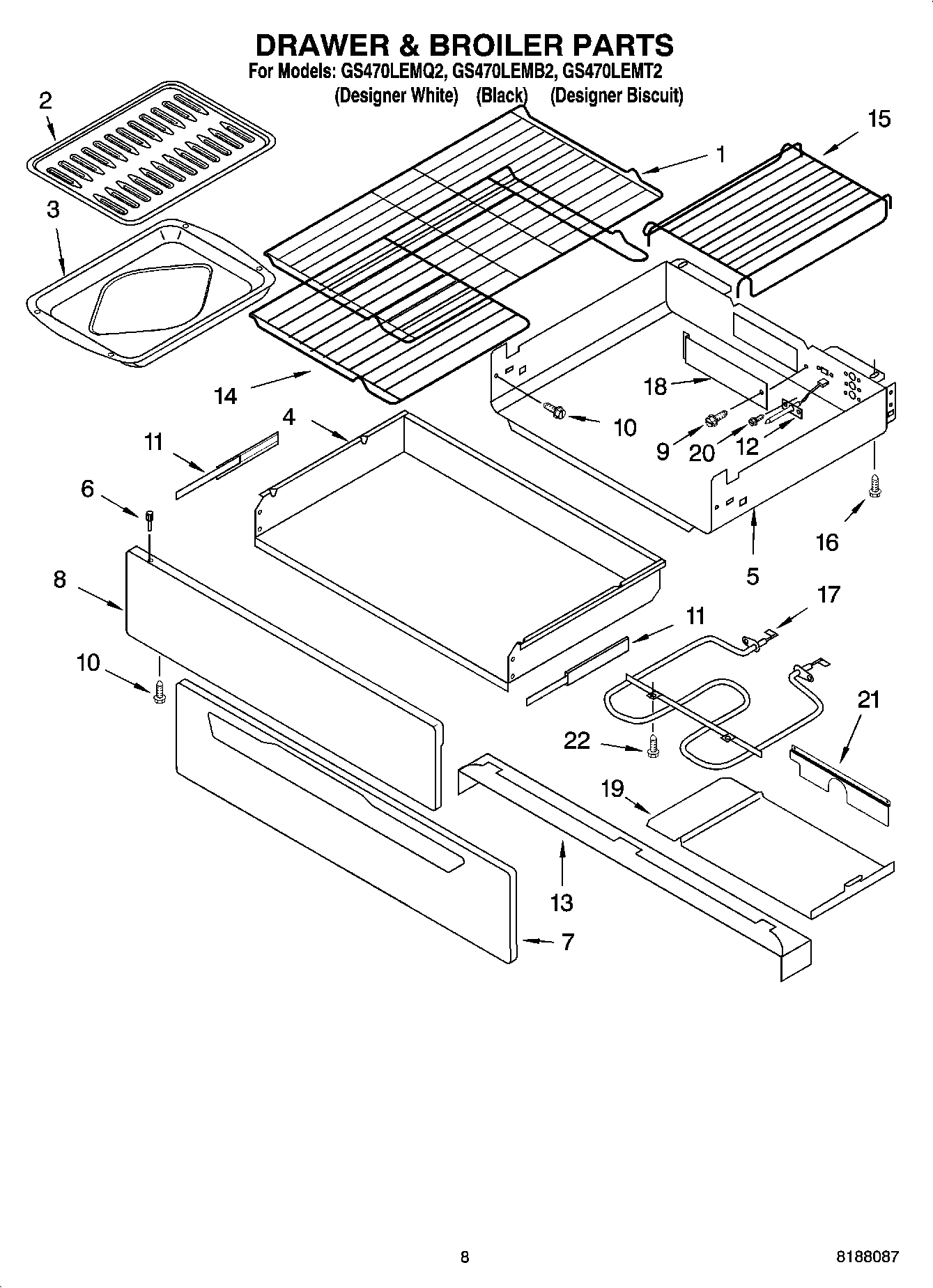

06 - DRAWER & BROILER PARTS, MISCELLANEOUS PARTS

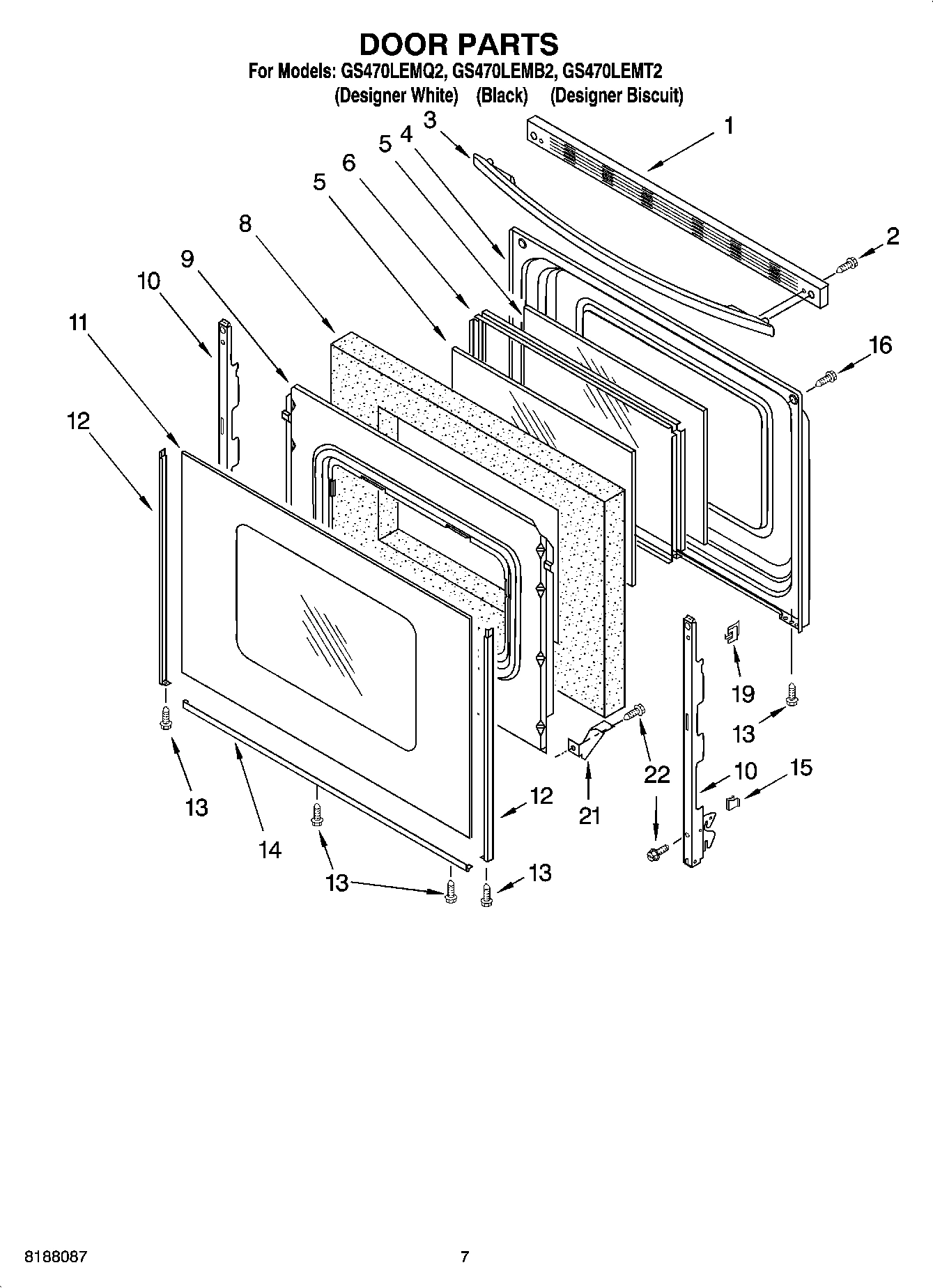

05 - DOOR PARTS
Common parts from model Whirlpool GS470LEMT2 30`` GAS FREESTANDING SELF CLEAN RANGE SEALED BURN
WPL 72017 WPL 72017 Contact Us For Availability
WPL 350930 WPL 350930 Contact Us For Availability
WPL 72032 WPL 72032 Contact Us For Availability
WPL 4392899 WPL 4392899 Contact Us For Availability
PAINT, PRESSURIZED SPRAY 12 OZ.) (SUPERIOR BL WPL 285006 Contact Us For Availability
WPL 4392901 WPL 4392901 Contact Us For Availability
WPL 511873 WPL 511873 Contact Us For Availability
WPL 8524207 WPL 8524207 Contact Us For Availability
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
WPL 799344 WPL 799344 Contact Us For Availability
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
Wire (14 Ga. 200 c Red) WPL 242831 Contact Us For Availability
Grease WPL 261582 Contact Us For Availability
TIE,WIRE WPL 3195927 Contact Us For Availability
Clamp, Cable WPL 3196696 Contact Us For Availability
Clamp, Cable WPL 3196896 Contact Us For Availability
WPL 4392900 WPL 4392900 Contact Us For Availability
WPL 786020 WPL 786020 Contact Us For Availability
WPL 786032 WPL 786032 Contact Us For Availability
WPL 799832 WPL 799832 Contact Us For Availability
WPL 9758211 WPL 9758211 Contact Us For Availability
WPL 9758531 WPL 9758531 Contact Us For Availability
WPL ARI150527A WPL ARI150527A Contact Us For Availability
WPL ARI150528A WPL ARI150528A Contact Us For Availability
WPL ARI150529A WPL ARI150529A Contact Us For Availability
WPL ARI150530A WPL ARI150530A Contact Us For Availability
WPL ARI150531A WPL ARI150531A Contact Us For Availability
WPL ARI150532A WPL ARI150532A Contact Us For Availability
WPL ARI150533A WPL ARI150533A Contact Us For Availability
WPL ARI150534A WPL ARI150534A Contact Us For Availability
1
Screw, Valve WPL 8273096 Contact Us For Availability
1
Trim, Top (Black) WPL 3196819 Contact Us For Availability
1
Trim, Top (Biscuit) WPL 8522434 Contact Us For Availability
2
Cap, Burner (LF) (White) WPL 3191899 Contact Us For Availability
3
Tubing, Burner W/Orifice (Left Front) WPL 8273693 Contact Us For Availability
3
Tubing, Burner W/Orifice (Right Rear) WPL 8273697 Contact Us For Availability
3
Handle, Door (Biscuit) WPL 8522445 Contact Us For Availability
4
Burner (Burner (RR)) WPL 4455979 Contact Us For Availability
4
Screw WPL 4449746 Contact Us For Availability
4
Drawer, Warming WPL 8272610 Contact Us For Availability
4
Liner, Door WPL 3186292 Contact Us For Availability
5
Shield, Heat (2) WPL 8524111 Contact Us For Availability
5
Enclosure, Drawer WPL 8274150 Contact Us For Availability
6
Panel, Manifold (Black) WPL 8523855 Contact Us For Availability
6
Rivet, Push (Almond) WPL 3196815 Contact Us For Availability
7
Knob, Control (2) (Black) WPL 8273279 Contact Us For Availability
7
Knob, Control (2) (White) WPL 8522623 Contact Us For Availability
7
Knob, Control (2) (Biscuit) WPL 8522626 Contact Us For Availability
7
Shield, Heat (2) WPL 3196136 Contact Us For Availability
7
Panel, Drawer Front (Biscuit) WPL 8272502 Contact Us For Availability
8
Valve (Right Rear) WPL 8273004 Contact Us For Availability
8
Knob, Accusimmer (White) WPL 8522624 Contact Us For Availability
8
Frame, Front WPL 9758226 Contact Us For Availability
8
Panel, Inner WPL 8272608 Contact Us For Availability
9
Nut (4) WPL 8273060 Contact Us For Availability
9
Knob, Powerburner (Black) WPL 8273281 Contact Us For Availability
9
Knob, Powerburner (White) WPL 8522625 Contact Us For Availability
11
Grate, Burner (4) (Espresso) WPL 8522853 Contact Us For Availability
11
Rail Assy, Drawer (Left Side) WPL 8054065 Contact Us For Availability
11
Rail Assy, Drawer (Right Side) WPL 8054066 Contact Us For Availability
11
Glass, Outer Door (Biscuit) WPL 9756416 Contact Us For Availability
13
Baffle, Burner WPL 8053967 Contact Us For Availability
13
Spreader, Flame (Oven) WPL 8053970 Contact Us For Availability
13
Shield, Drawer WPL 8273414 Contact Us For Availability
15
Rod - Dr Switch WPL 9757239 Contact Us For Availability
15
Clip, Door Stop (2) WPL 3196925 Contact Us For Availability
16
Power Supply, PCA WPL 6610333 Contact Us For Availability
17
Tubing (Broiler Fitting To Valve) WPL 8272222 Contact Us For Availability
17
Element, Warming WPL 9758520 Contact Us For Availability
18
Seal, Oven Flange WPL 8524109 Contact Us For Availability
18
Fitting, Broiler WPL 3186489 Contact Us For Availability
18
Cover, Access WPL 8054062 Contact Us For Availability
19
Baffle, Radiant WPL 8274152 Contact Us For Availability
19
Clip, Glass (6) WPL 3196025 Contact Us For Availability
20
Back, Main WPL 9757098 Contact Us For Availability
21
Cover, Element WPL 9757482 Contact Us For Availability
21
Bracket, Window (2) WPL 3196794 Contact Us For Availability
22
Brace, Main Back WPL 8053971 Contact Us For Availability
23
Screw WPL 3196265 Contact Us For Availability
23
Retainer, Insul. (Right Hand) WPL 3195726 Contact Us For Availability
23
Retainer, Insul. (Left Hand) WPL 3196523 Contact Us For Availability
24
Clip, Panel (6) WPL 3196576 Contact Us For Availability
38
Screw WPL 3196152 Contact Us For Availability
42
Screw WPL 3196179 Contact Us For Availability
47
Insulation WPL ARI150526A Contact Us For Availability
× ![]()
