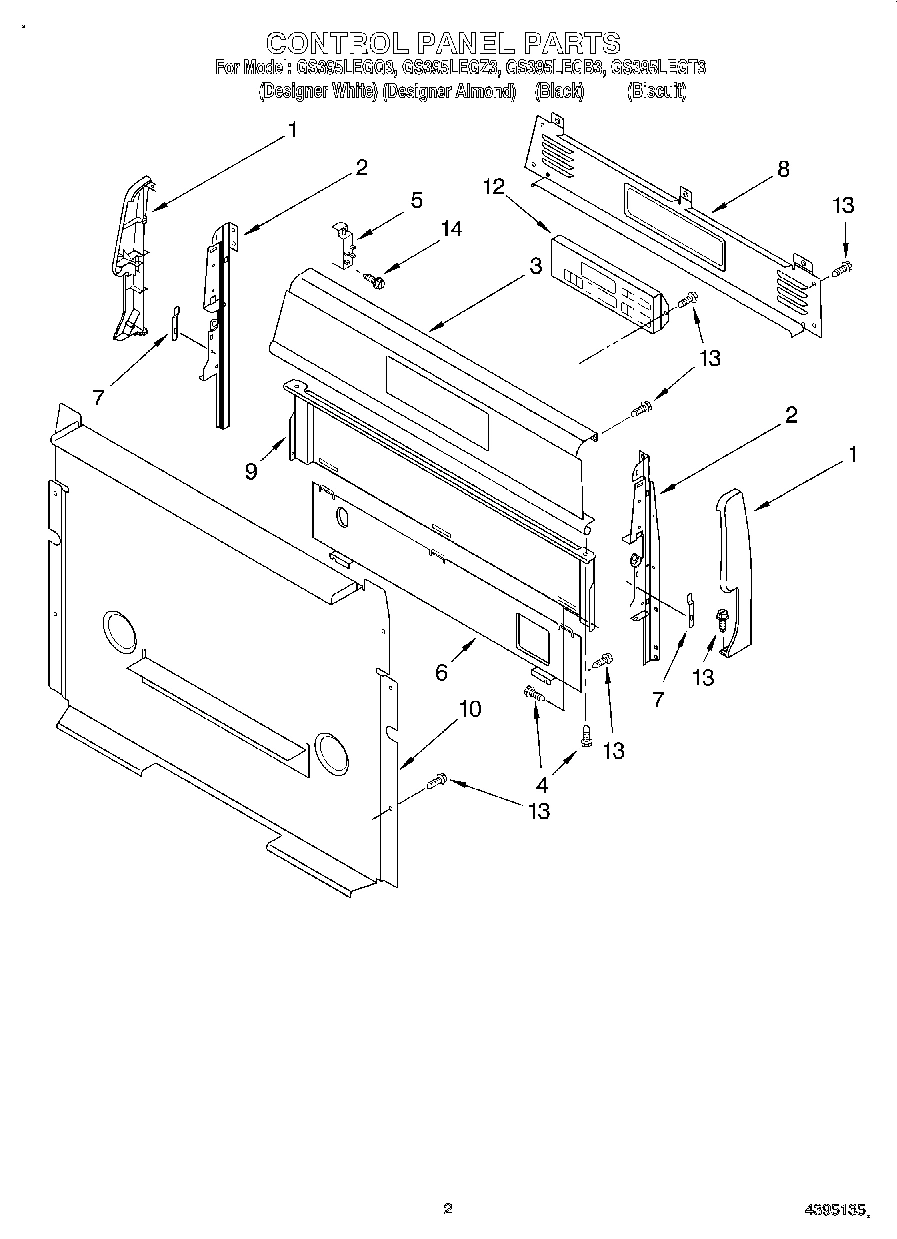

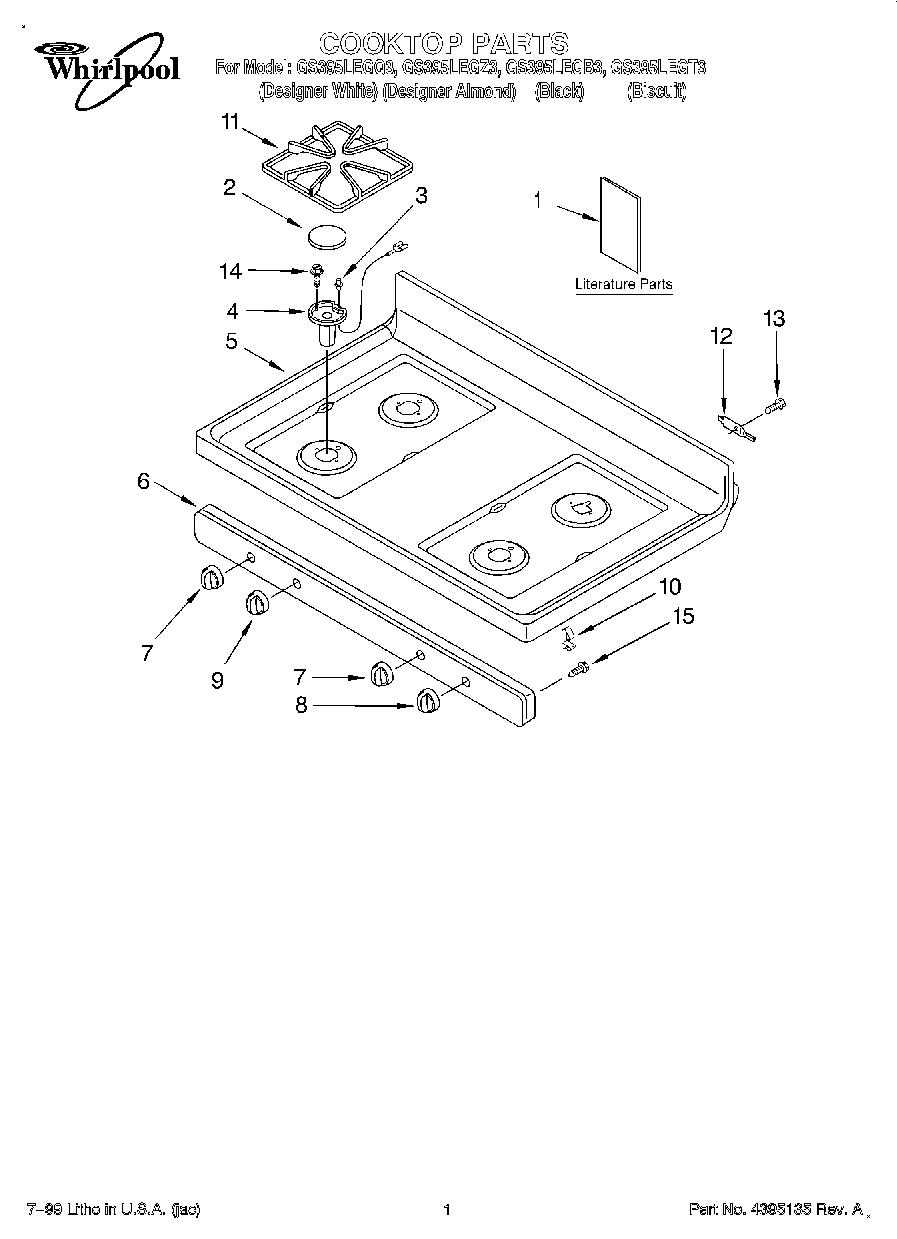

Model Whirlpool GS395LEGT3 – Common Parts &amp; Diagrams

1

WP3186217 Whirlpool Screw Backorder WPL WP3186217 $2.51

1

WPW10016370 Whirlpool Door Trim Backorder WPL WPW10016370 $80.11

1

Trim, Top (Black) WPL 3196819 Contact Us For Availability

1

Trim, Top (Almond) WPL 3196820 Contact Us For Availability

1

Trim, Top (Biscuit) WPL 8272494 Contact Us For Availability

2

WP3195996 Whirlpool Pan Grid Backorder WPL WP3195996 $41.94

2

WP3196164 Whirlpool Screw In Stock WPL WP3196164 $2.51

2

WP8272747 Whirlpool Heat Shield Backorder WPL WP8272747 $26.21

2

Cap, Burner Large (3) (Gray) WPL 8053465 Contact Us For Availability

2

Cap, Burner (Large (3) (Black)) WPL 8053463 Contact Us For Availability

2

(Cap, Burner Small (1)) (Gray) WPL 8053468 Contact Us For Availability

2

Plate, Venturi (Includes No. 3) (Right Hand) WPL 3196448 Contact Us For Availability

2

Plate, Venturi (Includes No. 3) (Left Hand) WPL 3196449 Contact Us For Availability

3

W11032529 Whirlpool Surface Igniter In Stock WPL W11032529 $23.92

3

W11087383 Whirlpool Surface Igniter In Stock WPL W11087383 $24.39

3

W11117434 Whirlpool Surface Igniter Backorder WPL W11117434 $24.39

3

W11122877 Whirlpool Surface Igniter Backorder WPL W11122877 $24.39

3

W11379351 Whirlpool Burner Box Backorder WPL W11379351 $34.99

3

WP3196076 Whirlpool Broil Pan Backorder WPL WP3196076 $167.94

3

WPW10202216 Whirlpool Door Handle In Stock WPL WPW10202216 $130.22

3

WPW10202217 Whirlpool Door Handle In Stock WPL WPW10202217 $101.23

3

Spring, Seal (4) WPL 3196459 Contact Us For Availability

3

Handle, Door (Almond) WPL 3195921 Contact Us For Availability

3

Handle, Door (Biscuit) WPL 8272495 Contact Us For Availability

4

W10162246 Whirlpool Side Panel Backorder WPL W10162246 $81.54

4

W11730303 Whirlpool Side Panel In Stock WPL W11730303 $58.52

4

WP8053360 Whirlpool Burner Head Backorder WPL WP8053360 $38.69

4

WPW10575396 Whirlpool Side Panel Backorder WPL WPW10575396 $75.80

4

Screw WPL 4449746 Contact Us For Availability

4

Burner, 6,500 BTU (RR) WPL 3186478 Contact Us For Availability

4

Panel, Side (2) (Almond-Textured) WPL 8053831 Contact Us For Availability

4

Tubing (Manifold to Regulator) WPL 3186497 Contact Us For Availability

4

Liner, Door WPL 3186292 Contact Us For Availability

5

WP8053421 Whirlpool Oven Spark Module Backorder WPL WP8053421 $99.35

5

WP8053948 Whirlpool Door Glass In Stock WPL WP8053948 $67.09

5

Sheild, Heat (2) WPL 3196137 Contact Us For Availability

5

Harness, Igniter (W/Switches) WPL 8053696 Contact Us For Availability

6

8053505 Whirlpool Oven Shield Backorder WPL 8053505 $54.35

6

WP3196813 Whirlpool Rivet Backorder WPL WP3196813 $4.43

6

WP3196814 Whirlpool Rivet Backorder WPL WP3196814 $4.43

6

WPW10316950 Whirlpool Window Frame Backorder WPL WPW10316950 $28.80

6

Brkt, Manifold Mtg (Left Hand) WPL 3186405 Contact Us For Availability

6

Brkt, Manifold Mtg (Right Hand) WPL 3186406 Contact Us For Availability

6

Switch, Spark WPL 8053694 Contact Us For Availability

7

3196200 Whirlpool Clip In Stock WPL 3196200 $5.05

7

WP8053595 Whirlpool Oven Knob In Stock WPL WP8053595 $12.99

7

WP8053596 Whirlpool Knob Backorder WPL WP8053596 $13.58

7

Knob, Control (2) (Almond) WPL 8053597 Contact Us For Availability

7

Shield, Heat (2) WPL 3196136 Contact Us For Availability

7

Pipe, Manifold WPL 3186221 Contact Us For Availability

8

WPW10278991 Whirlpool Insulation Backorder WPL WPW10278991 $40.48

8

Frame, Front WPL 3186183 Contact Us For Availability

8

Valve, 7,500 BTU (LR) WPL 3196848 Contact Us For Availability

9

W11539580 Whirlpool Retainer Backorder WPL W11539580 $80.49

9

WP3196037 Whirlpool Leveling Foot Backorder WPL WP3196037 $26.50

9

WP8053334 Whirlpool Drawer Glide In Stock WPL WP8053334 $3.70

9

Valve, 9,500 BTU (RF) WPL 3196847 Contact Us For Availability

285006 Whirlpool Spray In Stock WPL 285006 $27.45

3196896 Whirlpool Clip Backorder WPL 3196896 $5.14

3400964 Whirlpool Oven Clip Backorder WPL 3400964 $32.57

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72109 Whirlpool Dacor Avocado Touch-Up Paint Backorder WPL 72109 $10.07

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

814381 Whirlpool Pin Backorder WPL 814381 $3.70

8212471 Whirlpool Oven Paint In Stock WPL 8212471 $35.69

8273888A Whirlpool Range Oven Anchor Anti-Tip In Stock WPL 8273888A $11.14

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

WP8053807 Whirlpool Oven Door Hinge In Stock WPL WP8053807 $49.45

WPW10058460 Whirlpool Appliance Levelling Leg In Stock WPL WPW10058460 $3.70

WPW10208653 Whirlpool Insulation Backorder WPL WPW10208653 $28.80

FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability

Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability

Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability

Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability

Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability

Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability

Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability

Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability

Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability

Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability

Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability

Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability

Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability

Grease WPL 261582 Contact Us For Availability

Coffee WPL 261886 Contact Us For Availability

New Avocado WPL 261888 Contact Us For Availability

Harvest Gold WPL 261890 Contact Us For Availability

Harvest Gold (Uncut) WPL 261891 Contact Us For Availability

WPL 72108 WPL 72108 Contact Us For Availability

WPL 799832 WPL 799832 Contact Us For Availability

WPL 8053527 WPL 8053527 Contact Us For Availability

WPL 8053960 WPL 8053960 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

Valve, 6,500 BTU (RR) WPL 3196849 Contact Us For Availability

WP3195097 Whirlpool Oven Bottom In Stock WPL WP3195097 $81.40

WP8053456 Whirlpool Burner Grate Backorder WPL WP8053456 $95.21

WP8053834 Whirlpool Door Glass Backorder WPL WP8053834 $128.85

WPW10118455 Whirlpool Door Glass Assembly In Stock WPL WPW10118455 $195.36

WPW10447925 Whirlpool Grate Kit In Stock WPL WPW10447925 $189.29

Valve, 12500 BTU (LF) WPL 8053358 Contact Us For Availability

Glass, Outer Door (Almond) WPL 8053482 Contact Us For Availability

Glass, Outer Door (Biscuit) WPL 8272498 Contact Us For Availability

12

WP3195060 Whirlpool Cooktop Pin Backorder WPL WP3195060 $4.23

12

Sensor, Oven WPL 3196966 Contact Us For Availability

12

Burner, Broiler WPL 3186481 Contact Us For Availability

13

8053967 Whirlpool Oven Heat Baffle Backorder WPL 8053967 $106.98

13

W10491985 Whirlpool Screw In Stock WPL W10491985 $2.51

13

Spreader, Flame (Oven) WPL 8053256 Contact Us For Availability

8053969 Whirlpool Heat Shield Backorder WPL 8053969 $36.58

8184858 Whirlpool Door Trim Backorder WPL 8184858 $61.47

8184859 Whirlpool Range Oven Door Trim Kit (2 In Stock WPL 8184859 $48.50

8184860 Whirlpool Oven Door Trim Backorder WPL 8184860 $55.24

Burner, Bake WPL 3186476 Contact Us For Availability

15

8053968 Whirlpool Oven Heat Shield Backorder WPL 8053968 $29.43

15

WP3196925 Whirlpool Clip Assembly Backorder WPL WP3196925 $5.16

15

Valve, Gas Combo WPL 3196891 Contact Us For Availability

16

WP179051 Whirlpool Screw Backorder WPL WP179051 $2.51

16

WP3186491 Whirlpool Oven Igniter Backorder WPL WP3186491 $87.06

16

WPW10306546 Whirlpool Base Rail Backorder WPL WPW10306546 $50.64

17

Tubing (Valve To Broiler Fitting) WPL 3186446 Contact Us For Availability

17

Bracket, Latch WPL 3195914 Contact Us For Availability

18

WP3400832 Whirlpool Screw In Stock WPL WP3400832 $2.51

18

Fitting, Broiler WPL 3186489 Contact Us For Availability

18

Seal, Oven Flange WPL 3195737 Contact Us For Availability

19

W10877054 Whirlpool Spacer Assembly Backorder WPL W10877054 $26.75

19

Cover, Igniter WPL 3196026 Contact Us For Availability

19

Clip, Glass (6) WPL 3196025 Contact Us For Availability

20

238614 Whirlpool Bumper Hinge Backorder WPL 238614 $68.16

20

W10137062 Whirlpool Burner Baffle Backorder WPL W10137062 $154.20

20

Back, Main WPL 8053507 Contact Us For Availability

21

W11542153 Whirlpool Door Gasket In Stock WPL W11542153 $21.59

21

WP3196794 Whirlpool Glass Bracket Backorder WPL WP3196794 $11.53

22

Brace, Main Back WPL 3196838 Contact Us For Availability

23

3196265 Whirlpool Oven Screw Backorder WPL 3196265 $9.59

23

Retainer, Insul. (Right Hand) WPL 3195726 Contact Us For Availability

23

Retainer, Insul. (Left Hand) WPL 3196523 Contact Us For Availability

24

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

24

Clip, Panel (6) WPL 3196576 Contact Us For Availability

25

W11684507 Whirlpool Screw In Stock WPL W11684507 $8.11

25

WP9757891 Whirlpool Power Cord Backorder WPL WP9757891 $48.39

549193 Whirlpool Refrigerator Power Clamp Backorder WPL 549193 $6.94

WP3196183 Whirlpool Screw In Stock WPL WP3196183 $2.51

Spuds, LP Gas (Kit of 4) WPL 8053368 Contact Us For Availability

Spuds, Natural Gas (Kit of 4) WPL 814433 Contact Us For Availability

27

WP3196262 Whirlpool Light Switch Backorder WPL WP3196262 $58.66

28

W11594027 Whirlpool Range Oven Light Socket In Stock WPL W11594027 $36.62

29

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.56

30

WP9761013 Whirlpool Door Latch Backorder WPL WP9761013 $86.66

31

W10078370 Whirlpool Latch Rod Backorder WPL W10078370 $28.80

32

WPW10107830 Whirlpool Stove Door Lock Latch A Backorder WPL WPW10107830 $121.04

33

WP3195546 Whirlpool Drawer Glide In Stock WPL WP3195546 $3.70

36

Button, Plug WPL 3196439 Contact Us For Availability

38

Screw WPL 3196152 Contact Us For Availability

39

3196166 Whirlpool Screw Backorder WPL 3196166 $4.85

39

Screw (Almond) WPL 3196167 Contact Us For Availability

41

WP3196175 Whirlpool Screw In Stock WPL WP3196175 $2.51

42

Screw WPL 3196179 Contact Us For Availability

43

WP3196557 Whirlpool Screw In Stock WPL WP3196557 $2.51

44

WP7101P246-60 Whirlpool Screw Backorder WPL WP7101P246-60 $2.51

46

W11244557 Whirlpool Screw Backorder WPL W11244557 $9.59

47

W11688737 Whirlpool Insulation Backorder WPL W11688737 $45.31
