Model Maytag GS24C7C3EV REFRIGERATOR – Common Parts & Diagrams
01 - FREEZER COMPARTMENT
02 - FREEZER INNER DOOR

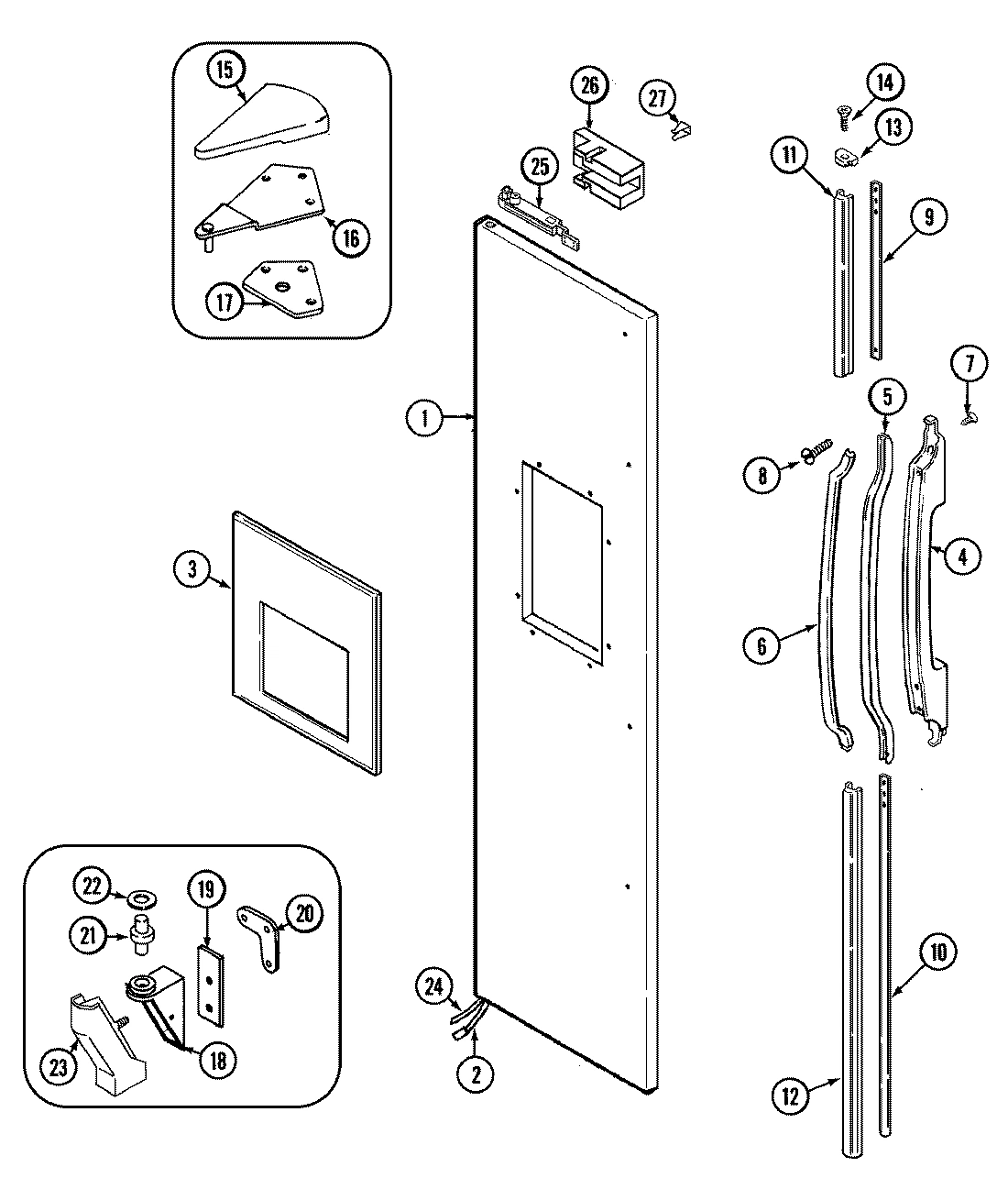

03 - FREEZER OUTER DOOR

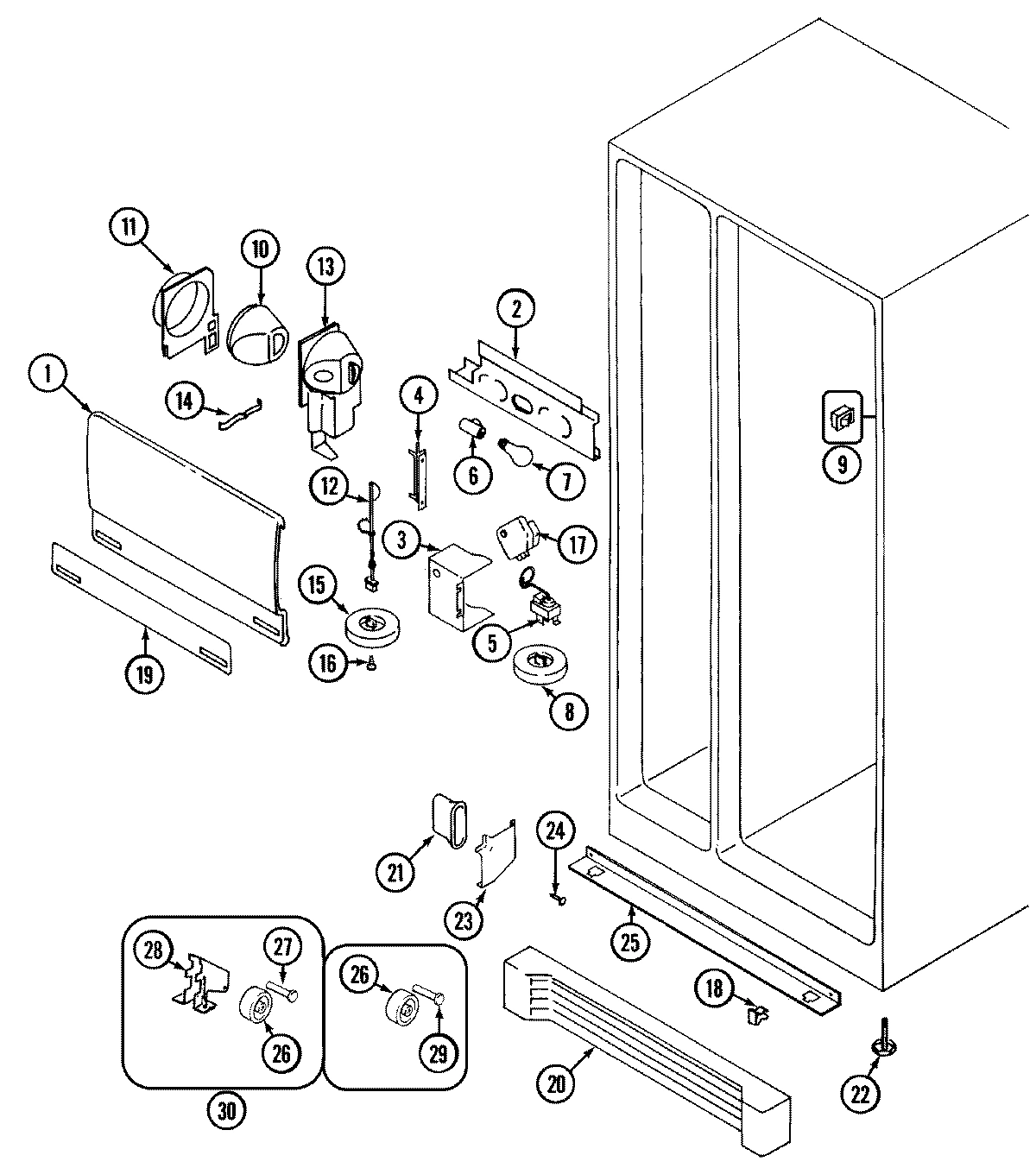

04 - FRESH FOOD COMPARTMENT

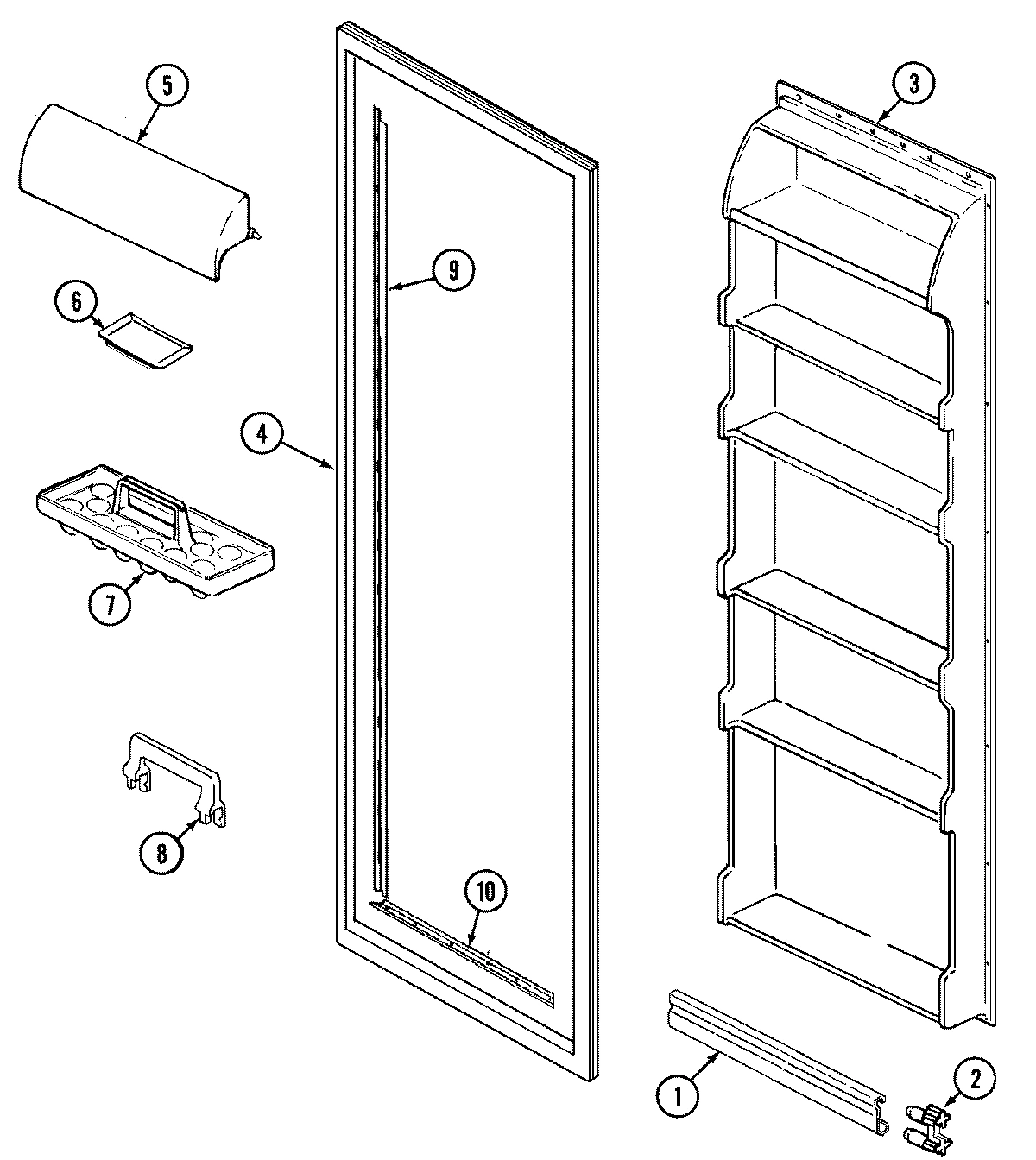

05 - FRESH FOOD INNER DOOR

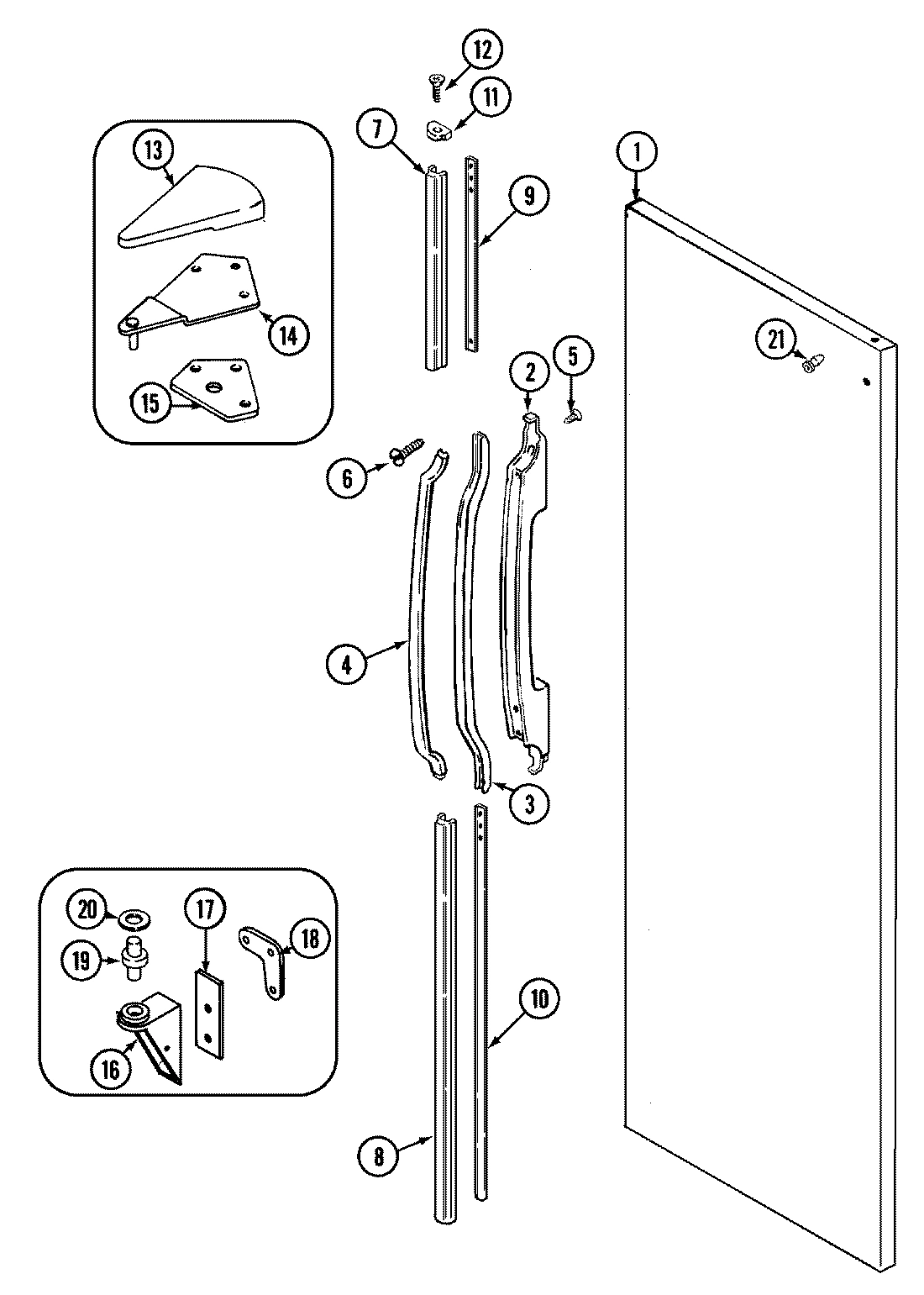

06 - FRESH FOOD OUTER DOOR

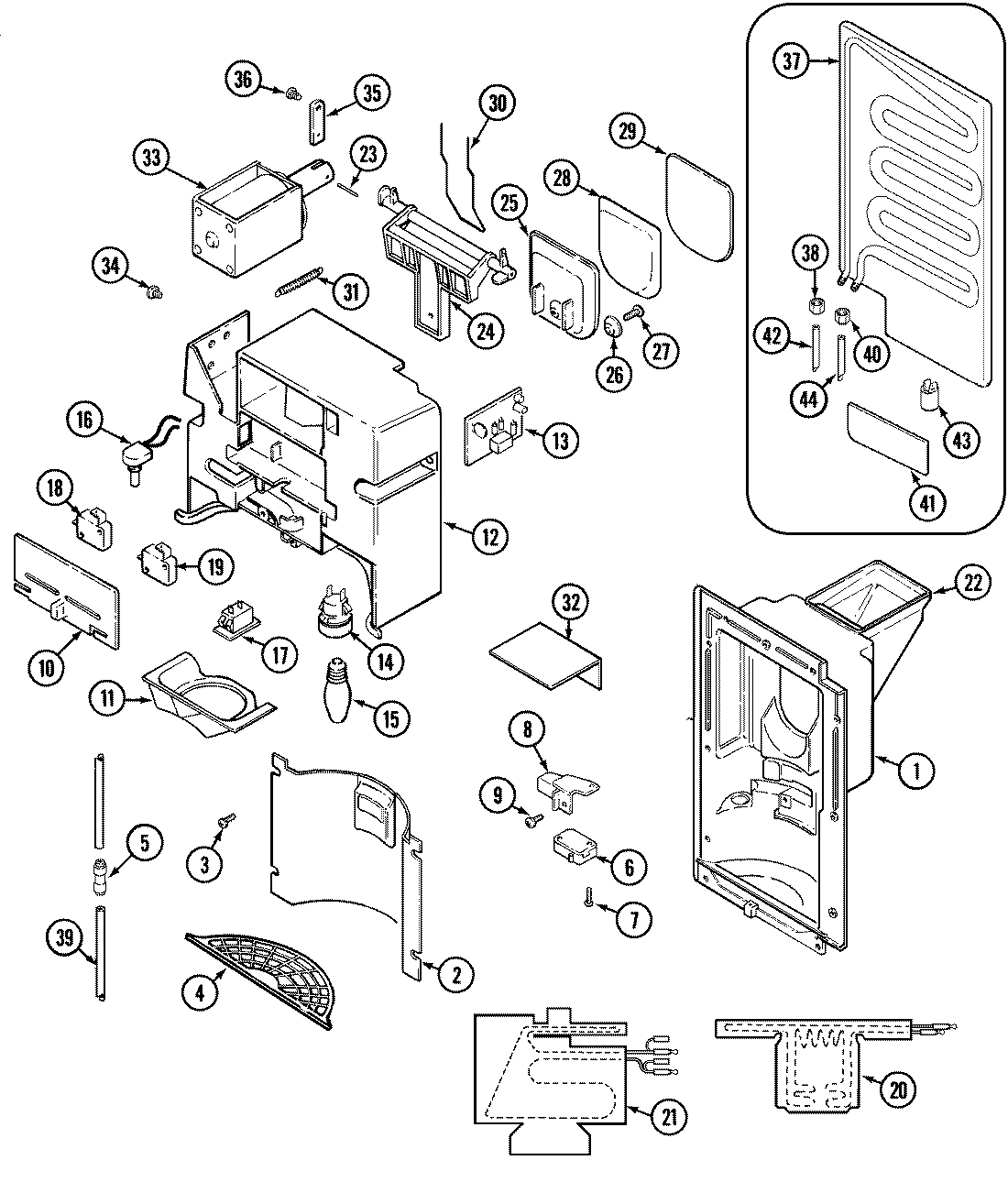

07 - ICE & WATER DISPENSER
08 - ICE CRUSHER & BIN
09 - ICE MAKER

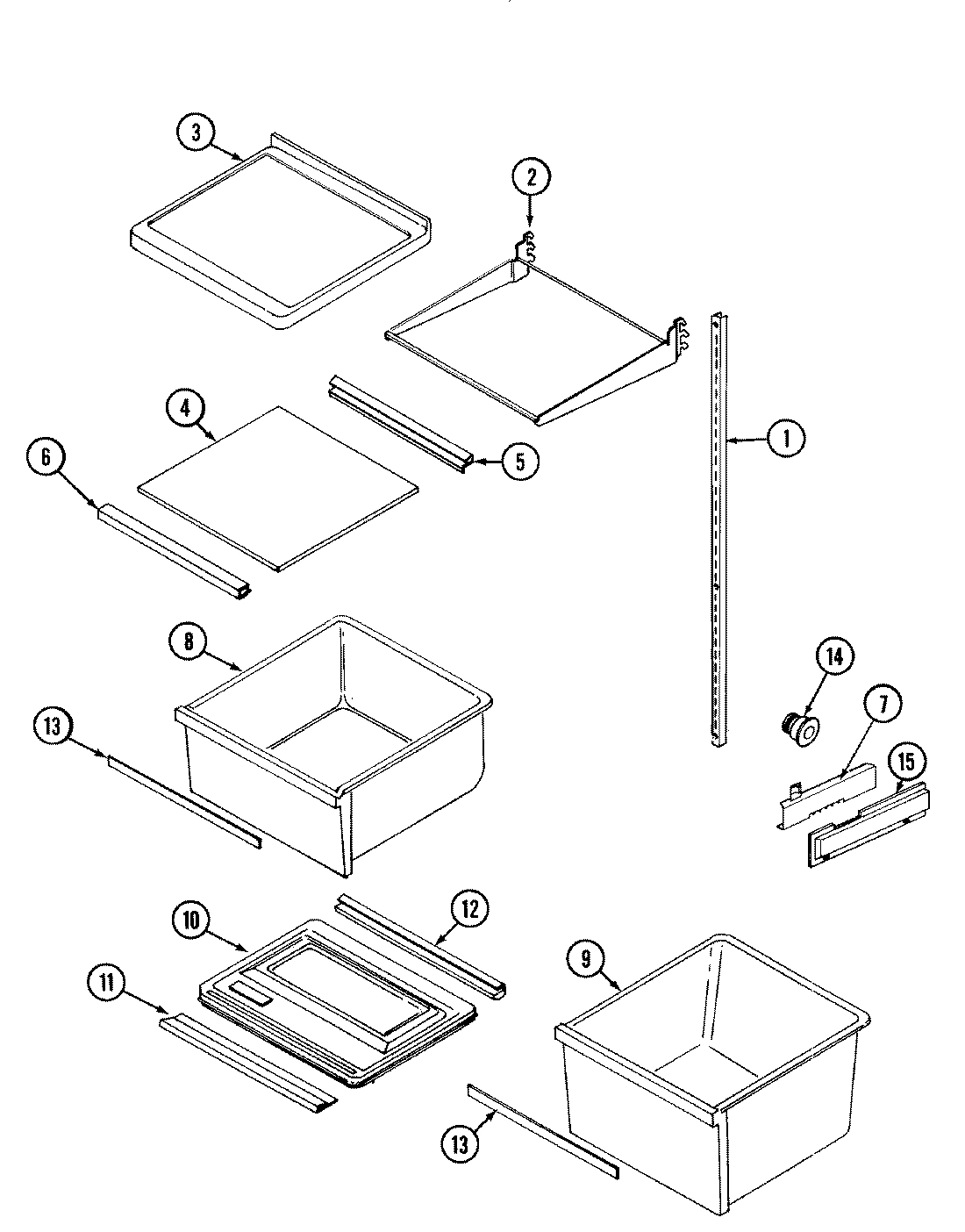

10 - SHELVES & ACCESSORIES

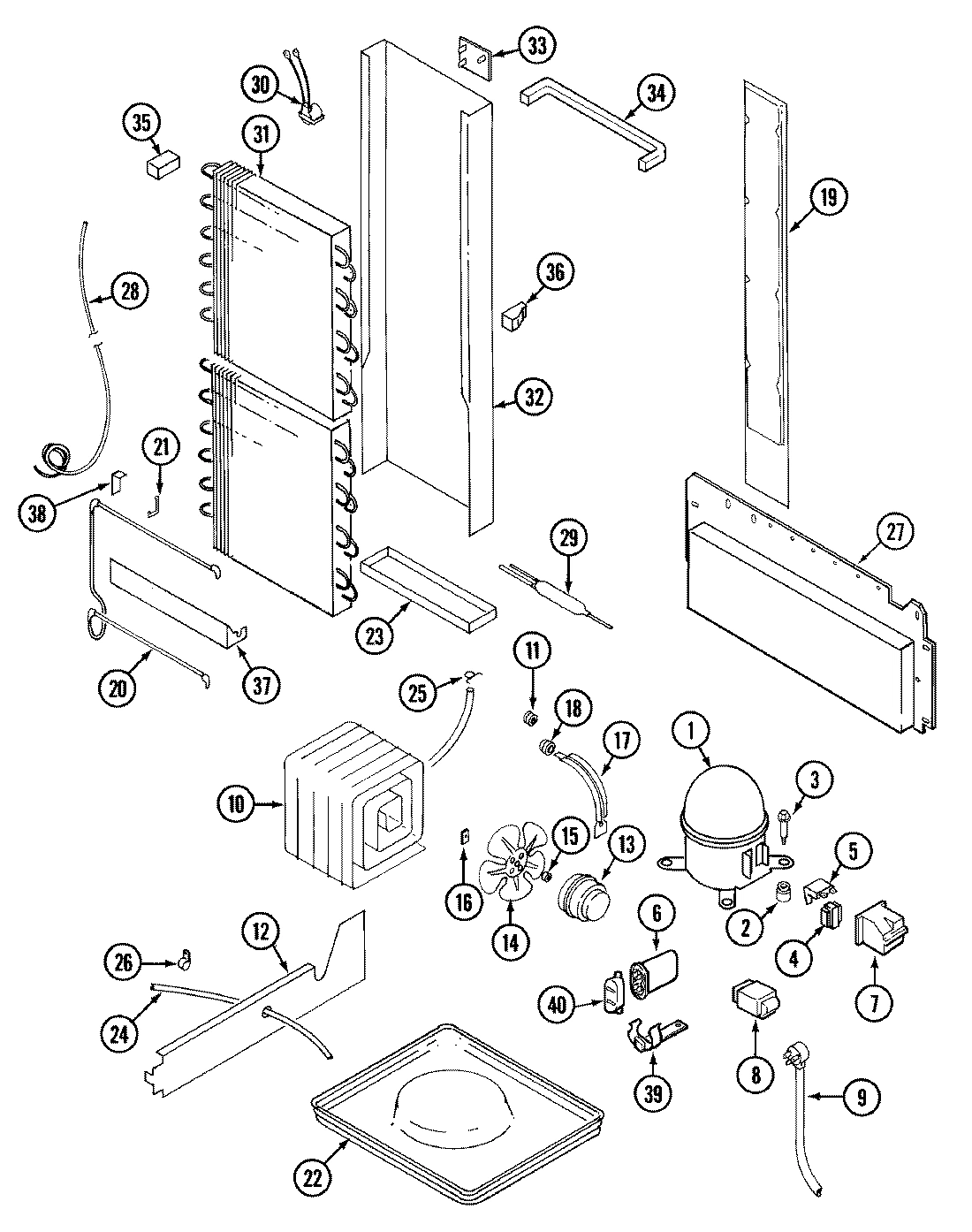

11 - UNIT COMPARTMENT & SYSTEM

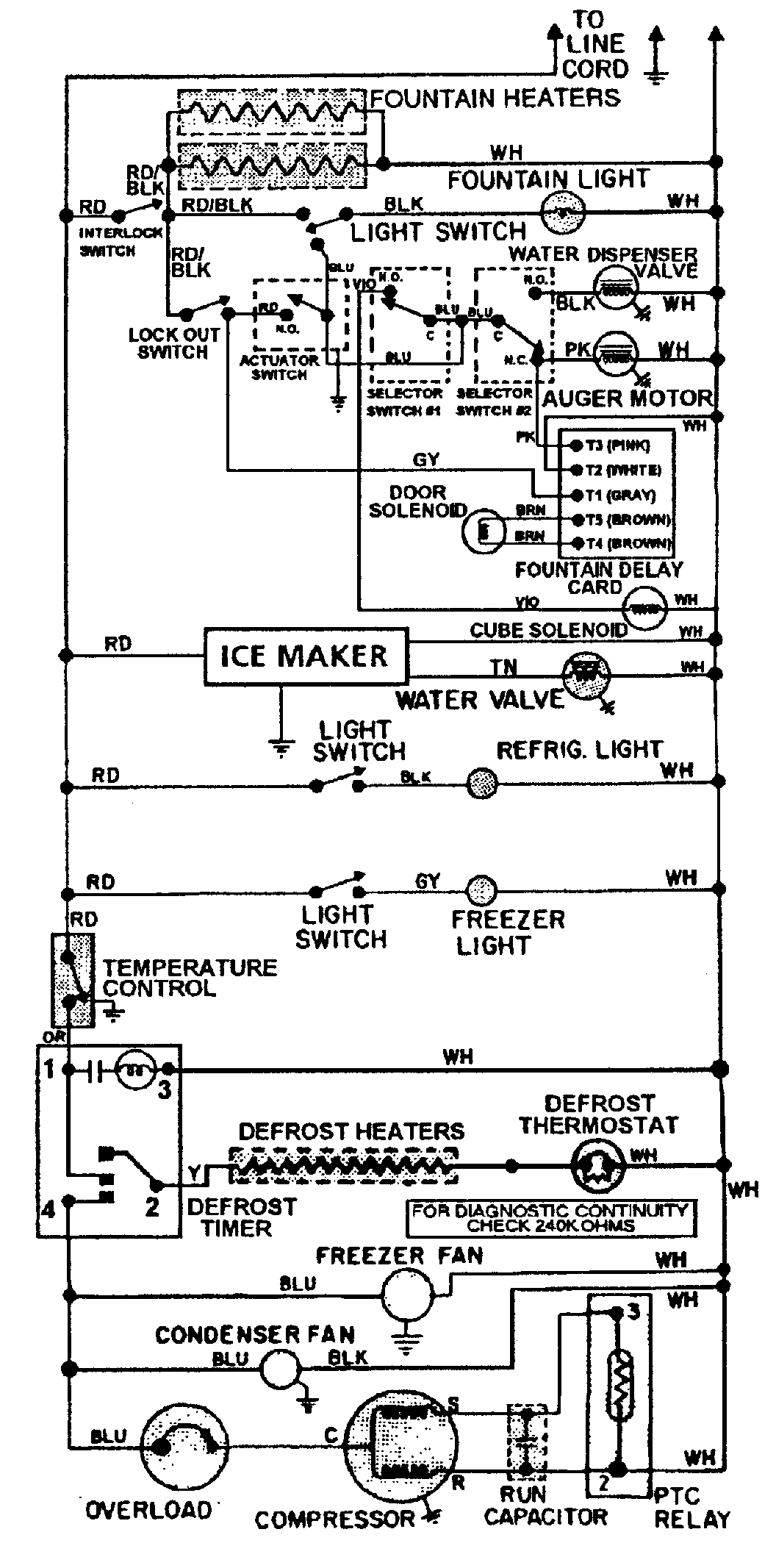

12 - WIRING INFORMATION
Common parts from model Maytag GS24C7C3EV REFRIGERATOR
1
MAY 69255-1 MAY 69255-1 Contact Us For Availability
1
MAY 495034-900 MAY 495034-900 Contact Us For Availability
1
MAY Y72341105WW MAY Y72341105WW Contact Us For Availability
1
MAY 67113-4 MAY 67113-4 Contact Us For Availability
1
MAY 70111-41 MAY 70111-41 Contact Us For Availability
1
MAY 72341-3-WW MAY 72341-3-WW Contact Us For Availability
1
MAY 12000057 MAY 12000057 Contact Us For Availability
1
MAY 69683-1 MAY 69683-1 Contact Us For Availability
1
MAY 69840-1 MAY 69840-1 Contact Us For Availability
1
MAY 69841-1 MAY 69841-1 Contact Us For Availability
1
MAY 69720-1 MAY 69720-1 Contact Us For Availability
1
MAY 400031-1 MAY 400031-1 Contact Us For Availability
1
MAY Y06100048 MAY Y06100048 Contact Us For Availability
1
MAY 400037-28 MAY 400037-28 Contact Us For Availability
1
MAY 67311-1 MAY 67311-1 Contact Us For Availability
1
MAY 12001334 MAY 12001334 Contact Us For Availability
1
MAY 61001834 MAY 61001834 Contact Us For Availability
2
MAY 70024-2 MAY 70024-2 Contact Us For Availability
2
MAY 69804-1 MAY 69804-1 Contact Us For Availability
2
MAY 67922-1 MAY 67922-1 Contact Us For Availability
2
MAY 69193-2 MAY 69193-2 Contact Us For Availability
2
MAY 61001860 MAY 61001860 Contact Us For Availability
2
MAY 61001620 MAY 61001620 Contact Us For Availability
2
MAY 61001239 MAY 61001239 Contact Us For Availability
2
MAY 70310-2 MAY 70310-2 Contact Us For Availability
2
MAY 17245-4 MAY 17245-4 Contact Us For Availability
3
MAY 65275-5 MAY 65275-5 Contact Us For Availability
3
MAY 61001164 MAY 61001164 Contact Us For Availability
3
MAY 61001842 MAY 61001842 Contact Us For Availability
3
MAY 61001704 MAY 61001704 Contact Us For Availability
3
MAY 67920-1 MAY 67920-1 Contact Us For Availability
3
MAY 70178-1 MAY 70178-1 Contact Us For Availability
3
MAY 69244-1 MAY 69244-1 Contact Us For Availability
3
MAY 61001695 MAY 61001695 Contact Us For Availability
3
SCREW MAY 95106-1 Contact Us For Availability
3
MAY 70307-1 MAY 70307-1 Contact Us For Availability
3
MAY 65275-9 MAY 65275-9 Contact Us For Availability
4
MAY 70024-4 MAY 70024-4 Contact Us For Availability
4
MAY 61001166 MAY 61001166 Contact Us For Availability
4
MAY 67924-2 MAY 67924-2 Contact Us For Availability
4
MAY 67125-1 MAY 67125-1 Contact Us For Availability
4
MAY 67223-1 MAY 67223-1 Contact Us For Availability
4
MAY 28272-6 MAY 28272-6 Contact Us For Availability
4
MAY 401018-1 MAY 401018-1 Contact Us For Availability
4
MAY 69825-4 MAY 69825-4 Contact Us For Availability
4
MAY 68139-23 MAY 68139-23 Contact Us For Availability
4
MAY 61001832 MAY 61001832 Contact Us For Availability
5
MAY 61001165 MAY 61001165 Contact Us For Availability
5
MAY 65275-44 MAY 65275-44 Contact Us For Availability
5
MAY 401024-1 MAY 401024-1 Contact Us For Availability
5
MAY 61001367 MAY 61001367 Contact Us For Availability
5
MAY 69058-31 MAY 69058-31 Contact Us For Availability
5
MAY 69756-1 MAY 69756-1 Contact Us For Availability
5
MAY 61001162 MAY 61001162 Contact Us For Availability
5
MAY 67666-1 MAY 67666-1 Contact Us For Availability
5
MAY 68157-2 MAY 68157-2 Contact Us For Availability
5
MAY 61001833 MAY 61001833 Contact Us For Availability
6
MAY 65660-2 MAY 65660-2 Contact Us For Availability
6
MAY 68974-3 MAY 68974-3 Contact Us For Availability
6
MAY 29936-2 MAY 29936-2 Contact Us For Availability
6
MAY 69583-2 MAY 69583-2 Contact Us For Availability
6
MAY 69704-1 MAY 69704-1 Contact Us For Availability
6
MAY 66650-2 MAY 66650-2 Contact Us For Availability
6
MAY 61001827 MAY 61001827 Contact Us For Availability
7
MAY 67932-8 MAY 67932-8 Contact Us For Availability
7
MAY 65736-1 MAY 65736-1 Contact Us For Availability
7
MAY 61001828 MAY 61001828 Contact Us For Availability
8
MAY 67932-9 MAY 67932-9 Contact Us For Availability
8
MAY 67145-9 MAY 67145-9 Contact Us For Availability
8
MAY 70112-1 MAY 70112-1 Contact Us For Availability
8
MAY 70044-1 MAY 70044-1 Contact Us For Availability
8
MAY 67187-20 MAY 67187-20 Contact Us For Availability
8
MAY 69718-1 MAY 69718-1 Contact Us For Availability
8
MAY 66636-140 MAY 66636-140 Contact Us For Availability
8
MAY 61001829 MAY 61001829 Contact Us For Availability
9
MAY 69992-1 MAY 69992-1 Contact Us For Availability
9
MAY 69992-4 MAY 69992-4 Contact Us For Availability
9
MAY 67926-1 MAY 67926-1 Contact Us For Availability
9
MAY 67579-2 MAY 67579-2 Contact Us For Availability
9
MAY 66636-138 MAY 66636-138 Contact Us For Availability
9
MAY 61001835 MAY 61001835 Contact Us For Availability
10
MAY 67926-2 MAY 67926-2 Contact Us For Availability
10
MAY 58767-1 MAY 58767-1 Contact Us For Availability
10
MAY 70341-1 MAY 70341-1 Contact Us For Availability
10
MAY 69992-2 MAY 69992-2 Contact Us For Availability
10
MAY 65275-74 MAY 65275-74 Contact Us For Availability
10
MAY 69681-8 MAY 69681-8 Contact Us For Availability
10
MAY 69733-2 MAY 69733-2 Contact Us For Availability
10
MAY 70122-1 MAY 70122-1 Contact Us For Availability
10
MAY 65608-6 MAY 65608-6 Contact Us For Availability
10
MAY 414001-1 MAY 414001-1 Contact Us For Availability
10
MAY 60408-2 MAY 60408-2 Contact Us For Availability
10
MAY 64998-1 MAY 64998-1 Contact Us For Availability
11
MAY 67928-2 MAY 67928-2 Contact Us For Availability
11
MAY 61001230 MAY 61001230 Contact Us For Availability
11
MAY 61001670 MAY 61001670 Contact Us For Availability
11
MAY 70023-2 MAY 70023-2 Contact Us For Availability
11
MAY 65648-2 MAY 65648-2 Contact Us For Availability
11
MAY 53351-1 MAY 53351-1 Contact Us For Availability
12
MAY 414004-35 MAY 414004-35 Contact Us For Availability
12
MAY 67609-2 MAY 67609-2 Contact Us For Availability
12
MAY 70324-5 MAY 70324-5 Contact Us For Availability
12
MAY 69714-1 MAY 69714-1 Contact Us For Availability
12
MAY 65649-2 MAY 65649-2 Contact Us For Availability
12
MAY 61001533 MAY 61001533 Contact Us For Availability
13
MAY 70121-4 MAY 70121-4 Contact Us For Availability
13
MAY 67354-1 MAY 67354-1 Contact Us For Availability
13
MAY 70339-1 MAY 70339-1 Contact Us For Availability
13
MAY 61001559 MAY 61001559 Contact Us For Availability
13
MAY 69716-1 MAY 69716-1 Contact Us For Availability
13
MAY 95093-1 MAY 95093-1 Contact Us For Availability
13
MAY 68124-99 MAY 68124-99 Contact Us For Availability
13
MAY 61001208 MAY 61001208 Contact Us For Availability
13
MAY 65275-33 MAY 65275-33 Contact Us For Availability
14
MAY 65275-86 MAY 65275-86 Contact Us For Availability
14
MAY 52648-1 MAY 52648-1 Contact Us For Availability
14
MAY 53709-28 MAY 53709-28 Contact Us For Availability
14
MAY 70119-2 MAY 70119-2 Contact Us For Availability
14
MAY 69717-1 MAY 69717-1 Contact Us For Availability
14
MAY 53726-2 MAY 53726-2 Contact Us For Availability
15
MAY 65031-1 MAY 65031-1 Contact Us For Availability
15
MAY 67145-4 MAY 67145-4 Contact Us For Availability
15
MAY 61001236 MAY 61001236 Contact Us For Availability
15
MAY 69707-1 MAY 69707-1 Contact Us For Availability
15
MAY 56686-5 MAY 56686-5 Contact Us For Availability
15
MAY 65737-2 MAY 65737-2 Contact Us For Availability
15
MAY 61001686 MAY 61001686 Contact Us For Availability
16
MAY 53709-26 MAY 53709-26 Contact Us For Availability
16
MAY 65275-51 MAY 65275-51 Contact Us For Availability
16
MAY 400001-1 MAY 400001-1 Contact Us For Availability
16
MAY 69516-2 MAY 69516-2 Contact Us For Availability
16
MAY 69832-10 MAY 69832-10 Contact Us For Availability
16
MAY 69699-1 MAY 69699-1 Contact Us For Availability
17
MAY 69510-1 MAY 69510-1 Contact Us For Availability
17
MAY 405007-1 MAY 405007-1 Contact Us For Availability
17
MAY 66128-4 MAY 66128-4 Contact Us For Availability
17
MAY 69904-1 MAY 69904-1 Contact Us For Availability
17
MAY 69698-1 MAY 69698-1 Contact Us For Availability
17
MAY Y06100047 MAY Y06100047 Contact Us For Availability
17
MAY 61001414 MAY 61001414 Contact Us For Availability
18
MAY 70285-1 MAY 70285-1 Contact Us For Availability
18
MAY 69516-1 MAY 69516-1 Contact Us For Availability
18
MAY 65275-59 MAY 65275-59 Contact Us For Availability
18
MAY 67874-1 MAY 67874-1 Contact Us For Availability
18
MAY 55440-1 MAY 55440-1 Contact Us For Availability
18
MAY 70036-1 MAY 70036-1 Contact Us For Availability
18
MAY 56933-1 MAY 56933-1 Contact Us For Availability
19
MAY 69845-1 MAY 69845-1 Contact Us For Availability
19
MAY 61001760 MAY 61001760 Contact Us For Availability
19
MAY 61001408 MAY 61001408 Contact Us For Availability
19
MAY 415041-35 MAY 415041-35 Contact Us For Availability
19
MAY 55440-3 MAY 55440-3 Contact Us For Availability
19
MAY 69755-1 MAY 69755-1 Contact Us For Availability
19
BRACKET, MODULE & HEATER MAY 95107-1 Contact Us For Availability
19
MAY 95108-1 MAY 95108-1 Contact Us For Availability
19
MAY 400017-36 MAY 400017-36 Contact Us For Availability
19
MAY 61001809 MAY 61001809 Contact Us For Availability
19
MAY 61001849 MAY 61001849 Contact Us For Availability
20
MAY 61002102 MAY 61002102 Contact Us For Availability
20
MAY 69725-1 MAY 69725-1 Contact Us For Availability
20
MAY 70288-9 MAY 70288-9 Contact Us For Availability
20
MAY 69796-2 MAY 69796-2 Contact Us For Availability
20
MAY 69701-1 MAY 69701-1 Contact Us For Availability
20
MAY 61001811 MAY 61001811 Contact Us For Availability
21
MAY 67352-1 MAY 67352-1 Contact Us For Availability
21
MAY 70060-1 MAY 70060-1 Contact Us For Availability
21
MAY 67684-1 MAY 67684-1 Contact Us For Availability
21
MAY 69842-1 MAY 69842-1 Contact Us For Availability
21
MAY 69709-1 MAY 69709-1 Contact Us For Availability
21
MAY 52067-1 MAY 52067-1 Contact Us For Availability
22
MAY 68236-1 MAY 68236-1 Contact Us For Availability
22
MAY 69727-1 MAY 69727-1 Contact Us For Availability
22
MAY 68664-2 MAY 68664-2 Contact Us For Availability
22
MAY 69810-1 MAY 69810-1 Contact Us For Availability
22
MAY 52077-27 MAY 52077-27 Contact Us For Availability
22
MAY 69706-1 MAY 69706-1 Contact Us For Availability
23
MAY 68124-97 MAY 68124-97 Contact Us For Availability
23
MAY 61001609 MAY 61001609 Contact Us For Availability
23
MAY 65275-47 MAY 65275-47 Contact Us For Availability
23
MAY 69982-1 MAY 69982-1 Contact Us For Availability
23
MAY 67291-3 MAY 67291-3 Contact Us For Availability
23
MAY 69702-1 MAY 69702-1 Contact Us For Availability
23
MAY 53523-2 MAY 53523-2 Contact Us For Availability
24
MAY 69675-7 MAY 69675-7 Contact Us For Availability
24
MAY 28013-2 MAY 28013-2 Contact Us For Availability
24
MAY 69702-2 MAY 69702-2 Contact Us For Availability
24
MAY 26911-25 MAY 26911-25 Contact Us For Availability
25
MAY 68957-2 MAY 68957-2 Contact Us For Availability
25
MAY 67837-1 MAY 67837-1 Contact Us For Availability
25
MAY 69258-1 MAY 69258-1 Contact Us For Availability
25
MAY 61001032 MAY 61001032 Contact Us For Availability
25
MAY 65275-42 MAY 65275-42 Contact Us For Availability
25
MAY 69702-3 MAY 69702-3 Contact Us For Availability
26
MAY 66603-43 MAY 66603-43 Contact Us For Availability
26
MAY 67466-1 MAY 67466-1 Contact Us For Availability
26
MAY 52613-1 MAY 52613-1 Contact Us For Availability
26
MAY 70049-1 MAY 70049-1 Contact Us For Availability
26
MAY 69812-1 MAY 69812-1 Contact Us For Availability
26
MAY 68566-1 MAY 68566-1 Contact Us For Availability
26
MAY 69708-1 MAY 69708-1 Contact Us For Availability
26
MAY 53516-5 MAY 53516-5 Contact Us For Availability
27
MAY 61003067 MAY 61003067 Contact Us For Availability
27
MAY 69261-1 MAY 69261-1 Contact Us For Availability
27
MAY 64965-1 MAY 64965-1 Contact Us For Availability
27
MAY 405116-35 MAY 405116-35 Contact Us For Availability
27
MAY 69705-1 MAY 69705-1 Contact Us For Availability
27
MAY 61001485 MAY 61001485 Contact Us For Availability
27
MAY 61001837 MAY 61001837 Contact Us For Availability
28
MAY 66636-132 MAY 66636-132 Contact Us For Availability
28
MAY 400062-1 MAY 400062-1 Contact Us For Availability
28
MAY 52846-1 MAY 52846-1 Contact Us For Availability
28
MAY 68557-1 MAY 68557-1 Contact Us For Availability
28
MAY 69697-1 MAY 69697-1 Contact Us For Availability
28
MAY 26088-23 MAY 26088-23 Contact Us For Availability
28
MAY 61001039 MAY 61001039 Contact Us For Availability
28
MAY 66223-1 MAY 66223-1 Contact Us For Availability
29
MAY 69867-1 MAY 69867-1 Contact Us For Availability
29
MAY 69219-1 MAY 69219-1 Contact Us For Availability
29
MAY 64965-3 MAY 64965-3 Contact Us For Availability
29
MAY 69696-1 MAY 69696-1 Contact Us For Availability
30
MAY 23197-8 MAY 23197-8 Contact Us For Availability
30
MAY 72019-1 MAY 72019-1 Contact Us For Availability
30
MAY 69868-1 MAY 69868-1 Contact Us For Availability
30
MAY 69696-2 MAY 69696-2 Contact Us For Availability
30
MAY 52085-37 MAY 52085-37 Contact Us For Availability
31
MAY 67339-1 MAY 67339-1 Contact Us For Availability
31
MAY 52551-22 MAY 52551-22 Contact Us For Availability
32
MAY 53808-38 MAY 53808-38 Contact Us For Availability
32
MAY 406026-103 MAY 406026-103 Contact Us For Availability
32
MAY 69730-2 MAY 69730-2 Contact Us For Availability
32
MAY 68834-2 MAY 68834-2 Contact Us For Availability
33
MAY 67883-5 MAY 67883-5 Contact Us For Availability
33
MAY 72353-50 MAY 72353-50 Contact Us For Availability
33
MAY 55878-1 MAY 55878-1 Contact Us For Availability
34
MAY 69715-1 MAY 69715-1 Contact Us For Availability
34
MAY 406033-1 MAY 406033-1 Contact Us For Availability
34
MAY 66325-18 MAY 66325-18 Contact Us For Availability
35
MAY 400015-36 MAY 400015-36 Contact Us For Availability
35
MAY 69688-1 MAY 69688-1 Contact Us For Availability
35
MAY 65063-1 MAY 65063-1 Contact Us For Availability
36
MAY 69710-2 MAY 69710-2 Contact Us For Availability
36
MAY 400026-36 MAY 400026-36 Contact Us For Availability
36
MAY 65064-1 MAY 65064-1 Contact Us For Availability
37
MAY 400048-28 MAY 400048-28 Contact Us For Availability
37
MAY 61002114 MAY 61002114 Contact Us For Availability
37
MAY 29915-13 MAY 29915-13 Contact Us For Availability
38
MAY 52561-1 MAY 52561-1 Contact Us For Availability
39
MAY 67187-29 MAY 67187-29 Contact Us For Availability
39
MAY 405012-1 MAY 405012-1 Contact Us For Availability
39
MAY 61001830 MAY 61001830 Contact Us For Availability
40
MAY 61001831 MAY 61001831 Contact Us For Availability
41
MAY 29356-1 MAY 29356-1 Contact Us For Availability
41
MAY 68522-1 MAY 68522-1 Contact Us For Availability
41
MAY 61001081 MAY 61001081 Contact Us For Availability
42
MAY 61001808 MAY 61001808 Contact Us For Availability
43
MAY 19530-36 MAY 19530-36 Contact Us For Availability
45
MAY 27116-5 MAY 27116-5 Contact Us For Availability
46
MAY 69591-2 MAY 69591-2 Contact Us For Availability
46
MAY 69902-2 MAY 69902-2 Contact Us For Availability
46
MAY 69903-4 MAY 69903-4 Contact Us For Availability
46
MAY 70446-2 MAY 70446-2 Contact Us For Availability
NI
MAY 15002663 MAY 15002663 Contact Us For Availability
× ![]()
