Model Electrolux GRS20ZRHD3 REFRIGERATOR – Common Parts & Diagrams
01 - COVER
02 - FREEZER DOOR

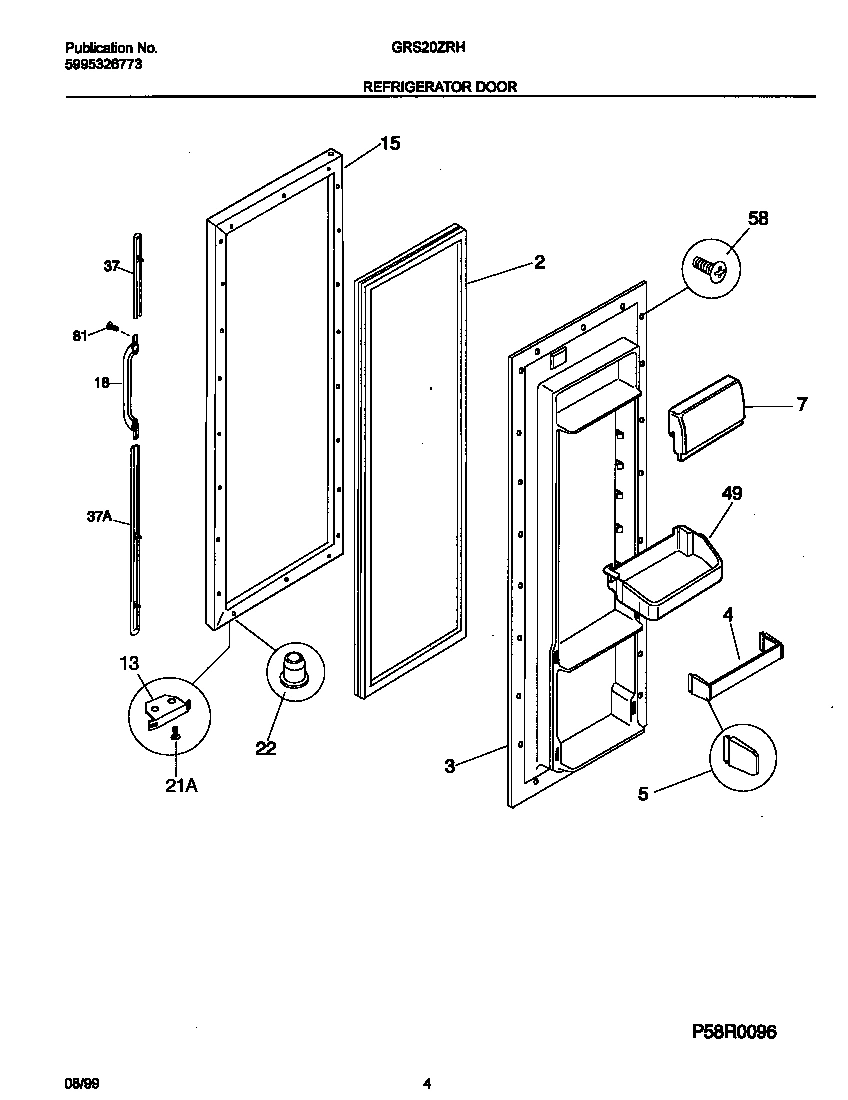

03 - REFRIGERATOR DOOR

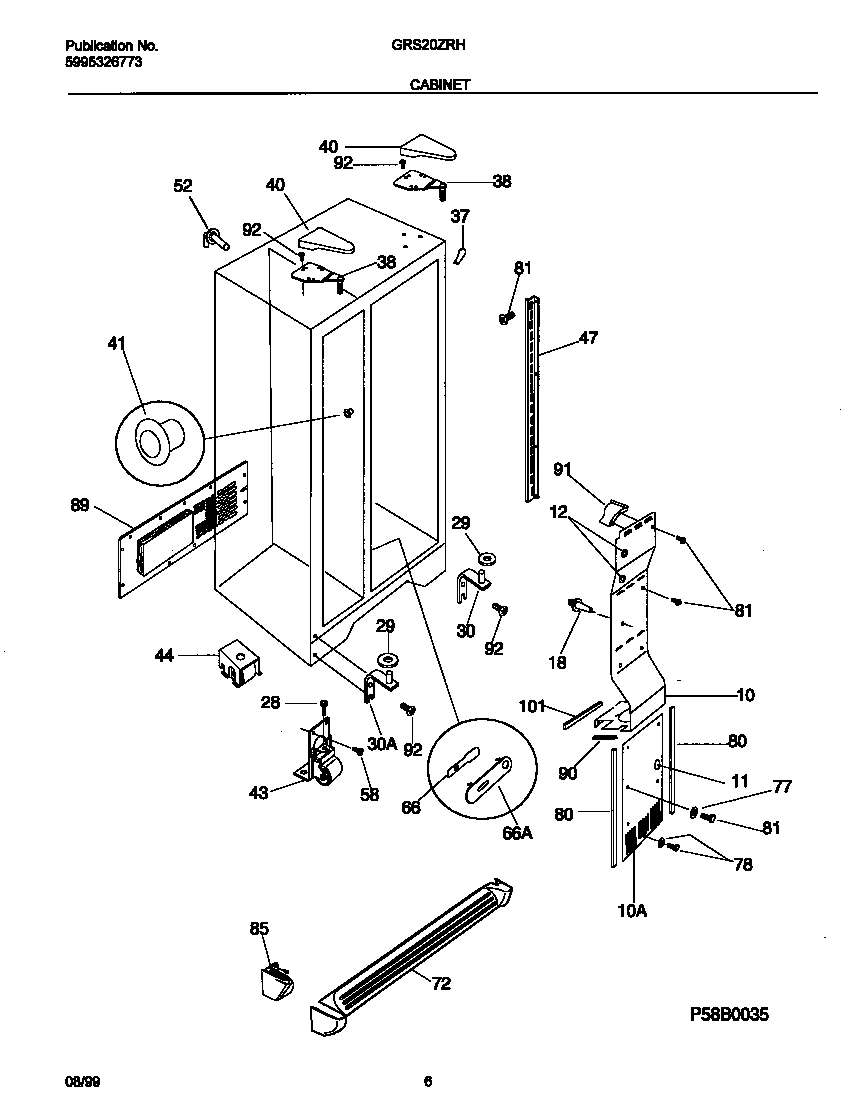

04 - CABINET

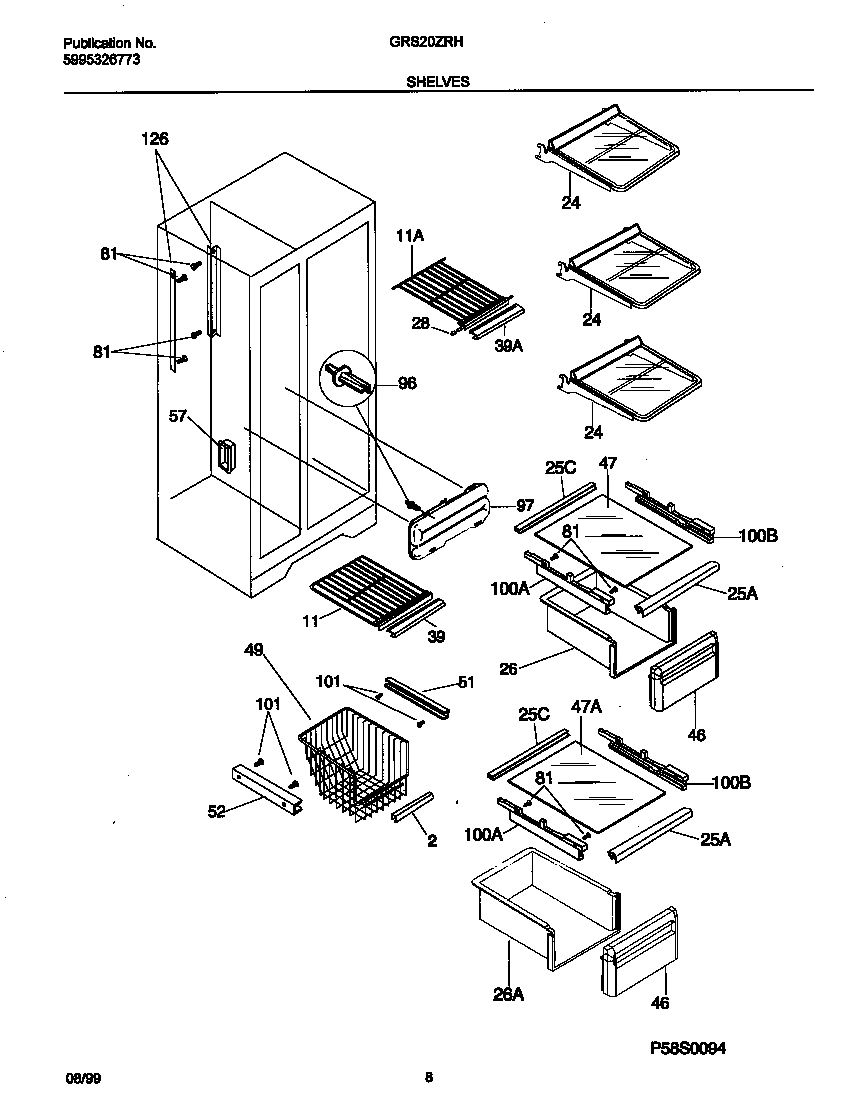

05 - SHELVES

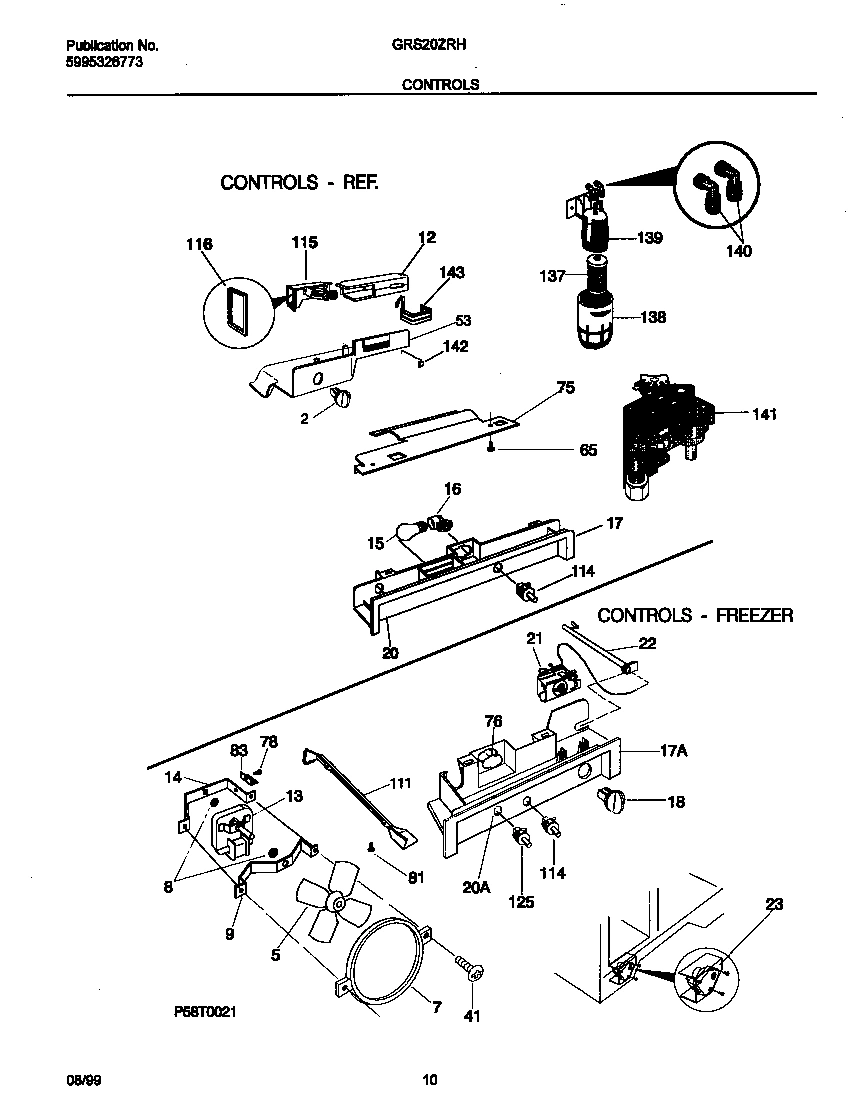

06 - CONTROLS

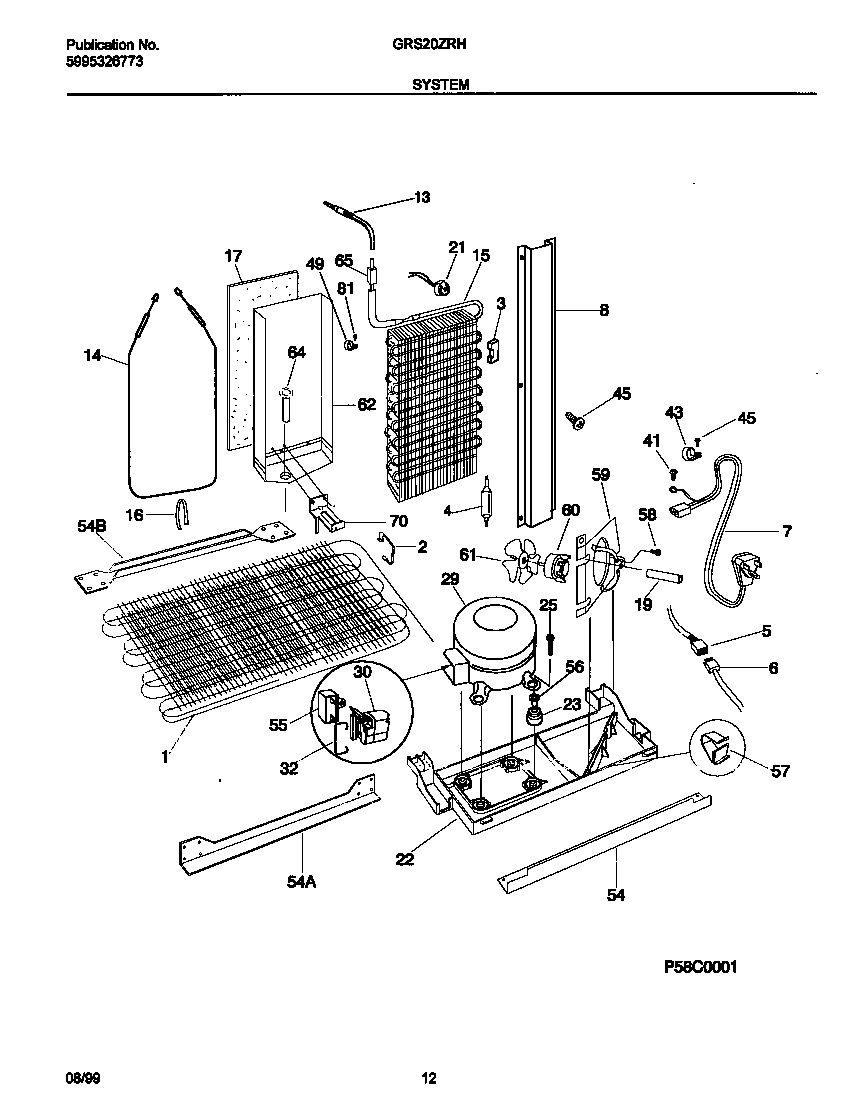

07 - SYSTEM

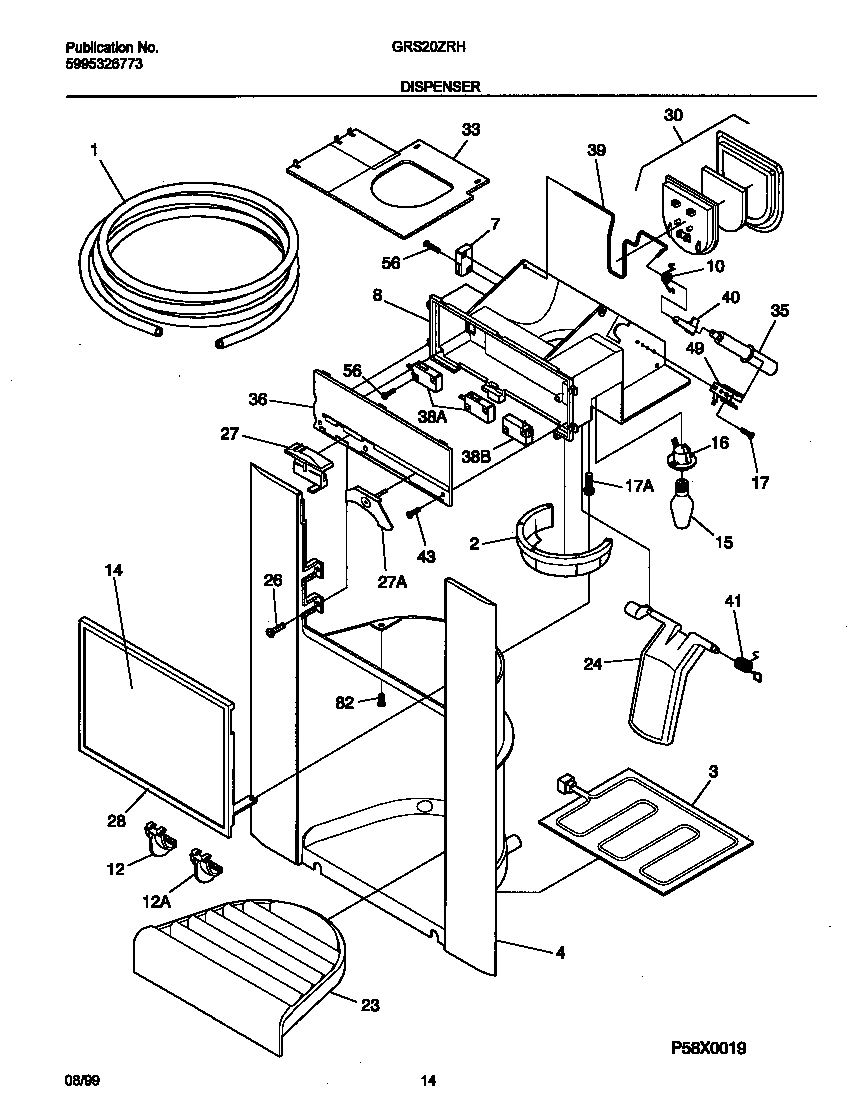

08 - ICE DISPENSER

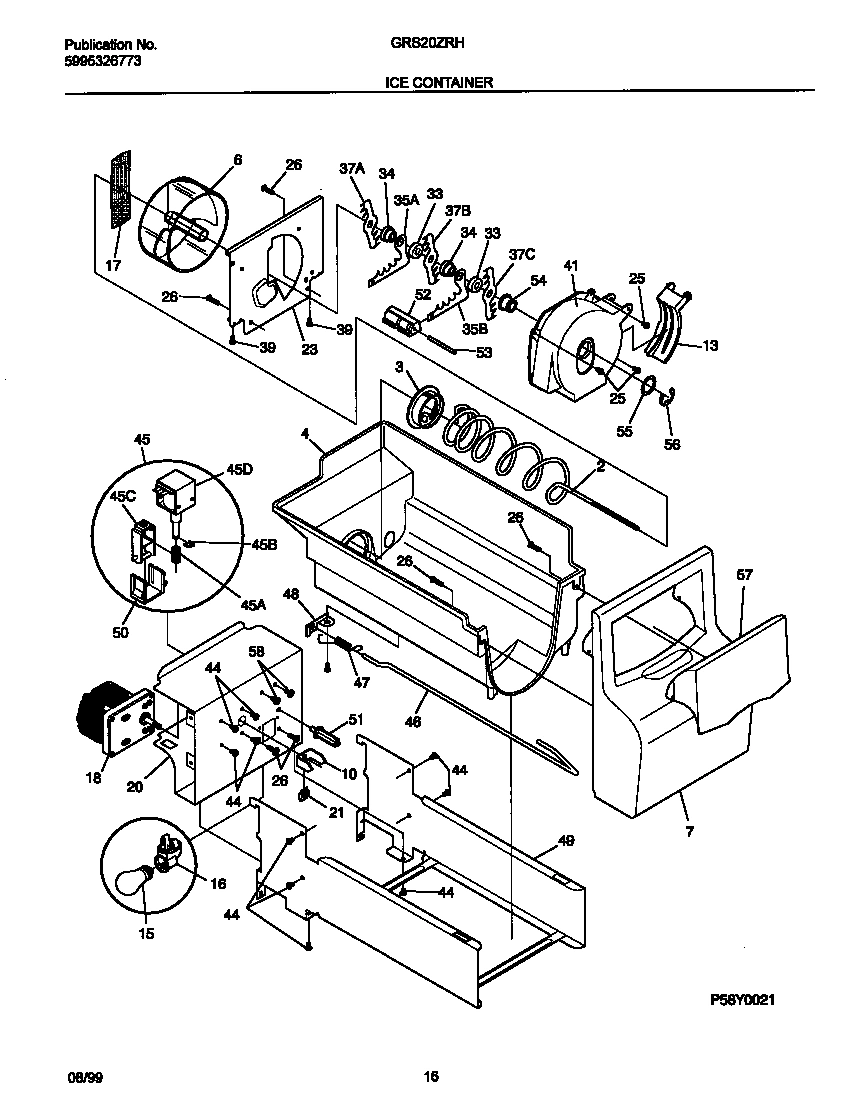

09 - ICE CONTAINER

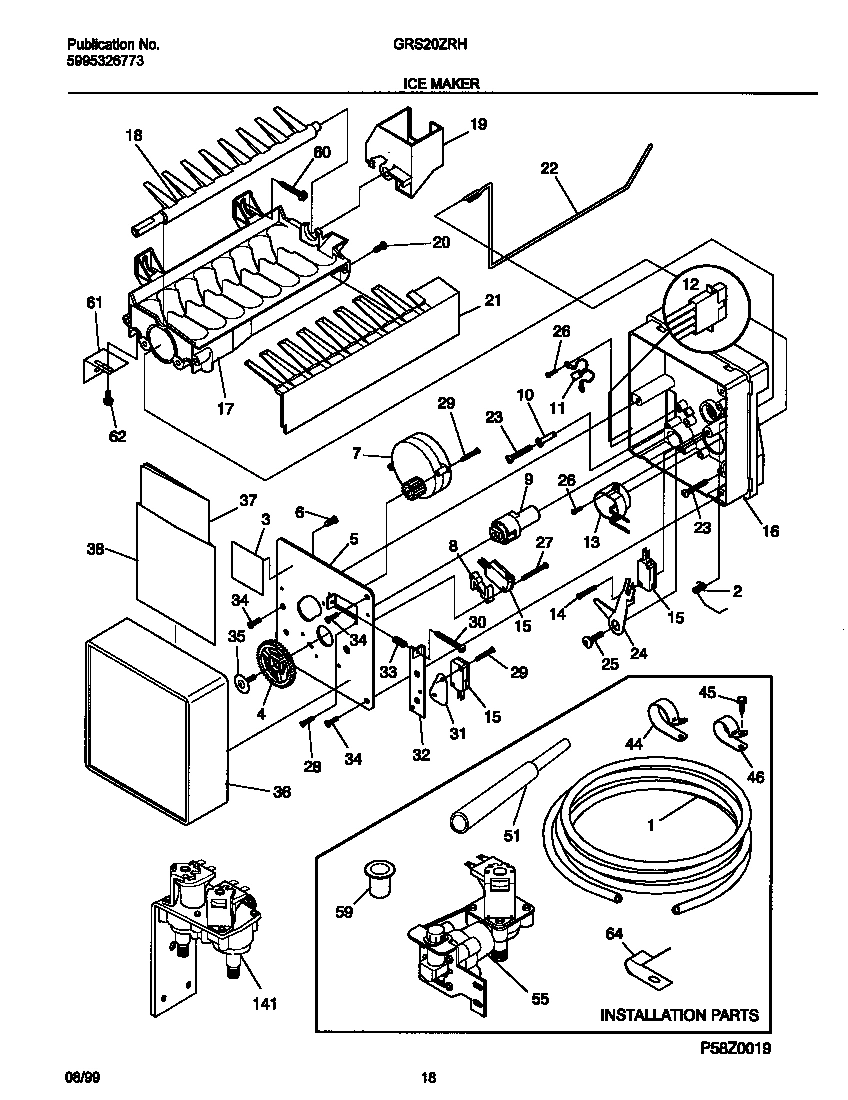

10 - ICE MAKER

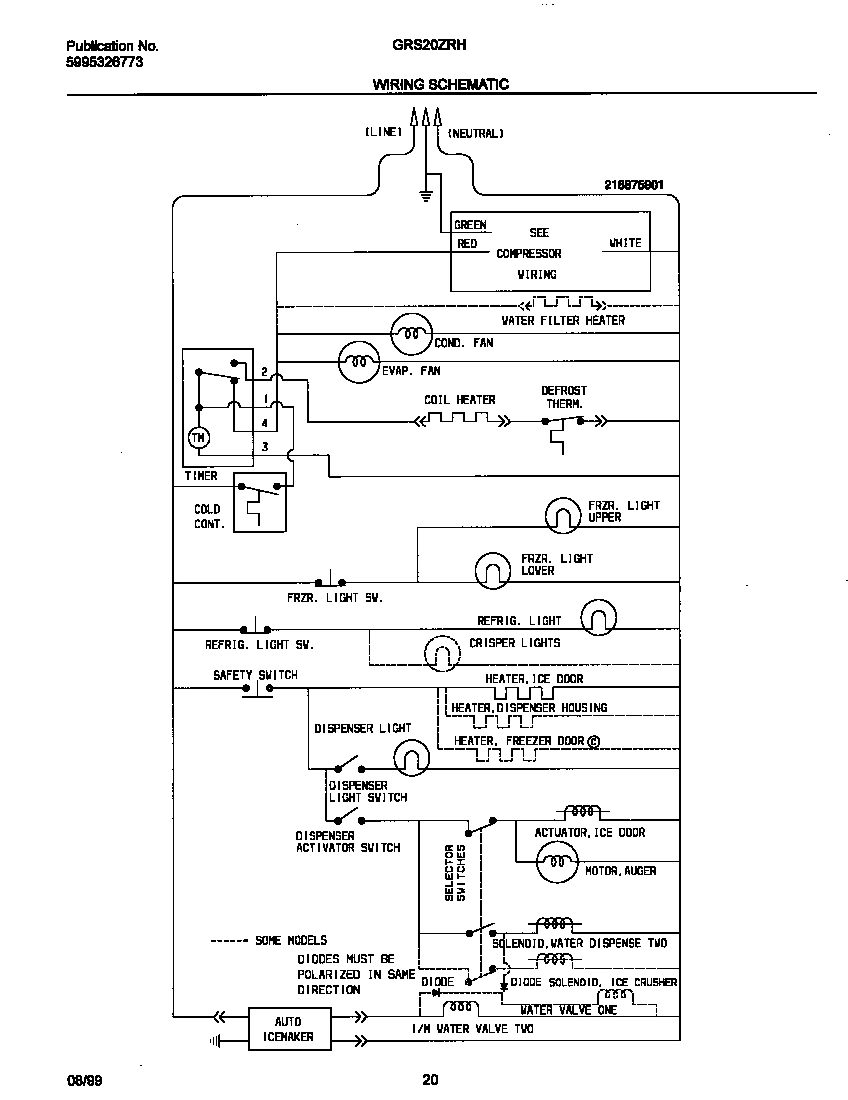

11 - WIRING DIAGRAM

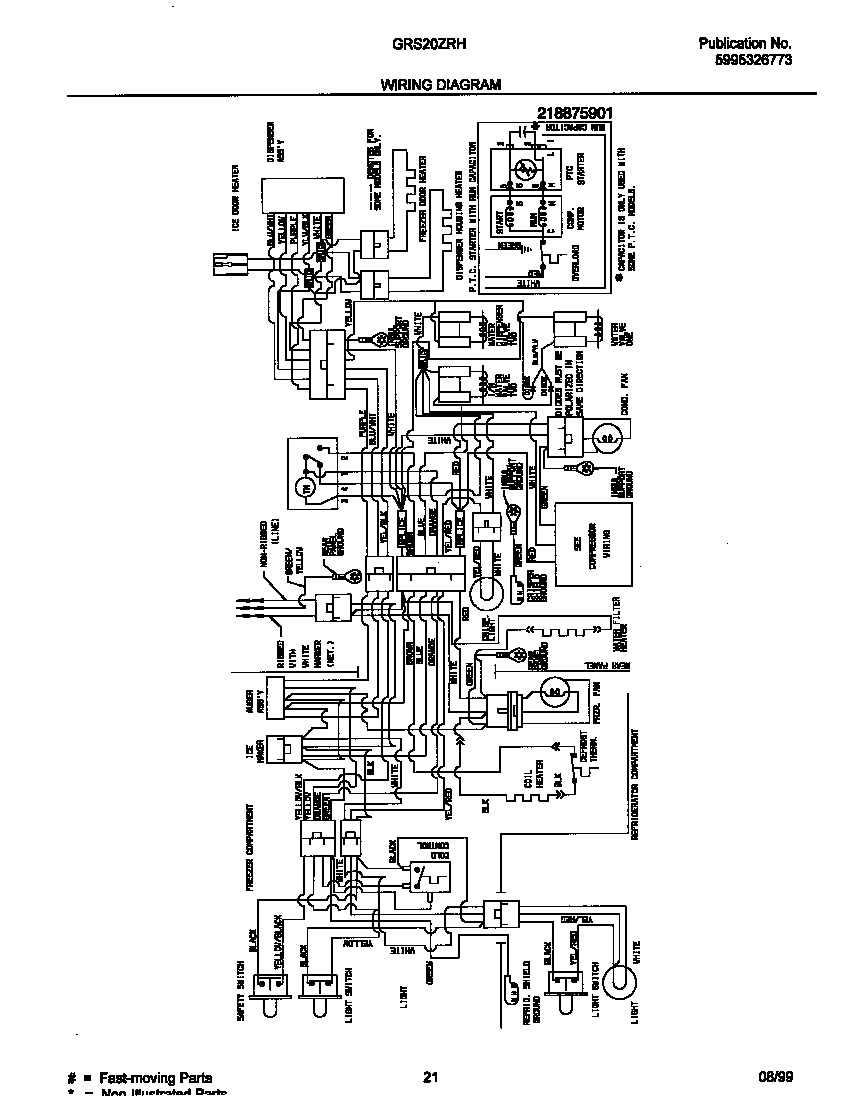

12 - WIRING DIAGRAM
Common parts from model Electrolux GRS20ZRHD3 REFRIGERATOR
*86161
WCI 5303917276 WCI 5303917276 Contact Us For Availability
*86176
SPACER-SHELF WCI 218159700 Contact Us For Availability
*86177
WCI 5303310718 WCI 5303310718 Contact Us For Availability
*86178
CLIP-SHELF WCI 215328300 Contact Us For Availability
*86180
WCI 218731102 WCI 218731102 Contact Us For Availability
*86181
COVER-DEFROST TIMER, TOP WCI 215277000 Contact Us For Availability
*86183
SHIELD-DEFROST TIMR,BTM WCI 5303289058 Contact Us For Availability
*86184
NUT,``U`` TYPE ,8-15(A) ,FAN MTR MTG WCI 5303209814 Contact Us For Availability
*86187
SPACER-COND TUBE,BLACK WCI 5303208866 Contact Us For Availability
*86188
SPACER TUBE WCI 5303289026 Contact Us For Availability
*86189
WCI 215005200 WCI 215005200 Contact Us For Availability
*86190
HARNESS-WIRING, FILTER HEATER WCI 218646000 Contact Us For Availability
*86191
WCI 218815101 WCI 218815101 Contact Us For Availability
*86192
SCREW,HEX HD SER WSHR ,8-18 X 0.375 WCI 218754500 Contact Us For Availability
*86193
TUBE-INLET WCI 3206414 Contact Us For Availability
*86197
WCI 215732700 WCI 215732700 Contact Us For Availability
*86198
WCI 218897001 WCI 218897001 Contact Us For Availability
*86199
WCI 215004700 WCI 215004700 Contact Us For Availability
*86200
WCI 215004800 WCI 215004800 Contact Us For Availability
*86201
WCI 5303917166 WCI 5303917166 Contact Us For Availability
*86205
HARNESS-WIRING,DISP WCI 218863111 Contact Us For Availability
*86206
WCI 5304404335 WCI 5304404335 Contact Us For Availability
*86207
WCI 5304404364 WCI 5304404364 Contact Us For Availability
*86209
WCI 218832302 WCI 218832302 Contact Us For Availability
*86210
WCI 218859901 WCI 218859901 Contact Us For Availability
*86211
WCI 218949201 WCI 218949201 Contact Us For Availability
*86213
Screw-solenoid valve,hx hd-slot wshr ,12-24 x WCI 215290100 Contact Us For Availability
1
WCI 218787700 WCI 218787700 Contact Us For Availability
2
WCI 5303300707 WCI 5303300707 Contact Us For Availability
2
WCI 215028605 WCI 215028605 Contact Us For Availability
2
WCI 5303289029 WCI 5303289029 Contact Us For Availability
2
WCI 218505302 WCI 218505302 Contact Us For Availability
2
WCI 3206348 WCI 3206348 Contact Us For Availability
3
WCI 218679603 WCI 218679603 Contact Us For Availability
3
WCI 215484300 WCI 215484300 Contact Us For Availability
3
PLATE-I.D. WCI 3206299 Contact Us For Availability
4
WCI 218852402 WCI 218852402 Contact Us For Availability
5
HARNESS-WIRING,CONTROLS WCI 218959901 Contact Us For Availability
5
WCI 3206303 WCI 3206303 Contact Us For Availability
6
HARNESS-WIRING,MACHINE COMPT WCI 218960201 Contact Us For Availability
7
WCI 215459201 WCI 215459201 Contact Us For Availability
7
RING-FAN ORIFICE WCI 5308000124 Contact Us For Availability
7
WCI 218284800 WCI 218284800 Contact Us For Availability
8
WCI 218803400 WCI 218803400 Contact Us For Availability
8
WCI 218874901 WCI 218874901 Contact Us For Availability
8
SPACER-HOLDING SW WCI 3206312 Contact Us For Availability
9
WCI 5303205118 WCI 5303205118 Contact Us For Availability
9
WCI 3206313 WCI 3206313 Contact Us For Availability
10
WCI 218209800 WCI 218209800 Contact Us For Availability
10
WCI 3206315 WCI 3206315 Contact Us For Availability
11
WCI 218298005 WCI 218298005 Contact Us For Availability
11
WCI 5304405989 WCI 5304405989 Contact Us For Availability
12
WCI 218836202 WCI 218836202 Contact Us For Availability
12
WCI 215809600 WCI 215809600 Contact Us For Availability
12
WCI 218925402 WCI 218925402 Contact Us For Availability
12
WCI 218925501 WCI 218925501 Contact Us For Availability
12A
CONNECTOR PLUG, WIRING HARNESS WCI 3206321 Contact Us For Availability
12B
HARNESS-WIRING, IM INTERNAL, WITH PLUG WCI 3206349 Contact Us For Availability
13
WCI 5303289522 WCI 5303289522 Contact Us For Availability
13
Thermostat Assy,ice maker WCI 3206322 Contact Us For Availability
13
WCI 215426200 WCI 215426200 Contact Us For Availability
13
WCI 215006701 WCI 215006701 Contact Us For Availability
14
BRACKET-MOTOR MTG, REAR WCI 5303205119 Contact Us For Availability
14
WCI 218416193 WCI 218416193 Contact Us For Availability
14
SCREW - SWITCH MTG, 4-24 X 3/4, SW TO SUPPORT WCI 3206323 Contact Us For Availability
15
WCI 218691302 WCI 218691302 Contact Us For Availability
15
WCI 218284900 WCI 218284900 Contact Us For Availability
16
WCI 3206326 WCI 3206326 Contact Us For Availability
17
CONTROL BOX, REFR WCI 5303296808 Contact Us For Availability
17
WCI 5303289042 WCI 5303289042 Contact Us For Availability
17
WCI 215794400 WCI 215794400 Contact Us For Availability
17A
WCI 5303321928 WCI 5303321928 Contact Us For Availability
17A
WCI 215840700 WCI 215840700 Contact Us For Availability
17B
SCREW-CONTROL BOX MTG,HEX HEAD ,8-15A X 1.000 WCI 215188300 Contact Us For Availability
17B
WASHER-FLAT WCI 215923400 Contact Us For Availability
18
WCI 215051008 WCI 215051008 Contact Us For Availability
18
WCI 3206328 WCI 3206328 Contact Us For Availability
19
WCI 218631200 WCI 218631200 Contact Us For Availability
19
WCI 3206330 WCI 3206330 Contact Us For Availability
20
WCI 5304411660 WCI 5304411660 Contact Us For Availability
20
WCI 5304411661 WCI 5304411661 Contact Us For Availability
20
WCI 5304404881 WCI 5304404881 Contact Us For Availability
20
SCREW,8-18 X 0.375 ,(2) WCI 3206331 Contact Us For Availability
21
WCI 5303300027 WCI 5303300027 Contact Us For Availability
21
ICE STRIPPER WCI 3206332 Contact Us For Availability
22
WCI 5303289320 WCI 5303289320 Contact Us For Availability
22
WCI 5303319683 WCI 5303319683 Contact Us For Availability
22
WCI 218811100 WCI 218811100 Contact Us For Availability
22
WCI 3206333 WCI 3206333 Contact Us For Availability
23
WCI 5303297845 WCI 5303297845 Contact Us For Availability
23
SCREW - SUP / MOLD BODY, 8-18 X 1, (4) WCI 3206334 Contact Us For Availability
24
WCI 218921302 WCI 218921302 Contact Us For Availability
24
WCI 218746205 WCI 218746205 Contact Us For Availability
25
WCI 218015301 WCI 218015301 Contact Us For Availability
25
WCI 218015401 WCI 218015401 Contact Us For Availability
25
WCI 218773500 WCI 218773500 Contact Us For Availability
25
SCREW-ARM LEVR/SPRT, 8-18 X 9/16 WCI 3206336 Contact Us For Availability
26
WCI 5303288968 WCI 5303288968 Contact Us For Availability
26
SCREW-THERMO/SPRT, 4-24 X 3/8, (4) WCI 3206337 Contact Us For Availability
27
WCI 218432600 WCI 218432600 Contact Us For Availability
27
WCI 218814901 WCI 218814901 Contact Us For Availability
27
SCREW-SW&SPCR/PLATE,4-40 X 1 WCI 3206338 Contact Us For Availability
28
END CAP-SHELF, PROTECTOR, LOWER FZR SHELF WCI 08013638 Contact Us For Availability
28
WCI 218906202 WCI 218906202 Contact Us For Availability
28
SCREW-TIMING STOP, 4-40 X 3/8 WCI 3206339 Contact Us For Availability
29
WCI 215314301 WCI 215314301 Contact Us For Availability
29
SCREW-MTR&SW/PLATE,4-40 X 3/4 WCI 3206340 Contact Us For Availability
30
DOOR ASSY-ICE CHUTE, W/GASKET, INSUL WCI 215753600 Contact Us For Availability
30
SCREW-TIMING, 8-32 X 1 WCI 3206341 Contact Us For Availability
31
WCI 3206342 WCI 3206342 Contact Us For Availability
32
WCI 218888601 WCI 218888601 Contact Us For Availability
32
WCI 3206343 WCI 3206343 Contact Us For Availability
33
WCI 218870201 WCI 218870201 Contact Us For Availability
33
WCI 3206344 WCI 3206344 Contact Us For Availability
34
SCREW-MTG PLATE/SPRT,8-18 X 7/16 WCI 3206345 Contact Us For Availability
35
WCI 218740003 WCI 218740003 Contact Us For Availability
35
SCREW - GEAR / CAM, 6-20 X 0.437 WCI 3206346 Contact Us For Availability
36
WCI 218835601 WCI 218835601 Contact Us For Availability
36
COVER-ICE MAKER,COMPLETE WCI 3206347 Contact Us For Availability
37
WCI 215782300 WCI 215782300 Contact Us For Availability
37
WCI 5303321082 WCI 5303321082 Contact Us For Availability
37
WCI 5303320544 WCI 5303320544 Contact Us For Availability
38
WCI 218479900 WCI 218479900 Contact Us For Availability
38
WCI 5303207445 WCI 5303207445 Contact Us For Availability
39
WCI 215217562 WCI 215217562 Contact Us For Availability
39
TRIM-FRZR SHELF WCI 215217563 Contact Us For Availability
40
WCI 218284500 WCI 218284500 Contact Us For Availability
41
WCI 215917800 WCI 215917800 Contact Us For Availability
43
WCI 215760300 WCI 215760300 Contact Us For Availability
44
WCI 218359200 WCI 218359200 Contact Us For Availability
45A
WCI 218769200 WCI 218769200 Contact Us For Availability
46
WCI 5303310733 WCI 5303310733 Contact Us For Availability
46
WCI 5303310734 WCI 5303310734 Contact Us For Availability
46
WCI 5304404341 WCI 5304404341 Contact Us For Availability
47
INSERT-PAN COVER,14.61`` X 17.32`` ,GLASS WCI 215723551 Contact Us For Availability
47
INSERT-PAN COVER,14.61`` X 17.32`` ,GLASS WCI 218390596 Contact Us For Availability
47
WCI 5304404342 WCI 5304404342 Contact Us For Availability
49
WCI 5303288957 WCI 5303288957 Contact Us For Availability
49
WCI 215506900 WCI 215506900 Contact Us For Availability
49
WCI 215794000 WCI 215794000 Contact Us For Availability
49
WCI 5304404880 WCI 5304404880 Contact Us For Availability
51
WCI 5303288960 WCI 5303288960 Contact Us For Availability
51
WCI 5304404336 WCI 5304404336 Contact Us For Availability
51
WCI 215811600 WCI 215811600 Contact Us For Availability
52
WCI 215454600 WCI 215454600 Contact Us For Availability
52
WCI 215162501 WCI 215162501 Contact Us For Availability
53
WCI 215809510 WCI 215809510 Contact Us For Availability
54
WCI 5303289027 WCI 5303289027 Contact Us For Availability
54
WCI 5303289292 WCI 5303289292 Contact Us For Availability
54
WCI 5303289311 WCI 5303289311 Contact Us For Availability
55
WCI 218909902 WCI 218909902 Contact Us For Availability
56
WCI 218769300 WCI 218769300 Contact Us For Availability
56
WCI 218434300 WCI 218434300 Contact Us For Availability
57
WCI 5303271653 WCI 5303271653 Contact Us For Availability
57
WCI 218247300 WCI 218247300 Contact Us For Availability
58
WCI 5304404331 WCI 5304404331 Contact Us For Availability
59
WCI 5303289031 WCI 5303289031 Contact Us For Availability
59
WCI 5303001191 WCI 5303001191 Contact Us For Availability
60
WCI 215501901 WCI 215501901 Contact Us For Availability
61
WCI 5303289032 WCI 5303289032 Contact Us For Availability
62
WCI 215048201 WCI 215048201 Contact Us For Availability
65
PIN-MOUNTING, PUSH-IN, PLASTIC WCI 5303001361 Contact Us For Availability
65
WCI 5303289301 WCI 5303289301 Contact Us For Availability
70
WCI 5303289041 WCI 5303289041 Contact Us For Availability
75
WCI 218465101 WCI 218465101 Contact Us For Availability
76
WCI 218225800 WCI 218225800 Contact Us For Availability
80
WCI 218249802 WCI 218249802 Contact Us For Availability
82
SCREW,PLASK H/L,6 X 3/8 WCI 215296300 Contact Us For Availability
83
WCI 5308000107 WCI 5308000107 Contact Us For Availability
85
WCI 218922703 WCI 218922703 Contact Us For Availability
89
WCI 215741407 WCI 215741407 Contact Us For Availability
90
WCI 215022602 WCI 215022602 Contact Us For Availability
91
WCI 218769900 WCI 218769900 Contact Us For Availability
96
WCI 215192600 WCI 215192600 Contact Us For Availability
100A
WCI 218015501 WCI 218015501 Contact Us For Availability
100B
WCI 218015601 WCI 218015601 Contact Us For Availability
101A
WCI 215305701 WCI 215305701 Contact Us For Availability
101B
WCI 218663103 WCI 218663103 Contact Us For Availability
111
WCI 5303289024 WCI 5303289024 Contact Us For Availability
115
WCI 215011503 WCI 215011503 Contact Us For Availability
116
WCI 215011400 WCI 215011400 Contact Us For Availability
137
WCI 215334201 WCI 215334201 Contact Us For Availability
138A
WCI 218893302 WCI 218893302 Contact Us For Availability
139
WCI 218893201 WCI 218893201 Contact Us For Availability
140
WCI 218518700 WCI 218518700 Contact Us For Availability
140
WCI 218922801 WCI 218922801 Contact Us For Availability
142
WCI 218657701 WCI 218657701 Contact Us For Availability
143
WCI 218696700 WCI 218696700 Contact Us For Availability
× ![]()
