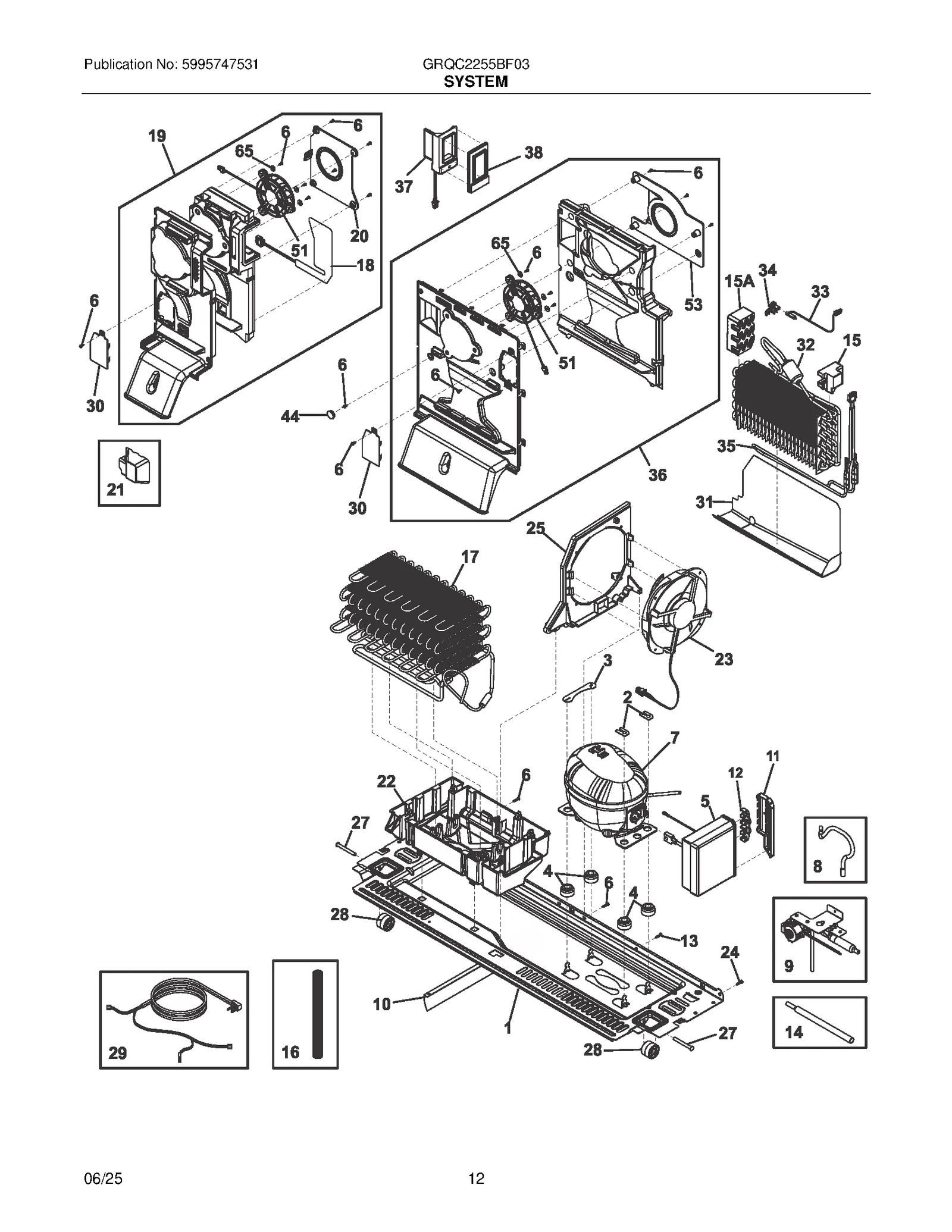

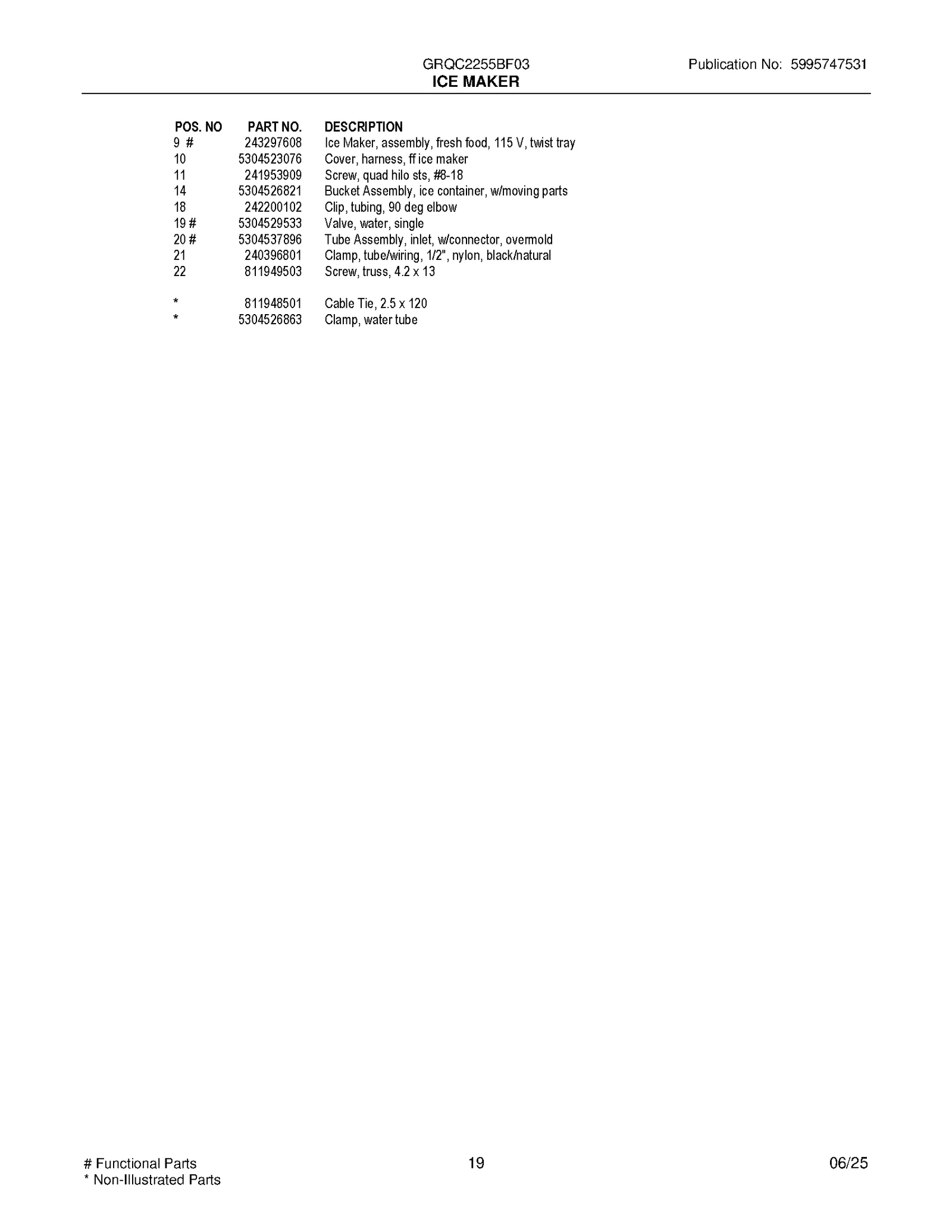

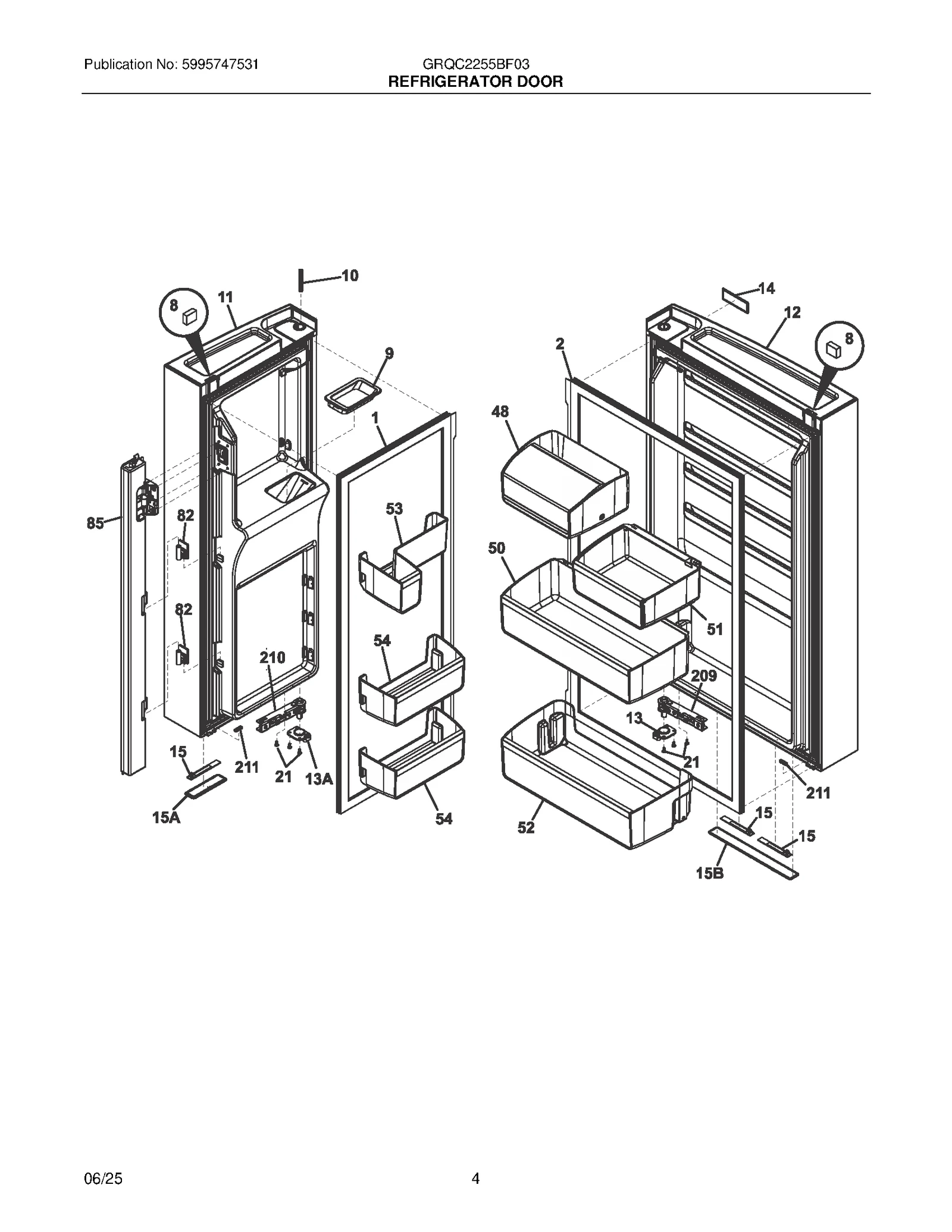

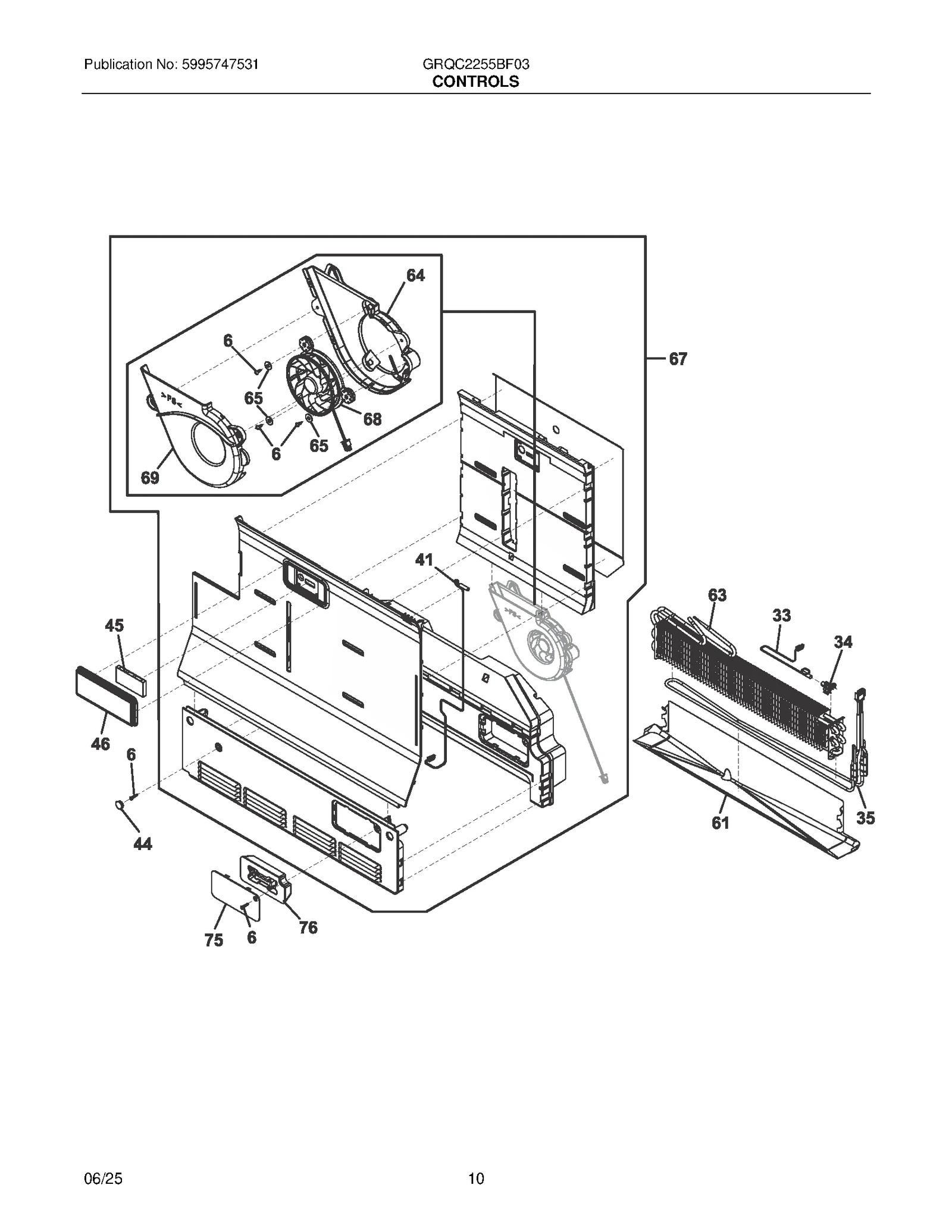

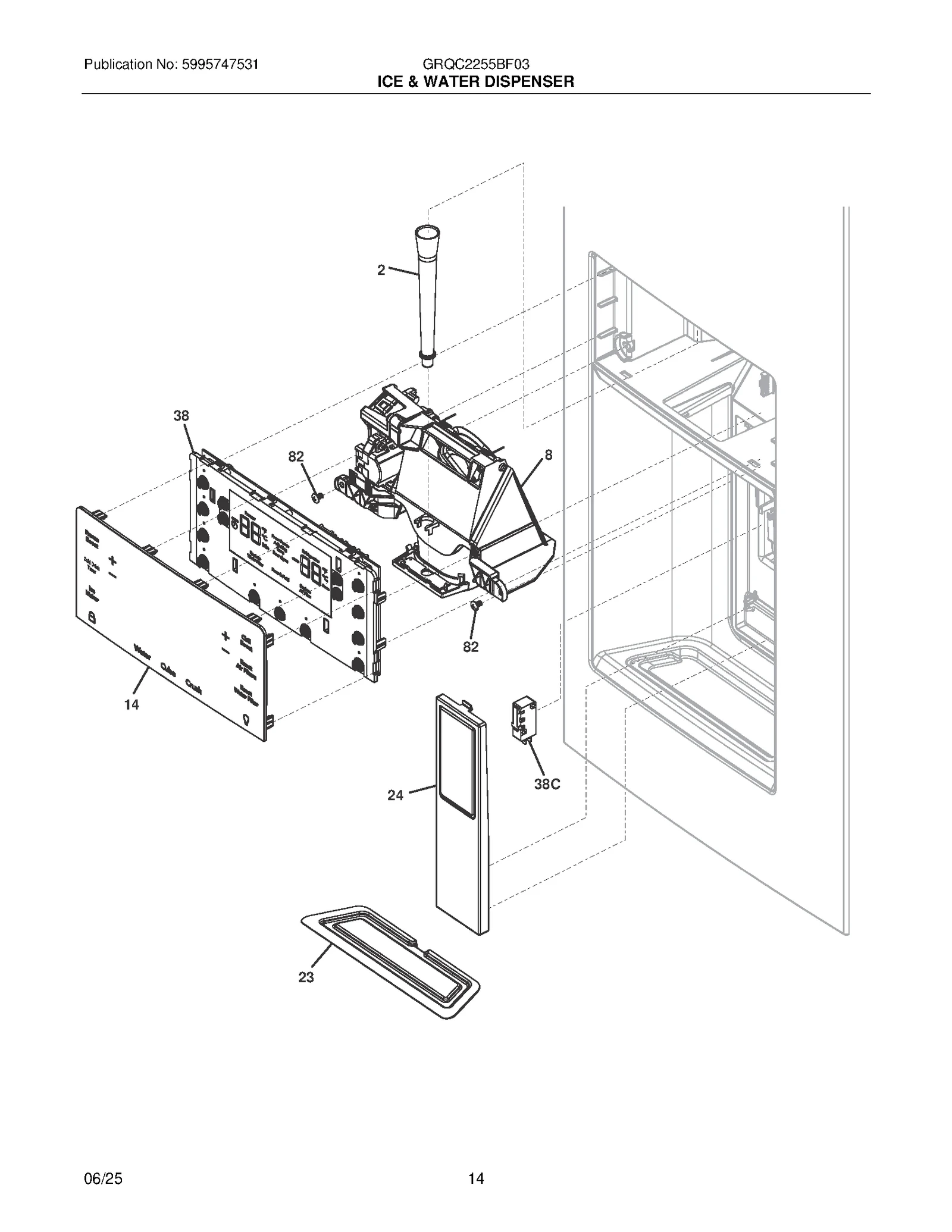

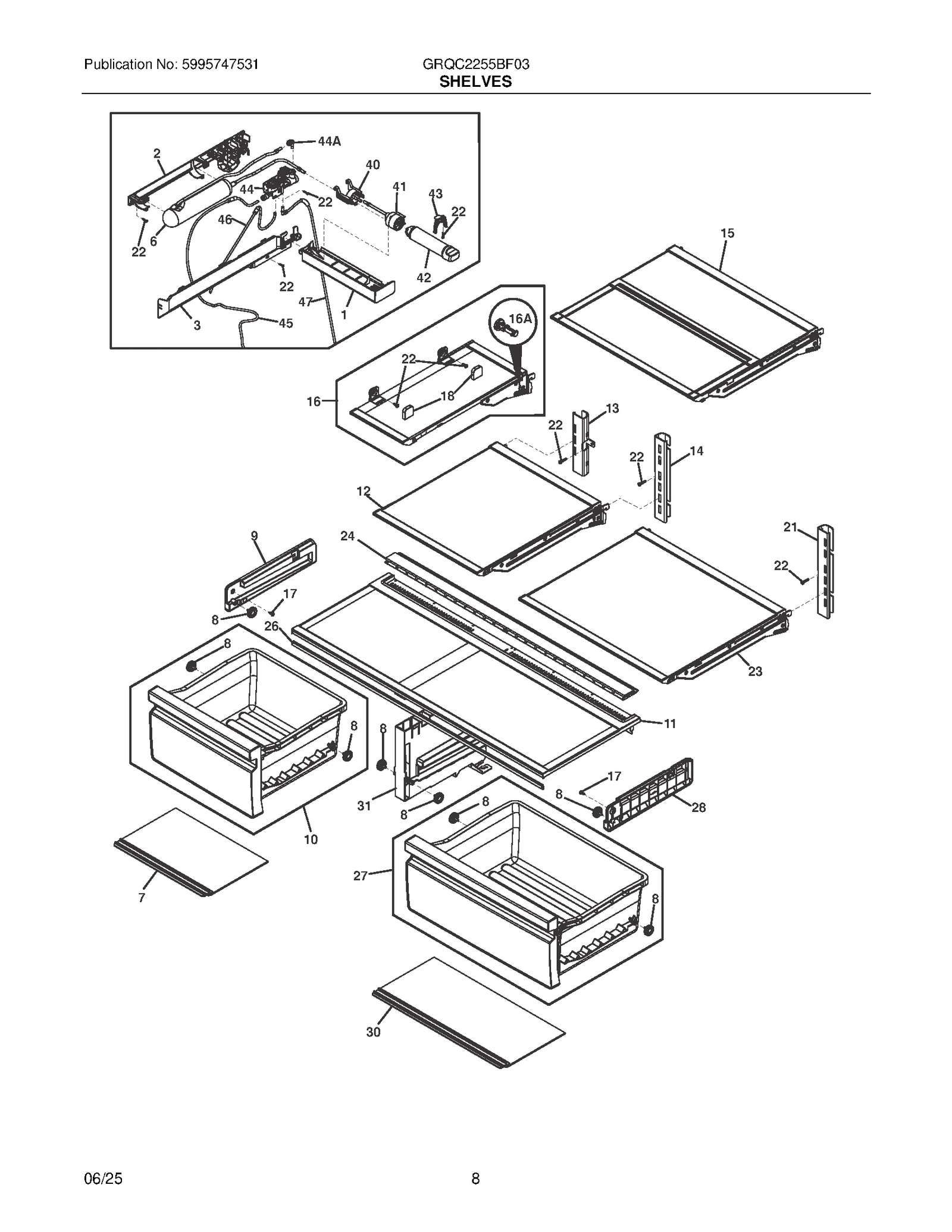

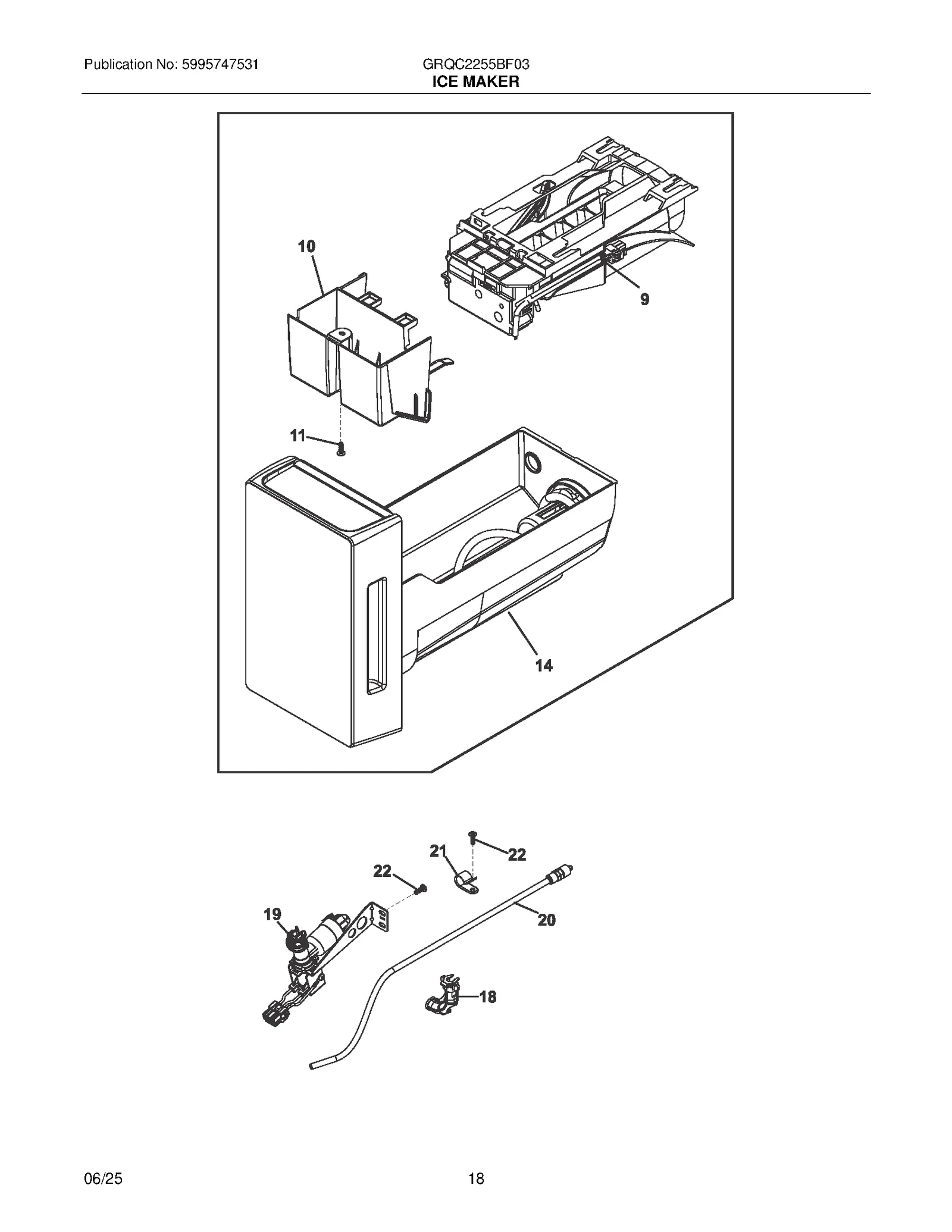

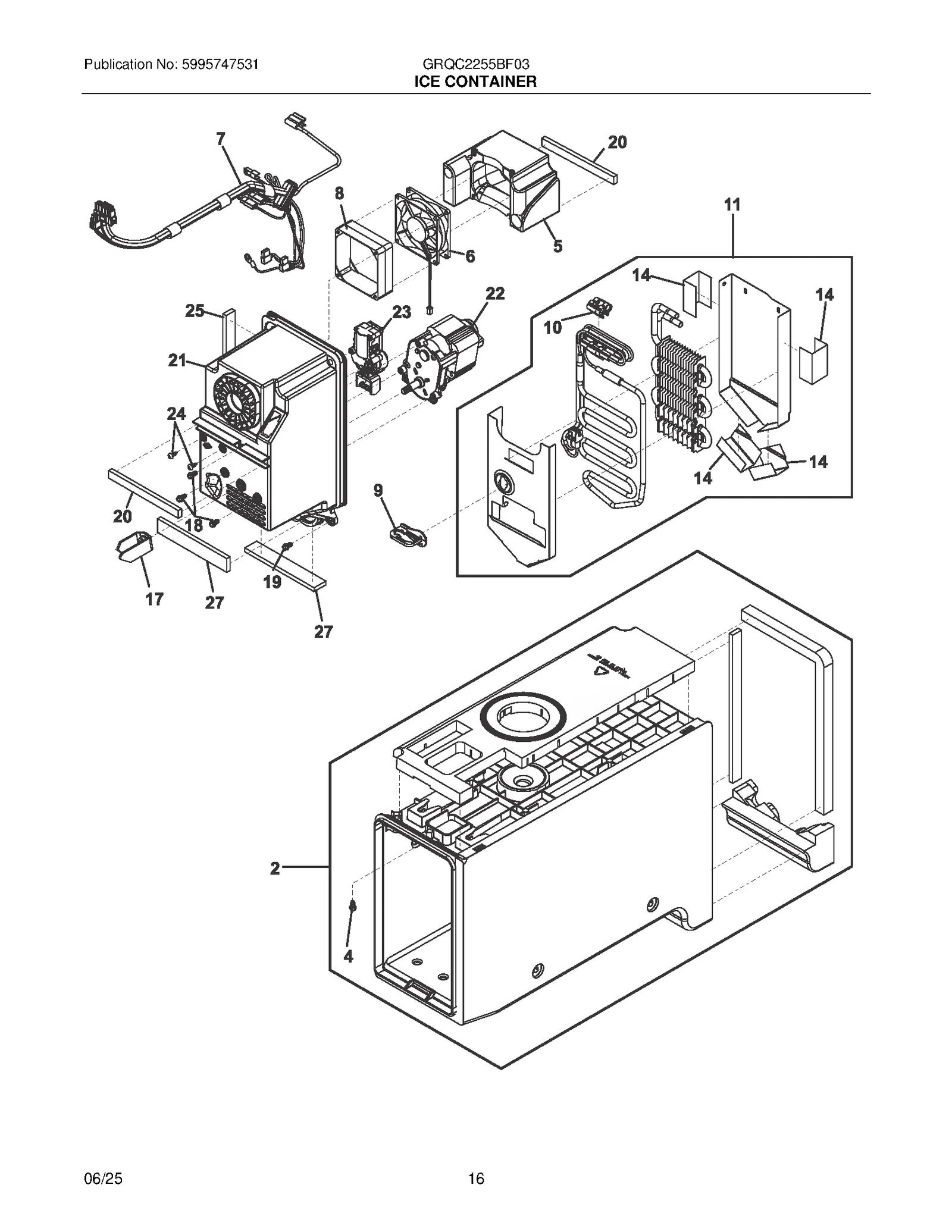

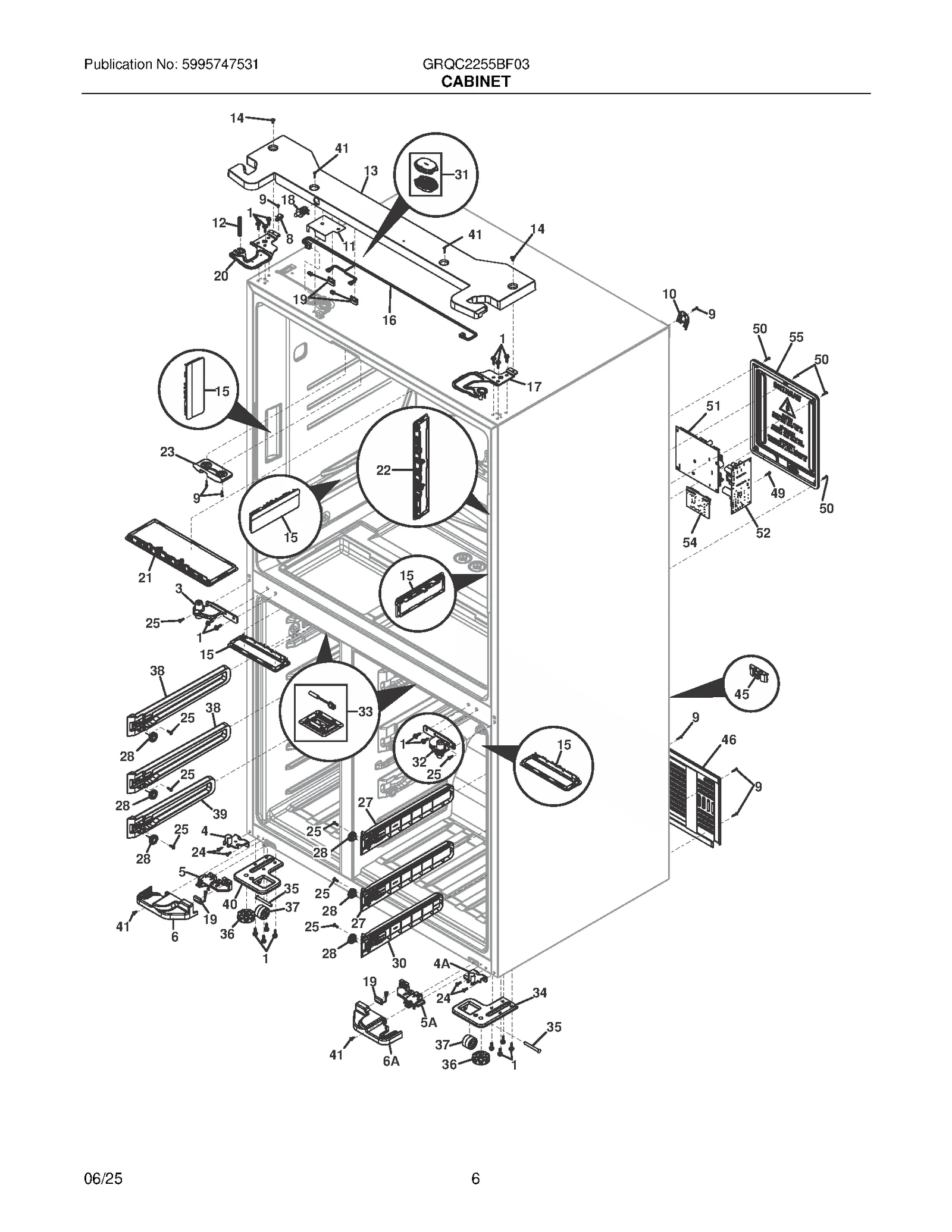

Model Electrolux GRQC2255BF03 – Common Parts &amp; Diagrams

*

5304534887 Frigidaire Clamp Backorder WCI 5304534887 $5.08

*

811948501 Frigidaire Clip Backorder WCI 811948501 $3.65

*

811950601 Frigidaire Refrigerator Seal Backorder WCI 811950601 $4.58

1

5304533262 Frigidaire Refrigerator Cover Backorder WCI 5304533262 $17.87

1

811949401 Frigidaire Refrigerator Screw In Stock WCI 811949401 $3.16

1

Base, compressor assy WCI 5304519151 Contact Us For Availability

2

5303918901 Frigidaire Ice Maker Housing In Stock WCI 5303918901 $90.84

2

5304519152 Frigidaire Clamp Backorder WCI 5304519152 $5.49

2

5304519194 Frigidaire Refrigerator Guide Backorder WCI 5304519194 $6.92

2

5304529601 Frigidaire Support Bracket Backorder WCI 5304529601 $13.21

3

5304533507 Frigidaire Cover Backorder WCI 5304533507 $22.13

3

Clamp, compressor, 2 hole WCI 5304533505 Contact Us For Availability

4

811978901 Frigidaire Refrigerator Grommet Backorder WCI 811978901 $5.00

5

5304523073 Frigidaire Refrigerator Duct Assem Backorder WCI 5304523073 $24.20

5

5304532654 Frigidaire Screw Backorder WCI 5304532654 $1.38

5

5304538932 Frigidaire Control Assembly Backorder WCI 5304538932 $112.87

6

5304524796 Frigidaire Refrigerator Motor In Stock WCI 5304524796 $109.96

6

5304533519 Frigidaire Elbow Backorder WCI 5304533519 $3.74

6

5304538954 Frigidaire Tube Backorder WCI 5304538954 $6.53

7

5304519123 Frigidaire Refrigerator Cover Backorder WCI 5304519123 $21.87

7

5304526820 Frigidaire Harness Backorder WCI 5304526820 $77.06

7

5304538931 Frigidaire Compressor Assembly Backorder WCI 5304538931 $178.59

8

5304508063 Frigidaire Refrigerator Grommet Backorder WCI 5304508063 $9.56

8

5304519124 Frigidaire Roller Assembly Backorder WCI 5304519124 $10.08

8

5304526794 Frigidaire Tube Backorder WCI 5304526794 $24.38

8

5304531710 Frigidaire Refrigerator Dispenser Backorder WCI 5304531710 $94.85

9

243297608 Frigidaire Refrigerator Ice Maker In Stock WCI 243297608 $101.86

9

5304508037 Frigidaire Refrigerator Connector Backorder WCI 5304508037 $8.65

9

5304519125 Frigidaire Refrigerator Rail Backorder WCI 5304519125 $12.74

9

5304529531 Frigidaire Refrigerator Valve In Stock WCI 5304529531 $114.41

5304519044 Frigidaire Magnet In Stock WCI 5304519044 $11.36

5304519629 Frigidaire Refrigerator Clip Backorder WCI 5304519629 $5.02

5304523076 Frigidaire Cover Refrigerator Backorder WCI 5304523076 $12.74

5304526852 Frigidaire Drawer Assembly Backorder WCI 5304526852 $70.66

Flap bracket, compressor base WCI 5304523064 Contact Us For Availability

140068083116 Frigidaire Ff Evaporator Assembl In Stock WCI 140068083116 $60.89

5304453707 Frigidaire Oven Screw In Stock WCI 5304453707 $9.56

5304531895 Frigidaire Cover Assembly Backorder WCI 5304531895 $60.63

Cover, flex drive, side, compressor WCI 5304533517 Contact Us For Availability

12

5304526793 Frigidaire Clamp Backorder WCI 5304526793 $5.47

12

Shelf Assembly, cantilever, glass, LH WCI 140258914021 Contact Us For Availability

5304519070 Frigidaire Refrigerator Stop Backorder WCI 5304519070 $8.65

5304519110 Frigidaire Screw Backorder WCI 5304519110 $1.80

5304519129 Frigidaire Bracket Backorder WCI 5304519129 $28.70

5304536150 Frigidaire Cover Assembly Backorder WCI 5304536150 $31.73

5304485759 Frigidaire Refrigerator Tape Backorder WCI 5304485759 $0.47

5304512150 Frigidaire Refrigerator Nameplate In Stock WCI 5304512150 $34.93

5304519089 Frigidaire Refrigerator Screw Backorder WCI 5304519089 $3.61

5304519130 Frigidaire Bracket Backorder WCI 5304519130 $33.70

5304523065 Frigidaire Refrigerator Tubing Backorder WCI 5304523065 $9.63

5304533508 Frigidaire Overlay Backorder WCI 5304533508 $91.34

5304537045 Frigidaire Bucket Assembly Backorder WCI 5304537045 $129.43

140126313372 Frigidaire Light Assembly Backorder WCI 140126313372 $15.96

5304523011 Frigidaire Refrigerator Light Boar In Stock WCI 5304523011 $23.05

5304523044 Frigidaire Shelf Assembly Backorder WCI 5304523044 $145.56

Support, foam, RH, evaporator WCI 5304526800 Contact Us For Availability

15A

Support, foam, LH, evaporator WCI 5304526801 Contact Us For Availability

16

5304519156 Frigidaire Refrigerator Drain Tube Backorder WCI 5304519156 $3.61

16

5304523045 Frigidaire Shelf Assembly Backorder WCI 5304523045 $219.90

16

5304532658 Frigidaire Harness Backorder WCI 5304532658 $15.87

16A

5304523682 Frigidaire Pin Backorder WCI 5304523682 $4.09

241641505 Frigidaire Screw Backorder WCI 241641505 $5.00

241829001 Frigidaire Refrigerator Bar Drive In Stock WCI 241829001 $37.61

5304529529 Frigidaire Grommet Backorder WCI 5304529529 $5.91

5304536152 Frigidaire Hinge Assembly Backorder WCI 5304536152 $15.62

5304538286 Frigidaire Condenser Assembly Dyna Backorder WCI 5304538286 $113.51

240555002 Frigidaire Refrigerator Screw #8-32 In Stock WCI 240555002 $8.63

242200102 Frigidaire Refrigerator Clip Backorder WCI 242200102 $6.83

5304519093 Frigidaire Refrigerator Switch Backorder WCI 5304519093 $19.14

5304519133 Frigidaire Refrigerator Cover Asse Backorder WCI 5304519133 $5.00

Heater Assembly, frzr, LH side WCI 5304526809 Contact Us For Availability

519088008 Frigidaire Refrigerator Screw Backorder WCI 519088008 $1.80

5304526807 Frigidaire Cover Assembly Backorder WCI 5304526807 $108.34

5304532559 Frigidaire Refrigerator Switch Backorder WCI 5304532559 $11.74

5304536607 Frigidaire Valve In Stock WCI 5304536607 $51.28

5303918784 Frigidaire Refrigerator Air Handle In Stock WCI 5303918784 $61.96

5304536153 Frigidaire Hinge Backorder WCI 5304536153 $10.92

5304537896 Frigidaire Inlet Water Tube Assemb In Stock WCI 5304537896 $28.79

Backplate, fan shroud WCI 5304526808 Contact Us For Availability

240396801 Frigidaire Refrigerator Tube Clamp Backorder WCI 240396801 $12.31

5304519136 Frigidaire Bracket Assembly Backorder WCI 5304519136 $34.63

5304534888 Frigidaire Housing Backorder WCI 5304534888 $109.68

5304538350 Frigidaire Cover Backorder WCI 5304538350 $2.92

5304538935 Frigidaire Light Assembly Backorder WCI 5304538935 $35.81

140126313380 Frigidaire Light Assemlby Backorder WCI 140126313380 $30.08

5304519208 Frigidaire Refrigerator Motor In Stock WCI 5304519208 $124.63

5304529527 Frigidaire Refrigerator Pan Backorder WCI 5304529527 $18.67

5304529528 Frigidaire Insulation Backorder WCI 5304529528 $5.91

811949503 Frigidaire Screw Backorder WCI 811949503 $1.79

140159718018 Frigidaire Selector Backorder WCI 140159718018 $24.96

5304520058 Frigidaire Refrigerator Guide Asse Backorder WCI 5304520058 $8.65

5304525730 Frigidaire Refrigerator Fan Assemb Backorder WCI 5304525730 $64.92

5304526843 Frigidaire Tray Backorder WCI 5304526843 $11.12

Shelf Assembly, cantilever, glass, RH WCI 140258914013 Contact Us For Availability

218359202 Frigidaire Refrigerator Screw Backorder WCI 218359202 $6.83

5304519098 Frigidaire Screw Backorder WCI 5304519098 $1.80

5304519199 Frigidaire Refrigerator Spring Backorder WCI 5304519199 $3.63

5304523048 Frigidaire Housing Assembly Backorder WCI 5304523048 $39.64

5304526842 Frigidaire Paddle Assembly Backorder WCI 5304526842 $17.84

808199001 Frigidaire Screw Backorder WCI 808199001 $4.56

25

5304519209 Frigidaire Refrigerator Gasket Backorder WCI 5304519209 $9.15

25

5304529530 Frigidaire Refrigerator Condenser Backorder WCI 5304529530 $10.06

26

5304519140 Frigidaire Refrigerator Gasket Backorder WCI 5304519140 $14.66

27

5304519211 Frigidaire Refrigerator Gasket Backorder WCI 5304519211 $5.93

27

5304526786 Frigidaire Rail Backorder WCI 5304526786 $9.56

27

5304526851 Frigidaire Drawer Assembly Backorder WCI 5304526851 $77.50

28

5304519142 Frigidaire Rail Backorder WCI 5304519142 $11.83

28

811666601 Frigidaire Refrigerator Roller Backorder WCI 811666601 $5.43

29

5304538934 Frigidaire Power Cord Backorder WCI 5304538934 $35.58

30

5304519143 Frigidaire Refrigerator Cover Backorder WCI 5304519143 $28.23

30

5304519172 Frigidaire Cover Backorder WCI 5304519172 $6.81

30

Rail, freezer side, RH bottom WCI 5304526788 Contact Us For Availability

31

5303918849 Frigidaire Refrigerator Housing Ki Backorder WCI 5303918849 $122.94

31

5304532661 Frigidaire Refrigerator Divider Backorder WCI 5304532661 $36.46

31

Tray, evap drain WCI 5304526797 Contact Us For Availability

32

5304526798 Frigidaire Refrigerator Evaporator Backorder WCI 5304526798 $105.80

32

5304526816 Frigidaire Hinge Backorder WCI 5304526816 $62.21

33

5303918850 Frigidaire Refrigerator Thermistor In Stock WCI 5303918850 $21.00

33

5303918851 Frigidaire Refrigerator Thermostat In Stock WCI 5303918851 $22.06

33

5304520944 Frigidaire Refrigerator Sensor In Stock WCI 5304520944 $12.44

34

5304526790 Frigidaire Bracket Assembly Backorder WCI 5304526790 $25.52

34

811980406 Frigidaire Clamp Backorder WCI 811980406 $2.44

35

140159197049 Frigidaire Heater Defrost Backorder WCI 140159197049 $65.65

35

811998302 Frigidaire Refrigerator Shaft Backorder WCI 811998302 $6.36

35

Heater, defrost, evaporator WCI 5304526799 Contact Us For Availability

36

5304519106 Frigidaire Refrigerator Foot Backorder WCI 5304519106 $10.45

36

5304526802 Frigidaire Assembly Cover Backorder WCI 5304526802 $100.19

37

5304526806 Frigidaire Damper Backorder WCI 5304526806 $55.22

38

5304523686 Frigidaire Seal Backorder WCI 5304523686 $19.77

38

5304526840 Frigidaire Display Board Backorder WCI 5304526840 $153.98

38

Rail, freezer side, LH top WCI 5304526785 Contact Us For Availability

38C

5304523072 Frigidaire Refrigerator Switch In Stock WCI 5304523072 $27.66

39

Rail, freezer side, LH bottom WCI 5304526787 Contact Us For Availability

40

5304531743 Frigidaire Refrigerator Guide Backorder WCI 5304531743 $2.47

40

Bracket Assembly, leveling foot, LH WCI 5304526789 Contact Us For Availability

41

5303918775 Frigidaire Refrigerator Thermistor In Stock WCI 5303918775 $11.96

41

5304526847 Frigidaire Screw Assembly Backorder WCI 5304526847 $2.73

41

5304533202 Frigidaire Refrigerator Manifold Backorder WCI 5304533202 $28.68

43

5304519148 Frigidaire Refrigerator Holder Backorder WCI 5304519148 $6.83

44

5304523052 Frigidaire Refrigerator Water Valv Backorder WCI 5304523052 $138.27

44

5304524004 Frigidaire Refrigerator Cover Backorder WCI 5304524004 $3.20

44A

5304523053 Frigidaire Refrigerator Connector Backorder WCI 5304523053 $15.59

45

5304519111 Frigidaire Refrigerator Clip In Stock WCI 5304519111 $5.00

45

5304524353 Frigidaire Refrigerator Tubing In Stock WCI 5304524353 $21.63

46

5304526814 Frigidaire Cover Backorder WCI 5304526814 $51.50

46

5304527422 Frigidaire Refrigerator Tube Backorder WCI 5304527422 $9.73

46

Cover machine, rear panel WCI 140040610028 Contact Us For Availability

47

5304526817 Frigidaire Tubing Backorder WCI 5304526817 $16.83

47

5304529553 Frigidaire Seal Backorder WCI 5304529553 $5.04

48

5304519073 Frigidaire Bin Assembly Backorder WCI 5304519073 $74.06

50

5304523032 Frigidaire Refrigerator Screw Backorder WCI 5304523032 $3.20

51

5304526796 Frigidaire PCB Board Backorder WCI 5304526796 $200.87

51

5304536608 Frigidaire Motor Backorder WCI 5304536608 $66.18

51

5304538424 Frigidaire BIN ASMY,FLEX,DOOR,SLID Backorder WCI 5304538424 $46.46

52

5304526795 Frigidaire Refrigerator PC Board In Stock WCI 5304526795 $179.09

53

Plate, fan mounting WCI 5304526803 Contact Us For Availability

54

5304519079 Frigidaire Refrigerator Bin Backorder WCI 5304519079 $46.31

54

5304519115 Frigidaire Refrigerator Power Cont In Stock WCI 5304519115 $135.33

55

241690306 Frigidaire Refrigerator Washer In Stock WCI 241690306 $31.90

55

5304519117 Frigidaire Cover Backorder WCI 5304519117 $30.52

61

5304519180 Frigidaire Drain Trough Backorder WCI 5304519180 $39.64

63

5304526811 Frigidaire Refrigerator Evaporator Backorder WCI 5304526811 $99.86

64

Plate, fan mounting, fresh food WCI 5304526813 Contact Us For Availability

65

5304519183 Frigidaire Washer Backorder WCI 5304519183 $4.07

67

5304524898 Frigidaire Refrigerator Cover Asse Backorder WCI 5304524898 $121.32

69

5304526812 Frigidaire Housing Backorder WCI 5304526812 $10.47

75

5304519189 Frigidaire Cover Assembly Backorder WCI 5304519189 $6.83

76

5304522062 Frigidaire Insulation Assembly Backorder WCI 5304522062 $8.22

82

241953902 Frigidaire Refrigerator Screw In Stock WCI 241953902 $10.99

85

5304519081 Frigidaire Refrigerator Mullion As Backorder WCI 5304519081 $94.43

209

5304526201 Frigidaire Refrigerator Right Hand Backorder WCI 5304526201 $34.97

210

5304526202 Frigidaire Refrigerator Left Hand Backorder WCI 5304526202 $57.24
