Model Electrolux GRMG2272CF00 REFRIGERATOR, FRENCH DOOR, MULTI-DRAWER – Common Parts &amp; Diagrams

1

5304529551 Frigidaire Cover Assembly Backorder WCI 5304529551 $37.47

1

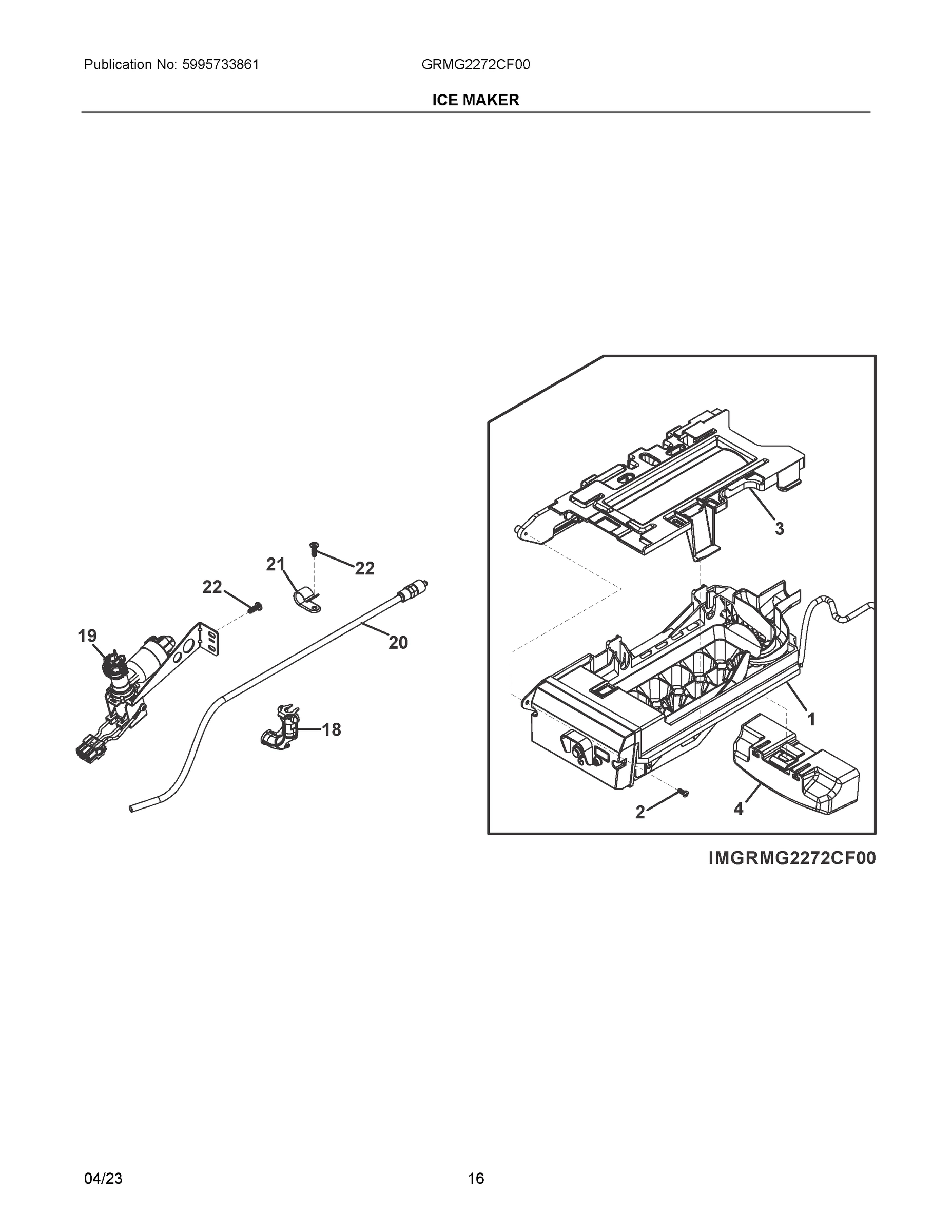

5304532556 Frigidaire Refrigerator Ice Maker In Stock WCI 5304532556 $88.43

1

BASE, COMPRESSOR ASSY WCI 5304519151 Contact Us For Availability

2

241641502 Frigidaire Refrigerator Screw Backorder WCI 241641502 $5.40

2

5304519038 Frigidaire Refrigerator Gasket Backorder WCI 5304519038 $36.85

2

CLAMP Backorder WCI 5304519152 $5.45

2

5304529601 Frigidaire Support Bracket Backorder WCI 5304529601 $13.13

3

5304519041 Frigidaire Refrigerator Gasket Backorder WCI 5304519041 $15.49

3

5304523075 Frigidaire Refrigerator Bracket Backorder WCI 5304523075 $22.63

3

5304524607 Frigidaire Clamp Backorder WCI 5304524607 $1.83

3

COVER, WATER TANK WCI 5304529604 Contact Us For Availability

4

5304524340 Frigidaire Refrigerator Cover Backorder WCI 5304524340 $10.87

4

5304529552 Frigidaire Seal Backorder WCI 5304529552 $5.88

4

811978901 Frigidaire Refrigerator Grommet Backorder WCI 811978901 $4.97

5

5304533506 Frigidaire Inverter Backorder WCI 5304533506 $243.05

6

5304523037 Frigidaire Refrigerator Tank Backorder WCI 5304523037 $103.38

7

5304519123 Frigidaire Refrigerator Cover Backorder WCI 5304519123 $21.74

7

5304533509 Frigidaire Compressor Backorder WCI 5304533509 $357.99

8

5304519044 Frigidaire Magnet In Stock WCI 5304519044 $11.30

8

5304519124 Frigidaire Roller Assembly Backorder WCI 5304519124 $10.02

8

5304519154 Frigidaire Refrigerator Tube Backorder WCI 5304519154 $22.96

9

5304519125 Frigidaire Refrigerator Rail Backorder WCI 5304519125 $12.67

9

5304529531 Frigidaire Refrigerator Valve In Stock WCI 5304529531 $112.51

10

5304529585 Frigidaire Refrigerator Drawer Ass Backorder WCI 5304529585 $81.61

10

5304529606 Frigidaire Paddle Assembly Backorder WCI 5304529606 $14.09

10

FLAP BRACKET, COMPRESSOR BASE WCI 5304523064 Contact Us For Availability

11

5304531895 Frigidaire Cover Assembly Backorder WCI 5304531895 $60.28

12

5304523041 Frigidaire Shelf Assembly Backorder WCI 5304523041 $159.37

13

5304519070 Frigidaire Refrigerator Stop Backorder WCI 5304519070 $8.60

13

5304523032 Frigidaire Refrigerator Screw Backorder WCI 5304523032 $3.18

13

BRACKET, CANTILEVER SHLF, LH WCI 5304529598 Contact Us For Availability

14

5304512150 Frigidaire Refrigerator Nameplate In Stock WCI 5304512150 $34.72

14

BRACKET Backorder WCI 5304519130 $33.50

14

5304523065 Frigidaire Refrigerator Tubing Backorder WCI 5304523065 $9.58

15

5304523011 Frigidaire Refrigerator Light Boar Backorder WCI 5304523011 $22.91

15

5304523044 Frigidaire Shelf Assembly Backorder WCI 5304523044 $139.13

15

5304524656 Frigidaire Refrigerator Assembly-L Backorder WCI 5304524656 $34.87

16

5304519063 Frigidaire Refrigerator Screw In Stock WCI 5304519063 $6.86

16

5304519156 Frigidaire Refrigerator Drain Tube Backorder WCI 5304519156 $3.59

17

SCREW Backorder WCI 241641505 $4.97

17

5304536152 Frigidaire Hinge Assembly Backorder WCI 5304536152 $15.53

17

5304538286 Frigidaire Condenser Assembly Dyna Backorder WCI 5304538286 $111.62

18

5304519093 Frigidaire Refrigerator Switch Backorder WCI 5304519093 $19.03

19

5304532559 Frigidaire Refrigerator Switch Backorder WCI 5304532559 $11.67

19

5304536607 Frigidaire Valve In Stock WCI 5304536607 $55.51

20

5304529603 Frigidaire Tube Assembly Backorder WCI 5304529603 $20.38

20

5304532655 Frigidaire Tube Assembly Backorder WCI 5304532655 $43.14

20

5304536153 Frigidaire Hinge Backorder WCI 5304536153 $10.85

21

5304519136 Frigidaire Bracket Assembly Backorder WCI 5304519136 $34.43

21

5304536788 Frigidaire Lamp Backorder WCI 5304536788 $31.97

21

811949401 Frigidaire Refrigerator Screw In Stock WCI 811949401 $3.14

22

5304526810 Frigidaire Light Assembly Backorder WCI 5304526810 $48.13

22

5304529527 Frigidaire Refrigerator Pan Backorder WCI 5304529527 $18.56

22

811949503 Frigidaire Screw Backorder WCI 811949503 $1.78

23

5304520058 Frigidaire Refrigerator Guide Asse Backorder WCI 5304520058 $8.60

23

SHELF ASSEMBLY Backorder WCI 5304523047 $157.24

23

5304525730 Frigidaire Refrigerator Fan Assemb Backorder WCI 5304525730 $64.54

24

5304523048 Frigidaire Housing Assembly Backorder WCI 5304523048 $38.99

24

808199001 Frigidaire Screw Backorder WCI 808199001 $4.53

25

5304519199 Frigidaire Refrigerator Spring Backorder WCI 5304519199 $3.61

25

5304529530 Frigidaire Refrigerator Condenser Backorder WCI 5304529530 $10.00

26

5304519100 Frigidaire Refrigerator Cover Backorder WCI 5304519100 $4.97

26

5304519140 Frigidaire Refrigerator Gasket Backorder WCI 5304519140 $14.57

27

5304537361 Frigidaire Drawer Assembly Backorder WCI 5304537361 $79.88

27

SUPPORT, DRAWER SLIDER, RH MIDDLE WCI 5304529537 Contact Us For Availability

28

RAIL Backorder WCI 5304519142 $11.76

28

811666601 Frigidaire Refrigerator Roller Backorder WCI 811666601 $5.40

29

5304523072 Frigidaire Refrigerator Switch In Stock WCI 5304523072 $27.49

29

POWER CORD Backorder WCI 5304538934 $35.37

29

COVER, DIVIDER, TOP WCI 5304519102 Contact Us For Availability

30

5304519143 Frigidaire Refrigerator Cover Backorder WCI 5304519143 $28.07

30

5304523899 Frigidaire Refrigerator Support Backorder WCI 5304523899 $22.71

31

5303918849 Frigidaire Refrigerator Housing Ki Backorder WCI 5303918849 $117.50

31

5304519162 Frigidaire Drain Trough Backorder WCI 5304519162 $43.01

31

5304532661 Frigidaire Refrigerator Divider Backorder WCI 5304532661 $36.24

32

5304519104 Frigidaire Refrigerator Hinge Backorder WCI 5304519104 $33.95

32

5304529535 Frigidaire Refrigerator Evaporator In Stock WCI 5304529535 $91.69

33

5303918850 Frigidaire Refrigerator Thermistor In Stock WCI 5303918850 $20.88

33

5303918851 Frigidaire Refrigerator Thermostat In Stock WCI 5303918851 $21.93

34

5304519105 Frigidaire Refrigerator Bracket Backorder WCI 5304519105 $34.85

34

811980406 Frigidaire Clamp Backorder WCI 811980406 $2.42

35

5304534878 Frigidaire Heater Backorder WCI 5304534878 $96.83

35

811998302 Frigidaire Refrigerator Shaft Backorder WCI 811998302 $6.32

35

FRIGIDAIRE PA PK-2 REFILL WCI FRPAPK2RF No Longer Available

5304519106 Frigidaire Refrigerator Foot Backorder WCI 5304519106 $10.39

5304523067 Frigidaire Refrigerator Cover In Stock WCI 5304523067 $82.86

5304523686 Frigidaire Seal Backorder WCI 5304523686 $19.65

5304529586 Frigidaire Refrigerator Cover Backorder WCI 5304529586 $10.85

37

5304519166 Frigidaire Refrigerator Baffle Ass Backorder WCI 5304519166 $76.27

37

DUCT, AIR RETURN WCI 5304529534 Contact Us For Availability

38

5304519167 Frigidaire Refrigerator Assembly C Backorder WCI 5304519167 $57.90

38

5304533516 Frigidaire Display Board Backorder WCI 5304533516 $159.38

38

SUPPORT Backorder WCI 5304537050 $13.04

39

5304523900 Frigidaire Refrigerator Support Backorder WCI 5304523900 $22.65

39

5304536610 Frigidaire Cover Backorder WCI 5304536610 $1.78

40

5304519109 Frigidaire Refrigerator Bracket Backorder WCI 5304519109 $34.41

40

5304523056 Frigidaire Heater Assembly Backorder WCI 5304523056 $56.20

40

5304529545 Frigidaire Guide Backorder WCI 5304529545 $10.89

41

5304526847 Frigidaire Screw Assembly Backorder WCI 5304526847 $2.72

41

5304529546 Frigidaire Refrigerator Manifold In Stock WCI 5304529546 $74.70

42

COVER Backorder WCI 5304536632 $8.99

42

FPPWFU02 Refrigerator PurePour Connect PWF-2 In Stock WCI FPPWFU02 $71.61

43

5304529547 Frigidaire Refrigerator Cover Backorder WCI 5304529547 $40.45

44

5304524004 Frigidaire Refrigerator Cover Backorder WCI 5304524004 $3.18

44

5304529602 Frigidaire Water Valve In Stock WCI 5304529602 $86.40

44A

5304523053 Frigidaire Refrigerator Connector Backorder WCI 5304523053 $15.49

45

5304519111 Frigidaire Refrigerator Clip Backorder WCI 5304519111 $4.97

45

FRGPAAF2 Frigidaire Refrigerator PureAir® Re In Stock WCI FRGPAAF2 $23.18

46

5304519112 Frigidaire Refrigerator Cover Backorder WCI 5304519112 $40.01

46

5304523685 Frigidaire Refrigerator Tubing Backorder WCI 5304523685 $33.13

46

5304529542 Frigidaire Refrigerator Cover Asse Backorder WCI 5304529542 $30.34

47

241953902 Frigidaire Refrigerator Screw In Stock WCI 241953902 $10.93

47

5303918775 Frigidaire Refrigerator Thermistor In Stock WCI 5303918775 $11.89

47

5304529549 Frigidaire Refrigerator Tube Backorder WCI 5304529549 $13.78

48

5304519073 Frigidaire Bin Assembly Backorder WCI 5304519073 $73.64

48

COVER Backorder WCI 5304519172 $6.77

49

5304519057 Frigidaire Refrigerator Assembly-B Backorder WCI 5304519057 $115.15

49

5304519173 Frigidaire Refrigerator Fan Assemb Backorder WCI 5304519173 $81.50

49

SCR WCI 519092015 Contact Us For Availability

50

BLADE, EVAPORATOR FAN WCI 811699604 No Longer Available

5304519059 Frigidaire Refrigerator Slider In Stock WCI 5304519059 $136.67

5304531885 Frigidaire Main Control Board In Stock WCI 5304531885 $251.36

5304538424 Frigidaire BIN ASMY,FLEX,DOOR,SLID Backorder WCI 5304538424 $45.70

809069207 Frigidaire Refrigerator Motor In Stock WCI 809069207 $88.88

52

5304519061 Frigidaire Refrigerator Slider In Stock WCI 5304519061 $135.81

52

GROMMET Backorder WCI 5304519174 $5.44

52

5304526795 Frigidaire Refrigerator PC Board In Stock WCI 5304526795 $168.08

53

5304519175 Frigidaire Shroud Backorder WCI 5304519175 $8.14

54

5304519115 Frigidaire Refrigerator Power Cont In Stock WCI 5304519115 $138.33

54

WASHER Backorder WCI 5304519176 $1.79

55

5304519117 Frigidaire Cover Backorder WCI 5304519117 $30.34

55

5304519177 Frigidaire Refrigerator Clip Backorder WCI 5304519177 $4.99

56

5304519178 Frigidaire Refrigerator Grommet Backorder WCI 5304519178 $4.51

61

5304519180 Frigidaire Drain Trough Backorder WCI 5304519180 $38.99

63

5304529599 Frigidaire Evaporator Backorder WCI 5304529599 $81.54

64

PLATE, FAN MOUNTING, FRESH FOOD WCI 5304526813 Contact Us For Availability

65

5304519183 Frigidaire Washer Backorder WCI 5304519183 $4.05

67

5304529600 Frigidaire Assembly Cover Backorder WCI 5304529600 $108.54

68

5304536608 Frigidaire Motor Backorder WCI 5304536608 $65.81

69

5304526812 Frigidaire Housing Backorder WCI 5304526812 $10.41

75

5304519189 Frigidaire Cover Assembly Backorder WCI 5304519189 $6.79

76

5304522062 Frigidaire Insulation Assembly Backorder WCI 5304522062 $8.17

85

5304519081 Frigidaire Refrigerator Mullion As Backorder WCI 5304519081 $91.35

209

5304526201 Frigidaire Refrigerator Right Hand Backorder WCI 5304526201 $56.92

210

5304526202 Frigidaire Refrigerator Left Hand Backorder WCI 5304526202 $56.92

240396801 Frigidaire Refrigerator Tube Clamp Backorder WCI 240396801 $12.24

242200102 Frigidaire Refrigerator Clip Backorder WCI 242200102 $6.79

CLAMP Backorder WCI 5304534887 $5.05

CABLE TIE Backorder WCI 811948501 $3.62

811950601 Frigidaire Refrigerator Seal Backorder WCI 811950601 $4.55

WCI 5304526848 WCI 5304526848 Contact Us For Availability

5304519098 Frigidaire Screw Backorder WCI 5304519098 $1.79

5304519116 Frigidaire Refrigerator Harness Backorder WCI 5304519116 $11.52

WASHER Backorder WCI 5304523068 $3.18

5304523687 Frigidaire Sticker Backorder WCI 5304523687 $2.70

FOAM INSULATION Backorder WCI 5304529528 $5.88

GROMMET Backorder WCI 5304529529 $5.88

5304529553 Frigidaire Seal Backorder WCI 5304529553 $5.01
