Model Electrolux GRMC2273CF00 REFRIGERATOR, FRENCH DOOR, MULTI-DRAWER – Common Parts & Diagrams

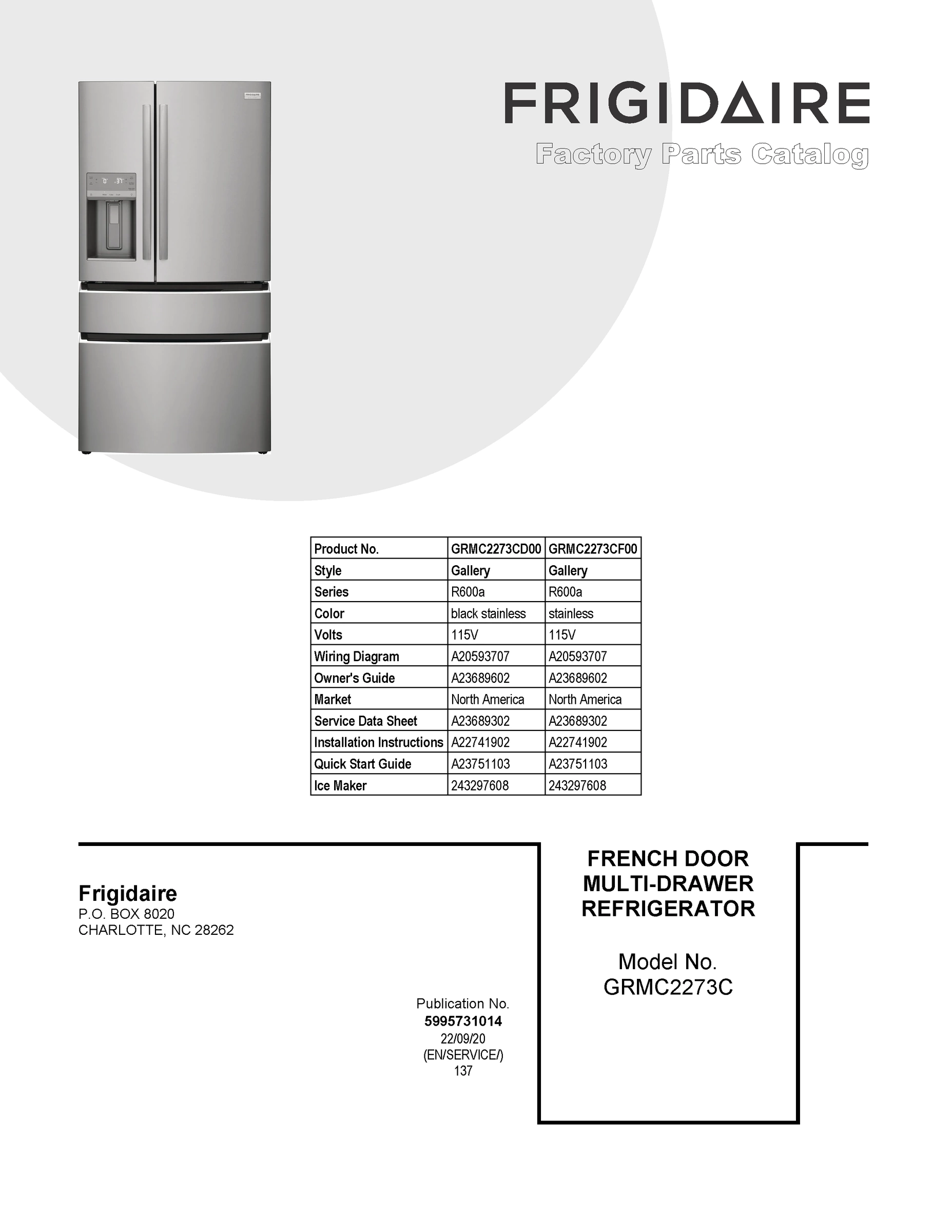

01 - COVER SHEET

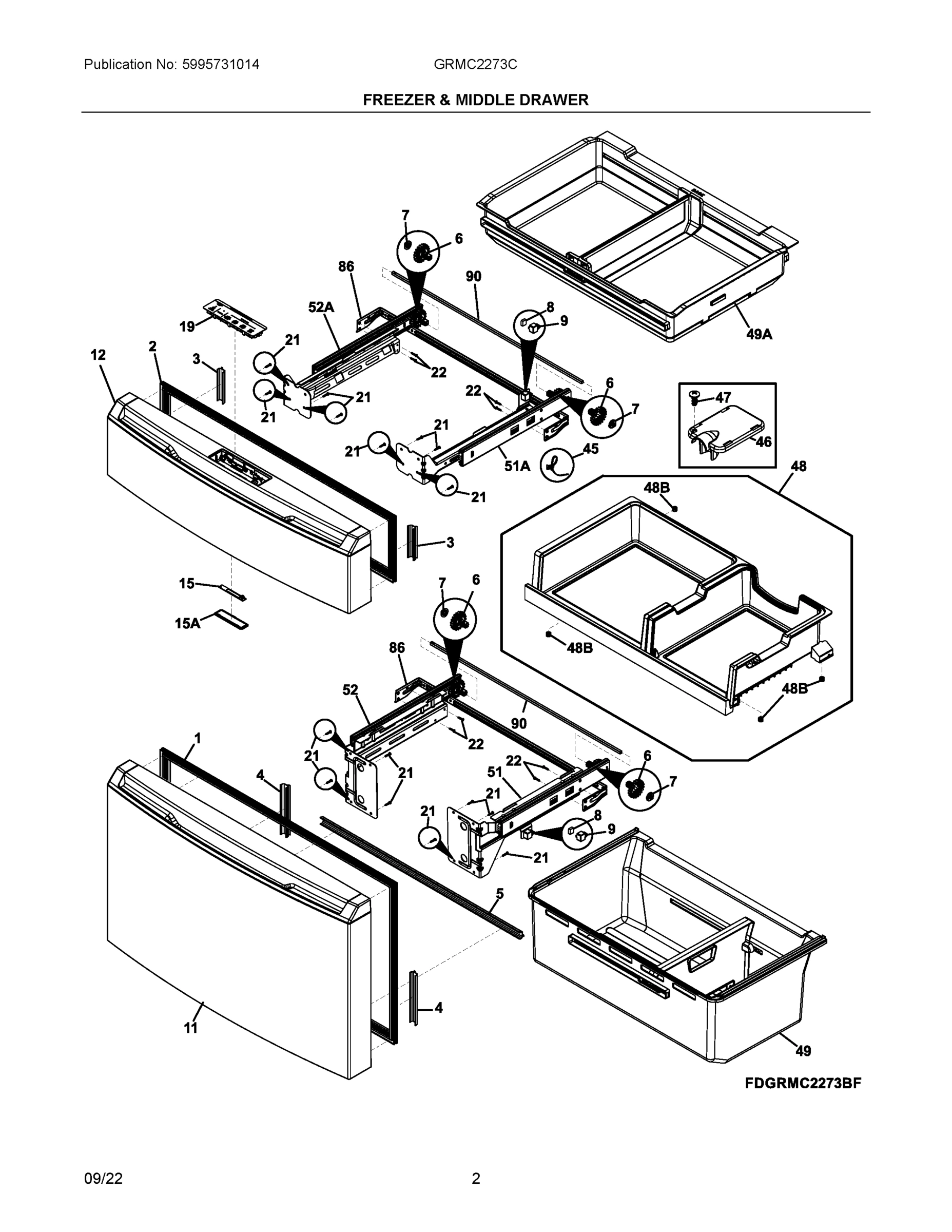

02 - FREEZER & MIDDLE DRAWER
03 - FRESH FOOD DOORS
04 - CABINET
05 - SHELVES
06 - FRESH FOOD SYSTEM / MIDDLE DRAWER AIR FLOW
07 - FREEZER SYSTEM / MACHINE COMPARTMENT
08 - ICE & WATER DISPENSER
09 - ICE MAKER SYSTEM
10 - ICE MAKER & CONTAINER
11 - WIRING DIAGRAM
Common parts from model Electrolux GRMC2273CF00 REFRIGERATOR, FRENCH DOOR, MULTI-DRAWER
1
GASKET, DOOR, FREEZER WCI 5304519037 Contact Us For Availability
1
SCREW, TRILOB, M5 X 16 WCI 811949401 Contact Us For Availability
1
COVER, FILTER FACIA WCI 5304529551 Contact Us For Availability
1
BASE, COMPRESSOR ASSY WCI 5304519151 Contact Us For Availability
2
GASKET, DOOR, MIDDLE WCI 5304519038 Contact Us For Availability
2
SUPPORT, WATER VALVE, & TANK WCI 5304529543 Contact Us For Availability
2
CLAMP, COMPRESSOR, SINGLE HOLE WCI 5304519152 Contact Us For Availability
2
GUIDE, WATER TUBE, DISPENSER WCI 5304519194 Contact Us For Availability
3
COVER, WATER TANK WCI 5304529550 Contact Us For Availability
4
SCREW, QUAD HILO, #8-18 X 0.380 WCI 241953902 Contact Us For Availability
4
SEAL, FOAM, 37 X 70MM WCI 5304529552 Contact Us For Availability
4
GROMMET, COMPRESSOR WCI 811978901 Contact Us For Availability
5
CONTROL ASSEMBLY, FLEX DRIVE WCI 5304523061 Contact Us For Availability
5
GASKET, DOOR, 754MM, FRZ BOTTOM, SECONDARY WCI 5304519041 Contact Us For Availability
5
DUCT, ICE MAKER FAN WCI 5304523073 Contact Us For Availability
6
TANK, WATER, DISP RESERVOIR WCI 5304523037 Contact Us For Availability
7
COMPRESSOR, ASSEMBLY, VND1113Y WCI 5304523062 Contact Us For Availability
7
COVER, MULLION STORAGE, GLASS, LH WCI 5304519123 Contact Us For Availability
7
HARNESS, WIRING, AIR HANDLER WCI 5304532656 Contact Us For Availability
8
MAGNET, REED SWITCH WCI 5304519044 Contact Us For Availability
8
GROMMET, FAN WCI 5304508063 Contact Us For Availability
8
ROLLER, CRISPER GLIDE WCI 5304519124 Contact Us For Availability
8
TUBE, SUCTION WCI 5304526794 Contact Us For Availability
8
DISPENSER ASSEMBLY, ICE & WATER, W/HARNESS-LE WCI 5304529571 Contact Us For Availability
9
CONNECTOR, HARNESS, EVAP COVER WCI 5304508037 Contact Us For Availability
9
RAIL, CRISPER, LH SIDE WCI 5304519125 Contact Us For Availability
9
STEP VALVE, ASSEMBLY, W/FILTER DRIER WCI 5304529531 Contact Us For Availability
9
ICE MAKER, ASSEMBLY, FRESH FOOD, 115 V, TWIST WCI 243297608 Contact Us For Availability
10
CLIP, HEATER/TUBING WCI 5304519629 Contact Us For Availability
10
DRAWER ASSEMBLY, CRISPER, LH, W/ROLLERS WCI 5304529585 Contact Us For Availability
10
FLAP BRACKET, COMPRESSOR BASE WCI 5304523064 Contact Us For Availability
10
COVER, HARNESS, FF ICE MAKER WCI 5304523076 Contact Us For Availability
11
EVAPORATOR ASSEMBLY, COMPLETE, ICE MAKER WCI 5304519630 Contact Us For Availability
11
COVER ASSEMBLY, CRISPERS, W/GLASS WCI 5304529587 Contact Us For Availability
11
COVER, FLEX DRIVE, SIDE, COMPRESSOR WCI 5304526792 Contact Us For Availability
12
SHELF ASSEMBLY, CANTILEVER, GLASS, LH WCI 5304523041 Contact Us For Availability
12
CLAMP, FLEX DRIVE, CABLE WCI 5304526793 Contact Us For Availability
13
STOP, ASSEMBLY, RH DOOR WCI 5304519070 Contact Us For Availability
13
BRACKET, CANTILEVER SHLF, LH WCI 5304519129 Contact Us For Availability
13
SCREW, TRILOB, M4 X 7.5 WCI 5304523032 Contact Us For Availability
14
NAMEPLATE, CHROME, FRIG GALLERY WCI 5304512150 Contact Us For Availability
14
BRACKET, CANTILEVER SHLF, CENTER WCI 5304519130 Contact Us For Availability
14
TUBING, EXTRA, REFRIGERANT WCI 5304523065 Contact Us For Availability
14
OVERLAY, USER INTERFACE, STAINLESS WCI 5304532657 Contact Us For Availability
14
TAPE, 3" X 1", FOIL WCI 5304485759 Contact Us For Availability
15
LIGHT ASSEMBLY, LED, 1X, W/LENS, PCB, HARN WCI 5304524656 Contact Us For Availability
15
LIGHT BOARD, 3 LED CLUSTER, 6500K WCI 5304523011 Contact Us For Availability
15
SHELF ASSEMBLY, CANTILEVER, GLASS, UPPER WCI 5304523044 Contact Us For Availability
16
SCREW, HANDLE MOUNTING WCI 5304519063 Contact Us For Availability
16
SHELF ASSEMBLY, FLIP UP, GLASS, LH WCI 5304523045 Contact Us For Availability
16
DRAIN TUBE, CORRUGATED WCI 5304519156 Contact Us For Availability
16A
PIN, INTERLOCK, FLIP UP SHELF WCI 5304523682 Contact Us For Availability
17
BAR-DRIVE WCI 241829001 Contact Us For Availability
17
SCREW, HILO PHIL PN, .5", WHITE WCI 241641505 Contact Us For Availability
18
SCREW-#8-32 X 3/8 WCI 240555002 Contact Us For Availability
18
SWITCH, LIGHT, GRAY WCI 5304519093 Contact Us For Availability
18
COVER, SCREW, SMALL WCI 5304519133 Contact Us For Availability
19
SCREW, VT AF/2P, 5 X 16 WCI 519088008 Contact Us For Availability
20
GASKET, HOUSING, 6.3W, ICE MAKER WCI 5304519209 Contact Us For Availability
20
TUBE ASSEMBLY, INLET, W/CONNECTOR WCI 5304532655 Contact Us For Availability
21
BRACKET, CANTILEVER SHLF, RH WCI 5304519136 Contact Us For Availability
22
MOTOR, AUGER WCI 5304519208 Contact Us For Availability
22
SCREW, TRUSS, 4.2 X 13 WCI 811949503 Contact Us For Availability
22
DRAIN PAN, CONDENSER WCI 5304529527 Contact Us For Availability
23
GUIDE ASSEMBLY, FLIP MULLION, BASE WCI 5304520058 Contact Us For Availability
23
SHELF ASSEMBLY, CANTILEVER, GLASS, RH WCI 5304523047 Contact Us For Availability
23
FAN ASSEMBLY, CONDENSER WCI 5304525730 Contact Us For Availability
23
SELECTOR, ICE CRUSH/CUBE WCI 5304526819 Contact Us For Availability
24
SCREW, PAN HEAD, 8-32 X 0.250 WCI 218359202 Contact Us For Availability
24
HOUSING ASSEMBLY, AUTO HUMIDITY, W/MEMBRANE WCI 5304523048 Contact Us For Availability
24
SCREW, SELF TAPPING, 6 X 20 WCI 808199001 Contact Us For Availability
24
PADDLE ASSEMBLY, DISPENSER, STAINLESS WCI 5304529574 Contact Us For Availability
25
SHROUD, CONDENSER FAN WCI 5304529530 Contact Us For Availability
26
GASKET, CRISPER COVER WCI 5304519140 Contact Us For Availability
27
GASKET, AIR HANDLER, FRONT WCI 5304519211 Contact Us For Availability
27
SHAFT, CABINET ROLLER WCI 811998302 Contact Us For Availability
28
RAIL, CRISPER, RH SIDE WCI 5304519142 Contact Us For Availability
28
ROLLER, CABINET WCI 811666601 Contact Us For Availability
30
COVER, MULLION STORAGE, GLASS, RH WCI 5304519143 Contact Us For Availability
31
DIVIDER, CRISPER COVER WCI 5304532661 Contact Us For Availability
31
DRAIN TROUGH, EVAPORATOR, FREEZER WCI 5304519162 Contact Us For Availability
32
HINGE, MIDDLE, RH WCI 5304519104 Contact Us For Availability
32
EVAPORATOR, ASSEMBLY, FREEZER WCI 5304529535 Contact Us For Availability
33
THERMOSTAT KIT, DEFROST, W/CONNECTORS WCI 5303918851 Contact Us For Availability
33
THERMISTOR KIT, TEMPERATURE, W/HOUSING WCI 5303918850 Contact Us For Availability
35
FRIGIDAIRE PA PK-2 REFILL WCI FRPAPK2RF Contact Us For Availability
36
FOOT, LEVELING, STABILIZER WCI 5304519106 Contact Us For Availability
36
COVER, FRESHNESS BOOST WCI 5304529586 Contact Us For Availability
36
SEAL, BAFFLE ASSEMBLY WCI 5304523686 Contact Us For Availability
36
COVER ASSEMBLY, EVAPORATOR, FREEZER, W/FAN AS WCI 5304523067 Contact Us For Availability
37
BAFFLE ASSEMBLY, AIR DAMPER, MIDDLE DRAWER WCI 5304519166 Contact Us For Availability
37
DUCT, AIR RETURN WCI 5304529534 Contact Us For Availability
38
COVER ASSEMBLY, AIR FLOW, MIDDLE DRAWER, W/FA WCI 5304519167 Contact Us For Availability
38C
SWITCH, DISP PADDLE WCI 5304523072 Contact Us For Availability
40
GUIDE, WATER TUBE WCI 5304529545 Contact Us For Availability
40
HEATER ASSEMBLY, MIDDLE DRAWER WCI 5304523056 Contact Us For Availability
41
MANIFOLD, WATER FILTER WCI 5304529546 Contact Us For Availability
42
FRIG PUREPOUR WF-2 CONNECTORS WCI FPPWFU02 Contact Us For Availability
42
COVER, AIR DUCT, MIDDLE DRAWER WCI 5304519170 Contact Us For Availability
43
COVER, MANIFOLD, FRONT WCI 5304529547 Contact Us For Availability
44
WATER VALVE, ASSEMBLY, DOUBLE WCI 5304529544 Contact Us For Availability
44
COVER, SCREW HOLE, WHITE WCI 5304524004 Contact Us For Availability
44A
CONNECTOR, TUBING, QUICK WCI 5304523053 Contact Us For Availability
45
WCI 5304524353 WCI 5304524353 Contact Us For Availability
45
FRIG PUREAIR AF2 AIR FILTER C6 WCI FRGPAAF2 Contact Us For Availability
46
WCI 5304527422 WCI 5304527422 Contact Us For Availability
46
COVER, MACHINE COMPT., REAR WCI 5304519112 Contact Us For Availability
46
COVER, AIR FILTER, FRESH FOOD WCI 5304529542 Contact Us For Availability
47
THERMISTOR KIT, TEMPERATURE, NTC, W/CONNECTOR WCI 5303918775 Contact Us For Availability
47
WCI 5304529549 WCI 5304529549 Contact Us For Availability
48
BIN ASSEMBLY, FLEX, DOOR, DAIRY WCI 5304519073 Contact Us For Availability
48
COVER, WINDOW, MIDDLE DRAWER WCI 5304519172 Contact Us For Availability
49
BASKET ASSEMBLY, FREEZER DRAWER, W/DIVIDER WCI 5304519057 Contact Us For Availability
49
FAN ASSEMBLY, MIDDLE DRAWER, W/SLEEVE WCI 5304519173 Contact Us For Availability
50
BLADE, EVAPORATOR FAN WCI 811699604 Contact Us For Availability
51
MOTOR, FAN, FRZ EVAPORATOR WCI 809069207 Contact Us For Availability
51
SLIDER, ASSEMBLY, RH FREEZER WCI 5304519059 Contact Us For Availability
52
SLIDER, ASSEMBLY, LH FREEZER WCI 5304519061 Contact Us For Availability
52
GROMMET, FAN SHROUND, FREEZER WCI 5304519174 Contact Us For Availability
53
SHROUD, FAN, FREEZER WCI 5304519175 Contact Us For Availability
54
WCI 5304519115 WCI 5304519115 Contact Us For Availability
54
BIN, FIXED, LH DOOR WCI 5304519079 Contact Us For Availability
54
WASHER, SLINGER, NYLON WCI 5304519176 Contact Us For Availability
55
CLIP, RETAINER WCI 5304519177 Contact Us For Availability
56
GROMMET, FAN MOU WCI 5304519178 Contact Us For Availability
61
DRAIN TROUGH, EVAPORATOR, FRESH FOOD WCI 5304519180 Contact Us For Availability
63
EVAPORATOR, ASSEMBLY, FRESH FOOD WCI 5304526811 Contact Us For Availability
64
PLATE, FAN MOUNTING, FRESH FOOD WCI 5304526813 Contact Us For Availability
65
WASHER, FLAT WCI 5304519183 Contact Us For Availability
67
COVER ASSEMBLY, AIR DUCT, FRESH FOOD, COMPLET WCI 5304524898 Contact Us For Availability
69
HOUSING, FAN, FRESH FOOD WCI 5304526812 Contact Us For Availability
75
COVER, WINDOW, FRESH FOOD WCI 5304519189 Contact Us For Availability
76
INSULATION, WINDOW, EPS, FRESH FOOD WCI 5304522062 Contact Us For Availability
85
MULLION ASSEMBLY, FLIP, W/HEATER WCI 5304519081 Contact Us For Availability
NI
CLIP, TUBING, 90 DEG ELBOW WCI 242200102 Contact Us For Availability
NI
WCI 240396801 WCI 240396801 Contact Us For Availability
NI
WCI 5304526848 WCI 5304526848 Contact Us For Availability
NI
WCI 811950601 WCI 811950601 Contact Us For Availability
NI
SPRING, PADDLE ASSEMBLY WCI 5304519199 Contact Us For Availability
NI
CLAMP, WATER TUBE WCI 5304526863 Contact Us For Availability
NI
CABLE TIE, 2.5 X 120 WCI 811948501 Contact Us For Availability
NIA
WCI 5304519116 WCI 5304519116 Contact Us For Availability
NIA
WCI 5304519098 WCI 5304519098 Contact Us For Availability
NIA
WCI 5304529553 WCI 5304529553 Contact Us For Availability
NIA
WCI 5304523687 WCI 5304523687 Contact Us For Availability
NIA
WCI 5304523068 WCI 5304523068 Contact Us For Availability
NIA
WCI 5304529528 WCI 5304529528 Contact Us For Availability
NIA
WCI 5304529529 WCI 5304529529 Contact Us For Availability
NIA
WCI 5304532654 WCI 5304532654 Contact Us For Availability
× ![]()
