Model Electrolux GRFC2353AFD REFRIGERATOR, FRENCH DOOR, BOTTOM FREEZER, W/DISPENSER – Common Parts &amp; Diagrams

1

218976448 Frigidaire Water Line Hose In Stock WCI 218976448 $10.74

1

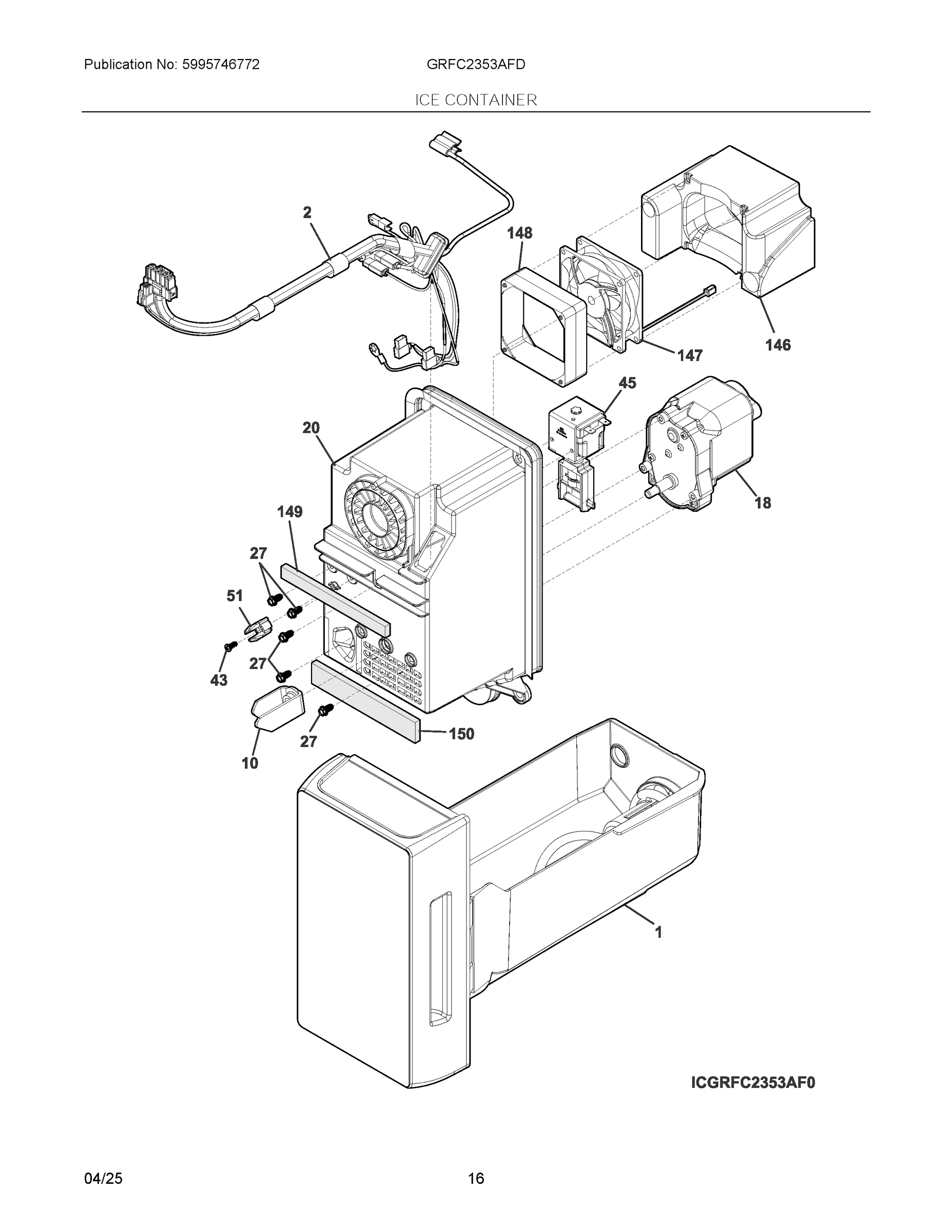

5304530697 Frigidaire Ice Container Backorder WCI 5304530697 $79.95

1A

241862904 Frigidaire Condenser Assembly Backorder WCI 241862904 $109.01

1E

FILL TUBE ASSY CLICK CONNEX WCI 5304535846 Contact Us For Availability

2

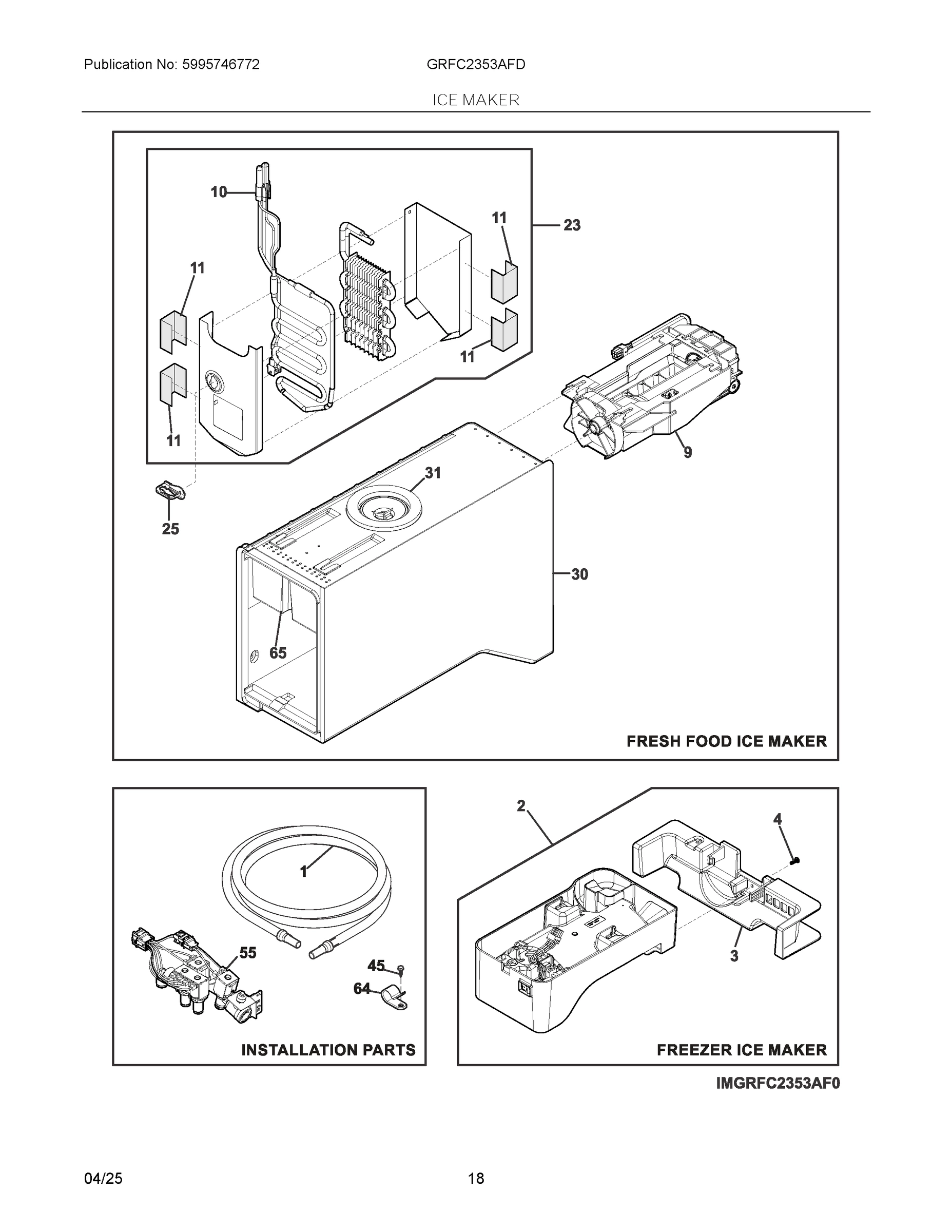

A21755301 Frigidaire Refrigerator Ice Maker A In Stock WCI A21755301 $135.96

3

5304531313 Frigidaire Bracket Assembly Backorder WCI 5304531313 $49.41

4

5303305677 Frigidaire Replacement Filters Fil In Stock WCI 5303305677 $8.86

4

5304453707 Frigidaire Oven Screw In Stock WCI 5304453707 $9.50

5

5304530726 Frigidaire Refrigerator Harness Backorder WCI 5304530726 $34.24

6

241516904 Frigidaire Refrigerator Service Cor In Stock WCI 241516904 $23.09

8

215474201 Frigidaire Refrigerator Washer Backorder WCI 215474201 $11.78

8

5304533221 Frigidaire I&W Module Assembly In Stock WCI 5304533221 $92.52

9

243297608 Frigidaire Refrigerator Ice Maker In Stock WCI 243297608 $98.54

9

5304508006 Frigidaire Refrigerator Bushing Backorder WCI 5304508006 $7.67

9

GUIDE-WATER TUBE, 9 WCI 5304531019 Contact Us For Availability

10

241829001 Frigidaire Refrigerator Bar Drive In Stock WCI 241829001 $36.99

10

5304519629 Frigidaire Refrigerator Clip Backorder WCI 5304519629 $4.99

11

241860104 Frigidaire Refrigerator Coil Cover Backorder WCI 241860104 $19.03

11

5304485759 Frigidaire Refrigerator Tape Backorder WCI 5304485759 $0.46

12

241860105 Frigidaire Refrigerator Coil Cover Backorder WCI 241860105 $10.85

12

5304512150 Frigidaire Refrigerator Nameplate In Stock WCI 5304512150 $32.47

13

5304508039 Frigidaire Refrigerator Door Stop Backorder WCI 5304508039 $13.61

13A

5304508038 Frigidaire Refrigerator Door Stop Backorder WCI 5304508038 $13.57

14

5304520495 Frigidaire Refrigerator Switch In Stock WCI 5304520495 $12.20

14

5304531011 Frigidaire Refrigerator Heater Backorder WCI 5304531011 $107.26

15

242044506 Frigidaire Refrigerator Evaporator Backorder WCI 242044506 $115.11

16

BRACKET, DEFROST HEATER WCI 5304530897 Contact Us For Availability

17

241791201 Frigidaire Refrigerator Drain Troug Backorder WCI 241791201 $69.03

18

GASKET Backorder WCI 241860131 $3.53

18

5304527039 Frigidaire Refrigerator Motor In Stock WCI 5304527039 $102.80

20

140123513032 Frigidaire Housing,Air Handler Backorder WCI 140123513032 $35.33

21

241690602 Frigidaire Refrigerator Screw In Stock WCI 241690602 $5.64

21

241732101 Frigidaire Refrigerator Screw Backorder WCI 241732101 $9.97

21C

5304515677 Frigidaire Package of 4 Screws In Stock WCI 5304515677 $5.40

22

5304530908 Frigidaire Base Assembly Backorder WCI 5304530908 $49.01

22B

241760403 Frigidaire Refrigerator Bearing Backorder WCI 241760403 $12.22

22C

241760401 Frigidaire Refrigerator Bearing In Stock WCI 241760401 $12.20

23

5304527042 Frigidaire Drip Tray Backorder WCI 5304527042 $8.82

23

5304530680 Frigidaire Assembly Evaporator Backorder WCI 5304530680 $94.70

24

240383412 Frigidaire Refrigerator Screw In Stock WCI 240383412 $7.30

24

241812301 Frigidaire Refrigerator Compressor Backorder WCI 241812301 $7.71

24

5304530689 Frigidaire Refrigerator Actuator Backorder WCI 5304530689 $15.94

240383407 Frigidaire Refrigerator Screw In Stock WCI 240383407 $8.15

242037702 Frigidaire Refrigerator Spring Clip Backorder WCI 242037702 $5.42

5304508037 Frigidaire Refrigerator Connector Backorder WCI 5304508037 $8.60

5304519199 Frigidaire Refrigerator Spring Backorder WCI 5304519199 $3.61

26

241920608 Frigidaire Defrost Pan Backorder WCI 241920608 $80.76

28

5304499445 Frigidaire Refrigerator Roller Ass Backorder WCI 5304499445 $19.99

29

5304530707 Frigidaire Compressor Backorder WCI 5304530707 $162.71

29A

811978901 Frigidaire Refrigerator Grommet Backorder WCI 811978901 $4.97

30

241778702 Frigidaire Refrigerator Anti-Tip Br Backorder WCI 241778702 $12.18

30

5304530678 Frigidaire Refrigerator Inverter Backorder WCI 5304530678 $94.27

30

5304531300 Frigidaire Assembly Housing Backorder WCI 5304531300 $115.41

31

GASKET-HOUSING, FUNNEL WCI 5304530725 Contact Us For Availability

34

241929901 Frigidaire Grommet Condenser Mounti Backorder WCI 241929901 $5.88

34A

241929902 Frigidaire Condenser Mounting Gromm In Stock WCI 241929902 $5.88

37

5304519618 Frigidaire Refrigerator Cabinet Co Backorder WCI 5304519618 $7.25

38

5304530929 Frigidaire Refrigerator Control As In Stock WCI 5304530929 $124.70

38C

241870104 Frigidaire Switch Assembly Backorder WCI 241870104 $12.13

41

240555002 Frigidaire Refrigerator Screw #8-32 In Stock WCI 240555002 $8.58

42

240578902 Frigidaire Screw Mounting Hinge In Stock WCI 240578902 $9.04

43

241641502 Frigidaire Refrigerator Screw Backorder WCI 241641502 $5.40

44

5304456288 Frigidaire Refrigerator Clamp Backorder WCI 5304456288 $4.99

241500303 Frigidaire Refrigerator Screw Backorder WCI 241500303 $2.72

241675707 Frigidaire Refrigerator Solenoid Backorder WCI 241675707 $51.10

5303307980 Frigidaire Oven Screw Backorder WCI 5303307980 $9.06

5304455650 Frigidaire Refrigerator Screw Backorder WCI 5304455650 $9.06

49

5304530658 Frigidaire Appliance Channel Backorder WCI 5304530658 $18.58

49A

CHANNEL-SHELF MTG. I/M WCI 5304531311 Contact Us For Availability

49B

242122303 Frigidaire Channel Assembly Backorder WCI 242122303 $28.97

50

5304501271 Frigidaire Shelf Clip In Stock WCI 5304501271 $9.95

51

242095501 Frigidaire Refrigerator Anti-Twist Backorder WCI 242095501 $13.13

51

5304507976 Frigidaire Refrigerator Assembly-S In Stock WCI 5304507976 $167.55

51A

5304507977 Frigidaire Refrigerator Slide Asse In Stock WCI 5304507977 $167.05

55

5304538492 Frigidaire Water Valve, Triple Sol In Stock WCI 5304538492 $56.95

58

240569202 Frigidaire Refrigerator Screw In Stock WCI 240569202 $1.35

58

241853202 Frigidaire Refrigerator Screw Backorder WCI 241853202 $6.32

59

240442708 Frigidaire Refrigerator Screw - #10 In Stock WCI 240442708 $4.97

59

241946106 Frigidaire Refrigerator Condenser F Backorder WCI 241946106 $28.97

60

5304531260 Frigidaire Refrigerator Motor Backorder WCI 5304531260 $100.13

61

241639502 Frigidaire Refrigerator Condenser F In Stock WCI 241639502 $11.41

62

240346701 Frigidaire Refrigerator Foam Seal T In Stock WCI 240346701 $19.01

62

5304538881 Frigidaire Deli Pan Assembly with Backorder WCI 5304538881 $88.57

64

240396801 Frigidaire Refrigerator Tube Clamp Backorder WCI 240396801 $12.24

65

COVER, WIRING WCI 5304531003 Contact Us For Availability

81

134154100 Frigidaire Screw 10-32 x 0.375 Co In Stock WCI 134154100 $8.62

81

240359403 Frigidaire Refrigerator Fan Shroud Backorder WCI 240359403 $2.26

82

240335202 Frigidaire Refrigerator Roller Backorder WCI 240335202 $13.59

82

241779401 Frigidaire Refrigerator Flipper Hin In Stock WCI 241779401 $11.43

83

5304455655 Frigidaire Refrigerator Rivet Backorder WCI 5304455655 $23.04

84

241830904 Frigidaire Refrigerator Drain Tube In Stock WCI 241830904 $14.94

85

242139301 Frigidaire Refrigerator Support Bea Backorder WCI 242139301 $46.62

85

5304530251 Frigidaire Tube Assembly Backorder WCI 5304530251 $13.15

86

240409302 Frigidaire Refrigerator Condenser T Backorder WCI 240409302 $39.88

86

242015001 Frigidaire Refrigerator Screw Backorder WCI 242015001 $10.41

87

5304507999 Frigidaire Refrigerator Pinion Backorder WCI 5304507999 $6.32

88

241979601 Frigidaire Refrigerator Bumper Backorder WCI 241979601 $14.48

89

215346903 Frigidaire Process Tube Backorder WCI 215346903 $6.05

89

5304509676 Frigidaire Refrigerator Bracket Backorder WCI 5304509676 $45.72

90

240597220 Frigidaire Sensor In Stock WCI 240597220 $3.05

91

5304508041 Frigidaire Refrigerator Cover Backorder WCI 5304508041 $7.25

92

241710601 Frigidaire Refrigerator Screw In Stock WCI 241710601 $8.60

94

5303918775 Frigidaire Refrigerator Thermistor In Stock WCI 5303918775 $11.89

102

5304504279 Frigidaire Handle Base Backorder WCI 5304504279 $11.06

103

242077302 Frigidaire Screw In Stock WCI 242077302 $4.97

122

241860117 Frigidaire Gasket Backorder WCI 241860117 $6.82

123

5304508007 Frigidaire Refrigerator Bracket Backorder WCI 5304508007 $8.58

124

242006903 Frigidaire Refrigerator Air Duct Backorder WCI 242006903 $37.65

137

FILTER-WATER WCI 5304537199 Contact Us For Availability

139A

MANIFOLD, WATER FILTER WCI 5304537198 Contact Us For Availability

145

5304530994 Frigidaire Support Assembly Backorder WCI 5304530994 $82.02

145A

5304531039 Frigidaire Support Backorder WCI 5304531039 $80.57

146

5304530679 Frigidaire Support Assembly Backorder WCI 5304530679 $13.05

147

5304493604 Frigidaire Refrigerator Gasket & F In Stock WCI 5304493604 $55.76

148

5304508063 Frigidaire Refrigerator Grommet Backorder WCI 5304508063 $9.50

149

GASKET WCI 242095415 Contact Us For Availability

150

GASKET WCI 242095423 No Longer Available

210

5304530987 Frigidaire Refrigerator Housing Backorder WCI 5304530987 $7.23

211

5304508077 Frigidaire Refrigerator Bumper Backorder WCI 5304508077 $7.25

212

5304508016 Frigidaire Refrigerator Roller In Stock WCI 5304508016 $2.18

213

242010901 Frigidaire Refrigerator Assembly Ro Backorder WCI 242010901 $31.71

218515401 Frigidaire Refrigerator Clip In Stock WCI 218515401 $11.32

241510904 Frigidaire Refrigerator Dispenser H Backorder WCI 241510904 $38.53

242146401 Frigidaire Refrigerator Screw In Stock WCI 242146401 $9.12

5304527119 Frigidaire Screw Backorder WCI 5304527119 $5.88

5304530940 Frigidaire Refrigerator Harness In Stock WCI 5304530940 $79.33

5304531023 Frigidaire Harness Assembly Backorder WCI 5304531023 $16.81

218709101 Frigidaire Refrigerator Handle Moun Backorder WCI 218709101 $4.09

240346721 Frigidaire Tape Backorder WCI 240346721 $5.88

241500305 Frigidaire Refrigerator Screw In Stock WCI 241500305 $1.83

241806601 Frigidaire Refrigerator Water Conne In Stock WCI 241806601 $43.45

241842301 Frigidaire Refrigerator Thermistor Backorder WCI 241842301 $21.73

241953902 Frigidaire Refrigerator Screw In Stock WCI 241953902 $10.93

242036801 Frigidaire Refrigerator Plastic Cli In Stock WCI 242036801 $60.94

242039702 Frigidaire Refrigerator Screw Backorder WCI 242039702 $2.72

5303918645 Frigidaire Refrigerator Thermistor Backorder WCI 5303918645 $52.27

5304530898 Frigidaire Harness Backorder WCI 5304530898 $95.05

FRPAPKRF FILTER COVER WCI 5304534013 Contact Us For Availability

240363602 Frigidaire Refrigerator Shoulder Sc Backorder WCI 240363602 $8.14

242039701 Frigidaire Refrigerator Screw Backorder WCI 242039701 $8.60

242200102 Frigidaire Refrigerator Clip Backorder WCI 242200102 $6.79

5304530732 Frigidaire Refrigerator Wiring Har Backorder WCI 5304530732 $36.87

NIC

5304535843 Frigidaire Tube Assembly Backorder WCI 5304535843 $6.40

NID

5304535844 Frigidaire Click Connex Female In Stock WCI 5304535844 $6.40
