Model Whirlpool GR488LXRQ0 30`` ELECTRIC CERAN FREESTANDING RANGE SELF CLEAN – Common Parts & Diagrams

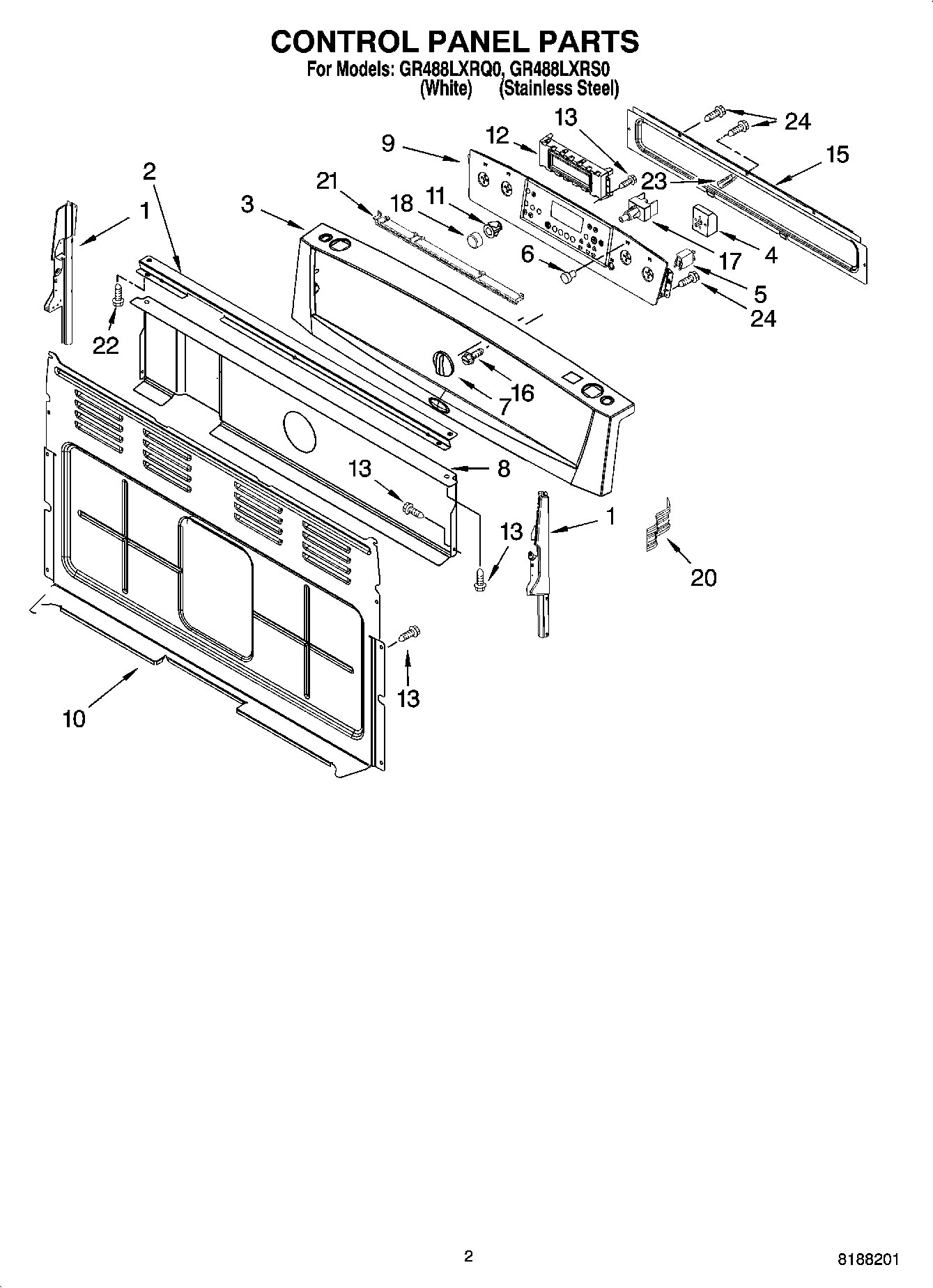

02 - CONTROL PANEL PARTS

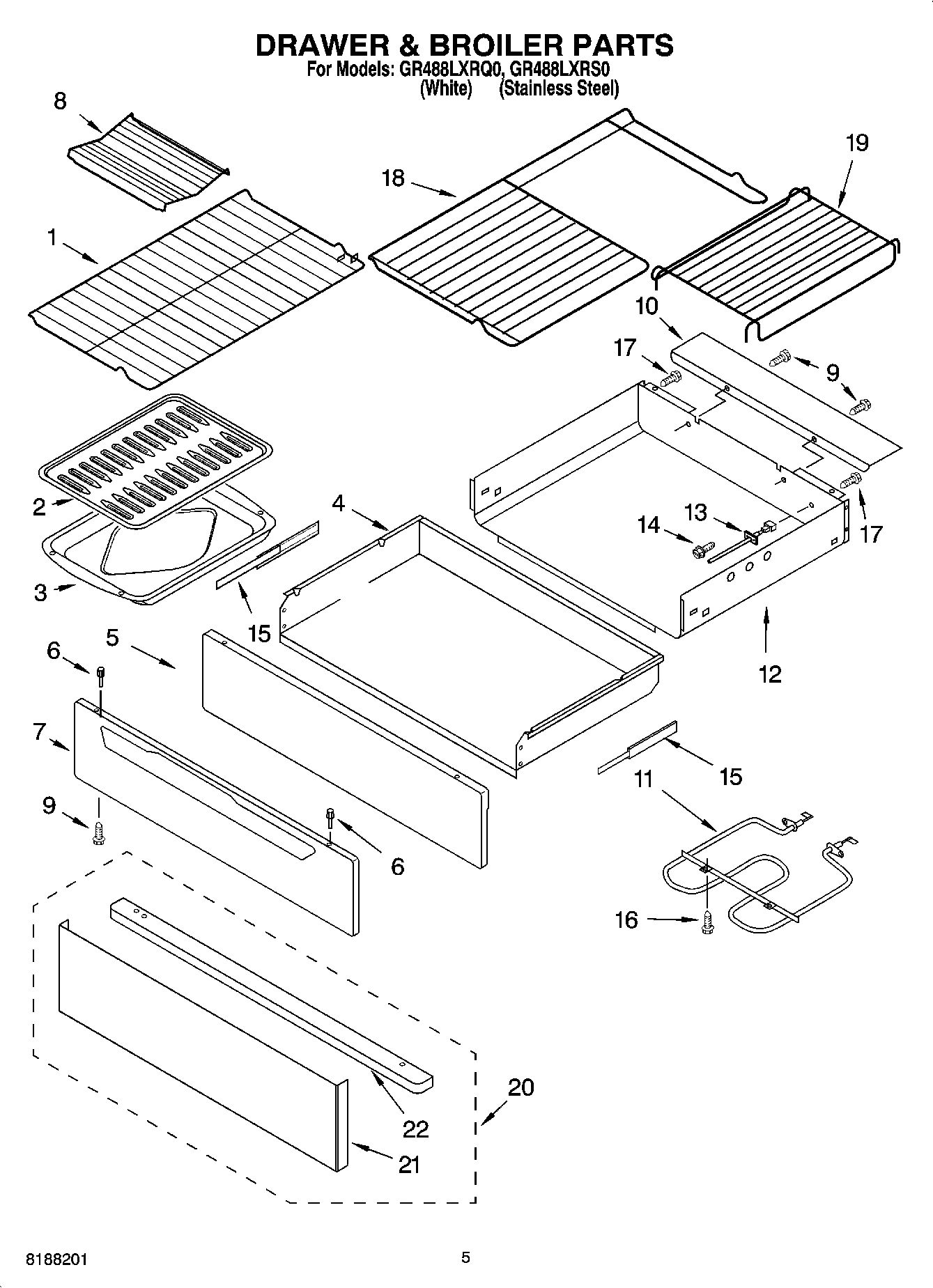

04 - DRAWER & BROILER PARTS
01 - COOKTOP PARTS
03 - CHASSIS PARTS
05 - DOOR PARTS, OPTIONAL PARTS
Common parts from model Whirlpool GR488LXRQ0 30`` ELECTRIC CERAN FREESTANDING RANGE SELF CLEAN
WPL 350930 WPL 350930 Contact Us For Availability
WPL 4392899 WPL 4392899 Contact Us For Availability
PAINT, PRESSURIZED SPR WPL 285006 Contact Us For Availability
WPL 4392901 WPL 4392901 Contact Us For Availability
WPL 511873 WPL 511873 Contact Us For Availability
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
WPL 799344 WPL 799344 Contact Us For Availability
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
Wire (14 Ga. 200 c Red) WPL 242831 Contact Us For Availability
Grease WPL 261582 Contact Us For Availability
WPL 4392900 WPL 4392900 Contact Us For Availability
WPL 799832 WPL 799832 Contact Us For Availability
WPL 8273908 WPL 8273908 Contact Us For Availability
WPL 9756550 WPL 9756550 Contact Us For Availability
WPL 9758192 WPL 9758192 Contact Us For Availability
WPL 9759000 WPL 9759000 Contact Us For Availability
WPL 9761453 WPL 9761453 Contact Us For Availability
WPL 9761455 WPL 9761455 Contact Us For Availability
WPL 9762572 WPL 9762572 Contact Us For Availability
WPL ARI149485A WPL ARI149485A Contact Us For Availability
WPL ARI149486A WPL ARI149486A Contact Us For Availability
WPL ARI149487A WPL ARI149487A Contact Us For Availability
WPL ARI149488A WPL ARI149488A Contact Us For Availability
WPL ARI149489A WPL ARI149489A Contact Us For Availability
WPL ARI149490A WPL ARI149490A Contact Us For Availability
WPL ARI149491A WPL ARI149491A Contact Us For Availability
WPL ARI149492A WPL ARI149492A Contact Us For Availability
WPL ARI149493A WPL ARI149493A Contact Us For Availability
1
Brochure, Tips-Safe Cooking WPL 3191638 Contact Us For Availability
1
Anti-Tip Template (English/Spanish) WPL 9757142 Contact Us For Availability
1
Anti-Tip Template (English/French) WPL 9757143 Contact Us For Availability
1
Installation Instructions Template, Anti-Tip WPL 9758377 Contact Us For Availability
1
Owner`s Manual WPL 9762490 Contact Us For Availability
1
Tech Sheet WPL 9762491 Contact Us For Availability
1
Trim, Top (Stainless Model) WPL 8272243 Contact Us For Availability
2
Spring, Locator WPL 3149191 Contact Us For Availability
2
Support, Corner LR WPL 8273905 Contact Us For Availability
4
Cooktop (White) WPL 9758722 Contact Us For Availability
4
Cooktop (Black) WPL 9762330 Contact Us For Availability
4
Seal, Oven Flange WPL 3195737 Contact Us For Availability
4
Liner, Door WPL 3186292 Contact Us For Availability
5
Seal, Window WPL 8522414 Contact Us For Availability
5
Light, Indicator (Hot Surface) WPL 8523739 Contact Us For Availability
6
Bracket, Ind Light WPL 8523741 Contact Us For Availability
8
Shield, Wiring WPL 8524132 Contact Us For Availability
8
Support, Front (2) WPL 3195736 Contact Us For Availability
9
Bracket, Element ((2)) WPL 8272791 Contact Us For Availability
9
Bracket, Element ((1)) WPL 8273720 Contact Us For Availability
10
Hinge, Door (2) (Stainless Model) WPL 8272822 Contact Us For Availability
10
Heat Shield, Element WPL 8272977 Contact Us For Availability
10
Appliance Manager WPL 9761909 Contact Us For Availability
11
Element, Warming WPL 9758520 Contact Us For Availability
12
Enclosure, Drawer WPL 8274153 Contact Us For Availability
12
Frame, Front (Not Serviced) WPL ARI149482A Contact Us For Availability
14
Clip, Panel (6) WPL 3196576 Contact Us For Availability
15
Slide, Drawer (Left Hand) WPL 9761929 Contact Us For Availability
15
Slide, Drawer (Right Hand) WPL 9761930 Contact Us For Availability
15
Clip, Glass (4) WPL 3196025 Contact Us For Availability
17
Guard, Wire WPL 3195987 Contact Us For Availability
18
Rod - Dr Switch WPL 9757239 Contact Us For Availability
18
Button (Black) WPL 9758491 Contact Us For Availability
20
Stainless Model Only WPL ARI149484A Contact Us For Availability
21
Panel, Stainless WPL 9755798 Contact Us For Availability
22
Screw (White) WPL 3196166 Contact Us For Availability
22
Handle WPL 9757237 Contact Us For Availability
22
Back, Main WPL 9757029 Contact Us For Availability
26
Cover, Tray WPL 9755771 Contact Us For Availability
28
Cover WPL 9757970 Contact Us For Availability
29
Screw WPL 3196179 Contact Us For Availability
33
Screw WPL 3196172 Contact Us For Availability
38
Retainer, Side (2) WPL 8523803 Contact Us For Availability
39
Shield, Outer (2) WPL 3196091 Contact Us For Availability
40
Shield, Inner (2) WPL 3196092 Contact Us For Availability
42
Rod, Latch WPL 3196961 Contact Us For Availability
46
Tray, Hidden Bake Element WPL 9755769 Contact Us For Availability
51
Nut WPL 4452227 Contact Us For Availability
53
Bracket, Fan WPL 9755776 Contact Us For Availability
54
Transformer WPL 9757311 Contact Us For Availability
55
Screw WPL 8533930 Contact Us For Availability
56
Cover, Box WPL 9757972 Contact Us For Availability
57
SCREEN, CATALYST WPL 9761301 Contact Us For Availability
60
Insulation, Back WPL 9755772 Contact Us For Availability
60
Insulation WPL ARI149483A Contact Us For Availability
× ![]()
