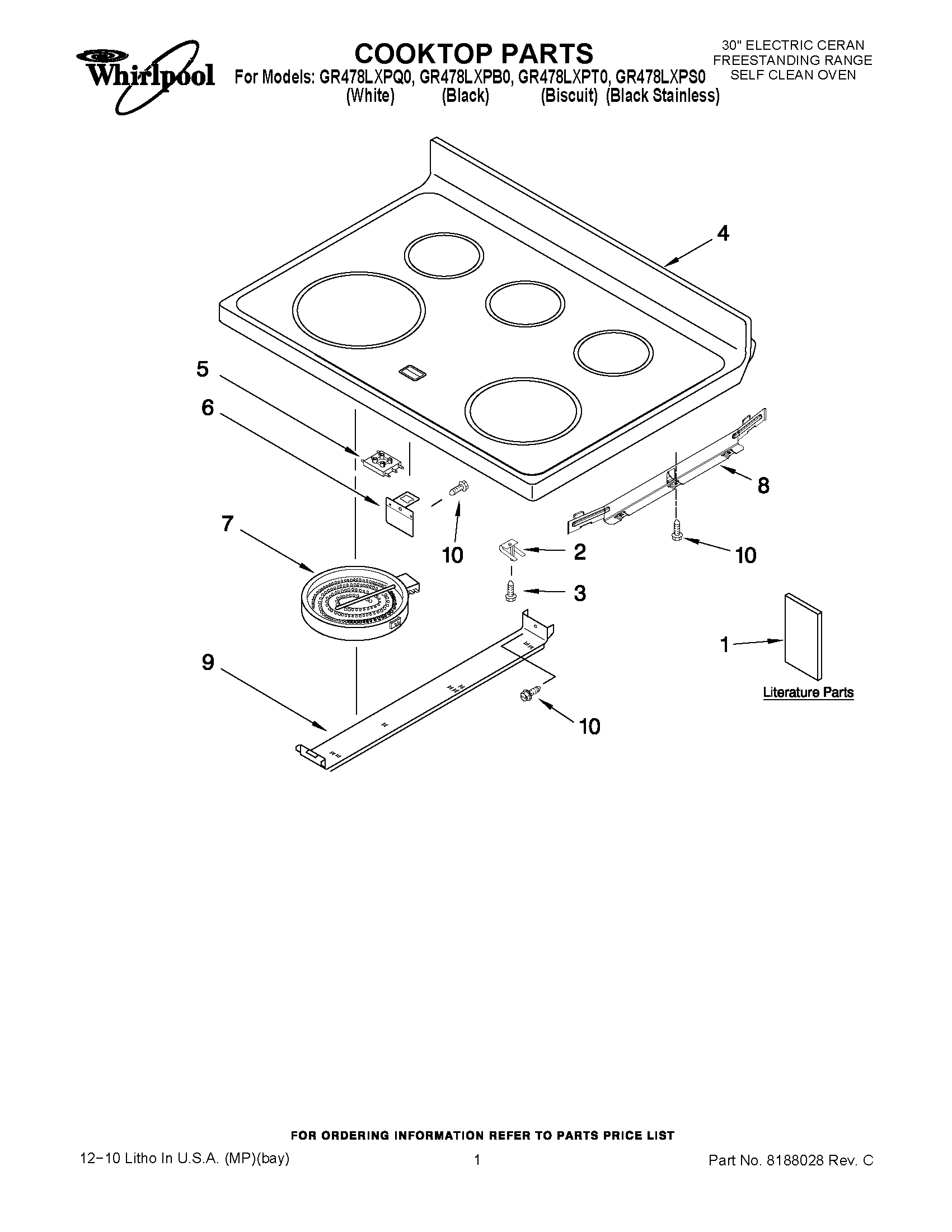

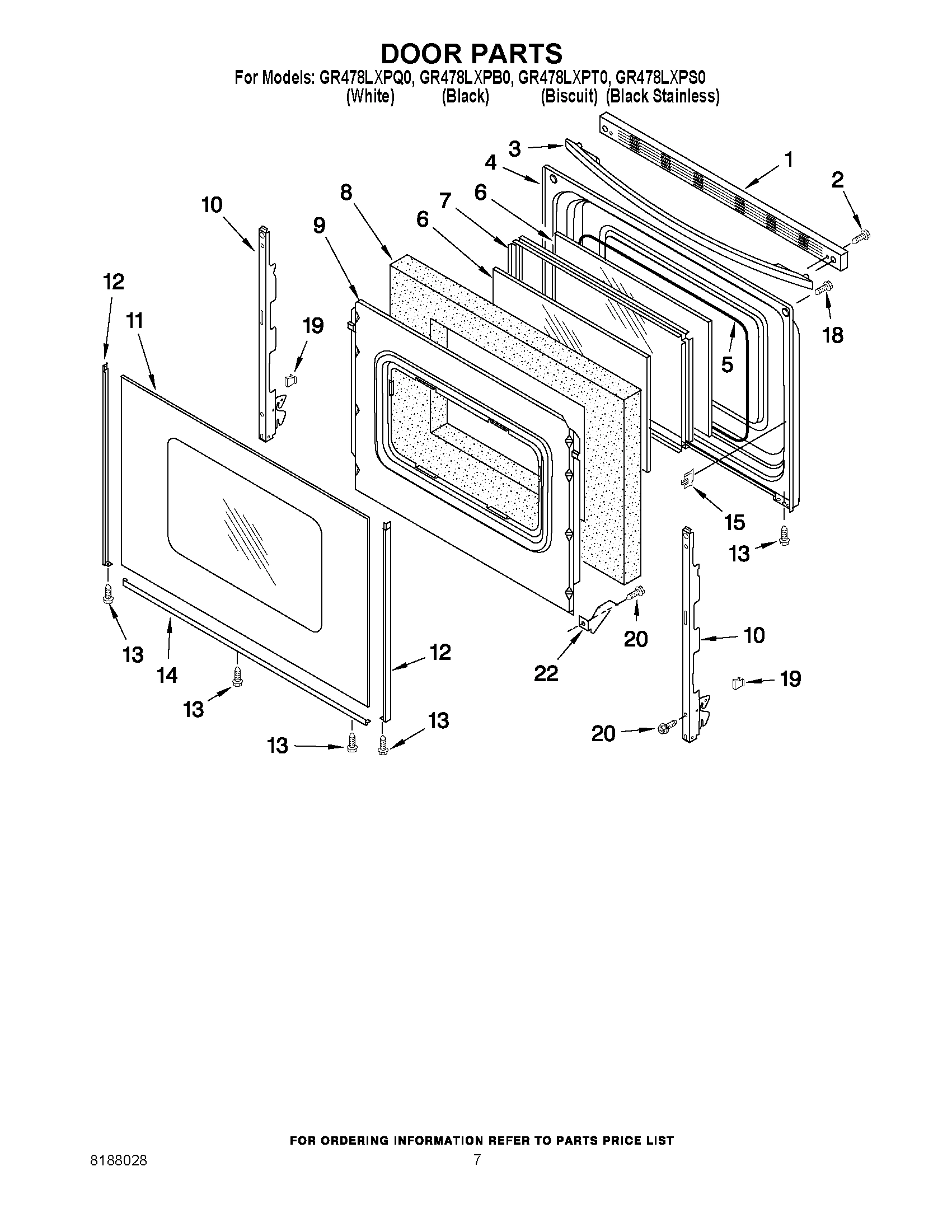

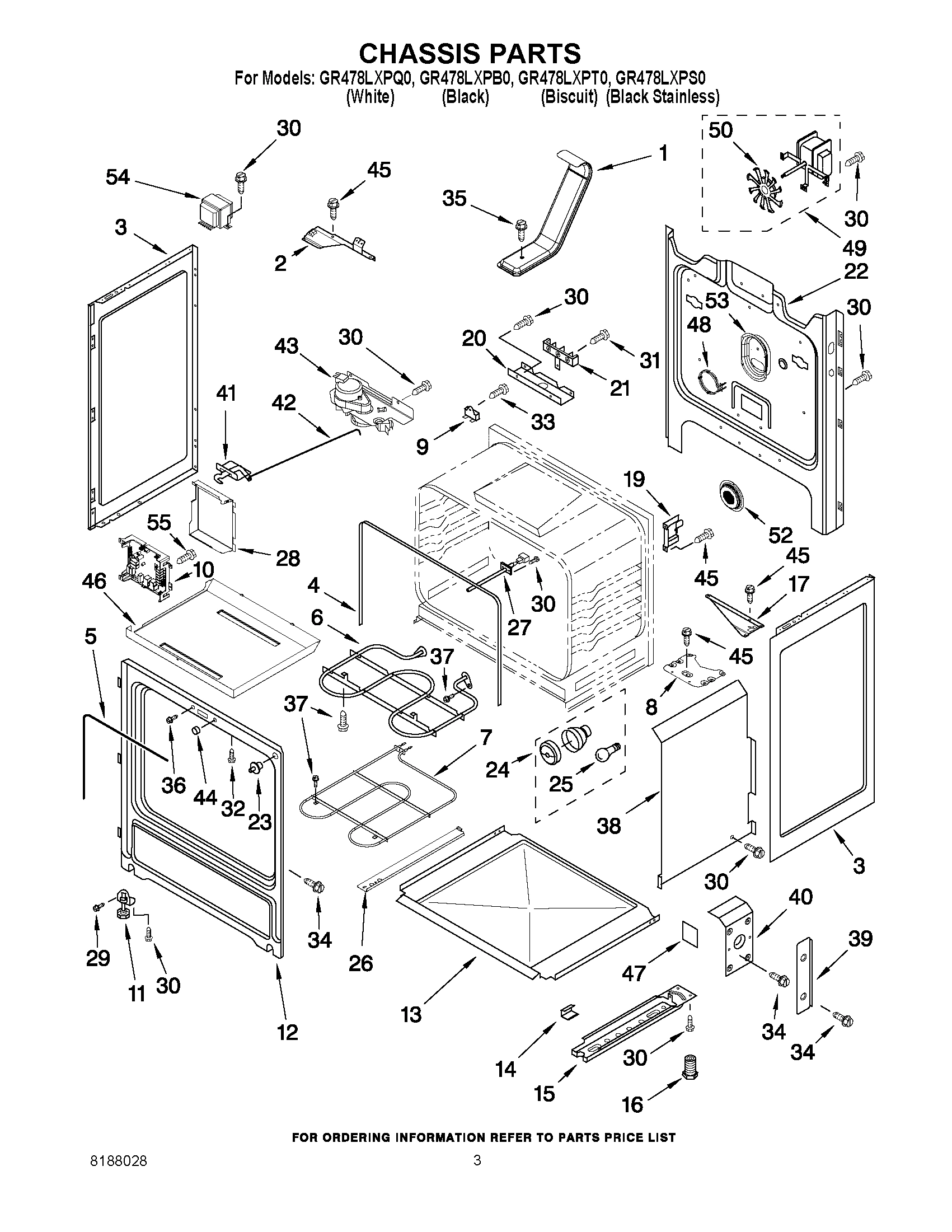

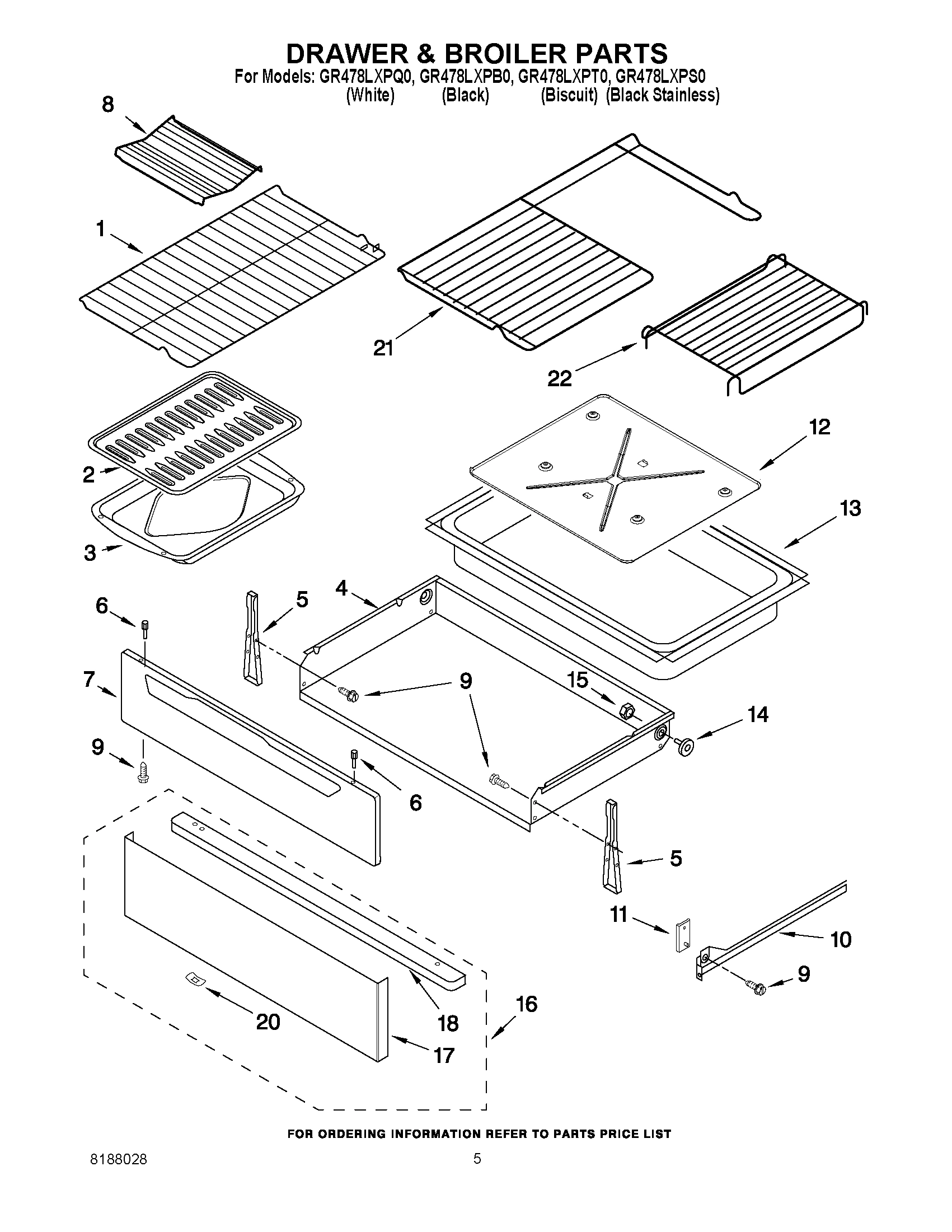

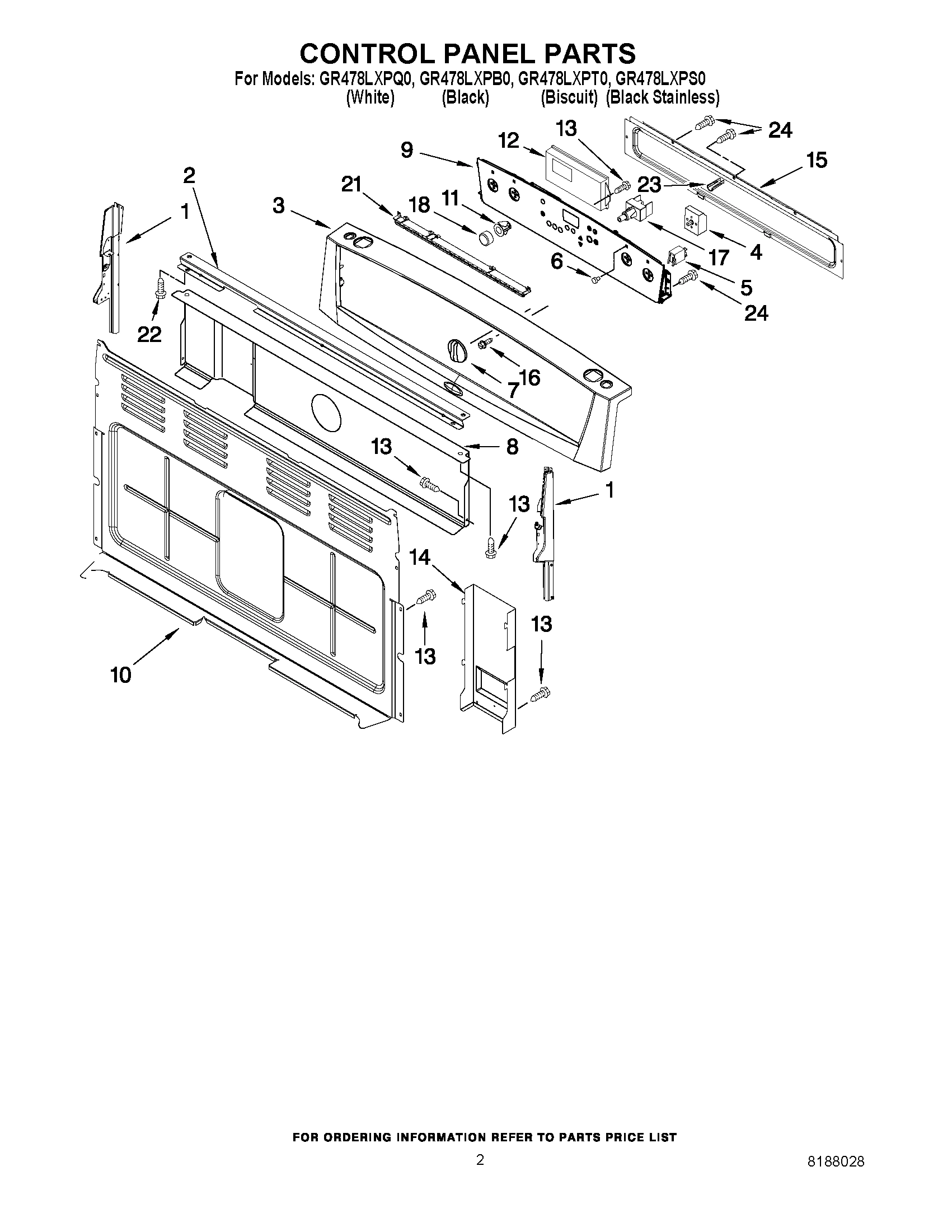

Model Whirlpool GR478LXPS0 30`` ELECTRIC CERAN FREESTANDING RANGE SELF CLEAN – Common Parts &amp; Diagrams

1

WPW10134285 Whirlpool Vent Tube Backorder WPL WPW10134285 $169.15

1

WPW10256908 Whirlpool Oven Range Rack In Stock WPL WPW10256908 $60.51

1

Trim, Top (Black) WPL 3196819 Contact Us For Availability

1

Trim, Top (Stainless Model) WPL 8272243 Contact Us For Availability

1

Trim, Top (Biscuit) WPL 8522434 Contact Us For Availability

2

WP3195996 Whirlpool Pan Grid Backorder WPL WP3195996 $41.94

2

WP3196164 Whirlpool Screw In Stock WPL WP3196164 $2.51

2

Spring, Locator WPL 3149191 Contact Us For Availability

2

Support, Corner LR WPL 8273905 Contact Us For Availability

3

W10162246 Whirlpool Side Panel Backorder WPL W10162246 $81.54

3

W11730303 Whirlpool Side Panel In Stock WPL W11730303 $58.52

3

WP3196076 Whirlpool Broil Pan Backorder WPL WP3196076 $167.94

3

WP3196170 Whirlpool Screw Backorder WPL WP3196170 $2.51

3

WPW10202216 Whirlpool Door Handle In Stock WPL WPW10202216 $130.22

3

WPW10202217 Whirlpool Door Handle In Stock WPL WPW10202217 $101.23

3

WPW10575396 Whirlpool Side Panel Backorder WPL WPW10575396 $75.80

3

Handle, Door (Biscuit) WPL 8522445 Contact Us For Availability

4

WP9758060 Whirlpool Oven Infinite Switch In Stock WPL WP9758060 $47.82

4

Drawer, Storage WPL 8272605 Contact Us For Availability

4

Seal, Oven Flange WPL 3195737 Contact Us For Availability

4

Liner, Door WPL 3186292 Contact Us For Availability

5

W10838990 Whirlpool Mounting Bracket In Stock WPL W10838990 $31.66

5

W11542153 Whirlpool Door Gasket In Stock WPL W11542153 $21.59

5

WP8523265 Whirlpool Indicator Light In Stock WPL WP8523265 $22.25

5

Seal, Window WPL 8522414 Contact Us For Availability

5

Light, Indicator (Hot Surface) WPL 8523739 Contact Us For Availability

6

WP3196068 Whirlpool Light Lens In Stock WPL WP3196068 $2.85

6

WP3196813 Whirlpool Rivet Backorder WPL WP3196813 $4.43

6

WP3196814 Whirlpool Rivet Backorder WPL WP3196814 $4.43

6

WP8053948 Whirlpool Door Glass In Stock WPL WP8053948 $67.09

6

WP9757341 Whirlpool Broil Element In Stock WPL WP9757341 $80.13

7

W10823692 Whirlpool Dual Radiant Element In Stock WPL W10823692 $117.46

7

W10823711 Whirlpool Surface Element Left Fron In Stock WPL W10823711 $100.91

7

W11219377 Whirlpool Drawer Panel Backorder WPL W11219377 $70.99

7

W11230476 Whirlpool Drawer Panel Backorder WPL W11230476 $70.99

7

W11230488 Whirlpool Drawer Panel Backorder WPL W11230488 $70.99

7

WP8523699 Whirlpool Surface Element Backorder WPL WP8523699 $93.20

7

WP9755770 Whirlpool Bake Element In Stock WPL WP9755770 $65.67

7

WPW10316950 Whirlpool Window Frame Backorder WPL WPW10316950 $28.80

8

WPW10278991 Whirlpool Insulation Backorder WPL WPW10278991 $40.48

8

Shield, Wiring WPL 8524132 Contact Us For Availability

8

Rack, Roasting WPL 3181534 Contact Us For Availability

8

SUPPORT, FRONT WPL 3195736 Contact Us For Availability

9

W11539580 Whirlpool Retainer Backorder WPL W11539580 $80.49

9

WP3196548 Whirlpool Thermal Fuse In Stock WPL WP3196548 $16.20

9

WP3400832 Whirlpool Screw In Stock WPL WP3400832 $2.51

9

Bracket, Element ((2)) WPL 8272791 Contact Us For Availability

9

Bracket, Element ((1)) WPL 8273720 Contact Us For Availability

WP8053807 Whirlpool Oven Door Hinge In Stock WPL WP8053807 $49.45

Hinge, Door (Stainless Model) WPL 8272822 Contact Us For Availability

Rail, Drawer (Right Hand) WPL 8274190 Contact Us For Availability

Rail, Drawer (Left Hand) WPL 8274191 Contact Us For Availability

Appliance Manager WPL 9761909 Contact Us For Availability

WP3196037 Whirlpool Leveling Foot Backorder WPL WP3196037 $26.50

WPW10118454 Whirlpool Refrigerator Outer Door In Stock WPL WPW10118454 $188.62

WPW10118455 Whirlpool Door Glass Assembly In Stock WPL WPW10118455 $195.36

Spacer, Glide WPL 8522669 Contact Us For Availability

Glass, Outer (Biscuit) WPL 9756416 Contact Us For Availability

Glass, Outer (Stainless Steel) WPL 9756435 Contact Us For Availability

W10761014 Whirlpool Right Door Trim In Stock WPL W10761014 $27.91

W10761018 Whirlpool Dishwasher Left Door Trim In Stock WPL W10761018 $27.91

WP8523166 Whirlpool Door Trim In Stock WPL WP8523166 $36.38

WP8523167 Whirlpool Door Trim Assembly Backorder WPL WP8523167 $35.41

WP8523172 Whirlpool Left Door Trim In Stock WPL WP8523172 $36.29

WP8523173 Whirlpool Door Trim Backorder WPL WP8523173 $35.47

Heat Shield, Drawer WPL 9756711 Contact Us For Availability

Frame, Front WPL 8522694 Contact Us For Availability

13

W10491985 Whirlpool Screw In Stock WPL W10491985 $2.51

13

WP8054068 Whirlpool Retainer Backorder WPL WP8054068 $28.80

13

Liner, Drawer WPL 8272311 Contact Us For Availability

814229 Whirlpool Primary Roller In Stock WPL 814229 $27.60

WP8523175 Whirlpool Door Trim Assembly In Stock WPL WP8523175 $47.18

WP8523177 Whirlpool Door Trim Assembly In Stock WPL WP8523177 $52.25

WP8523178 Whirlpool Door Trim Backorder WPL WP8523178 $52.70

WP8523180 Whirlpool Door Trim Assembly Backorder WPL WP8523180 $53.11

CLIP, PANEL WPL 3196576 Contact Us For Availability

15

WP487939 Whirlpool Refrigerator Nut Backorder WPL WP487939 $2.51

15

WPW10306546 Whirlpool Base Rail Backorder WPL WPW10306546 $50.64

15

Clip, Glass WPL 3196025 Contact Us For Availability

16

WP3400882 Whirlpool Screw In Stock WPL WP3400882 $2.51

16

WPW10058460 Whirlpool Appliance Levelling Leg In Stock WPL WPW10058460 $3.70

16

STAINLESS MODEL ONLY WPL NP Contact Us For Availability

17

WP8272820 Whirlpool PB Switch Backorder WPL WP8272820 $55.98

17

Panel, Stainless WPL 8053951 Contact Us For Availability

17

Guard, Wire WPL 3195987 Contact Us For Availability

18

9758491 Whirlpool Oven Push Button Backorder WPL 9758491 $6.99

18

WP179051 Whirlpool Screw Backorder WPL WP179051 $2.51

18

Handle WPL 9757237 Contact Us For Availability

19

W10404688 Whirlpool Bracket Support Backorder WPL W10404688 $7.69

19

WP3196925 Whirlpool Clip Assembly Backorder WPL WP3196925 $5.16

20

W11728255 Whirlpool Service Bracket Backorder WPL W11728255 $28.68

20

WP3196175 Whirlpool Screw In Stock WPL WP3196175 $2.51

20

WP9781235 Whirlpool Clip Backorder WPL WP9781235 $5.22

21

WP112432 Whirlpool Nut Assembly Backorder WPL WP112432 $2.51

21

WP8274021 Whirlpool Oven Rack Backorder WPL WP8274021 $82.92

21

WP9761958 Whirlpool Range Terminal Block In Stock WPL WP9761958 $13.67

3196166 Whirlpool Screw Backorder WPL 3196166 $4.85

WP3196794 Whirlpool Glass Bracket Backorder WPL WP3196794 $11.53

WP8274022 Whirlpool Oven Rack Backorder WPL WP8274022 $62.32

Back, Main WPL 9757029 Contact Us For Availability

23

WP3196262 Whirlpool Light Switch Backorder WPL WP3196262 $58.66

24

W11594027 Whirlpool Range Oven Light Socket In Stock WPL W11594027 $36.62

25

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.56

26

Cover, Tray WPL 9755771 Contact Us For Availability

27

WPW10181986 Whirlpool Oven Sensor In Stock WPL WPW10181986 $50.55

28

Cover WPL 9757970 Contact Us For Availability

29

Screw WPL 3196179 Contact Us For Availability

30

WP4449809 Whirlpool Screw In Stock WPL WP4449809 $2.51

31

WP3400016 Whirlpool Screw Assembly Backorder WPL WP3400016 $2.51

32

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

33

3196172 Whirlpool Oven Screw Backorder WPL 3196172 $9.59

34

WP7101P246-60 Whirlpool Screw Backorder WPL WP7101P246-60 $2.51

35

WP489491 Whirlpool Refrigerator Screw In Stock WPL WP489491 $2.51

36

W11169708 Whirlpool Screw Backorder WPL W11169708 $9.59

37

WP3196174 Whirlpool Screw Backorder WPL WP3196174 $2.51

38

RETAINER, SIDE WPL 8523803 Contact Us For Availability

39

SHIELD, OUTER WPL 3196091 Contact Us For Availability

40

SHIELD, INNER WPL 3196092 Contact Us For Availability

41

WP9761013 Whirlpool Door Latch Backorder WPL WP9761013 $86.66

42

Rod, Latch WPL 3196961 Contact Us For Availability

43

WPW10107820 Whirlpool Door Latch In Stock WPL WPW10107820 $111.45

44

W10877054 Whirlpool Spacer Assembly Backorder WPL W10877054 $26.75

45

WP3196557 Whirlpool Screw In Stock WPL WP3196557 $2.51

46

Tray, Hidden Bake Element WPL 9755769 Contact Us For Availability

47

W10646923 Whirlpool Insulator Backorder WPL W10646923 $7.12

48

WP9760769 Whirlpool Element Assembly In Stock WPL WP9760769 $133.70

49

WP9758925 Whirlpool Convection Fan Backorder WPL WP9758925 $137.72

50

WP4452226 Whirlpool Convection Fan Backorder WPL WP4452226 $26.94

52

WPW10134124 Whirlpool Fan Cover Backorder WPL WPW10134124 $29.43

53

Bracket, Fan WPL 9755776 Contact Us For Availability

54

Transformer WPL 9757311 Contact Us For Availability

55

Screw WPL 8533930 Contact Us For Availability

285006 Whirlpool Spray In Stock WPL 285006 $27.45

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $6.86

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $26.26

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

8053915 Whirlpool Oven Insulation Backorder WPL 8053915 $7.59

W11244557 Whirlpool Screw Backorder WPL W11244557 $9.59

WPW10208653 Whirlpool Insulation Backorder WPL WPW10208653 $28.80

FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability

Insulation, Back WPL 9755772 Contact Us For Availability

Insulation, GOC WPL 9757974 Contact Us For Availability
