Model LG GR-K24PS – Common Parts & Diagrams

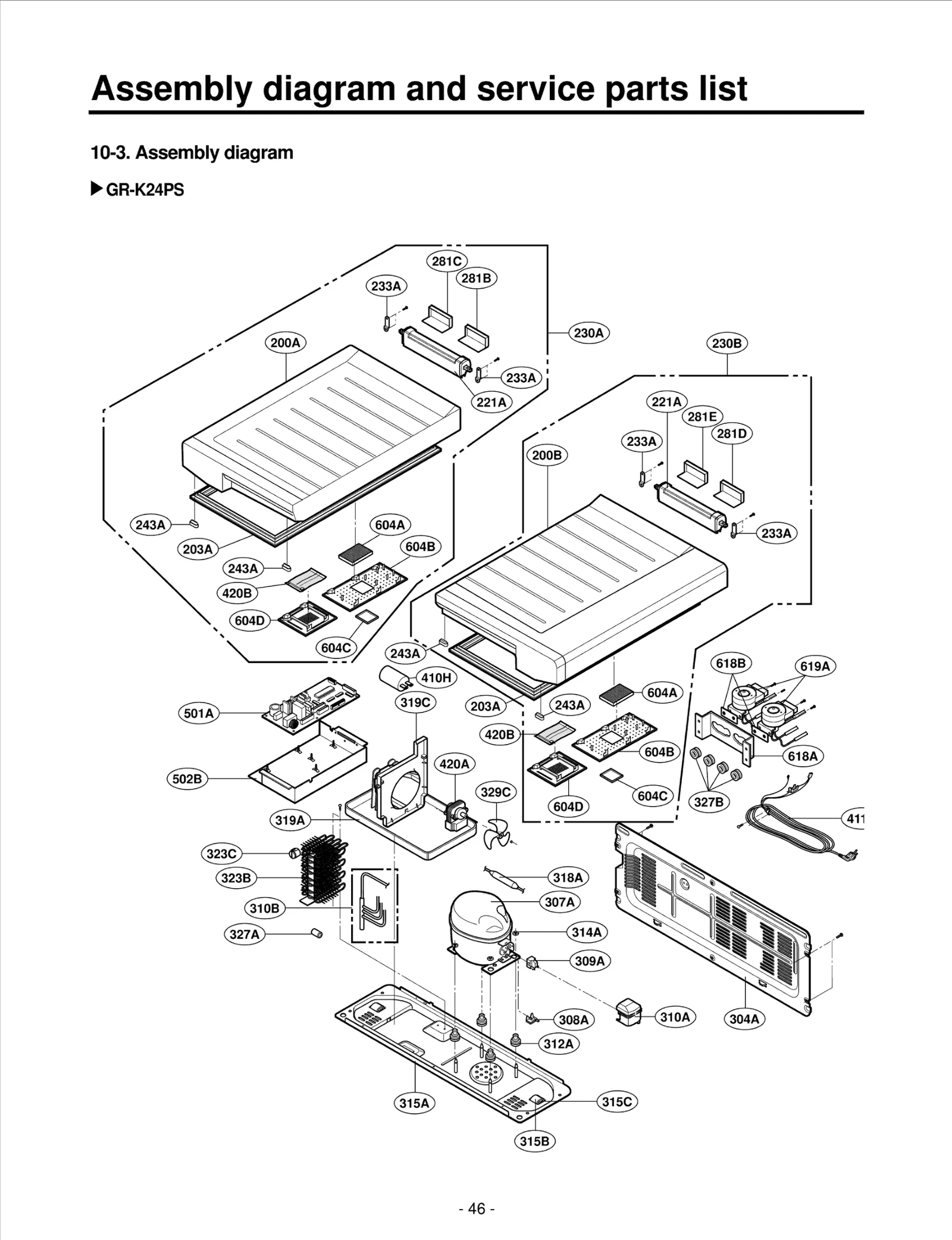

Diagram 0

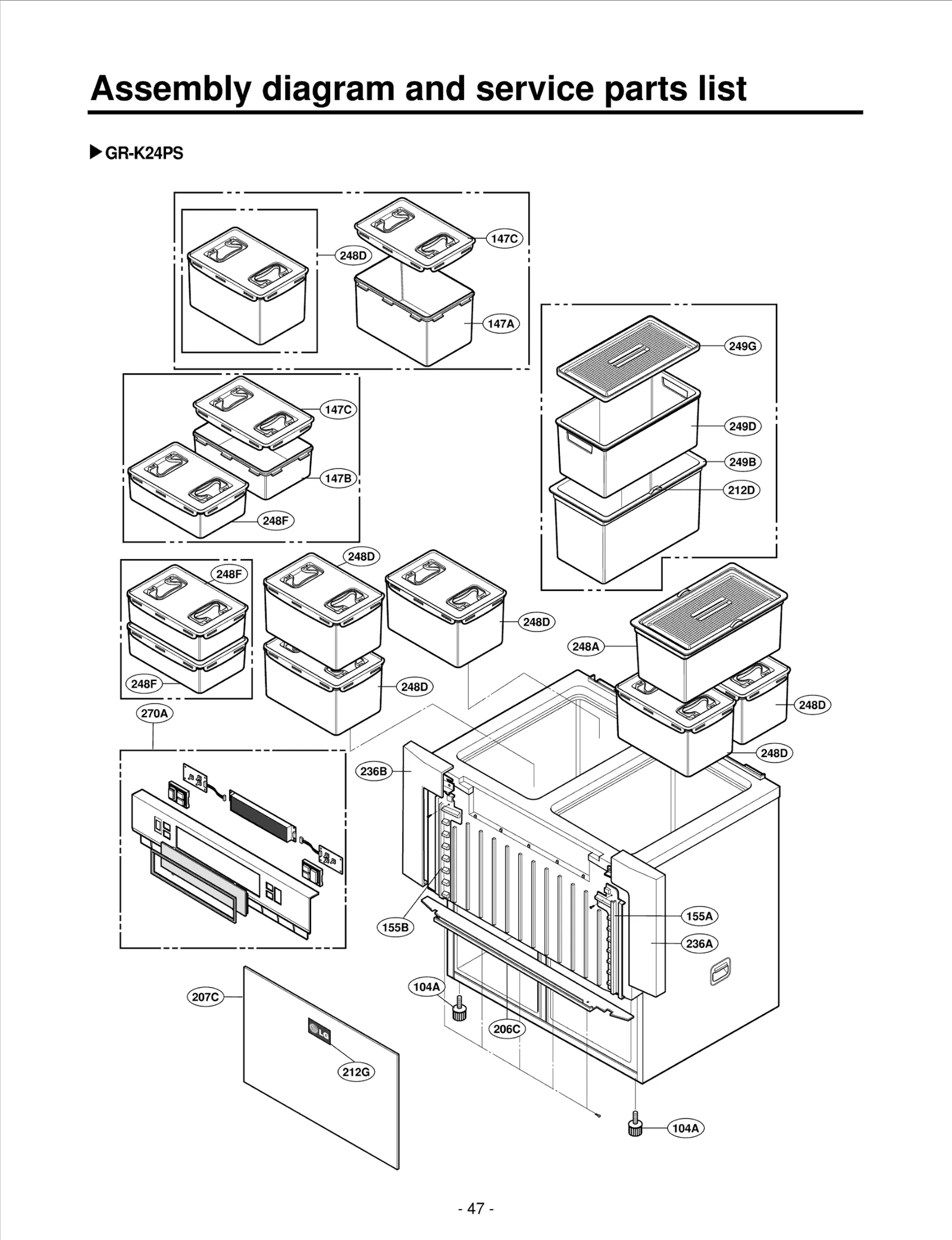

Diagram 1
Diagram 2
Diagram 3
Common parts from model LG GR-K24PS
104A
Leg,Adjust LGE 4778JA2016A Contact Us For Availability
125C
COVER,TRAY LGE 3550JA1321A Contact Us For Availability
125D
DECO,DOOR LGE 3806JA2065A Contact Us For Availability
145B
DOOR,FRESH ROOM LGE 3580JA1037A Contact Us For Availability
147A
Bucket,Side Dish LGE 5074JA1044C Contact Us For Availability
147B
Bucket,Side Dish LGE 5074JA1062B Contact Us For Availability
147C
Cover Assembly,Bucket LGE 3551JA1053G Contact Us For Availability
155A
Supporter,Panel LGE 4980JA2095A Contact Us For Availability
155B
Supporter,Panel LGE 4980JA2095B Contact Us For Availability
155C
Cap,Decor Refrigerator LGE 5078JA2049R Contact Us For Availability
201A
Door Assembly,Semi Refrigerator LGE 3581JA1178L Contact Us For Availability
201B
Door Assembly,Semi Refrigerator LGE 3581JA1177L Contact Us For Availability
203B
GASKET ASSEMBLY,DOOR LGE 4987JA1023B Contact Us For Availability
206C
Cap,Decor Refrigerator LGE 5078JA2047N Contact Us For Availability
206F
Cap,Decor Refrigerator LGE 5078JA2048A Contact Us For Availability
206G
Cap,Decor Refrigerator LGE 5078JA2048B Contact Us For Availability
207C
Panel Assembly,Metal LGE 3721JA1043L Contact Us For Availability
207D
Panel Assembly,Metal LGE 3721JA1043S Contact Us For Availability
212A
Handle,Refrigerator LGE 3650JA1226K Contact Us For Availability
212B
Handle,Refrigerator LGE 3650JA1232K Contact Us For Availability
212D
Handle,Refrigerator LGE MEB30203401 Contact Us For Availability
212G
MARK LGE 3846JD1007B Contact Us For Availability
231A
Door Assembly,Refrigerator LGE 3581JA1180L Contact Us For Availability
231B
Door Assembly,Refrigerator LGE 3581JA1179L Contact Us For Availability
236A
Decor,Case LGE 3806JA1176C Contact Us For Availability
236B
Decor,Case LGE 3806JA1176D Contact Us For Availability
236C
Decor,Door LGE 3806JA1181A Contact Us For Availability
236D
Decor,Door LGE 3806JA1181B Contact Us For Availability
241A
BASKET,DOOR LGE 5004JA1207A Contact Us For Availability
241B
Basket Assembly,Door LGE 5005JA2042A Contact Us For Availability
248A
Basket Assembly,Door LGE 5005JA1013V Contact Us For Availability
248B
Rail,Side LGE 5218JA2005A Contact Us For Availability
248C
GUIDE,DRAWER LGE 4974JA1095B Contact Us For Availability
248D
Bucket Assembly,Side Dish LGE 5075JA1025M Contact Us For Availability
248F
Bucket Assembly,Side Dish LGE 5075JA1025N Contact Us For Availability
248G
GUIDE,DRAWER LGE 4974JA1095A Contact Us For Availability
249A
COVER,BANK LGE 3550JA2274A Contact Us For Availability
249B
Basket,Door LGE 5004JA1148C Contact Us For Availability
249D
Basket,Door LGE 5004JA1150D Contact Us For Availability
249G
Basket Assembly,Door LGE AAP30653901 Contact Us For Availability
250A
Tray,Drawer LGE 3390JA1241B Contact Us For Availability
270A
Frame Assembly,Display LGE 3211JA1065B Contact Us For Availability
281B
Cap,Hinge LGE 5006JA2062A Contact Us For Availability
281C
Cap,Hinge LGE 5006JA2062B Contact Us For Availability
281D
Cap,Hinge LGE 5006JA2064A Contact Us For Availability
281E
Cap,Hinge LGE 5006JA2064B Contact Us For Availability
304A
COVER ASSEMBLY,BACK-M/C LGE 3551JA1076B Contact Us For Availability
307A
Compressor,Set Assembly LGE 2521C-A5721 Contact Us For Availability
309A
Thermistor Assembly,PTC LGE 6748C-0001B Contact Us For Availability
310B
PIPE ASSEMBLY,JOINT LGE 5201JA1099D Contact Us For Availability
312A
RUBBER,SEAT LGE 5040JA3035A Contact Us For Availability
315A
COMP BASE ASSEMBLY,STD LGE 3103JA1038A Contact Us For Availability
318A
DRIER ASSEMBLY LGE 5851JA2005E Contact Us For Availability
319A
Tray,Drip LGE 3390JA0027B Contact Us For Availability
319C
Guide,Fan LGE 4974JA1093B Contact Us For Availability
323B
CONDENSER ASSEMBLY,WIRE LGE 5403JA1056A Contact Us For Availability
410H
CAPACITOR-S LGE J513-00012P Contact Us For Availability
411A
POWER CORD ASSEMBLY LGE 6411JB2025S Contact Us For Availability
420A
MOTOR(MECH),COOLING LGE 4680JB1035U Contact Us For Availability
420B
Cooling Pack LGE 3005JA3001B Contact Us For Availability
501A
PWB(PCB) ASSEMBLY,MAIN LGE 6871JB1246F Contact Us For Availability
502B
Case,PCB LGE 3110JA1100B Contact Us For Availability
604A
Deodorizer LGE 5986JA2004B Contact Us For Availability
604B
Cover,Deodorizer LGE 3550JA2277B Contact Us For Availability
604C
Cover,Deodorizer LGE 3550JD1122A Contact Us For Availability
604D
Cover,Deodorizer LGE 3550JD1121B Contact Us For Availability
618A
BRACKET,MOTOR LGE 4810JA2109A Contact Us For Availability
618B
Bracket,Valve LGE 4810JA3174A Contact Us For Availability
619A
VALVE ASSEMBLY,GAS LGE 5221JB1001B Contact Us For Availability
× ![]()
