Model Electrolux GPM638BDL1 RANGE – Common Parts & Diagrams
02 - SPLASHER CONTROL
03 - COOKTOP PARTS

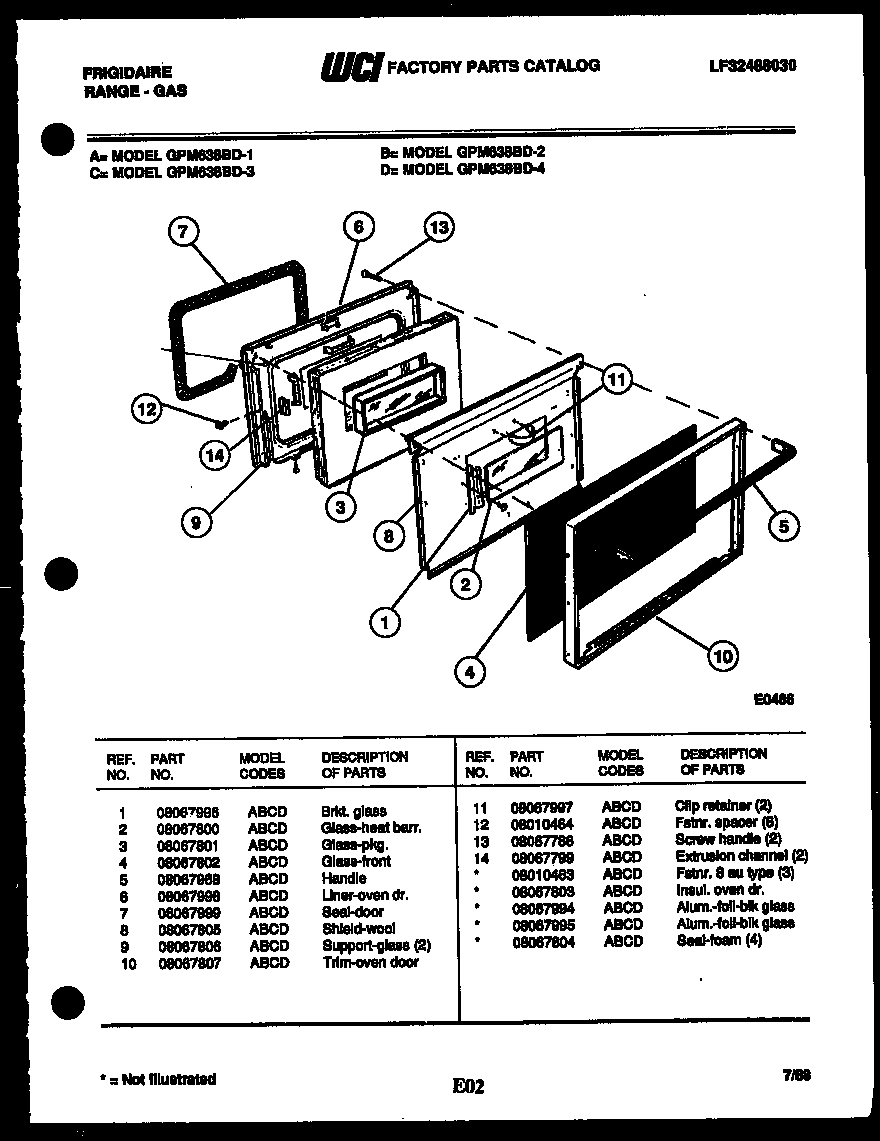

04 - LOWER OVEN DOOR PARTS

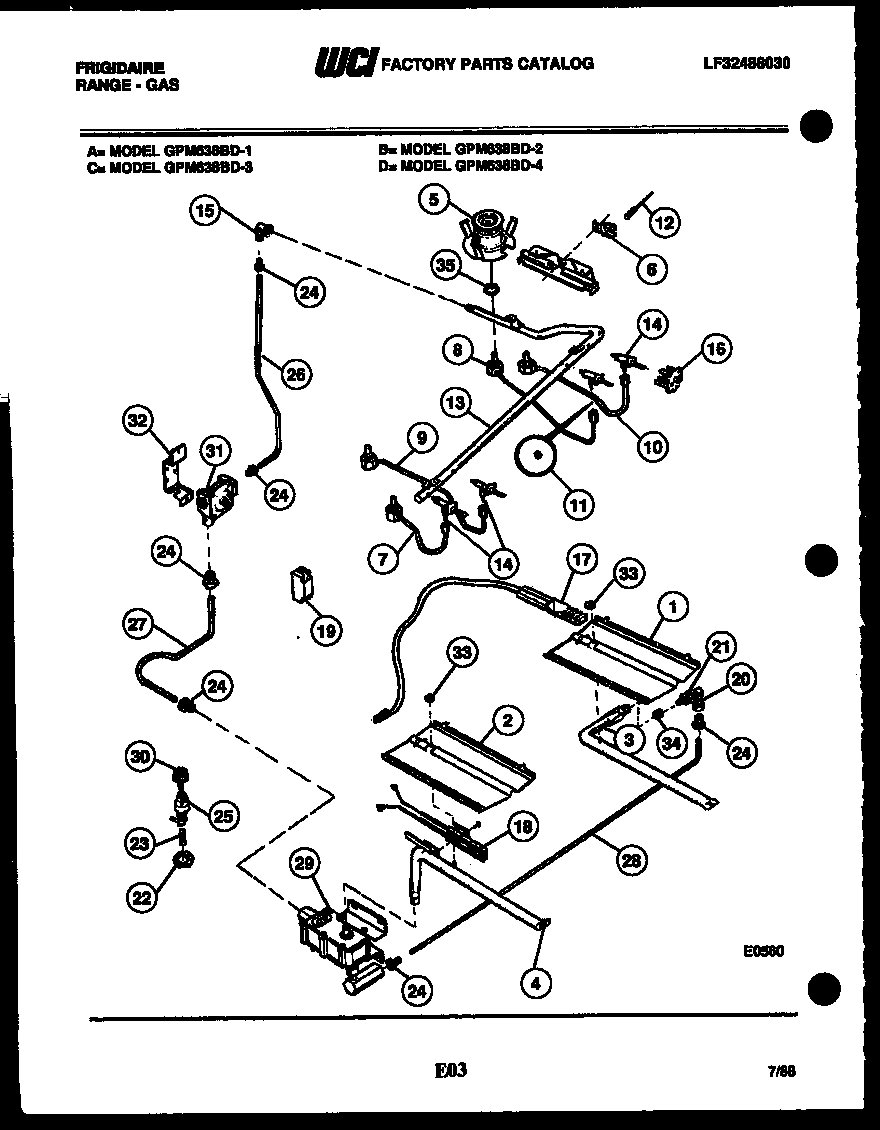

05 - BURNER, MANIFOLD AND GAS CONTROL

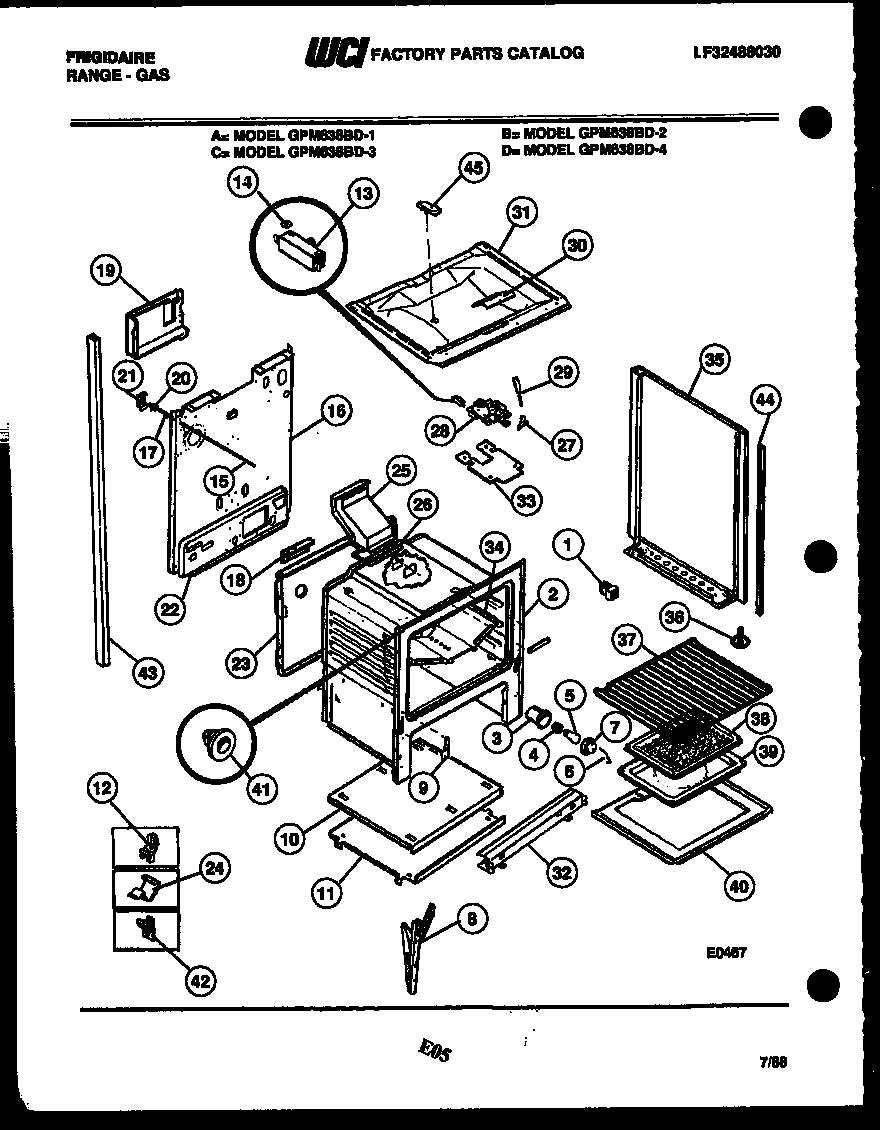

06 - LOWER BODY PARTS

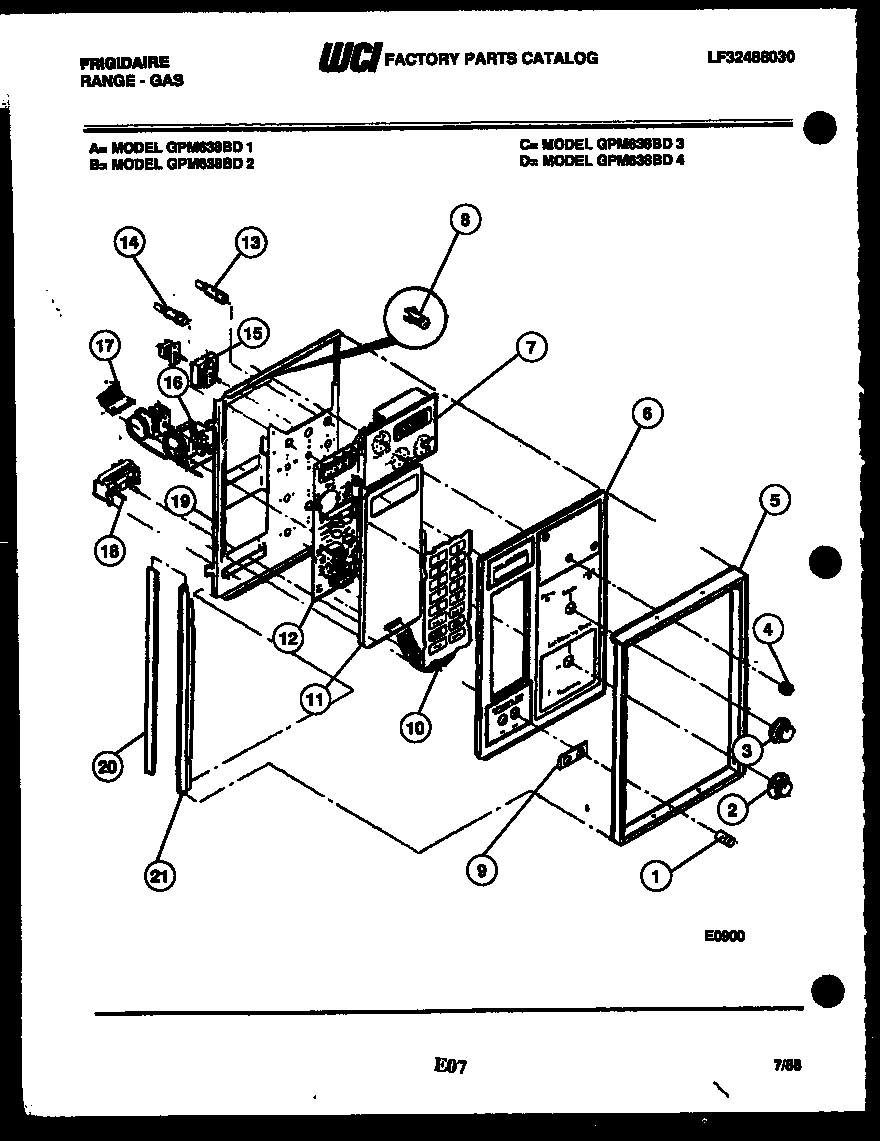

07 - CONTROL PANEL

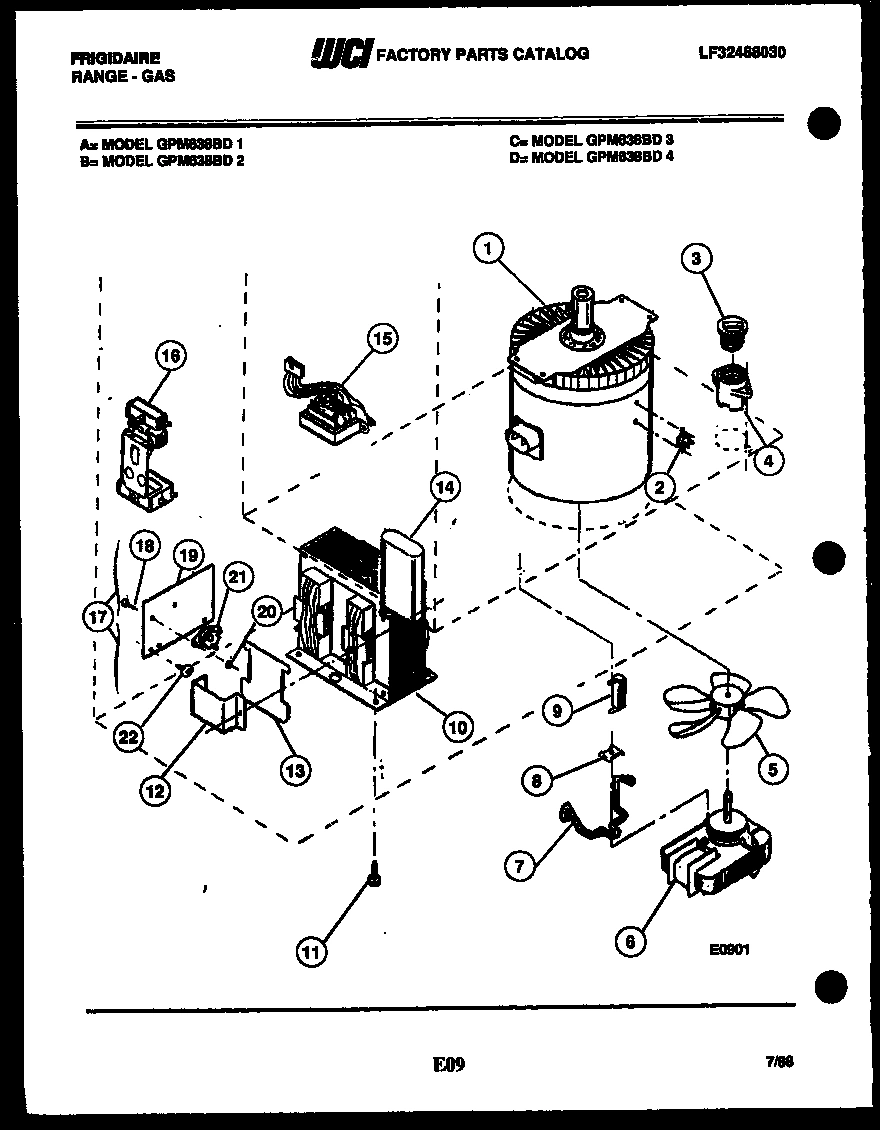

08 - POWER CONTROL

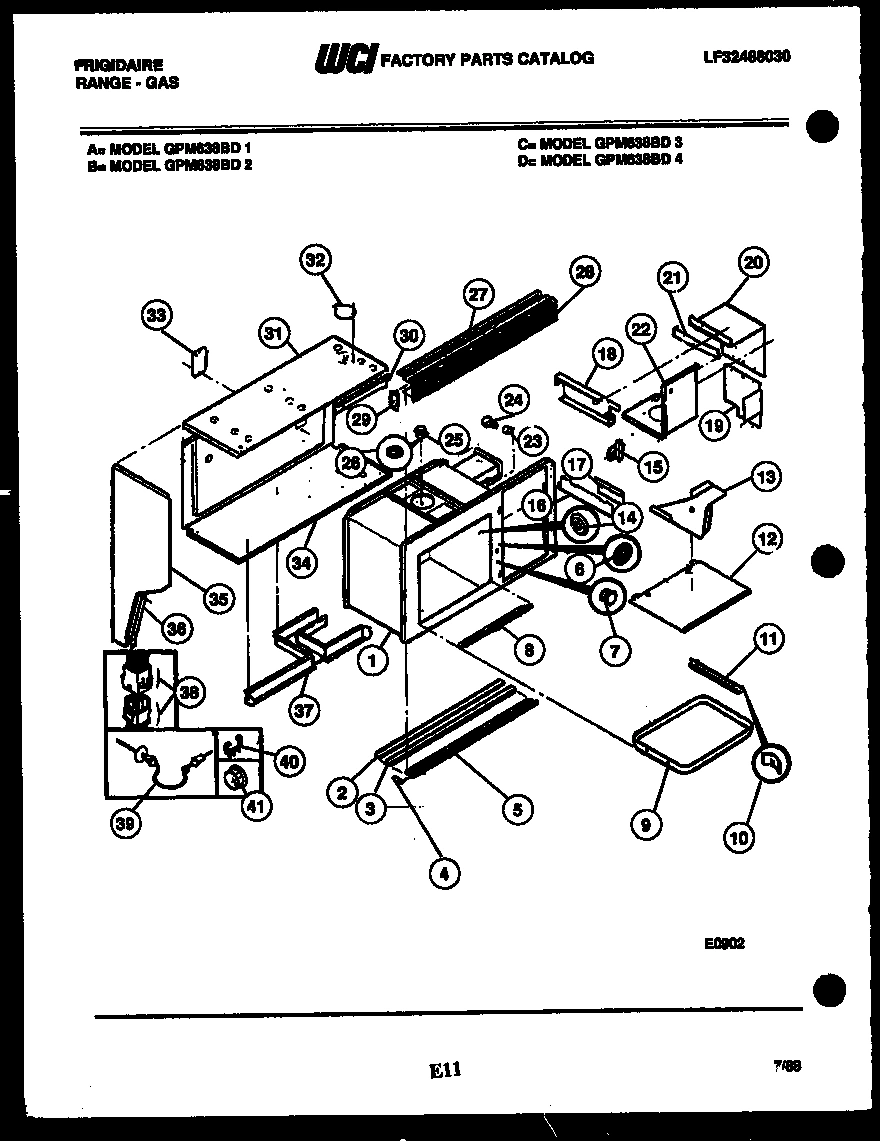

09 - UPPER BODY PARTS

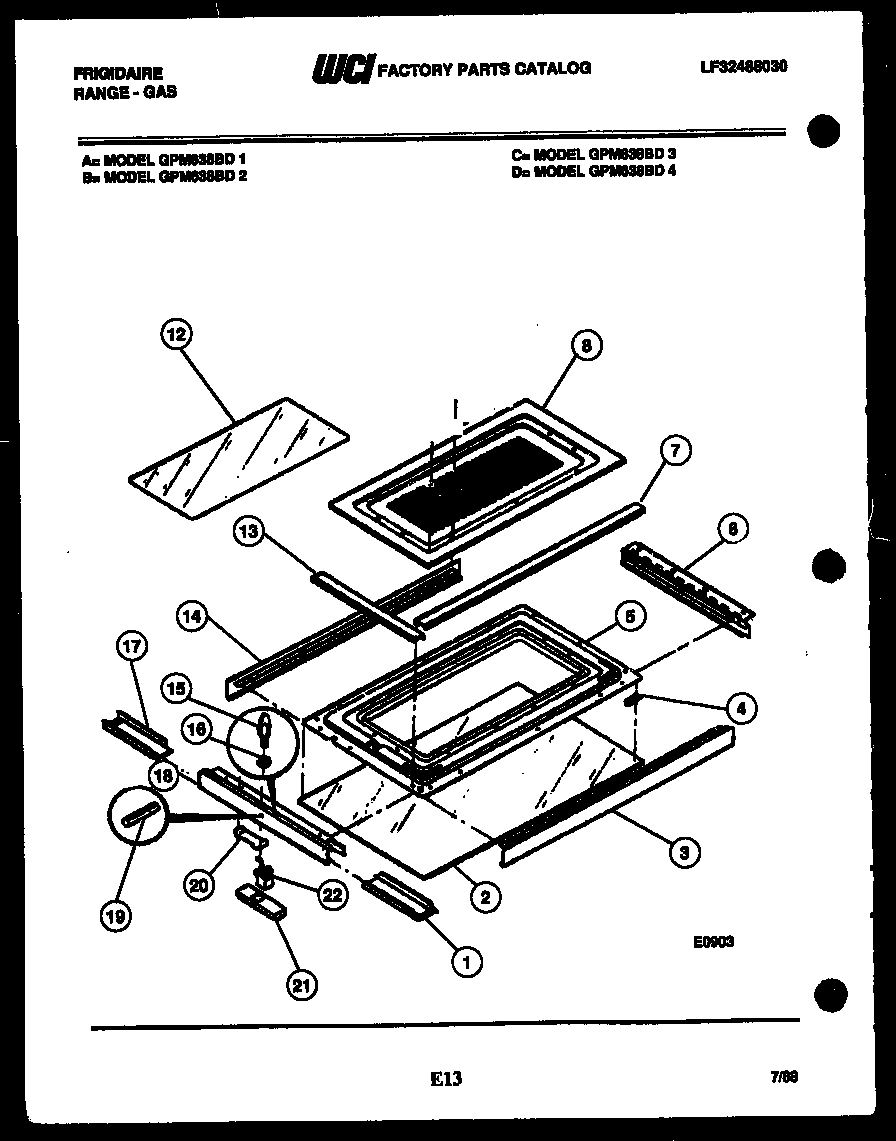

10 - UPPER OVEN DOOR PARTS

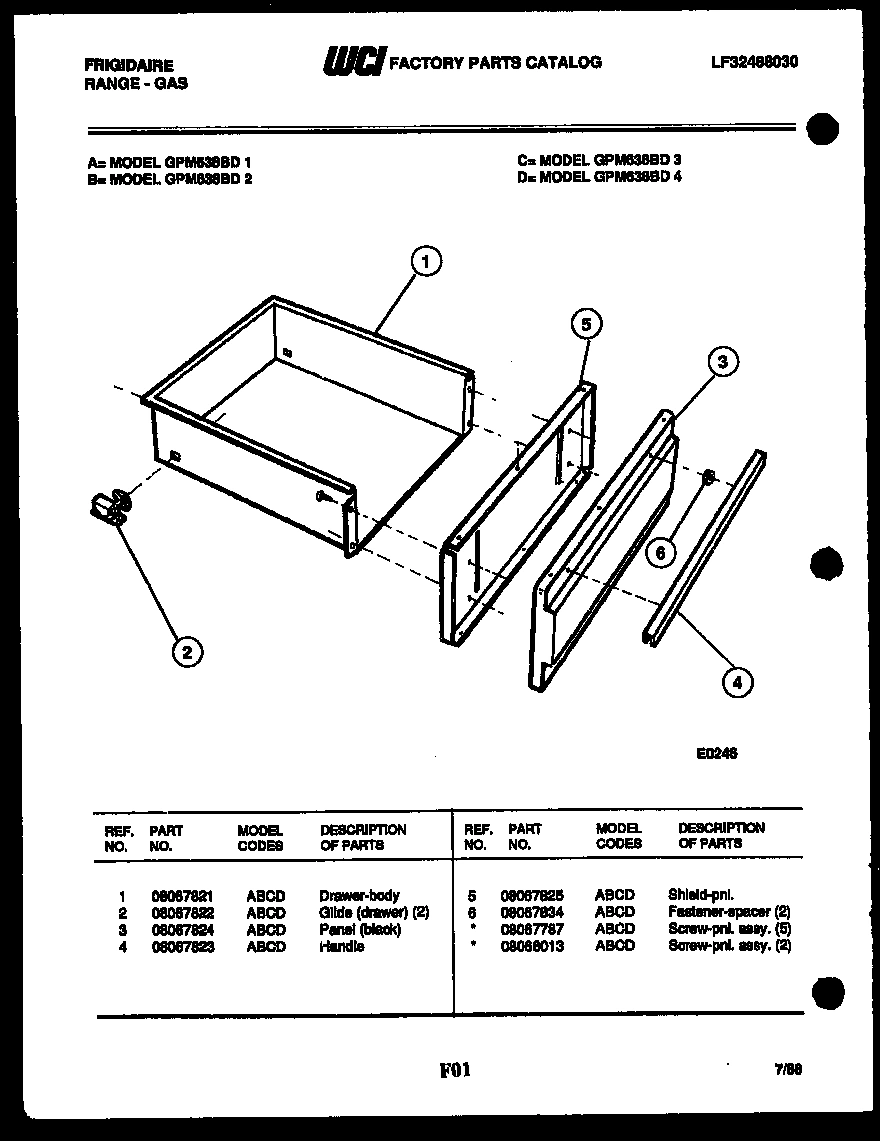

11 - DRAWER PARTS
Common parts from model Electrolux GPM638BDL1 RANGE
*15352
WCI 08010463 WCI 08010463 Contact Us For Availability
*15352
WCI 08067803 WCI 08067803 Contact Us For Availability
*15352
WCI 08067804 WCI 08067804 Contact Us For Availability
*15352
WCI 08067995 WCI 08067995 Contact Us For Availability
*15357
WCI 08067977 WCI 08067977 Contact Us For Availability
*15357
WCI 08068008 WCI 08068008 Contact Us For Availability
*15360
WCI 8010401 WCI 8010401 Contact Us For Availability
*15361
HARNESS MAIN WCI 3091202 Contact Us For Availability
*15361
WCI 8008908 WCI 8008908 Contact Us For Availability
*15361
WCI 8010494 WCI 8010494 Contact Us For Availability
*15365
WCI 8008961 WCI 8008961 Contact Us For Availability
*15365
WCI 8010554 WCI 8010554 Contact Us For Availability
*15365
WCI 8011691 WCI 8011691 Contact Us For Availability
*15365
WCI 8012134 WCI 8012134 Contact Us For Availability
*15365
WCI 8014095 WCI 8014095 Contact Us For Availability
*15365
WCI 8067735 WCI 8067735 Contact Us For Availability
*15366
SCREW-DOOR ASSY. (22) WCI 8010406 Contact Us For Availability
*15366
SCREW-PNL. ASSY. (2) WCI 08068013 Contact Us For Availability
1
WCI 08068003 WCI 08068003 Contact Us For Availability
1
BRKT. GLASS WCI 08067996 Contact Us For Availability
1
WCI 08067792 WCI 08067792 Contact Us For Availability
1
WCI 8010399 WCI 8010399 Contact Us For Availability
1
WCI 8008917 WCI 8008917 Contact Us For Availability
1
WCI 8012069 WCI 8012069 Contact Us For Availability
1
WCI 08067821 WCI 08067821 Contact Us For Availability
1A
NUT-HEX 5 MILLIMETER (NON-ILLUSTRATED) WCI 8008918 Contact Us For Availability
2
WCI 08067974 WCI 08067974 Contact Us For Availability
2
WCI 08067800 WCI 08067800 Contact Us For Availability
2
WCI 08067926 WCI 08067926 Contact Us For Availability
2
WCI 3015711 WCI 3015711 Contact Us For Availability
2
WCI 8012862 WCI 8012862 Contact Us For Availability
2
WCI 8010508 WCI 8010508 Contact Us For Availability
2
WCI 8037914 WCI 8037914 Contact Us For Availability
3
WCI 08067935 WCI 08067935 Contact Us For Availability
3
WCI 08068011 WCI 08068011 Contact Us For Availability
3
WCI 08067801 WCI 08067801 Contact Us For Availability
3
WCI 08067809 WCI 08067809 Contact Us For Availability
3
WCI 3015710 WCI 3015710 Contact Us For Availability
3
WCI 8012054 WCI 8012054 Contact Us For Availability
3
WCI 8011890 WCI 8011890 Contact Us For Availability
3
WCI 8010438 WCI 8010438 Contact Us For Availability
3
WCI 08067824 WCI 08067824 Contact Us For Availability
4
WCI 08067775 WCI 08067775 Contact Us For Availability
4
WCI 08010428 WCI 08010428 Contact Us For Availability
4
WCI 08067802 WCI 08067802 Contact Us For Availability
4
WCI 08067936 WCI 08067936 Contact Us For Availability
4
WCI 8037901 WCI 8037901 Contact Us For Availability
4
WCI 8012055 WCI 8012055 Contact Us For Availability
4
WCI 8010510 WCI 8010510 Contact Us For Availability
4
WCI 8010437 WCI 8010437 Contact Us For Availability
4
WCI 08067823 WCI 08067823 Contact Us For Availability
5
RECEPTACLE FLO. WCI 08010388 Contact Us For Availability
5
WCI 08067932 WCI 08067932 Contact Us For Availability
5
WCI 08067968 WCI 08067968 Contact Us For Availability
5
WCI 08067937 WCI 08067937 Contact Us For Availability
5
WCI 3091225 WCI 3091225 Contact Us For Availability
5
WCI 8012182 WCI 8012182 Contact Us For Availability
5
WCI 3091231 WCI 3091231 Contact Us For Availability
5
WCI 8010436 WCI 8010436 Contact Us For Availability
5
WCI 08067825 WCI 08067825 Contact Us For Availability
6
WCI 08067930 WCI 08067930 Contact Us For Availability
6
WCI 08067933 WCI 08067933 Contact Us For Availability
6
LINER-OVEN DR. WCI 08067998 Contact Us For Availability
6
WCI 08068014 WCI 08068014 Contact Us For Availability
6
WCI 08067835 WCI 08067835 Contact Us For Availability
6
WCI 3091226 WCI 3091226 Contact Us For Availability
6
WCI 8012203 WCI 8012203 Contact Us For Availability
6
WCI 8010512 WCI 8010512 Contact Us For Availability
6
WCI 8010435 WCI 8010435 Contact Us For Availability
6
WCI 08067834 WCI 08067834 Contact Us For Availability
7
WCI 08010396 WCI 08010396 Contact Us For Availability
7
WCI 08067794 WCI 08067794 Contact Us For Availability
7
WCI 08067938 WCI 08067938 Contact Us For Availability
7
GLASS-OVEN LIGHT LENS WCI 08067765 Contact Us For Availability
7
WCI 8037915 WCI 8037915 Contact Us For Availability
7
WCI 8010478 WCI 8010478 Contact Us For Availability
7
WCI 8010513 WCI 8010513 Contact Us For Availability
7
WCI 8010433 WCI 8010433 Contact Us For Availability
7A
WCI 08067836 WCI 08067836 Contact Us For Availability
8
WCI 316007002 No Longer Available
8
GUSSET-MVW SUPPT. (LH) WCI 08067830 Contact Us For Availability
8
WCI 08067795 WCI 08067795 Contact Us For Availability
8
WCI 08067805 WCI 08067805 Contact Us For Availability
8
WCI 08067939 WCI 08067939 Contact Us For Availability
8
WCI 8011713 WCI 8011713 Contact Us For Availability
8
WCI 8012858 WCI 8012858 Contact Us For Availability
8
WCI 8010518 WCI 8010518 Contact Us For Availability
8
WCI 8010432 WCI 8010432 Contact Us For Availability
8A
GUSSET-MVW SUPPT. (RH) WCI 08067737 Contact Us For Availability
9
WCI 08067736 WCI 08067736 Contact Us For Availability
9
WCI 08067966 WCI 08067966 Contact Us For Availability
9
WCI 08067806 WCI 08067806 Contact Us For Availability
9
WCI 08067940 WCI 08067940 Contact Us For Availability
9
WCI 08067759 WCI 08067759 Contact Us For Availability
9
WCI 8010410 WCI 8010410 Contact Us For Availability
9
WCI 8037625 WCI 8037625 Contact Us For Availability
9
WCI 8010514 WCI 8010514 Contact Us For Availability
10
WCI 08012849 WCI 08012849 Contact Us For Availability
10
WCI 08067967 WCI 08067967 Contact Us For Availability
10
WCI 08067807 WCI 08067807 Contact Us For Availability
10
WCI 08067941 WCI 08067941 Contact Us For Availability
10
WCI 08067986 WCI 08067986 Contact Us For Availability
10
WCI 8037904 WCI 8037904 Contact Us For Availability
10
WCI 8010515 WCI 8010515 Contact Us For Availability
10A
WCI 8010517 WCI 8010517 Contact Us For Availability
10B
WCI 8037664 WCI 8037664 Contact Us For Availability
11
WCI 08067730 WCI 08067730 Contact Us For Availability
11
WCI 08068002 WCI 08068002 Contact Us For Availability
11
WCI 08067997 WCI 08067997 Contact Us For Availability
11
FERRULE (4) WCI 08067945 Contact Us For Availability
11
WCI 8010412 WCI 8010412 Contact Us For Availability
11
WCI 8008933 WCI 8008933 Contact Us For Availability
11
WCI 8010516 WCI 8010516 Contact Us For Availability
11A
WCI 08067992 WCI 08067992 Contact Us For Availability
12
FSTNR., CABLE CLAMP WCI 08067733 Contact Us For Availability
12
WCI 08067959 WCI 08067959 Contact Us For Availability
12
WCI 08010464 WCI 08010464 Contact Us For Availability
12
WCI 08068012 WCI 08068012 Contact Us For Availability
12
CLIP THERMO. (2) WCI 08067754 Contact Us For Availability
12
WCI 8012868 WCI 8012868 Contact Us For Availability
12
WCI 8010483 WCI 8010483 Contact Us For Availability
12
WCI 8010519 WCI 8010519 Contact Us For Availability
12
WCI 8010431 WCI 8010431 Contact Us For Availability
12A
WCI 8008904 WCI 8008904 Contact Us For Availability
13
WCI 08008992 WCI 08008992 Contact Us For Availability
13
CAP MANIFOLD TRIM (LH) WCI 08068000 Contact Us For Availability
13
WCI 08067786 WCI 08067786 Contact Us For Availability
13
WCI 08067949 WCI 08067949 Contact Us For Availability
13
SWITCH WCI 08067781 Contact Us For Availability
13
INDICATOR LIGHT (3) WCI 318T023P11 Contact Us For Availability
13
WCI 8010484 WCI 8010484 Contact Us For Availability
13
WCI 8010520 WCI 8010520 Contact Us For Availability
13
WCI 8010434 WCI 8010434 Contact Us For Availability
14
WCI 08067927 WCI 08067927 Contact Us For Availability
14
CAP MANIFOLD TRIM (RH) WCI 08068001 Contact Us For Availability
14
EXTRUSION CHANNEL (2) WCI 08067799 Contact Us For Availability
14
WCI 08067950 WCI 08067950 Contact Us For Availability
14
FASTNER PUSH ON (3) WCI 08067776 Contact Us For Availability
14
WCI 8037624 WCI 8037624 Contact Us For Availability
14
WCI 8008962 WCI 8008962 Contact Us For Availability
14
WCI 8010439 WCI 8010439 Contact Us For Availability
14A
STUD SPACER (2) (NON-ILLUSTRATED) WCI 08067978 Contact Us For Availability
15
COVER-LIGHT ROD WCI 08067758 Contact Us For Availability
15
WCI 08067769 WCI 08067769 Contact Us For Availability
15
ELBOW 1/2 NP TO 9/16-24 WCI 08067948 Contact Us For Availability
15
WCI 3015292 WCI 3015292 Contact Us For Availability
15
TRANSFORMER-LOW VOLTAGE WCI 8010486 Contact Us For Availability
15
WCI 8008972 WCI 8008972 Contact Us For Availability
15
WCI 8010447 WCI 8010447 Contact Us For Availability
15A
WCI 08067952 WCI 08067952 Contact Us For Availability
15A
WCI 08067957 WCI 08067957 Contact Us For Availability
16
TRIM-O/U SPL. SIDE LH WCI 08010548 Contact Us For Availability
16
WCI 08067728 WCI 08067728 Contact Us For Availability
16
THERMOSTAT-LOWER OVEN WCI 3051320 Contact Us For Availability
16
WCI 8010487 WCI 8010487 Contact Us For Availability
16
WCI 8010521 WCI 8010521 Contact Us For Availability
16
NUT-HEX WCI 8009182 Contact Us For Availability
16A
WCI 08010549 WCI 08010549 Contact Us For Availability
16A
WCI 8010488 WCI 8010488 Contact Us For Availability
16B
WCI 8012068 WCI 8012068 Contact Us For Availability
17
WCI 08067929 WCI 08067929 Contact Us For Availability
17
WCI 08067784 WCI 08067784 Contact Us For Availability
17
WCI 8008911 WCI 8008911 Contact Us For Availability
17
WCI 8010522 WCI 8010522 Contact Us For Availability
17
INSERT-TOP WCI 8012077 Contact Us For Availability
18
WCI 08067832 WCI 08067832 Contact Us For Availability
18
WCI 08067924 WCI 08067924 Contact Us For Availability
18
WCI 8008910 WCI 8008910 Contact Us For Availability
18
WCI 8010523 WCI 8010523 Contact Us For Availability
18
WCI 8037917 WCI 8037917 Contact Us For Availability
18A
SCREW-AIR DUCT CHANNEL (2) (NON-ILLUSTRATED) WCI 8008931 Contact Us For Availability
19
WCI 08067831 WCI 08067831 Contact Us For Availability
19
CHANL-LIGHT SHIELD WCI 08067925 Contact Us For Availability
19
PANEL-CONTROL WCI 3091468 Contact Us For Availability
19
WCI 8010489 WCI 8010489 Contact Us For Availability
19
WCI 8010611 WCI 8010611 Contact Us For Availability
19
WCI 8010446 WCI 8010446 Contact Us For Availability
20
THERMO.-OVEN S/C WCI 08067928 Contact Us For Availability
20
MIXER-ELBOW (BROIL) WCI 08067979 Contact Us For Availability
20
WCI 08067993 WCI 08067993 Contact Us For Availability
20
WCI 643T013P03 WCI 643T013P03 Contact Us For Availability
20
WCI 8012066 WCI 8012066 Contact Us For Availability
20
WCI 8010527 WCI 8010527 Contact Us For Availability
20
WCI 8010445 WCI 8010445 Contact Us For Availability
21
WCI 08067981 WCI 08067981 Contact Us For Availability
21
WCI 08067748 WCI 08067748 Contact Us For Availability
21
WCI 8011888 WCI 8011888 Contact Us For Availability
21
TRIAC WCI 8012067 Contact Us For Availability
21
WCI 8010526 WCI 8010526 Contact Us For Availability
21
HANDLE-COMPLETE WCI 8011737 Contact Us For Availability
22
WCI 08067980 WCI 08067980 Contact Us For Availability
22
SHIELD-WALL REAR WCI 08067987 Contact Us For Availability
22
WCI 8010524 WCI 8010524 Contact Us For Availability
22
WCI 8011738 WCI 8011738 Contact Us For Availability
23
WCI 08067964 WCI 08067964 Contact Us For Availability
23
WCI 08067991 WCI 08067991 Contact Us For Availability
23
WCI 8037639 WCI 8037639 Contact Us For Availability
24
WCI 08067946 WCI 08067946 Contact Us For Availability
24
WCI 08067956 WCI 08067956 Contact Us For Availability
24
WCI 3037902 WCI 3037902 Contact Us For Availability
25
WCI 08067983 WCI 08067983 Contact Us For Availability
25
WCI 08067963 WCI 08067963 Contact Us For Availability
25
WCI 8008977 WCI 8008977 Contact Us For Availability
25A
SCREW-MOTOR STIRRER (NON-ILLUSTRATED) WCI 8008971 Contact Us For Availability
25B
NUT-MOTOR STIRRER (NON-ILLUSTRATED) WCI 8012115 Contact Us For Availability
26
WCI 08068004 WCI 08068004 Contact Us For Availability
26
WCI 8008976 WCI 8008976 Contact Us For Availability
26A
WCI 08067779 WCI 08067779 Contact Us For Availability
26B
WCI 08013188 WCI 08013188 Contact Us For Availability
27
TUBE (VALVE/REG.) WCI 08068005 Contact Us For Availability
27
WCI 08010597 WCI 08010597 Contact Us For Availability
27
WCI 8010529 WCI 8010529 Contact Us For Availability
28
WCI 08068006 WCI 08068006 Contact Us For Availability
28
WCI 08067976 WCI 08067976 Contact Us For Availability
28
WCI 8010530 WCI 8010530 Contact Us For Availability
29
WCI 08067975 WCI 08067975 Contact Us For Availability
29
WCI 8010532 WCI 8010532 Contact Us For Availability
29A
WCI 8010533 WCI 8010533 Contact Us For Availability
29B
WCI 8010534 WCI 8010534 Contact Us For Availability
30
WCI 08067954 WCI 08067954 Contact Us For Availability
30
WCI 08067757 WCI 08067757 Contact Us For Availability
30
WCI 3091470 WCI 3091470 Contact Us For Availability
30A
WCI 8010536 WCI 8010536 Contact Us For Availability
31
WCI 08067942 WCI 08067942 Contact Us For Availability
31
WCI 529T079F05 WCI 529T079F05 Contact Us For Availability
31A
SCREW-PANEL TOP (2) (NON-ILLUSTRATED) WCI 8008928 Contact Us For Availability
32
WCI 08067985 WCI 08067985 Contact Us For Availability
32
WCI 8010538 WCI 8010538 Contact Us For Availability
33
WCI 08067988 WCI 08067988 Contact Us For Availability
33
WCI 8010540 WCI 8010540 Contact Us For Availability
33A
SCREW-LIGHT ACCESS (2) (NON-ILLUSTRATED) WCI 636T090P46 Contact Us For Availability
34
SPUD NO. 50 ORIFICE WCI 08068015 Contact Us For Availability
34
WCI 08067990 WCI 08067990 Contact Us For Availability
34
WCI 8037913 WCI 8037913 Contact Us For Availability
34A
SCREW-WRAPPER BACK (NON-ILLUSTRATED) WCI 8010491 Contact Us For Availability
35
NUT-SPECIAL (4) WCI 08067951 Contact Us For Availability
35
WCI 8067813 WCI 8067813 Contact Us For Availability
35
WCI 8067815 WCI 8067815 Contact Us For Availability
35A
WCI 08067818 WCI 08067818 Contact Us For Availability
35B
WCI 08067817 WCI 08067817 Contact Us For Availability
36
WCI 08010569 WCI 08010569 Contact Us For Availability
36
WCI 8010548 WCI 8010548 Contact Us For Availability
36A
WCI 8010549 WCI 8010549 Contact Us For Availability
37
WCI 8010550 WCI 8010550 Contact Us For Availability
38
WCI 08016608 WCI 08016608 Contact Us For Availability
38
WCI 8010551 WCI 8010551 Contact Us For Availability
39
WCI 08016612 WCI 08016612 Contact Us For Availability
39
WCI 8037700 WCI 8037700 Contact Us For Availability
40
WCI 08067931 WCI 08067931 Contact Us For Availability
40
WCI 8008991 WCI 8008991 Contact Us For Availability
41
BUTTON-REMOTE LT. SW. WCI 08067750 Contact Us For Availability
41
WCI 8010555 WCI 8010555 Contact Us For Availability
41A
WCI 08067961 WCI 08067961 Contact Us For Availability
41B
WCI 08067774 WCI 08067774 Contact Us For Availability
41C
WCI 08067772 WCI 08067772 Contact Us For Availability
41E
WCI 08067773 WCI 08067773 Contact Us For Availability
41F
WCI 08068018 WCI 08068018 Contact Us For Availability
43
WCI 08067743 WCI 08067743 Contact Us For Availability
43A
WCI 08067744 WCI 08067744 Contact Us For Availability
44
WCI 08067796 WCI 08067796 Contact Us For Availability
45
WCI 08067958 WCI 08067958 Contact Us For Availability
× ![]()
