Model Electrolux GPG39WNW1 RANGE – Common Parts & Diagrams

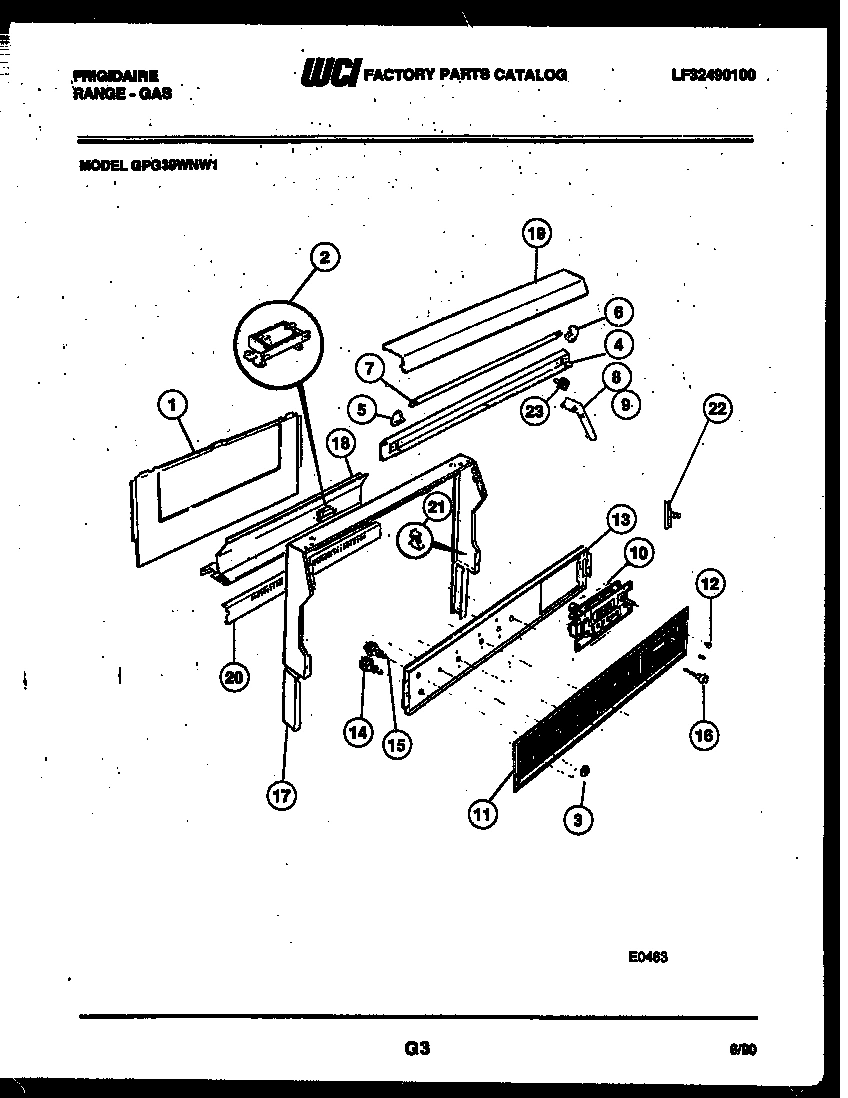

02 - BACKGUARD

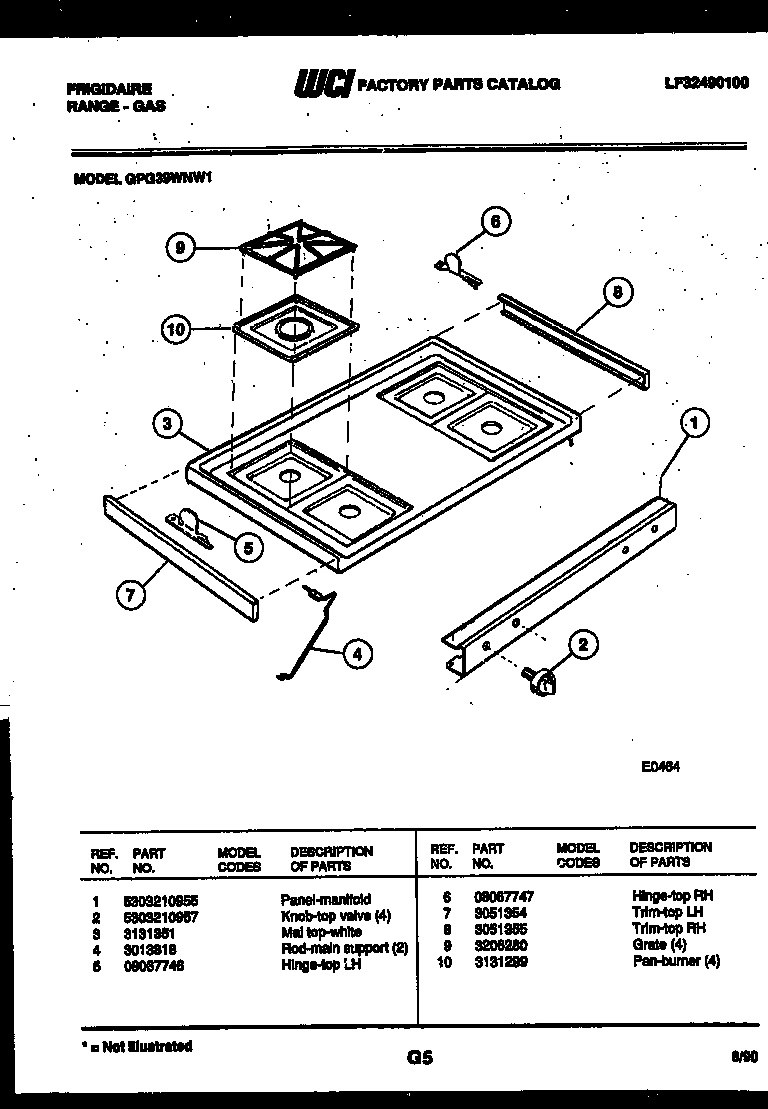

03 - COOKTOP PARTS

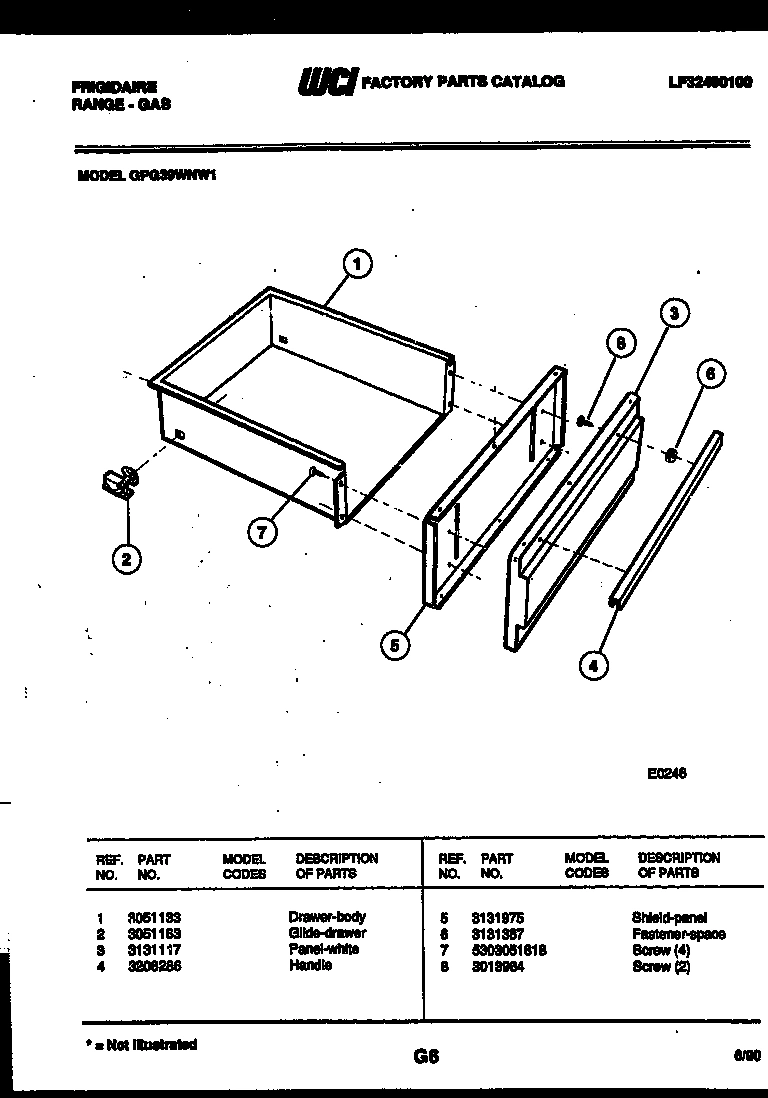

04 - DRAWER PARTS

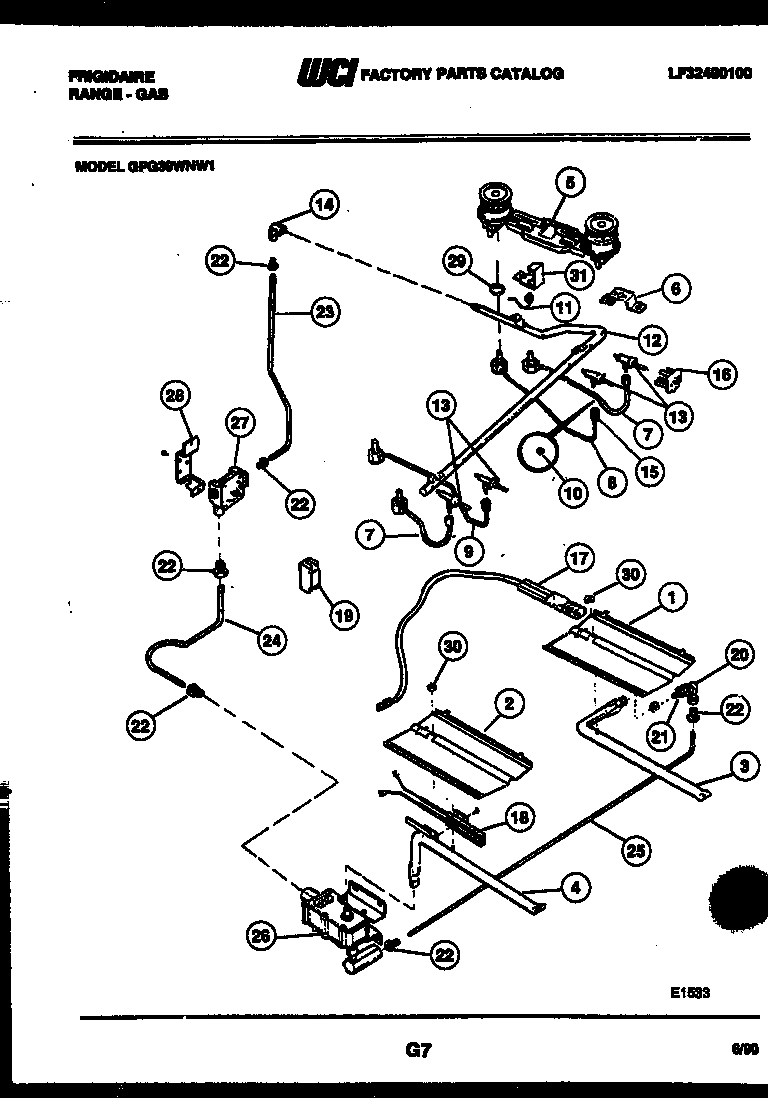

05 - BURNER, MANIFOLD AND GAS CONTROL

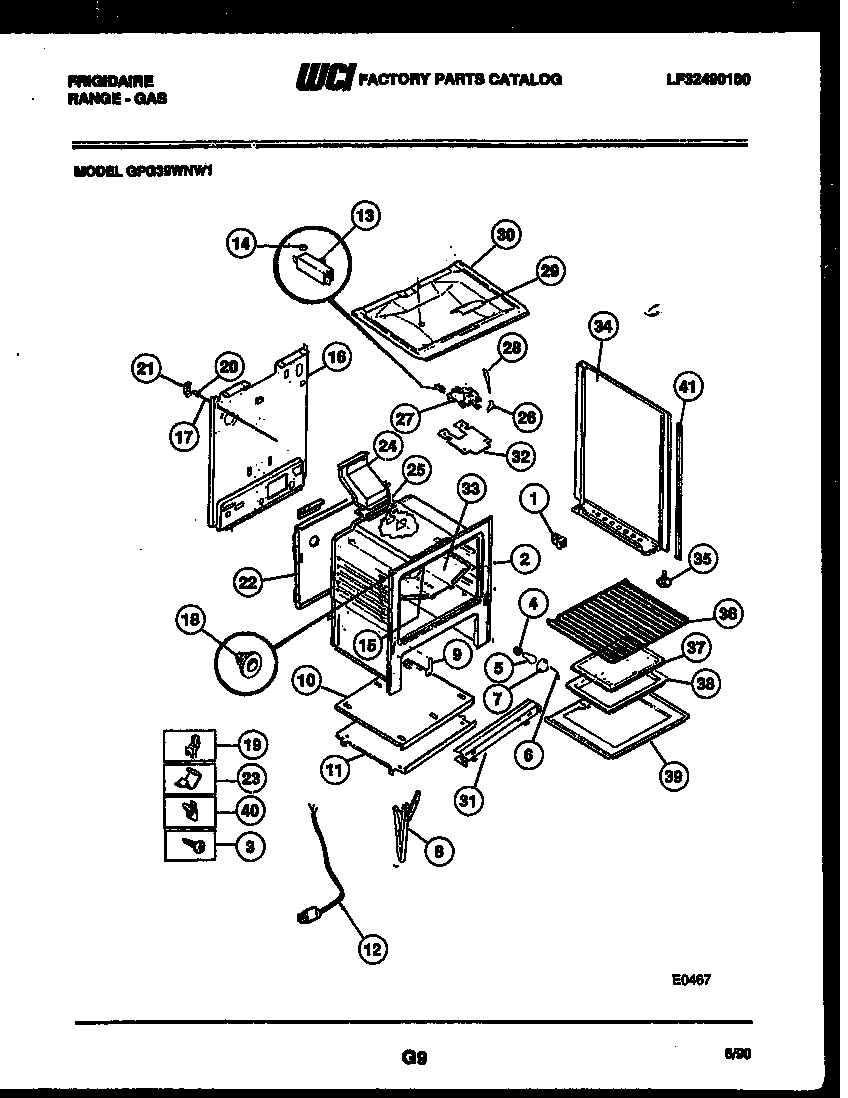

06 - BODY PARTS

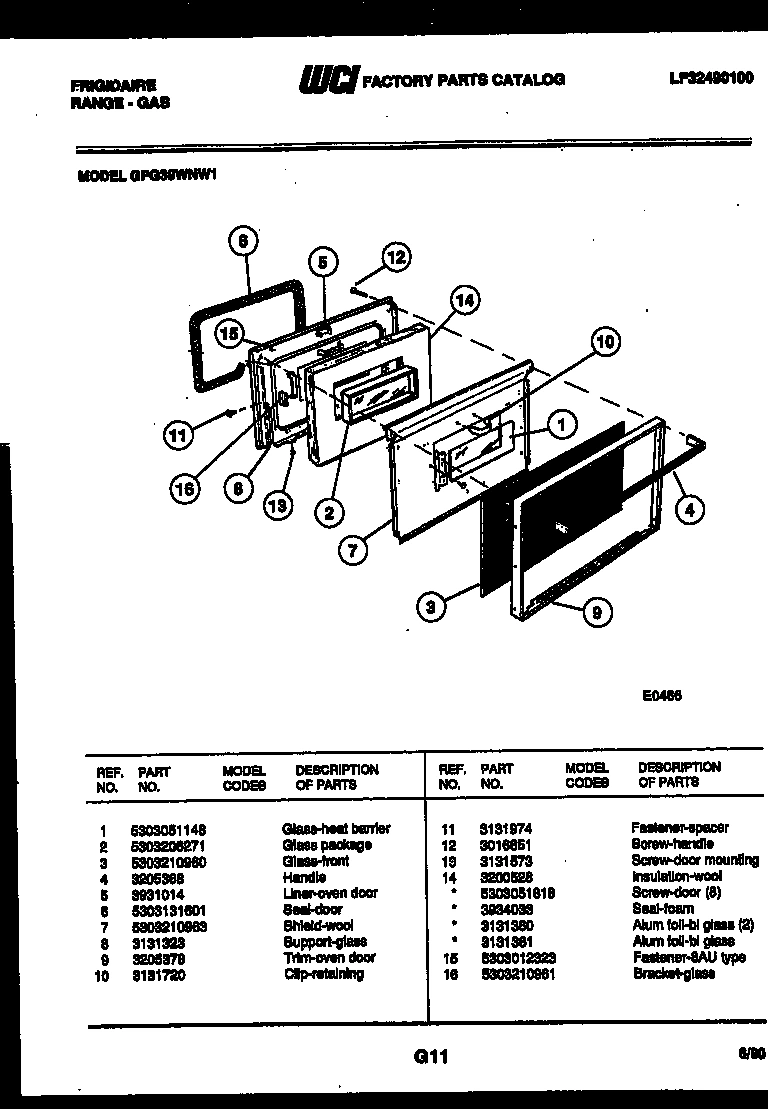

07 - DOOR PARTS
Common parts from model Electrolux GPG39WNW1 RANGE
1
SPACER-BODYSIDE, (8) WCI 3014099 Contact Us For Availability
1
WCI 5303210955 WCI 5303210955 Contact Us For Availability
1
WCI 3051133 WCI 3051133 Contact Us For Availability
1
WCI 5303210379 WCI 5303210379 Contact Us For Availability
1
WCI 5303051148 WCI 5303051148 Contact Us For Availability
2
WCI 5303210957 WCI 5303210957 Contact Us For Availability
2
BAFFLE-OVEN BURNER WCI 3131284 Contact Us For Availability
2
GLASS PACKAGE WCI 5303206271 Contact Us For Availability
3
WCI 08067935 WCI 08067935 Contact Us For Availability
3
WCI 3131351 WCI 3131351 Contact Us For Availability
3
PANEL-WHITE WCI 3131117 Contact Us For Availability
3
WCI 5303210960 WCI 5303210960 Contact Us For Availability
4
ROD-MAIN SUPPORT (2) WCI 3013818 Contact Us For Availability
4
WCI 3206286 WCI 3206286 Contact Us For Availability
4
WCI 3131290 WCI 3131290 Contact Us For Availability
4
WCI 3205368 WCI 3205368 Contact Us For Availability
5
HINGE-TOP LH WCI 08067746 Contact Us For Availability
5
WCI 3131975 WCI 3131975 Contact Us For Availability
5
BURNER-TOP-DOUBLE WCI 5303131147 Contact Us For Availability
5
WCI 3931014 WCI 3931014 Contact Us For Availability
6
HINGE-TOP RH WCI 08067747 Contact Us For Availability
6
FASTENER-SPACE WCI 3131387 Contact Us For Availability
6
BRACKET BURNER MTG WCI 3200277 Contact Us For Availability
6
RETAINER-GLASS WCI 3204483 Contact Us For Availability
7
BULB-FLUOR WCI 3131275 Contact Us For Availability
7
TRIM-TOP LH WCI 3051354 Contact Us For Availability
7
WCI 5303131970 WCI 5303131970 Contact Us For Availability
7
WCI 5303210963 WCI 5303210963 Contact Us For Availability
8
TRIM-TOP RH WCI 3051355 Contact Us For Availability
8
WCI 3013964 WCI 3013964 Contact Us For Availability
8
WCI 5303011569 WCI 5303011569 Contact Us For Availability
8
SUPPORT, GLASS WCI 3131323 Contact Us For Availability
9
COVER-HINGE CUTOUT (2) WCI 3131570 Contact Us For Availability
9
GRATE (4) WCI 3206280 Contact Us For Availability
9
WCI 5303011570 WCI 5303011570 Contact Us For Availability
9
WCI 3205378 WCI 3205378 Contact Us For Availability
10
WCI 3131299 WCI 3131299 Contact Us For Availability
10
WCI 08067945 WCI 08067945 Contact Us For Availability
10
WCI 08067986 WCI 08067986 Contact Us For Availability
10
CLIP-RETAINING WCI 3131720 Contact Us For Availability
11
IGNITOR, TOP BURNER (2) WCI 3200276 Contact Us For Availability
11
WCI 08067987 WCI 08067987 Contact Us For Availability
11
FASTENER-SPACER WCI 3131974 Contact Us For Availability
11A
WCI 08067992 WCI 08067992 Contact Us For Availability
12
WCI 3018861 WCI 3018861 Contact Us For Availability
12
WCI 3016851 WCI 3016851 Contact Us For Availability
13
VALVE-TOP (3 POS) WCI 5303017846 Contact Us For Availability
13
WCI 3204592 WCI 3204592 Contact Us For Availability
13
SCREW-DOOR MOUNTING WCI 3131573 Contact Us For Availability
14
WCI 08067948 WCI 08067948 Contact Us For Availability
14
WCI 08067776 WCI 08067776 Contact Us For Availability
14
INSULATION-WOOL WCI 3200528 Contact Us For Availability
14A
WCI 08067978 WCI 08067978 Contact Us For Availability
14B
SEAL-FOAM (NON-ILLUSTRATED) WCI 3934033 Contact Us For Availability
14D
ALUM FOIL-BL GLASS (NON-ILLUSTRATED) WCI 3131361 Contact Us For Availability
16
WCI 3203082 WCI 3203082 Contact Us For Availability
16
WCI 5303210961 WCI 5303210961 Contact Us For Availability
17
WCI 5303210951 WCI 5303210951 Contact Us For Availability
17
ROD LIGHT WCI 5303209316 Contact Us For Availability
18
WCI 5303210952 WCI 5303210952 Contact Us For Availability
19
WCI 5303210954 WCI 5303210954 Contact Us For Availability
20
WCI 3131241 WCI 3131241 Contact Us For Availability
20
WCI 5303208640 WCI 5303208640 Contact Us For Availability
20
SWITCH, DOOR WCI 5303202622 Contact Us For Availability
21
WCI 5303131237 WCI 5303131237 Contact Us For Availability
21
NUT WCI 3131148 Contact Us For Availability
21
BRACKET-LIGHT SWITCH WCI 5303131289 Contact Us For Availability
22
RETAINER-TRIM GLASS WCI 5303210953 Contact Us For Availability
22
FIXING LOXIT WCI 3131261 Contact Us For Availability
22
WCI 08067991 WCI 08067991 Contact Us For Availability
23
SPACER-FL LT MTG WCI 3131276 Contact Us For Availability
23
TUBE-ALUMINUM 3/8 (REGUL TO MANIFOLD) WCI 5303208495 Contact Us For Availability
23
CLIP-WIRE WCI 3011813 Contact Us For Availability
24
TUBE-ALUMINUM 3/8 (VALVE TO REGULATOR) WCI 5303208494 Contact Us For Availability
24
WCI 3131931 WCI 3131931 Contact Us For Availability
25
TUBE-ALUMINUM 3/8 (VALVE TO MIXER) WCI 5303208493 Contact Us For Availability
25A
SHIELD-LATCH (NON-ILLUSTRATED) WCI 3131593 Contact Us For Availability
25B
WCI 08013188 WCI 08013188 Contact Us For Availability
26
WCI 5303210956 WCI 5303210956 Contact Us For Availability
27
LATCH-DOOR BL METAL WCI 5303015453 Contact Us For Availability
28
WCI 5303131357 WCI 5303131357 Contact Us For Availability
29
NUT, SPECIAL WCI 3013279 Contact Us For Availability
29
WCI 08067757 WCI 08067757 Contact Us For Availability
30
WCI 3011597 WCI 3011597 Contact Us For Availability
31
SHIELD, MAIN FRONT WCI 3200835 Contact Us For Availability
32
SHIELD-LATCH WCI 3051413 Contact Us For Availability
33
WCI 3200836 WCI 3200836 Contact Us For Availability
33A
SHIELD-HEAT B/S (NON-ILLUSTRATED) WCI 3200834 Contact Us For Availability
34
PANEL-B/S LH (WHITE) WCI 3205620 Contact Us For Availability
34A
PANEL-B/S RH (WHITE) WCI 3205623 Contact Us For Availability
35
SCREW-LEVELING WCI 5303203397 Contact Us For Availability
37
WCI 5303131356 WCI 5303131356 Contact Us For Availability
38
PAN-BROILER WCI 5303013568 Contact Us For Availability
39
WCI 3011519 WCI 3011519 Contact Us For Availability
39B
WCI 08067961 WCI 08067961 Contact Us For Availability
39C
INSULATION-WOOL-BACK (NON-ILLUSTRATED) WCI 3204582 Contact Us For Availability
39E
INSULATION-OVEN-WRAP (NON-ILLUSTRATED) WCI 3200833 Contact Us For Availability
39F
INSULATION-OVEN-TOP (NON-ILLUSTRATED) WCI 3131304 Contact Us For Availability
40A
SHIELD, OVEN TOP (NON-ILLUSTRATED) WCI 3131314 Contact Us For Availability
40B
SHIELD-REAR WALL (NON-ILLUSTRATED) WCI 3131590 Contact Us For Availability
40C
ANTI-TIP KIT (NON-ILLUSTRATED) WCI 3934056 Contact Us For Availability
40D
WCI 08068018 WCI 08068018 Contact Us For Availability
40E
SHIELD LOWER REAR WALL (NON-ILLUSTRATED) WCI 3131252 Contact Us For Availability
41
TRIM-VERTICAL BODYSIDE WCI 5303051326 Contact Us For Availability
× ![]()
