Model Electrolux GPG34BNW5 RANGE – Common Parts & Diagrams

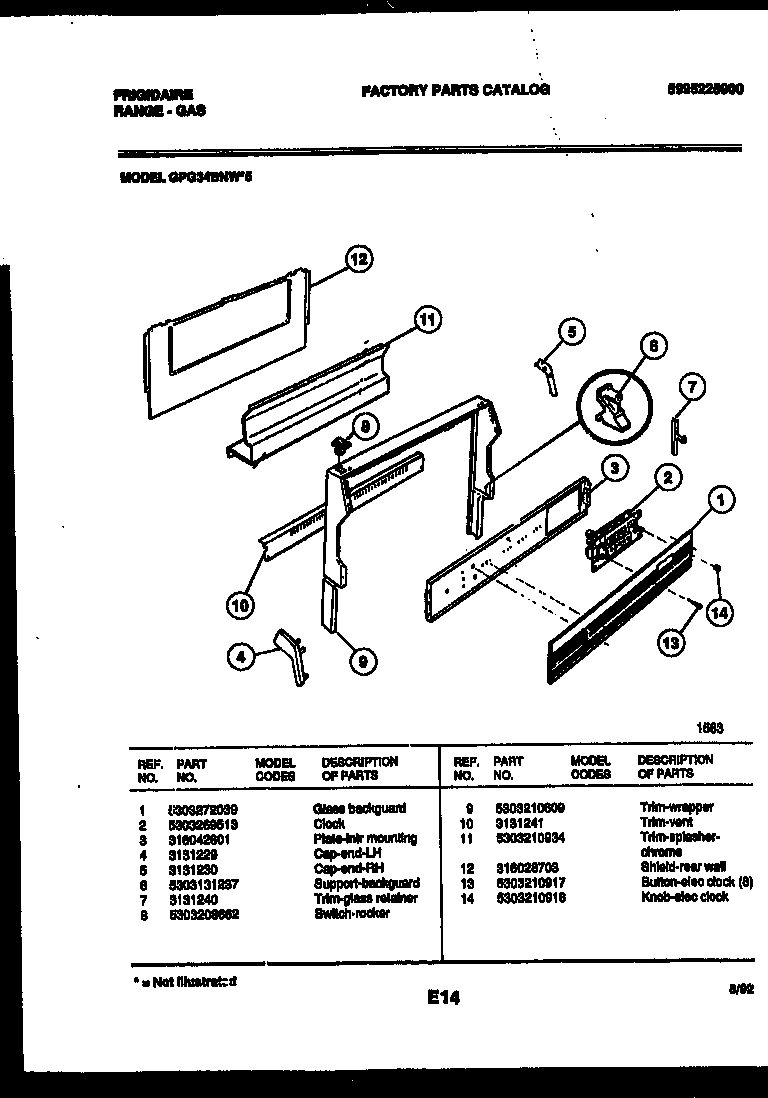

02 - BACKGUARD

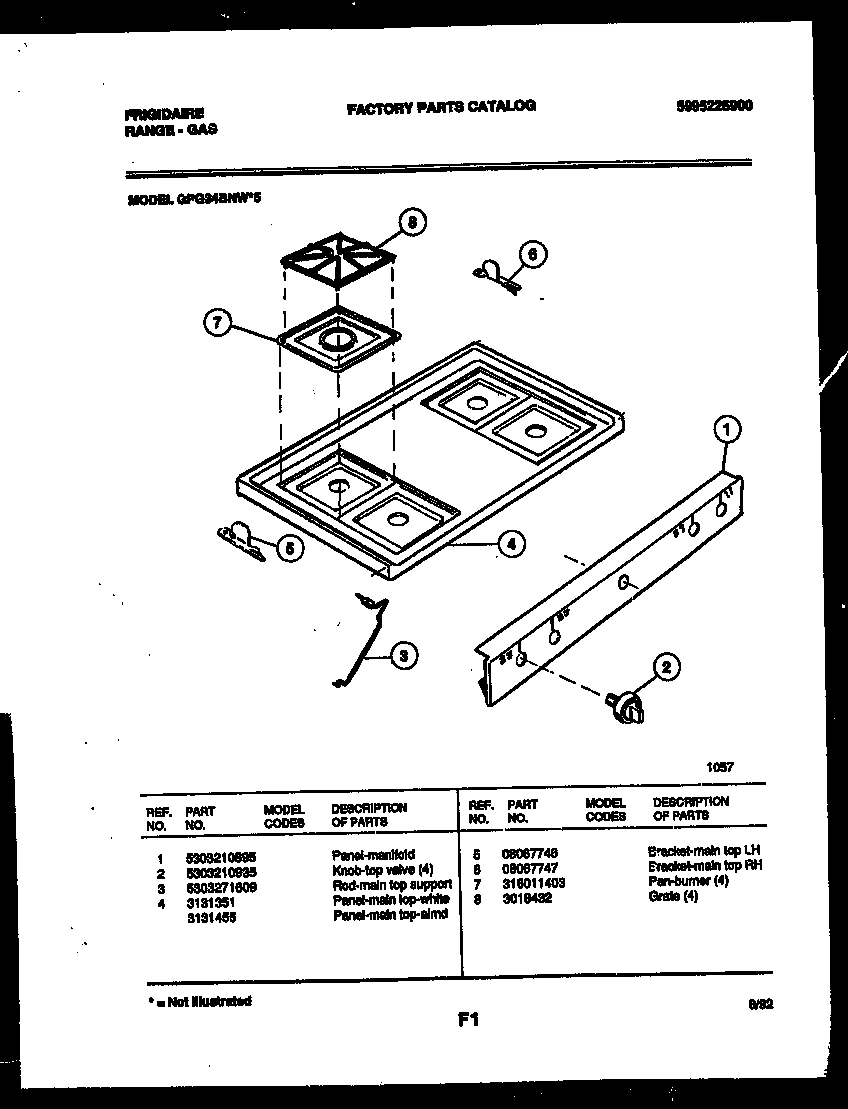

03 - COOKTOP PARTS

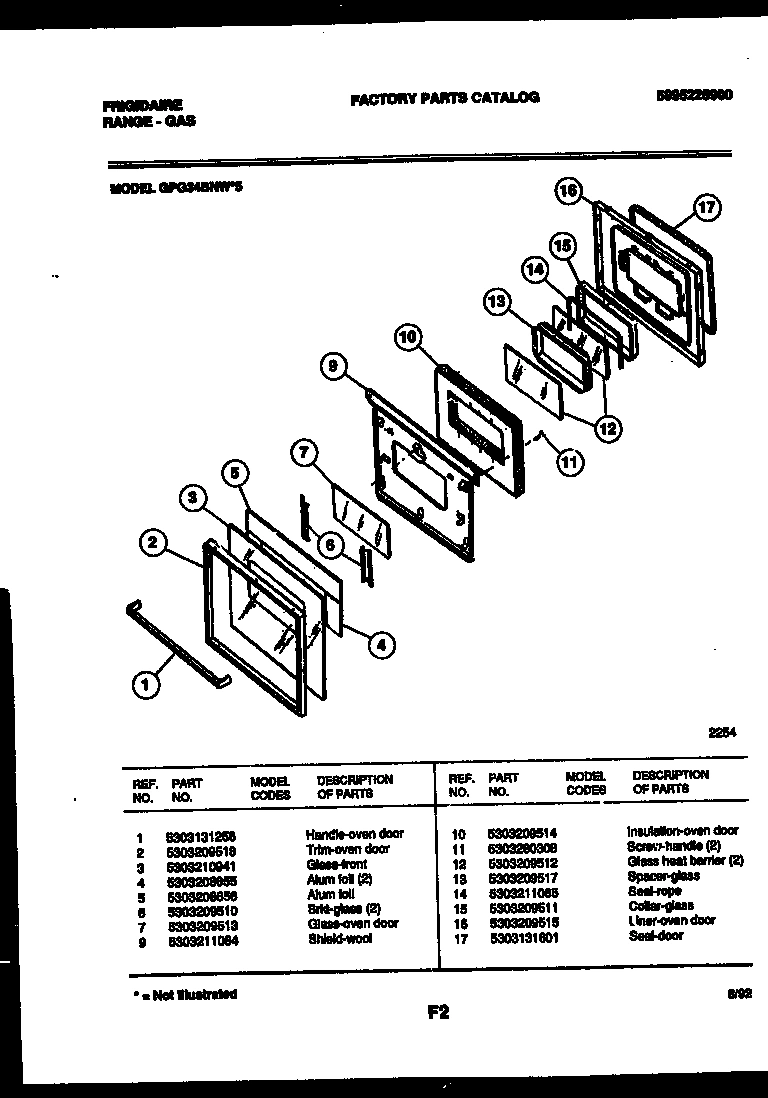

04 - DOOR PARTS

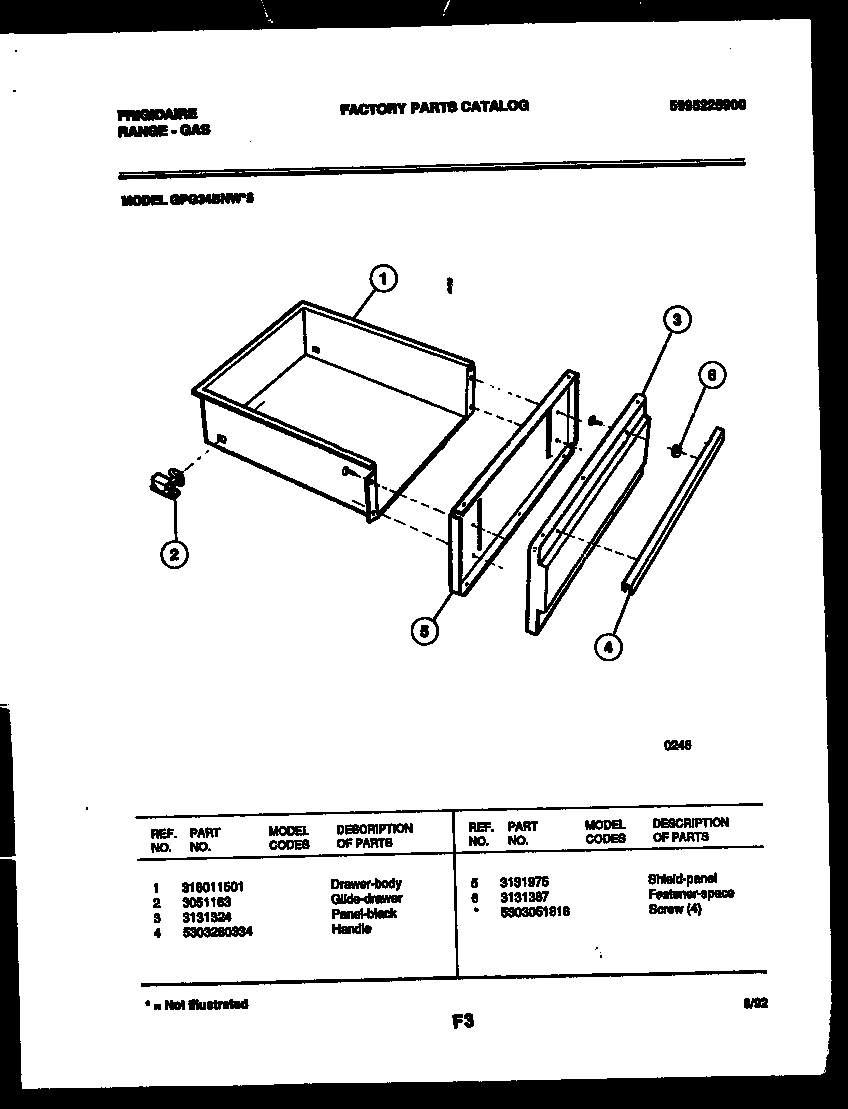

05 - DRAWER PARTS

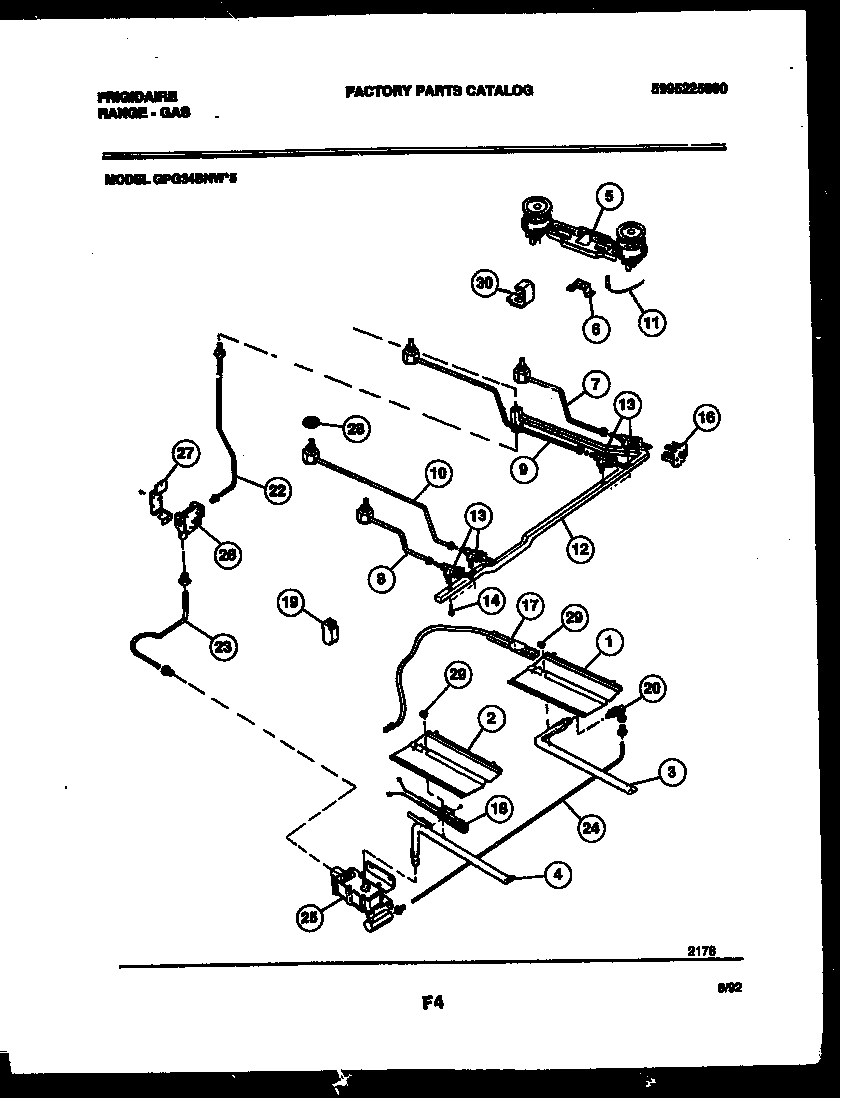

06 - BURNER, MANIFOLD AND GAS CONTROL

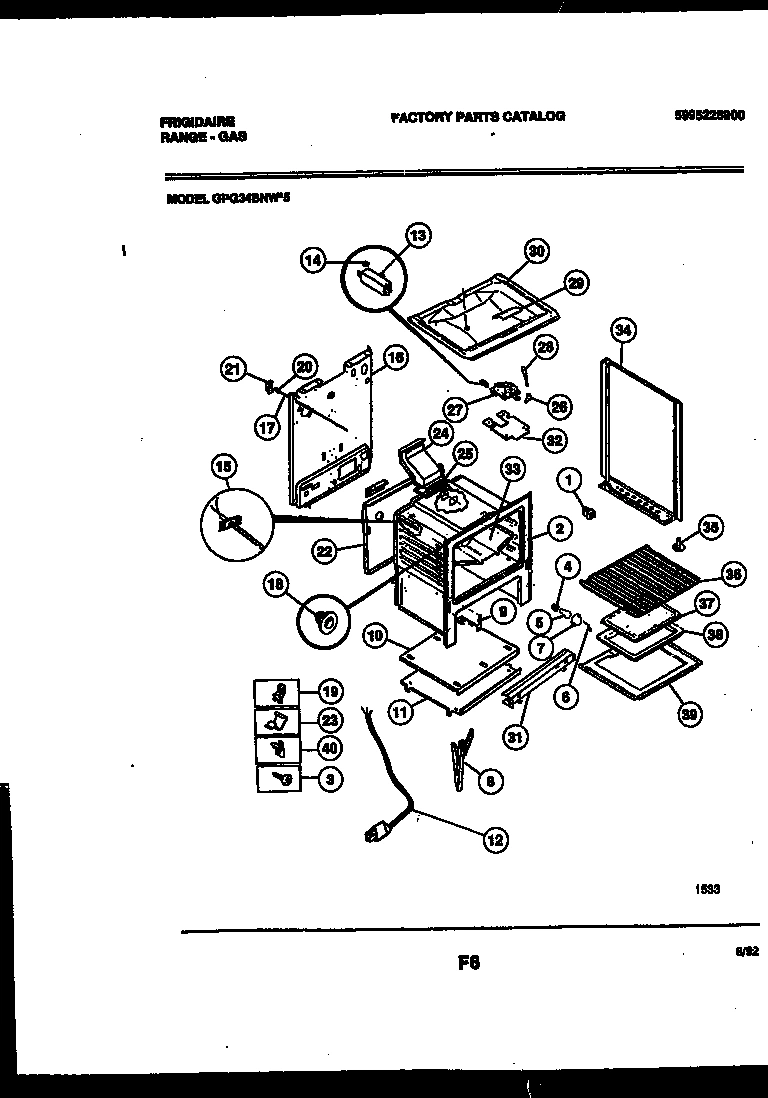

07 - BODY PARTS
Common parts from model Electrolux GPG34BNW5 RANGE
*65784
WCI 3131314 WCI 3131314 Contact Us For Availability
*65784
SHIELD, REAR WALL WCI 316014401 Contact Us For Availability
*65784
ANTI-TIP WCI 3934056 Contact Us For Availability
*65785
WCI 08010570 WCI 08010570 Contact Us For Availability
*65785
SHIELD-WIRE WCI 08068018 Contact Us For Availability
*65785
WCI 1910020014 WCI 1910020014 Contact Us For Availability
1
SPACER-BODYSIDE, (8) WCI 3014099 Contact Us For Availability
1
WCI 5303131256 WCI 5303131256 Contact Us For Availability
1
WCI 316011501 WCI 316011501 Contact Us For Availability
1
WCI 5303210379 WCI 5303210379 Contact Us For Availability
2
WCI 5303209518 WCI 5303209518 Contact Us For Availability
2
BAFFLE-OVEN BURNER WCI 3131284 Contact Us For Availability
3
WCI 08067935 WCI 08067935 Contact Us For Availability
3
WCI 5303210941 WCI 5303210941 Contact Us For Availability
3
WCI 3131324 WCI 3131324 Contact Us For Availability
4
HANDLE WCI 5303280334 Contact Us For Availability
4
WCI 3131290 WCI 3131290 Contact Us For Availability
5
BRACKET, MAIN TOP, LH WCI 08067746 Contact Us For Availability
5
WCI 5303208656 WCI 5303208656 Contact Us For Availability
5
WCI 3131975 WCI 3131975 Contact Us For Availability
5
BURNER-TOP-DOUBLE WCI 5303131147 Contact Us For Availability
6
BRKT-GLASS (2) WCI 5303209510 Contact Us For Availability
6
FASTENER-SPACE WCI 3131387 Contact Us For Availability
6
WCI 3200277 WCI 3200277 Contact Us For Availability
6
RETAINER-GLASS WCI 3204585 Contact Us For Availability
7
WCI 316011403 WCI 316011403 Contact Us For Availability
7
WCI 5303209513 WCI 5303209513 Contact Us For Availability
7
WCI 5303283665 WCI 5303283665 Contact Us For Availability
8
CHANNEL-DOOR HINGE (2) WCI 316007002 No Longer Available
8
WCI 5303283666 WCI 5303283666 Contact Us For Availability
9
COVER-HINGE CUTOUT (2) WCI 3131570 Contact Us For Availability
9
WCI 5303211084 WCI 5303211084 Contact Us For Availability
9
WCI 5303283667 WCI 5303283667 Contact Us For Availability
10
INSULATION-OVEN DOOR WCI 5303209514 Contact Us For Availability
10
WCI 5303283668 WCI 5303283668 Contact Us For Availability
10
WCI 5303270104 WCI 5303270104 Contact Us For Availability
11
SCREW-HANDLE (2) WCI 5303280308 Contact Us For Availability
11
IGNITER-TOP BURNER (2) WCI 3200276 Contact Us For Availability
11
WCI 3131313 WCI 3131313 Contact Us For Availability
11A
WCI 08067992 WCI 08067992 Contact Us For Availability
12
WCI 5303209512 WCI 5303209512 Contact Us For Availability
12
WCI 5303271375 WCI 5303271375 Contact Us For Availability
13
WCI 5303269499 WCI 5303269499 Contact Us For Availability
13
WCI 5303209517 WCI 5303209517 Contact Us For Availability
13
WCI 316020401 WCI 316020401 Contact Us For Availability
14
WCI 5303211085 WCI 5303211085 Contact Us For Availability
14
WCI 08067776 WCI 08067776 Contact Us For Availability
14A
WCI 08067978 WCI 08067978 Contact Us For Availability
15
WCI 5303209511 WCI 5303209511 Contact Us For Availability
16
IGNITION SWITCH (4) WCI 316032000 Contact Us For Availability
16
WCI 5303209515 WCI 5303209515 Contact Us For Availability
16
WCI 3203082 WCI 3203082 Contact Us For Availability
17
WCI 5303209316 WCI 5303209316 Contact Us For Availability
20
WCI 08067979 WCI 08067979 Contact Us For Availability
20
SWITCH, DOOR WCI 5303202622 Contact Us For Availability
21
BRACKET-LIGHT SWITCH WCI 5303131289 Contact Us For Availability
22
TUBE-ALUM 3/8-REGUL TO MANIFOLD WCI 5303208495 Contact Us For Availability
22
WCI 316014301 WCI 316014301 Contact Us For Availability
23
TUBE-ALUM 3/8-VALVE TO REGUL WCI 5303208494 Contact Us For Availability
23
CLIP-WIRE WCI 3011813 Contact Us For Availability
24
TUBE-ALUM 3/8-VALVE TO MIXER WCI 5303208493 Contact Us For Availability
24
WCI 3131931 WCI 3131931 Contact Us For Availability
25A
SHIELD-LATCH (NON-ILLUSTRATED) WCI 3131593 Contact Us For Availability
25B
WCI 08013188 WCI 08013188 Contact Us For Availability
26
WCI 3203218 WCI 3203218 Contact Us For Availability
27
LATCH-DOOR BI METAL WCI 5303015453 Contact Us For Availability
28
NUT, SPECIAL WCI 3013279 Contact Us For Availability
28
WCI 5303131357 WCI 5303131357 Contact Us For Availability
29
WCI 08067757 WCI 08067757 Contact Us For Availability
30
WCI 3011597 WCI 3011597 Contact Us For Availability
31
WCI 5303271047 WCI 5303271047 Contact Us For Availability
32
SHIELD-LATCH WCI 3051413 Contact Us For Availability
33
WCI 3200836 WCI 3200836 Contact Us For Availability
33A
SHIELD-HEAT B/S (NON-ILLUSTRATED) WCI 3200834 Contact Us For Availability
34
PANEL-B/S-LH-WHITE WCI 5303269519 Contact Us For Availability
34A
PANEL-B/S-RH-WHITE WCI 5303269518 Contact Us For Availability
35
WCI 5303203397 WCI 5303203397 Contact Us For Availability
37
WCI 5303131356 WCI 5303131356 Contact Us For Availability
38
PAN-BROILER WCI 5303013568 Contact Us For Availability
39
WCI 5303212540 WCI 5303212540 Contact Us For Availability
39B
WCI 08067961 WCI 08067961 Contact Us For Availability
39C
INSULATION-WOOL-BACK (NON-ILLUSTRATED) WCI 3204582 Contact Us For Availability
39E
INSULATION-OVEN-WRAP (NON-ILLUSTRATED) WCI 3200833 Contact Us For Availability
39F
INSULATION-OVEN-TOP (NON-ILLUSTRATED) WCI 3131304 Contact Us For Availability
× ![]()
