Model Electrolux GPG34BNL1 RANGE – Common Parts & Diagrams
02 - BACKGUARD
03 - COOKTOP PARTS

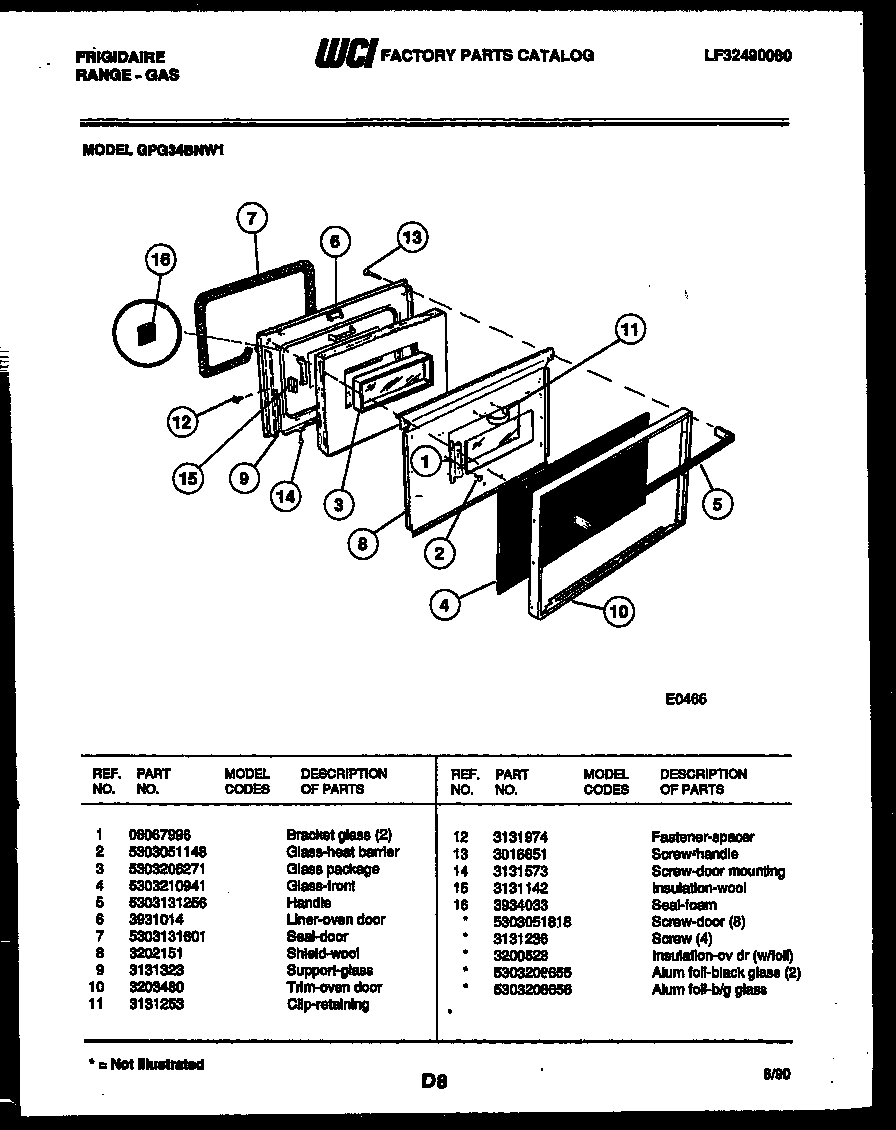

04 - DOOR PARTS

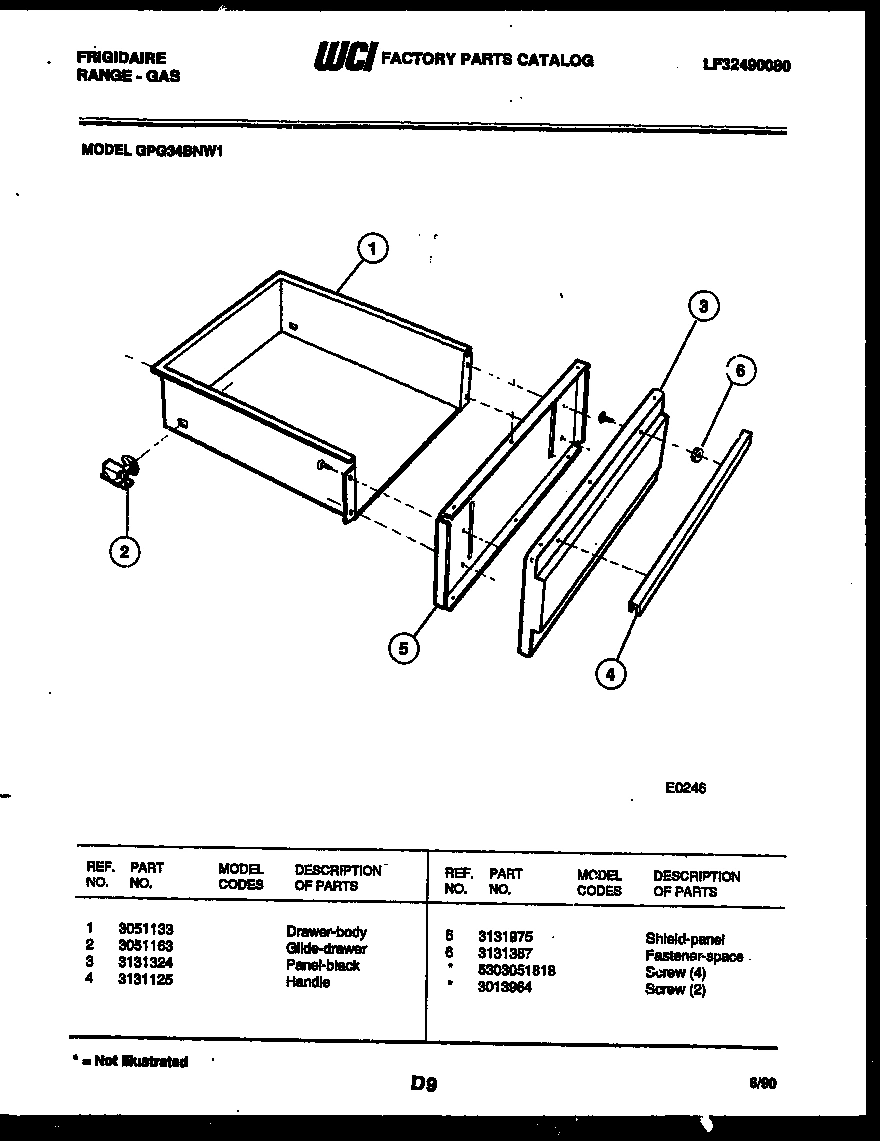

05 - DRAWER PARTS

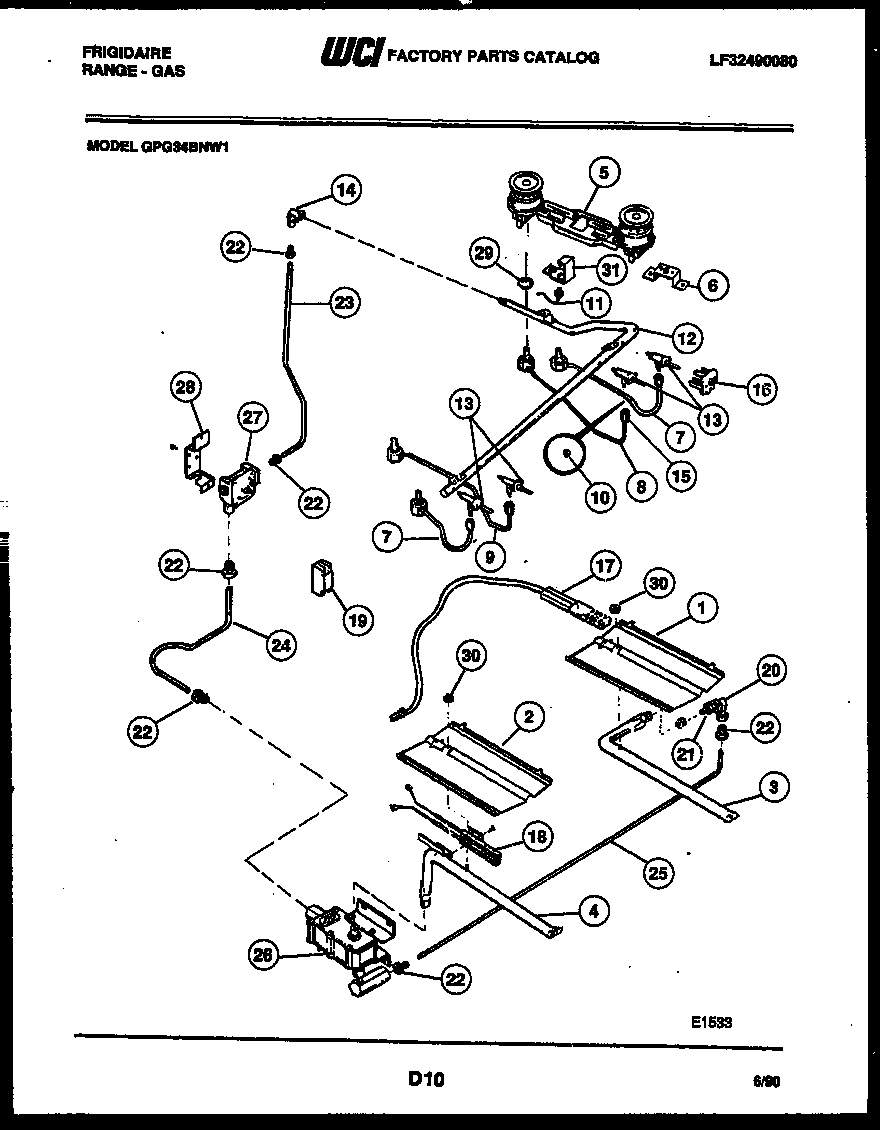

06 - BURNER, MANIFOLD AND GAS CONTROL

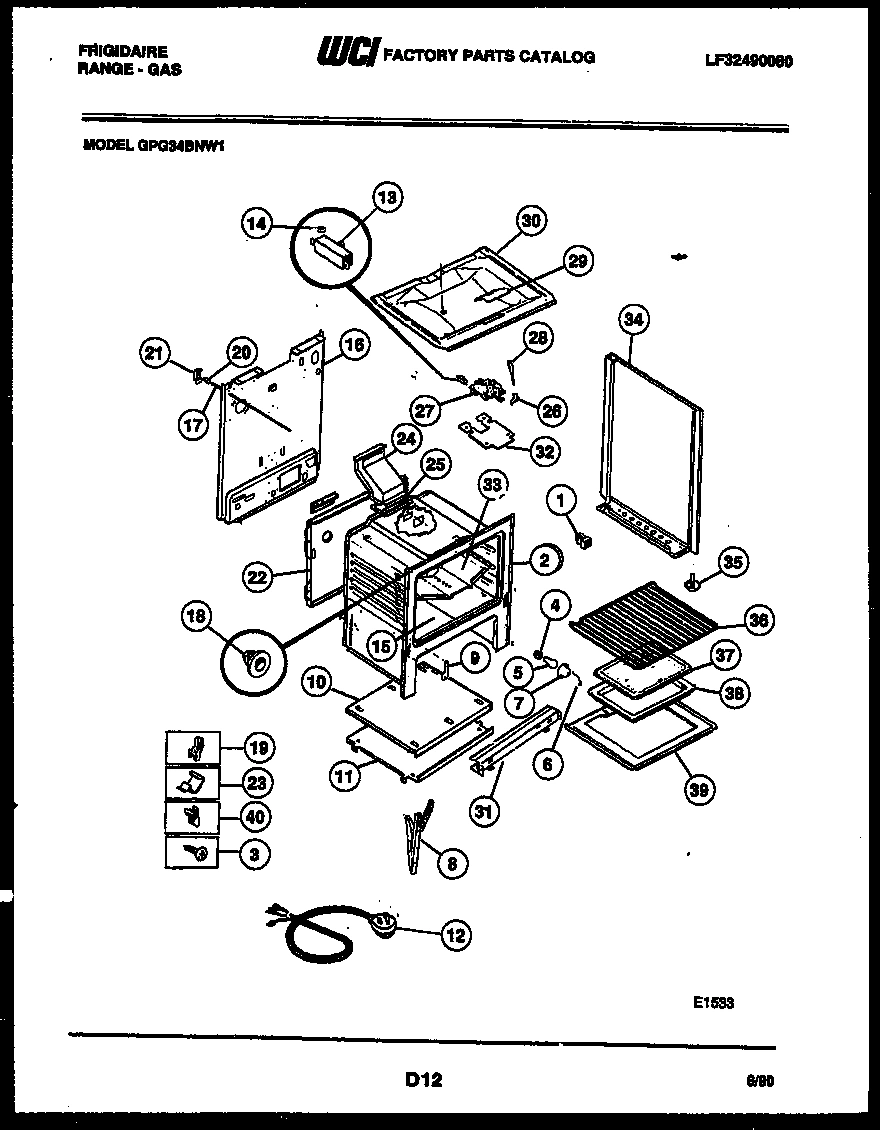

07 - BODY PARTS
Common parts from model Electrolux GPG34BNL1 RANGE
*31044
WCI 3131236 WCI 3131236 Contact Us For Availability
*31045
INSULATION-OV DR (W/FOIL) WCI 3200528 Contact Us For Availability
*31045
ALUM FOIL-B/G GLASS WCI 5303208656 Contact Us For Availability
*31045
WCI 3013964 WCI 3013964 Contact Us For Availability
*31051
SHIELD-WIRE WCI 08068018 Contact Us For Availability
*31051
WCI 3131314 WCI 3131314 Contact Us For Availability
*31051
SHIELD, REAR WALL WCI 3131590 Contact Us For Availability
*31051
ANTI-TIP KIT WCI 3934056 Contact Us For Availability
1
SPACER-BODYSIDE, (8) WCI 3014099 Contact Us For Availability
1
BRACKET-GLASS (2) WCI 08067996 Contact Us For Availability
1
WCI 3051133 WCI 3051133 Contact Us For Availability
1
WCI 5303210379 WCI 5303210379 Contact Us For Availability
2
KNOB-TOP VALVE (4) WCI 5303210935 Contact Us For Availability
2
WCI 5303051148 WCI 5303051148 Contact Us For Availability
2
BAFFLE-OVEN BURNER WCI 3131284 Contact Us For Availability
3
WCI 08067935 WCI 08067935 Contact Us For Availability
3
ROD, MAIN TOP SUPPORT WCI 3013818 Contact Us For Availability
3
GLASS PACKAGE WCI 5303206271 Contact Us For Availability
3
WCI 3131324 WCI 3131324 Contact Us For Availability
4
PANEL-MAIN TOP-ALMD WCI 3131455 Contact Us For Availability
4
WCI 5303210941 WCI 5303210941 Contact Us For Availability
4
WCI 3131125 WCI 3131125 Contact Us For Availability
4
WCI 3131290 WCI 3131290 Contact Us For Availability
5
BRACKET, MAIN TOP, LH WCI 08067746 Contact Us For Availability
5
HANDLE WCI 5303131256 Contact Us For Availability
5
WCI 3131975 WCI 3131975 Contact Us For Availability
5
BURNER-TOP-DOUBLE WCI 5303131147 Contact Us For Availability
6
BRACKET, MAIN TOP, RH WCI 08067747 Contact Us For Availability
6
WCI 3931014 WCI 3931014 Contact Us For Availability
6
FASTENER-SPACE WCI 3131387 Contact Us For Availability
6
BRACKET BURNER MTG WCI 3200277 Contact Us For Availability
6
RETAINER-GLASS WCI 3204483 Contact Us For Availability
7
WCI 3131299 WCI 3131299 Contact Us For Availability
7
WCI 5303131970 WCI 5303131970 Contact Us For Availability
8
CHAN-DOOR HINGE (2) WCI 316007002 No Longer Available
8
GRATE (4) WCI 3018432 Contact Us For Availability
8
WCI 3202151 WCI 3202151 Contact Us For Availability
8
BURNER-TUBE REAR-RH WCI 5303011569 Contact Us For Availability
9
COVER-HINGE CUTOUT (2) WCI 3131570 Contact Us For Availability
9
SUPPORT, GLASS WCI 3131323 Contact Us For Availability
9
BURNER-TUBE REAR-LH WCI 5303011570 Contact Us For Availability
10
WCI 3203480 WCI 3203480 Contact Us For Availability
10
WCI 08067945 WCI 08067945 Contact Us For Availability
10
WCI 08067986 WCI 08067986 Contact Us For Availability
11
CLIP-RETAINING WCI 3131253 Contact Us For Availability
11
IGNITOR, TOP BURNER (2) WCI 3200276 Contact Us For Availability
11
WCI 08067987 WCI 08067987 Contact Us For Availability
11A
SHIELD-WOOD WCI 08067992 Contact Us For Availability
12
FASTENER-SPACER WCI 3131974 Contact Us For Availability
12
WCI 3018861 WCI 3018861 Contact Us For Availability
13
VALVE-TOP (3 POS) WCI 5303017846 Contact Us For Availability
13
WCI 3016851 WCI 3016851 Contact Us For Availability
13
WCI 3204592 WCI 3204592 Contact Us For Availability
14
SCREW-DOOR MOUNTING WCI 3131573 Contact Us For Availability
14
WCI 08067948 WCI 08067948 Contact Us For Availability
14
WCI 08067776 WCI 08067776 Contact Us For Availability
14A
WCI 08067978 WCI 08067978 Contact Us For Availability
15
INSULATION-WOOL WCI 3131142 Contact Us For Availability
16
WCI 3934033 WCI 3934033 Contact Us For Availability
16
WCI 3203082 WCI 3203082 Contact Us For Availability
17
ROD LIGHT WCI 5303209316 Contact Us For Availability
20
WCI 5303208640 WCI 5303208640 Contact Us For Availability
20
SWITCH, DOOR WCI 5303202622 Contact Us For Availability
21
NUT WCI 3131148 Contact Us For Availability
21
BRACKET-LIGHT SWITCH WCI 5303131289 Contact Us For Availability
22
FIXING LOXIT WCI 3131261 Contact Us For Availability
22
WCI 08067991 WCI 08067991 Contact Us For Availability
23
TUBE-ALUM 3/8-REGUL TO MANIFOLD WCI 5303208495 Contact Us For Availability
23
CLIP-WIRE WCI 3011813 Contact Us For Availability
24
TUBE, ALUM 3/8 (VALVE TO REGULATOR) WCI 5303208494 Contact Us For Availability
24
WCI 3131931 WCI 3131931 Contact Us For Availability
25
TUBE-ALUM 3/8-VALVE TO MIXER WCI 5303208493 Contact Us For Availability
25A
SHIELD-LATCH (NON-ILLUSTRATED) WCI 3131593 Contact Us For Availability
25B
WCI 08013188 WCI 08013188 Contact Us For Availability
26
WCI 3203218 WCI 3203218 Contact Us For Availability
27
LATCH-DOOR BL METAL WCI 5303015453 Contact Us For Availability
28
WCI 5303131357 WCI 5303131357 Contact Us For Availability
29
NUT, SPECIAL WCI 3013279 Contact Us For Availability
29
WCI 08067757 WCI 08067757 Contact Us For Availability
30
WCI 3011597 WCI 3011597 Contact Us For Availability
31
SHIELD, MAIN FRONT WCI 3200835 Contact Us For Availability
32
SHIELD-LATCH WCI 3051413 Contact Us For Availability
33
WCI 3200836 WCI 3200836 Contact Us For Availability
33A
SHIELD-HEAT B/S (NON-ILLUSTRATED) WCI 3200834 Contact Us For Availability
34
PANEL-B/S LH (ALMOND) WCI 3205621 Contact Us For Availability
34
PANEL-B/S RH (ALMOND) WCI 3205624 Contact Us For Availability
35
SCREW-LEVELING WCI 5303203397 Contact Us For Availability
37
WCI 5303131356 WCI 5303131356 Contact Us For Availability
38
PAN-BROILER WCI 5303013568 Contact Us For Availability
39
WCI 3011519 WCI 3011519 Contact Us For Availability
39B
WCI 08067961 WCI 08067961 Contact Us For Availability
39C
INSULATION-WOOL-BACK (NON-ILLUSTRATED) WCI 3204582 Contact Us For Availability
39E
INSULATION-OVEN-WRAP (NON-ILLUSTRATED) WCI 3200833 Contact Us For Availability
39F
INSULATION-OVEN-TOP (NON-ILLUSTRATED) WCI 3131304 Contact Us For Availability
× ![]()
