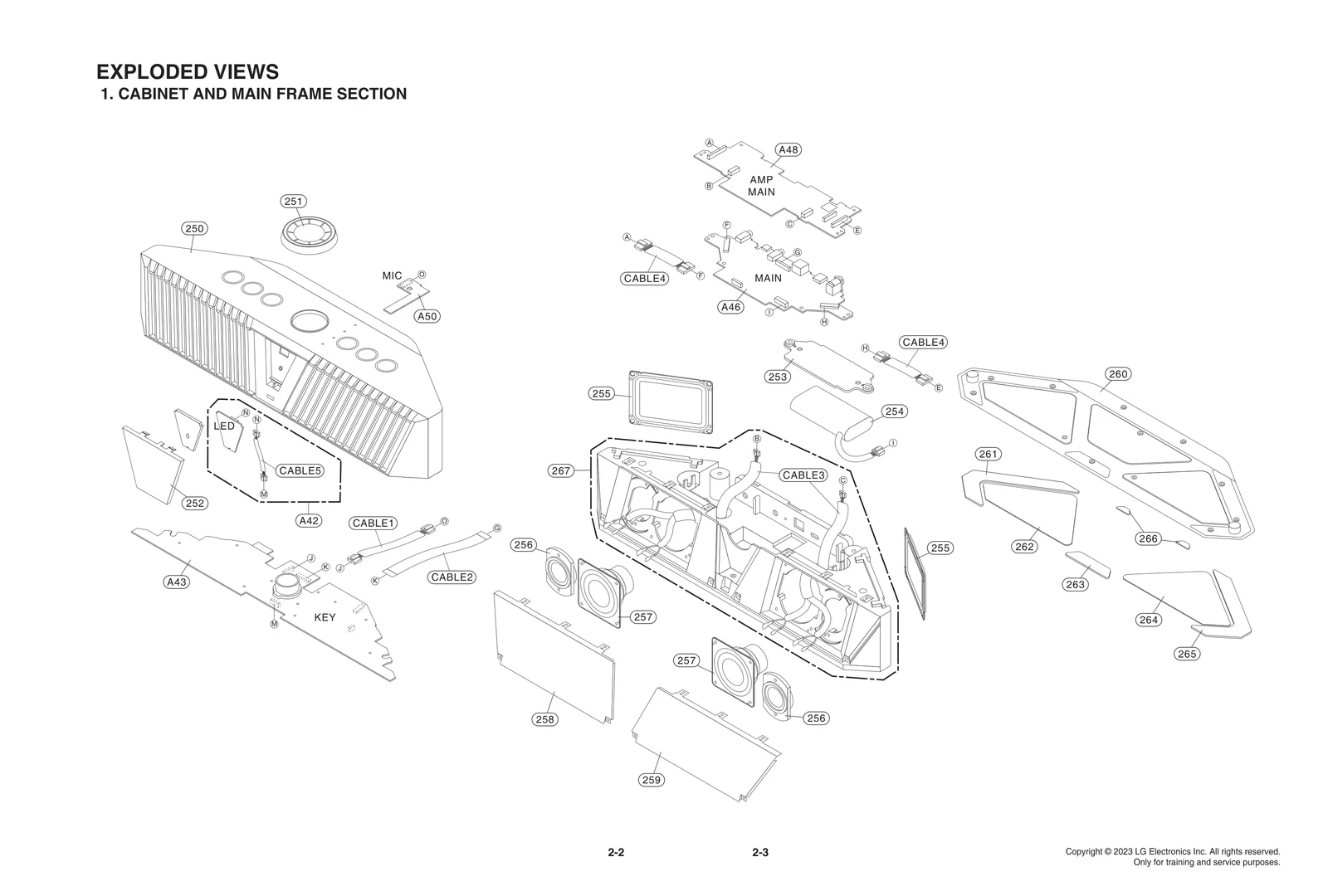

Model LG GP9 – Common Parts & Diagrams

250
Case Assembly
Case Assembly LGE ABQ30106402 Contact Us For Availability
View on Model
251
Knob Assembly
Knob Assembly LGE AEZ75995001 Contact Us For Availability
View on Model
252
Cover
Cover LGE MCK71539401 Contact Us For Availability
View on Model
253
Cover
Cover LGE MCK71539501 Contact Us For Availability
View on Model
254
Rechargeable Battery,Lithium Ion
Rechargeable Battery,Lithium Ion LGE EAC63918901 Contact Us For Availability
View on Model
255
Speaker,Passive Radiator
Speaker,Passive Radiator LGE EAB65088367 Contact Us For Availability
View on Model
256
Speaker,Tweeter
Speaker,Tweeter LGE EAB64448804 Contact Us For Availability
View on Model
257
Speaker,Woofer
Speaker,Woofer LGE EAB65808402 Contact Us For Availability
View on Model
258
Grille
Grille LGE MDX65459001 Contact Us For Availability
View on Model
259
Grille
Grille LGE MDX65459101 Contact Us For Availability
View on Model
260
Case Assembly
Case Assembly LGE ABQ30130901 Contact Us For Availability
View on Model
261
Foot
Foot LGE MDP64330801 Contact Us For Availability
View on Model
262
Label
Label LGE MEZ68907001 Contact Us For Availability
View on Model
263
Foot
Foot LGE MDP64331001 Contact Us For Availability
View on Model
264
Label
Label LGE MEZ68907002 Contact Us For Availability
View on Model
265
Foot
Foot LGE MDP64330901 Contact Us For Availability
View on Model
266
Cover
Cover LGE MCK71539701 Contact Us For Availability
View on Model
267
Case Assembly
Case Assembly LGE ABQ30106301 Contact Us For Availability
View on Model

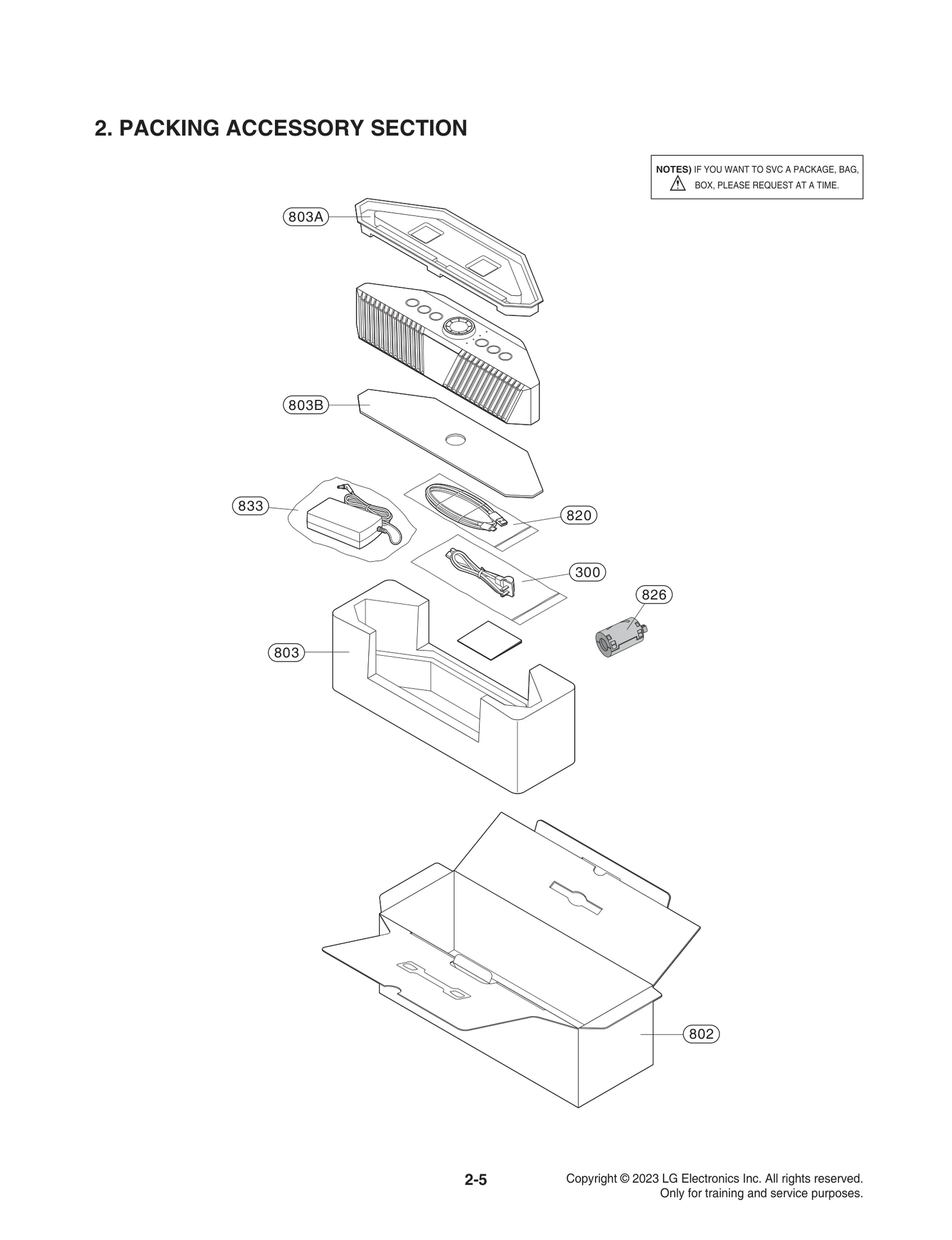

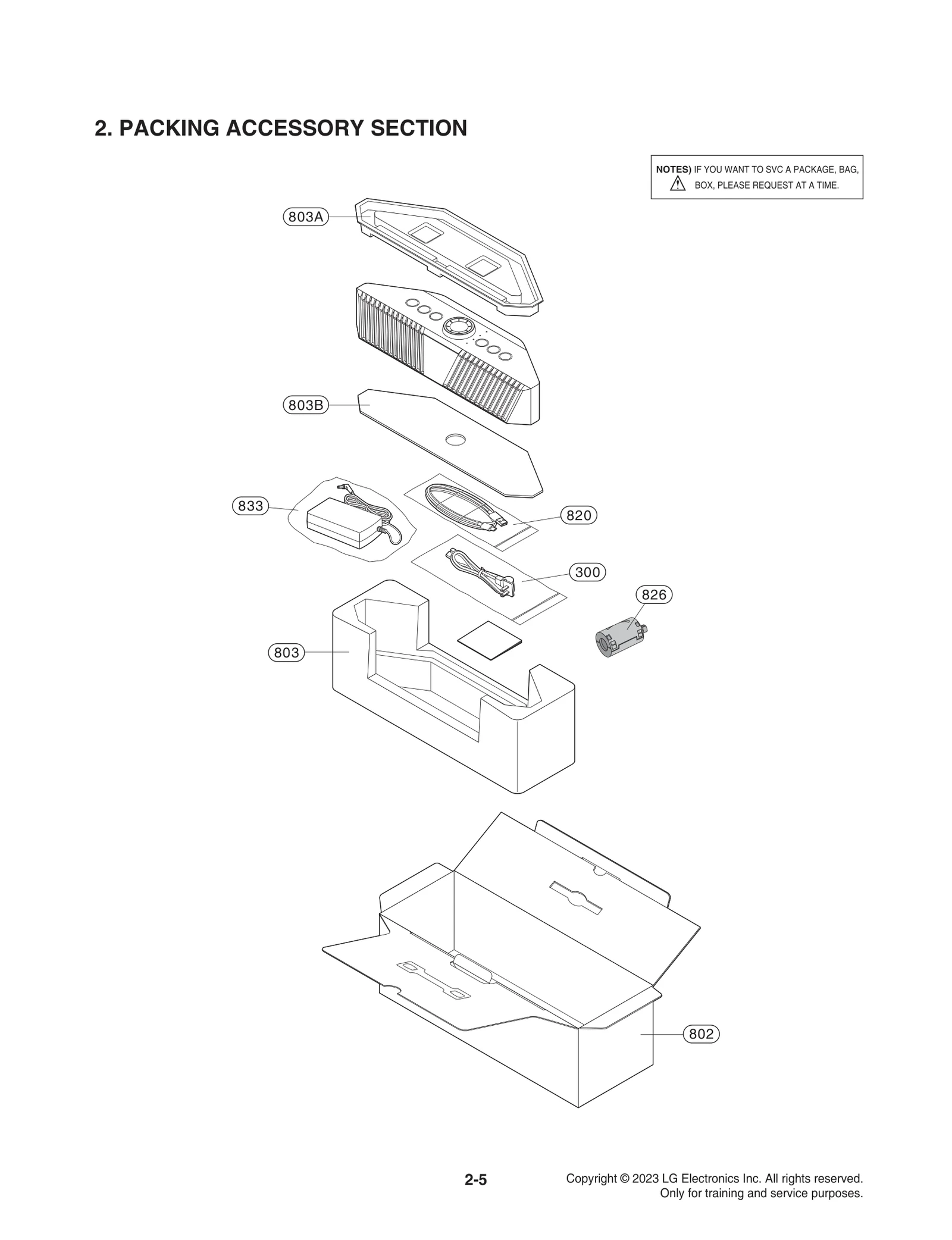

802
Box,Master
Box,Master LGE MAY69809025 Contact Us For Availability
View on Model
803
Packing
Packing LGE MFZ67278603 Contact Us For Availability
View on Model
803A
Packing
Packing LGE MFZ67278601 Contact Us For Availability
View on Model
803B
Packing
Packing LGE MFZ66293045 Contact Us For Availability
View on Model
820
Cable,Assembly
Cable,Assembly LGE EAD64687505 Contact Us For Availability
View on Model
833
Adapters,Desktop
Adapters,Desktop LGE EAY63190004 Contact Us For Availability
View on Model
A42
PCB Assembly
PCB Assembly LGE EBR36638701 Contact Us For Availability
View on Model
A43
PCB Assembly
PCB Assembly LGE EBR36639801 Contact Us For Availability
View on Model
A46
PCB Assembly
PCB Assembly LGE EBR36636701 Contact Us For Availability
View on Model
A48
PCB Assembly
PCB Assembly LGE EBR36639201 Contact Us For Availability
View on Model
A50
PCB Assembly
PCB Assembly LGE EBR36637701 Contact Us For Availability
View on Model
CABLE1
Harness,Single
Harness,Single LGE EAD63933603 Contact Us For Availability
View on Model
CABLE2
Cable,FFC
Cable,FFC LGE EAD36774210 Contact Us For Availability
View on Model
CABLE3
Harness,Multi
Harness,Multi LGE EAD65923301 Contact Us For Availability
View on Model
CABLE4
Harness,Single
Harness,Single LGE EAD64166206 Contact Us For Availability
View on Model
CABLE5
Harness,Single
Harness,Single LGE EAD63325211 Contact Us For Availability
View on Model
IC101A
S/W,System Program
S/W,System Program LGE SAA42526402 Contact Us For Availability
View on Model
IC104A
S/W,System Program
S/W,System Program LGE SAA42526303 Contact Us For Availability
View on Model
IC401A
S/W,System Program
S/W,System Program LGE SAA42526603 Contact Us For Availability
View on Model
IC501A
S/W,System Program
S/W,System Program LGE SAA42526503 Contact Us For Availability
View on Model
