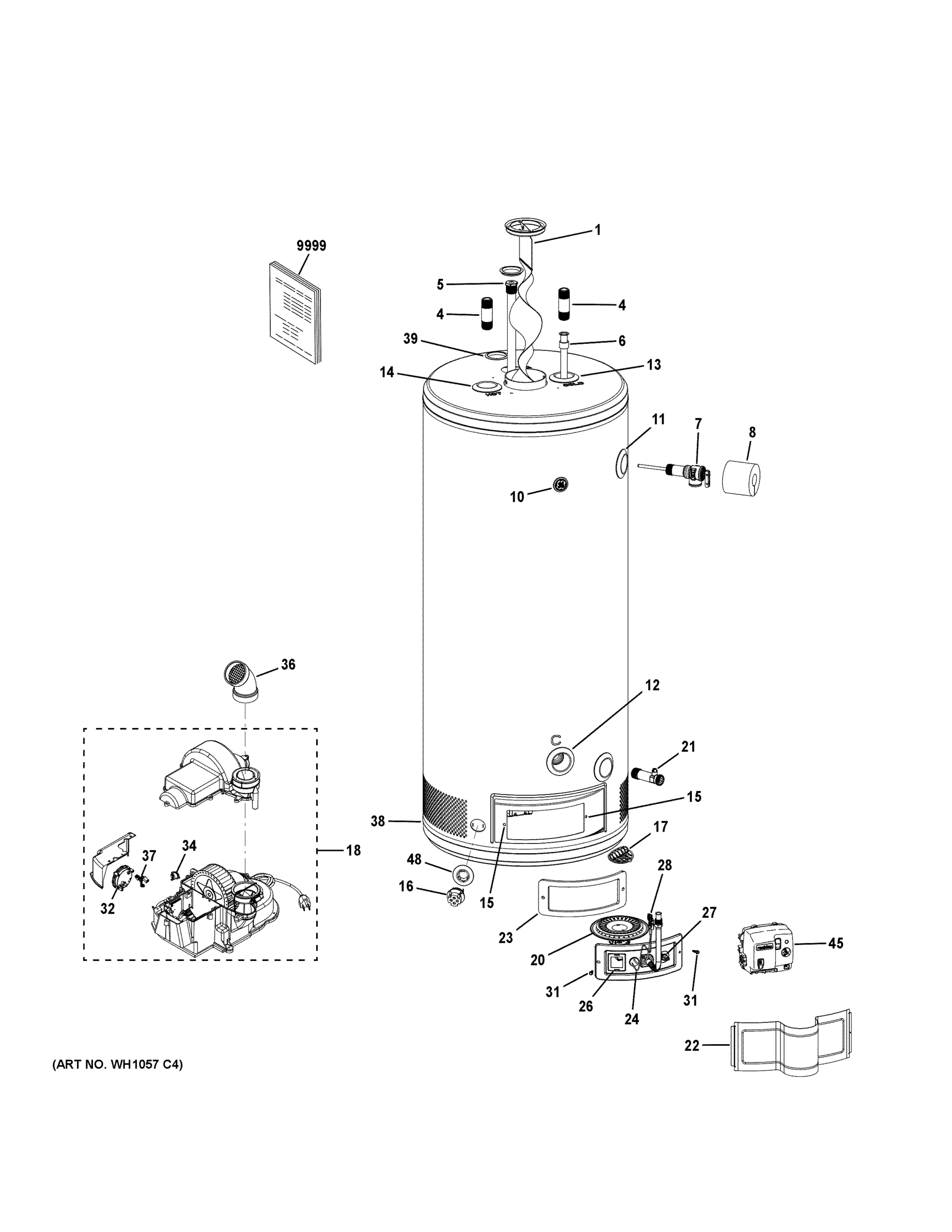

Model GE GP50T08AYV01 Hybrid Water Heater – Common Parts & Diagrams

Common parts from model GE GP50T08AYV01 Hybrid Water Heater

OPTIONAL ACCESSORIES

Print

• This Diagram
• All Diagrams

1

BAFFLE COLLAR ASM 50T PV GEN WS12X24331 Contact Us For Availability

View on Model

4

INLET/OUTLET PIPE GEN WS04X22903 Contact Us For Availability

View on Model

5

ROD ANODE - MAG 46.75" Backorder GEN WS02X23198 View Details $57.97

View on Model

6

DIP TUBE (24"L) GEN WS08X23164 Contact Us For Availability

View on Model

7

T-P VALVE Backorder GEN WS06X22864 View Details $29.02

View on Model

8

T-P VALVE INSULATION GEN WS06X22845 Contact Us For Availability

View on Model

10

WR04X10181 GE Refrigerator Dishwasher Namepla In Stock GEN WR04X10181 View Details $6.95

View on Model

11

FOAM DAM GEN WS01X22843 Contact Us For Availability

View on Model

12

GAS VALVE FOAM DAM GEN WS01X22895 Contact Us For Availability

View on Model

13

INLET FOAM DAM Backorder GEN WS01X22861 View Details $4.81

View on Model

14

OUTLET FOAM DAM (RED) GEN WS01X22862 Contact Us For Availability

View on Model

15

NUT-U GEN WR02X13025 Contact Us For Availability

View on Model

16

FV SENSOR Backorder GEN WS21X24107 View Details $63.35

View on Model

17

SPACER BOTTOM PV GEN WS01X24182 Contact Us For Availability

View on Model

18

BLOWER ASM - PV 50T LN Backorder GEN WS26X24166 View Details $317.86

View on Model

20

BURNER ASM 18.5 PV LP GEN WS50X24326 Contact Us For Availability

View on Model

21

VALVE DRAIN BRASS GEN WS06X23203 Contact Us For Availability

View on Model

22

WS02X22761 GE Outer Door Backorder GEN WS02X22761 View Details $18.83

View on Model

23

BURNER DOOR GASKET Backorder GEN WS02X23641 View Details $12.30

View on Model

24

PILOT ASM - PV/PD LP (HW) Backorder GEN WS52X24105 View Details $58.46

View on Model

26

SIGHT GLASS ASM Backorder GEN WS49X23621 View Details $10.19

View on Model

27

WS21X23195 GE Door Thermistor Backorder GEN WS21X23195 View Details $7.50

View on Model

28

HARNESS THERMISTOR GEN WS21X23196 Contact Us For Availability

View on Model

31

SCR 8-18 AB UIHWH 3/4 SEMS SMS GEN WS01X23562 Contact Us For Availability

View on Model

32

PRESSURE SWITCH (MPL -0.40) Backorder GEN WS21X24601 View Details $45.02

View on Model

34

TEMPERATURE SWITCH (TOD 150F) GEN WS21X24603 Contact Us For Availability

View on Model

36

ELBOW ASM PVC 2 IN DIA Backorder GEN WS07X24335 View Details $6.22

View on Model

37

HARNESS FUSE-JUMPER GEN WS21X24181 Contact Us For Availability

View on Model

38

COVER BOTTOM GEN WS02X22841 Contact Us For Availability

View on Model

39

ANODE FILL PLUG GEN WS01X22844 Contact Us For Availability

View on Model

45

GAS CONTROL VALVE (PV 120V - L Backorder GEN WS52X24103 View Details $234.61

View on Model

48

FV SENSOR DAM Backorder GEN WS01X24761 View Details $12.08

View on Model

9999

PM OWNERS AND INSTALL GEN 496000296 Contact Us For Availability

View on Model

×
