Model GE GP40T12BXR01 Water Heater (Standard Gas Or Electric) – Common Parts & Diagrams

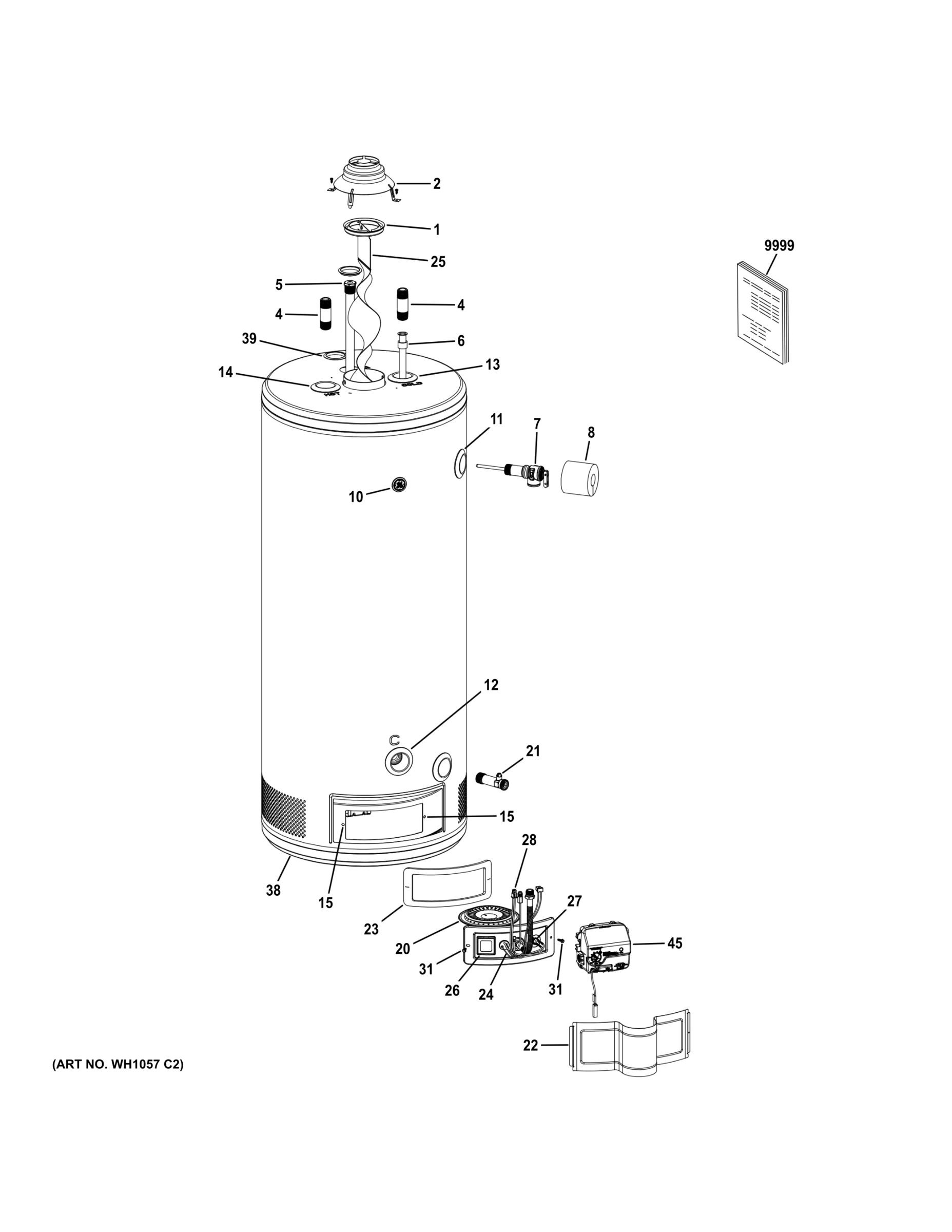

WATER HEATER ASSEMBLY
Common parts from model GE GP40T12BXR01 Water Heater (Standard Gas Or Electric)
2
VENT HOOD GEN WS12X22824 Contact Us For Availability
4
INLET/OUTLET PIPE GEN WS04X22903 Contact Us For Availability
5
ROD ANODE - MAG 46.75" GEN WS02X23198 Contact Us For Availability
6
DIP TUBE GEN WS08X22781 Contact Us For Availability
7
T-P VALVE GEN WS06X22864 Contact Us For Availability
8
T-P VALVE INSULATION GEN WS06X22845 Contact Us For Availability
11
FOAM DAM GEN WS01X22843 Contact Us For Availability
12
GAS VALVE FOAM DAM GEN WS01X22895 Contact Us For Availability
13
INLET FOAM DAM (BLUE) GEN WS01X22861 Contact Us For Availability
14
OUTLET FOAM DAM (RED) GEN WS01X22862 Contact Us For Availability
15
J-CLIP GEN WS02X22899 Contact Us For Availability
20
BURNER ASM (16.5 -50 - ATM - LP) GEN WS50X23187 Contact Us For Availability
21
VALVE DRAIN BRASS GEN WS06X23203 Contact Us For Availability
23
BURNER DOOR GASKET GEN WS02X22894 Contact Us For Availability
24
PILOT ASM - SHORT LP GEN WS52X23200 Contact Us For Availability
25
BAFFLE GEN WS12X22847 Contact Us For Availability
26
SIGHT GLASS GEN WS49X22898 Contact Us For Availability
28
HARNESS THERMISTOR GEN WS21X23196 Contact Us For Availability
31
SCR 8-18 AB UIHWH 3/4 SEMS SMS GEN WS01X23562 Contact Us For Availability
38
COVER BOTTOM GEN WS02X22802 Contact Us For Availability
39
ANODE FILL PLUG GEN WS01X22844 Contact Us For Availability
9999
PM OWNERS AND INSTALL GEN 49-6000245 Contact Us For Availability
× ![]()
