Model Electrolux GP34BEW2 RANGE – Common Parts & Diagrams

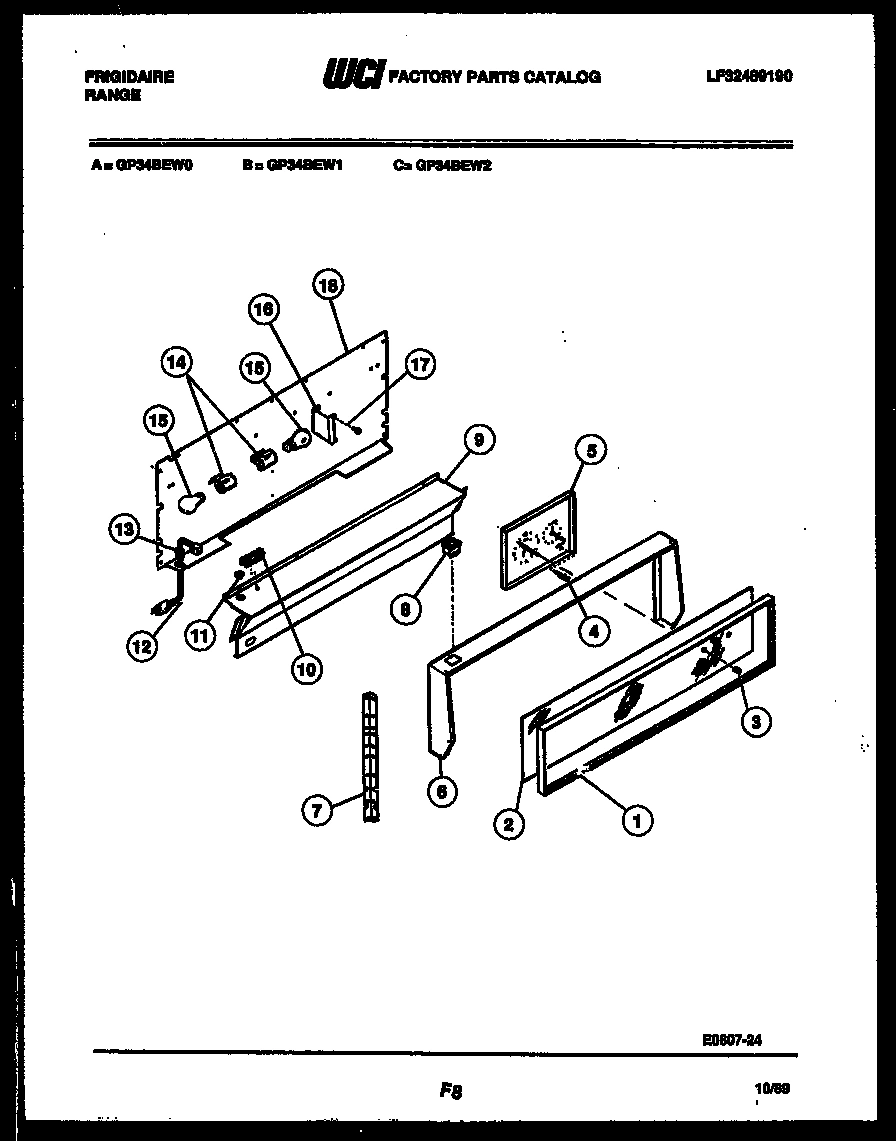

02 - BACKGUARD

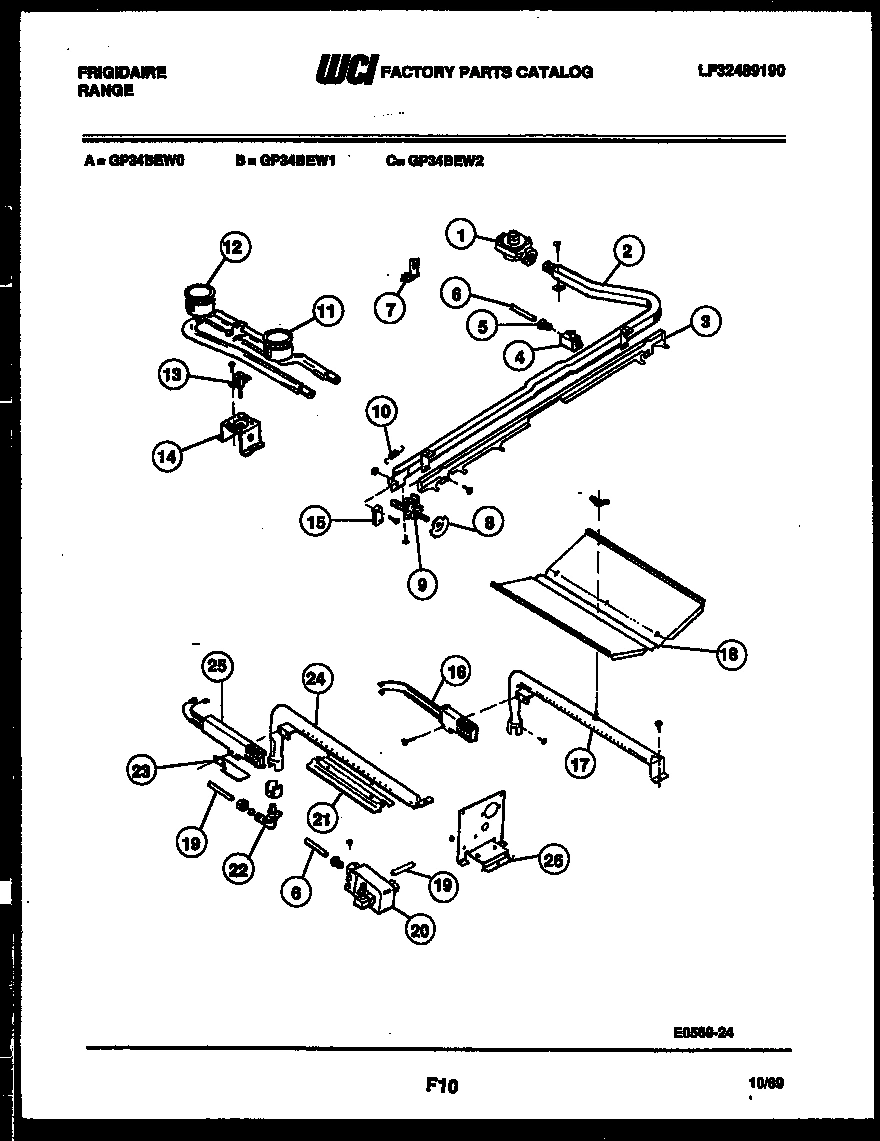

03 - BURNER, MANIFOLD AND GAS CONTROL

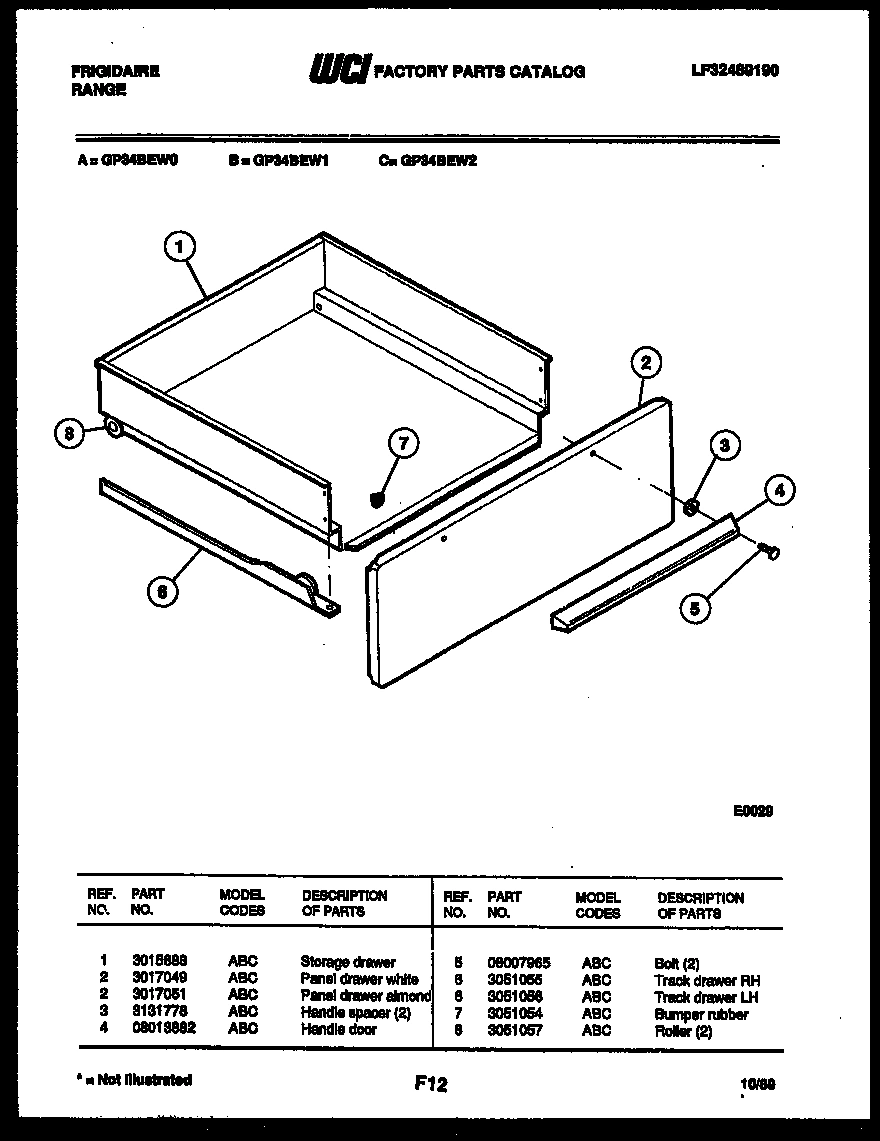

04 - DRAWER PARTS

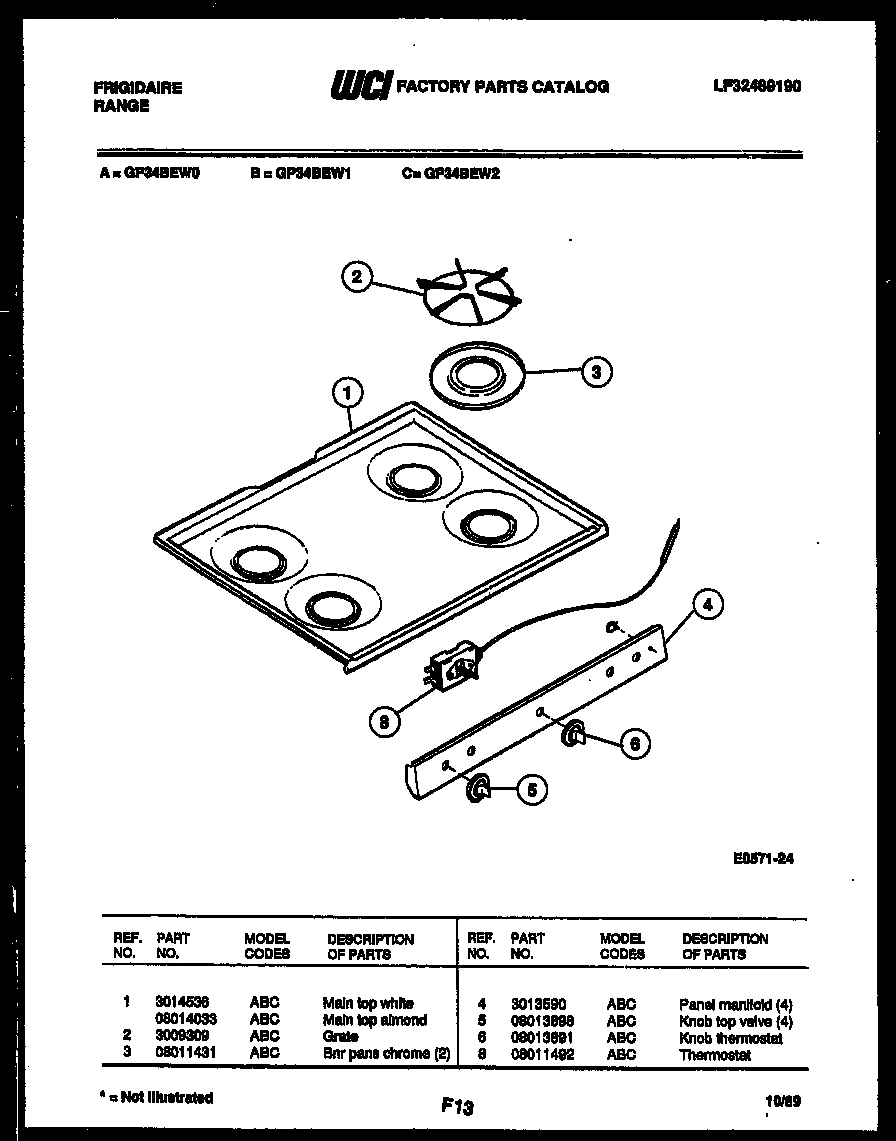

05 - COOKTOP PARTS

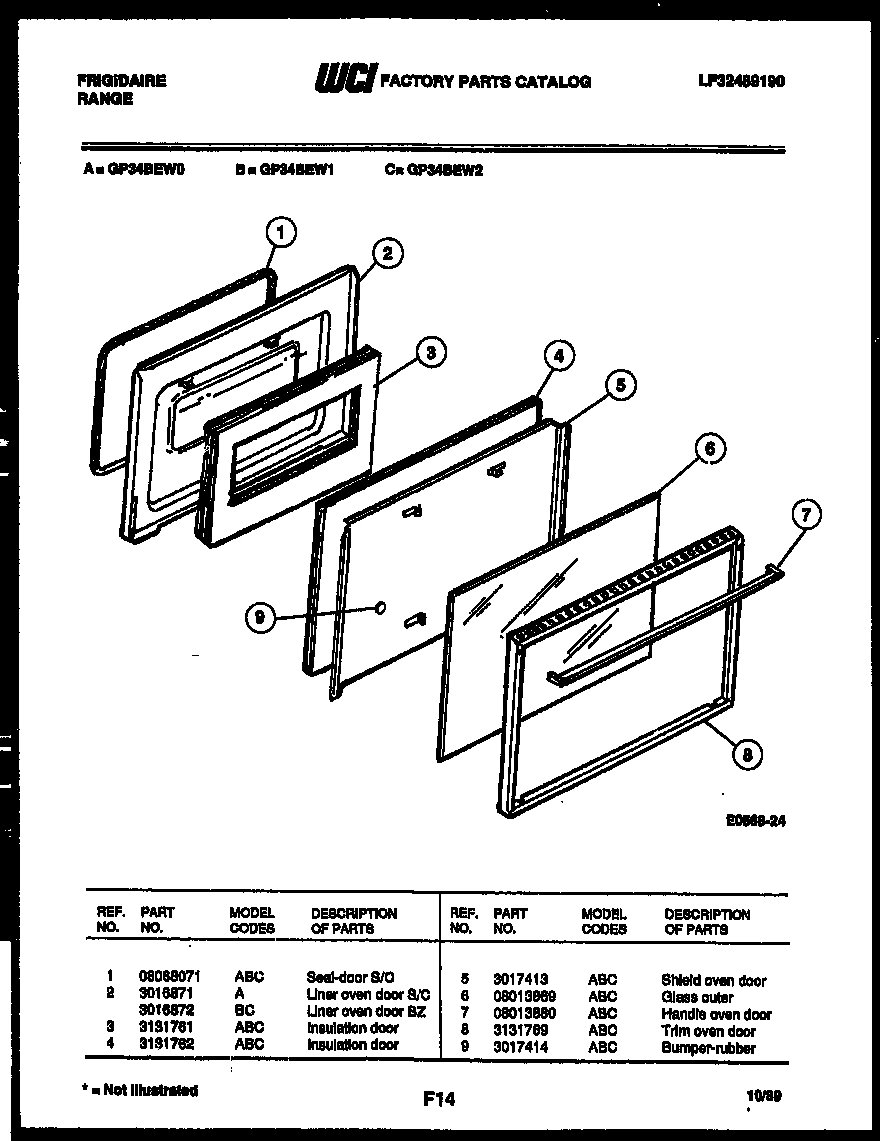

06 - DOOR PARTS

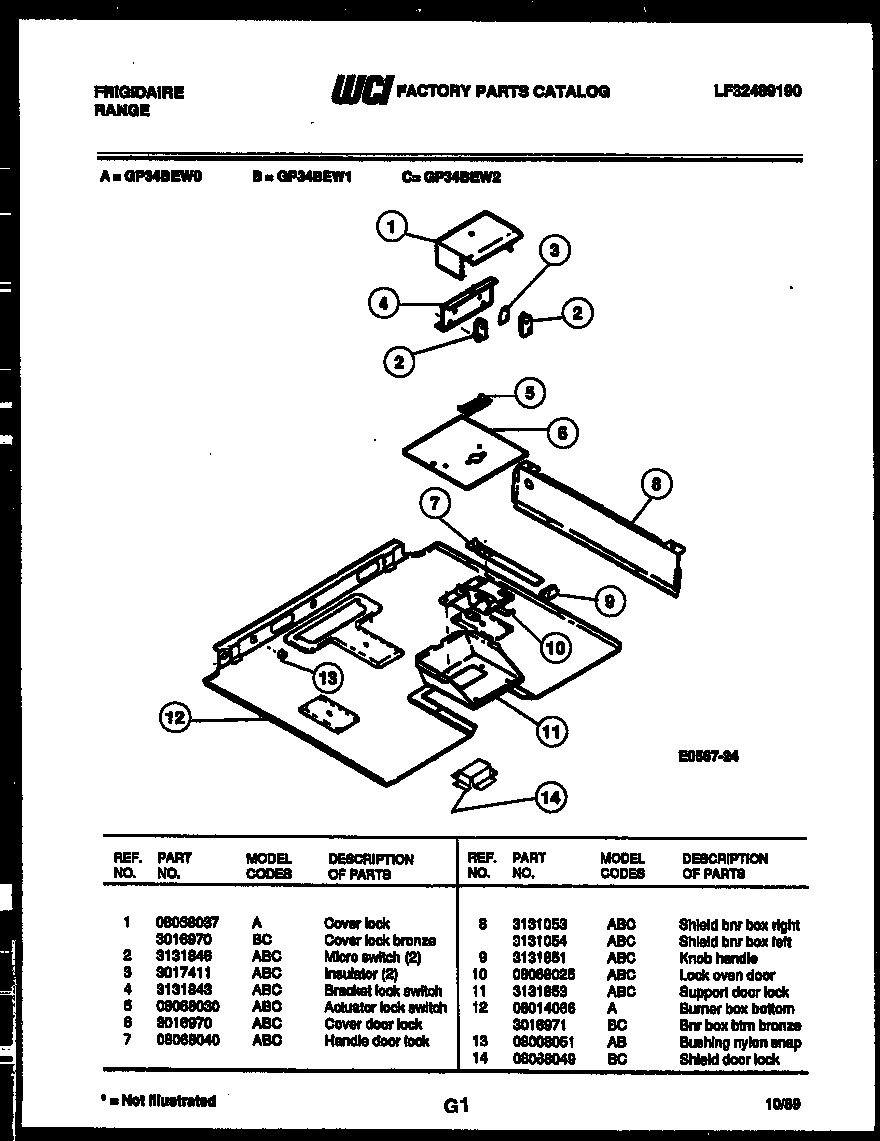

07 - BURNER BOX PARTS

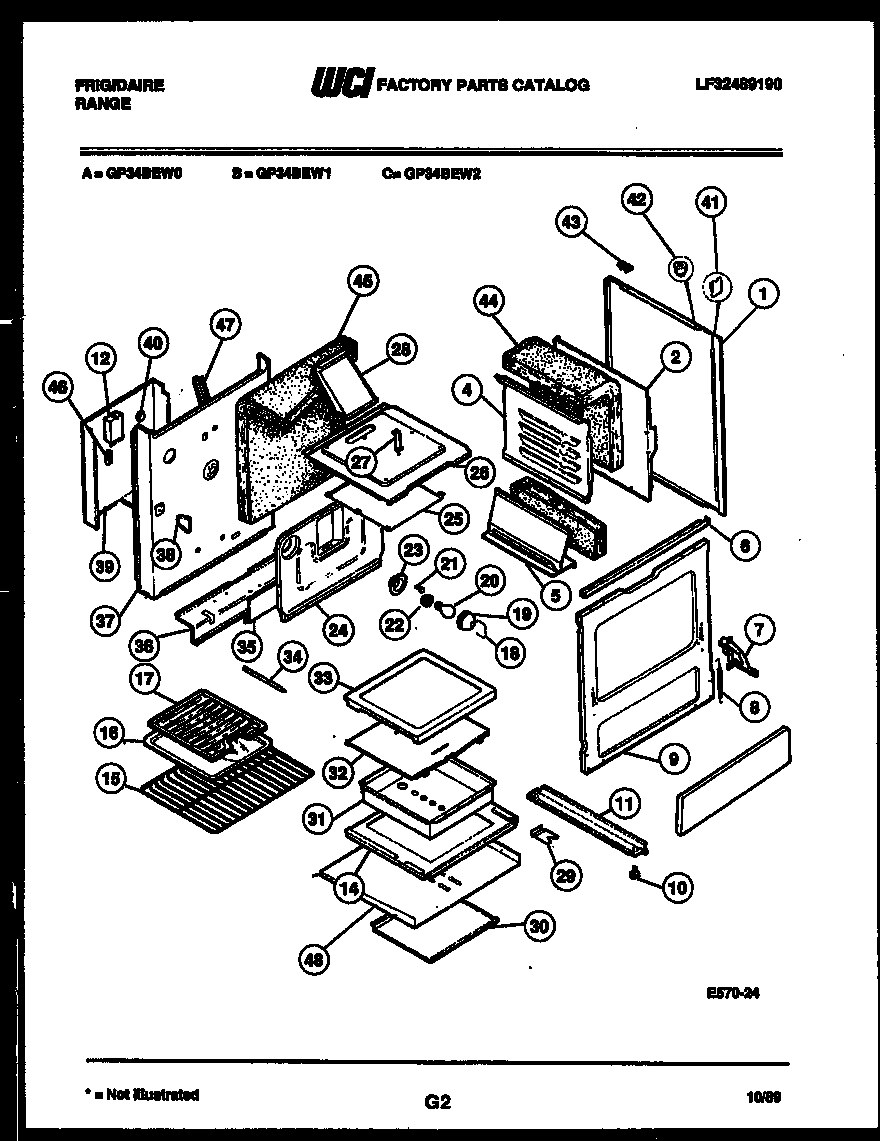

08 - BODY PARTS
Common parts from model Electrolux GP34BEW2 RANGE
1
WCI 3015688 WCI 3015688 Contact Us For Availability
1
WCI 3014536 WCI 3014536 Contact Us For Availability
1
BODYSIDE PNL-WHITE (2) WCI 3051061 Contact Us For Availability
2
WCI 3017631 WCI 3017631 Contact Us For Availability
2
WCI 08013906 WCI 08013906 Contact Us For Availability
2
PANEL DRAWER WHITE WCI 3017049 Contact Us For Availability
2
GRATE WCI 3009309 Contact Us For Availability
2
LINER OVEN DOOR BZ WCI 3016872 Contact Us For Availability
2
MICRO SWITCH (2) WCI 3131846 Contact Us For Availability
2
SHIELD SIDE HEAT (2) WCI 3131794 Contact Us For Availability
3
KNOB CLOCK (3) WCI 3131756 Contact Us For Availability
3
WCI 08014021 WCI 08014021 Contact Us For Availability
3
HANDLE SPACER (2) WCI 3131778 Contact Us For Availability
3
BNR PANS CHROME (2) WCI 08011431 Contact Us For Availability
3
WCI 3131761 WCI 3131761 Contact Us For Availability
3
INSULATOR (2) WCI 3017411 Contact Us For Availability
4
WCI 08006417 WCI 08006417 Contact Us For Availability
4
WCI 3131099 WCI 3131099 Contact Us For Availability
4
HANDLE DOOR WCI 08013882 Contact Us For Availability
4
PANEL MANIFOLD (4) WCI 3013590 Contact Us For Availability
4
WCI 3131762 WCI 3131762 Contact Us For Availability
4
BRACKET LOCK SWITCH WCI 3131843 Contact Us For Availability
4
LINER RIGHT SIDE BRONZE WCI 3016533 Contact Us For Availability
4A
LINER LEFT SIDE BRONZE WCI 3016534 Contact Us For Availability
5
WCI 3017632 WCI 3017632 Contact Us For Availability
5
NUT 3/8 LOXIT WCI 3131064 Contact Us For Availability
5
WCI 08013898 WCI 08013898 Contact Us For Availability
5
WCI 3017413 WCI 3017413 Contact Us For Availability
5
WCI 08068030 WCI 08068030 Contact Us For Availability
5
SHIELD WCI 3131053 Contact Us For Availability
5
SHIELD BUR BOX LS WCI 3131054 Contact Us For Availability
6
WCI 08015488 WCI 08015488 Contact Us For Availability
6
WCI 08068028 WCI 08068028 Contact Us For Availability
6
TRACK DRAWER RH WCI 3051055 Contact Us For Availability
6
TRACK DRAWER LH WCI 3051056 Contact Us For Availability
6
WCI 08013891 WCI 08013891 Contact Us For Availability
6
WCI 08013869 WCI 08013869 Contact Us For Availability
6
COVER-DOOR LOCK WCI 3016970 Contact Us For Availability
6
SUPPORT CONTROL PNL WCI 3131811 Contact Us For Availability
7
BRACE SUPPORT (2) WCI 08013296 Contact Us For Availability
7
WCI 08013856 WCI 08013856 Contact Us For Availability
7
WCI 3051054 WCI 3051054 Contact Us For Availability
7
WCI 08013880 WCI 08013880 Contact Us For Availability
7
WCI 08068040 WCI 08068040 Contact Us For Availability
7A
WCI 3205984 WCI 3205984 Contact Us For Availability
8
WCI 08008002 WCI 08008002 Contact Us For Availability
8
WCI 3051057 WCI 3051057 Contact Us For Availability
8
WCI 08011492 WCI 08011492 Contact Us For Availability
8
TRIM OVEN DOOR WCI 3131769 Contact Us For Availability
8
SPRING OVEN DOOR (2) WCI 3009435 Contact Us For Availability
9
VENT - DEFLECTOR WCI 08013962 Contact Us For Availability
9
VALVE TOP BURNERS (4) WCI 3131057 Contact Us For Availability
9
WCI 3017414 WCI 3017414 Contact Us For Availability
9
KNOB HANDLE WCI 3131851 Contact Us For Availability
9
FRAME FRONT BRONZE WCI 3205905 Contact Us For Availability
10
BLOCK TERMINAL WCI 08008071 Contact Us For Availability
10
WCI 3131096 WCI 3131096 Contact Us For Availability
10
WCI 08068025 WCI 08068025 Contact Us For Availability
10
WCI 3021080 WCI 3021080 Contact Us For Availability
11
WCI 08008009 WCI 08008009 Contact Us For Availability
11
BURNER FRONT TOP (2) WCI 3131080 Contact Us For Availability
11
WCI 3131853 WCI 3131853 Contact Us For Availability
11
RAIL - BASE (2) WCI 08068047 Contact Us For Availability
12
WCI 3017410 WCI 3017410 Contact Us For Availability
12
BURNER REAR TOP (2) WCI 3131079 Contact Us For Availability
12
BNR BOX BTM BRONZE WCI 3016971 Contact Us For Availability
13
WCI 08008255 WCI 08008255 Contact Us For Availability
13
IGNITER TOP (2) WCI 3016869 Contact Us For Availability
14
RECEPTACLE-BACKGUARD (2) WCI 08008075 Contact Us For Availability
14
SUPPORT TOP BNR (2) WCI 3203964 Contact Us For Availability
14
SHIELD DOOR LOCK WCI 08068049 Contact Us For Availability
14
WCI 3016875 WCI 3016875 Contact Us For Availability
15
SWITCH MICRO FRNT MTG WCI 3131094 Contact Us For Availability
15
WCI 3015714 WCI 3015714 Contact Us For Availability
16
BRACKET CLOCK MTG WCI 08008076 Contact Us For Availability
16
PAN BROILER BRONZE WCI 3016973 Contact Us For Availability
17
WCI 08007925 WCI 08007925 Contact Us For Availability
17
WCI 3131860 WCI 3131860 Contact Us For Availability
18
PANEL - BACK WCI 08013966 Contact Us For Availability
18
RETAINER OVEN LIGHT LENS WCI 3205904 Contact Us For Availability
19
TUBE BROIL FEED WCI 3131866 Contact Us For Availability
20
WCI 3017415 WCI 3017415 Contact Us For Availability
21
SOCKET HOUSING WCI 3016399 Contact Us For Availability
22
PIN ELBOW MIXER WCI 08011470 Contact Us For Availability
23
WCI 3051511 WCI 3051511 Contact Us For Availability
23
SHIELD IGNITER WCI 3131871 Contact Us For Availability
24
WCI 3131873 WCI 3131873 Contact Us For Availability
24
WCI 3016873 WCI 3016873 Contact Us For Availability
25
WCI 08011509 WCI 08011509 Contact Us For Availability
26
WCI 3131802 WCI 3131802 Contact Us For Availability
27
WCI 3131800 WCI 3131800 Contact Us For Availability
28
VENT BOX ASSY BRONZE WCI 3016877 Contact Us For Availability
29
BRACKET INSTALLATION WCI 3934059 Contact Us For Availability
30
SHIELD STORAGE DWR WCI 08068050 Contact Us For Availability
31
WCI 08068046 WCI 08068046 Contact Us For Availability
32
BAFFLE BAKE BURNER WCI 3131823 Contact Us For Availability
33
OVEN BTM PL BRONZE WCI 3016975 Contact Us For Availability
34
SHIELD CAPILLARY BULB BRONZE WCI 3016976 Contact Us For Availability
35
COVER CONTROL VALVE WCI 08068039 Contact Us For Availability
36
SUPPORT CONTROL VALVE WCI 3131831 Contact Us For Availability
37
BACK MAIN 30 S/C WCI 3131833 Contact Us For Availability
38
Support,oven rear WCI 3051096 Contact Us For Availability
39
WCI 08068038 WCI 08068038 Contact Us For Availability
40
THERMOSTAT BAKE BROIL SELECT WCI 3131839 Contact Us For Availability
41
CLIP BACKSPLASH CVR WCI 3131791 Contact Us For Availability
42
GROMMET PLASTIC WCI 3051063 Contact Us For Availability
43
GROMMET MAIN TOP WCI 3016129 Contact Us For Availability
44
INSUL. OV. WRAP WCI 3131795 Contact Us For Availability
45
INSUL. OV. TOP & BTTM. WCI 3131840 Contact Us For Availability
46
TERMINAL BOARD WCI 08007985 Contact Us For Availability
47
CHANNEL MAIN BK. WIRE WCI 3131046 Contact Us For Availability
48
RETAINER BTM INSUL WCI 3131820 Contact Us For Availability
× ![]()
