Model Electrolux GP32BNW4 RANGE – Common Parts & Diagrams
02 - BACKGUARD
03 - COOKTOP PARTS

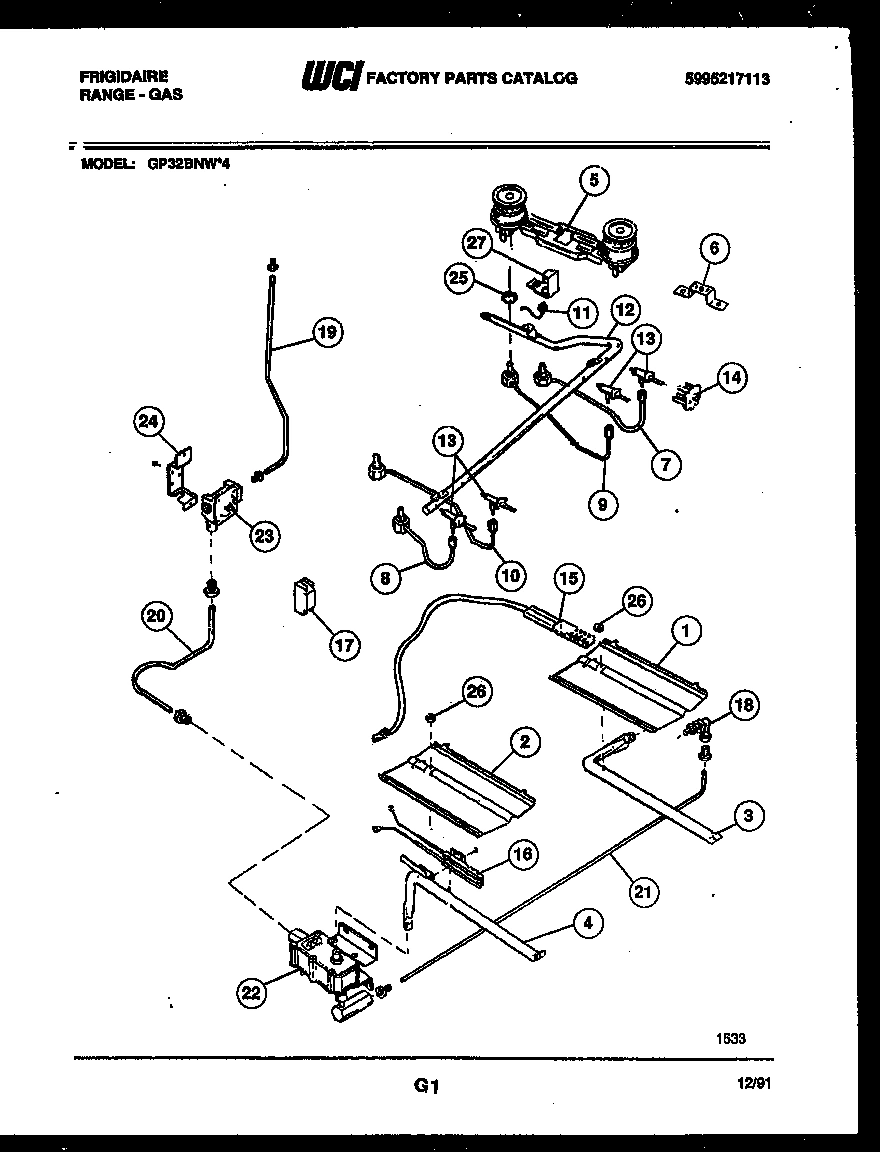

04 - BURNER, MANIFOLD AND GAS CONTROL

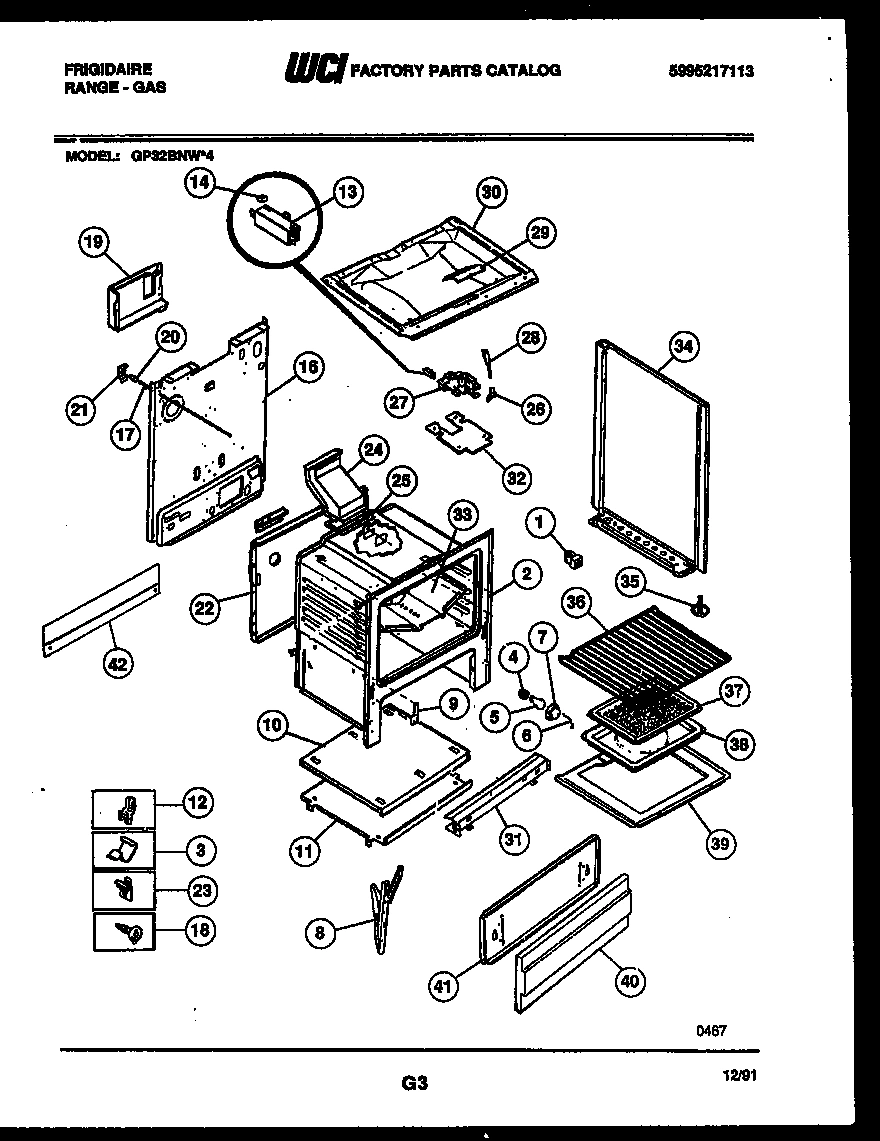

05 - BODY PARTS

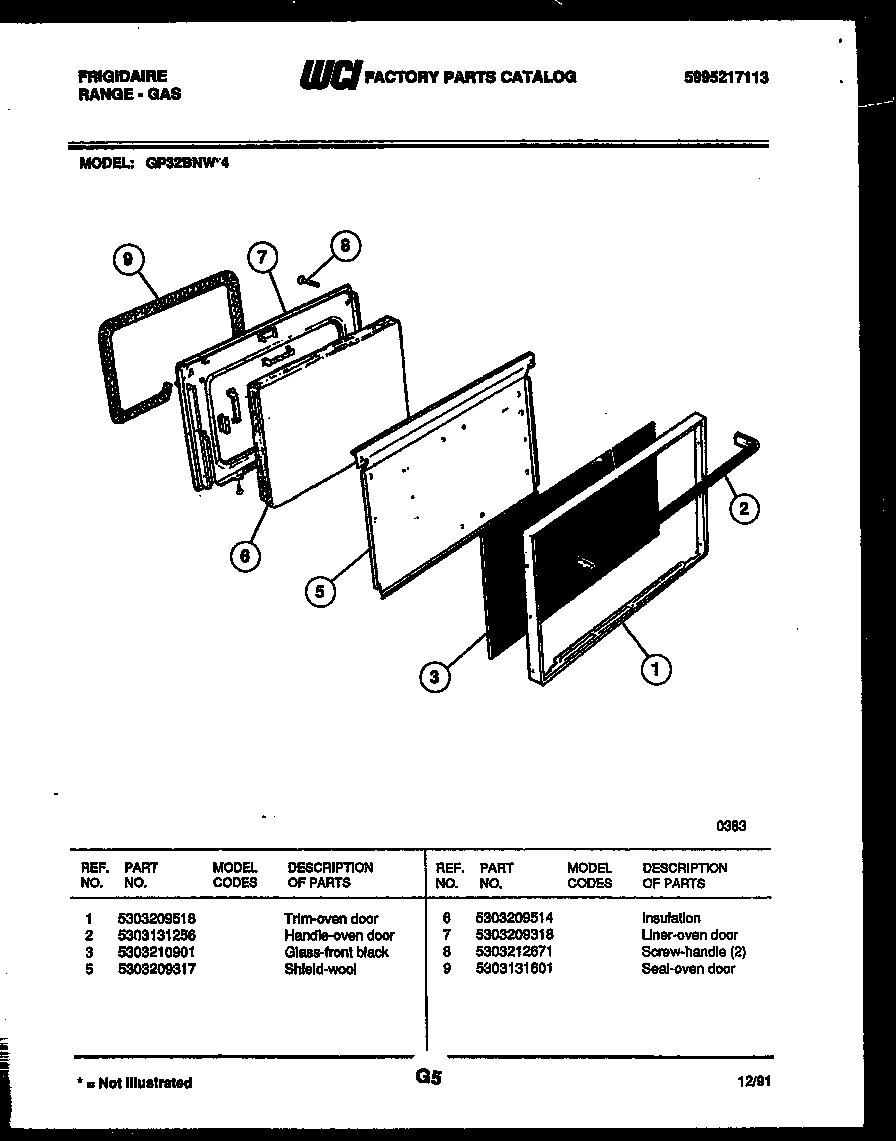

06 - DOOR PARTS
Common parts from model Electrolux GP32BNW4 RANGE
*57257
WIRING DIAGRAM (NOT FOR PURCHASE) WCI 19100180305 Contact Us For Availability
*57257
WCI 3200523 WCI 3200523 Contact Us For Availability
1
SPACER-BODYSIDE, (8) WCI 3014099 Contact Us For Availability
1
WCI 3131351 WCI 3131351 Contact Us For Availability
1
WCI 5303210379 WCI 5303210379 Contact Us For Availability
1
WCI 5303209518 WCI 5303209518 Contact Us For Availability
2
BRACKET-MAIN TOP HINGE LH WCI 08067746 Contact Us For Availability
2
BAFFLE-OVEN BURNER WCI 3131284 Contact Us For Availability
2
WCI 5303131256 WCI 5303131256 Contact Us For Availability
3
WCI 08067935 WCI 08067935 Contact Us For Availability
3
BRACKET-MAIN TOP HINGE RH WCI 08067747 Contact Us For Availability
3
WCI 5303210901 WCI 5303210901 Contact Us For Availability
4
GRATE (4) WCI 3018432 Contact Us For Availability
4
WCI 3131290 WCI 3131290 Contact Us For Availability
5
ROD-MAIN TOP WCI 5303271609 Contact Us For Availability
5
BURNER-TOP-DOUBLE WCI 5303131147 Contact Us For Availability
5
WCI 5303209317 WCI 5303209317 Contact Us For Availability
6
KNOB, TOP VALVE (4) WCI 5303210280 Contact Us For Availability
6
BRACKET BURNER MTG WCI 3200277 Contact Us For Availability
6
WIRE GLASS RETAINER WCI 3204585 Contact Us For Availability
6
INSULATION WCI 5303209514 Contact Us For Availability
7
WCI 5303210895 WCI 5303210895 Contact Us For Availability
7
BURNER-TUBE FRONT RF WCI 5303283665 Contact Us For Availability
7
LINER-OVEN DOOR WCI 5303209318 Contact Us For Availability
8
BURNER-TUBE FRONT LF WCI 5303283666 Contact Us For Availability
8
WCI 316007000 WCI 316007000 Contact Us For Availability
8
SCREW-HANDLE (2) WCI 5303212671 Contact Us For Availability
9
COVER-HINGE CUTOUT (2) WCI 3131570 Contact Us For Availability
9
BURNER-TUBE REAR RR WCI 5303283667 Contact Us For Availability
10
BURNER-TUBE REAR LR WCI 5303283668 Contact Us For Availability
10
SHIELD-HEAT UPPER WCI 5303270104 Contact Us For Availability
11
IGNITOR, TOP BURNER (2) WCI 3200276 Contact Us For Availability
11
WCI 3131313 WCI 3131313 Contact Us For Availability
11A
WCI 08067992 WCI 08067992 Contact Us For Availability
12
CLOCK WCI 5303210877 Contact Us For Availability
12
WCI 5303271375 WCI 5303271375 Contact Us For Availability
13
WCI 5303210879 WCI 5303210879 Contact Us For Availability
13
VALVE-TOP POS (2) WCI 5303281600 Contact Us For Availability
13
WCI 3131672 WCI 3131672 Contact Us For Availability
14
WCI 5303210881 WCI 5303210881 Contact Us For Availability
14
IGNITION SWITCH (4) WCI 5303280577 Contact Us For Availability
14
WCI 08067776 WCI 08067776 Contact Us For Availability
14A
WCI 08067978 WCI 08067978 Contact Us For Availability
15
WCI 5303210880 WCI 5303210880 Contact Us For Availability
16
KNOB - CLOCK (3) WCI 5303210414 Contact Us For Availability
16
WCI 3203082 WCI 3203082 Contact Us For Availability
17
ROD LIGHT WCI 5303209316 Contact Us For Availability
18
WCI 5303208640 WCI 5303208640 Contact Us For Availability
19
TUBE-ALUM 3/8-REGUL TO MANIFOLD WCI 5303208495 Contact Us For Availability
20
TUBE, ALUM 3/8 (VALVE TO REGULATOR) WCI 5303208494 Contact Us For Availability
20
SWITCH, DOOR WCI 5303202622 Contact Us For Availability
21
TUBE-ALUM 3/8-VALVE TO MIXER WCI 5303208493 Contact Us For Availability
21
BRACKET-LIGHT SWITCH WCI 5303131289 Contact Us For Availability
22
WCI 08067991 WCI 08067991 Contact Us For Availability
23
CLIP-WIRE WCI 3011813 Contact Us For Availability
24
WCI 3131931 WCI 3131931 Contact Us For Availability
25
NUT, SPECIAL WCI 3013279 Contact Us For Availability
25A
SHIELD-BI METAL LATCH (NON-ILLUSTRATED) WCI 3051413 Contact Us For Availability
25B
WCI 08013188 WCI 08013188 Contact Us For Availability
26
WCI 3203218 WCI 3203218 Contact Us For Availability
27
WCI 5303015453 WCI 5303015453 Contact Us For Availability
28
WCI 5303131357 WCI 5303131357 Contact Us For Availability
29
WCI 3131101 WCI 3131101 Contact Us For Availability
30
WCI 3011597 WCI 3011597 Contact Us For Availability
31
WCI 5303271047 WCI 5303271047 Contact Us For Availability
32
SHIELD-LATCH SWITCH WCI 3131593 Contact Us For Availability
33
WCI 3200836 WCI 3200836 Contact Us For Availability
34
WCI 5303269519 WCI 5303269519 Contact Us For Availability
34A
WCI 5303269518 WCI 5303269518 Contact Us For Availability
35
SCREW, LEVELLING WCI 5303203397 Contact Us For Availability
37
WCI 5303131356 WCI 5303131356 Contact Us For Availability
38
PAN-BROILER WCI 5303013568 Contact Us For Availability
39
OVEN BOTTOM WCI 5303212540 Contact Us For Availability
39B
INSULATION-WRAP (NON-ILLUSTRATED) WCI 3200833 Contact Us For Availability
39C
WCI 08067961 WCI 08067961 Contact Us For Availability
39D
WCI 3204582 WCI 3204582 Contact Us For Availability
39F
INSULATION-TOP (NON-ILLUSTRATED) WCI 3131304 Contact Us For Availability
39G
WCI 08068018 WCI 08068018 Contact Us For Availability
40
PANEL, DUMMY DRWR (WHITE) WCI 3051201 Contact Us For Availability
40A
SHIELD-HEAT, BODY SIDE (NON-ILLUSTRATED) WCI 3200834 Contact Us For Availability
41
WCI 3131975 WCI 3131975 Contact Us For Availability
41A
SHIELD, OVEN TOP (NON-ILLUSTRATED) WCI 3131314 Contact Us For Availability
41B
SPACER (NON-ILLUSTRATED) WCI 3200612 Contact Us For Availability
41C
FOIL, ALUMINUM (NON-ILLUSTRATED) WCI 3017527 Contact Us For Availability
41D
ANTI, TIP BRACKET (NON-ILLUSTRATED) WCI 3934056 Contact Us For Availability
42
SHIELD-LOWER REAR WALL WCI 5303269502 Contact Us For Availability
× ![]()
