Model Electrolux GP32BNL1 RANGE – Common Parts & Diagrams
01 - COVER

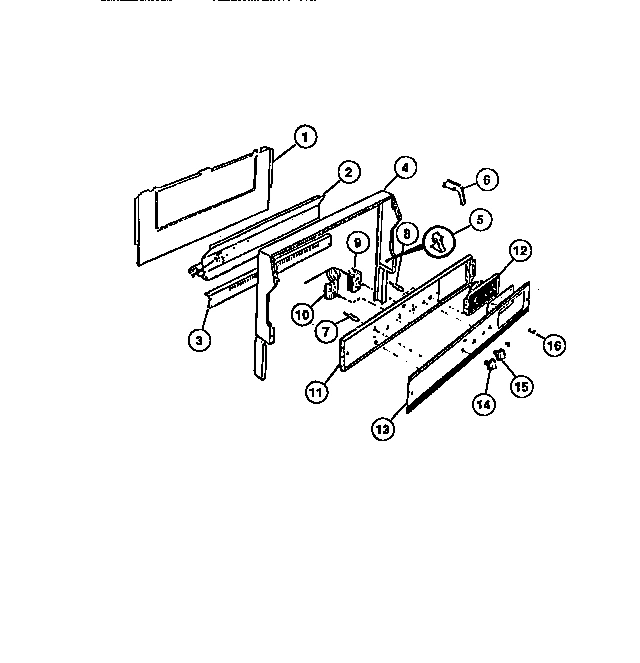

02 - BACKGUARD
03 - TOP & CONTROLS
04 - BURNER
05 - CAVITY & PANELS
06 - DOOR
Common parts from model Electrolux GP32BNL1 RANGE
1
SPACER-BODYSIDE, (8) WCI 3014099 Contact Us For Availability
1
MAIN TOP, ALMOND WCI 3131455 Contact Us For Availability
1
WCI 5303210379 WCI 5303210379 Contact Us For Availability
1
WCI 3203480 WCI 3203480 Contact Us For Availability
2
BRACKET, MAIN TOP HINGE LH WCI 3011558 Contact Us For Availability
2
BAFFLE-OVEN BURNER WCI 3131284 Contact Us For Availability
2
WCI N/A WCI N/A Contact Us For Availability
2
WCI 5303131256 WCI 5303131256 Contact Us For Availability
3
WCI 08067935 WCI 08067935 Contact Us For Availability
3
BRACKET, MAIN TOP HINGE RH WCI 3011559 Contact Us For Availability
3
WCI 5303210901 WCI 5303210901 Contact Us For Availability
4
GRATE (4) WCI 3018432 Contact Us For Availability
4
WCI 3131290 WCI 3131290 Contact Us For Availability
4
WCI 3131720 WCI 3131720 Contact Us For Availability
5
BURNER-TOP-DOUBLE WCI 5303131147 Contact Us For Availability
5
SHIELD, WOOL SOLID WCI 3201693 Contact Us For Availability
6
KNOB, TOP VALVE (4) WCI 5303210280 Contact Us For Availability
6
BRACKET BURNER MTG WCI 3200277 Contact Us For Availability
6
WIRE, GLASS RETAINER WCI 3204483 Contact Us For Availability
6
INSULATION WCI 3131364 Contact Us For Availability
7
WCI 5303210895 WCI 5303210895 Contact Us For Availability
7
WCI 5303131970 WCI 5303131970 Contact Us For Availability
7
LINER, OVER DOOR WCI 3201692 Contact Us For Availability
8
BURNER, TUBE REAR, RR WCI 5303011569 Contact Us For Availability
8
WCI 5303131569 WCI 5303131569 Contact Us For Availability
8
SCREW, HANDLE (2) WCI 3016851 Contact Us For Availability
9
COVER-HINGE CUTOUT (2) WCI 3131570 Contact Us For Availability
9
BURNER, TUBE REAR, LR WCI 5303011570 Contact Us For Availability
10
FERRULE WCI 3012358 Contact Us For Availability
10
WCI 3131951 WCI 3131951 Contact Us For Availability
10
WCI 08010463 WCI 08010463 Contact Us For Availability
11
IGNITOR, TOP BURNER (2) WCI 3200276 Contact Us For Availability
11
WCI 3131313 WCI 3131313 Contact Us For Availability
11
WCI 3934033 WCI 3934033 Contact Us For Availability
11A
WCI 08067992 WCI 08067992 Contact Us For Availability
12
WCI 3018861 WCI 3018861 Contact Us For Availability
12
FASTENER, PUSH IN (6) WCI 3131974 Contact Us For Availability
13
WCI 5303210879 WCI 5303210879 Contact Us For Availability
13
VALVE, TOP POS (2) WCI 5303017542 Contact Us For Availability
13
WCI 3131672 WCI 3131672 Contact Us For Availability
13
WCI 3131323 WCI 3131323 Contact Us For Availability
14
WCI 5303210881 WCI 5303210881 Contact Us For Availability
14
WCI 08067948 WCI 08067948 Contact Us For Availability
14
WCI 08067776 WCI 08067776 Contact Us For Availability
14A
WCI 08067978 WCI 08067978 Contact Us For Availability
15
WCI 5303210880 WCI 5303210880 Contact Us For Availability
15
NUT COMPRESSION (4) WCI 3131148 Contact Us For Availability
16
KNOB - CLOCK (3) WCI 5303210414 Contact Us For Availability
16
IGNITION SWITCH (4) WCI 5303207999 Contact Us For Availability
16
WCI 3203082 WCI 3203082 Contact Us For Availability
16A
BUSHING, CONTROL SHAFT (NON-ILLUSTRATED) WCI 5308010401 Contact Us For Availability
16B
SHIELD, BACKGUARD (NON-ILLUSTRATED) WCI 3018820 Contact Us For Availability
17
ROD LIGHT WCI 5303209316 Contact Us For Availability
20
WCI 5303208640 WCI 5303208640 Contact Us For Availability
20
SWITCH, DOOR WCI 5303202622 Contact Us For Availability
21
WCI 479T096P01 WCI 479T096P01 Contact Us For Availability
21
BRACKET, LIGHT SWITHCH WCI 5303131289 Contact Us For Availability
22
FIXING LOXIT WCI 3131261 Contact Us For Availability
22
WCI 08067991 WCI 08067991 Contact Us For Availability
23
TUBE-ALUM 3/8-REGUL TO MANIFOLD WCI 5303208495 Contact Us For Availability
23
CLIP-WIRE WCI 3011813 Contact Us For Availability
24
TUBE, ALUM 3/8 (VALVE TO REGULATOR) WCI 5303208494 Contact Us For Availability
24
WCI 3131931 WCI 3131931 Contact Us For Availability
25
TUBE-ALUM 3/8-VALVE TO MIXER WCI 5303208493 Contact Us For Availability
25A
SHIELD, BIMETAL LATCH (NON-ILLUSTRATED) WCI 3131593 Contact Us For Availability
25B
WCI 08013188 WCI 08013188 Contact Us For Availability
26
WCI 3203218 WCI 3203218 Contact Us For Availability
27
WCI 5303015453 WCI 5303015453 Contact Us For Availability
28
WCI 5303131357 WCI 5303131357 Contact Us For Availability
29
NUT, SPECIAL WCI 3013279 Contact Us For Availability
29
WCI 3131101 WCI 3131101 Contact Us For Availability
30
WCI 3011597 WCI 3011597 Contact Us For Availability
31
SHIELD, MAIN FRONT WCI 3200835 Contact Us For Availability
32
WCI 3051413 WCI 3051413 Contact Us For Availability
33
WCI 3200836 WCI 3200836 Contact Us For Availability
34
PANEL BODYSIDE-LH-ALMOND WCI 3205621 Contact Us For Availability
34A
PANEL BODYSIDE-RH-ALMOND WCI 3205624 Contact Us For Availability
35
SCREW, LEVELLING WCI 5303203397 Contact Us For Availability
37
WCI 5303131356 WCI 5303131356 Contact Us For Availability
38
PAN-BROILER WCI 5303013568 Contact Us For Availability
39
OVEN BOTTOM WCI 3011519 Contact Us For Availability
39B
INSULATION-WRAP (NON-ILLUSTRATED) WCI 3200833 Contact Us For Availability
39C
WCI 08067961 WCI 08067961 Contact Us For Availability
39D
WCI 3204582 WCI 3204582 Contact Us For Availability
39F
INSULATION-TOP (NON-ILLUSTRATED) WCI 3131304 Contact Us For Availability
39G
WCI 08068018 WCI 08068018 Contact Us For Availability
40
PANEL, DUMMY DRWR (ALMOND) WCI 3051202 Contact Us For Availability
40A
SHIELD-HEAT, BODY SIDE (NON-ILLUSTRATED) WCI 3200834 Contact Us For Availability
41
WCI 3131975 WCI 3131975 Contact Us For Availability
41A
SHIELD, OVEN TOP (NON-ILLUSTRATED) WCI 3131314 Contact Us For Availability
41B
SHIELD, WALL REAR (NON-ILLUSTRATED) WCI 3131590 Contact Us For Availability
41C
SPACER (NON-ILLUSTRATED) WCI 3200612 Contact Us For Availability
41D
FOIL, ALUMINUM (NON-ILLUSTRATED) WCI 3017527 Contact Us For Availability
41E
WCI 3034056 WCI 3034056 Contact Us For Availability
42
WCI 3131252 WCI 3131252 Contact Us For Availability
42A
SLEEVE INSULATOR (NON-ILLUSTRATED) WCI 3200523 Contact Us For Availability
× ![]()
