Model Electrolux GP32BEW1 RANGE – Common Parts & Diagrams
02 - BACKGUARD
03 - COOKTOP PARTS

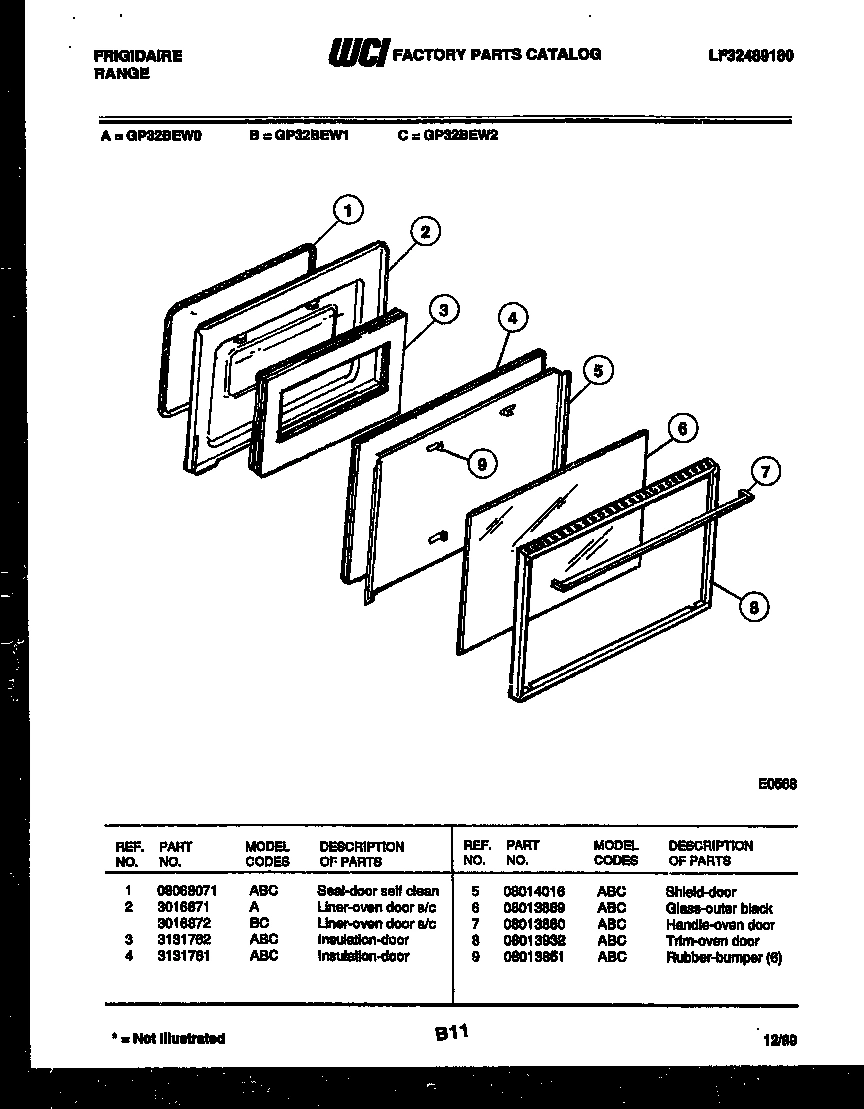

04 - DOOR PARTS

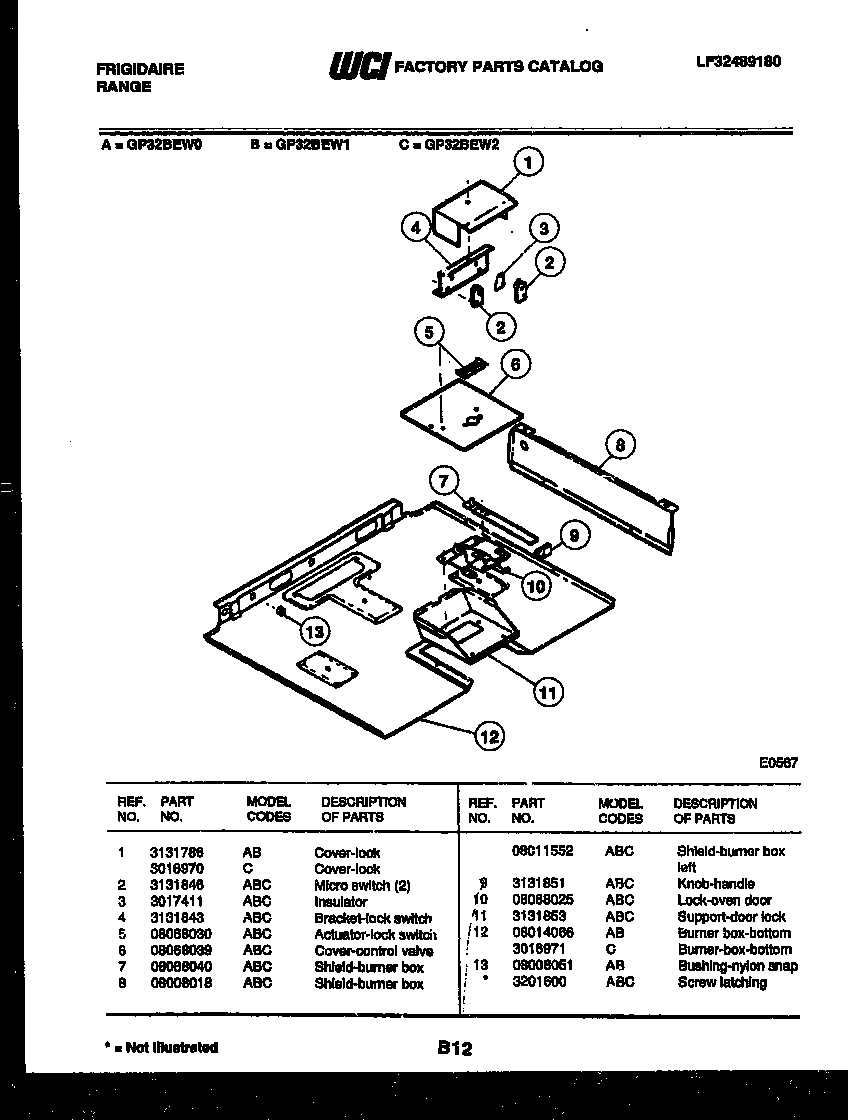

05 - BURNER BOX PARTS

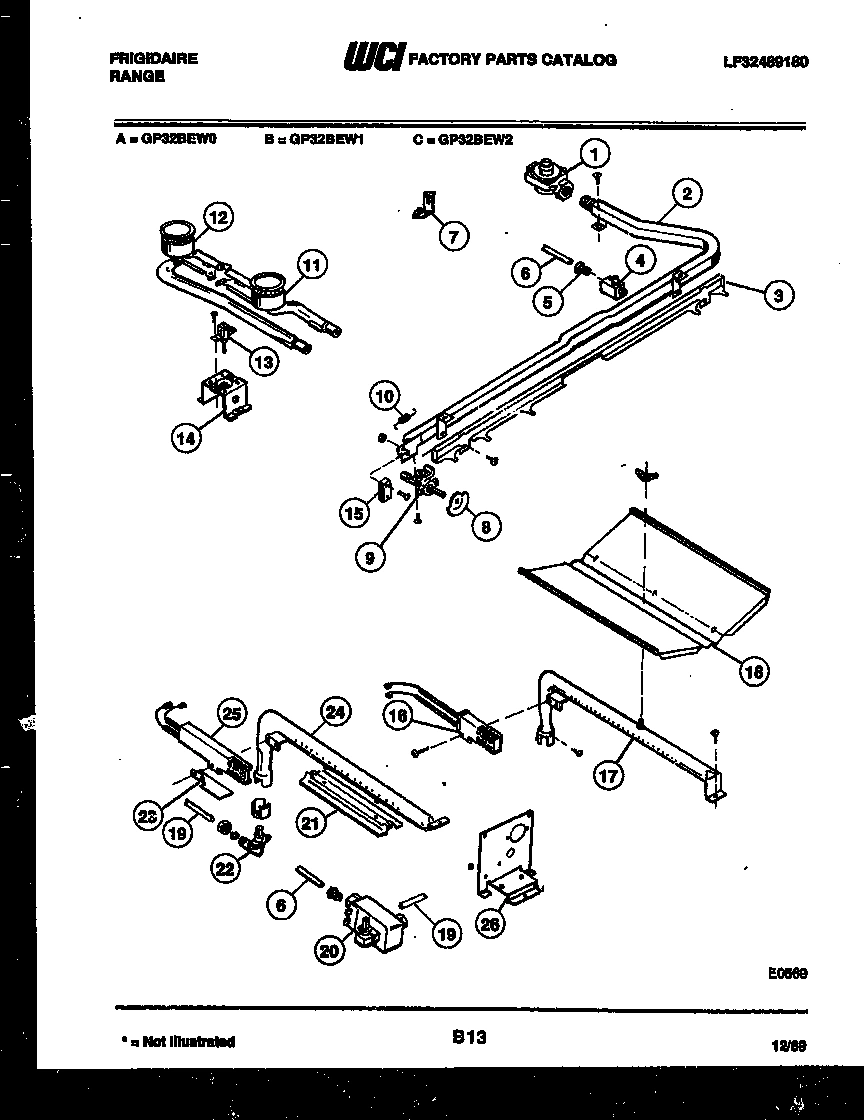

06 - BURNER, MANIFOLD AND GAS CONTROL

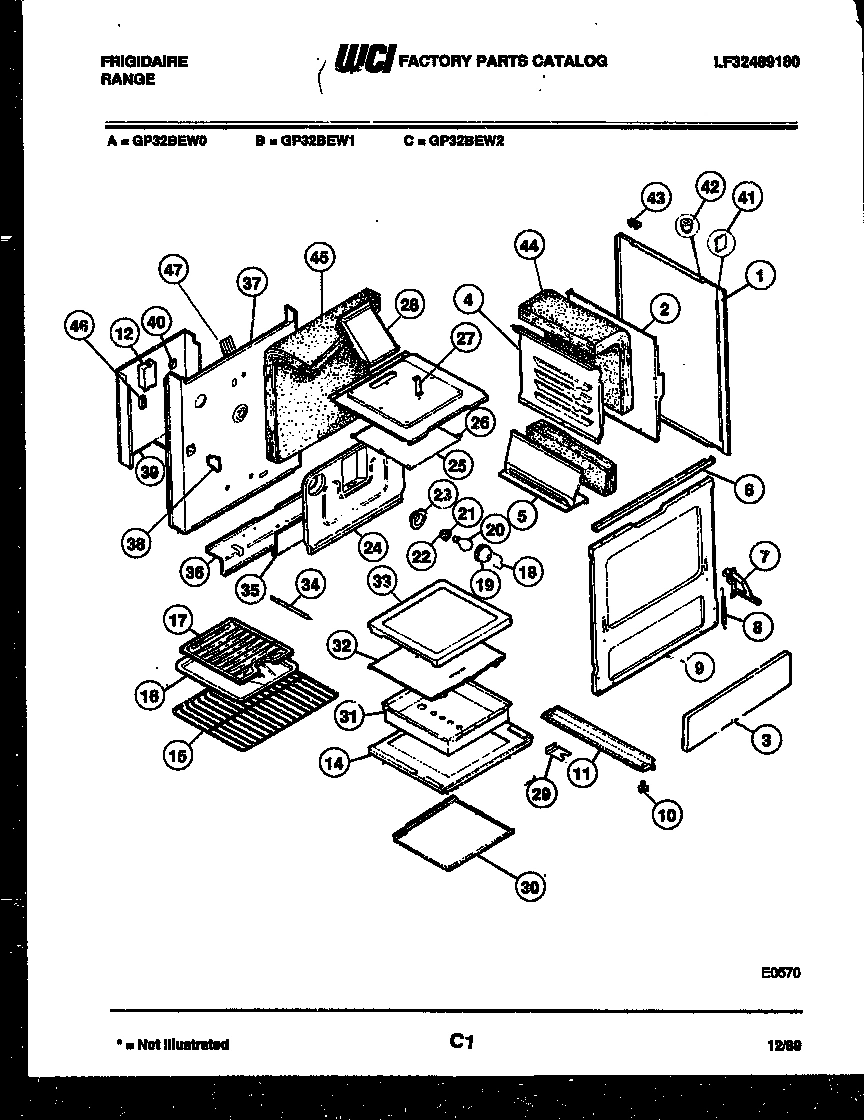

07 - BODY PARTS
Common parts from model Electrolux GP32BEW1 RANGE
*23894
WCI 3201600 WCI 3201600 Contact Us For Availability
*23896
WCI 08007999 WCI 08007999 Contact Us For Availability
1
WCI 08008064 WCI 08008064 Contact Us For Availability
1
WCI 3014536 WCI 3014536 Contact Us For Availability
1
COVER-LOCK WCI 3131786 Contact Us For Availability
1
BODYSIDE-PANEL WHITE (2) WCI 3051061 Contact Us For Availability
2
WCI 3016868 WCI 3016868 Contact Us For Availability
2
GRATE WCI 3009309 Contact Us For Availability
2
LINER-OVEN DOOR S/C WCI 3016872 Contact Us For Availability
2
MICRO SWITCH (2) WCI 3131846 Contact Us For Availability
2
WCI 08013906 WCI 08013906 Contact Us For Availability
2
WCI 3131794 WCI 3131794 Contact Us For Availability
3
KNOB-CLOCK (2) WCI 08013888 Contact Us For Availability
3
PANEL-MANIFOLD (4) WCI 08014010 Contact Us For Availability
3
WCI 3131762 WCI 3131762 Contact Us For Availability
3
WCI 3017411 WCI 3017411 Contact Us For Availability
3
WCI 08014021 WCI 08014021 Contact Us For Availability
3
PANEL-FALSE WHITE WCI 3012963 Contact Us For Availability
4
INDICATOR-CLEAN LIGHT WCI 08011473 Contact Us For Availability
4
WCI 08013898 WCI 08013898 Contact Us For Availability
4
WCI 3131761 WCI 3131761 Contact Us For Availability
4
BRACKET LOCK SWITCH WCI 3131843 Contact Us For Availability
4
WCI 3131099 WCI 3131099 Contact Us For Availability
4
LINER-RIGHT SIDE WCI 3016533 Contact Us For Availability
4A
LINER-LEFT SIDE WCI 3016534 Contact Us For Availability
5
WCI 3016525 WCI 3016525 Contact Us For Availability
5
WCI 08013891 WCI 08013891 Contact Us For Availability
5
WCI 08014016 WCI 08014016 Contact Us For Availability
5
WCI 08068030 WCI 08068030 Contact Us For Availability
5
NUT-3/8 LOXIT WCI 08008363 Contact Us For Availability
5
RETAINER-BOTTOM INSULATION WCI 3131820 Contact Us For Availability
6
WCI 08011492 WCI 08011492 Contact Us For Availability
6
GLASS-OUTER BLACK WCI 08013869 Contact Us For Availability
6
WCI 08068028 WCI 08068028 Contact Us For Availability
6
SUPPORT-CONTROL PANEL WCI 3131811 Contact Us For Availability
7
FRAME-BACKGUARD WCI 3013105 Contact Us For Availability
7
WCI 08013880 WCI 08013880 Contact Us For Availability
7
SHIELD-BURNER BOX WCI 08068040 Contact Us For Availability
7
WCI 08013856 WCI 08013856 Contact Us For Availability
7
HINGE-OVEN DR RIGHT WCI 3204670 Contact Us For Availability
8
WCI 3015248 WCI 3015248 Contact Us For Availability
8
WCI 08013932 WCI 08013932 Contact Us For Availability
8
SHIELD-BURNER BOX WCI 08008018 Contact Us For Availability
8
SHIELD-BURNER BOX LEFT WCI 08011552 Contact Us For Availability
8
WCI 08008002 WCI 08008002 Contact Us For Availability
8
SPRING OVEN DOOR (2) WCI 3009435 Contact Us For Availability
9
BRACE-SUPPORT RH & LH (2) WCI 08013296 Contact Us For Availability
9
WCI 08013851 WCI 08013851 Contact Us For Availability
9
KNOB HANDLE WCI 3131851 Contact Us For Availability
9
VALVE-TOP BURNERS (4) WCI 08013940 Contact Us For Availability
9
FRAME-FRONT WCI 3016874 Contact Us For Availability
10
WCI 08008071 WCI 08008071 Contact Us For Availability
10
WCI 08068025 WCI 08068025 Contact Us For Availability
10
WCI 08013921 WCI 08013921 Contact Us For Availability
10
LEG-LEVELLER (4) WCI 3051080 Contact Us For Availability
11
WCI 08008009 WCI 08008009 Contact Us For Availability
11
WCI 3131853 WCI 3131853 Contact Us For Availability
11
BURNER FRONT TOP (2) WCI 3131080 Contact Us For Availability
11
RAIL - BASE (2) WCI 08068047 Contact Us For Availability
12
WCI 3017410 WCI 3017410 Contact Us For Availability
12
WCI 08014066 WCI 08014066 Contact Us For Availability
12
BURNER REAR TOP (2) WCI 3131079 Contact Us For Availability
13
WCI 08008255 WCI 08008255 Contact Us For Availability
13
WCI 08008051 WCI 08008051 Contact Us For Availability
13
IGNITER TOP (2) WCI 3016869 Contact Us For Availability
14
BRACKET CLOCK MTG WCI 08008076 Contact Us For Availability
14
SUPPORT-TOP BRNR (2) WCI 3016870 Contact Us For Availability
14
LINING-OVEN BOTTOM WCI 3016875 Contact Us For Availability
15
WCI 08007925 WCI 08007925 Contact Us For Availability
15
SWITCH-MICRO FR MTG WCI 3131094 Contact Us For Availability
15
WCI 3015714 WCI 3015714 Contact Us For Availability
16
HOUSING-BACKGUARD WCI 08013966 Contact Us For Availability
16
WCI 08011646 WCI 08011646 Contact Us For Availability
17
WCI 3131860 WCI 3131860 Contact Us For Availability
17
WCI 08011647 WCI 08011647 Contact Us For Availability
18
WCI 08011508 WCI 08011508 Contact Us For Availability
18
WCI 08014564 WCI 08014564 Contact Us For Availability
19
TUBE BROIL FEED WCI 3131866 Contact Us For Availability
20
WCI 3017415 WCI 3017415 Contact Us For Availability
21
SOCKET HOUSING WCI 3016399 Contact Us For Availability
22
PIN ELBOW MIXER WCI 08011470 Contact Us For Availability
23
SHIELD IGNITER WCI 3131871 Contact Us For Availability
23
WCI 08014557 WCI 08014557 Contact Us For Availability
24
WCI 3131873 WCI 3131873 Contact Us For Availability
24
LINER-OVEN BACK WCI 3016873 Contact Us For Availability
25
WCI 08011509 WCI 08011509 Contact Us For Availability
26
SUPPORT OVEN BOTTOM WCI 08008036 Contact Us For Availability
26
WCI 3131802 WCI 3131802 Contact Us For Availability
27
WCI 08011516 WCI 08011516 Contact Us For Availability
28
VENT BOX ASSY WCI 3016877 Contact Us For Availability
29
ANTI-TIP KIT WCI 3934059 Contact Us For Availability
30
SHIELD-STORAGE DRWR WCI 08068050 Contact Us For Availability
31
WCI 08068046 WCI 08068046 Contact Us For Availability
32
PLATE-OVEN BAFFLE WCI 08068032 Contact Us For Availability
33
WCI 08068045 WCI 08068045 Contact Us For Availability
34
WCI 08011553 WCI 08011553 Contact Us For Availability
35
COVER CONTROL VALVE WCI 08068039 Contact Us For Availability
36
SUPPORT CONTROL VALVE WCI 3131831 Contact Us For Availability
37
WCI 3131833 WCI 3131833 Contact Us For Availability
38
Support,oven rear WCI 3051096 Contact Us For Availability
39
WCI 08068038 WCI 08068038 Contact Us For Availability
40
THERMOSTAT BAKE BROIL SELECT WCI 3131839 Contact Us For Availability
41
CLIP-B/S CORNER WCI 3131791 Contact Us For Availability
42
GROMMET PLASTIC WCI 3051063 Contact Us For Availability
43
GROMMET MAIN TOP WCI 3016129 Contact Us For Availability
44
INSULATION-OVEN WRAP WCI 3131795 Contact Us For Availability
45
INSULATION-OVEN TOP WCI 3131840 Contact Us For Availability
46
TERMINAL BOARD WCI 08007985 Contact Us For Availability
47
CHANNEL MAIN BK. WIRE WCI 3131046 Contact Us For Availability
× ![]()
