Model Maytag GN3177WUA GAS RANGE – Common Parts & Diagrams
01 - CONTROL PANEL
02 - GAS CONTROLS

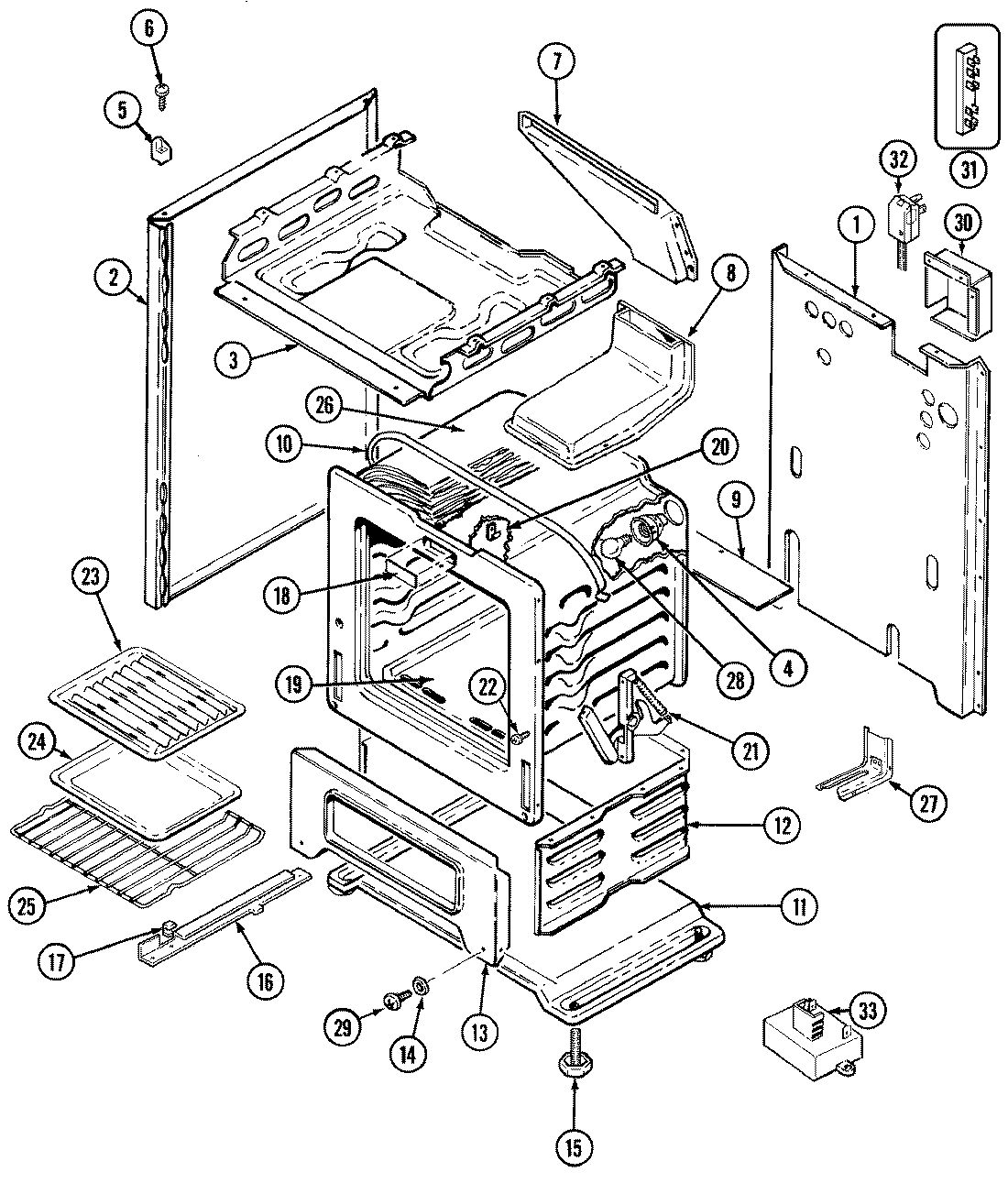

03 - OVEN

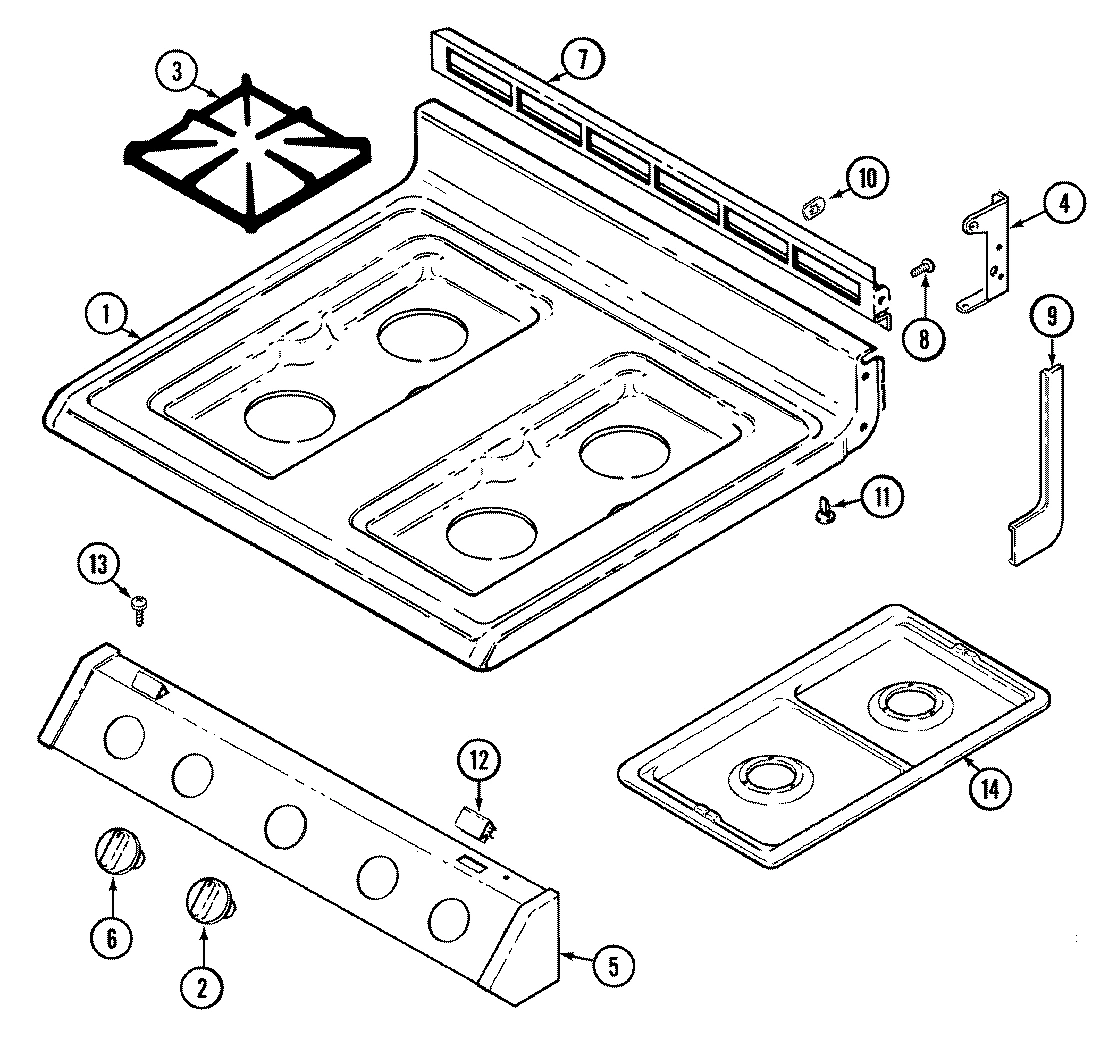

04 - TOP ASSEMBLY
Common parts from model Maytag GN3177WUA GAS RANGE
1
MAY 7502P250-60 MAY 7502P250-60 Contact Us For Availability
1
MAY 4003W028-67 MAY 4003W028-67 Contact Us For Availability
1
MAY 7103P125-60 MAY 7103P125-60 Contact Us For Availability
1
MAY 2001W085-81 MAY 2001W085-81 Contact Us For Availability
1
MAY 2001W085-84 MAY 2001W085-84 Contact Us For Availability
2
MAY 7404P087-60 MAY 7404P087-60 Contact Us For Availability
2
MAY 7101P280-60 MAY 7101P280-60 Contact Us For Availability
2
MAY 3604F177-51 MAY 3604F177-51 Contact Us For Availability
2
MAY 4016F044-45 MAY 4016F044-45 Contact Us For Availability
3
MAY 7703P634-60 MAY 7703P634-60 Contact Us For Availability
3
MAY 3403D023-45 MAY 3403D023-45 Contact Us For Availability
3
MAY 8016P010-60 MAY 8016P010-60 Contact Us For Availability
3
MAY 2003W026-00 MAY 2003W026-00 Contact Us For Availability
4
MAY 7118P015-60 MAY 7118P015-60 Contact Us For Availability
4
MAY 3807F453-51 MAY 3807F453-51 Contact Us For Availability
4
MAY 3807F454-51 MAY 3807F454-51 Contact Us For Availability
4
MAY 4005F433-51 MAY 4005F433-51 Contact Us For Availability
4
MAY 7501P124-60 MAY 7501P124-60 Contact Us For Availability
4
BAFFLE, OVEN BOTTOM MAY 3601F239-45 Contact Us For Availability
4
MAY 5504M004-19 MAY 5504M004-19 Contact Us For Availability
4
MAY 8114P348-60 MAY 8114P348-60 Contact Us For Availability
5
MAY 8036P003-60 MAY 8036P003-60 Contact Us For Availability
5
MAY 2201F077-19 MAY 2201F077-19 Contact Us For Availability
5
MAY 7712P134-60 MAY 7712P134-60 Contact Us For Availability
6
MAY 4001F064-51 MAY 4001F064-51 Contact Us For Availability
6
MAY 3412D018-09 MAY 3412D018-09 Contact Us For Availability
6
MAY 8004P024-60 MAY 8004P024-60 Contact Us For Availability
6
MAY 7731P096-60 MAY 7731P096-60 Contact Us For Availability
7
MAY 7101P300-60 MAY 7101P300-60 Contact Us For Availability
7
MAY 3608F042-09 MAY 3608F042-09 Contact Us For Availability
8
MAY 3604F188-09 MAY 3604F188-09 Contact Us For Availability
8
MAY 7101P315-60 MAY 7101P315-60 Contact Us For Availability
8
MAY 7106P056-60 MAY 7106P056-60 Contact Us For Availability
8
SCREW (10ABX1/4P TR ZN) MAY 7101P208-60 Contact Us For Availability
9
MAY 7726P059-60 MAY 7726P059-60 Contact Us For Availability
9
MAY 7726P060-60 MAY 7726P060-60 Contact Us For Availability
9
MAY 7432P076-60 MAY 7432P076-60 Contact Us For Availability
9
MAY Y3413F01619 MAY Y3413F01619 Contact Us For Availability
9
MAY 7746P030-60 MAY 7746P030-60 Contact Us For Availability
9
MAY 7746P031-60 MAY 7746P031-60 Contact Us For Availability
9
MAY 8270P095-60 MAY 8270P095-60 Contact Us For Availability
10
SCREW (8BX3/8-NI) MAY 7101P338-60 Contact Us For Availability
10
NOT REQUIRED PART OR SEE NOTE IGNITER NOT SOL MAY W10124350 Contact Us For Availability
10
MAY 7103P129-60 MAY 7103P129-60 Contact Us For Availability
11
MAY 3801F340-45 MAY 3801F340-45 Contact Us For Availability
11
MAY 7201P050-60 MAY 7201P050-60 Contact Us For Availability
11
MAY 7718P013-60 MAY 7718P013-60 Contact Us For Availability
11
MAY 8016P013-60 MAY 8016P013-60 Contact Us For Availability
12
MAY 7103P130-60 MAY 7103P130-60 Contact Us For Availability
12
MAY 7513P120-60 MAY 7513P120-60 Contact Us For Availability
12
MAY Y3401F02019 MAY Y3401F02019 Contact Us For Availability
12
MAY 7112P087-60 MAY 7112P087-60 Contact Us For Availability
13
MAY 7602P122-60 MAY 7602P122-60 Contact Us For Availability
13
MAY 3414F104-44 MAY 3414F104-44 Contact Us For Availability
13
MAY 7801P047-60 MAY 7801P047-60 Contact Us For Availability
13
MAY 7101P329-60 MAY 7101P329-60 Contact Us For Availability
14
MAY 7510P051-60 MAY 7510P051-60 Contact Us For Availability
14
MAY 4006W113-45 MAY 4006W113-45 Contact Us For Availability
14
MAY 5401A452-60 MAY 5401A452-60 Contact Us For Availability
15
MAY 5180D138-60 MAY 5180D138-60 Contact Us For Availability
15
MAY 3807F432-45 MAY 3807F432-45 Contact Us For Availability
15
MAY 7101P290-60 MAY 7101P290-60 Contact Us For Availability
15
MAY 7431P026-60 MAY 7431P026-60 Contact Us For Availability
15
MAY 3404F018-51 MAY 3404F018-51 Contact Us For Availability
15
MAY 3404F021-51 MAY 3404F021-51 Contact Us For Availability
16
MAY 16002081 MAY 16002081 Contact Us For Availability
16
MAY 8113P043-60 MAY 8113P043-60 Contact Us For Availability
16
MAY 3807F469-45 MAY 3807F469-45 Contact Us For Availability
16
MAY 3807F416-45 MAY 3807F416-45 Contact Us For Availability
17
MAY 7507P128-60 MAY 7507P128-60 Contact Us For Availability
17
MAY 3801F218-51 MAY 3801F218-51 Contact Us For Availability
17
MAY 7101P289-60 MAY 7101P289-60 Contact Us For Availability
18
MAY 7507P130-60 MAY 7507P130-60 Contact Us For Availability
18
MAY 7118P013-60 MAY 7118P013-60 Contact Us For Availability
19
MAY 7103P119-60 MAY 7103P119-60 Contact Us For Availability
19
MAY 4820F001-59 MAY 4820F001-59 Contact Us For Availability
20
MAY 5125A312-60 MAY 5125A312-60 Contact Us For Availability
20
MAY 5140D038-60 MAY 5140D038-60 Contact Us For Availability
20
MAY 5185D282-60 MAY 5185D282-60 Contact Us For Availability
20
MAY 5195D078-60 MAY 5195D078-60 Contact Us For Availability
20
MAY 7101P044-60 MAY 7101P044-60 Contact Us For Availability
20
MAY 4002F199-80 MAY 4002F199-80 Contact Us For Availability
21
MAY 4011F230-80 MAY 4011F230-80 Contact Us For Availability
22
SCREW (10-24X5/16-NI) MAY 7101P282-60 Contact Us For Availability
23
MAY 7401P037-60 MAY 7401P037-60 Contact Us For Availability
24
MAY 7101P306-60 MAY 7101P306-60 Contact Us For Availability
25
MAY 2618F110-64 MAY 2618F110-64 Contact Us For Availability
26
SPACER, MAIN TOP (LT) MAY 8010P087-60 Contact Us For Availability
26
SPACER, MAIN TOP (RT) MAY 8010P088-60 Contact Us For Availability
27
MAY 4022W007-19 MAY 4022W007-19 Contact Us For Availability
28
MAY 4804F039-60 MAY 4804F039-60 Contact Us For Availability
28
MAY 4804F044-60 MAY 4804F044-60 Contact Us For Availability
30
MAY 7407P027-60 MAY 7407P027-60 Contact Us For Availability
31
MAY 7402P045-60 MAY 7402P045-60 Contact Us For Availability
32
MAY 4005F385-51 MAY 4005F385-51 Contact Us For Availability
33
MAY 7510P046-60 MAY 7510P046-60 Contact Us For Availability
34
MAY 3807F431-45 MAY 3807F431-45 Contact Us For Availability
× ![]()
