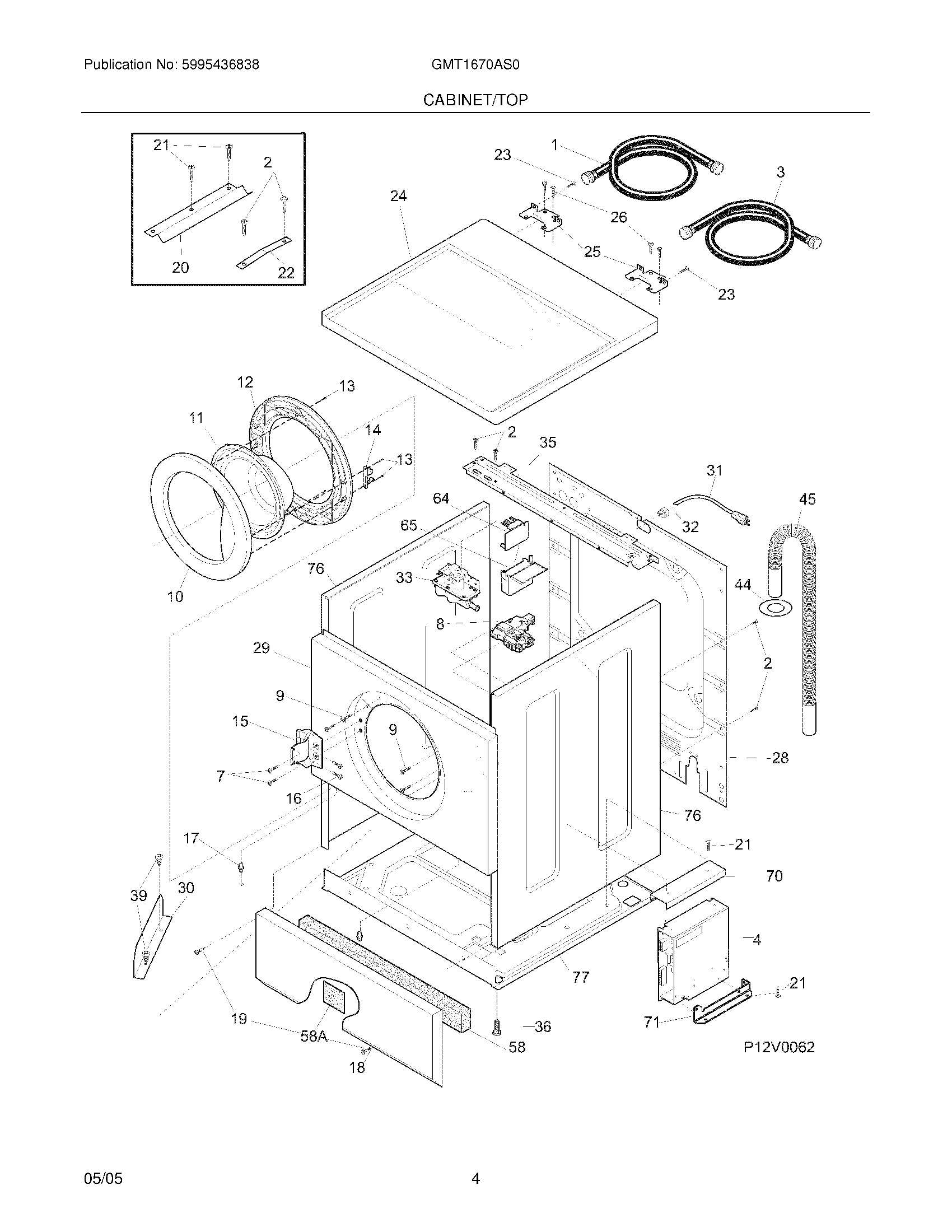

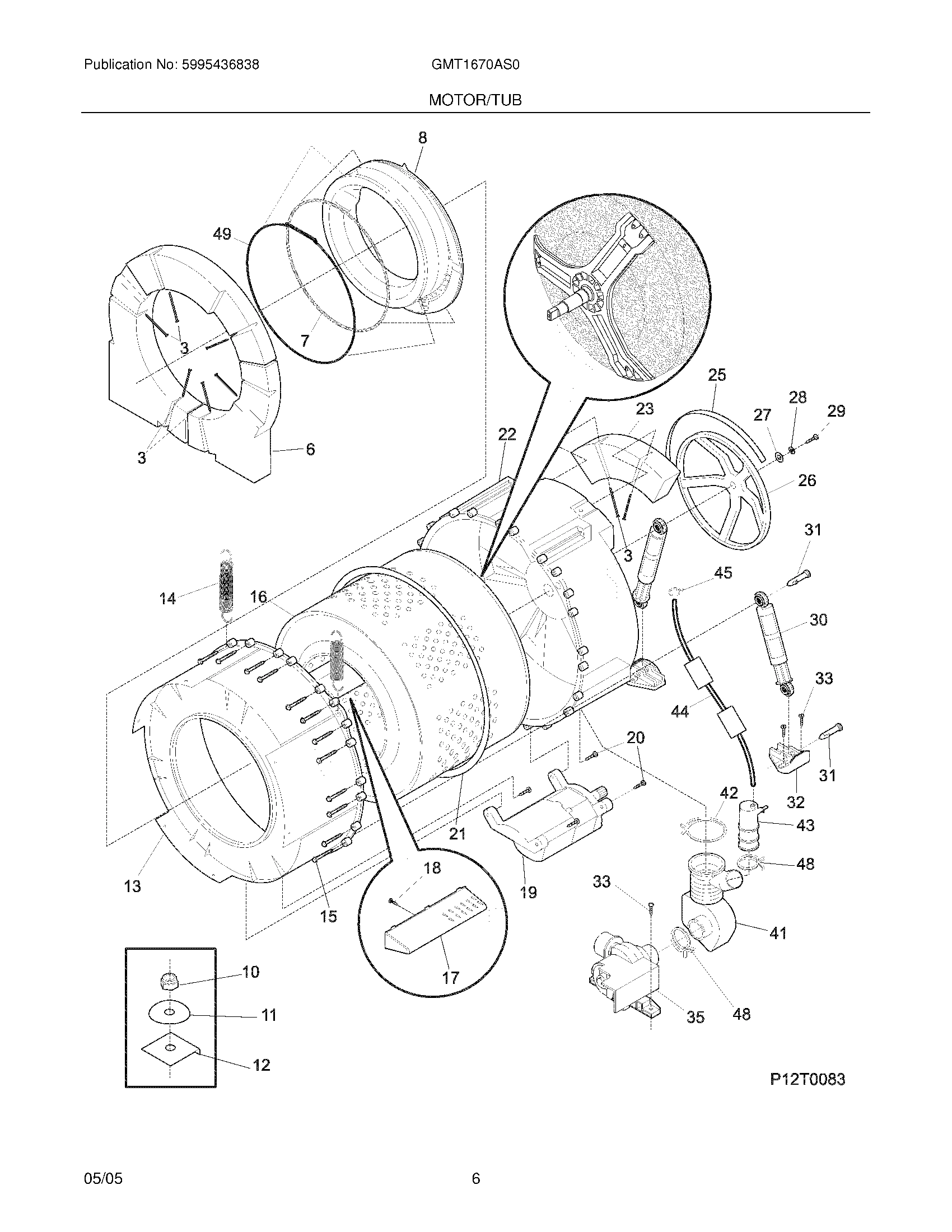

Model Electrolux GMT1670AS0 WASHER – Common Parts & Diagrams

1
WCI 131272100
WCI 131272100 WCI 131272100 Contact Us For Availability
View on Model
2
WCI 131272000
WCI 131272000 WCI 131272000 Contact Us For Availability
View on Model
3
WCI 131271910
WCI 131271910 WCI 131271910 Contact Us For Availability
View on Model
3
WCI 131793302
WCI 131793302 WCI 131793302 Contact Us For Availability
View on Model
6
Latch,disp drawer hdl
Latch,disp drawer hdl WCI 131374500 Contact Us For Availability
View on Model
6
WCI 131975300
WCI 131975300 WCI 131975300 Contact Us For Availability
View on Model
7
Spring,boot retainer
Spring,boot retainer WCI 131277300 Contact Us For Availability
View on Model
7
WCI 131427500
WCI 131427500 WCI 131427500 Contact Us For Availability
View on Model
8
WCI 131373800
WCI 131373800 WCI 131373800 Contact Us For Availability
View on Model
9
Handle,disp drawer ,with trim
Handle,disp drawer ,with trim WCI 131691245 Contact Us For Availability
View on Model
10
Frame,outer door ,white
Frame,outer door ,white WCI 131278700 Contact Us For Availability
View on Model
11
Panel,door glass
Panel,door glass WCI 131278800 Contact Us For Availability
View on Model
13
WCI 134401700
WCI 134401700 WCI 134401700 Contact Us For Availability
View on Model
17
Pin,panel locator
Pin,panel locator WCI 131346400 Contact Us For Availability
View on Model
18
WCI 134014700
WCI 134014700 WCI 134014700 Contact Us For Availability
View on Model
18
Panel,Service ,white ,kick plate
Panel,Service ,white ,kick plate WCI 131279300 Contact Us For Availability
View on Model
20
Bracket,top panel mtg. ,front
Bracket,top panel mtg. ,front WCI 131460900 Contact Us For Availability
View on Model
21
WCI 134146100 No Longer Available
View on Model
22
Retainer,spring steel
Retainer,spring steel WCI 131279500 No Longer Available
View on Model
23
WCI 134125900
WCI 134125900 WCI 134125900 Contact Us For Availability
View on Model
24
WCI 134086842
WCI 134086842 WCI 134086842 Contact Us For Availability
View on Model
25
Bracket,top panel mtg.
Bracket,top panel mtg. WCI 131668200 Contact Us For Availability
View on Model
26
WCI 131883400
WCI 131883400 WCI 131883400 Contact Us For Availability
View on Model
27
Washer,0.41 x 1.50 ,0.12 thick
Washer,0.41 x 1.50 ,0.12 thick WCI 131304400 Contact Us For Availability
View on Model
28
WCI 131304500
WCI 131304500 WCI 131304500 Contact Us For Availability
View on Model
29
Screw,pulley mtg. ,m10 x 0.92 ,metric
Screw,pulley mtg. ,m10 x 0.92 ,metric WCI 131303700 Contact Us For Availability
View on Model
29
WCI 134042700
WCI 134042700 WCI 134042700 Contact Us For Availability
View on Model
31
WCI 131853900
WCI 131853900 WCI 131853900 Contact Us For Availability
View on Model
32
Bracket,shock mtg.
Bracket,shock mtg. WCI 131268100 Contact Us For Availability
View on Model
32
HOSE-DISPENSER
HOSE-DISPENSER WCI 131786100 Contact Us For Availability
View on Model
38
Dispenser Assy,detergent
Dispenser Assy,detergent WCI 131803710 Contact Us For Availability
View on Model
39
WCI 131863300
WCI 131863300 WCI 131863300 Contact Us For Availability
View on Model
43
WCI 131749200
WCI 131749200 WCI 131749200 Contact Us For Availability
View on Model
43
WCI 131277500
WCI 131277500 WCI 131277500 Contact Us For Availability
View on Model
46
WCI 134191412
WCI 134191412 WCI 134191412 Contact Us For Availability
View on Model
54
WCI 5308015493
WCI 5308015493 WCI 5308015493 Contact Us For Availability
View on Model
64
WCI 134226600
WCI 134226600 WCI 134226600 Contact Us For Availability
View on Model
NI
WCI 5303937142 No Longer Available
View on Model
