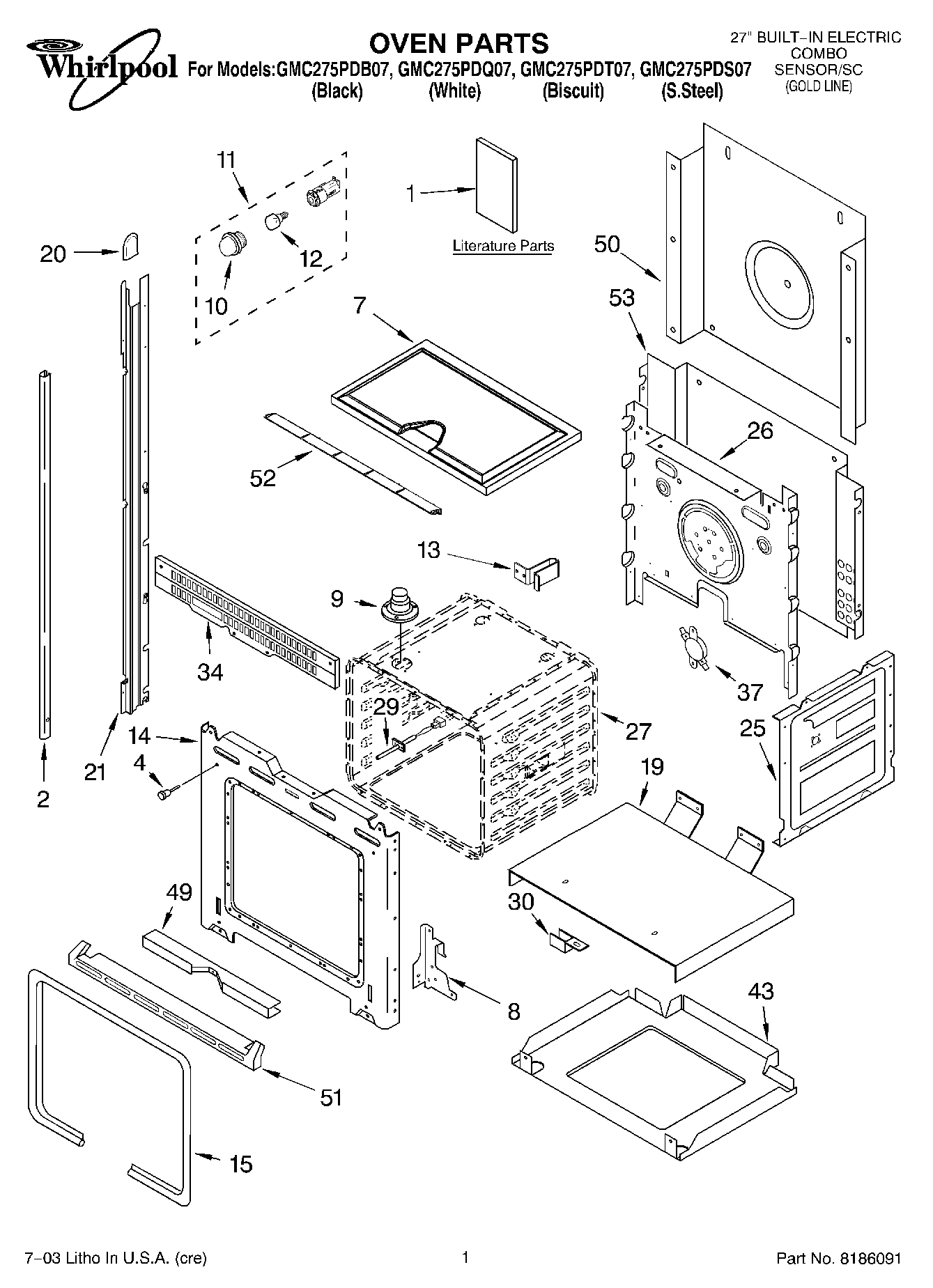

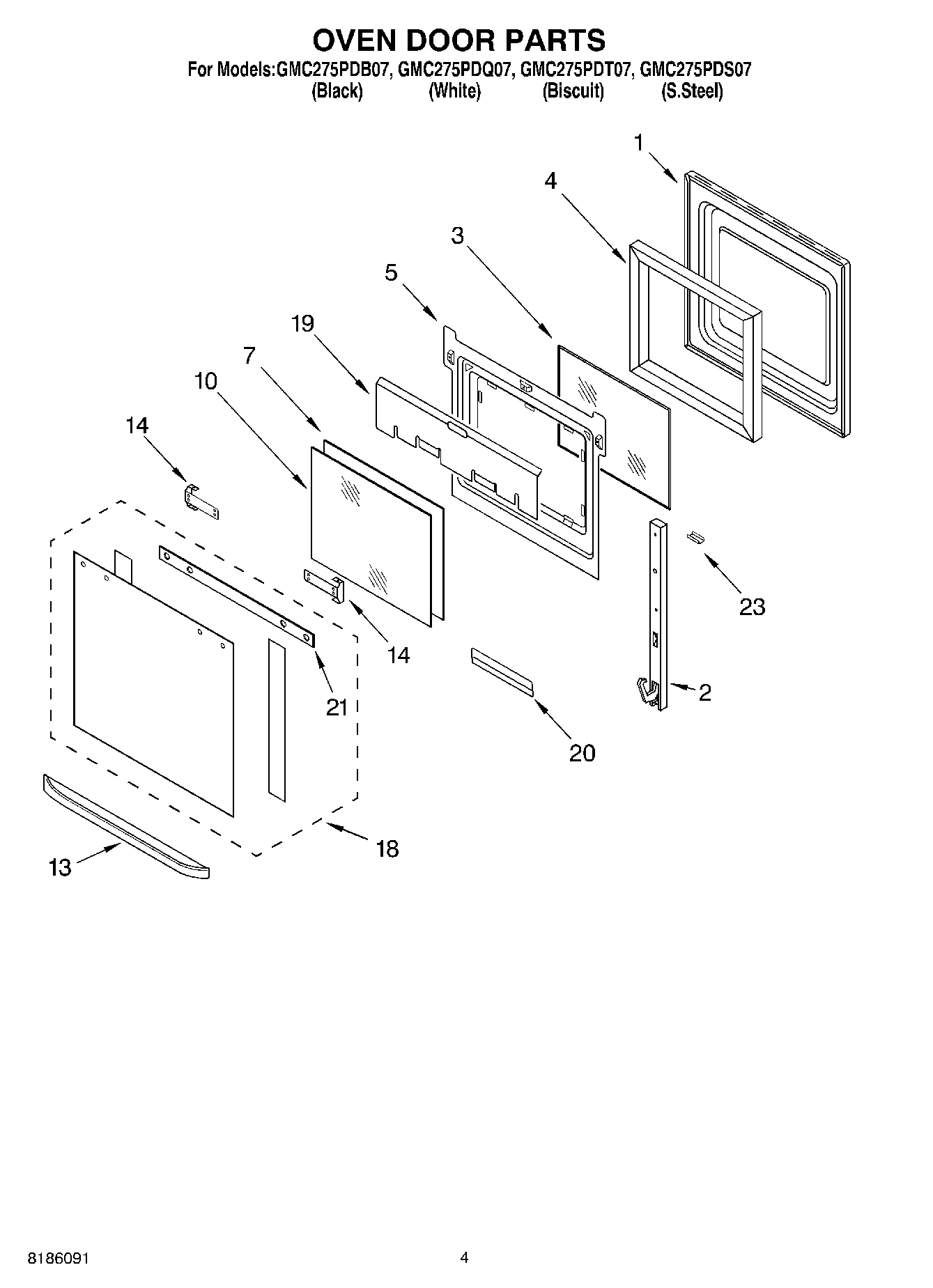

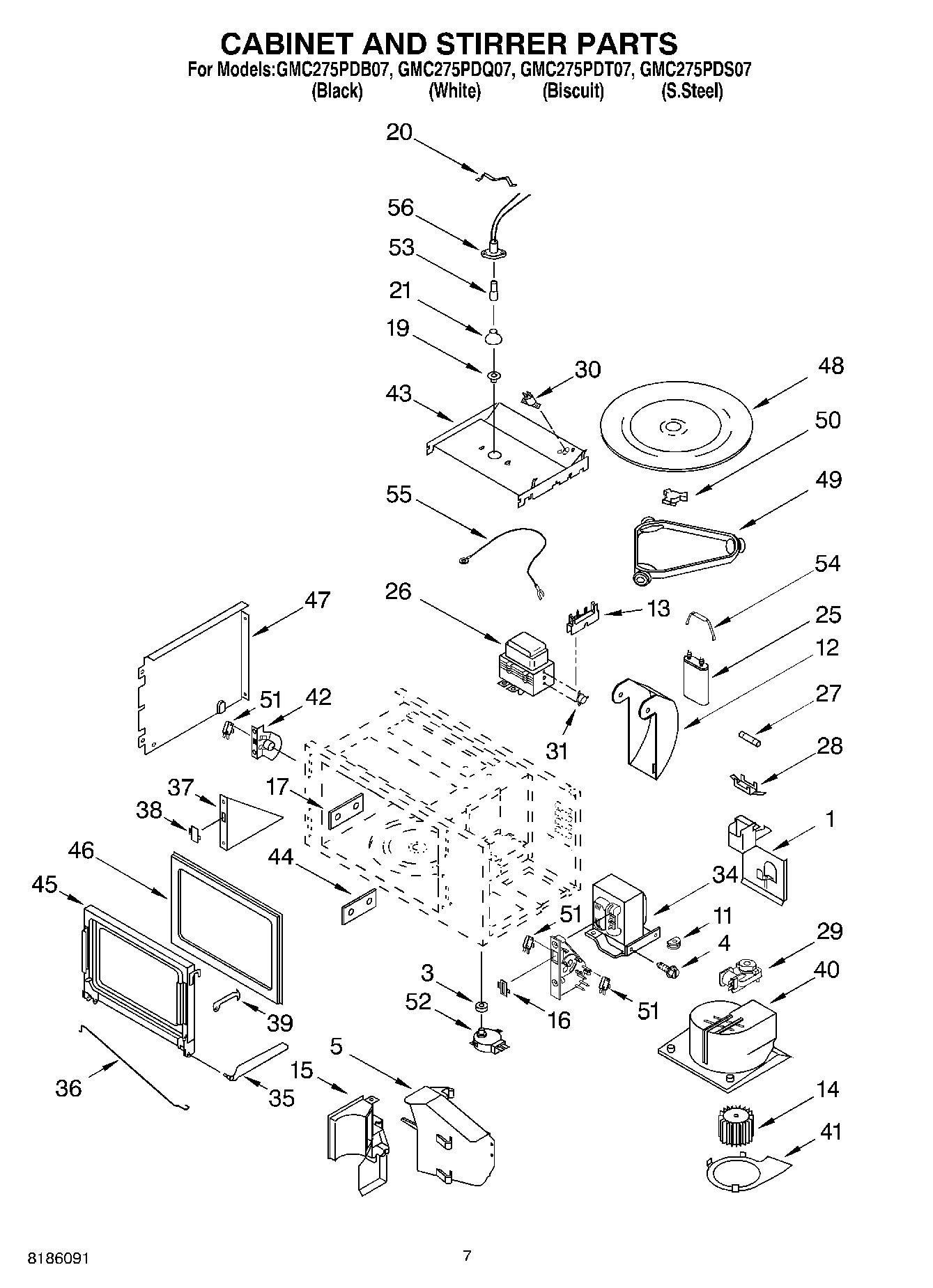

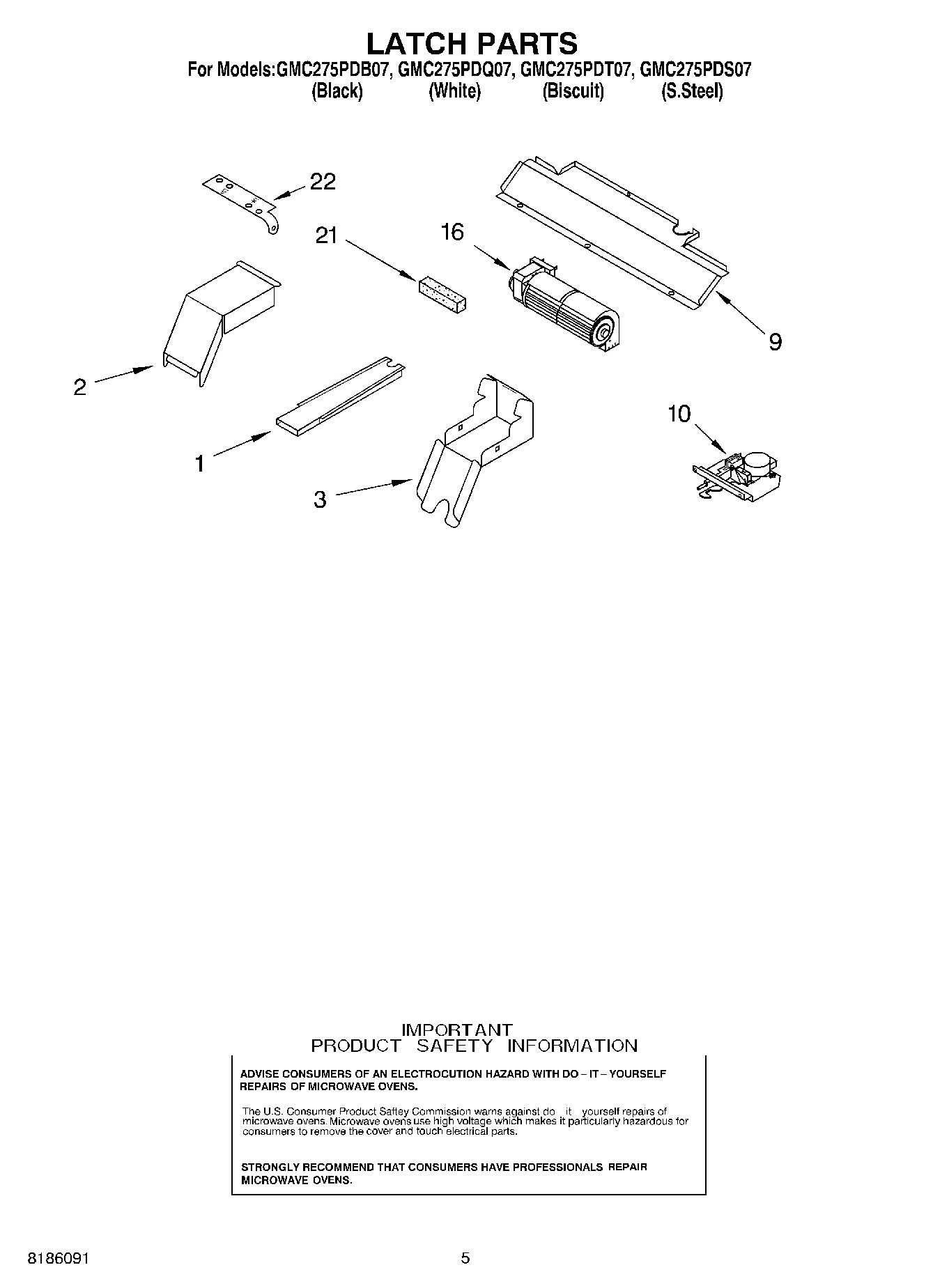

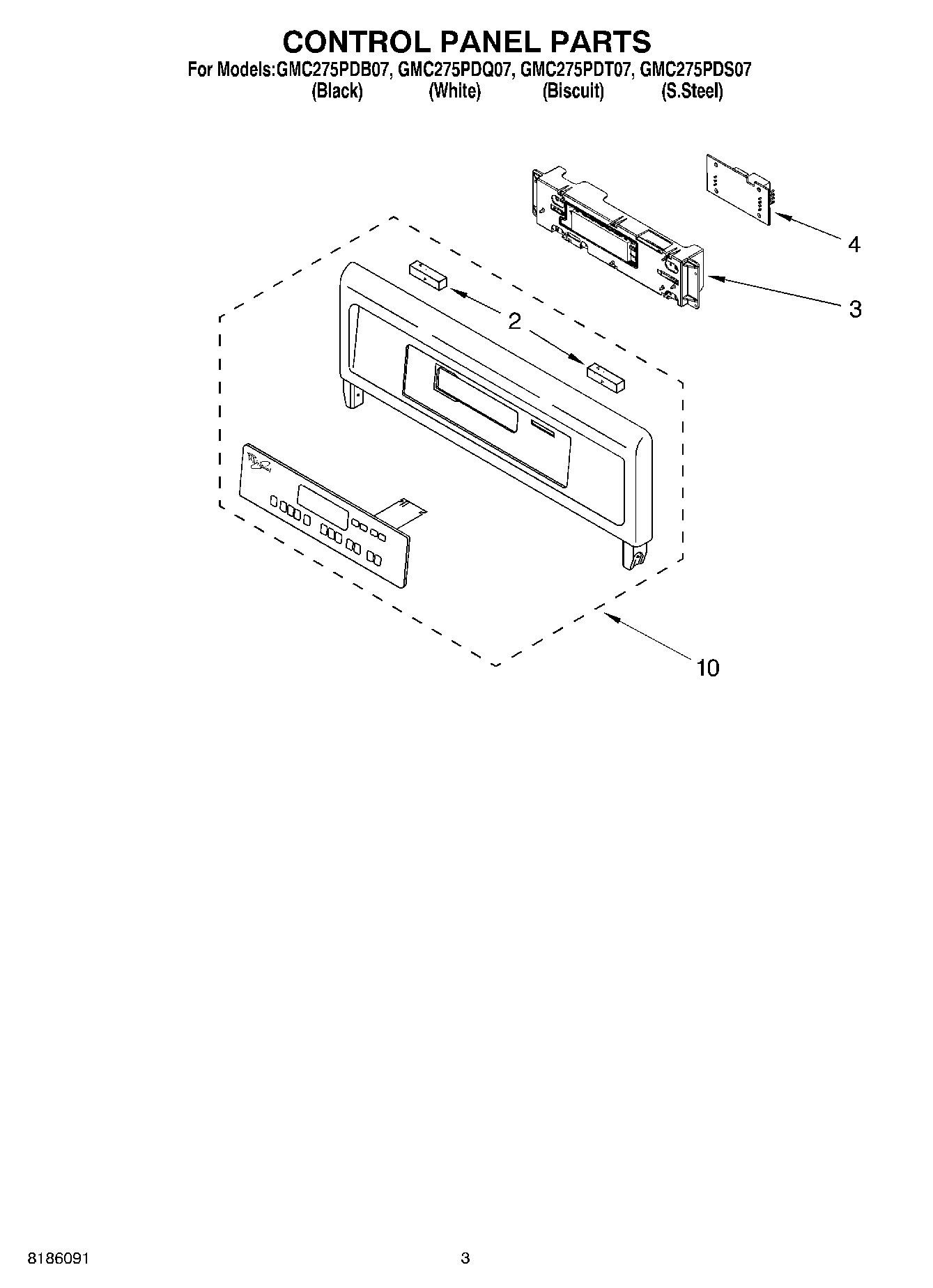

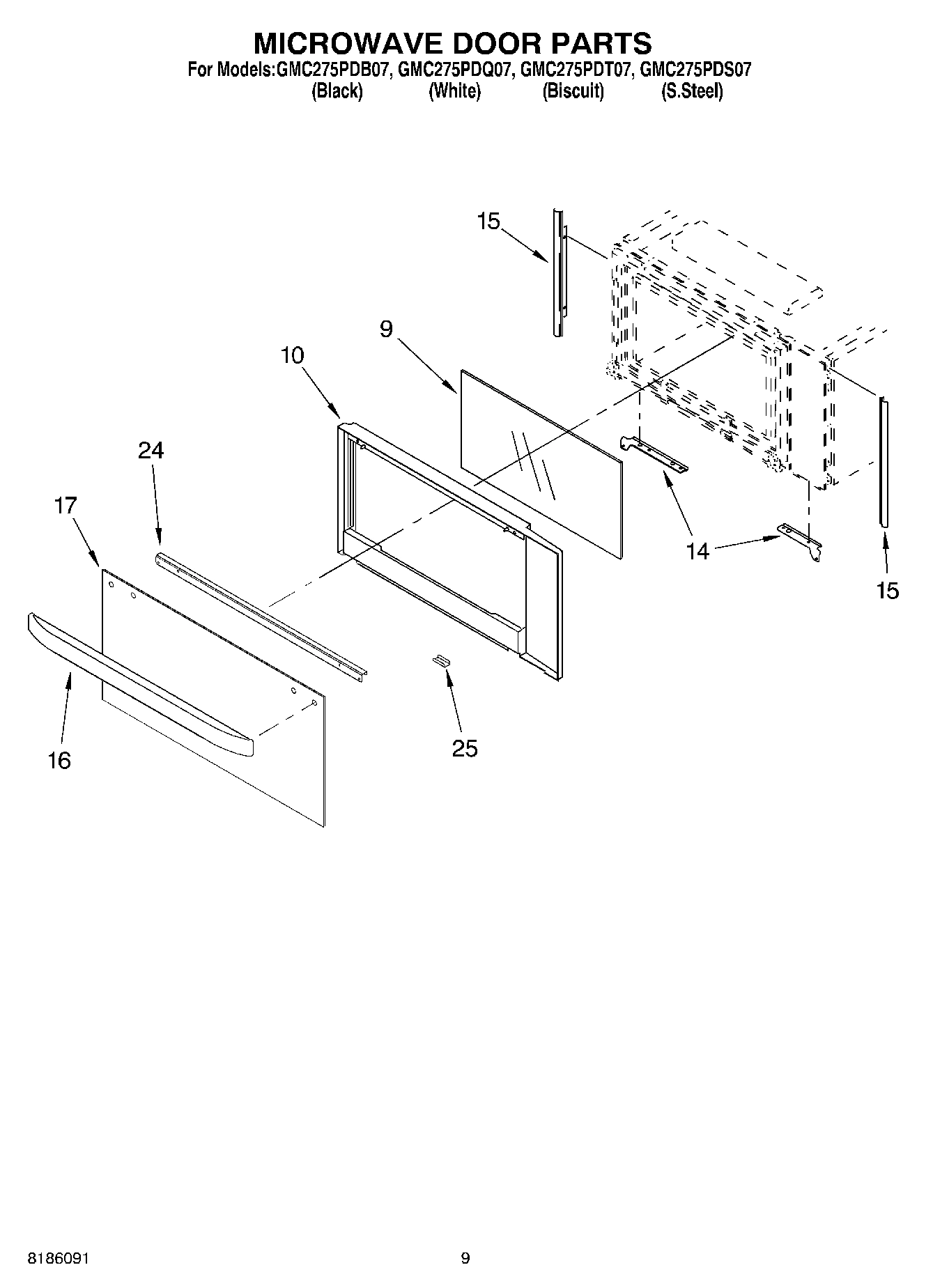

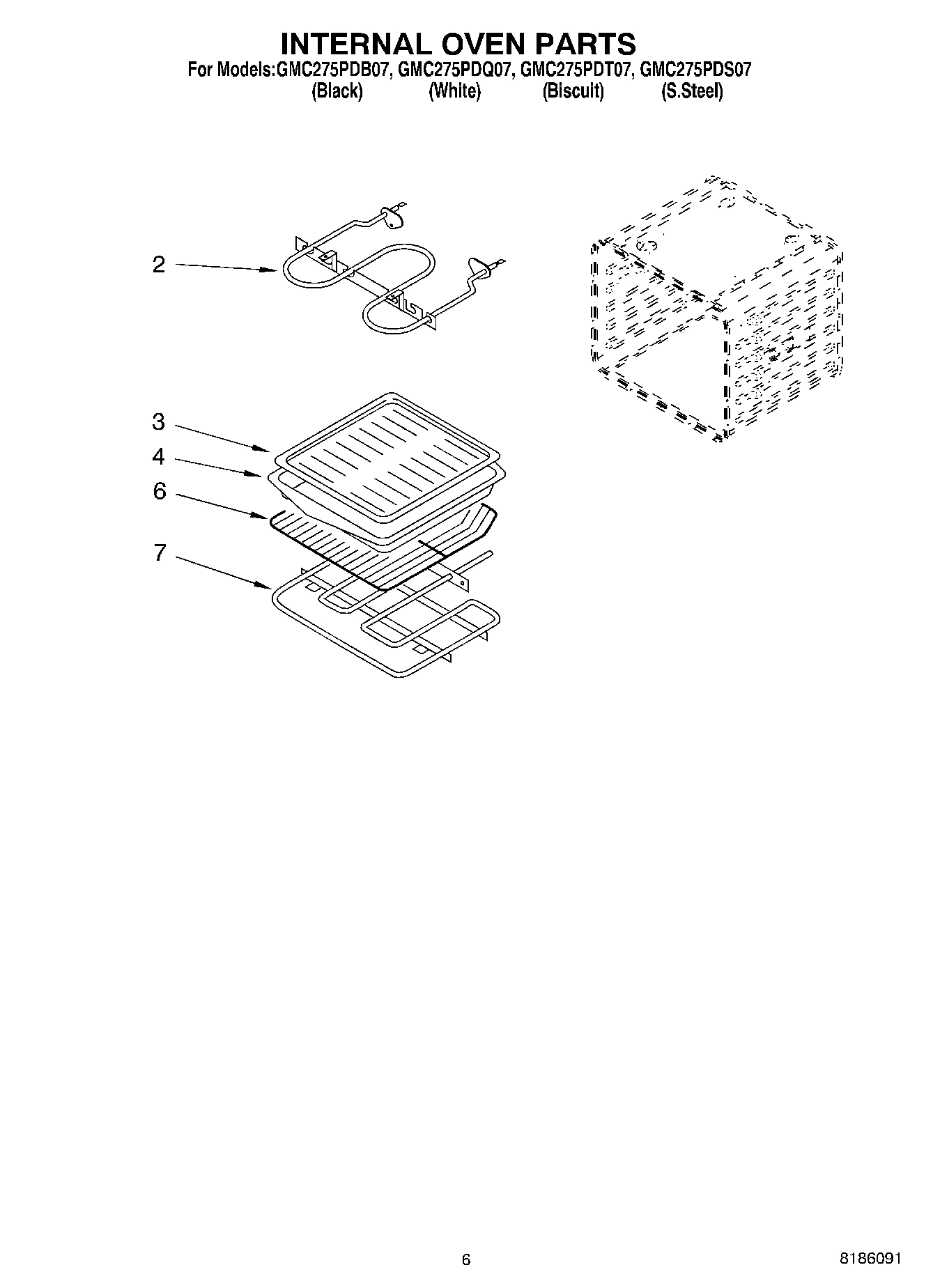

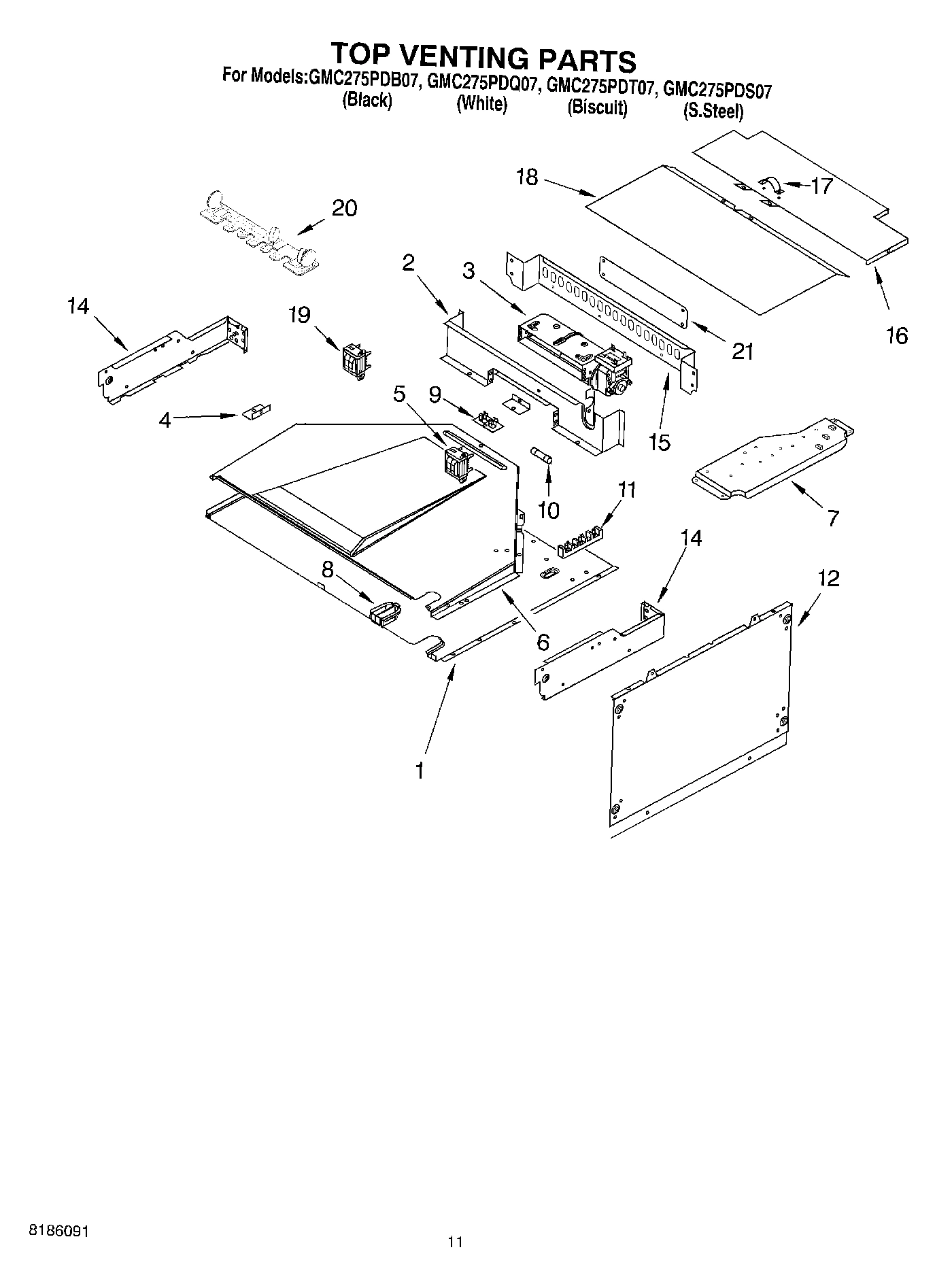

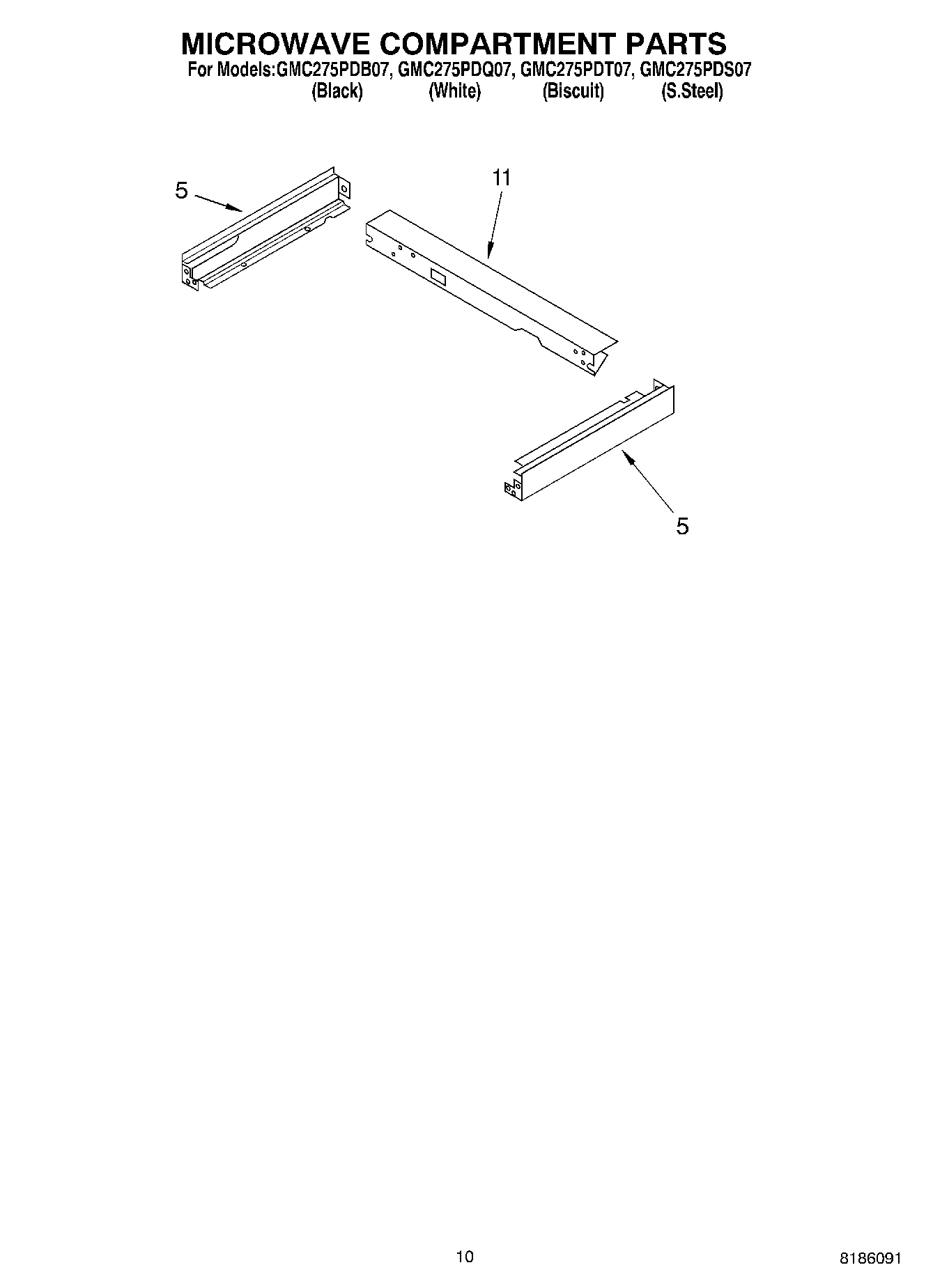

Model Whirlpool GMC275PDT07 27`` BUILT-IN ELECTRIC COMBO SENSOR/SC (GOLD LINE) – Common Parts &amp; Diagrams

242831 Whirlpool Oven Wire Backorder WPL 242831 $261.62

261900 Whirlpool Microwave Spray Backorder WPL 261900 $27.45

285006 Whirlpool Spray In Stock WPL 285006 $27.45

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

4450800 Whirlpool Oven Screw Backorder WPL 4450800 $9.59

4450950 Whirlpool Oven Conduit Backorder WPL 4450950 $109.51

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

814381 Whirlpool Pin Backorder WPL 814381 $3.70

8301909 Whirlpool Oven Wire Harness Backorder WPL 8301909 $65.34

WP261869 Whirlpool Microwave Paint In Stock WPL WP261869 $9.88

WP4448950 Whirlpool Screw Backorder WPL WP4448950 $2.51

WP482338 Whirlpool Refrigerator Adhesive In Stock WPL WP482338 $24.89

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability

Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability

Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability

Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability

Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability

Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability

Wire (14 Ga. 150 c White) WPL 242826 Contact Us For Availability

Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability

Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability

Wire (12 Ga. 150 c Red) WPL 242829 Contact Us For Availability

Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability

Wire (14 Ga. 200 c Yellow) WPL 242832 Contact Us For Availability

Filler Kit (BL) WPL 4378950 Contact Us For Availability

Filler Kit (WH) WPL 4378951 Contact Us For Availability

Ground (M/W) WPL 4450831 Contact Us For Availability

Spacer, Harness WPL 4452222 Contact Us For Availability

ADHESIVE LOC WPL 591014 Contact Us For Availability

WPL 8301900 WPL 8301900 Contact Us For Availability

WPL ARI66973A3 WPL ARI66973A3 Contact Us For Availability

WPL ARI66974A8 WPL ARI66974A8 Contact Us For Availability

WPL ARI66975A4 WPL ARI66975A4 Contact Us For Availability

WPL ARI66976A4 WPL ARI66976A4 Contact Us For Availability

WPL ARI66977A5 WPL ARI66977A5 Contact Us For Availability

NOTE: The screws and nuts required to attach WPL ARI66971A1 Contact Us For Availability

NOTE: The screws and nuts required to attach WPL ARI66970A4 Contact Us For Availability

NOTE: The screws and nuts required to attach WPL ARI66972A9 Contact Us For Availability

1

4451759 Whirlpool Oven Exhaust Vent Backorder WPL 4451759 $32.70

1

WP4450118 Whirlpool Nut Backorder WPL WP4450118 $2.51

1

Screw WPL 4449040 Contact Us For Availability

1

Cover, Top WPL 4450377 Contact Us For Availability

1

Door Liner WPL 4455617 Contact Us For Availability

2

4455178 Whirlpool Oven Top Elbow Backorder WPL 4455178 $9.48

2

9760569 Whirlpool Door Hinge Backorder WPL 9760569 $39.24

2

9760570 Whirlpool Door Hinge Backorder WPL 9760570 $39.00

2

WP4449743 Whirlpool Screw Backorder WPL WP4449743 $2.51

2

WP8281236 Whirlpool Screw In Stock WPL WP8281236 $2.51

2

WP9760571 Whirlpool Door Hinge In Stock WPL WP9760571 $42.93

2

WP9760572 Whirlpool Door Hinge Backorder WPL WP9760572 $42.00

2

WP9760771 Whirlpool Electric Oven Broil Eleme In Stock WPL WP9760771 $71.24

2

Baffle, Blower WPL 4448935 Contact Us For Availability

2

Gasket WPL 4450356 Contact Us For Availability

3

4396923 Whirlpool Broil Pan Set Gray Porcelai In Stock WPL 4396923 $18.48

3

4455177 Whirlpool Oven Bottom Elbow Backorder WPL 4455177 $7.05

3

489392 Whirlpool Refrigerator Screw Backorder WPL 489392 $9.59

3

WP4449253 Whirlpool Glass Window In Stock WPL WP4449253 $70.88

3

WP4449745 Whirlpool Screw Backorder WPL WP4449745 $2.51

3

Blower WPL 4450920 Contact Us For Availability

3

Microcomputer WPL 8302153 Contact Us For Availability

4

4448520 Whirlpool Oven Bumper Backorder WPL 4448520 $10.76

4

Board, Mtrzd Latch WPL 8301848 Contact Us For Availability

4

Insulation, Door WPL 4451721 Contact Us For Availability

4

Bracket, Duct WPL 4450027 Contact Us For Availability

5

WP9760588 Whirlpool Transformer In Stock WPL WP9760588 $116.84

5

Retainer, Glass WPL 8300777 Contact Us For Availability

5

Support Rails (Right Side) WPL 4452551 Contact Us For Availability

5

Support Rails (Left Side) WPL 4452552 Contact Us For Availability

6

Rack, Oven WPL 4448715 Contact Us For Availability

6

Exhaust Duct WPL 4450366 Contact Us For Availability

7

WPW10207397 Whirlpool Oven Bake Element In Stock WPL WPW10207397 $45.71

7

Plate, Mounting WPL 4451789 Contact Us For Availability

7

Glass, Inner WPL 4455256 Contact Us For Availability

8

WP112432 Whirlpool Nut Assembly Backorder WPL WP112432 $2.51

8

WP4455605 Whirlpool Left Hand Hinge In Stock WPL WP4455605 $54.02

8

WP4455606 Whirlpool Right Hand Hinge In Stock WPL WP4455606 $54.02

8

Grommet WPL 4449964 Contact Us For Availability

9

4454949 Whirlpool Oven Fuse Block Backorder WPL 4454949 $28.80

9

Baffle, Rear WPL 4450407 Contact Us For Availability

9

Glass, Middle WPL 4450834 Contact Us For Availability

WP4449257 Whirlpool Door Glass Backorder WPL WP4449257 $91.57

WP9760889 Whirlpool Door Latch In Stock WPL WP9760889 $218.57

WPW10017410 Whirlpool Fuse In Stock WPL WPW10017410 $6.79

Control Panel Assy W/Membrane Switch (Black M WPL 8300411 Contact Us For Availability

Control Panel Assy W/Membrane Switch (White M WPL 8300410 Contact Us For Availability

Control Panel Assy W/Membrane Switch (Biscuit WPL 8300536 Contact Us For Availability

Frame, Door WPL 4450945 Contact Us For Availability

11

WP8203546 Whirlpool Terminal Block In Stock WPL WP8203546 $10.45

11

Screw WPL 3400080 Contact Us For Availability

11

Rear Channel WPL 4452547 Contact Us For Availability

12

Duct, Inlet WPL 4375260 Contact Us For Availability

12

Side, Combo WPL 4452559 Contact Us For Availability

13

Door Handle (Biscuit Model) WPL 8300255 Contact Us For Availability

W10755214 Whirlpool Side Complete Backorder WPL W10755214 $33.93

W10790240 Whirlpool Side Assembly Complete Backorder WPL W10790240 $28.79

Bracket, Mounting (Right Side) WPL 4449141 Contact Us For Availability

Bracket, Mounting (Left Side) WPL 4449142 Contact Us For Availability

Bracket, Handle WPL 4450813 Contact Us For Availability

15

WP4455381 Whirlpool Door Gasket In Stock WPL WP4455381 $67.84

15

Filler, Side WPL 4449083 Contact Us For Availability

15

Back, Control WPL 4452244 Contact Us For Availability

WPW10016550 Whirlpool Blower Cooling Fan In Stock WPL WPW10016550 $150.94

Cover, Top Rear WPL 4450550 Contact Us For Availability

Handle, Door (Black Model) WPL 4448405 Contact Us For Availability

Handle, Door (White Model) WPL 4448406 Contact Us For Availability

4448664 Whirlpool Oven Mounting Bracket Backorder WPL 4448664 $10.25

Glass, Outer (Black Model) WPL 4450379 Contact Us For Availability

Glass, Outer (White Model) WPL 4451219 Contact Us For Availability

Glass, Outer (Black Stainless) WPL 4452470 Contact Us For Availability

Glass, Outer (Biscuit Model) WPL 8300523 Contact Us For Availability

Assy., Door Glass (Black Model) WPL 8300912 Contact Us For Availability

Assy., Door Glass (White Model) WPL 8300911 Contact Us For Availability

Cover, Top Front WPL 4452366 Contact Us For Availability

Door Glass Assy (Biscuit) WPL 8300904 Contact Us For Availability

Assy., Door Glass (S.Steel Model) WPL 8300905 Contact Us For Availability

19

W11193483 Whirlpool Microwave Lamp Lens In Stock WPL W11193483 $38.25

19

Transformer, Control WPL 8300642 Contact Us For Availability

19

Shield, Heat WPL 4450361 Contact Us For Availability

20

SUPPRESSOR WPL 8302143 Contact Us For Availability

20

Retainer, Glass WPL 4450470 Contact Us For Availability

423107022541 Whirlpool Microwave Reflector Backorder WPL 423107022541 $32.79

W10491987 Whirlpool Foam Seal Backorder WPL W10491987 $3.70

Plate, Cover WPL 4452247 Contact Us For Availability

Seal, Door Top WPL 8300819 Contact Us For Availability

22

4455191 Whirlpool Oven Mounting Plate Backorder WPL 4455191 $8.69

24

Bracket, Handle WPL 4452330 Contact Us For Availability

24

Screw WPL 4451040 Contact Us For Availability

25

WP4375020 Whirlpool High Voltage Capacitor In Stock WPL WP4375020 $94.01

25

Retainer, Glass-Clip (Black Model) WPL 4450863 Contact Us For Availability

25

Retainer, Glass-Clip (White Model) WPL 4450864 Contact Us For Availability

27

WP4375321 Whirlpool Microwave Fuse In Stock WPL WP4375321 $10.36

28

W10245194 Whirlpool Microwave Fuse Block Backorder WPL W10245194 $29.77

29

4375278 Whirlpool Microwave Primary Fan Motor Backorder WPL 4375278 $143.25

30

Thermostat WPL 4375279 Contact Us For Availability

31

WP4375079 Whirlpool Microwave Thermostat In Stock WPL WP4375079 $33.38

34

WP4375286 Whirlpool Microwave Transformer In Stock WPL WP4375286 $200.87

34

WP4450038 Whirlpool Screw Backorder WPL WP4450038 $2.51

35

WP4375323 Whirlpool Microwave Door Hinge Backorder WPL WP4375323 $52.87

35

WP4375324 Whirlpool Microwave Door Hinge Backorder WPL WP4375324 $52.70

36

WP4451008 Whirlpool Microwave Spring In Stock WPL WP4451008 $41.08

38

Inlet WPL 4375329 Contact Us For Availability

42

W10727408 Whirlpool Microwave Switch In Stock WPL W10727408 $87.50

43

Base, Chassis WPL 4455529 Contact Us For Availability

44

Cover Plate WPL 4375338 Contact Us For Availability

46

Inner Frame WPL 4375340 Contact Us For Availability

49

WP4448933 Whirlpool Retainer Backorder WPL WP4448933 $2.51

49

WP4449154 Whirlpool Screw Backorder WPL WP4449154 $2.51

50

WP4449809 Whirlpool Screw In Stock WPL WP4449809 $2.51

51

W10211972 Whirlpool Microwave Switch In Stock WPL W10211972 $28.44

51

WP3400832 Whirlpool Screw In Stock WPL WP3400832 $2.51

55

Cable WPL 4375350 Contact Us For Availability
