Model Whirlpool GM8155XJQ0 CONVECTION MICROWAVE OVEN – Common Parts & Diagrams
02 - OVEN INTERIOR
05 - LATCH BOARD

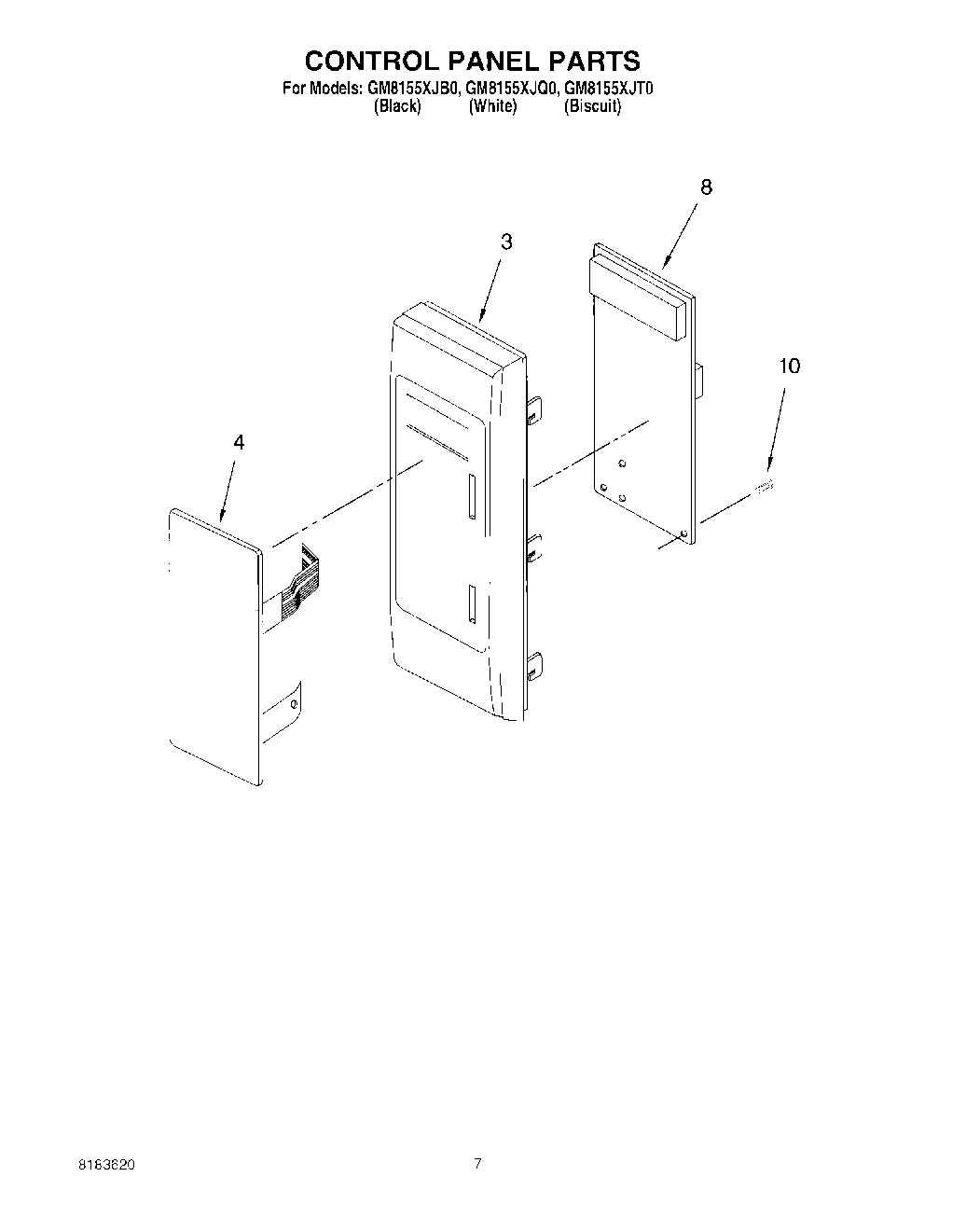

06 - CONTROL PANEL

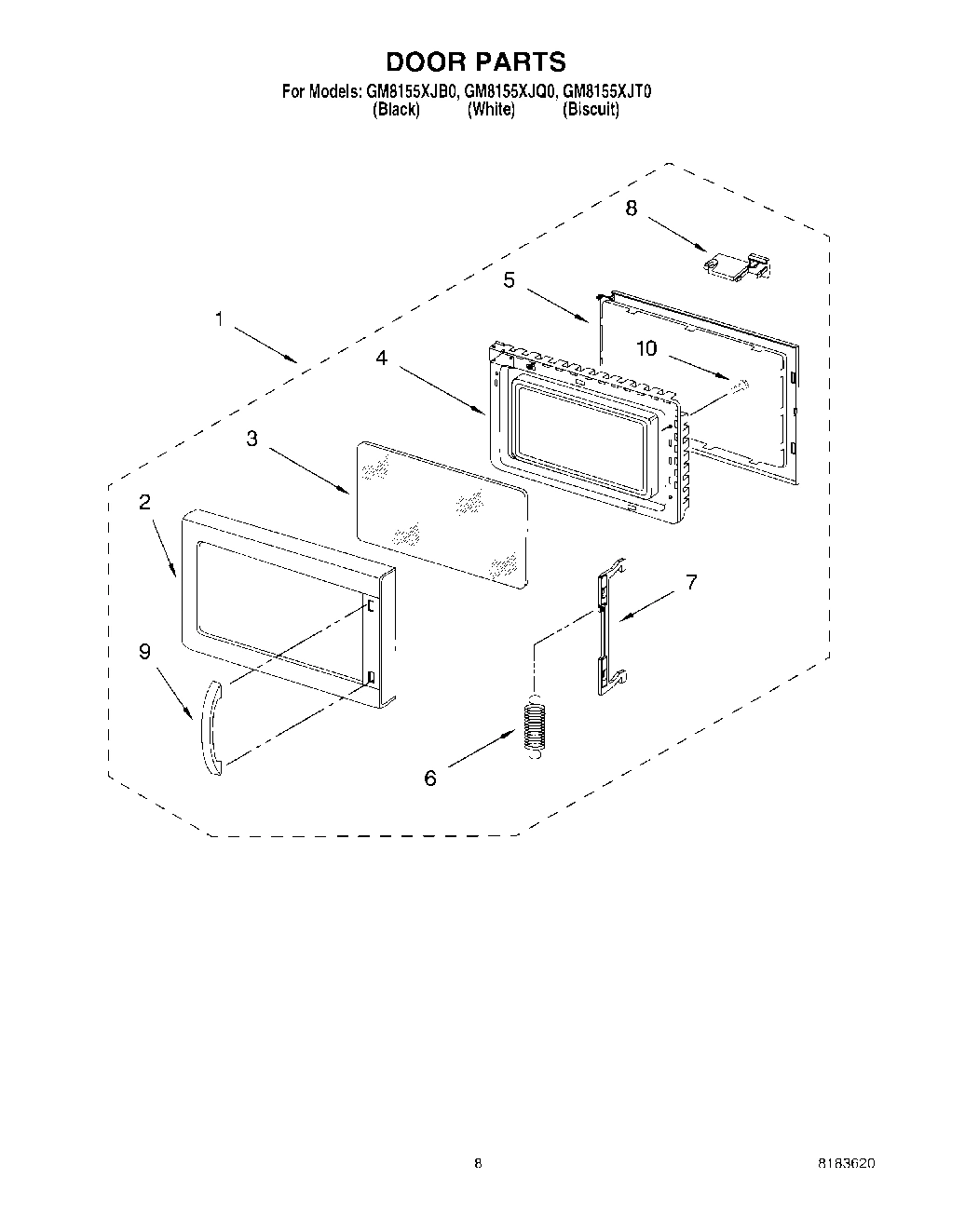

07 - DOOR

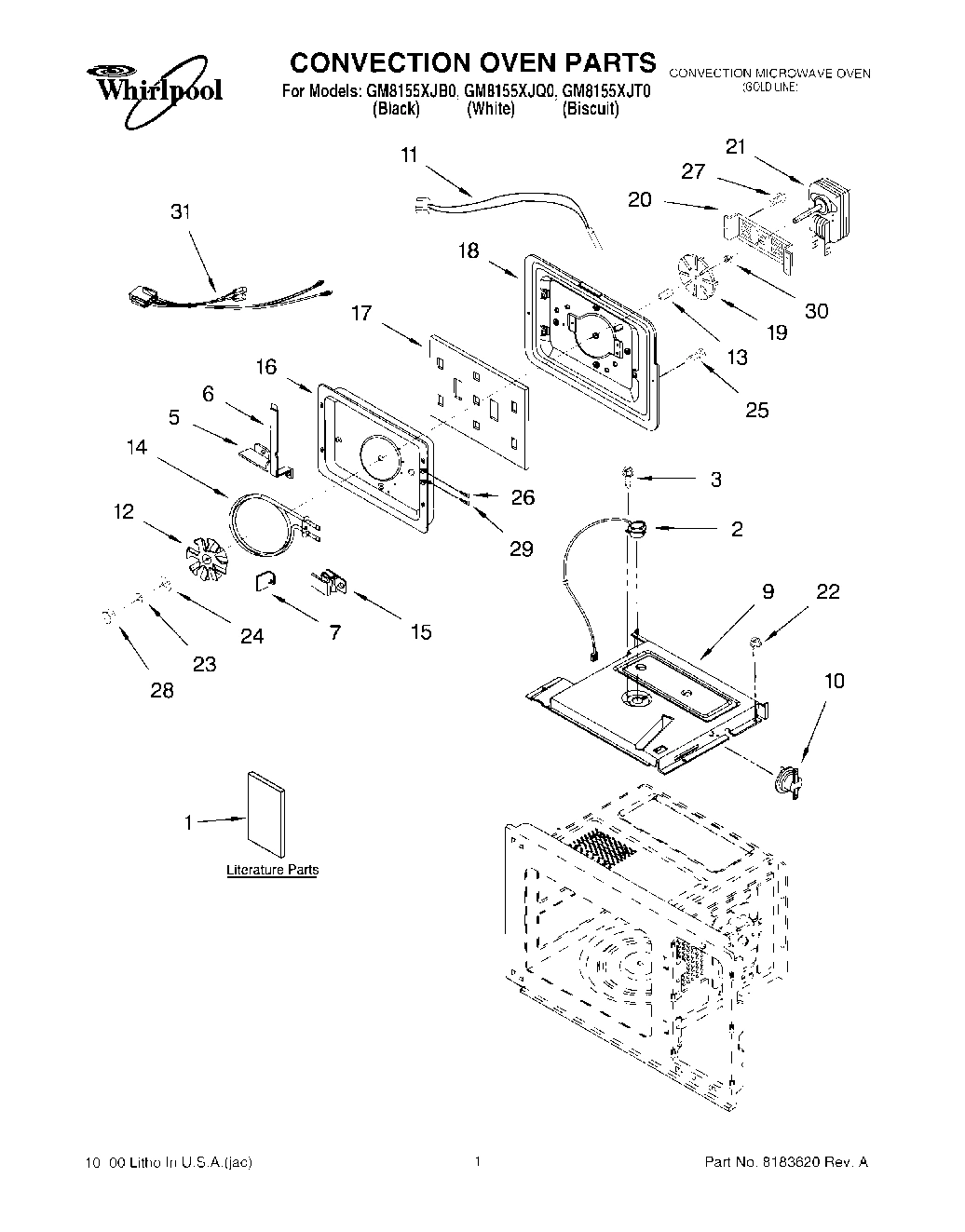

01 - CONVECTION OVEN, LITERATURE

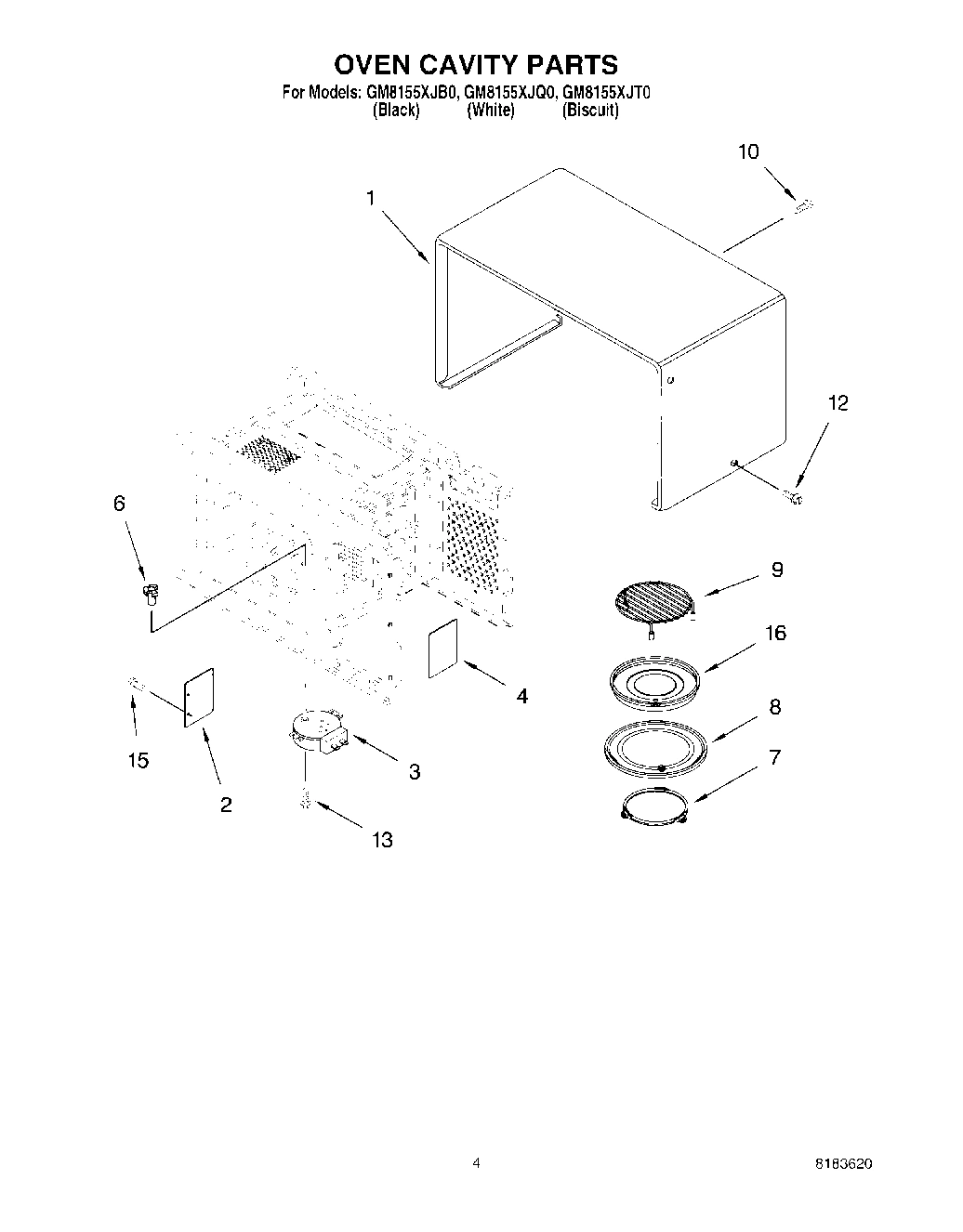

03 - OVEN CAVITY

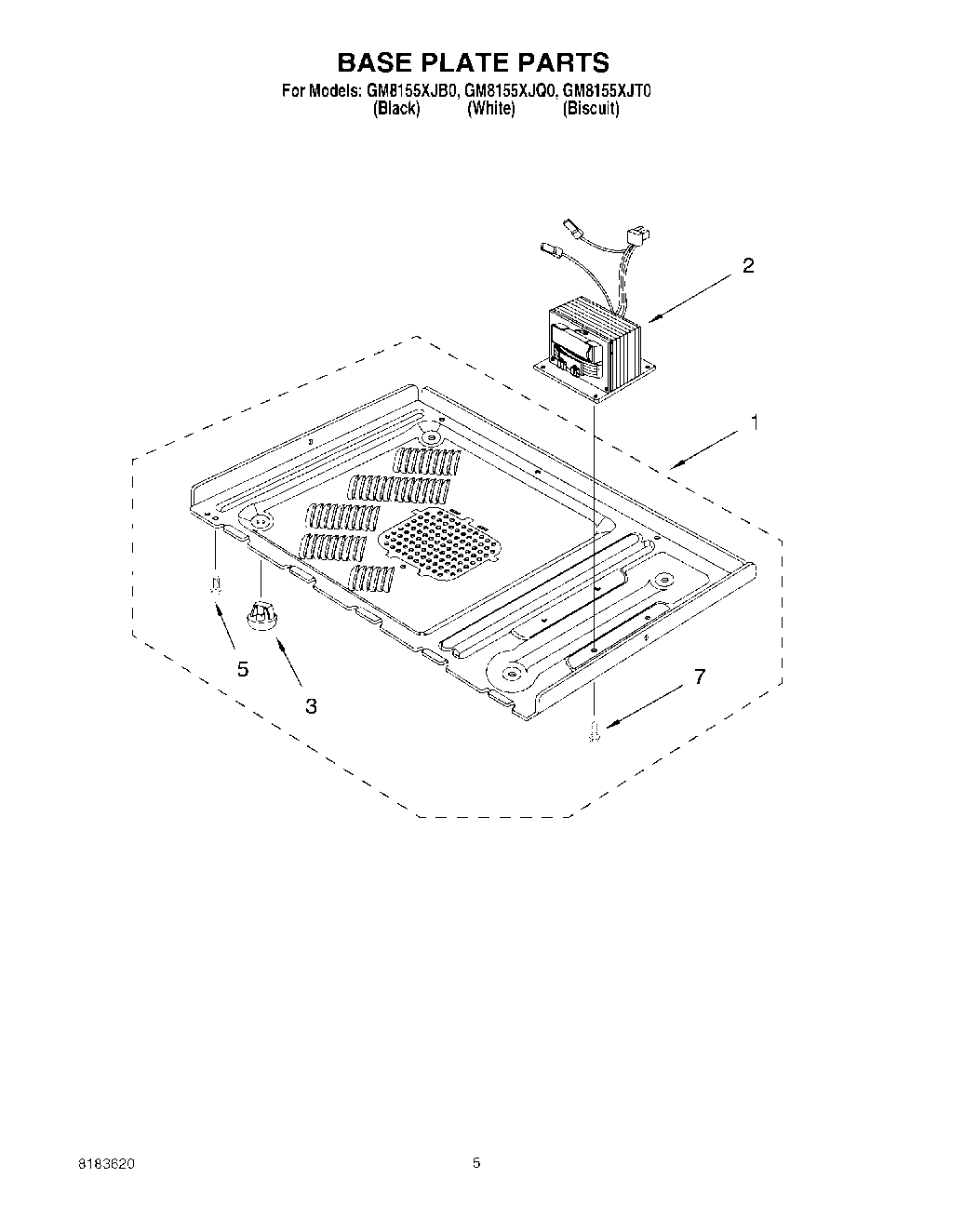

04 - BASE PLATE
Common parts from model Whirlpool GM8155XJQ0 CONVECTION MICROWAVE OVEN
1
Door Assembly (Black) WPL 8183537 Contact Us For Availability
1
Assembly, Latch (Not Serviceable) WPL ARI66886A9 Contact Us For Availability
1
Door Assembly (White) WPL 8183538 Contact Us For Availability
1
Door Assembly (Biscuit) WPL 8183793 Contact Us For Availability
1
Literature Parts (U & C Guide) WPL LIT8172190 Contact Us For Availability
1
Literature Parts (English) WPL LIT8172205 Contact Us For Availability
1
Literature Parts (Tech Sheet Cooking Guide) WPL LIT8172214 Contact Us For Availability
1
Literature Parts (Instructions, Installation) WPL LIT8172219 Contact Us For Availability
1
Literature Parts (Template, B/I Kit) WPL LIT8172220 Contact Us For Availability
1
Literature Parts (Spanish) WPL LIT8172222 Contact Us For Availability
1
Outer Case (Black) WPL 8183555 Contact Us For Availability
1
Outer Case (White) WPL 8183556 Contact Us For Availability
1
Outer Case (Biscuit) WPL 8183695 Contact Us For Availability
1
Plate, Base WPL 8183568 Contact Us For Availability
2
Latch Board WPL 8183558 Contact Us For Availability
2
Panel, Door (Black) WPL 8183539 Contact Us For Availability
2
Panel, Door (White) WPL 8183540 Contact Us For Availability
2
Panel, Door (Biscuit) WPL 8183811 Contact Us For Availability
2
Sensor WPL 8171878 Contact Us For Availability
2
Canopy WPL 8183557 Contact Us For Availability
2
Transformer WPL 8172082 Contact Us For Availability
3
Control Panel (Black) WPL 8183570 Contact Us For Availability
3
Control Panel (White) WPL 8183571 Contact Us For Availability
3
Control Panel (Biscuit) WPL 8183676 Contact Us For Availability
3
Glass (Black) WPL 8183541 Contact Us For Availability
3
Glass (White) WPL 8183542 Contact Us For Availability
3
Glass (Biscuit) WPL 8183689 Contact Us For Availability
3
Screw WPL 4358450 Contact Us For Availability
3
Motor, Turntable WPL 8183554 Contact Us For Availability
3
Cap WPL 8171902 Contact Us For Availability
4
Membrane (Black) WPL 8183587 Contact Us For Availability
4
Membrane (White) WPL 8183588 Contact Us For Availability
4
Frame, Door WPL 8183543 Contact Us For Availability
4
Glass, Lamp WPL 8183559 Contact Us For Availability
5
Lever, Switch WPL 4358795 Contact Us For Availability
5
Choke Cover WPL 8183544 Contact Us For Availability
5
Bracket, Center WPL 8183575 Contact Us For Availability
6
Spring WPL 8171918 No Longer Available
6
Shaft, Turntable WPL 8171863 Contact Us For Availability
6
Bracket, Left WPL 8183574 Contact Us For Availability
7
Screw WPL 4358271 Contact Us For Availability
7
Latch WPL 8171850 Contact Us For Availability
7
Bracket, Lower WPL 8183576 Contact Us For Availability
7
Ring Assembly WPL 8183560 Contact Us For Availability
8
Microcomputer WPL 8183589 Contact Us For Availability
8
Cap WPL 8171798 Contact Us For Availability
9
Handle (Black) WPL 8183545 Contact Us For Availability
9
Handle (White) WPL 8183546 Contact Us For Availability
9
Handle (Biscuit) WPL 8183812 Contact Us For Availability
9
Insulator WPL 8183580 Contact Us For Availability
9
Rack WPL 8172251 Contact Us For Availability
10
Screw WPL 4358451 Contact Us For Availability
10
Thermostat WPL 8183593 Contact Us For Availability
11
Thermistor WPL 8183583 Contact Us For Availability
12
Fan WPL 8183582 Contact Us For Availability
13
Power Cord WPL 8183584 Contact Us For Availability
13
Screw WPL 4358188 Contact Us For Availability
13
Bushing WPL 4358460 Contact Us For Availability
14
Cover, Back WPL 8183569 Contact Us For Availability
14
Convection Element WPL 8183581 Contact Us For Availability
15
Clip, Conv Element WPL 8183577 Contact Us For Availability
16
Pan, Drip WPL 8172250 Contact Us For Availability
16
Guide, Suction WPL 8183579 Contact Us For Availability
16
Duct, Magnetron WPL 8183567 Contact Us For Availability
17
Insulation WPL 4358464 Contact Us For Availability
18
Motor, Fan WPL 8183585 Contact Us For Availability
18
Shield, Back Insul WPL 8183566 Contact Us For Availability
19
Capacitor, H.V. WPL 8183536 Contact Us For Availability
19
Fan Blade WPL 4358466 Contact Us For Availability
20
Bracket, H.V.C. WPL 4359161 Contact Us For Availability
20
Bracket, Convection Motor WPL 4358467 Contact Us For Availability
21
Fan WPL 4358379 Contact Us For Availability
21
Convection Motor WPL 8183565 Contact Us For Availability
24
Washer WPL 4358478 Contact Us For Availability
25
Screw WPL 4358190 Contact Us For Availability
26
Screw WPL 8183572 Contact Us For Availability
27
Screw WPL 4358357 Contact Us For Availability
28
Nut WPL 4358476 Contact Us For Availability
29
Harness, Main WPL 8183590 Contact Us For Availability
29
Screw WPL 8183564 Contact Us For Availability
30
Nut WPL 4358475 Contact Us For Availability
31
Harness, Wire WPL 8183591 Contact Us For Availability
31
Trim Kits (30`` Black) WPL MK1150XJB Contact Us For Availability
31
Trim Kits (30`` White) WPL MK1150XJQ Contact Us For Availability
31
Trim Kits (30`` Stainless) WPL MK1150XJS Contact Us For Availability
31
Trim Kits (30`` Biscuit) WPL MK1150XJT Contact Us For Availability
31
Trim Kits (27`` Black) WPL MK1157XJB Contact Us For Availability
31
Trim Kits (27`` White) WPL MK1157XJQ Contact Us For Availability
31
Trim Kits (27`` Stainless) WPL MK1157XJS Contact Us For Availability
31
Trim Kits (27`` Biscuit) WPL MK1157XJT Contact Us For Availability
× ![]()
