Model Whirlpool GLT3615LQ01 36`` GAS GLASS SURFACE COOKTOP – Common Parts & Diagrams

Common parts from model Whirlpool GLT3615LQ01 36`` GAS GLASS SURFACE COOKTOP

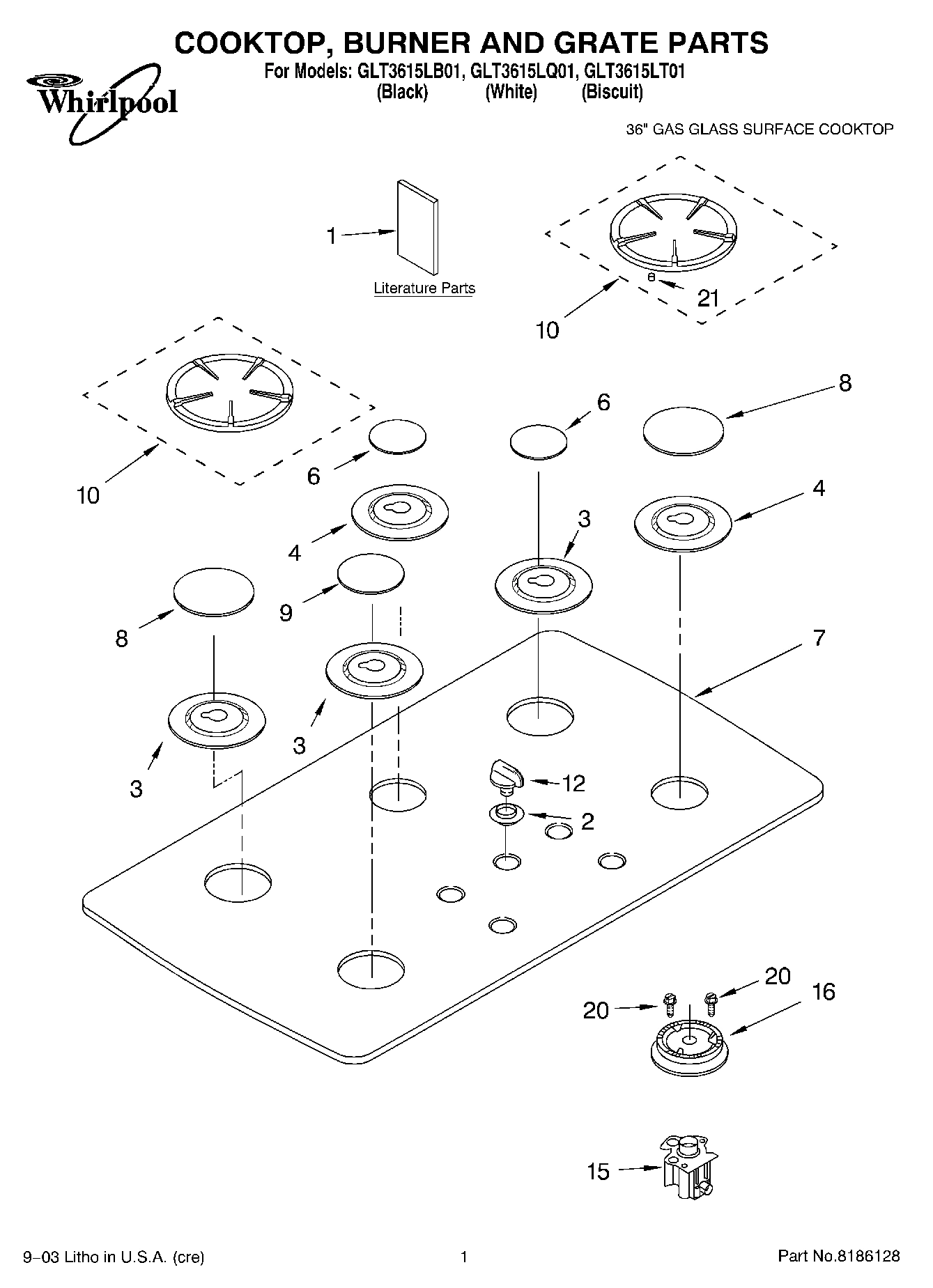

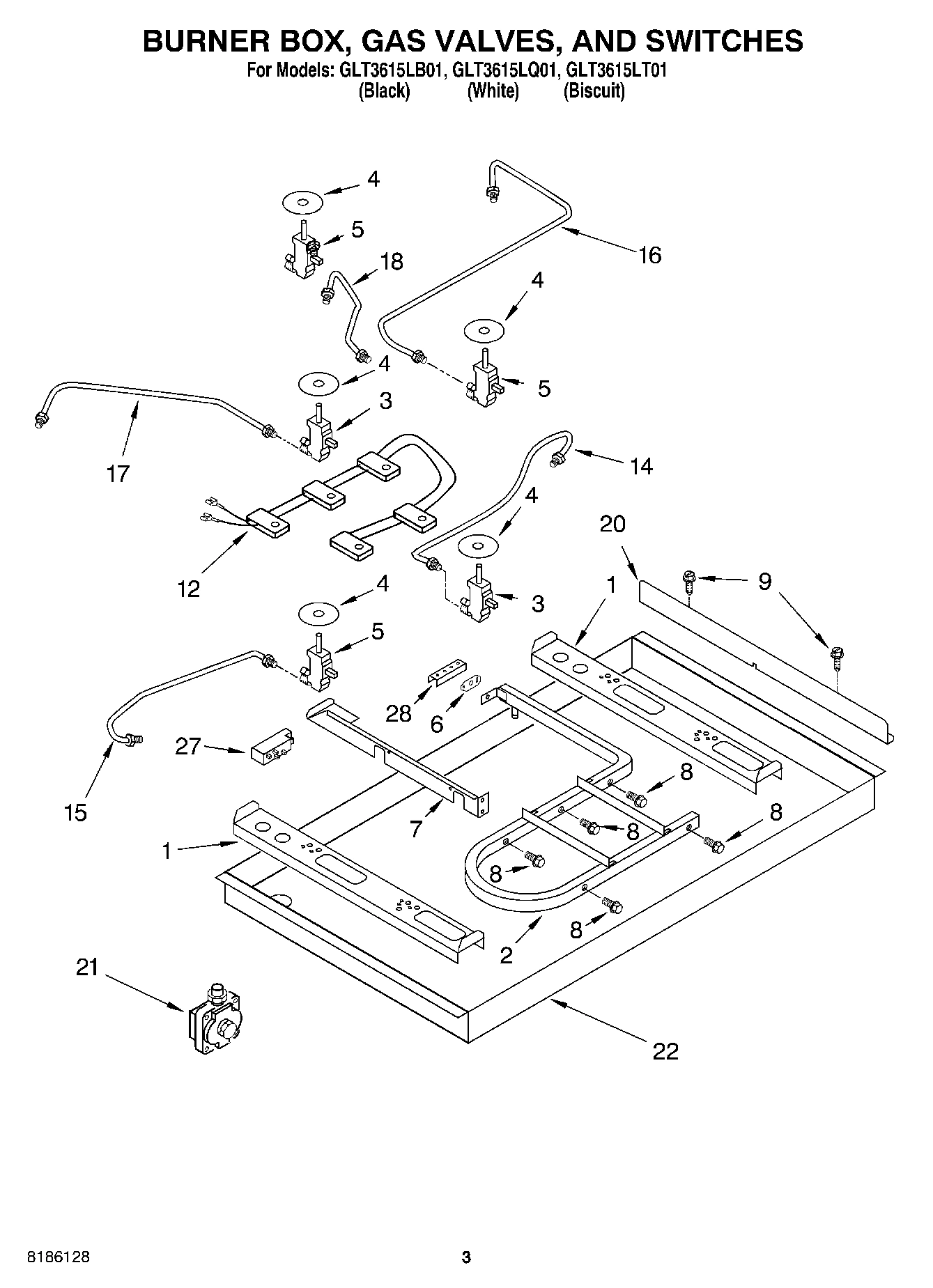

02 - BURNER BOX, GAS VALVES, AND SWITCHES

Print

• This Diagram
• All Diagrams

1

Literature Parts (Use & Care Guide) WPL LIT8285326 Contact Us For Availability

View on Model

2

W10854242 Whirlpool Grommet In Stock WPL W10854242 View Details $3.73

View on Model

2

WP3180081 Whirlpool Grommet In Stock WPL WP3180081 View Details $3.79

View on Model

2

Grommet, Glass (Biscuit) WPL 3191817 Contact Us For Availability

View on Model

3

Valve, Gas Burner (RF) - (Center) WPL 3191292 Contact Us For Availability

View on Model

3

Bowl, Burner (LF) (LR) (RR) (Black) WPL 3191302 Contact Us For Availability

View on Model

3

Bowl, Burner (LF) (LR) (RR) (White) WPL 3191303 Contact Us For Availability

View on Model

3

Bowl, Burner (LF) (LR) (RR) (Biscuit) WPL 3191818 Contact Us For Availability

View on Model

4

Bowl, Burner (RF) (Center) (Black) WPL 3191307 Contact Us For Availability

View on Model

4

Bowl, Burner (RF) (Center) (White) WPL 3191308 Contact Us For Availability

View on Model

4

Bowl, Burner (RF) (Center) (Biscuit) WPL 3191819 Contact Us For Availability

View on Model

5

Valve, Gas Burner (RR) (LR) (LF) WPL 3191293 Contact Us For Availability

View on Model

6

WP3191898 Whirlpool Surface Burner Cap Black Backorder WPL WP3191898 View Details $42.16

View on Model

6

WP8273343 Whirlpool Burner Cap Backorder WPL WP8273343 View Details $35.28

View on Model

6

Cap, Burner 6K (RF) (Center) (Mouse Gray) WPL 3191899 Contact Us For Availability

View on Model

7

Cooktop, Glass (Black) WPL 8285093 Contact Us For Availability

View on Model

7

Cooktop, Glass (White) WPL 8285094 Contact Us For Availability

View on Model

7

Cooktop, Glass (Biscuit) WPL 8285095 Contact Us For Availability

View on Model

8

WP3191901 Whirlpool Burner Cap Backorder WPL WP3191901 View Details $54.85

View on Model

8

WP3191903 Whirlpool Burner Cap In Stock WPL WP3191903 View Details $96.80

View on Model

8

WP8273344 Whirlpool Burner Cap Backorder WPL WP8273344 View Details $35.28

View on Model

9

WP3191904 Whirlpool Burner Cap In Stock WPL WP3191904 View Details $95.75

View on Model

9

WP3191905 Whirlpool Burner Cap Backorder WPL WP3191905 View Details $44.01

View on Model

9

WP8273345 Whirlpool Burner Cap Backorder WPL WP8273345 View Details $87.55

View on Model

10

Grate, Burner (Black) WPL 3193177 Contact Us For Availability

View on Model

10

Grate, Burner (Mouse Gray) WPL 3193178 Contact Us For Availability

View on Model

10

Grate, Burner (Espresso) WPL 4456214 Contact Us For Availability

View on Model

12

Knob, Control (4) (Black) WPL 8285069 Contact Us For Availability

View on Model

12

Harness & Switches WPL 3191336 Contact Us For Availability

View on Model

12

Knob, Control (4) (Biscuit) WPL 8285070 Contact Us For Availability

View on Model

12

Knob, Control (4) (White) WPL 8285071 Contact Us For Availability

View on Model

14

3191324 Whirlpool Oven Gas Tubing Backorder WPL 3191324 View Details $43.68

View on Model

15

WPW10128448 Whirlpool Igniter and Orifice Hol In Stock WPL WPW10128448 View Details $60.98

View on Model

15

WPW10155784 Whirlpool Orifice Holder In Stock WPL WPW10155784 View Details $40.53

View on Model

15

WPW10155785 Whirlpool Orifice Holder In Stock WPL WPW10155785 View Details $41.03

View on Model

16

WP4455979 Whirlpool Range Small Burner Head Backorder WPL WP4455979 View Details $34.15

View on Model

16

WP4455980 Whirlpool Burner Head Backorder WPL WP4455980 View Details $37.44

View on Model

16

WP4455981 Whirlpool Burner Head Backorder WPL WP4455981 View Details $52.72

View on Model

16

Tubing, Gas Burner (RR) WPL 3191325 Contact Us For Availability

View on Model

20

3191462 Whirlpool Oven Heat Shield Backorder WPL 3191462 View Details $10.91

View on Model

20

WP3368921 Whirlpool Screw In Stock WPL WP3368921 View Details $1.52

View on Model

22

WP4449809 Whirlpool Screw In Stock WPL WP4449809 View Details $2.51

View on Model

28

4456626 Whirlpool Wire Backorder WPL 4456626 View Details $28.58

View on Model

28

4456627 Whirlpool Wire Harness Backorder WPL 4456627 View Details $47.14

View on Model

28

WP3177991 Whirlpool Screw Backorder WPL WP3177991 View Details $2.51

View on Model

28

WP3192741 Whirlpool LP Conversion Kit Backorder WPL WP3192741 View Details $21.74

View on Model

28

Seal, Foam-Cooktop WPL 3191933 Contact Us For Availability

View on Model

×
