Model Whirlpool GLT3057RQ00 30`` SEALED GAS COOKTOP – Common Parts & Diagrams

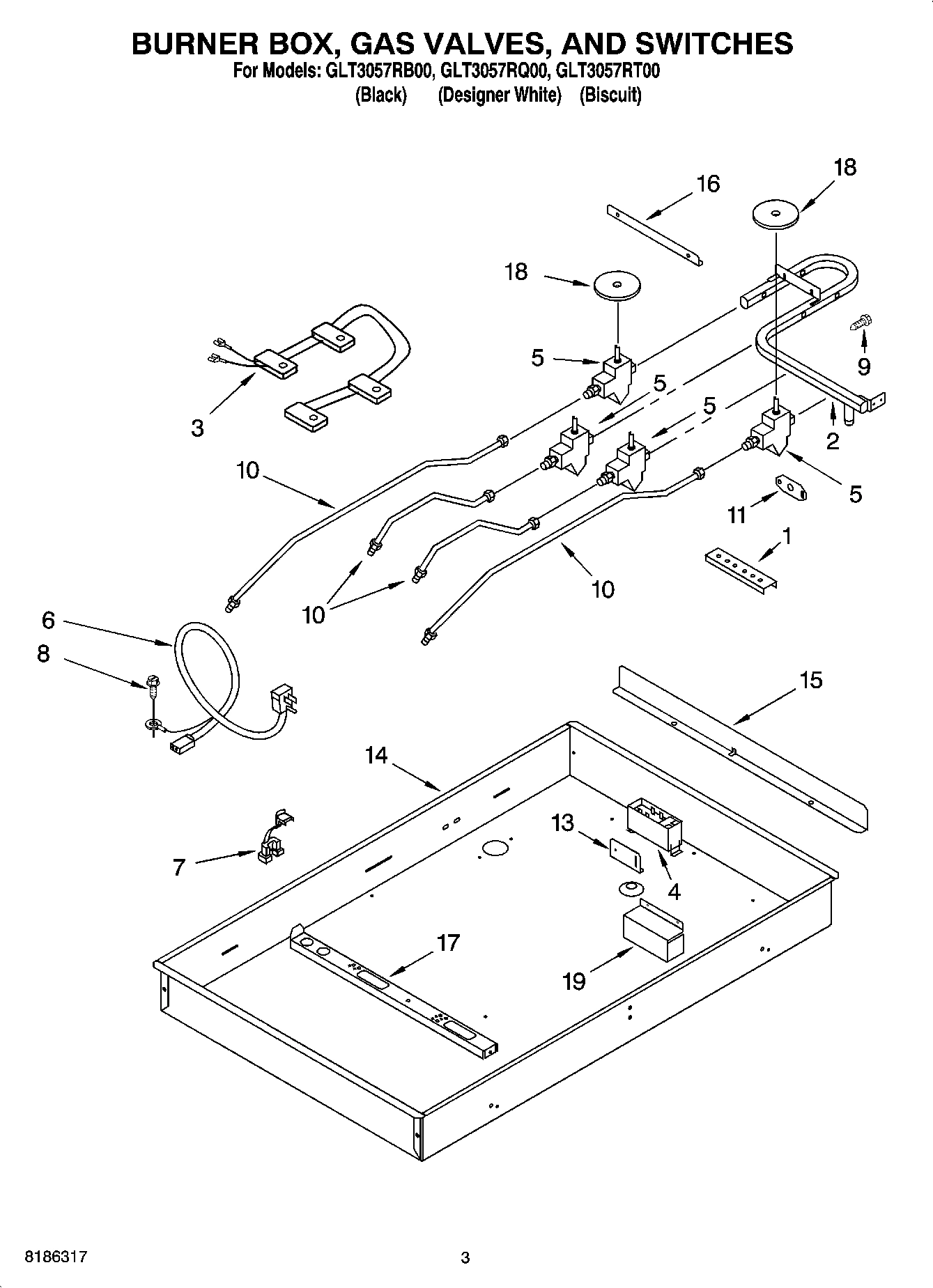

02 - BURNER BOX, GAS VALVES, AND SWITCHES

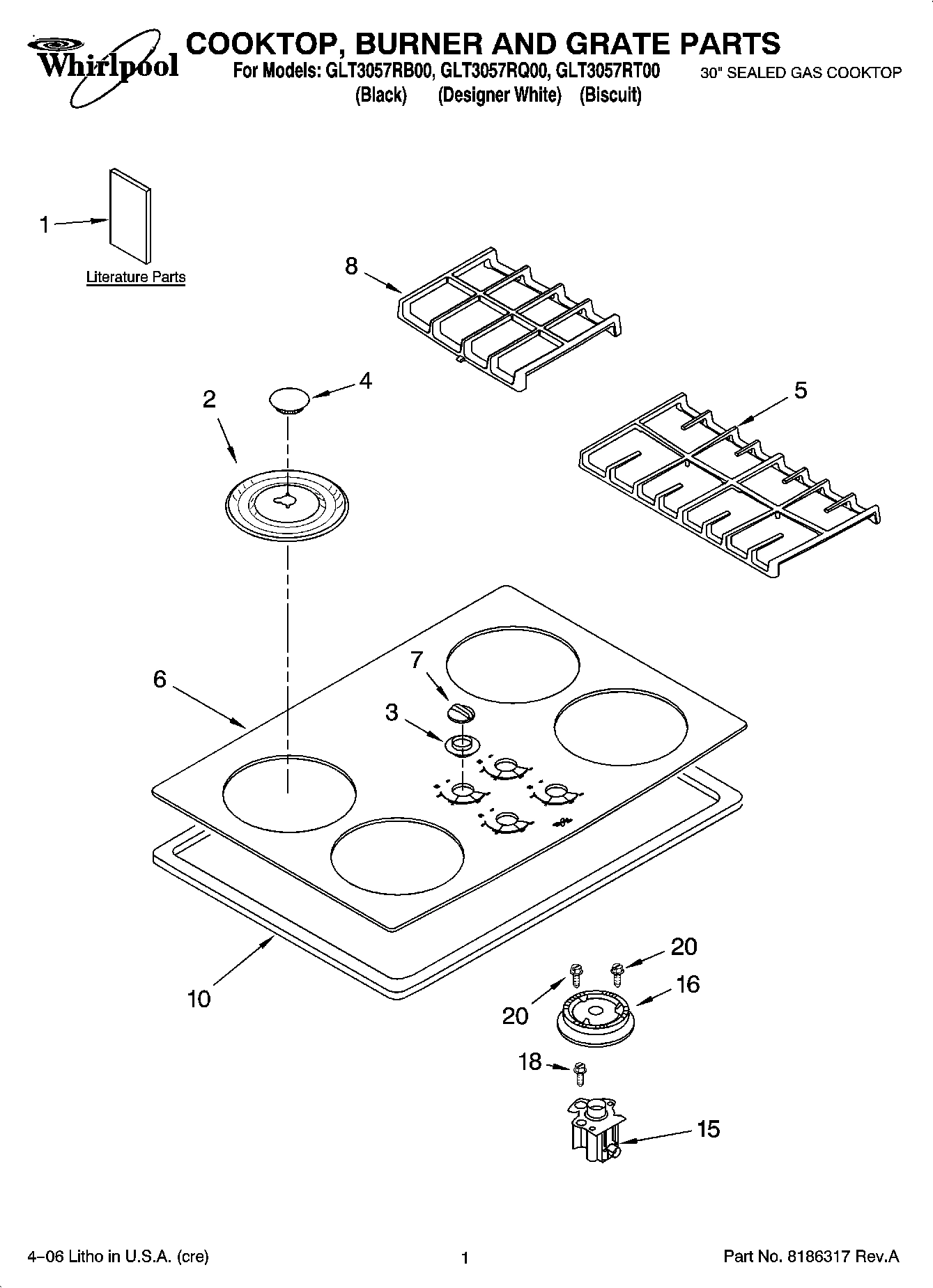

01 - COOKTOP, BURNER AND GRATE PARTS
Common parts from model Whirlpool GLT3057RQ00 30`` SEALED GAS COOKTOP
2
Pipe, Manifold WPL 8286069 Contact Us For Availability
2
Bowl, Burner 6K (RR) (Black) WPL 3191307 Contact Us For Availability
2
Bowl, Burner 6K (RR) (White) WPL 3191308 Contact Us For Availability
2
Bowl, Burner 9K, 12K (LR, RF, LF) (Biscuit) WPL 3191818 Contact Us For Availability
2
Bowl, Burner 6K (RR) (Biscuit) WPL 3191819 Contact Us For Availability
3
Grommet, Glass (Biscuit) WPL 3191817 Contact Us For Availability
4
Cap, Burner 6K (RR) (Espresso) WPL 8286153EP Contact Us For Availability
4
Cap, Burner 9.5K (LR) (Espresso) WPL 8286154EP Contact Us For Availability
5
Valve, Burner (Auxi (White)) WPL 8286559 Contact Us For Availability
5
Valve, Burner (Rapid (Purple)) WPL 8286560 Contact Us For Availability
5
Grate Left Hand (Black) WPL 8285892BL Contact Us For Availability
5
Grate Left Hand (Cumberland Gray) WPL 8285892CG Contact Us For Availability
5
Grate Left Hand (Espresso) WPL 8285892EP Contact Us For Availability
5
Grate Right Hand (Black) WPL 8285894BL Contact Us For Availability
5
Grate Right Hand (Cumberland Gray) WPL 8285894CG Contact Us For Availability
5
Grate Right Hand (Espresso) WPL 8285894EP Contact Us For Availability
6
Cooktop, Glass (White) WPL 8286103 Contact Us For Availability
7
Knob, Control (4) (Biscuit) WPL 8286058BT Contact Us For Availability
8
Grate, WPL 8285893BL Contact Us For Availability
8
WPL 8285893CG WPL 8285893CG Contact Us For Availability
8
WPL 8285893EP WPL 8285893EP Contact Us For Availability
10
Tubing, Burner (RR) WPL 3191325 Contact Us For Availability
10
WPL 3191932 WPL 3191932 Contact Us For Availability
20
WPL ARI66819A6 WPL ARI66819A6 Contact Us For Availability
20
WPL ARI66820A1 WPL ARI66820A1 Contact Us For Availability
× ![]()
