Model Whirlpool GLT3034LB01 30`` SEALED GAS COOKTOP – Common Parts & Diagrams

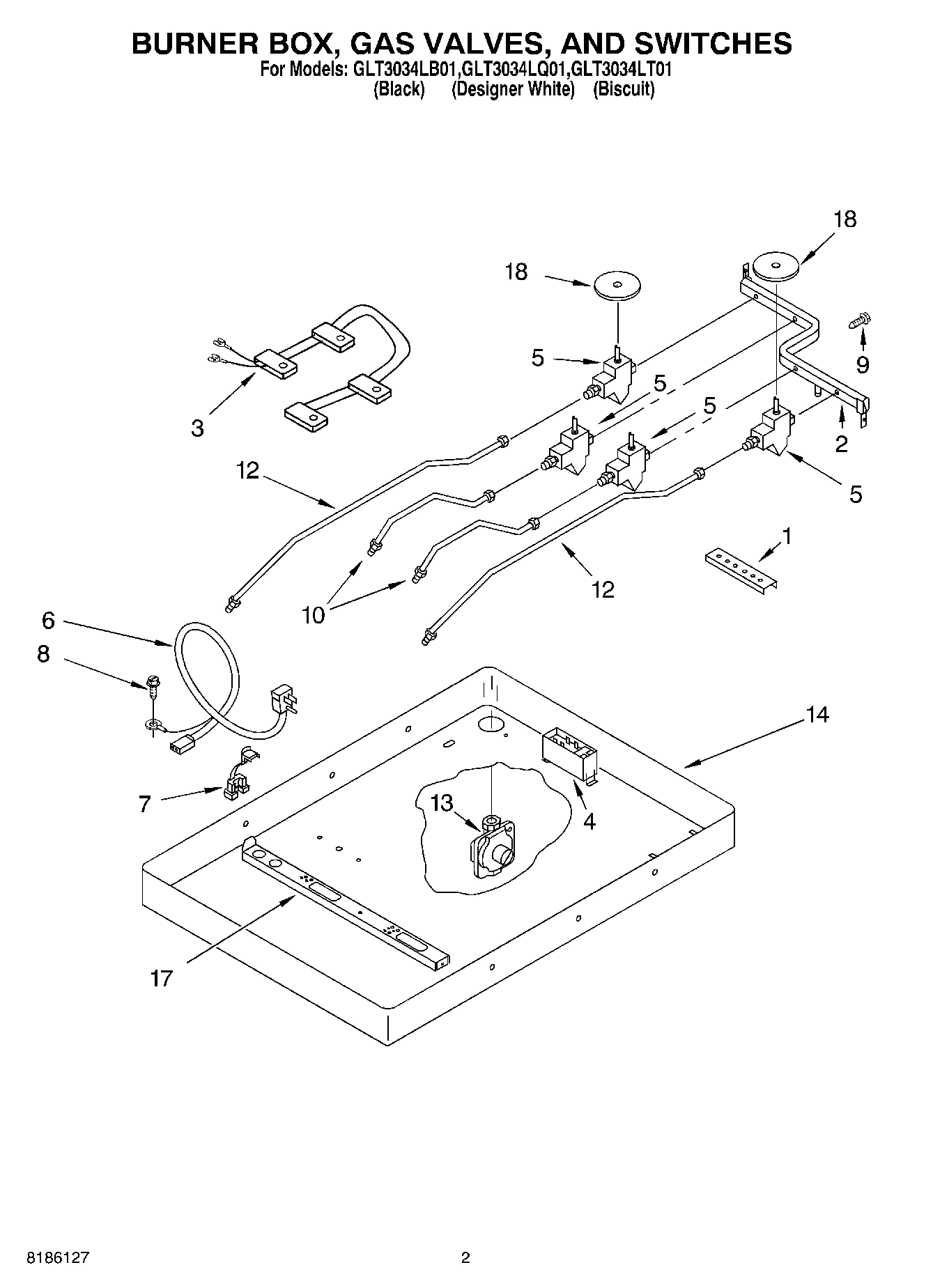

02 - BURNER BOX, GAS VALVES, AND SWITCHES

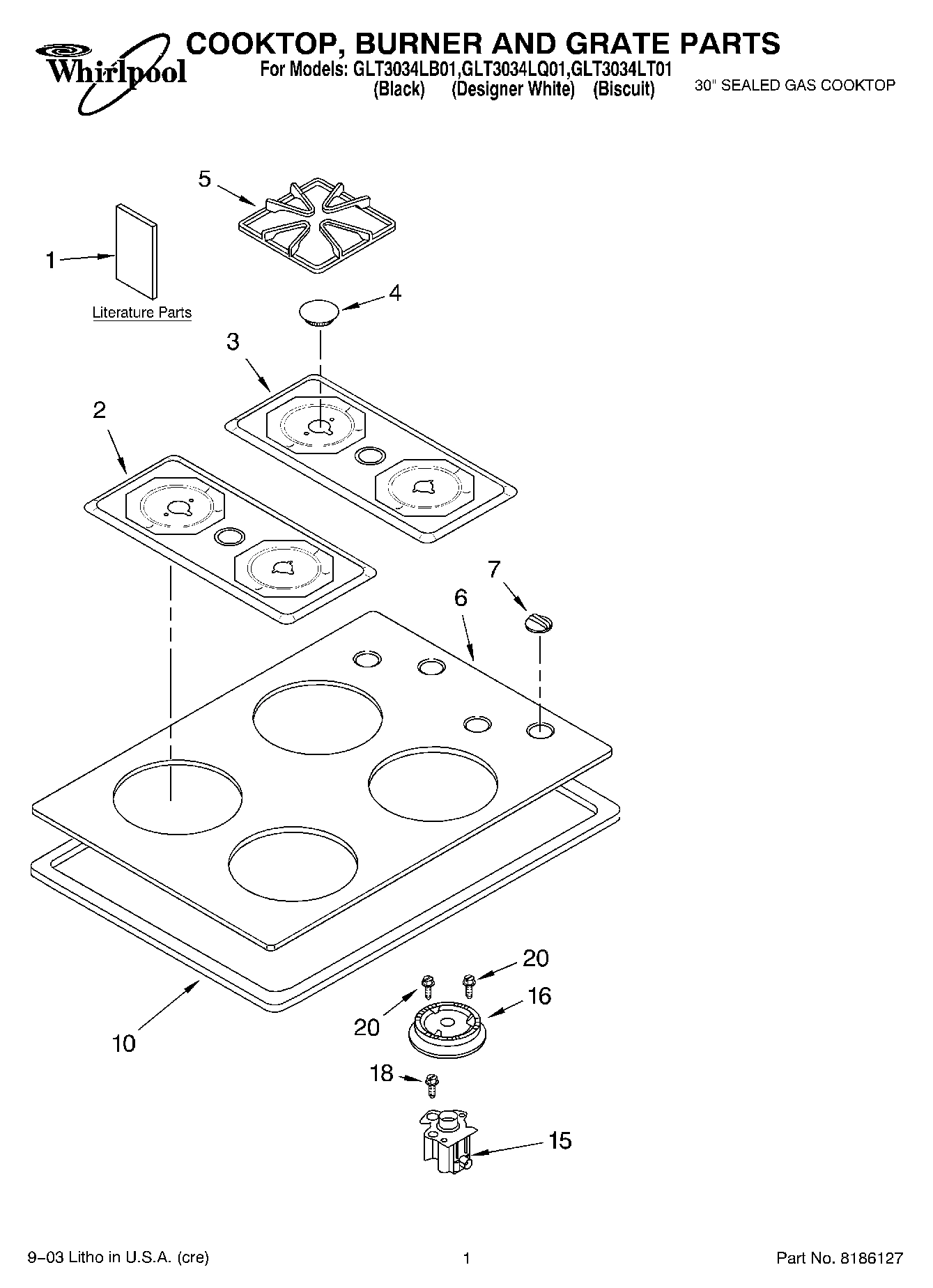

01 - COOKTOP, BURNER AND GRATE PARTS
Common parts from model Whirlpool GLT3034LB01 30`` SEALED GAS COOKTOP
1
Literature Parts (Use & Care Guide) WPL LIT8285326 Contact Us For Availability
2
Bowl, Left (Black) WPL 3191249 Contact Us For Availability
2
Bowl, Left (White) WPL 3191250 Contact Us For Availability
2
Bowl, Left (Biscuit) WPL 3192734 Contact Us For Availability
3
Cap, Burner 6K Gray WPL 3191899 Contact Us For Availability
3
Harness & Switches WPL 4456702 Contact Us For Availability
3
Bowl, Right (Black) WPL 3191305 Contact Us For Availability
3
Bowl, Right (White) WPL 3191306 Contact Us For Availability
3
Bowl, Right (Biscuit) WPL 3192733 Contact Us For Availability
3
6K (1) WPL ARI66764A4 Contact Us For Availability
3
9.5K (1) WPL ARI66765A8 Contact Us For Availability
3
12.5K (2) WPL ARI66766A7 Contact Us For Availability
5
Valve, Burner (Small (1)) WPL 3191292 Contact Us For Availability
5
Valve, Burner (Large (3)) WPL 3191293 Contact Us For Availability
6
Cooktop, Glass (Black) WPL 8285074 Contact Us For Availability
6
Cooktop, Glass (White) WPL 8285075 Contact Us For Availability
6
Cooktop, Glass (BIscuit) WPL 8285076 Contact Us For Availability
7
Knob, Control (4) (Black) WPL 8285068 Contact Us For Availability
7
Knob, Control (4) (White) WPL 8285072 Contact Us For Availability
7
Knob, Control (4) (Biscuit) WPL 8285073 Contact Us For Availability
10
Tubing, Burner RR & RF WPL 3191318 Contact Us For Availability
10
Seal, Foam WPL 3191932 Contact Us For Availability
12
Tubing, Burner LR & LF WPL 3191320 Contact Us For Availability
20
Harness, Wire (Ignitor 28``) WPL 4456627 Contact Us For Availability
20
Harness, Wire Ignitor 15`` WPL 4456626 Contact Us For Availability
20
FOLLOWING PARTS NOT ILLUSTRATED WPL ARI66767A6 Contact Us For Availability
20
Harness, Wire WPL ARI66768A2 Contact Us For Availability
× ![]()
