Model Electrolux GLRT188WDL8 REFRIGERATOR – Common Parts & Diagrams

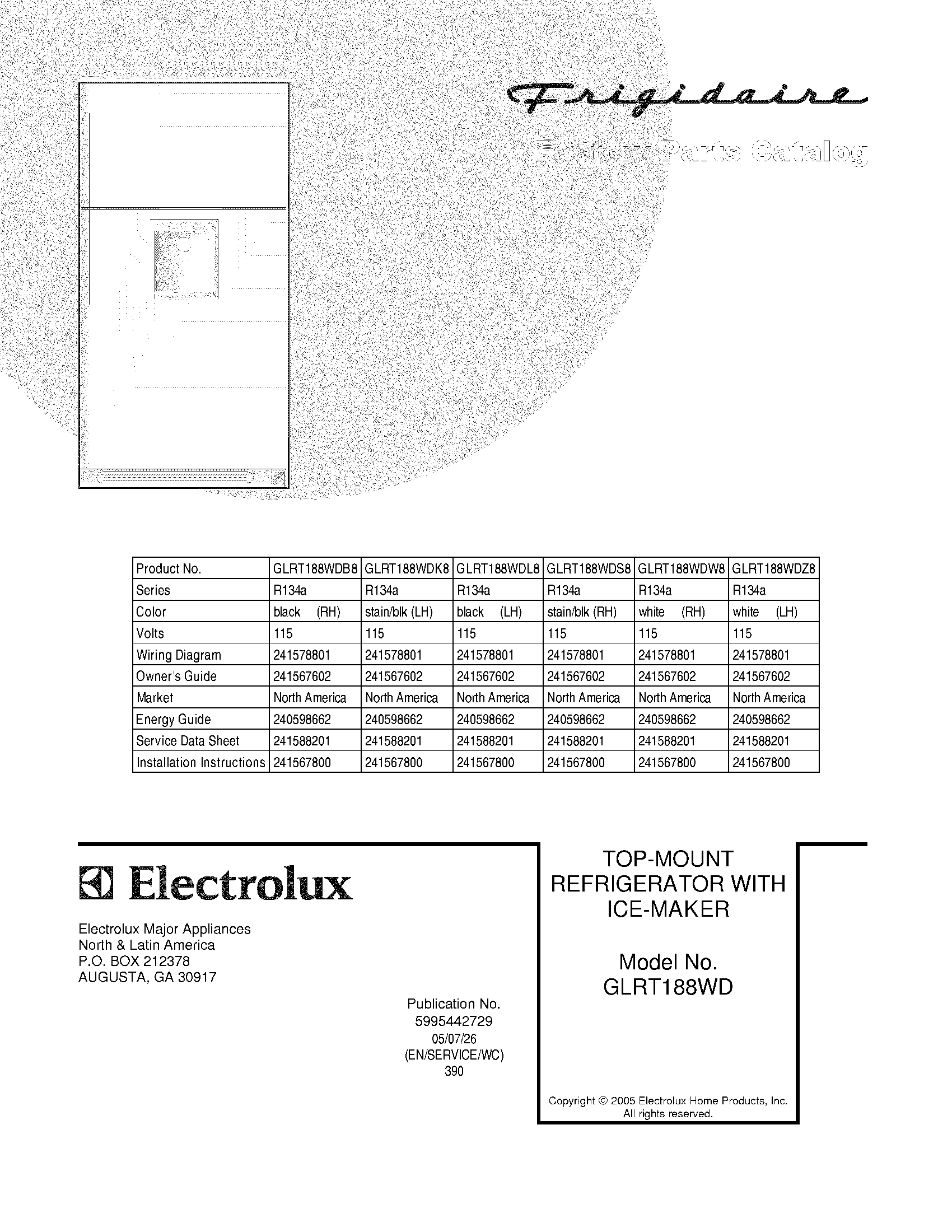

01 - COVER

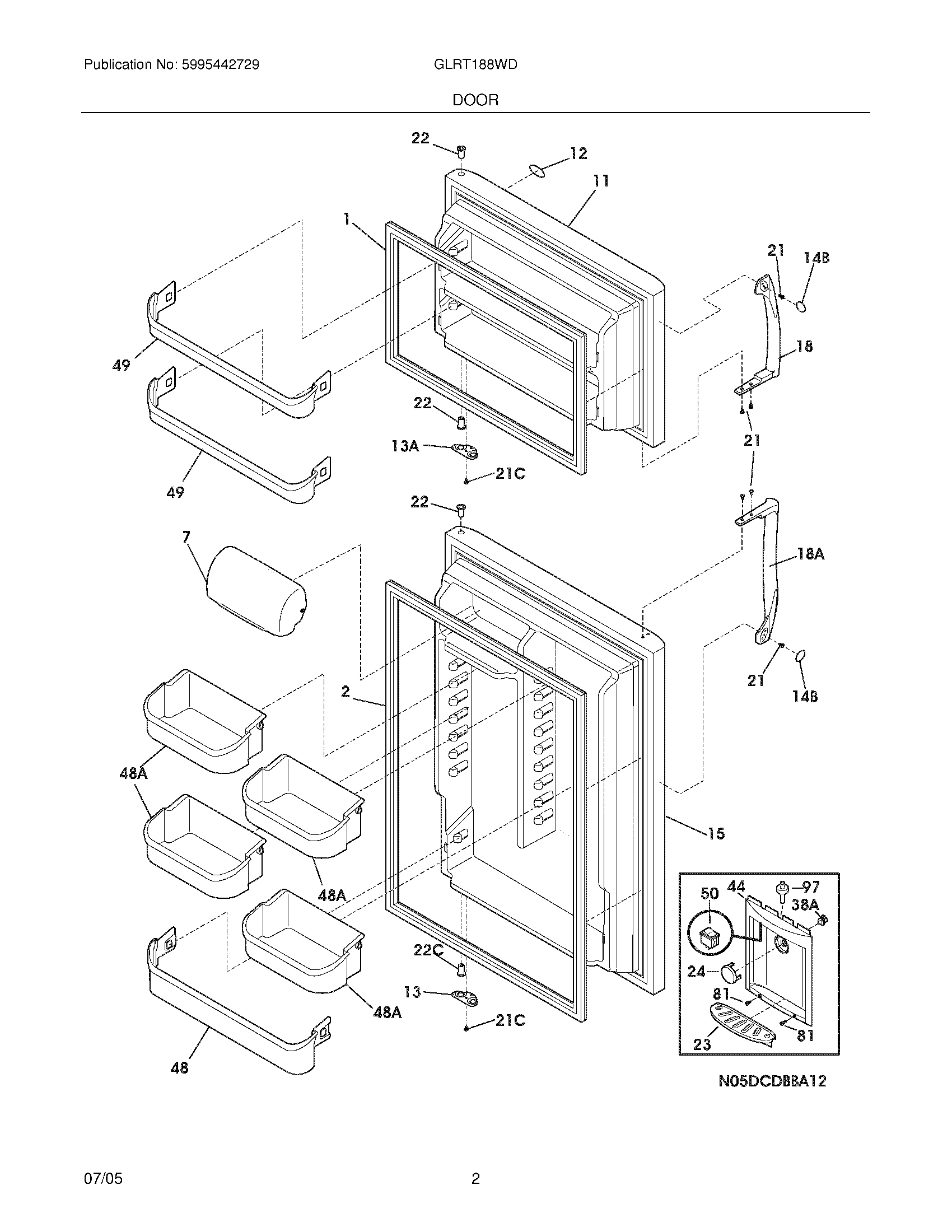

03 - DOOR

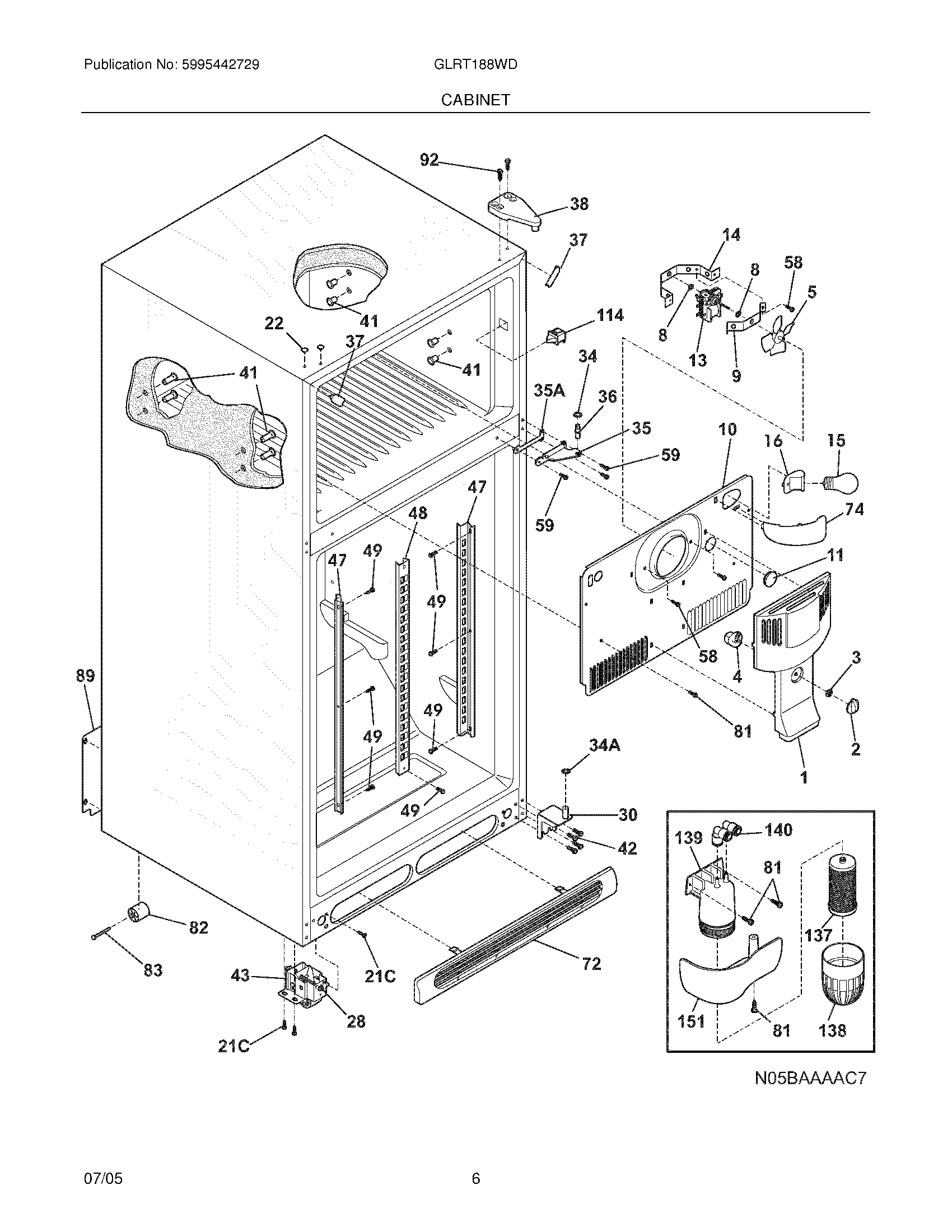

05 - CABINET

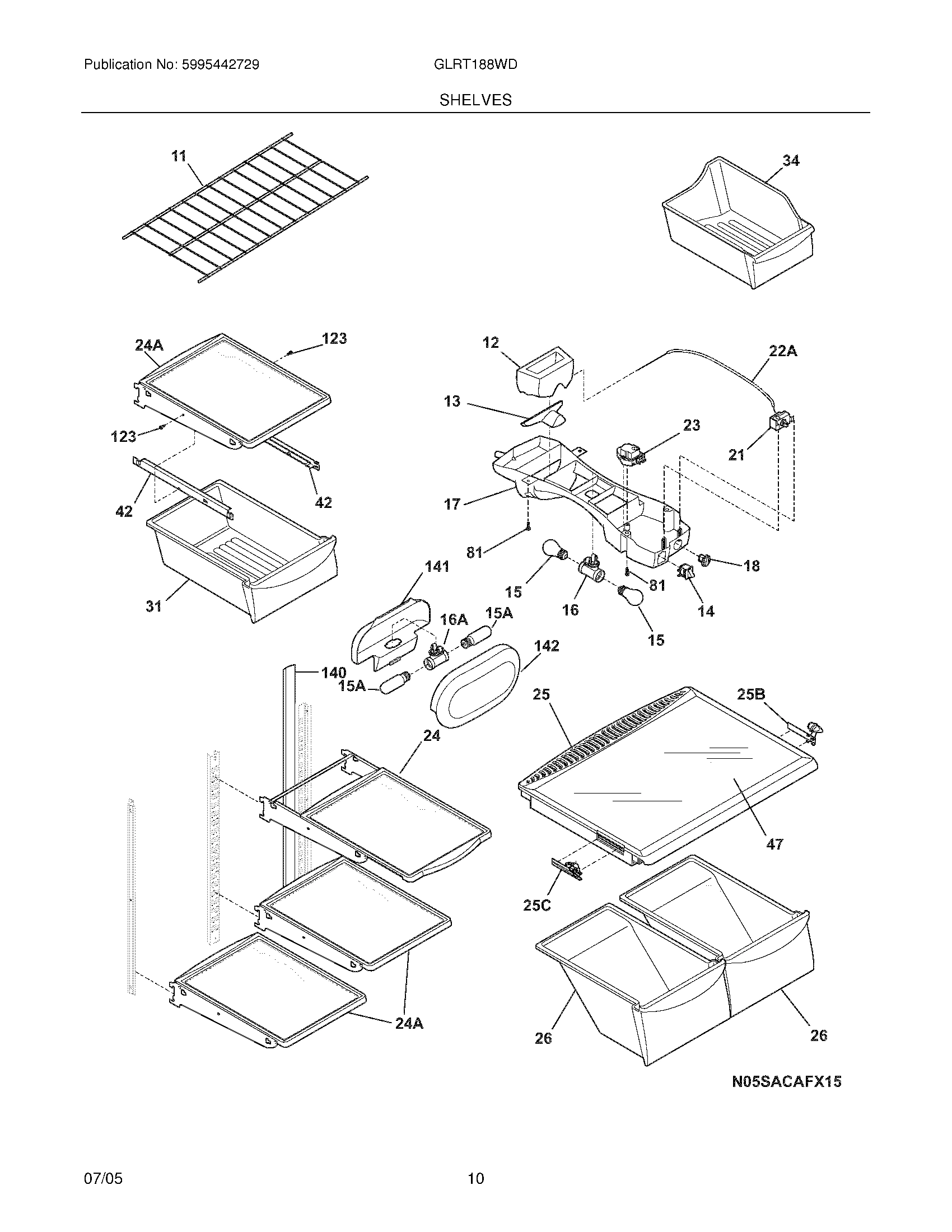

07 - SHELVES

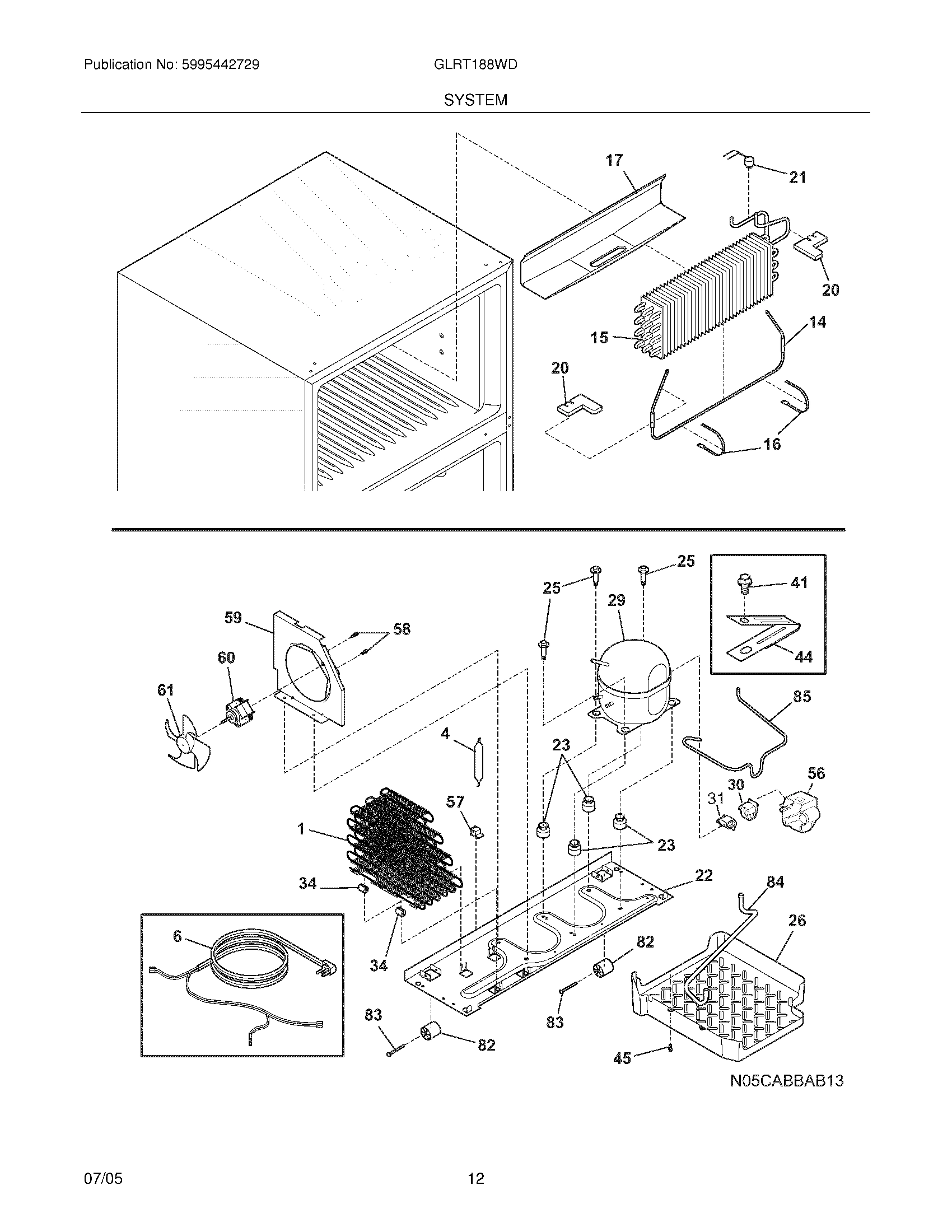

09 - SYSTEM

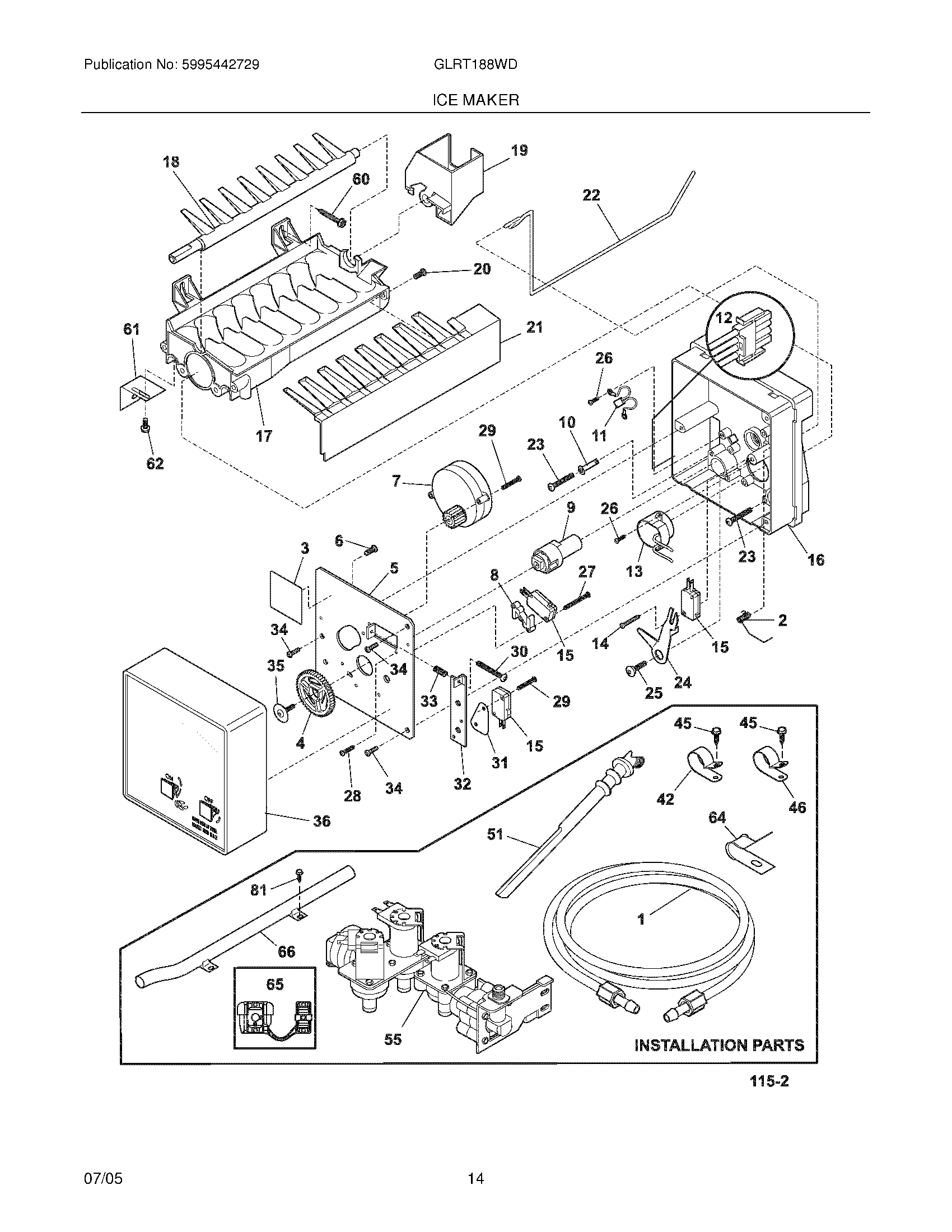

11 - ICE MAKER

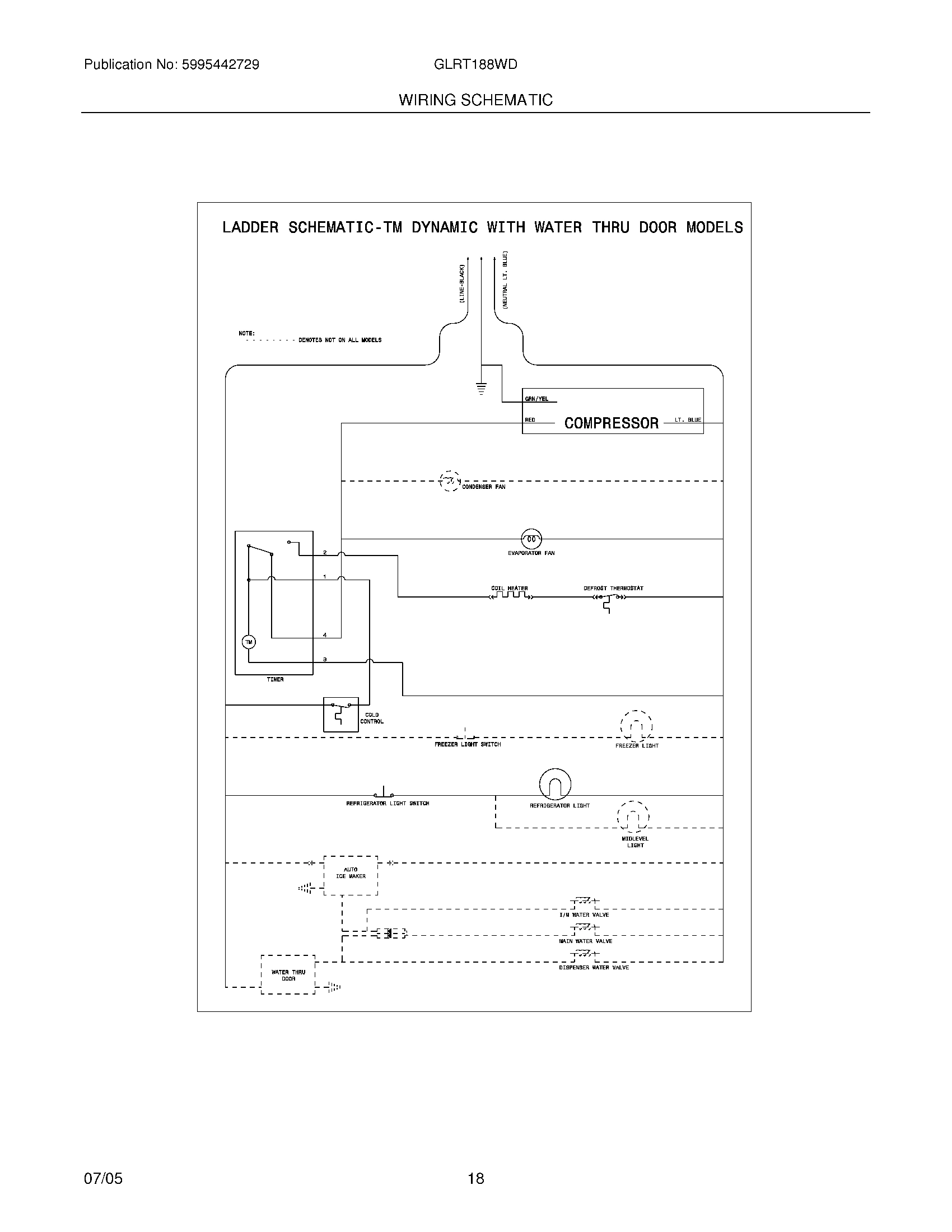

18 - WIRING SCHEMATIC

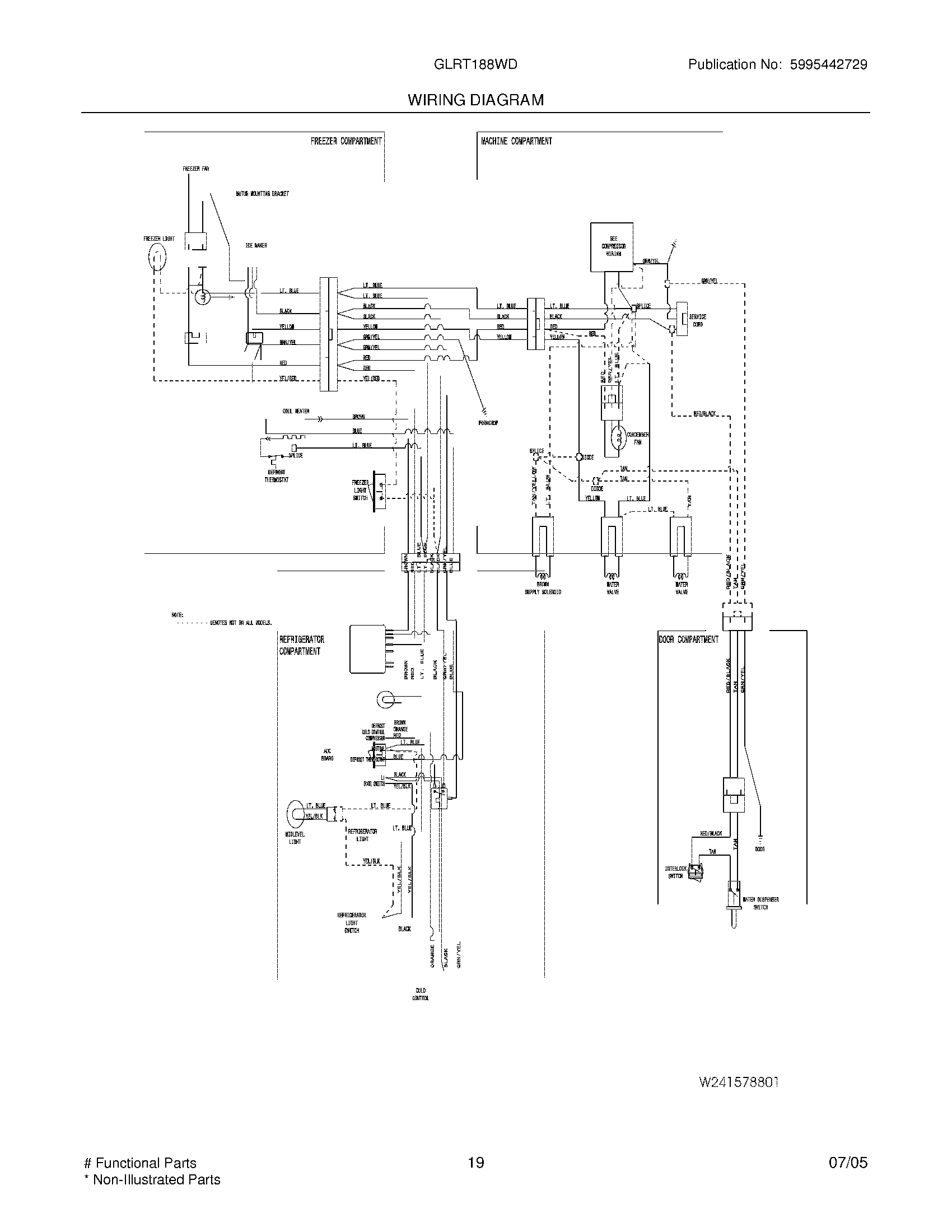

19 - WIRING DIAGRAM
Common parts from model Electrolux GLRT188WDL8 REFRIGERATOR
1
WCI 241652301 WCI 241652301 Contact Us For Availability
1
Tube-water inlet,inlet valve , WCI 218976901 Contact Us For Availability
2
WCI 240367001 WCI 240367001 Contact Us For Availability
4
WCI 241523701 WCI 241523701 Contact Us For Availability
5
Fan Blade,red ,evaporator fan WCI 5308000010 Contact Us For Availability
9
WCI 5303292396 WCI 5303292396 Contact Us For Availability
11
PLUG-HOLE, FACTORY TEST WCI 5303208309 Contact Us For Availability
11
Thermal Cutoff,ice maker ,complete assy WCI 3206319 Contact Us For Availability
12
WCI 240545001 WCI 240545001 Contact Us For Availability
13
WCI 240362601 WCI 240362601 Contact Us For Availability
13
Thermostat Assy,ice maker WCI 3206322 Contact Us For Availability
13A
WCI 240312406 WCI 240312406 Contact Us For Availability
14
WCI 5303918208 WCI 5303918208 Contact Us For Availability
14B
WCI 240383603 WCI 240383603 Contact Us For Availability
15
WCI 5303918274 WCI 5303918274 Contact Us For Availability
15A
WCI 241552802 WCI 241552802 Contact Us For Availability
16
STRAP-EVAP/HEATER,ALUMINUM ,(2) WCI 5308000110 Contact Us For Availability
16
WCI 240364201 WCI 240364201 Contact Us For Availability
18
WCI 240360801 WCI 240360801 Contact Us For Availability
18
WCI 240339203 WCI 240339203 Contact Us For Availability
21
WCI 5303918202 WCI 5303918202 Contact Us For Availability
22
WCI 215774918 WCI 215774918 Contact Us For Availability
22C
WCI 240328402 WCI 240328402 Contact Us For Availability
23
WCI 218513300 WCI 218513300 Contact Us For Availability
25B
WCI 241613501 WCI 241613501 Contact Us For Availability
25C
WCI 241613502 WCI 241613502 Contact Us For Availability
30
WCI 5304433579 WCI 5304433579 Contact Us For Availability
30
WCI 241625006 WCI 241625006 Contact Us For Availability
32
WCI 3206343 WCI 3206343 Contact Us For Availability
33
WCI 5304408583 WCI 5304408583 Contact Us For Availability
34
WCI 240311303 WCI 240311303 Contact Us For Availability
34
WCI 240385201 WCI 240385201 Contact Us For Availability
34
WCI 240405201 WCI 240405201 Contact Us For Availability
34
WCI 5304420655 WCI 5304420655 Contact Us For Availability
34A
WCI 241555701 WCI 241555701 Contact Us For Availability
35
WCI 240313803 WCI 240313803 Contact Us For Availability
35
WCI 5304408585 WCI 5304408585 Contact Us For Availability
35A
WCI 240336802 WCI 240336802 Contact Us For Availability
36
COVER-ICE MAKER WCI 3206347 Contact Us For Availability
38A
WCI 241610101 WCI 241610101 Contact Us For Availability
42
WCI 240356501 WCI 240356501 Contact Us For Availability
42
WCI 240365401 WCI 240365401 Contact Us For Availability
44
Clamp-wiring harness,strain relief , WCI 5303001199 Contact Us For Availability
46
Clamp,nylon ,.625 ID WCI 5308000133 Contact Us For Availability
48
WCI 240338101 WCI 240338101 Contact Us For Availability
49
WCI 240495804 WCI 240495804 Contact Us For Availability
55
WCI 241636701 WCI 241636701 Contact Us For Availability
61
WCI 218721500 WCI 218721500 Contact Us For Availability
65
WCI 241603501 WCI 241603501 Contact Us For Availability
66
WCI 241606201 WCI 241606201 Contact Us For Availability
72
WCI 241560105 WCI 241560105 Contact Us For Availability
82
WCI 5304418225 WCI 5304418225 Contact Us For Availability
84
WCI 240500801 WCI 240500801 Contact Us For Availability
97
WCI 241603401 WCI 241603401 Contact Us For Availability
114
WCI 241554901 WCI 241554901 Contact Us For Availability
137
WCI 218710300 WCI 218710300 Contact Us For Availability
138
WCI 218904301 WCI 218904301 Contact Us For Availability
138
WCI 240434401 WCI 240434401 Contact Us For Availability
139
WCI 240434301 WCI 240434301 Contact Us For Availability
140
WCI 240545201 WCI 240545201 Contact Us For Availability
NI
WCI 5303918263 WCI 5303918263 Contact Us For Availability
NI
WCI 5303918222 WCI 5303918222 Contact Us For Availability
NI
WCI 5303321321 WCI 5303321321 Contact Us For Availability
NI
WCI 5303299664 WCI 5303299664 Contact Us For Availability
NI
WCI 240346701 WCI 240346701 Contact Us For Availability
NI
WCI 215474201 WCI 215474201 Contact Us For Availability
NI
Seal-water inlet,inlet valve , WCI 240561701 Contact Us For Availability
NI
Adapter-water supply,nut & sleeve , WCI 218888001 Contact Us For Availability
NI
WCI 241565106 WCI 241565106 Contact Us For Availability
NI
WCI 241565107 WCI 241565107 Contact Us For Availability
NI
WCI 241565110 WCI 241565110 Contact Us For Availability
× ![]()
