  • Electrolux GLGR1042FC0 Parts List

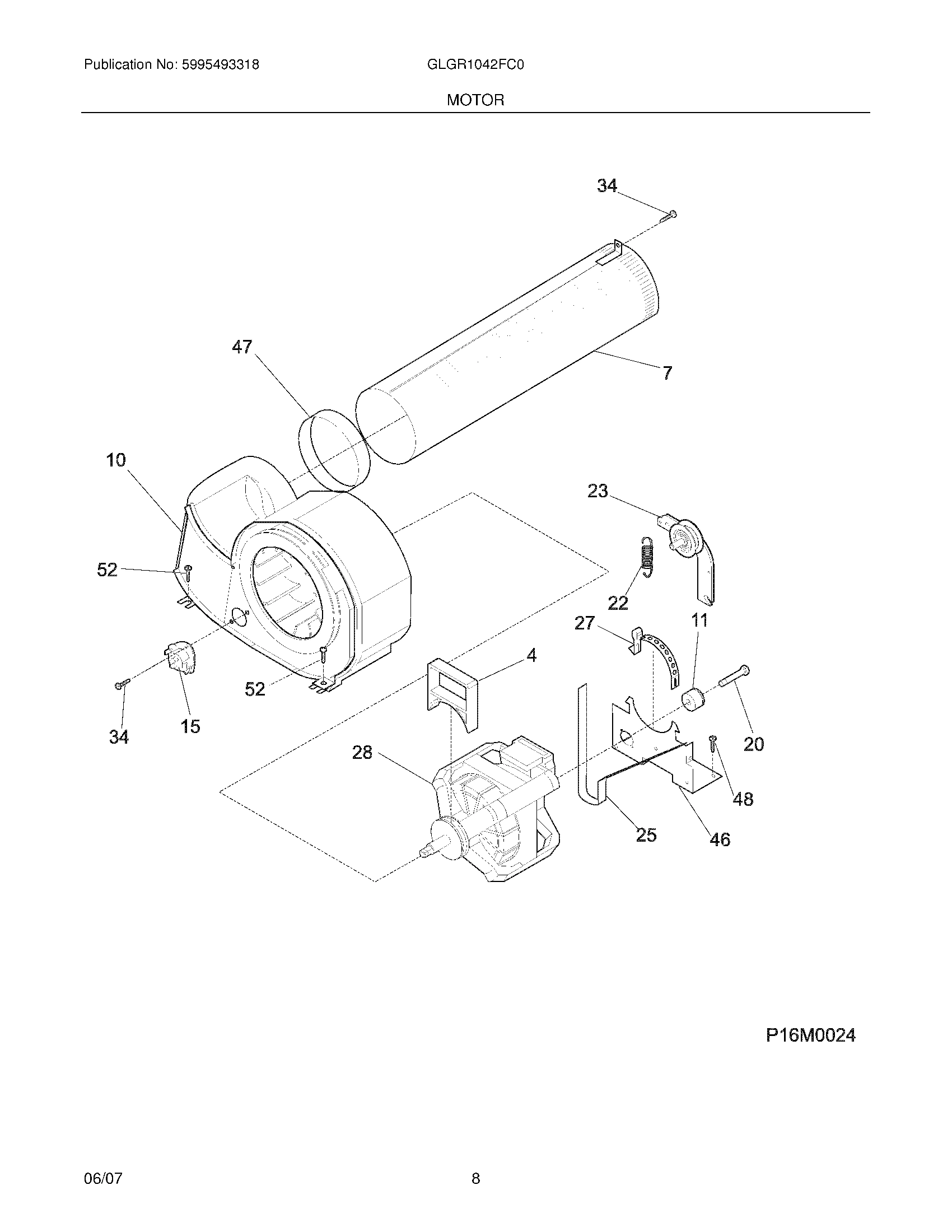

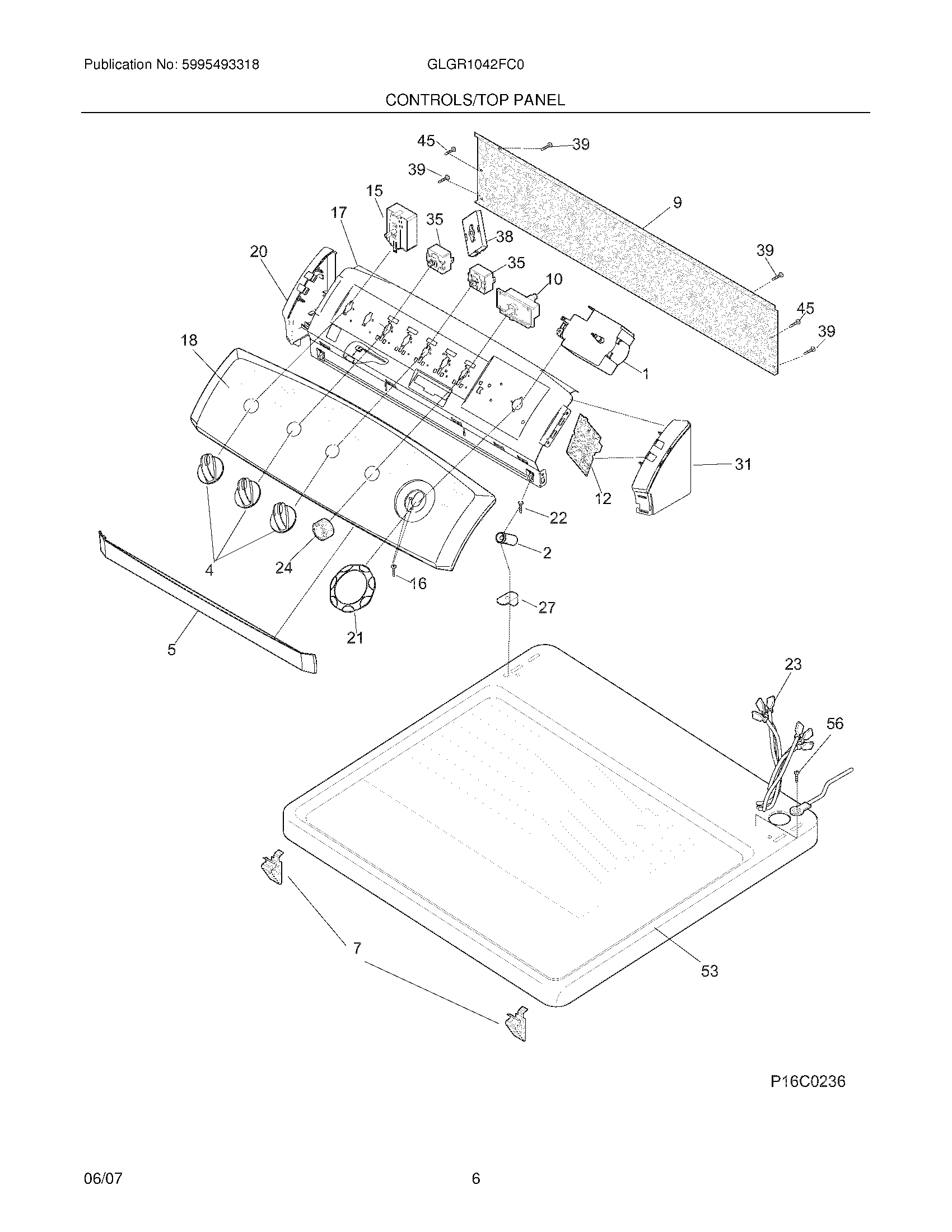

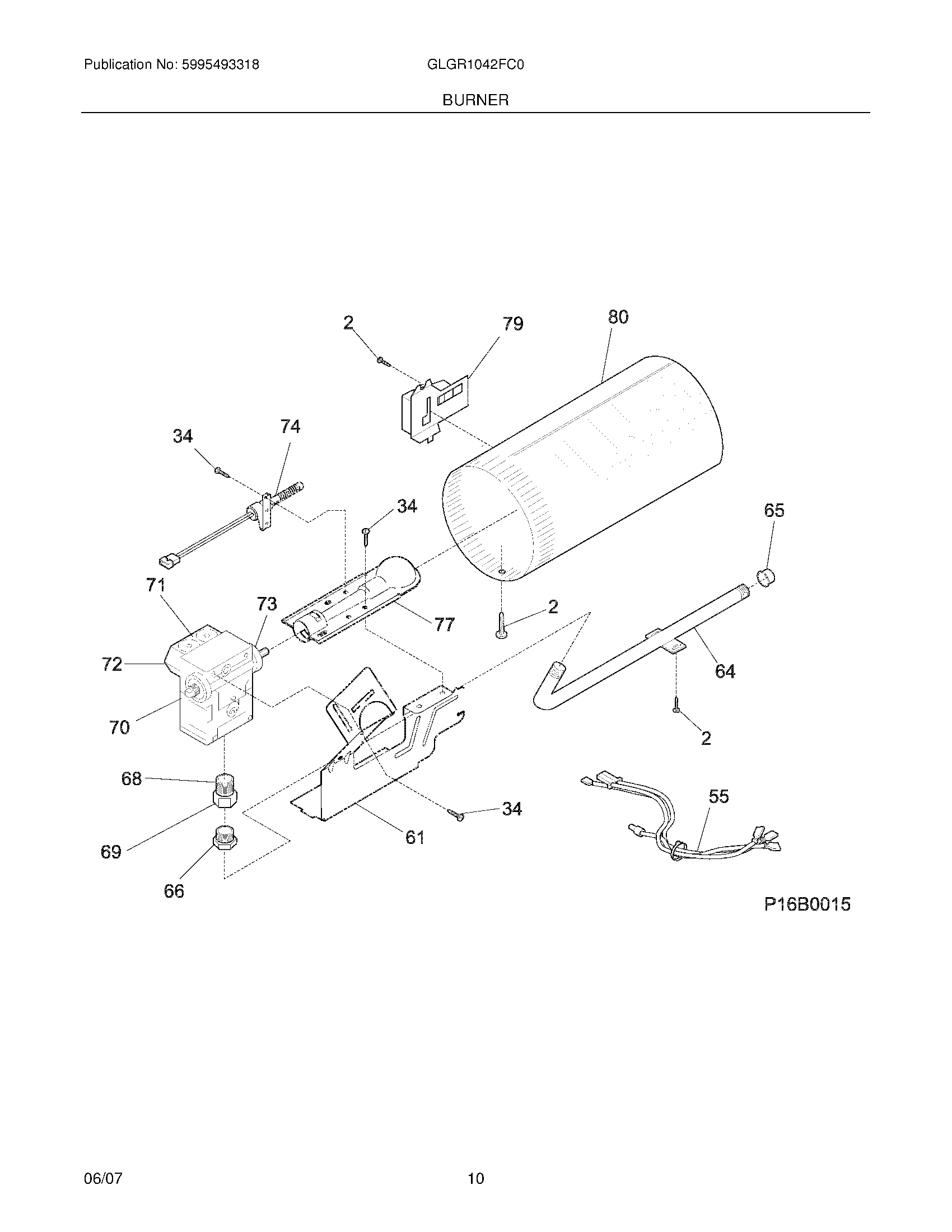

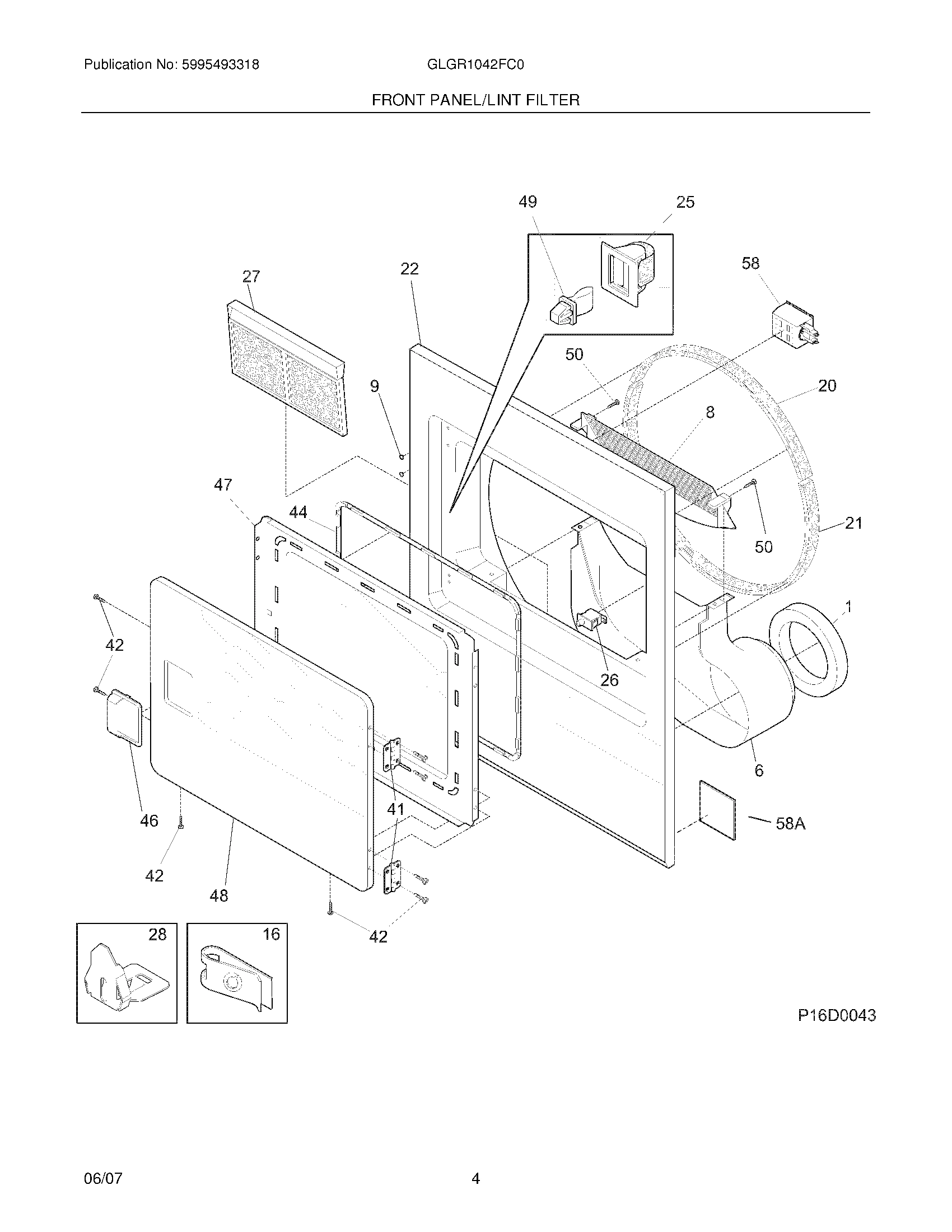

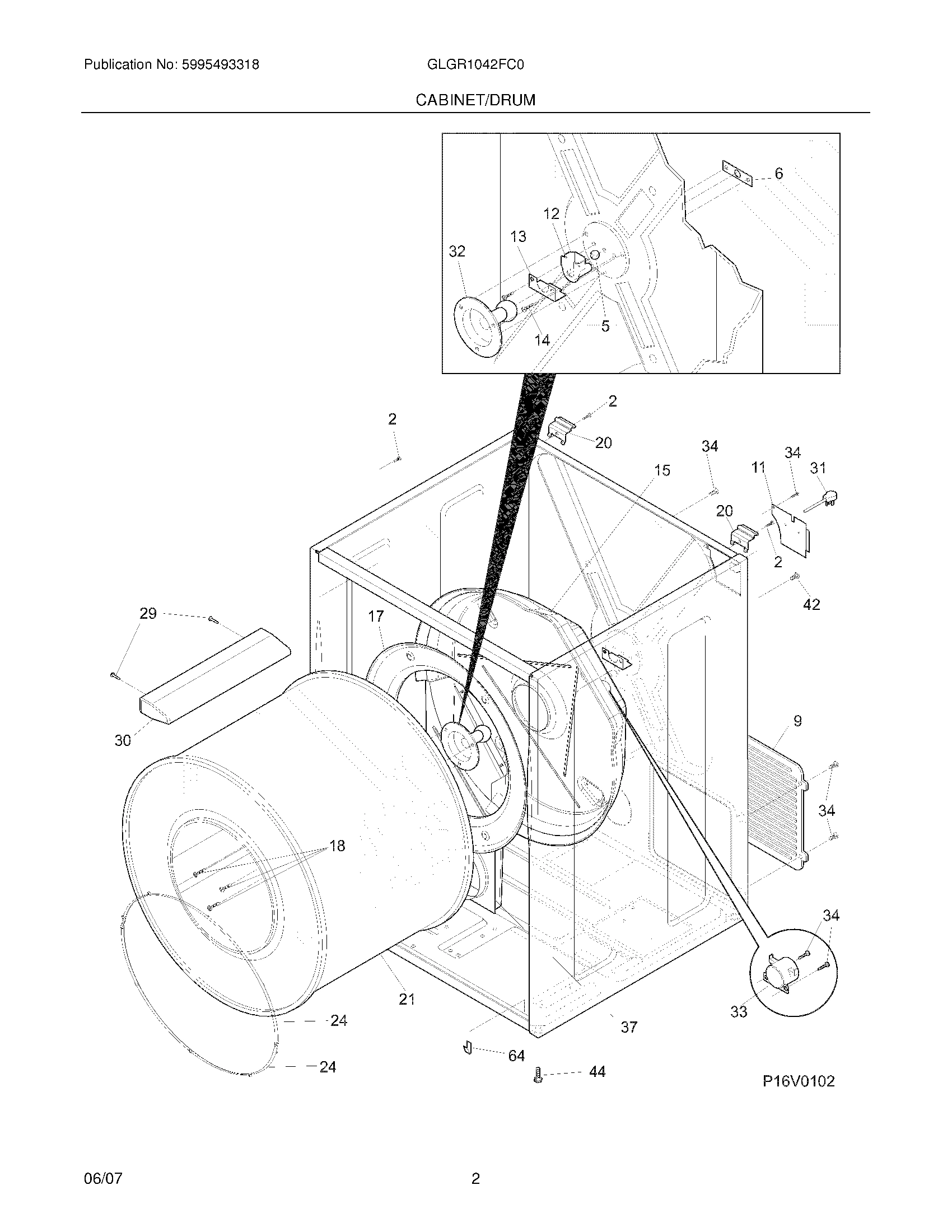

Model Electrolux GLGR1042FC0 DRYER – Common Parts & Diagrams

1
WCI 131930600
WCI 131930600 WCI 131930600 Contact Us For Availability
View on Model
4
Lock,blower housing
Lock,blower housing WCI 131435200 Contact Us For Availability
View on Model
6
Clip,ball ,steel ,flat nut
Clip,ball ,steel ,flat nut WCI 5303281020 Contact Us For Availability
View on Model
7
Tube,exhaust ,rear ,w/mtg bracket
Tube,exhaust ,rear ,w/mtg bracket WCI 131451600 Contact Us For Availability
View on Model
8
WCI 131845800
WCI 131845800 WCI 131845800 Contact Us For Availability
View on Model
9
WCI 131633200
WCI 131633200 WCI 131633200 Contact Us For Availability
View on Model
10
WCI 131775600
WCI 131775600 WCI 131775600 Contact Us For Availability
View on Model
10
WCI 131469000
WCI 131469000 WCI 131469000 Contact Us For Availability
View on Model
11
WCI 131749800
WCI 131749800 WCI 131749800 Contact Us For Availability
View on Model
12
WCI 134216300
WCI 134216300 WCI 134216300 Contact Us For Availability
View on Model
14
Screw,bracket mtg. ,10-16B x 1.375 ,cr/sq dri
Screw,bracket mtg. ,10-16B x 1.375 ,cr/sq dri WCI 131205400 Contact Us For Availability
View on Model
15
WCI 134048900
WCI 134048900 WCI 134048900 Contact Us For Availability
View on Model
15
WCI 134398600
WCI 134398600 WCI 134398600 Contact Us For Availability
View on Model
16
WCI 134440100
WCI 134440100 WCI 134440100 Contact Us For Availability
View on Model
17
WCI 131993040
WCI 131993040 WCI 131993040 Contact Us For Availability
View on Model
20
Screw,hex head ,1/4-20T x 1.25 ,spacer mtg.,t
Screw,hex head ,1/4-20T x 1.25 ,spacer mtg.,t WCI 131017900 Contact Us For Availability
View on Model
20
Bracket,hinge ,rear ,top panel mtg.
Bracket,hinge ,rear ,top panel mtg. WCI 131469100 Contact Us For Availability
View on Model
21
WCI 134122532
WCI 134122532 WCI 134122532 Contact Us For Availability
View on Model
22
Spring,idler arm
Spring,idler arm WCI 131601000 Contact Us For Availability
View on Model
22
WCI 131266330
WCI 131266330 WCI 131266330 Contact Us For Availability
View on Model
27
CLIP-CONSOLE MTG
CLIP-CONSOLE MTG WCI 131197000 Contact Us For Availability
View on Model
28
Motor & Pulley Assy
Motor & Pulley Assy WCI 131560100 No Longer Available
View on Model
29
Screw,quadrex head ,10-14 x 1.00 ,vane mtg.,s
Screw,quadrex head ,10-14 x 1.00 ,vane mtg.,s WCI 131382300 Contact Us For Availability
View on Model
31
WCI 134501200
WCI 134501200 WCI 134501200 Contact Us For Availability
View on Model
32
WCI 131777700
WCI 131777700 WCI 131777700 Contact Us For Availability
View on Model
33
WCI 5308015399 No Longer Available
View on Model
38
WCI 131959200
WCI 131959200 WCI 131959200 Contact Us For Availability
View on Model
45
Screw,No.8 pan head ,10-10B x 0.500 ,cr/sq dr
Screw,No.8 pan head ,10-10B x 0.500 ,cr/sq dr WCI 131205100 Contact Us For Availability
View on Model
46
WCI 134203400
WCI 134203400 WCI 134203400 Contact Us For Availability
View on Model
47
WCI 131633300
WCI 131633300 WCI 131633300 Contact Us For Availability
View on Model
47
WCI 131844104
WCI 131844104 WCI 131844104 Contact Us For Availability
View on Model
48
WCI 131789303
WCI 131789303 WCI 131789303 Contact Us For Availability
View on Model
55
WCI 134389600
WCI 134389600 WCI 134389600 Contact Us For Availability
View on Model
56
Screw,pan hd locking ,8-32CA x 0.375 ,cup poi
Screw,pan hd locking ,8-32CA x 0.375 ,cup poi WCI 131243800 Contact Us For Availability
View on Model
58
WCI 131843500
WCI 131843500 WCI 131843500 Contact Us For Availability
View on Model
64
WCI 131704600
WCI 131704600 WCI 131704600 Contact Us For Availability
View on Model
73
Orifice,natural gas ,size 44
Orifice,natural gas ,size 44 WCI 5303207410 Contact Us For Availability
View on Model
NI
WCI 134101400
WCI 134101400 WCI 134101400 Contact Us For Availability
View on Model
NI
Tube,exhaust ,side/bottom ,Optional Kit
Tube,exhaust ,side/bottom ,Optional Kit WCI 131456800 Contact Us For Availability
View on Model
NI
WCI 131474700
WCI 131474700 WCI 131474700 Contact Us For Availability
View on Model
