Model Frigidaire GLGQ642CAS1 GAS - DRYER – Common Parts & Diagrams

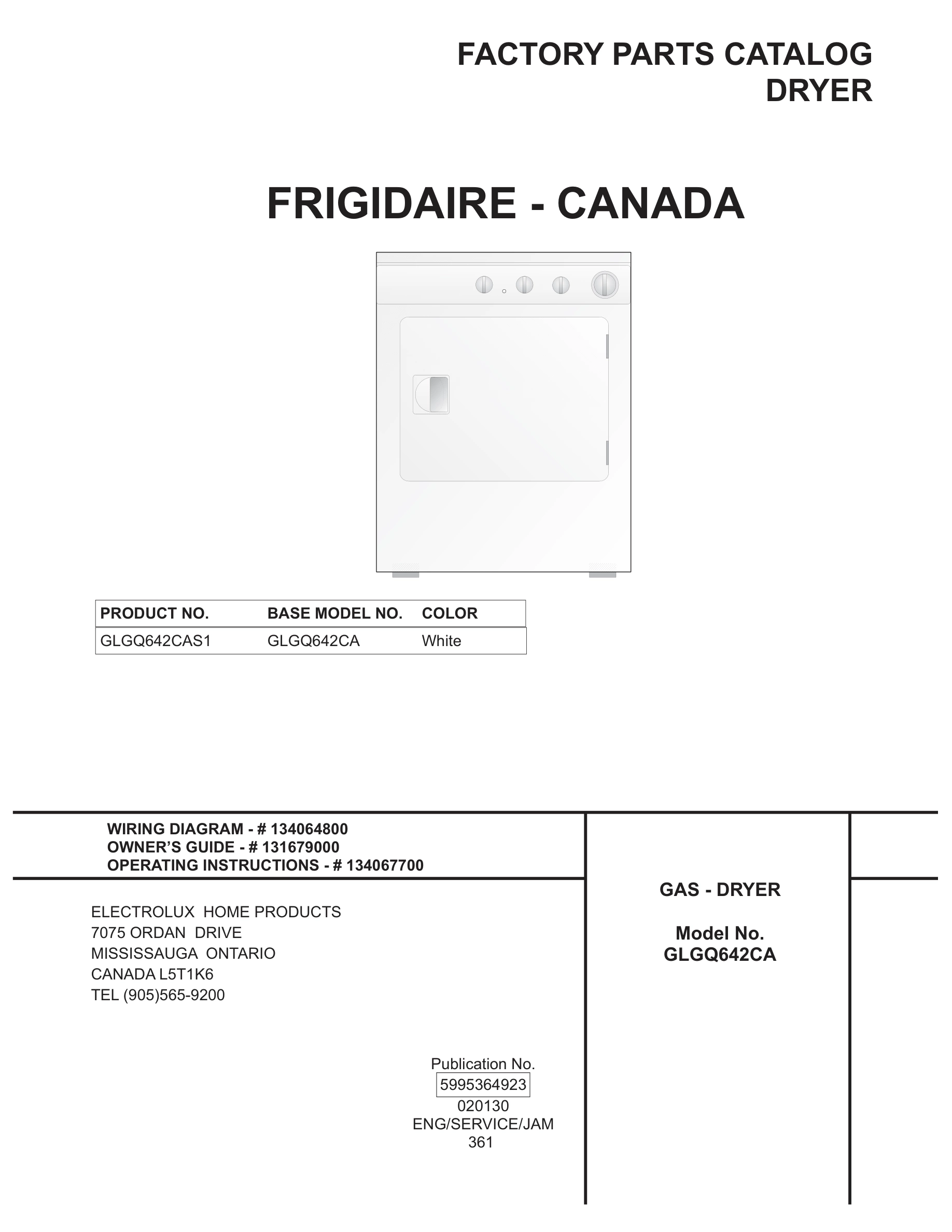

01 - COVER
03 - CABINET/DRUM
05 - FRONT PANEL/LINT FILTER
07 - CONTROLS/TOP PANEL
09 - MOTOR
11 - BURNER
12 - WIRING DIAGRAM
Common parts from model Frigidaire GLGQ642CAS1 GAS - DRYER
*
Adhesive, high temp WCI 5308027429 Contact Us For Availability
*
Lubricant, high temp WCI 5303307893 Contact Us For Availability
*
Kit-stacking-dryer/washer WCI 5303937141 Contact Us For Availability
*
Tube Assy, exhaust WCI 131456800 Contact Us For Availability
*
Insulation WCI 131474700 Contact Us For Availability
*#
Harness, moisture sensor WCI 131657500 Contact Us For Availability
*#
Harn-main gas stack WCI 134006600 Contact Us For Availability
1#
Timer-dryer (cid:147)T(cid:148) WCI 131930600 Contact Us For Availability
2
Screw, 8-18 x 0.31 WCI 131168200 Contact Us For Availability
2
Plug-dome, white WCI 131397000 Contact Us For Availability
4
Knob-rot-stk dry-wht WCI 134042800 Contact Us For Availability
4
Lock-fan housing WCI 131435200 Contact Us For Availability
5
Ball WCI 5303281019 Contact Us For Availability
6
Clip-ball WCI 5303281020 Contact Us For Availability
7
Clip-top panel to front panel WCI 3205821 Contact Us For Availability
7
Tube-exhaust WCI 131451600 Contact Us For Availability
8
Sensor-moisture, assy w/harness WCI 131845801 Contact Us For Availability
9
Plug, white WCI 131633200 Contact Us For Availability
10
Asmy-blwr hsg/cov/wheel WCI 131775600 Contact Us For Availability
11
Spacer-idler WCI 131749800 Contact Us For Availability
12
Bearing-drum support WCI 131825900 Contact Us For Availability
14
Screw-bracket, 10-16B x 1.375, WCI 131205400 Contact Us For Availability
16
Clip-wiring WCI 131063700 Contact Us For Availability
17
Brkt-cont mtg-stack dryer WCI 134064501 Contact Us For Availability
20
Screw-spacer, hex head, 1/4-20T x 1.25, WCI 131017900 Contact Us For Availability
20
Bracket-hinge WCI 131469100 Contact Us For Availability
21
Asmy-drum galvanized WCI 134122532 Contact Us For Availability
22
Spring-idler WCI 131601000 Contact Us For Availability
25
Catch-door WCI 131658800 Contact Us For Availability
27
Lint Trap WCI 131450300 Contact Us For Availability
27
Clamp-motor WCI 131419800 Contact Us For Availability
28
Clip-guide (3) WCI 5303281074 Contact Us For Availability
28#
Motor-main, w/pulley WCI 131560100 Contact Us For Availability
29
Screw-vane, quadrex head, 10-14 x 1.00 WCI 131382300 Contact Us For Availability
29
Asmy-cons frame/tape/trim WCI 131666943 Contact Us For Availability
32
Asmy-shaft (ballhitch) WCI 131777700 Contact Us For Availability
32#
Switch-round-on/off WCI 134040800 Contact Us For Availability
33#
Thermostat-safety WCI 5308015399 Contact Us For Availability
38#
Beeper continuous low tone WCI 131959200 Contact Us For Availability
46
Handle-door, white WCI 131644700 Contact Us For Availability
47
Seal-exhaust tube WCI 131633300 Contact Us For Availability
47
Panel-inner door, white WCI 131844104 Contact Us For Availability
48
Door-outer, white WCI 131789303 Contact Us For Availability
53
Panel-top stack dryer wht WCI 134086812 Contact Us For Availability
58#
Asmy-lamp WCI 131843500 Contact Us For Availability
64
Clip WCI 131704600 Contact Us For Availability
70
Valve-gas WCI 5303207409 Contact Us For Availability
73
Orifice, natural gas WCI 5303207410 Contact Us For Availability
79
Sensor WCI 5303281135 Contact Us For Availability
× ![]()
