Model Electrolux GLGH1642FS0 LAUNDRY CENTER – Common Parts & Diagrams

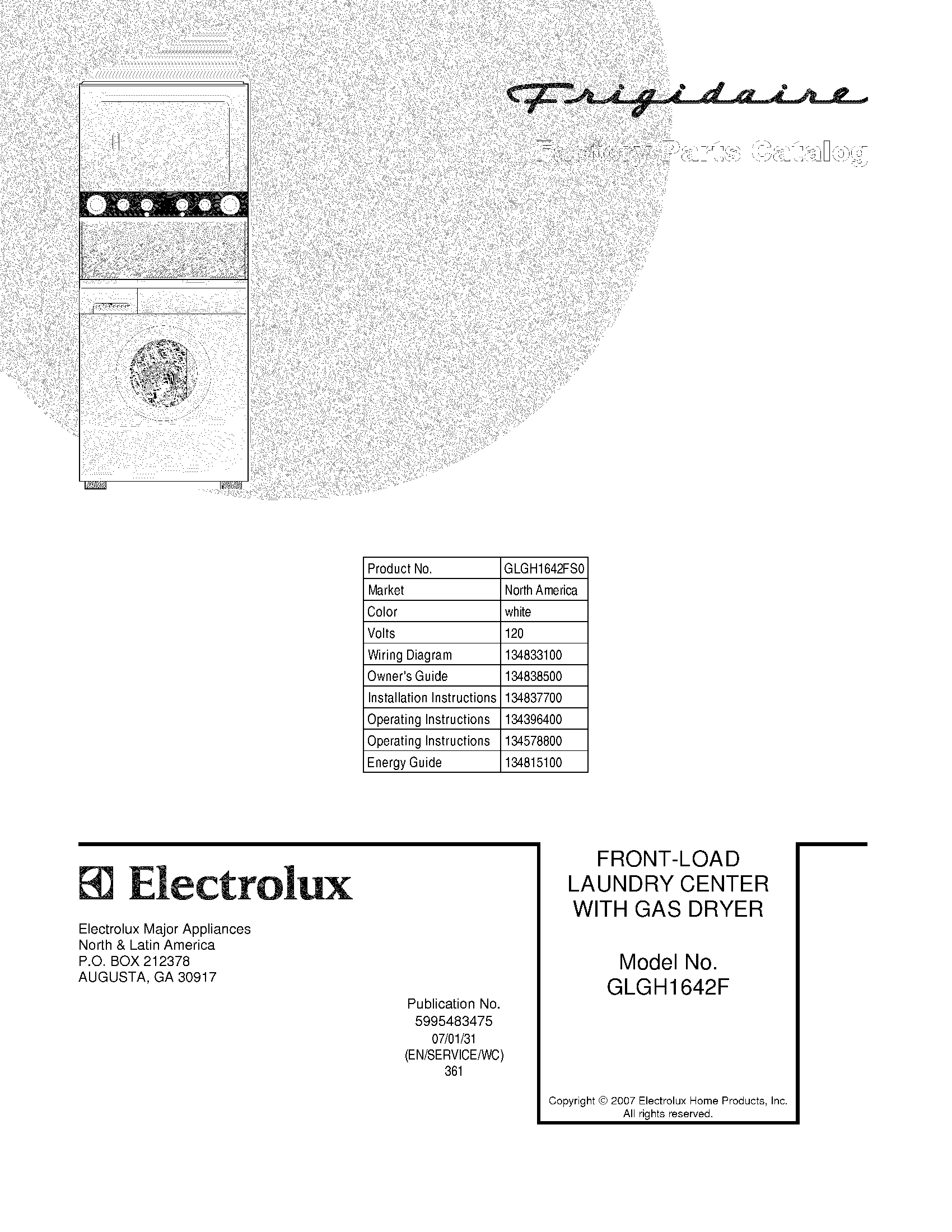

01 - COVER

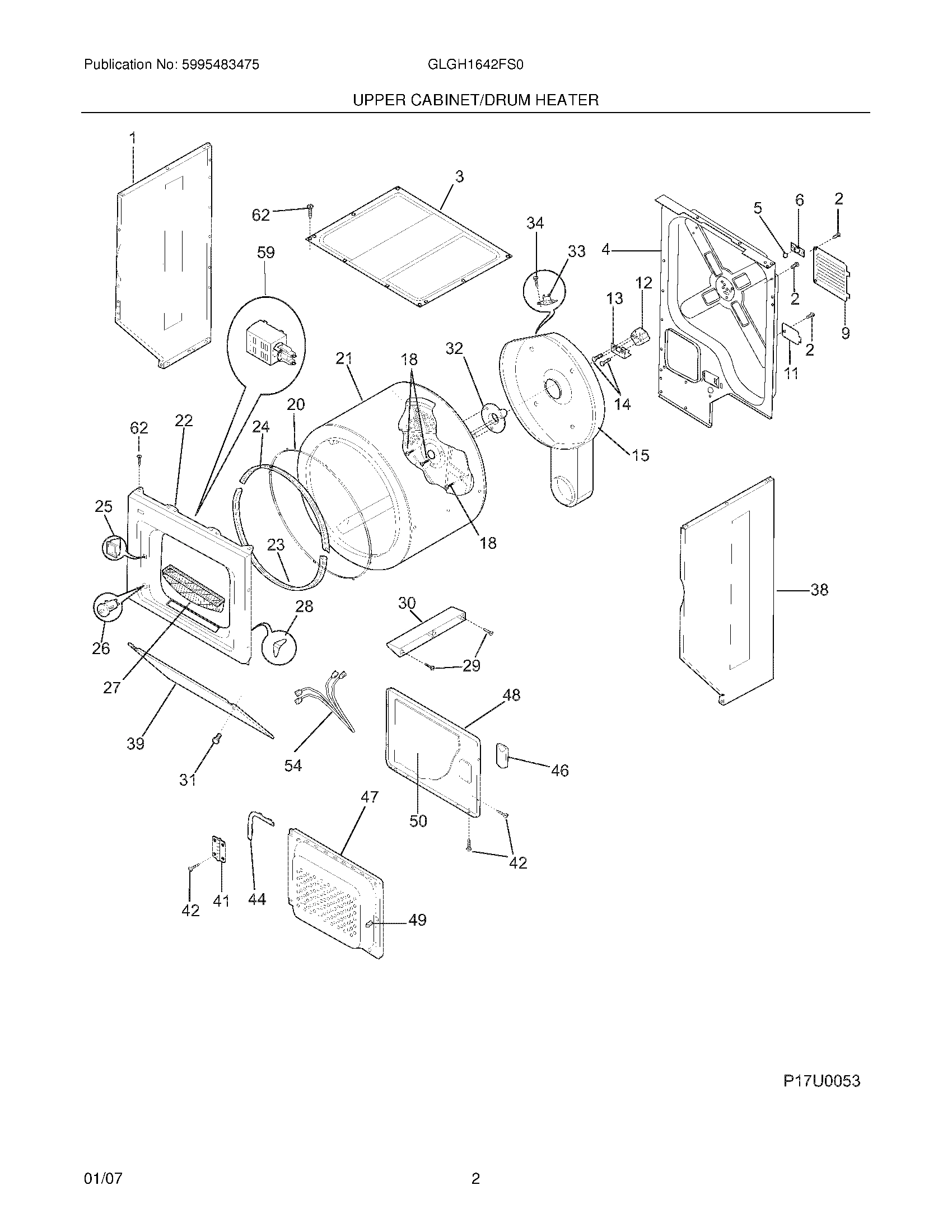

03 - UPPER CABINET/DRUM HEATER

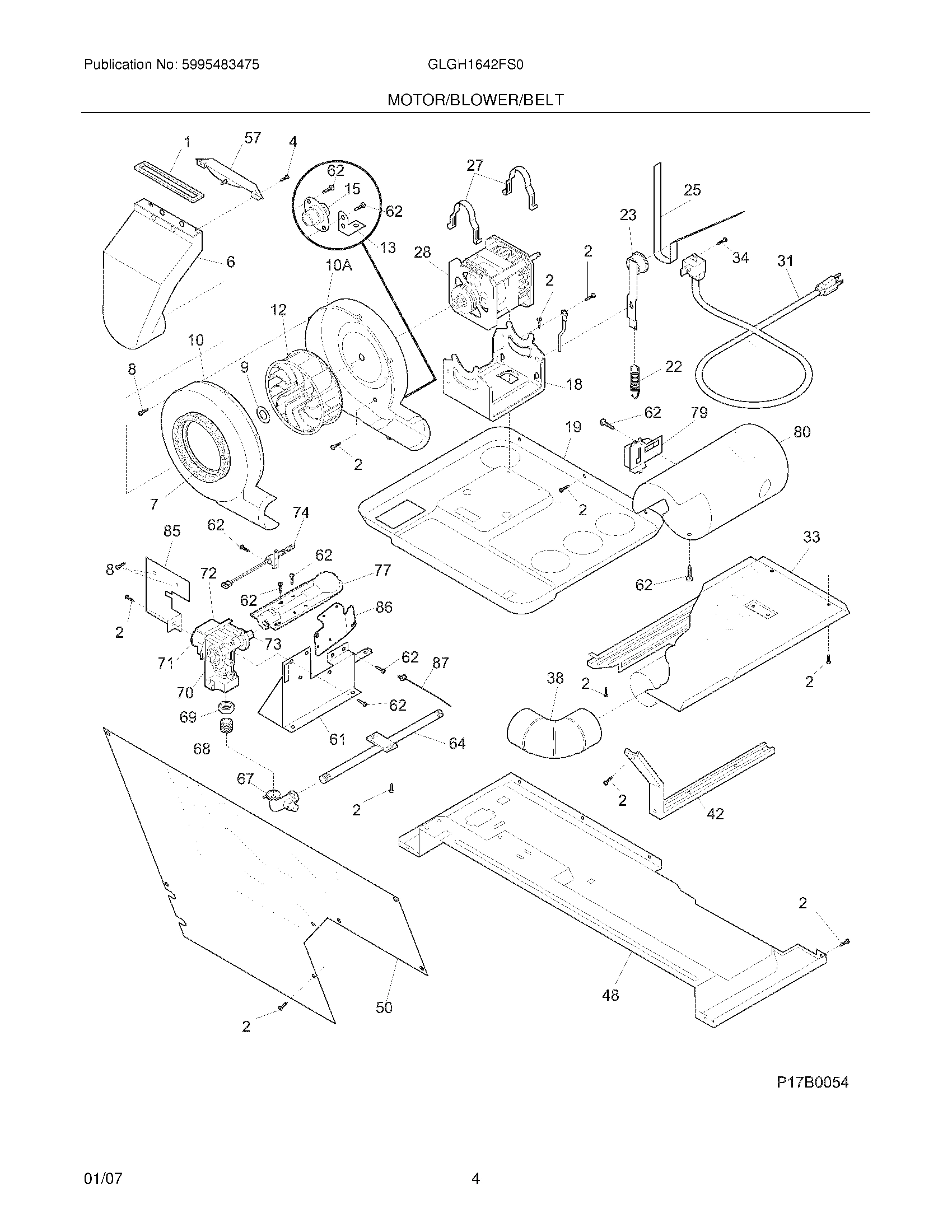

05 - MOTOR/BLOWER/BELT

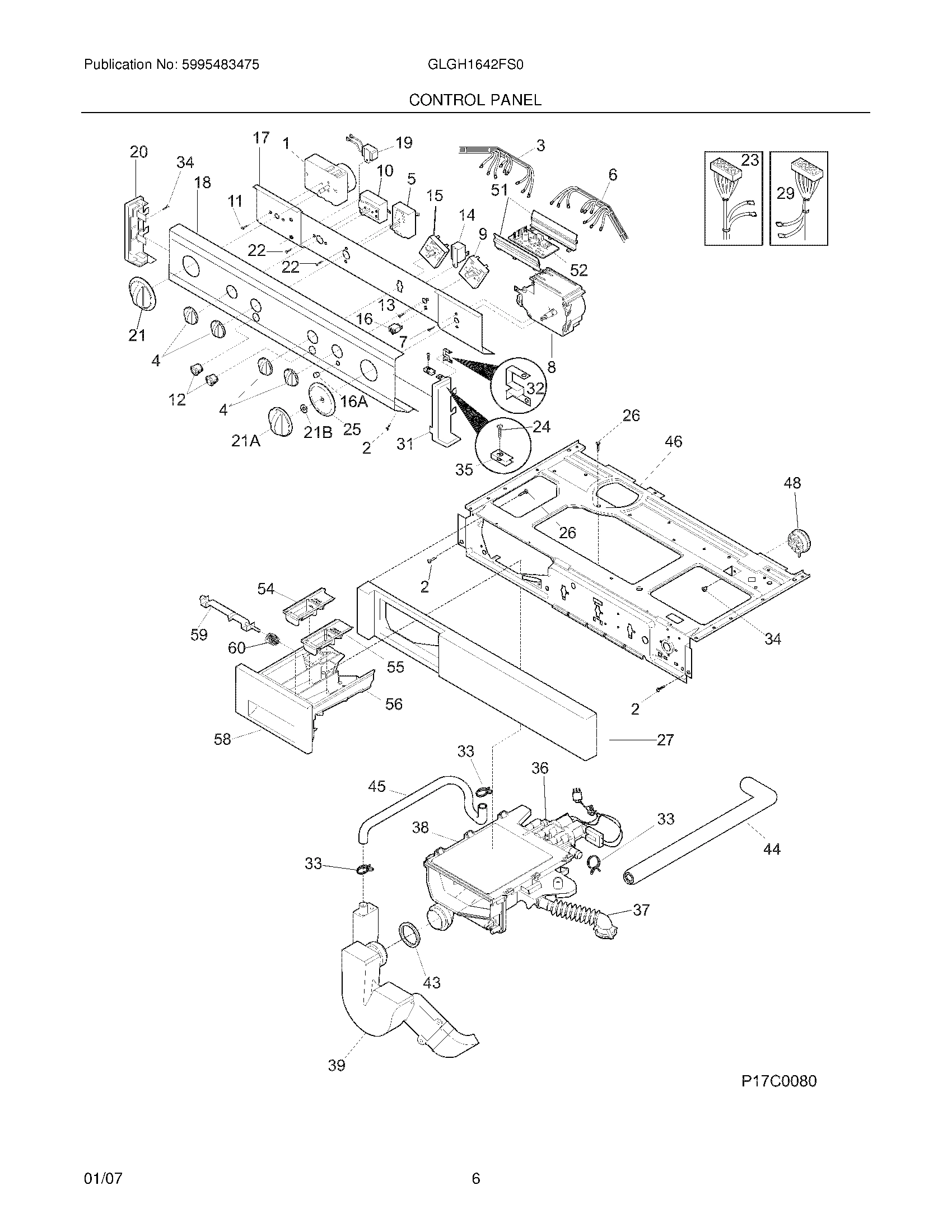

07 - CONTROL PANEL

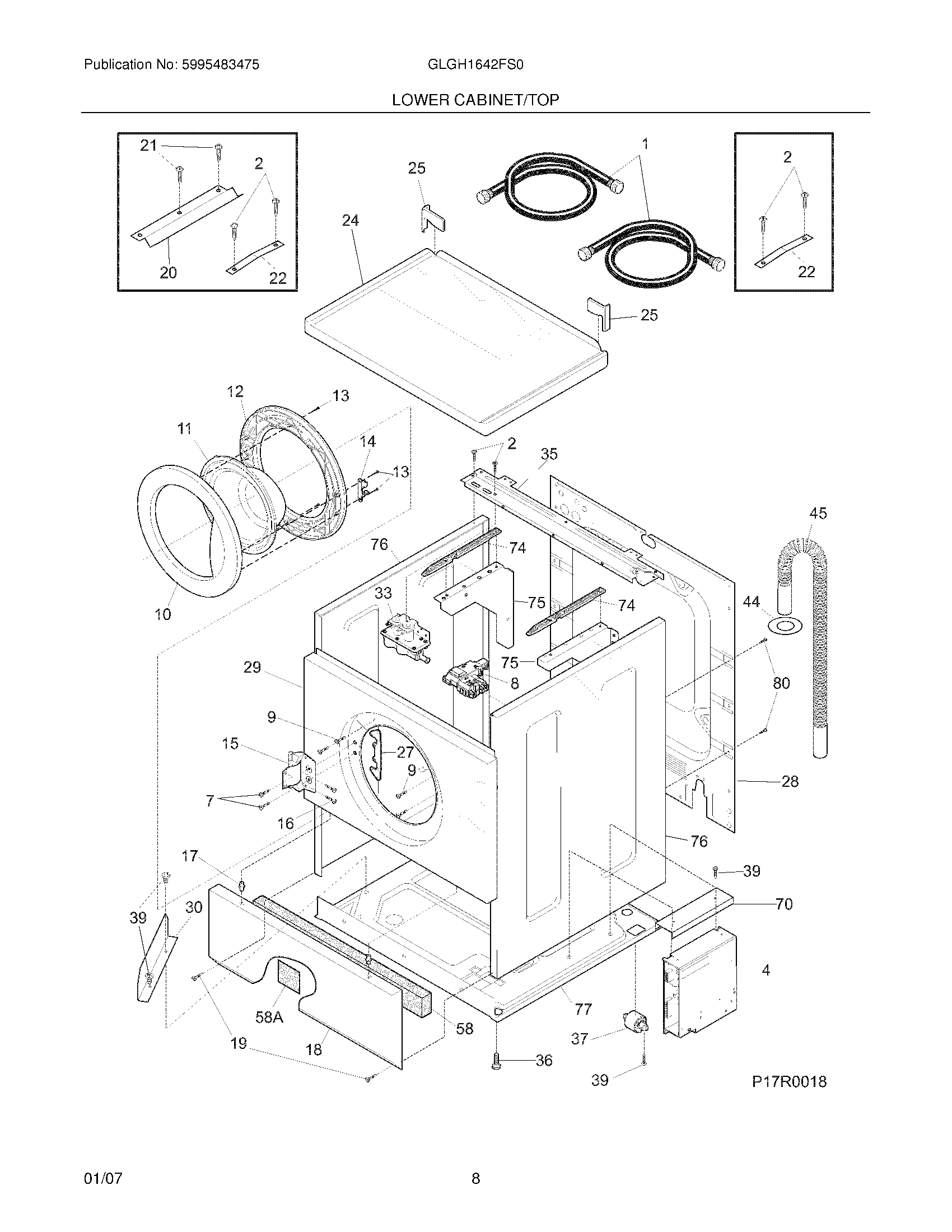

09 - LOWER CABINET/TOP

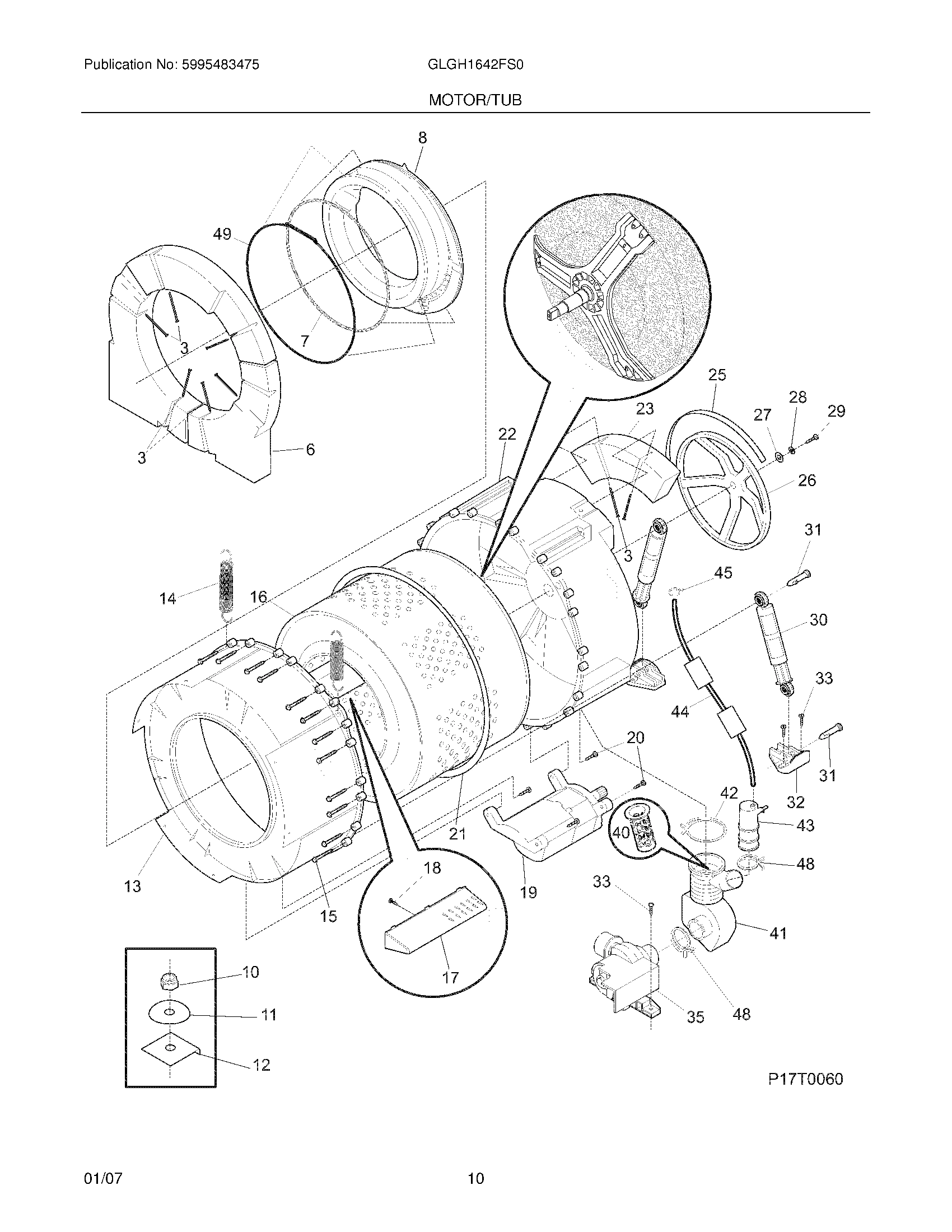

11 - MOTOR/TUB

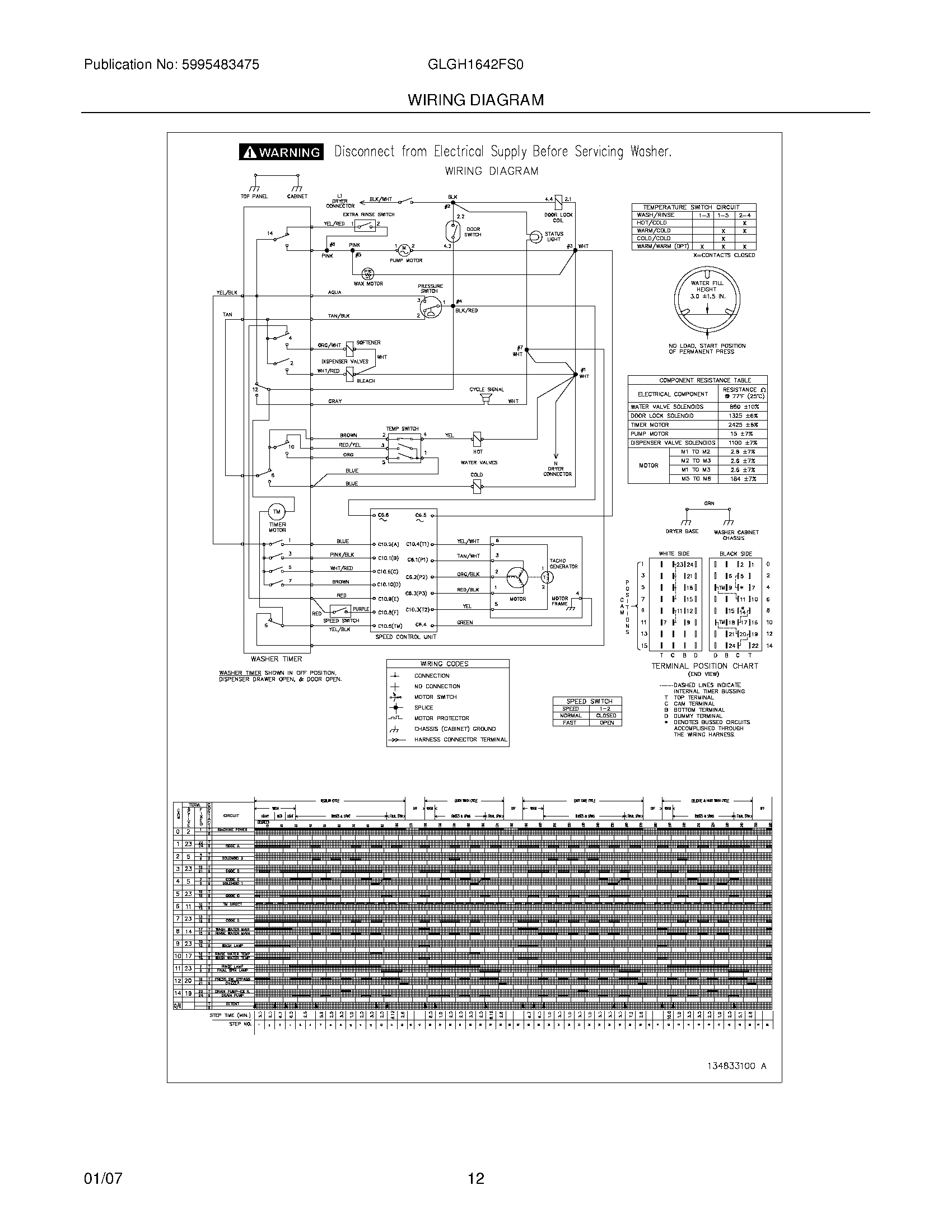

12 - WIRING DIAGRAM

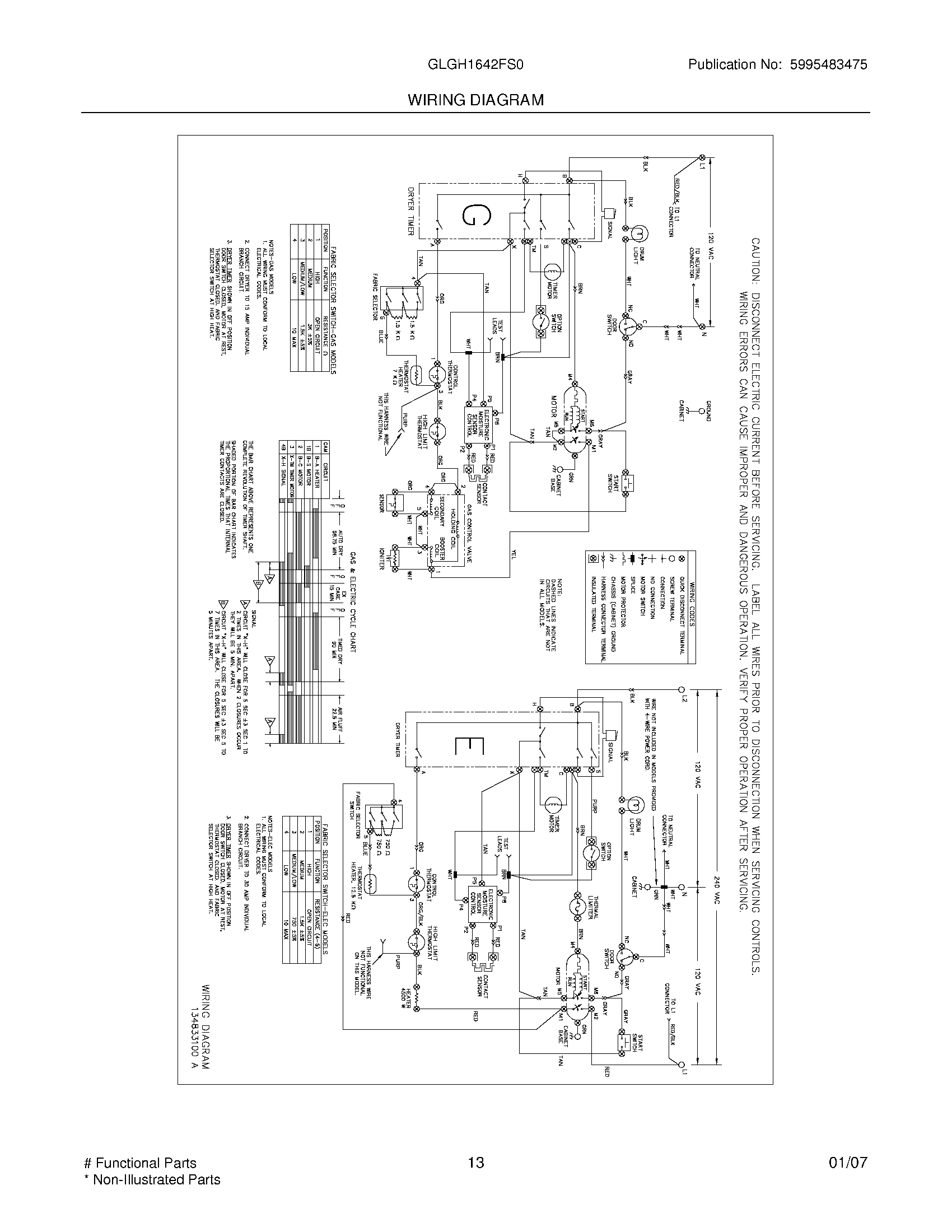

13 - WIRING DIAGRAM
Common parts from model Electrolux GLGH1642FS0 LAUNDRY CENTER
1
WCI 131960800 WCI 131960800 Contact Us For Availability
1
SEAL-AIR DUCT WCI 131295200 Contact Us For Availability
2
Screw,pan head ,8-18B x 0.31 WCI 131168200 Contact Us For Availability
3
Panel,top WCI 131883301 Contact Us For Availability
3
WCI 131793302 WCI 131793302 Contact Us For Availability
4
WCI 131873401 WCI 131873401 Contact Us For Availability
5
Ball,grounding WCI 5303281019 Contact Us For Availability
5
WCI 134399901 WCI 134399901 Contact Us For Availability
6
Clip,ball ,steel ,flat nut WCI 5303281020 Contact Us For Availability
6
WCI 131975300 WCI 131975300 Contact Us For Availability
7
SEAL-HOUSING TO AIR DUCT WCI 3204490 Contact Us For Availability
7
Spring,boot retainer WCI 131277300 Contact Us For Availability
7
Screw,10-16 x 0.750 WCI 131205300 Contact Us For Availability
7
Screw,pan hd locking ,8-32CA x 0.375 ,cup poi WCI 131243800 Contact Us For Availability
8
WCI 134803600 WCI 134803600 Contact Us For Availability
8
WCI 3205245 WCI 3205245 Contact Us For Availability
9
WCI 134400000 WCI 134400000 Contact Us For Availability
10
WCI 134399700 WCI 134399700 Contact Us For Availability
10
Housing,blower ,front ,with seal WCI 134611700 Contact Us For Availability
10
WCI 134224600 WCI 134224600 Contact Us For Availability
11
Washer,Bellville ,spring steel WCI 131276900 Contact Us For Availability
11
Panel,door glass WCI 131278800 Contact Us For Availability
12
WCI 131825900 WCI 131825900 Contact Us For Availability
12
WCI 131476300 WCI 131476300 Contact Us For Availability
12
WCI 134040800 WCI 134040800 Contact Us For Availability
12
WCI 134195900 WCI 134195900 Contact Us For Availability
13
Shell,outer tub ,front WCI 131618600 Contact Us For Availability
13
WCI 134227100 WCI 134227100 Contact Us For Availability
14
WCI 134144700 WCI 134144700 Contact Us For Availability
14
Screw,bracket mtg. ,10-16B x 1.375 ,cr/sq dri WCI 131205400 Contact Us For Availability
15
Screw,hex washer head ,1/4-10A x 2.165 WCI 131303900 Contact Us For Availability
15
WCI 134721400 WCI 134721400 Contact Us For Availability
15
WCI 134437700 WCI 134437700 Contact Us For Availability
15
WCI 5303207394 WCI 5303207394 Contact Us For Availability
15
WCI 134202200 WCI 134202200 Contact Us For Availability
16
Drum Assy,spin basket WCI 131618500 Contact Us For Availability
16
Screw,quad pan head ,10-16 x 0.312 WCI 131696300 Contact Us For Availability
16
Lamp,status light WCI 131724700 Contact Us For Availability
16A
Lens,status light ,clear WCI 131724800 Contact Us For Availability
17
WCI 131274600 WCI 131274600 Contact Us For Availability
17
Pin,panel locator WCI 131346400 Contact Us For Availability
18
Screw,10-16AB x 0.375 WCI 131302800 Contact Us For Availability
18
Panel,service ,white ,front WCI 131279300 Contact Us For Availability
18
WCI 131413600 WCI 131413600 Contact Us For Availability
18
WCI 134321500 WCI 134321500 Contact Us For Availability
19
WCI 5303286537 WCI 5303286537 Contact Us For Availability
20
WCI 131288101 WCI 131288101 Contact Us For Availability
20
Bracket,top panel mtg. ,front WCI 131460900 Contact Us For Availability
20
Screw,12-14AB x 1.50 ,motor mtg. WCI 131303500 Contact Us For Availability
21
WCI 134146100 WCI 134146100 Contact Us For Availability
21
WCI 134122552 WCI 134122552 Contact Us For Availability
21A
WCI 131167601 WCI 131167601 Contact Us For Availability
21B
Spacer,washer ,timer shaft WCI 5308015493 Contact Us For Availability
22
SPRING-IDLER WCI 3205241 Contact Us For Availability
22
WCI 131636280 WCI 131636280 Contact Us For Availability
22
Retainer,spring steel WCI 131279500 Contact Us For Availability
22
Screw,switch mtg ,6-32 x 0 .19 ,(2) ,sems WCI 3161259 Contact Us For Availability
23
WCI 134125900 WCI 134125900 Contact Us For Availability
24
WCI 134156200 WCI 134156200 Contact Us For Availability
24
WCI 134086862 WCI 134086862 Contact Us For Availability
25
Door Catch WCI 131658800 Contact Us For Availability
25
WCI 134051000 WCI 134051000 Contact Us For Availability
25
WCI 131167701 WCI 131167701 Contact Us For Availability
26
WCI 131883400 WCI 131883400 Contact Us For Availability
27
WCI 134242400 WCI 134242400 Contact Us For Availability
27
Washer,0.41 x 1.50 ,0.12 thick WCI 131304400 Contact Us For Availability
28
WCI 131304500 WCI 131304500 Contact Us For Availability
29
Screw,pulley mtg. ,m10 x 0.92 ,metric WCI 131303700 Contact Us For Availability
29
Screw,quadrex head ,10-14 x 1.00 ,vane mtg.,s WCI 131382300 Contact Us For Availability
30
WCI 5304405283 WCI 5304405283 Contact Us For Availability
31
Pin,shock mtg. WCI 131268300 Contact Us For Availability
31
WCI 131288211 WCI 131288211 Contact Us For Availability
31
WCI 131202300 WCI 131202300 Contact Us For Availability
31
WCI 134500500 WCI 134500500 Contact Us For Availability
32
WCI 131777700 WCI 131777700 Contact Us For Availability
32
Bracket,shock mtg. WCI 131268100 Contact Us For Availability
33
WCI 5304406099 WCI 5304406099 Contact Us For Availability
33
WCI 134812800 WCI 134812800 Contact Us For Availability
34
WCI 134154100 WCI 134154100 Contact Us For Availability
36
WCI 131841600 WCI 131841600 Contact Us For Availability
36
WCI 131974700 WCI 131974700 Contact Us For Availability
37
WCI 131271600 WCI 131271600 Contact Us For Availability
37
WCI 131304200 WCI 131304200 Contact Us For Availability
38
WCI 131803710 WCI 131803710 Contact Us For Availability
39
WCI 131863300 WCI 131863300 Contact Us For Availability
39
WCI 134178901 WCI 134178901 Contact Us For Availability
41
WCI 134222900 WCI 134222900 Contact Us For Availability
42
WCI 134737300 WCI 134737300 Contact Us For Availability
43
WCI 131749200 WCI 131749200 Contact Us For Availability
43
WCI 131277500 WCI 131277500 Contact Us For Availability
44
RING-DRAIN HOSE WCI 131707800 Contact Us For Availability
44
WCI 131786000 WCI 131786000 Contact Us For Availability
45
WCI 134592700 WCI 134592700 Contact Us For Availability
45
WCI 131786100 WCI 131786100 Contact Us For Availability
45
Clamp,hose WCI 131306202 Contact Us For Availability
46
HANDLE-DOOR, WHITE WCI 131789400 Contact Us For Availability
46
WCI 134191412 WCI 134191412 Contact Us For Availability
48
Clamp,hose ,wire WCI 131306234 Contact Us For Availability
48
WCI 134818201 WCI 134818201 Contact Us For Availability
48
WCI 131789303 WCI 131789303 Contact Us For Availability
49
WCI 134266500 WCI 134266500 Contact Us For Availability
50
Insulator,heat shield ,outer door WCI 134535300 Contact Us For Availability
52
WCI 134216300 WCI 134216300 Contact Us For Availability
54
WCI 131272100 WCI 131272100 Contact Us For Availability
55
WCI 131272000 WCI 131272000 Contact Us For Availability
56
WCI 131271910 WCI 131271910 Contact Us For Availability
58
Handle,dispenser ,with trim WCI 131729500 Contact Us For Availability
59
WCI 131843500 WCI 131843500 Contact Us For Availability
59
Latch,drawer handle ,white WCI 131714900 Contact Us For Availability
60
WCI 131427500 WCI 131427500 Contact Us For Availability
70
WCI 5303207409 WCI 5303207409 Contact Us For Availability
77
WCI 134197700 WCI 134197700 Contact Us For Availability
79
Sensor,radiant WCI 5303281135 Contact Us For Availability
NI
WASHER-INLET HOSE WCI 5303161296 Contact Us For Availability
NI
Sleeve,protector ,upr spring hook WCI 131592200 Contact Us For Availability
× ![]()
