Model Frigidaire GLEF378AQE RANGE/OVEN,ELECTRIC,FREESTANDING,30 INCH – Common Parts & Diagrams

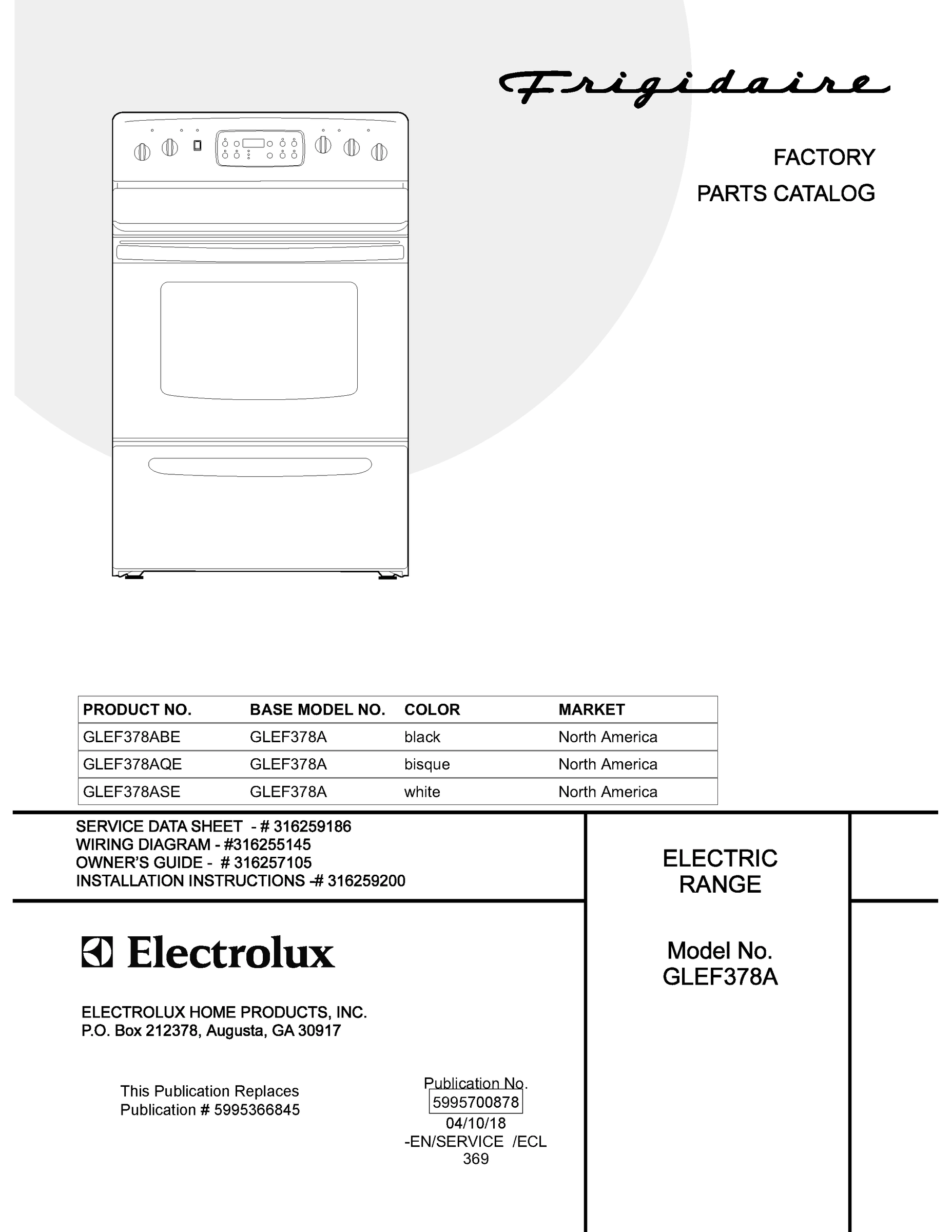

01 - COVER SHEET

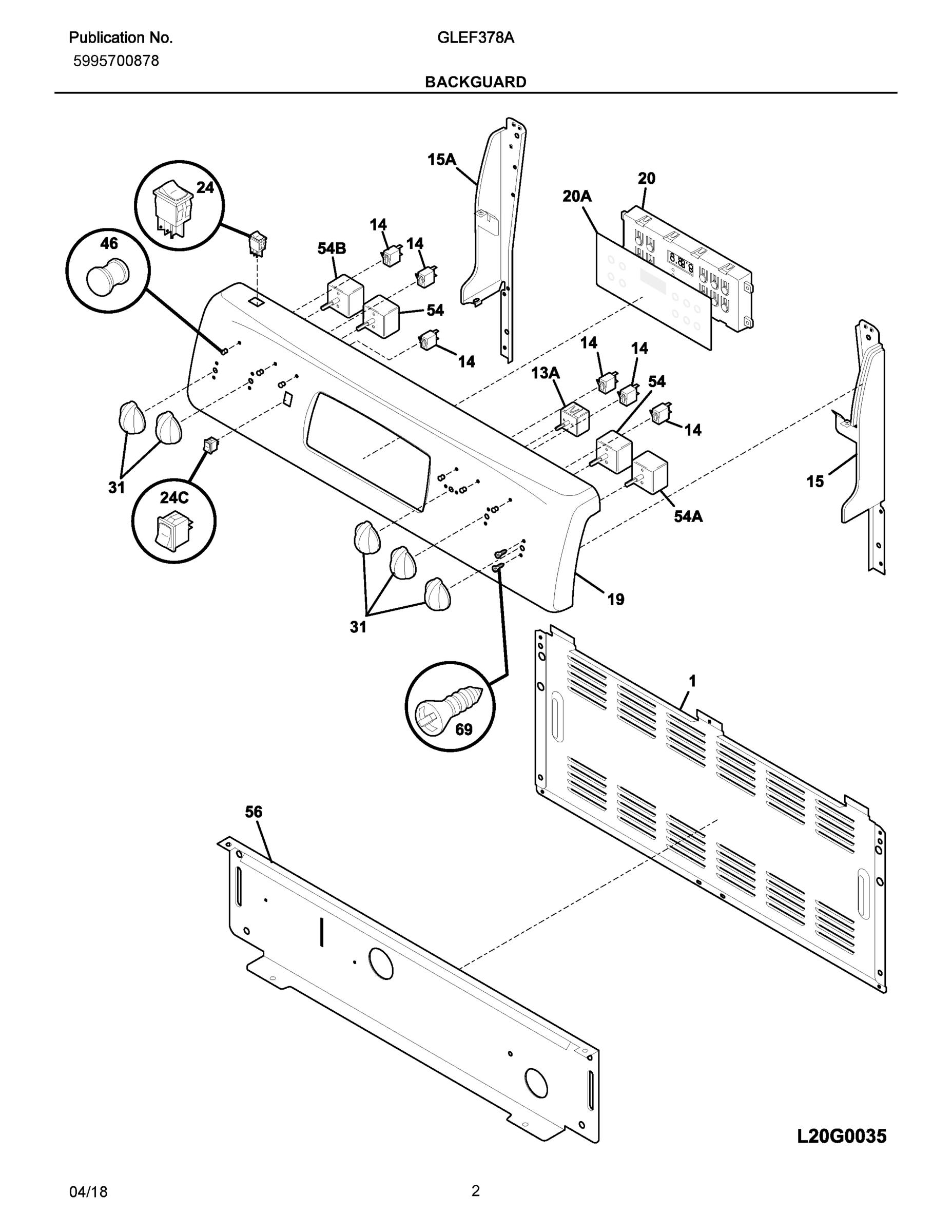

02 - BACKGUARD

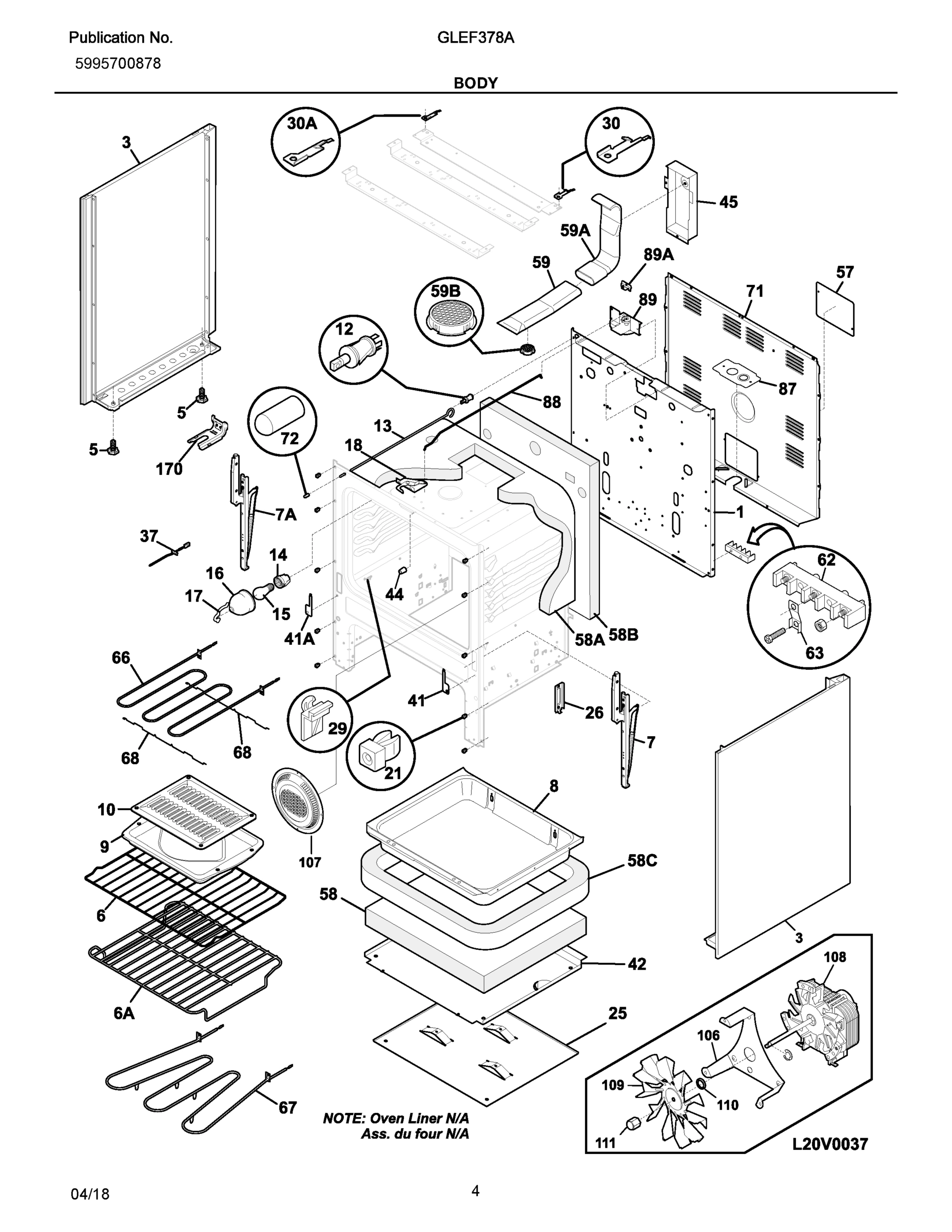

03 - BODY

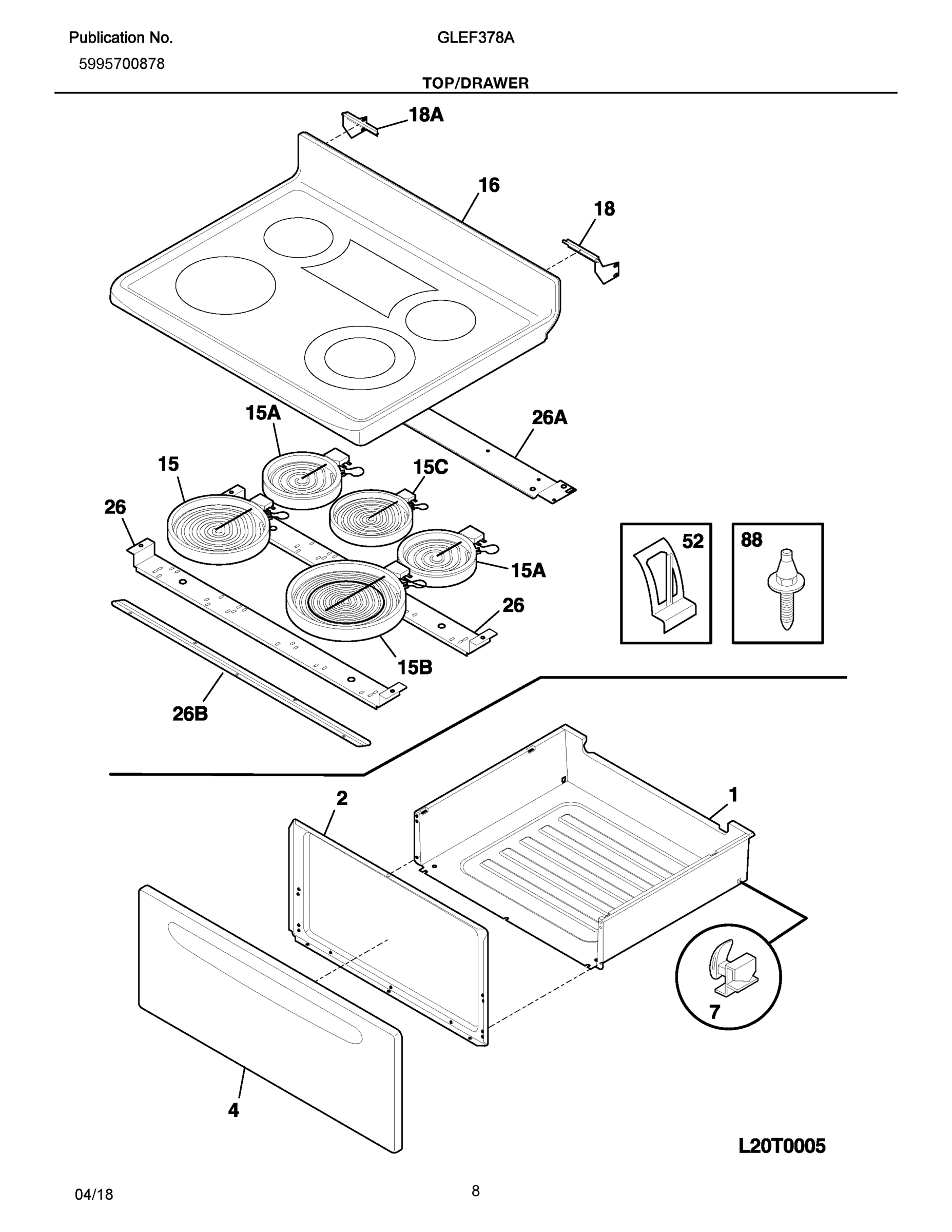

04 - TOP/DRAWER

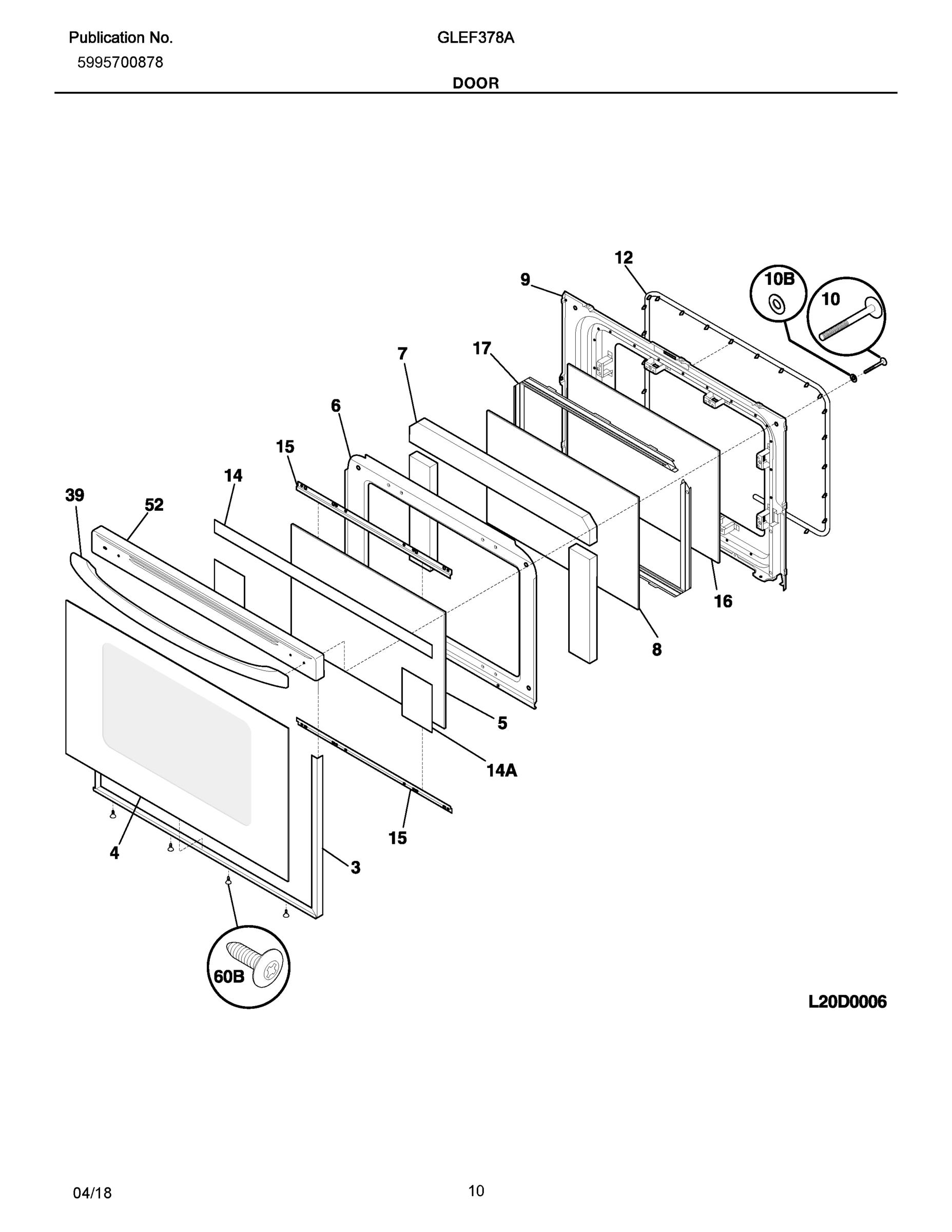

05 - DOOR

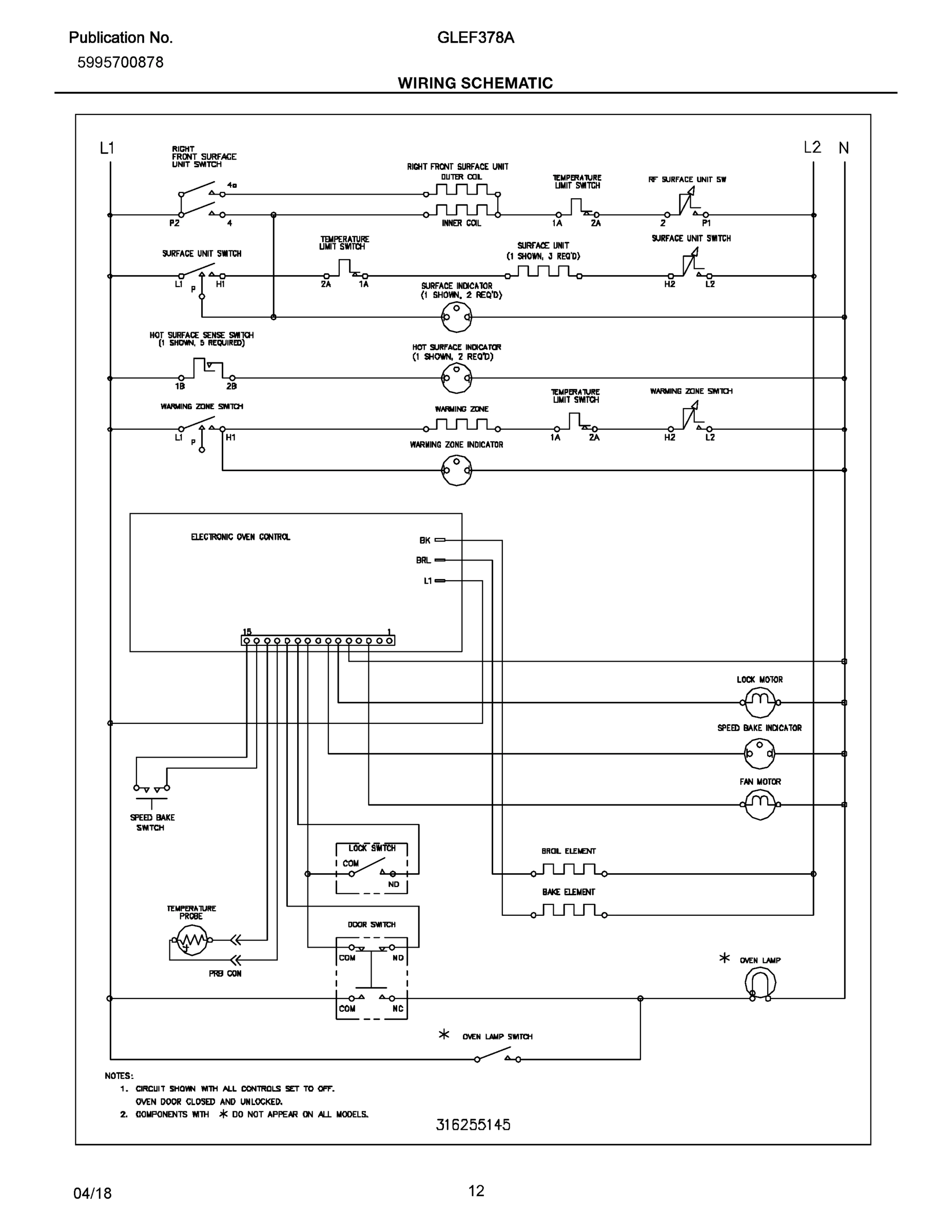

06 - WIRING SCHEMATIC

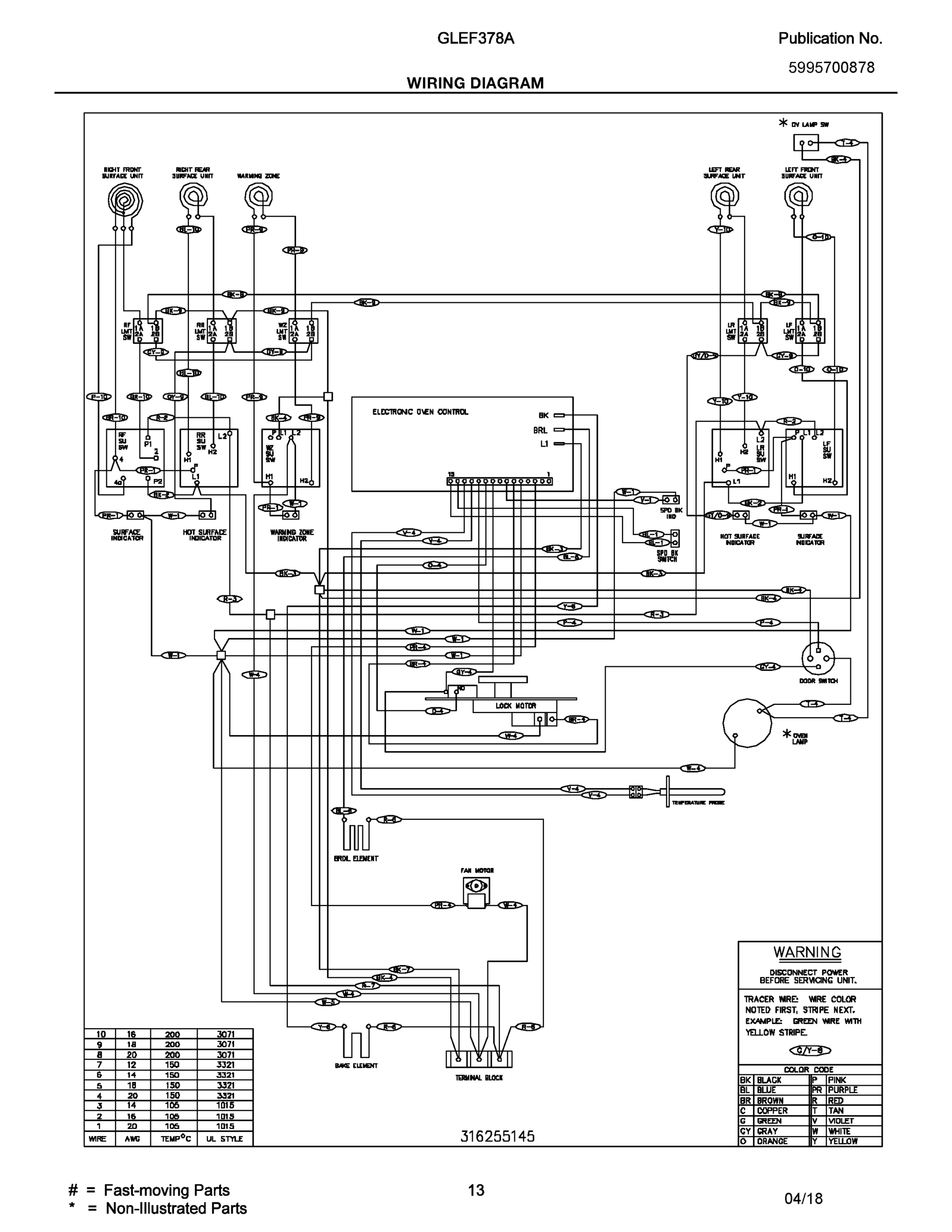

07 - WIRING DIAGRAM
Common parts from model Frigidaire GLEF378AQE RANGE/OVEN,ELECTRIC,FREESTANDING,30 INCH
1
DRAWER WCI 316011503 Contact Us For Availability
2
LINER,DRAWER WCI 316231500 Contact Us For Availability
3
TRIM KIT-DOOR,3 SIDED ,BLACK ,W/TAPE AND FOIL WCI 5303935191 Contact Us For Availability
4
GLASS,DOOR KIT ,BLACK ,OUTER ,W/FOIL TAPE WCI 5303935200 Contact Us For Availability
5
SCREW,LEVELING ,PLASTIC ,WITH STOP WCI 316129200 Contact Us For Availability
6
RACK,OVEN WCI 316067902 Contact Us For Availability
7
GLIDE,DRAWER ,REAR WCI 3051163 Contact Us For Availability
7
INSULATION,OVEN DOOR WCI 316236700 Contact Us For Availability
8
PANEL,SUMP ,OVEN BOTTOM WCI 316201501 Contact Us For Availability
9
PAN,BROILER WCI 316081900 Contact Us For Availability
10
SCREW,WAFER HEAD ,10-24 X 1.375 ,HANDLE MTG. WCI 316001013 Contact Us For Availability
10
INSERT,BROILER PAN WCI 316082000 Contact Us For Availability
10B
WASHER,3/4 OD X 1/4 ID ,STEEL WCI 316008401 Contact Us For Availability
12
SEAL,OVEN DOOR WCI 316230900 Contact Us For Availability
14
LIGHT/LAMP,WARMER,INDICATOR ,DRAWER/ZONE,125 WCI 316022500 Contact Us For Availability
14
RECEPTACLE,OVEN LIGHT WCI 316116400 Contact Us For Availability
15C
ELEMENT,WARMER ZONE ,100W WCI 316098202 Contact Us For Availability
16
GLASS,OVEN DOOR ,HEAT BARRIER WCI 316117501 Contact Us For Availability
17
RETAINER,LENS WCI 316087500 Contact Us For Availability
17
SPACER,DOOR GLASS ,(2) WCI 316117701 Contact Us For Availability
18
LATCH,OVEN DOOR WCI 316213900 Contact Us For Availability
20A
OVERLAY,CLOCK ,BLACK WCI 316220805 Contact Us For Availability
21
SPACER,BODYSIDE WCI 3014099 Contact Us For Availability
26
SUPPORT,CHASSIS ,(2) WCI 316206300 Contact Us For Availability
29
GLIDE,DRAWER ,FRONT WCI 3051162 Contact Us For Availability
30
BRACKET,HINGE ,RH ,MAIN TOP WCI 316217700 Contact Us For Availability
31
KNOB,BLACK WCI 316223002 Contact Us For Availability
41
COVER,HINGE CUTOUT ,RH WCI 316233400 Contact Us For Availability
44
SPACER,OVEN DOOR WCI 316246500 Contact Us For Availability
52
CLIP,ELEMENT MTG WCI 316099400 Contact Us For Availability
58A
INSULATION,2" ,OVEN WRAPPER WCI 316047708 Contact Us For Availability
59B
CATALYST,OVEN VENT ,CERAMIC WCI 316247300 Contact Us For Availability
60B
SCREW,WAFER HD SQ DR ,8-18AB X 0.5 WCI 5303271648 Contact Us For Availability
66
ELEMENT,BROIL WCI 316203301 Contact Us For Availability
67
ELEMENT,BAKE WCI 316202200 Contact Us For Availability
68
SUPPORT,BROIL ELEMENT WCI 316203400 Contact Us For Availability
87
BRACKET,CABLE MTG WCI 316081200 Contact Us For Availability
88
PIN,GUIDE ,(2) WCI 316099500 Contact Us For Availability
88
ROD,AUTO LATCH WCI 316203500 Contact Us For Availability
107
COVER,FAN WCI 316026701 Contact Us For Availability
108
WCI 316136300 WCI 316136300 Contact Us For Availability
111
WCI 316136600 WCI 316136600 Contact Us For Availability
NI
WCI 5303285179 WCI 5303285179 Contact Us For Availability
NI
SCREW,CUP PT ,8-18 X 0.375 ,CHROME WCI 316021108 Contact Us For Availability
NI
WCI 5308014215 WCI 5308014215 Contact Us For Availability
NI
PLATE,WARNING/CAUTION WCI 316065306 Contact Us For Availability
NI
WCI 5303280311 WCI 5303280311 Contact Us For Availability
NIB
WCI 316112500 WCI 316112500 Contact Us For Availability
× ![]()
