Model Electrolux GLEB30T8ASB WALL OVEN – Common Parts & Diagrams

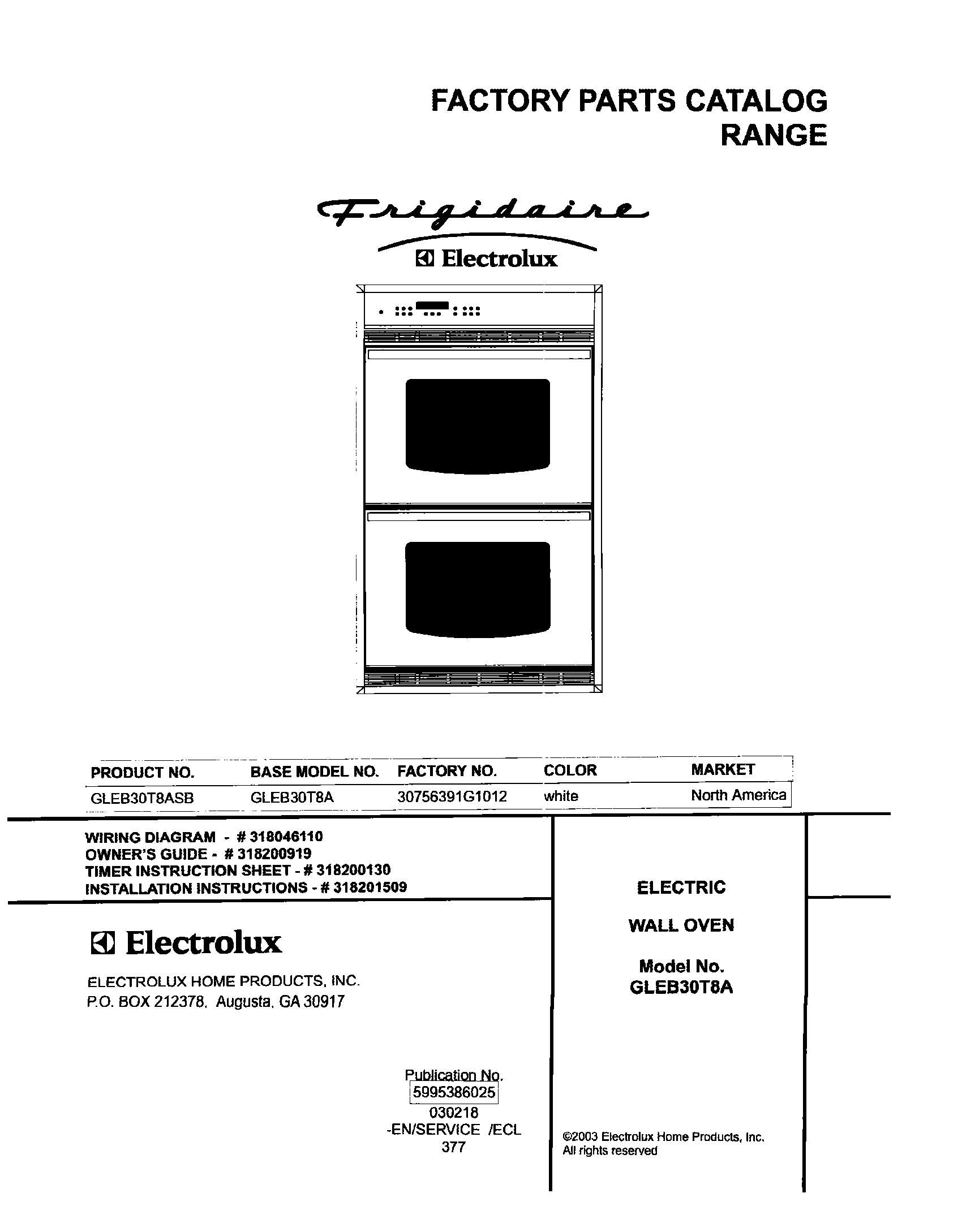

01 - COVER

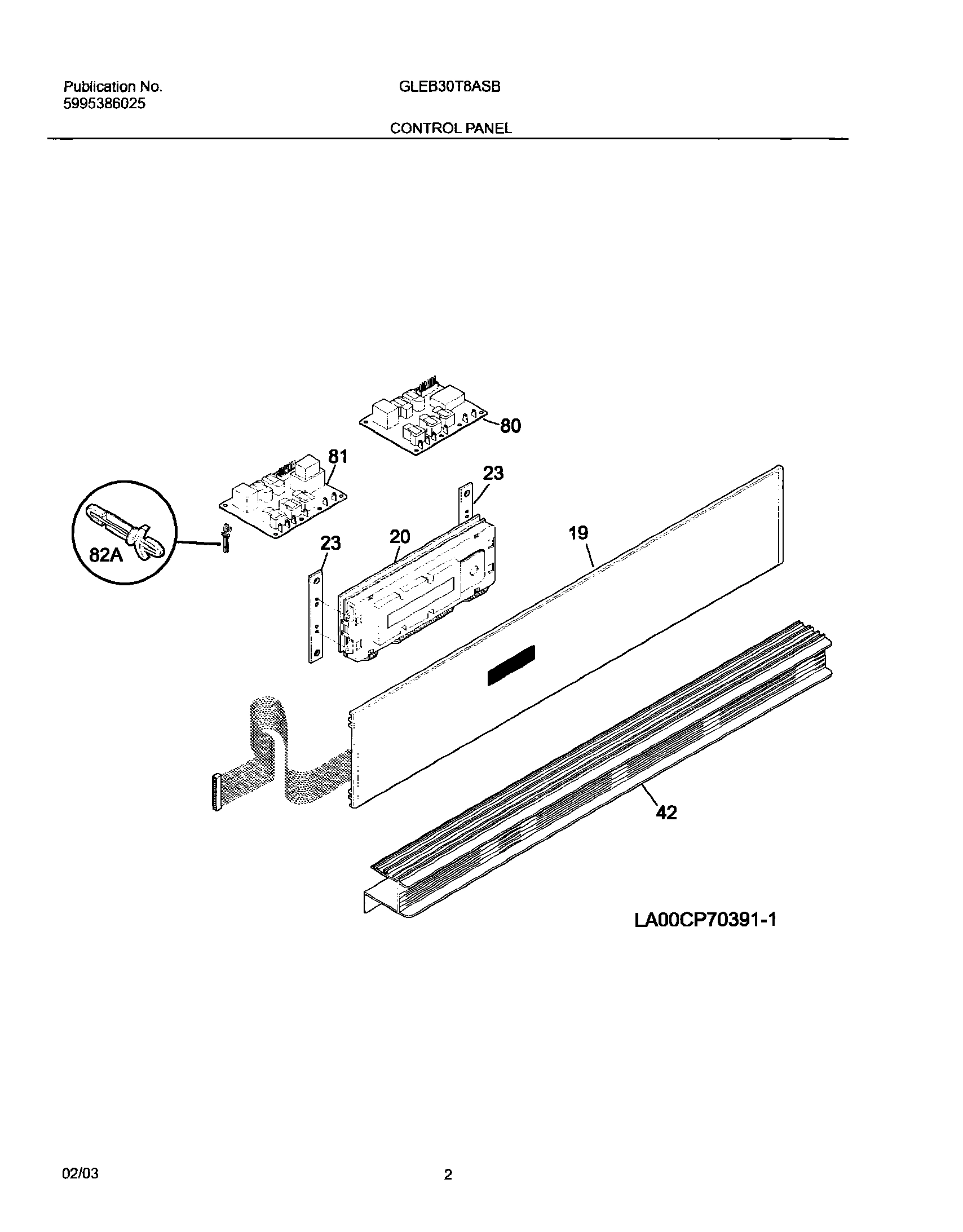

03 - CONTROL PANEL

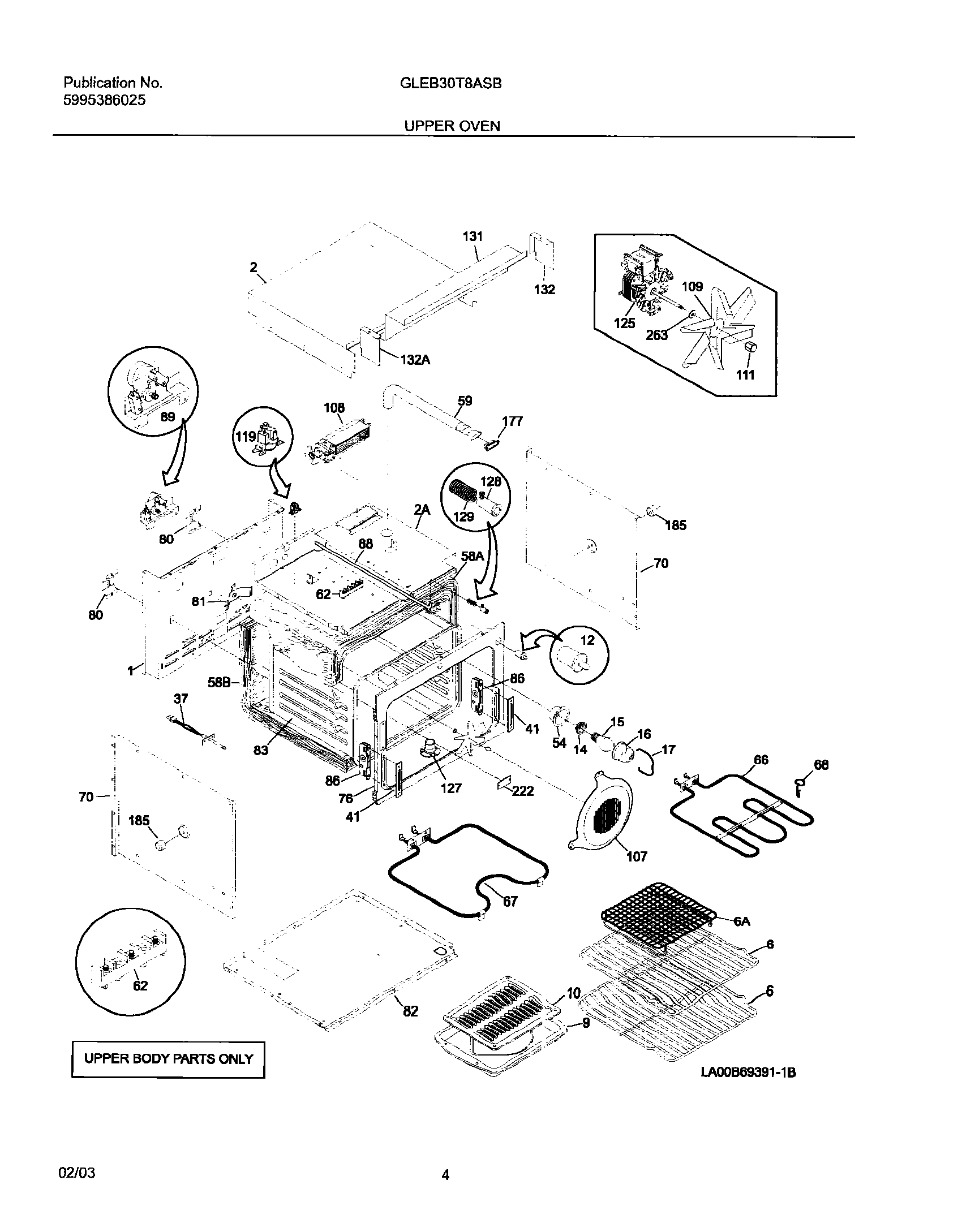

05 - UPPER OVEN

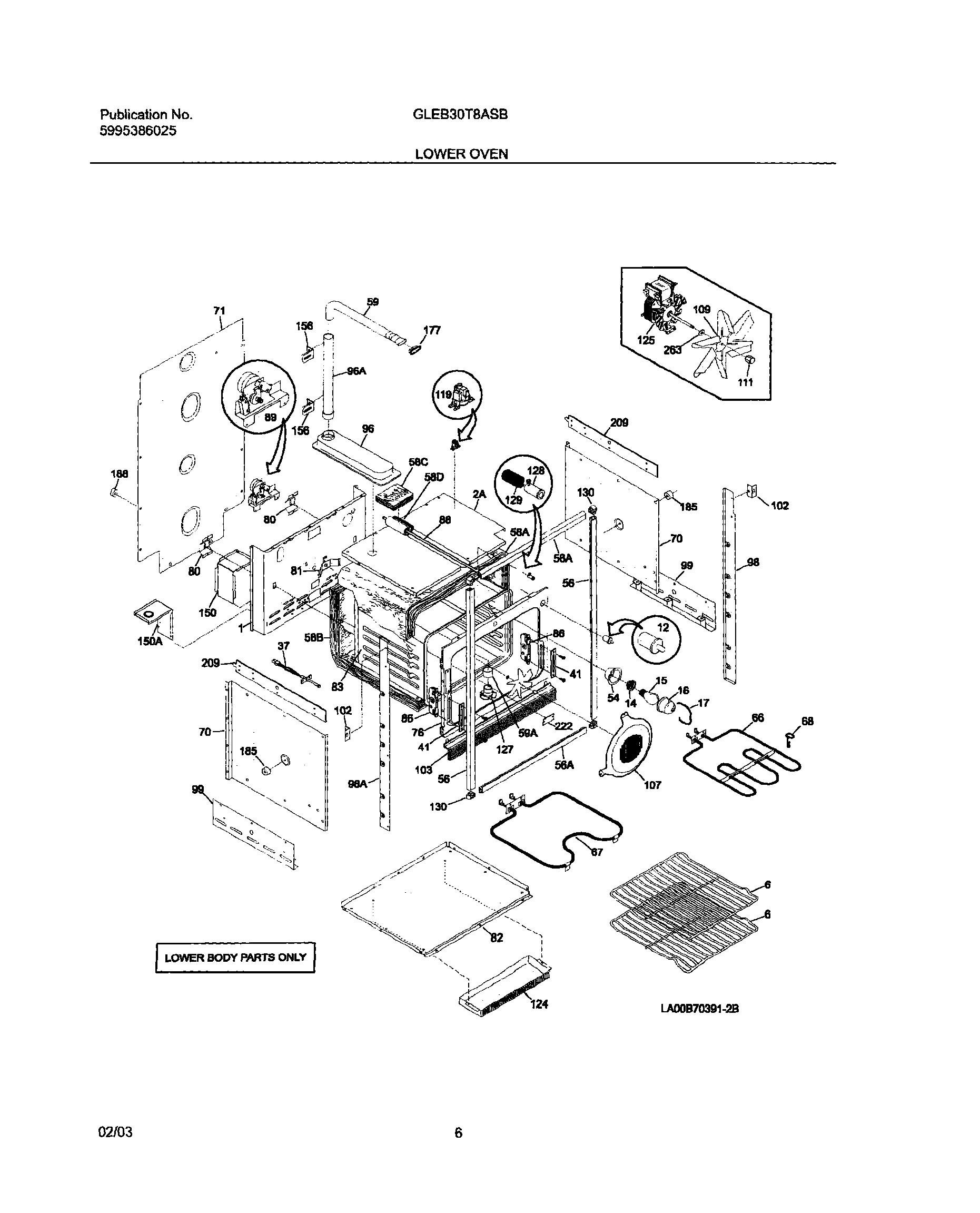

07 - LOWER OVEN

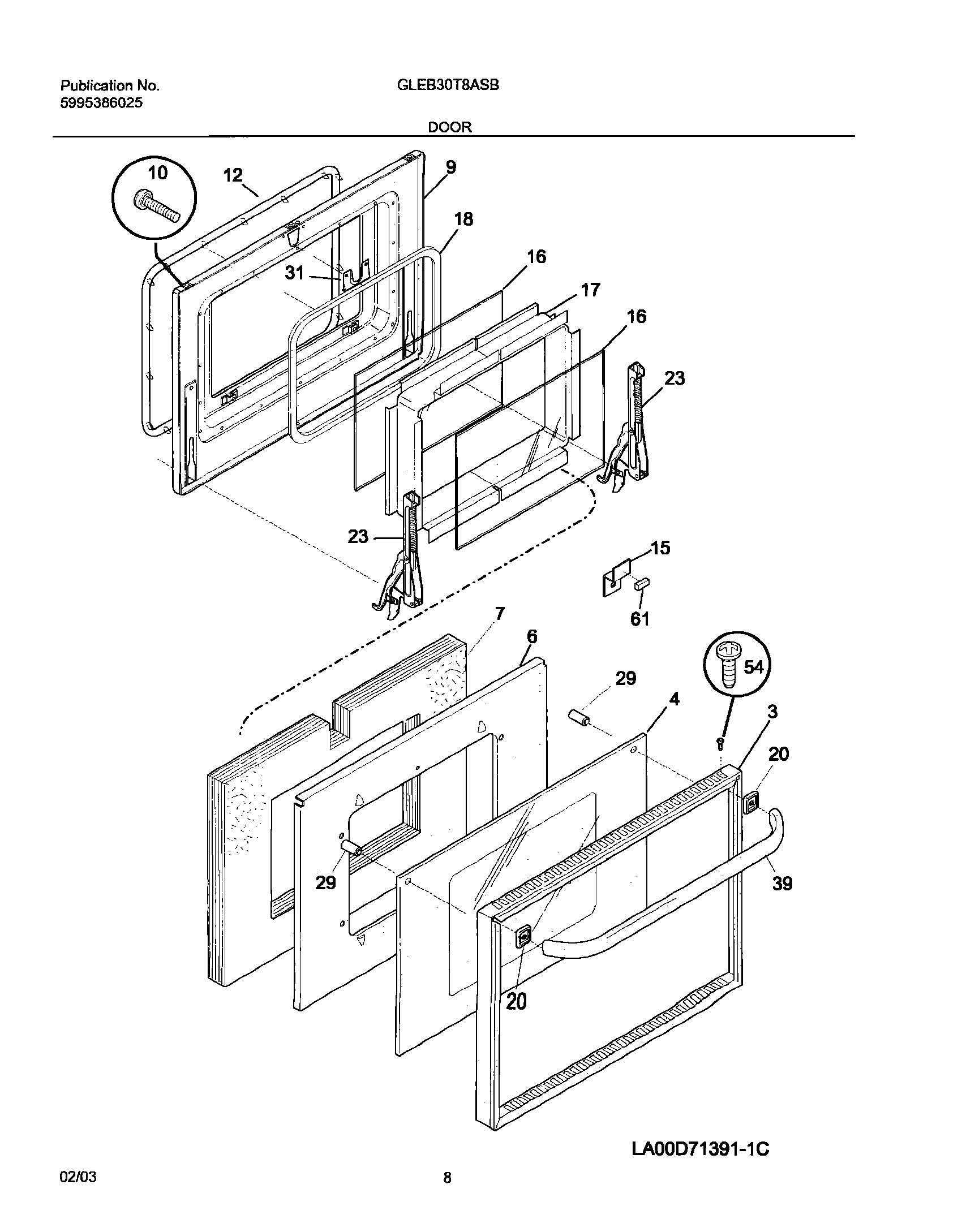

09 - DOOR

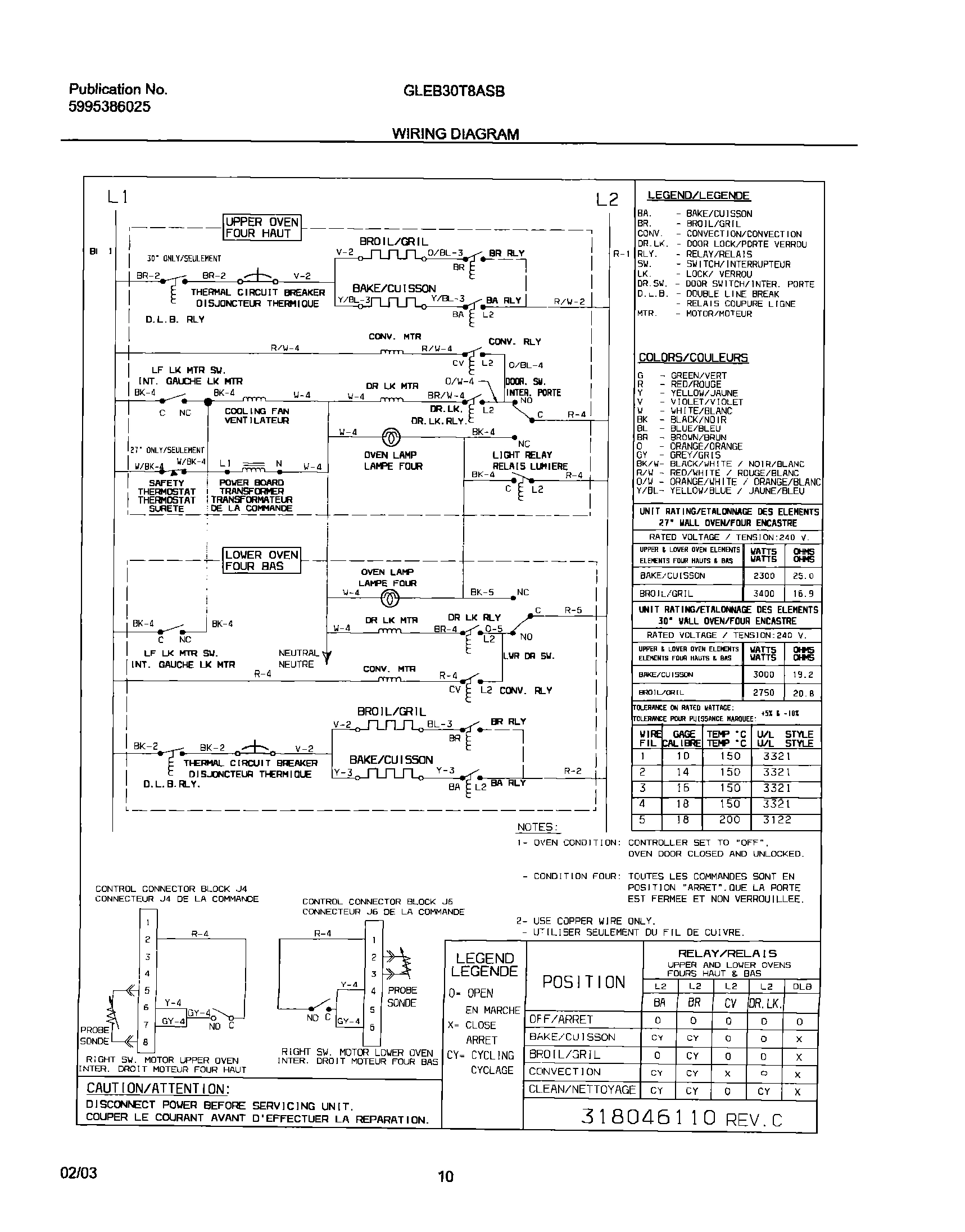

10 - WIRING DIAGRAM
Common parts from model Electrolux GLEB30T8ASB WALL OVEN
1
Panel,main back WCI 318066402 Contact Us For Availability
2A
WCI 318071704 WCI 318071704 Contact Us For Availability
3
WCI 318026130 WCI 318026130 Contact Us For Availability
4
WCI 318041314 WCI 318041314 Contact Us For Availability
6
WCI 318056811 WCI 318056811 Contact Us For Availability
7
WCI 318133754 WCI 318133754 Contact Us For Availability
9
WCI 318048606 WCI 318048606 Contact Us For Availability
10
WCI 5303311217 WCI 5303311217 Contact Us For Availability
15
BRACKET-GLASS,(3) WCI 318091102 Contact Us For Availability
16
WCI 318041603 WCI 318041603 Contact Us For Availability
17
WCI 5304400195 WCI 5304400195 Contact Us For Availability
17
WCI 318042102 WCI 318042102 Contact Us For Availability
18
WCI 318053001 WCI 318053001 Contact Us For Availability
20
WCI 318010501 WCI 318010501 Contact Us For Availability
20
WCI 318014301 WCI 318014301 Contact Us For Availability
23
WCI 5303310506 WCI 5303310506 Contact Us For Availability
29
WCI 318014400 WCI 318014400 Contact Us For Availability
31
WCI 318065102 WCI 318065102 Contact Us For Availability
39
WCI 316091111 WCI 316091111 Contact Us For Availability
41
WCI 5303310526 WCI 5303310526 Contact Us For Availability
54
WCI 318222400 WCI 318222400 Contact Us For Availability
56
Trim,bodyside ,white ,w/ ends WCI 318034404 Contact Us For Availability
56A
WCI 318083501 WCI 318083501 Contact Us For Availability
58A
WCI 318133744 WCI 318133744 Contact Us For Availability
58B
WCI 318133769 WCI 318133769 Contact Us For Availability
58C
WCI 318133755 WCI 318133755 Contact Us For Availability
58D
WCI 318133757 WCI 318133757 Contact Us For Availability
59
WCI 318072504 WCI 318072504 Contact Us For Availability
59A
WCI 5303320844 WCI 5303320844 Contact Us For Availability
61
Foam seal,(3) WCI 5303316982 Contact Us For Availability
70
WCI 5303300142 WCI 5303300142 Contact Us For Availability
71
WCI 318071211 WCI 318071211 Contact Us For Availability
76
WCI 318056202 WCI 318056202 Contact Us For Availability
80
WCI 5303320846 WCI 5303320846 Contact Us For Availability
81
WCI 318022002 No Longer Available
81
WCI 318192400 WCI 318192400 Contact Us For Availability
82
WCI 318072302 WCI 318072302 Contact Us For Availability
83
WCI 318089615 WCI 318089615 Contact Us For Availability
86
WCI 5303310524 WCI 5303310524 Contact Us For Availability
88
WCI 5303311222 WCI 5303311222 Contact Us For Availability
96
WCI 5303317197 WCI 5303317197 Contact Us For Availability
96A
Duct,oven vent ,center WCI 3016325 Contact Us For Availability
98
WCI 318029211 WCI 318029211 Contact Us For Availability
98A
WCI 318029213 WCI 318029213 Contact Us For Availability
99
Support,adjustable ,(2) WCI 318055410 Contact Us For Availability
102
WCI 318090900 WCI 318090900 Contact Us For Availability
103
WCI 318028501 WCI 318028501 Contact Us For Availability
107
WCI 318219401 WCI 318219401 Contact Us For Availability
109
WCI 5303311203 WCI 5303311203 Contact Us For Availability
124
WCI 318076903 WCI 318076903 Contact Us For Availability
125
WCI 318142100 WCI 318142100 Contact Us For Availability
128
WCI 5303311163 WCI 5303311163 Contact Us For Availability
130
WCI 318070801 WCI 318070801 Contact Us For Availability
150
WCI 318072204 WCI 318072204 Contact Us For Availability
150
WCI 318072205 WCI 318072205 Contact Us For Availability
156
WCI 5303317198 WCI 5303317198 Contact Us For Availability
177
WCI 318053800 WCI 318053800 Contact Us For Availability
209
Plate,retainer WCI 318086200 Contact Us For Availability
222
WCI 318080000 WCI 318080000 Contact Us For Availability
NI
WCI 318120711 WCI 318120711 Contact Us For Availability
NI
CLIP-WIRE WCI 3015722 Contact Us For Availability
NI
WCI 318078507 WCI 318078507 Contact Us For Availability
NI
WCI 5303302745 WCI 5303302745 Contact Us For Availability
NI
WCI 5303311207 WCI 5303311207 Contact Us For Availability
NI
WCI 5303311528 WCI 5303311528 Contact Us For Availability
× ![]()
