Model GE GLE12HSPBRSS Refrigerator – Common Parts & Diagrams

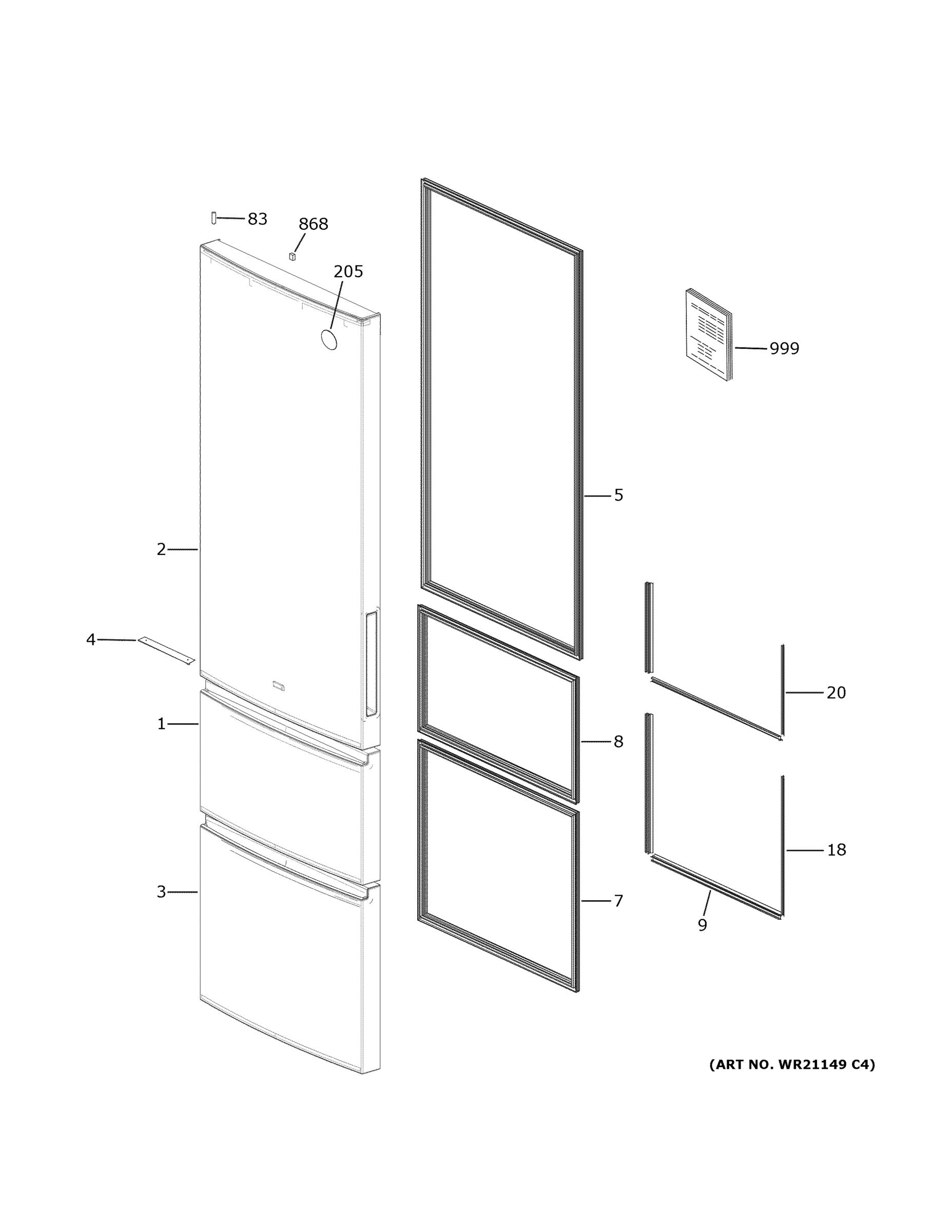

DOORS

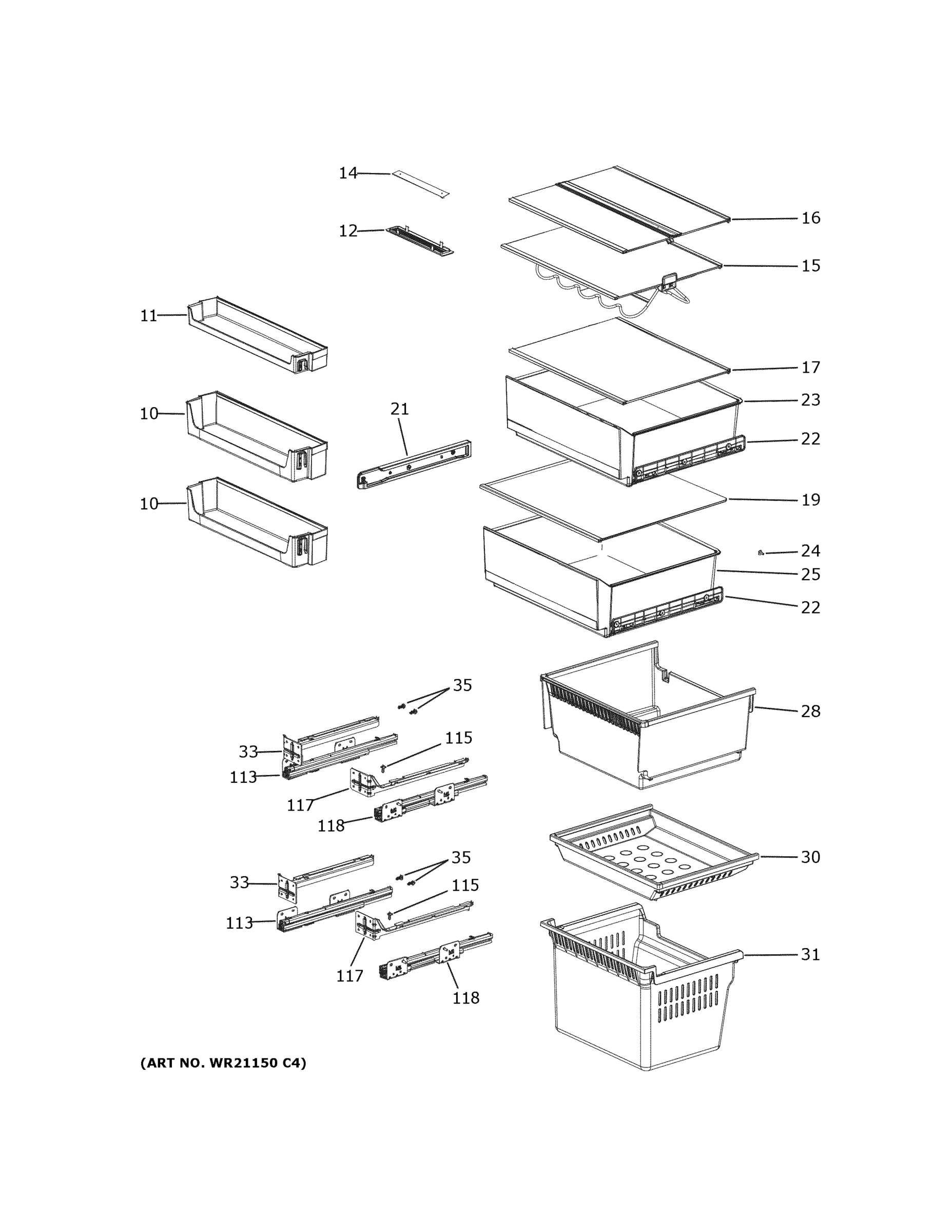

SHELVES & DRAWERS

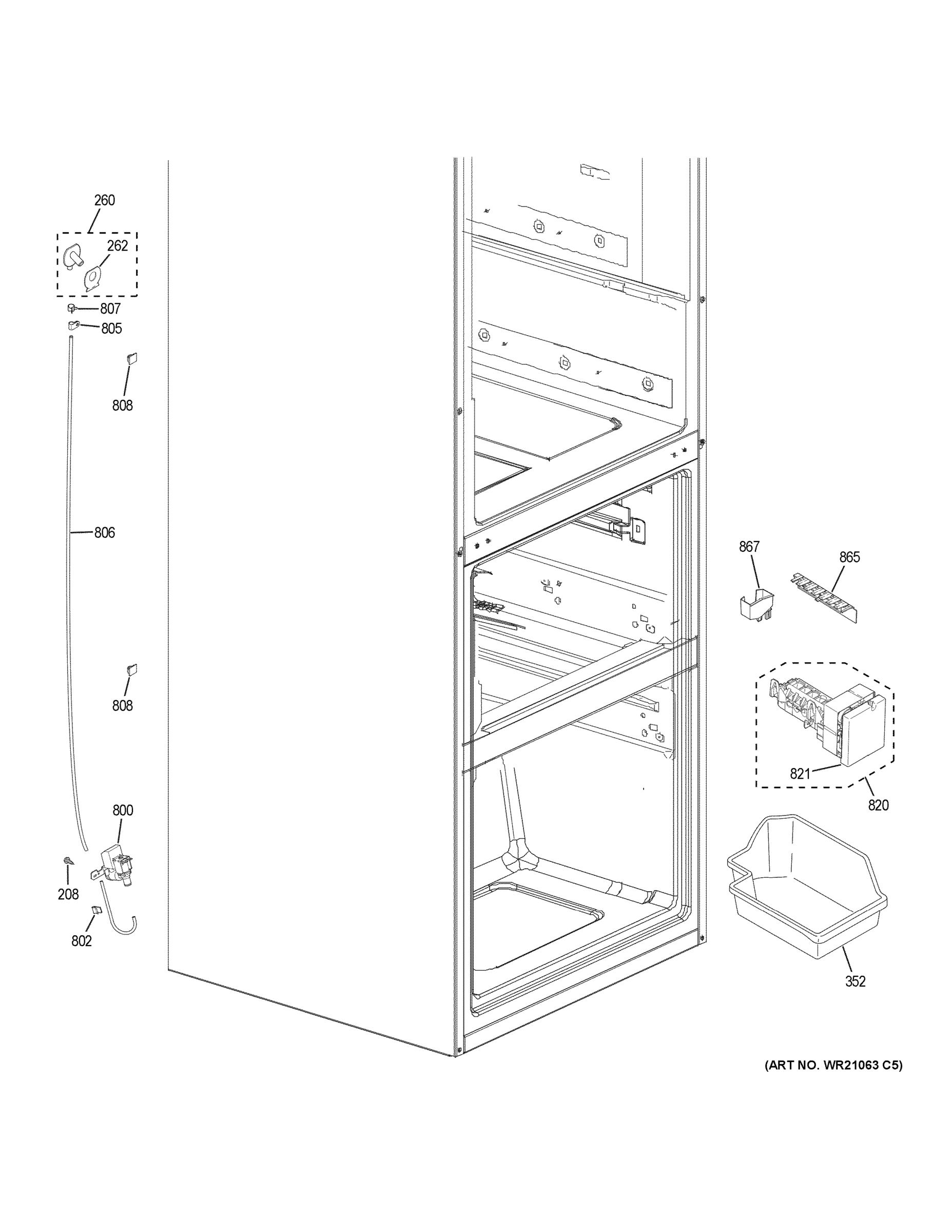

ICE MAKER

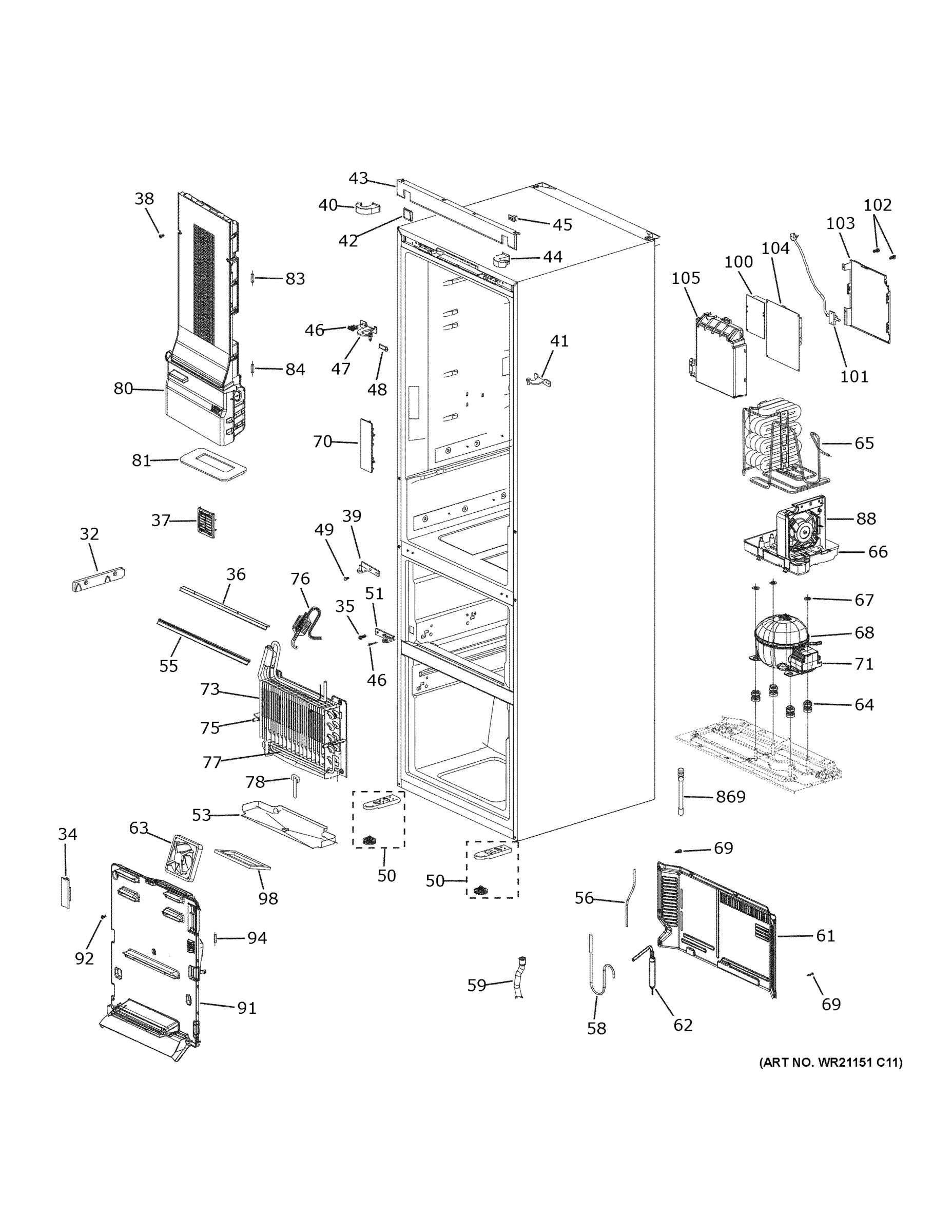

CABINET

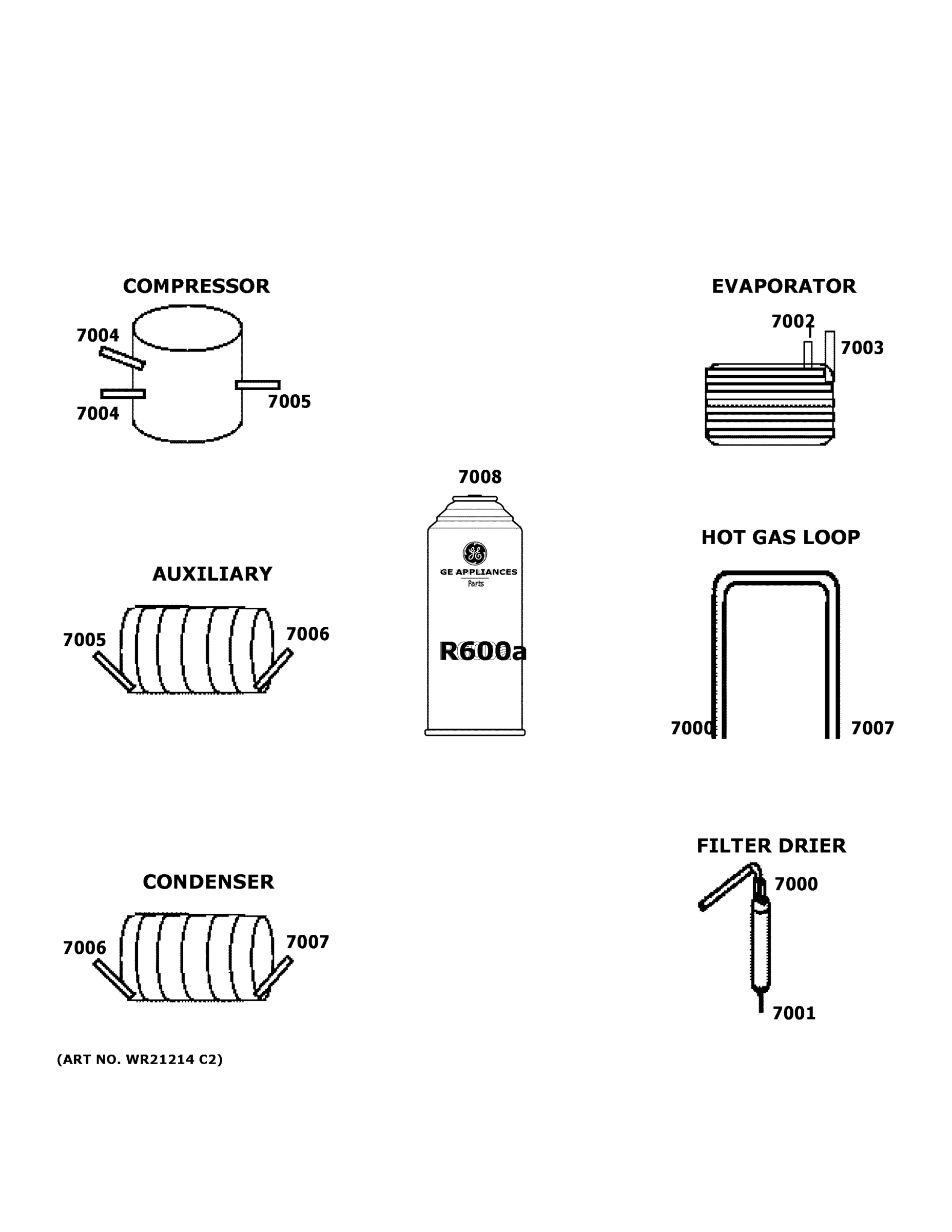

LOKRING CONNECTORS
Common parts from model GE GLE12HSPBRSS Refrigerator
1
REFRIGERATOR - FREEZER UPPER DOOR STAINL GEN WR78X28358 Contact Us For Availability
3
REFRIGERATOR - FREEZER LOWER DOOR STAINL GEN WR78X28333 Contact Us For Availability
9
DAMPER GASKET GEN WR14X28326 Contact Us For Availability
14
LED BOARD GEN WR55X28346 Contact Us For Availability
16
QUICK SPACE SHELF GEN WR71X28344 Contact Us For Availability
17
GLASS SHELF FULL GEN WR71X28385 Contact Us For Availability
30
LOWER FREEZER BASKET TRAY GEN WR71X28383 Contact Us For Availability
39
LEFT MIDDLE HINGE GEN WR13X30970 Contact Us For Availability
40
HINGE COVER LEFT GEN WR13X28399 Contact Us For Availability
41
LEFT TOP HINGE & PIN GEN WR13X30971 Contact Us For Availability
42
FRONT CAP INSERT GEN WR01X28367 Contact Us For Availability
43
TOP FRONT CAP GEN WR01X28369 Contact Us For Availability
44
RIGHT HAND TOP HINGE COVER GEN WR13X28365 Contact Us For Availability
45
REED SWITCH GEN WR55X31994 Contact Us For Availability
46
SCREW ST3.5 X 9.5 GEN WR01X27789 Contact Us For Availability
47
TOP HINGE & PIN GEN WR13X28363 Contact Us For Availability
48
FRONT CAP HINGE INSERT GEN WR01X28364 Contact Us For Availability
49
PLUG BUTTON WHITE GEN WR01X28360 Contact Us For Availability
50
LEVELING LEG GEN WR01X28530 Contact Us For Availability
51
RIGHT MIDDLE HINGE GEN WR13X36165 Contact Us For Availability
53
DRAIN PAN GEN WR14X28371 Contact Us For Availability
55
FREEZER MULLION LOWER GASKET GEN WR14X28372 Contact Us For Availability
56
DISCHARGE TUBE GEN WR87X28553 Contact Us For Availability
58
CONNECTING PIPE GEN WR01X28373 Contact Us For Availability
59
DRAIN TUBE GEN WR01X28354 Contact Us For Availability
61
REAR ACCESS COVER GEN WR14X28355 Contact Us For Availability
62
R600 DRIER W/ RED CAP GEN WR87X30875 Contact Us For Availability
63
CONDENSER FAN GEN WR60X29549 Contact Us For Availability
64
COMPRESSOR GROMMET GEN WR01X28353 Contact Us For Availability
65
CONDENSER GEN WR87X28624 Contact Us For Availability
66
AUXILIARY CONDENSER DRAIN PAN GEN WR14X28350 Contact Us For Availability
67
COMPRESSOR CLIP GEN WR01X28351 Contact Us For Availability
68
COMPRESSOR GEN WR87X46745 Contact Us For Availability
69
SCREW M4 X 8 GEN WR01X28349 Contact Us For Availability
70
UI DISPLAY GEN WR55X35730 Contact Us For Availability
71
INVERTER GEN WR87X46746 Contact Us For Availability
73
EVAPORATOR GEN WR87X28356 Contact Us For Availability
75
THERMAL FUSE GEN WR55X31726 Contact Us For Availability
76
EVAPORATOR THERMISTOR GEN WR55X28338 Contact Us For Availability
77
DEFROST HEATER GEN WR87X28340 Contact Us For Availability
78
HEAT PROBE GEN WR02X44465 Contact Us For Availability
80
FRESH FOOD AIR TOWER GEN WR14X28334 Contact Us For Availability
81
FRESH FOOD AIR TOWER GASKET GEN WR14X28336 Contact Us For Availability
83
FRESH FOOD SENSOR GEN WR55X28330 Contact Us For Availability
84
FRESH FOOD THERMISTOR LOWER GEN WR55X28332 Contact Us For Availability
88
CONDENSER FAN GEN WR60X34125 Contact Us For Availability
91
EVAPORATOR COVER GEN WR14X28327 Contact Us For Availability
92
SCREW ST3.9 X 16 GEN WR01X28345 Contact Us For Availability
94
FREEZER THERMISTOR GEN WR55X28347 Contact Us For Availability
98
FREEZER TRANSITION GASKET GEN WR14X28342 Contact Us For Availability
100
POWER SUPPLY BOARD GEN WR55X33545 Contact Us For Availability
101
POWER CORD GEN WR55X28528 Contact Us For Availability
102
SCREW Y-HEAD GEN WR01X28343 Contact Us For Availability
103
MAIN BOARD COVER GEN WR13X28389 Contact Us For Availability
104
MAIN BOARD GEN WR55X33809 Contact Us For Availability
105
MAINBOARD ENCLOSURE GEN WR13X28384 Contact Us For Availability
205
GEA BADGE FLAT CHROME GEN WR04X29375 Contact Us For Availability
352
ICE BUCKET GEN WR30X30034 Contact Us For Availability
800
WATER VALVE GEN WR57X32213 Contact Us For Availability
806
TUBE PLASTIC GEN WR17X11349 Contact Us For Availability
820
ICEMAKER REPLACEMENT KIT GEN WR30X30972 Contact Us For Availability
868
MAGNET GEN WR01X29720 Contact Us For Availability
869
R600 PROCESS VALVE W/ RED CAP GEN WR87X30876 Contact Us For Availability
7000
6MM X 4MM LOKRING GEN WR97X10033 Contact Us For Availability
7001
6MM X 1.8MM LOKRING GEN WR97X10085 Contact Us For Availability
7002
3mm x 1.8mm LOKRING GEN WR97X32332 Contact Us For Availability
7003
8MM X 8MM LOKRING GEN WR97X10021 Contact Us For Availability
7004
8MM X 6MM LOKRING GEN WR97X10036 Contact Us For Availability
7005
7MM X 5MM LOKRING GEN WR97X25268 Contact Us For Availability
7006
5MM X 5MM LOKRING GEN WR97X10030 Contact Us For Availability
7007
5MM X 4MM LOKRING GEN WR97X10075 Contact Us For Availability
× ![]()
