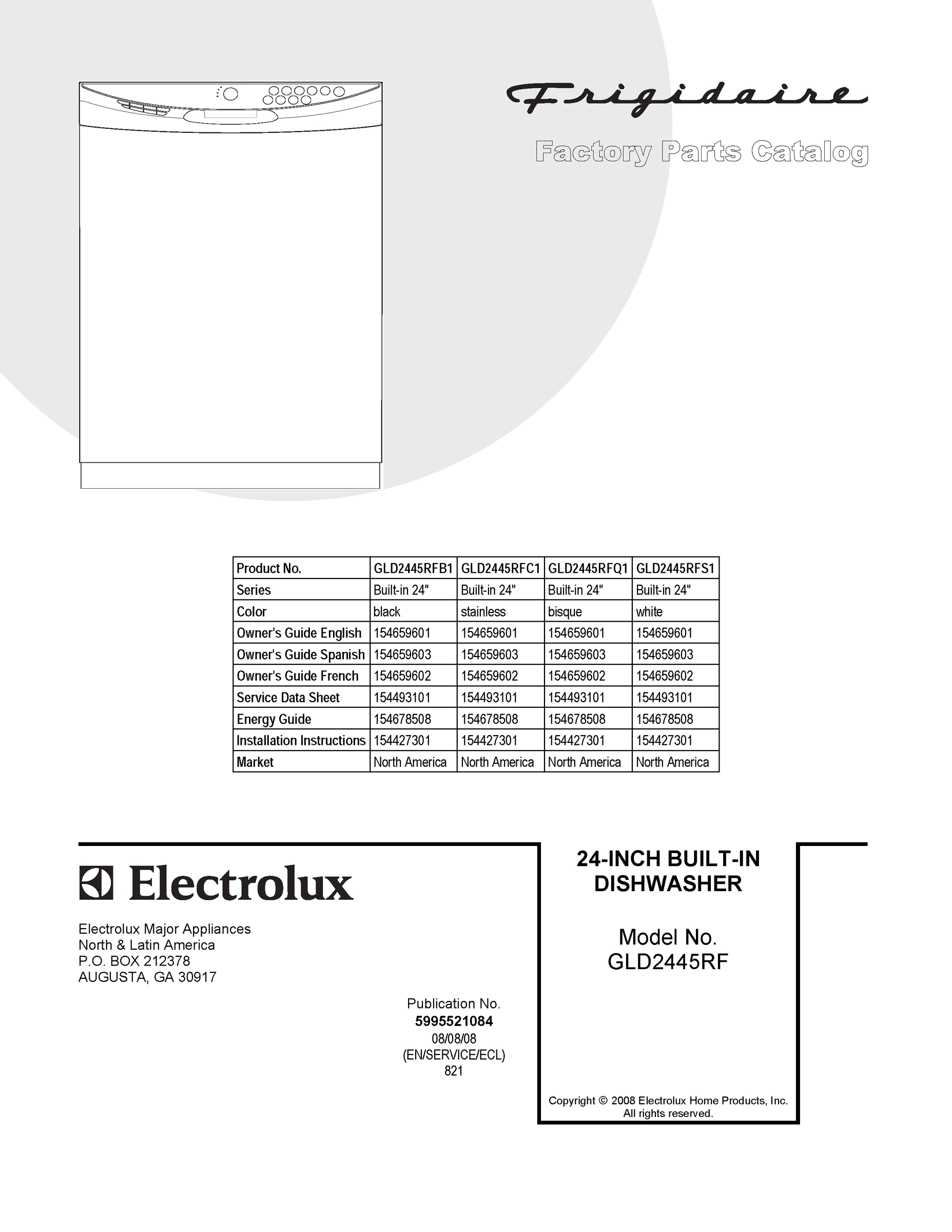

Model Electrolux GLD2445RFQ1 DISHWASHER – Common Parts &amp; Diagrams

1

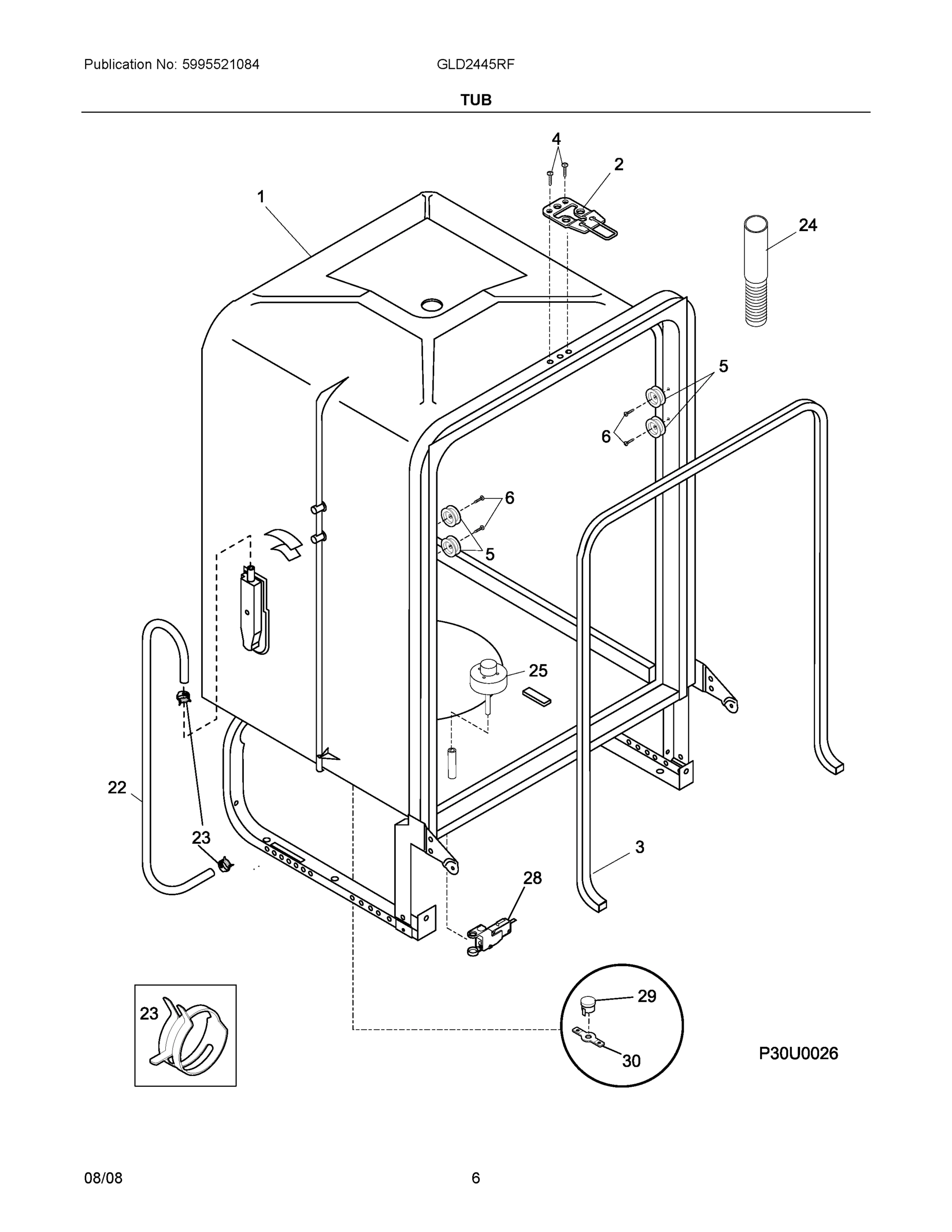

TUB ASSY, W/FRAME PARTS WCI 154594101 Contact Us For Availability

1

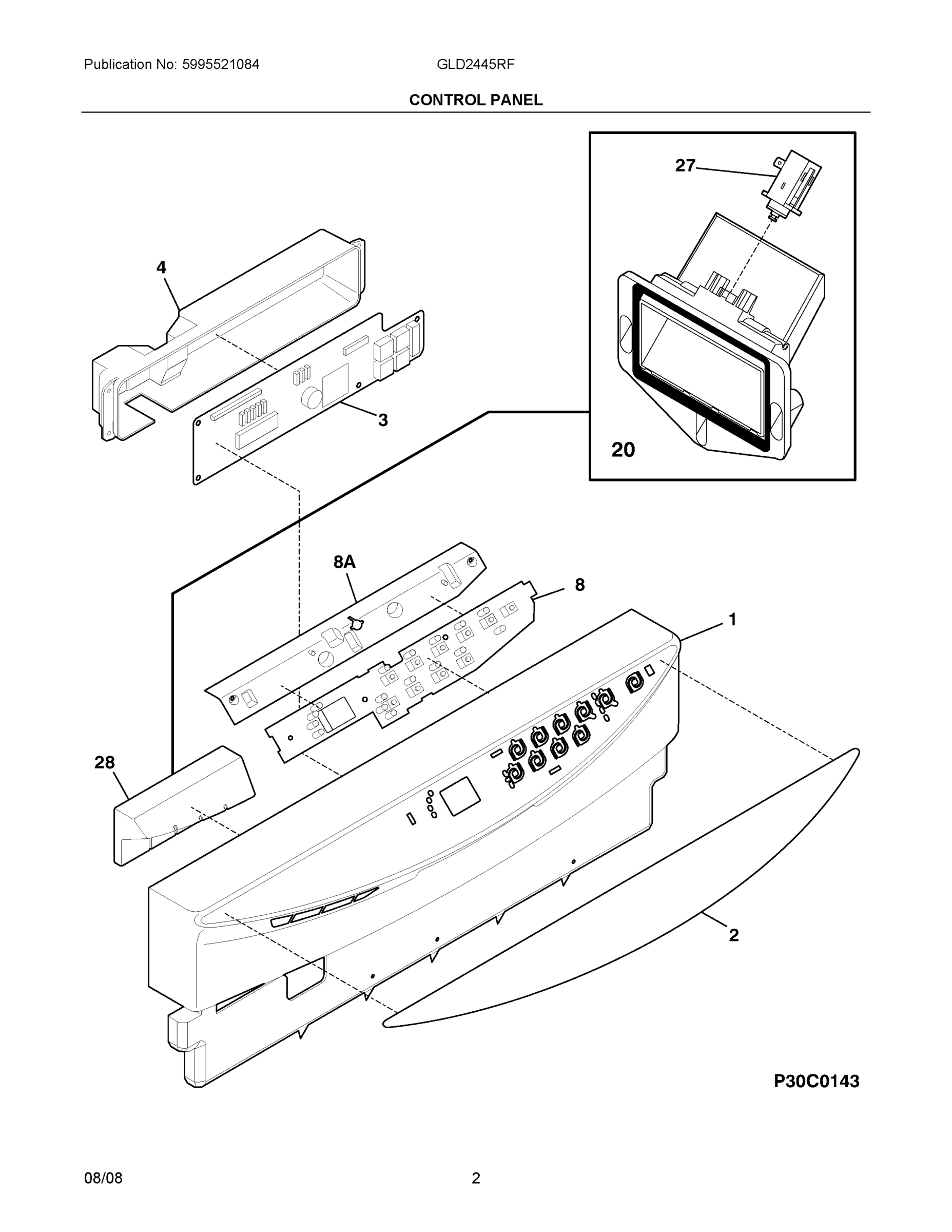

PANEL, CONTROL, BISQUE WCI 154662504 Contact Us For Availability

1A

154325201 Frigidaire Linkage Spring In Stock WCI 154325201 $24.96

2

154093301 Frigidaire Dishwasher ARM Assembly In Stock WCI 154093301 $1.33

2

154465101 Frigidaire Dishwasher Heating Eleme Backorder WCI 154465101 $7.13

2

154662601 Frigidaire Door Strike Latch In Stock WCI 154662601 $24.96

2

5304535382 Frigidaire Basket Assembly In Stock WCI 5304535382 $12.68

3

154637401 Frigidaire Dishwasher Fill Valve Wa In Stock WCI 154637401 $21.83

3

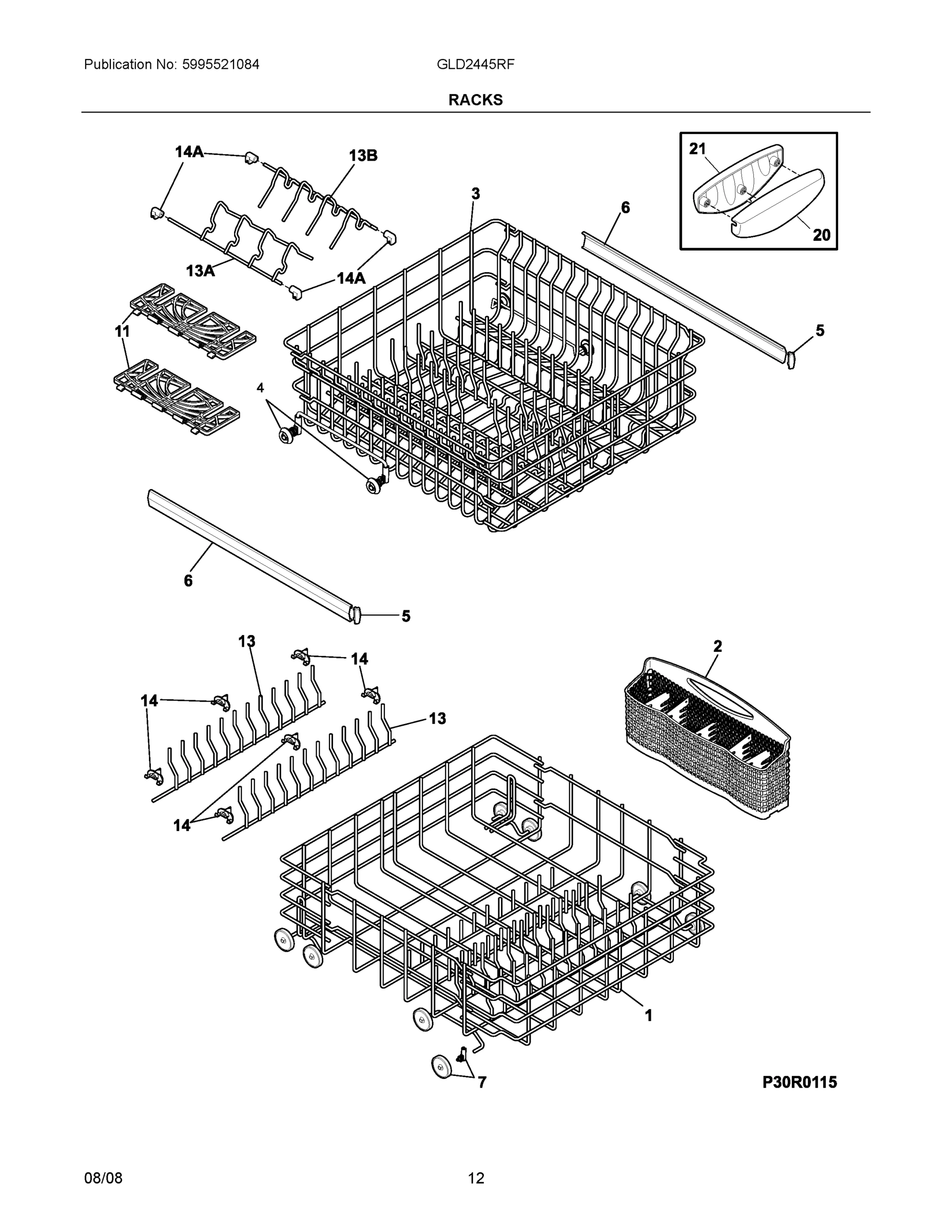

RACK ASSY, UPPER WCI 154319526 Contact Us For Availability

3A

5304513274 Frigidaire Dishwasher Counterbalan In Stock WCI 5304513274 $42.32

4

154522902 Frigidaire Dishwasher Wheel and Bus In Stock WCI 154522902 $18.28

4

SCREW, 10-16 X 3/8, HEX WCI 154200602 Contact Us For Availability

4

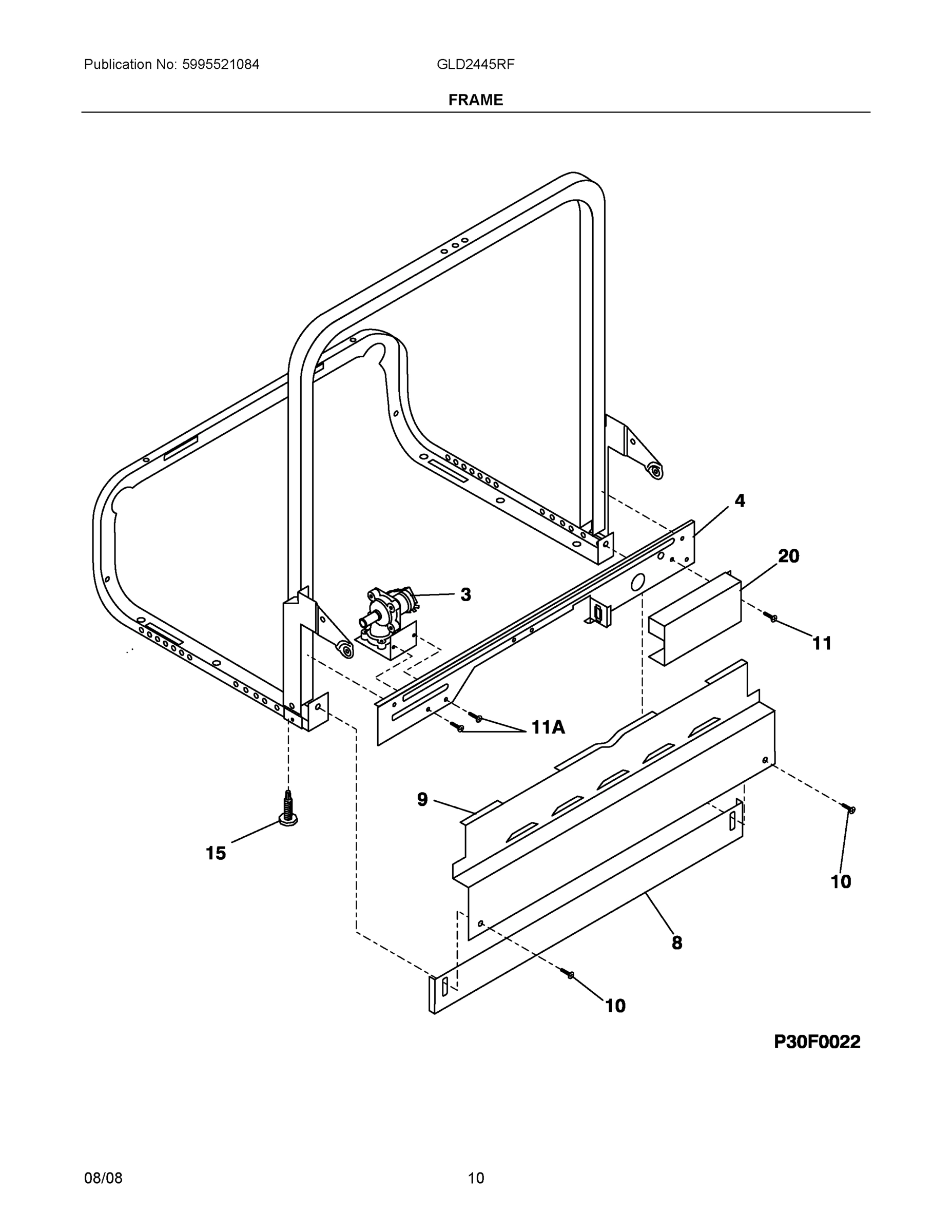

BRACE, FRONT FRAME WCI 154669301 Contact Us For Availability

5

5304506510 Frigidaire Dishrack Slide Rail Sto In Stock WCI 5304506510 $4.44

6

154597801 Frigidaire Dishwasher Upper Rack Sl In Stock WCI 154597801 $5.58

6

5303943103 Frigidaire Dishwasher P-1 Screw Ki Backorder WCI 5303943103 $11.13

7

5304532229 Frigidaire Dishwasher Lower Rack W In Stock WCI 5304532229 $3.13

7

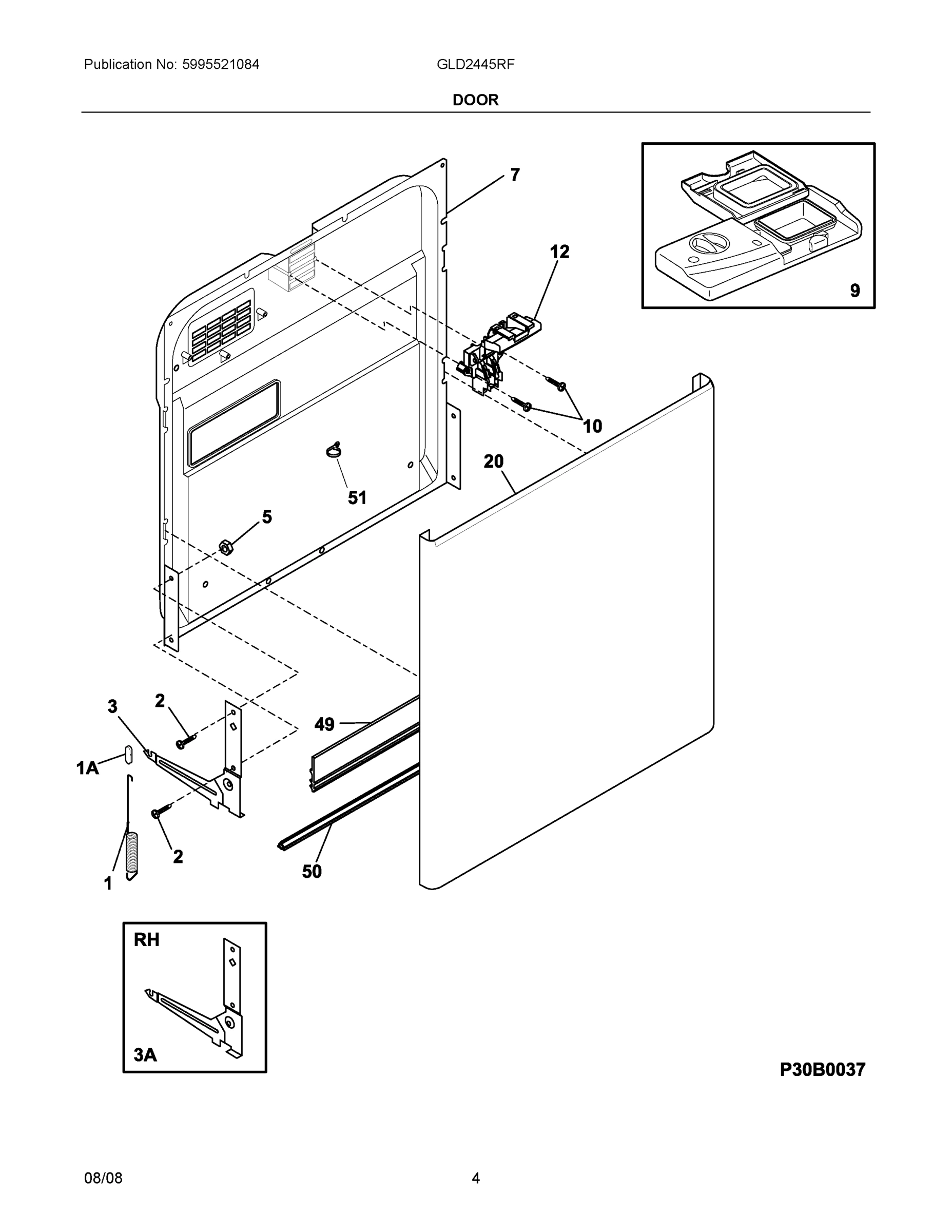

LINER, DOOR ASSY., GREY WCI 154494603 Contact Us For Availability

8

SWITCH, SELECTOR, 10 PAD WCI 154474601 Contact Us For Availability

10

154103702 Frigidaire Dishwasher Screw Backorder WCI 154103702 $8.46

10

807145201 Frigidaire Dishwasher Cover-Volute In Stock WCI 807145201 $10.68

11

154200701 Frigidaire Dishwasher Screw Backorder WCI 154200701 $8.46

12

LATCH ASSY, BISQUE WCI 154529404 Contact Us For Availability

13

154246801 Frigidaire Dishwasher Primary Gaske Backorder WCI 154246801 $30.29

14

154461902 Frigidaire Dishwasher Housing Backorder WCI 154461902 $177.87

14A

5304506508 Frigidaire Bracket Support In Stock WCI 5304506508 $3.53

15

5304506540 Frigidaire Dishwasher Leg Assembly In Stock WCI 5304506540 $6.68

16

154246502 Frigidaire Dishwasher Bracket In Stock WCI 154246502 $25.38

20

VENT ASSY, ACTIVE DRY, W/ACTUATOR WCI 154423601 Contact Us For Availability

21

5304504913 Frigidaire Dishwasher Handle Backorder WCI 5304504913 $8.46

22

5304523457 Frigidaire Inlet Hose In Stock WCI 5304523457 $8.02

23

5304538466 Frigidaire Hose Clamp Backorder WCI 5304538466 $0.91

24A

A01986801 Frigidaire Upper Rack Assembly In Stock WCI A01986801 $107.19

28

154773201 Frigidaire Dishwasher Switch Assemb In Stock WCI 154773201 $34.76

29

154290204 Frigidaire Dishwasher Thermostat In Stock WCI 154290204 $40.11

30

154241101 Frigidaire Dishwasher Retainer Backorder WCI 154241101 $2.22

32A

154406401 Frigidaire Delivery Tube Gasket In Stock WCI 154406401 $6.68

49

809006501 Frigidaire Bottom Seal/Gasket Door In Stock WCI 809006501 $14.86

50

SUPPORT, DOOR HINGE WCI 154211401 Contact Us For Availability

51

CLAMP, DRIP LOOP, WIRE WCI 154320301 Contact Us For Availability

55

5304534830 Frigidaire Dishwasher Bracket In Stock WCI 5304534830 $3.40

58

154246402 Frigidaire Dishwasher P-1 Ball Asse In Stock WCI 154246402 $35.20

59

154246901 Frigidaire Dishwasher Rear O-Ring f In Stock WCI 154246901 $35.65

59A

154247001 Frigidaire Dishwasher Pump Gasket S In Stock WCI 154247001 $35.65

60

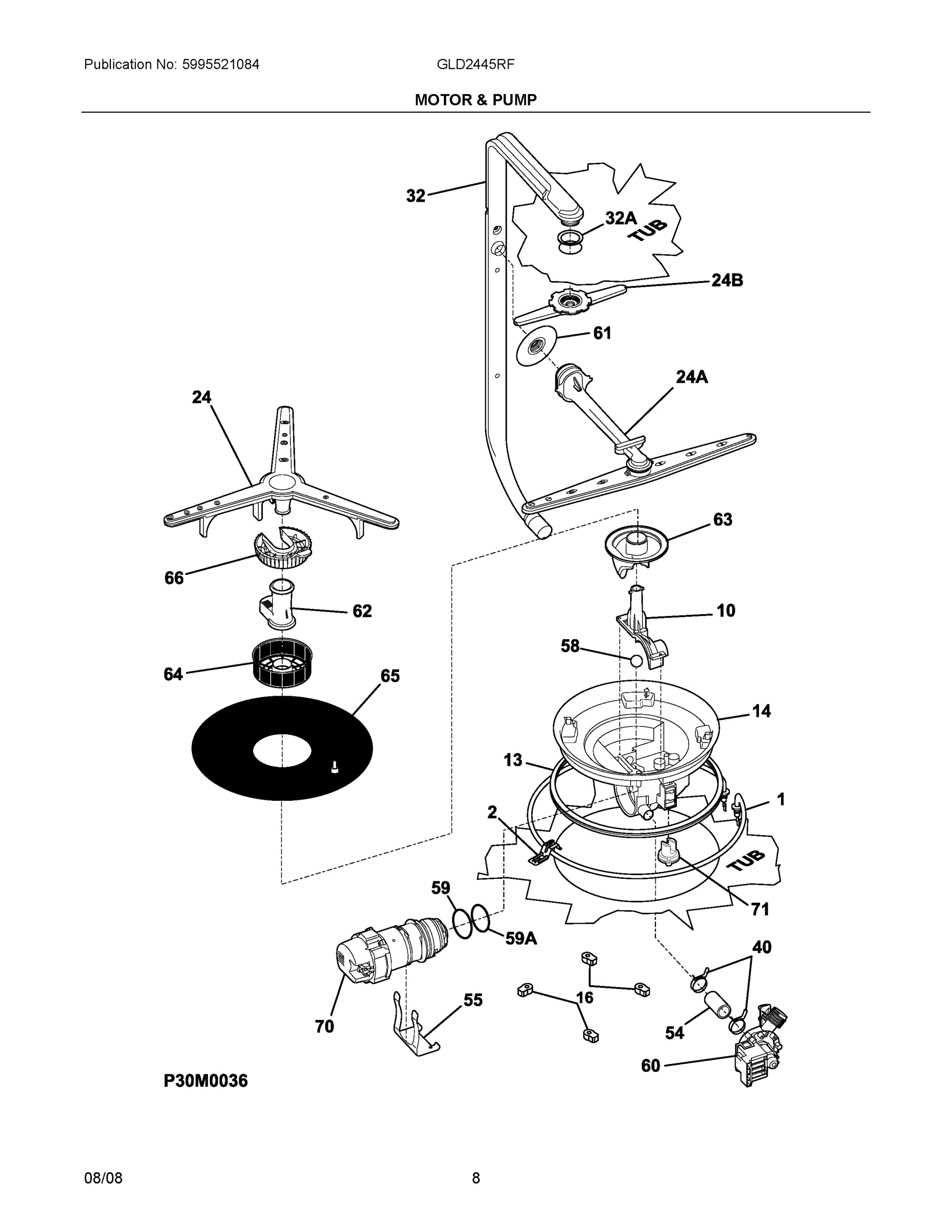

154580301 Frigidaire Drain Pump Assembly In Stock WCI 154580301 $32.98

61

5304506517 Frigidaire Dishwasher Grommet Asse In Stock WCI 5304506517 $9.79

62

5304518968 Frigidaire Lower Spray Arm Support In Stock WCI 5304518968 $7.13

65

154283005 Frigidaire Dishwasher Filter Assemb Backorder WCI 154283005 $148.68

66

5304532206 Frigidaire Trap In Stock WCI 5304532206 $4.66

71

154473901 Frigidaire Dishwasher Sensor Backorder WCI 154473901 $122.86

5304538695 Frigidaire Door Insulation Backorder WCI 5304538695 $0.91

808690701 Frigidaire Dishwasher Screw Backorder WCI 808690701 $2.22

SCREW, #10-16 X 3/8 WCI 154200601 Contact Us For Availability

PIN, ARM ASSY WCI 154529101 Contact Us For Availability

154106202 Frigidaire Dishwasher Heater Nut In Stock WCI 154106202 $4.80

154294701 Frigidaire Dishwasher Screw Backorder WCI 154294701 $5.77

154297701 Frigidaire Dishwasher Screw Backorder WCI 154297701 $8.46

154380601 Frigidaire Dishwasher Clamp Assembl In Stock WCI 154380601 $45.83

154478901 Frigidaire Dishwasher Gasket Backorder WCI 154478901 $38.37

154491101 Frigidaire Dishwasher Screw Backorder WCI 154491101 $2.22

O-RING, TURBIDITY WCI 154376001 Contact Us For Availability

SCREW, TRUSS SS, 8 .625, (7) WCI 5303316032 Contact Us For Availability

SCREW, DOOR MTG., (2) WCI 5304428306 Contact Us For Availability

NIB

154289801 Frigidaire Dishwasher Shield Backorder WCI 154289801 $4.89
